May it please your Oddship, Brethren and Guests of Y^e Sette of Odd Volumes. The origin of this little paper is very simple. Just eleven months ago we had the delight of listening to the very interesting and instructive communication upon the work of that wonderful mechanical genius, electrician, and prestidigitateur, Robert-Houdin, presented to us by my very good friend, our revered Seer, Brother Manning. With the object of contributing something to the discussion which followed that paper, I began to make a few notes upon Automata, with which subject the name of Robert-Houdin must for ever be [12] associated; I soon found, however, that the subject was so comprehensive and went back into such remote periods of antiquity, that to do it even the most scanty justice would require a paper devoted to itself alone; and, as our esteemed Pilgrim and Past-President, Brother Holme, was at that time pressing me for a paper with that persistency and importunity which characterized his presidentship and gave it so much of its success, I, as a loyal Odd Volume, felt bound to obey the mandate of his Oddship; and, holding the honourable office of Mechanick to the Sette, I have chosen “Automata Old and New” for the subject of this communication.

The word Automaton would in its strictest and most comprehensive sense include all apparently self-moving machines or devices which contain within themselves their own motive power, and in this sense such machines as clocks and watches, and even locomotives and steamships might be included. I shall, however, throughout this paper limit myself [13] to the more restricted and more ordinarily accepted meaning of the term, namely, such self-moving machines as are made either in the forms of men or of animals, or by which animal motions and functions are more or less imitated.

As mechanics, next to mathematics and astronomy, is the most ancient of sciences, and as the scientific knowledge of the ancients was ever shrouded in mystery to conceal it from the eyes of the vulgar, and to confer upon the initiated power and profit by working on the credulity of the ignorant, it was but only to be expected that mechanical science should be early applied in the ancient mysteries by which the philosophers and the priests of antiquity maintained so much of their supremacy.

One of the very earliest allusions to mysterious self-moving machines is to be found in the eighteenth book of the “Iliad,” wherein we are told of Vulcan that [14]

Several others of the ancient poets besides Homer have sung about the wonderful mechanical devices of Vulcan, among which were golden statues, the semblances of living maids, which not only appeared to be endued with life, but which walked by his side and bore him up as he walked. Aristotle also refers to self-moving tripods, and Philostratus states that Appolonius of Tyana saw similar pieces of mechanism among the Brahmins of India; but this must have been nearly four hundred years after Aristotle wrote, and some nine hundred years after the time of Homer.

Then again we hear of Dædalus making self-moving statues, small figures of the gods, of which Plato in his “Menos” says that unless they were [15] fastened they would of themselves run away, and he puts this into the mouth of Socrates, who uses it as a figure to illustrate the importance of not only acquiring but of holding fast scientific truth that it may not fly away from us. Aristotle in referring to these statues affirms that Dædalus accomplished his object by putting into them quicksilver, but the learned mechanician Bishop Wilkins points out that “this would have been too grosse a way for so excellent an artificer; it is more likely that he did it with wheels and weights.”[2] We are moreover told by Macrobius [3] that in the temple of Hieropolis at Antium there were moving statues.

A contemporary of Plato and, it is said, his master, was Archytas of Tarentum, the celebrated Pythagorean philosopher, mathematician, cosmographer, and mechanician, to whom is accredited the invention of [16] the screw and of the crane. Archytas is said to have constructed of wood a pigeon that could fly about, but which could not rise again after it had settled; and Aulus Gellius (who lived in the reigns of Trajan, Hadrian, Antoninus Pius, and Marcus Aurelius), tells us in his “Noctes Atticæ,” that “many men of eminence among the Greeks, and Favonius, the philosopher, a most vigilant searcher into antiquity, have in a most positive manner assured us that the model of a pigeon, formed in wood by Archytas, was so contrived as by a certain mechanical art and power to fly; so nicely was it balanced by weights and put in motion by hidden and inclosed air. In a matter so very improbable we may be allowed to add the words of Favonius himself: ‘Archytas of Tarentum, being both a philosopher and skilled in mechanics, made a wooden pigeon which had it ever settled would not have risen again till now.’”[4] And I am bound to admit that in this point I agree with him. [17]

From the above description it would appear that a still greater invention than a flying automaton was made by Archytas, for in an apparatus “so nicely balanced by weights and put in motion by hidden and inclosed air,” we have a very fair forecast of the modern aërostat or balloon, filled with gas and balanced by ballast. There cannot be any doubt but that the accounts of these very early machines (if such ever existed at all), have been greatly exaggerated during the process of being handed down through long ages of ignorance and credulity; but we may now enter upon surer ground although still very ancient. In the reign of Ptolemy Euergetes II. (Ptolemy VII.), about 150 years b.c., there lived at Alexandria that great genius of mechanical science, Hero; and his remarkable book “Spiritalia,” of which I am able to show you several copies to-night, is itself a great storehouse of ingenuity in the construction of automata of very various forms and principles. This remarkable man was, if not the inventor, the [18] first describer of the siphon in both its typical forms, the syringe, the well-known portable shower-bath, the clack valve, the fire engine, even with that mechanical refinement, an air vessel for insuring a continuous stream, a self-trimming lamp, the steam blowpipe, the pneumatic fountain called after his name, a steam engine, and last if not least, the penny-in-the-slot automatic machine for obtaining a drink, or, may be, a charge of scent.

I propose now to show you on the screen some photographic reproductions of pages in his book, some taken from the Latin edition of Commandinus, published at Urbino in 1575, and some from the Italian edition of Alessandro Georgi, printed at the same place in 1592, some from the fine edition of Aleotti, published in 1589, and others from the Amsterdam version of 1680, all of which editions I am able to show you. I have, moreover, copied some from manuscripts in the British Museum, [19] of the fifteenth and sixteenth centuries, of which there are four in the National Library, i.e., two in the Harley Collection and two among the Burney manuscripts.

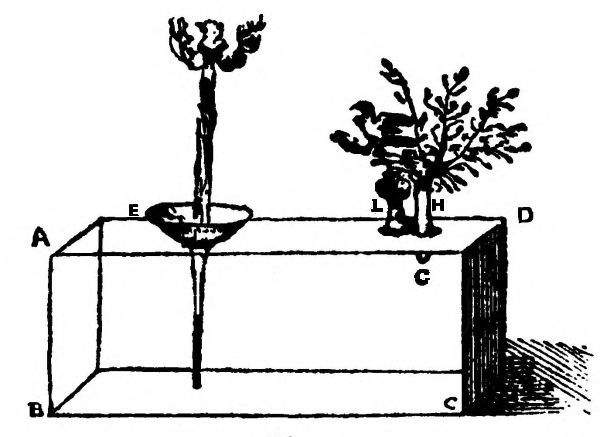

The first illustration I shall show you from Hero’s work is a bird which, by means of a stream of water, is caused to pipe or sing. This little automaton consists of a pedestal (A B C D) (Fig. 1), which is in reality a water-tight tank fitted with a funnel (E), the stem of which reaches nearly to the bottom; to the right of this there is a little [20] bush on which sits a bird, and a tube (G H) leads up from the roof of the tank and terminates in a little whistle, the end of which dips into a cup (L) containing water. When water is poured into the funnel, the air in the tank is driven out through the tube and whistle (G H) and, bubbling through the water, sounds as if the bird were singing. Thus the well-known bubbling bird-whistle dates back to a century and a half before the Christian era or earlier.

The next illustration (Fig. 2) shows a more elaborate arrangement, in which there are four small birds being watched by an owl; the moment the owl’s back is turned the birds begin to sing, but cease as soon as he turns towards them. In this apparatus the birds are made to sing in precisely the same way as in the last illustration, namely, by the displacement by water of the air in the tank, but as soon as the level of the water in the tank reaches the top of a concentric siphon (F G) the water is discharged into a bucket, the birds cease to sing, and the [21] bucket, owing to its increased weight, lifts the counterbalance weight (Z), and in doing so turns the spindle (P M) which supports the owl (R S). When the bucket is full its contents are discharged by a small siphon within it and it is drawn up by the weight (Z) the owl turns its back to the birds, and the cycle of operations is repeated.

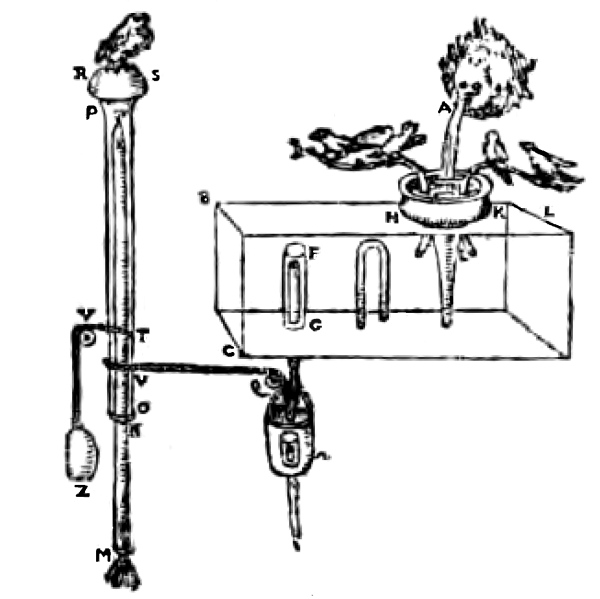

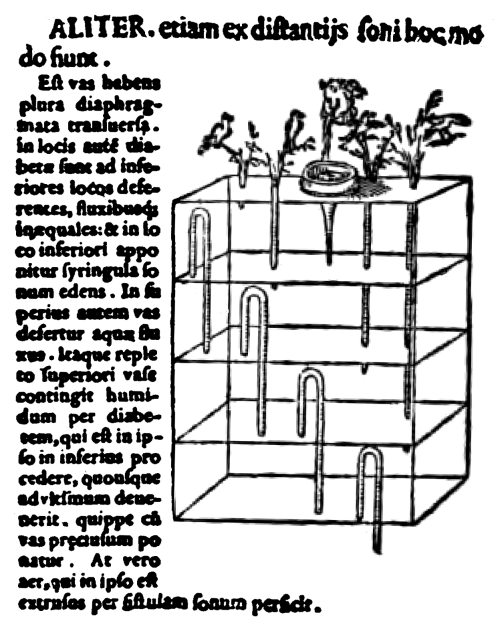

[22] In the next figure a still more elaborate effect is produced. Here is a pedestal upon which are four little bushes each having a bird sitting in its branches; when water is allowed to flow into the funnel the first bird begins to whistle, and after a few minutes leaves off, when [23] the next bird begins, and when he has finished the third bird sings, after a little time the fourth takes up the song, and when he has finished the first begins again, and so on as long as water is flowing into the funnel. These effects are produced in the simplest possible manner, by a combination of as many superposed tanks as there are birds to sing, the one emptying into the other by siphons. The illustration explains itself.

[24] In the next device (Fig. 4) we have a bird whose singing is intermittent. In this case the water flows into a little cup which topples over the moment it is full, emptying itself into the funnel and immediately righting itself (being loaded at its bottom), the sound is produced by the displaced air escaping through a whistle in the manner already described.

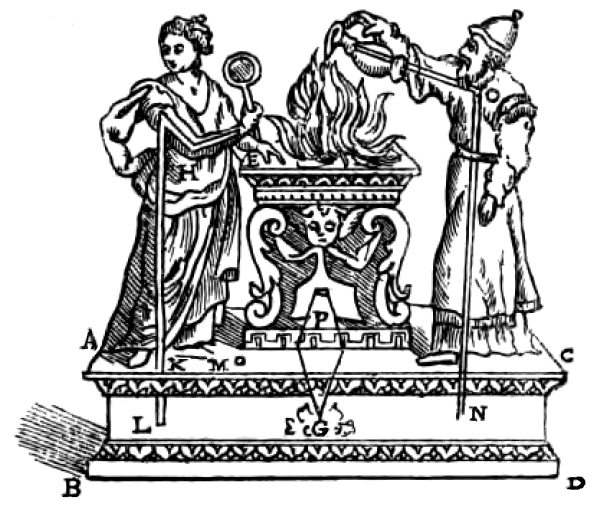

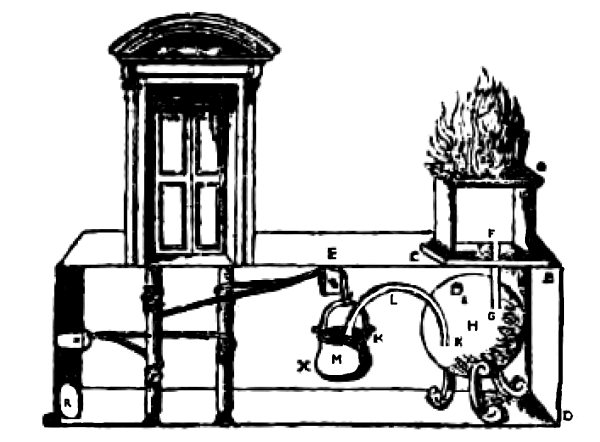

We now come to a different class, in which heat is employed for obtaining an increase of air pressure whereby certain automatic actions are produced. Here we have a priest and priestess officiating at an altar; and the effect of lighting the fire thereon is to cause the two figures to pour libations onto the sacrifice. In this case the altar consists of an air-tight metallic box in communication, by means of a central tube, with a larger box forming the pedestal. Into this lower reservoir is poured the wine or other liquid through the hole marked M. When the fire is lighted the air in the altar is expanded, and pressing on the surface of the liquid in the pedestal, forces some of it through the tubes which pass through the body and down the right [25] arm of each figure. In the next view (Fig. 6) we see how this principle was employed by Hero for the opening of the doors of a temple, the tradition being that when a sacrifice was offered on her altar the goddess Isis showed her invisible presence by throwing open the doors of her sanctuary. In this case the altar consists of an air-tight [26] metallic box communicating by means of a tube (F G) with a spherical vessel (H) partly filled with water. When the altar becomes hot the contained air is expanded, thereby increasing the pressure on the surface of the water, some of which is therefore forced through the bent tube (L) into the bucket (M), which descends by its increased weight, thereby unwinding the cords from the two spindles that perform the function of hinges to the temple doors, at the same time winding up [27] the counterweight (R) on the left. When the fire goes out the altar cools, assuming its ordinary atmospheric pressure, and the water in the bucket is forced back into the vessel (H), and the weight counterbalancing the empty bucket, closes again the doors.

Like many other geniuses who have lived before their time, Hero had his plagiarists, his devices having been adopted and described by later writers without one word of acknowledgment as to their authorship. From the middle to the end of the seventeenth century several books appeared which to a great extent were simply bad and erroneous copies of Hero’s inventions, and not even intelligently copied. Here for instance (Fig. 7) is a facsimile of an illustration in a curious old book, “The Mysteries of Nature and Art,” by John Bate, published in 1635; this is poor Bate’s attempt to steal Hero’s device for the temple doors, showing an altogether impossible scheme. In the first place the doors could not open at all, for the ropes are so coiled as to neutralize [28] each other’s action, and, secondly, the counterweight to the right has its cord simply looped round the spindle and therefore is absolutely useless; the accompanying description is even more absurd, for it explains the action of the apparatus as follows: “The fier on the Altar will cause the water to distill out of the Ball into the Bucket, which when (by reason of the water) it is become heavier than the waight, it will draw it up and so open the sayd gates or little doores.”

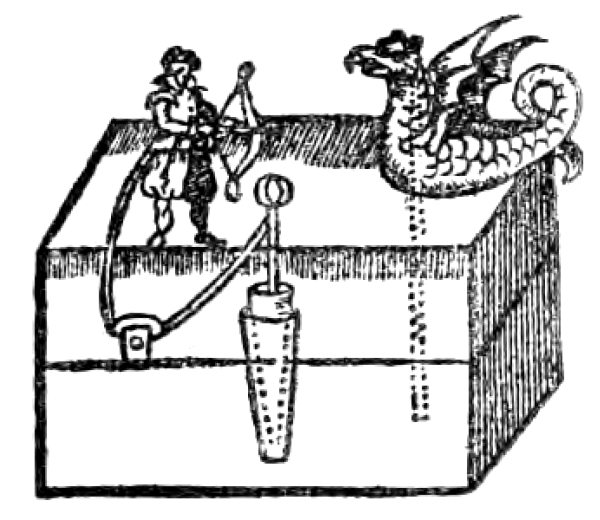

[29] Again, in one of Hero’s illustrations a revolving disc carrying little figures was made to rotate upon the reaction principle of his own Æolipile, or steam engine. By a little bit of bad perspective the ends of the cross tubes were shown as turning alternately up and down, and Bate not only repeats this error, but goes out of his way to point out that “in the middest” there must be “a hollow pipe spreading itself into foure severall branches at the bottom: the ends of two of the branches must turn up and the ends of two must turn down,” thus making any rotative action impossible.

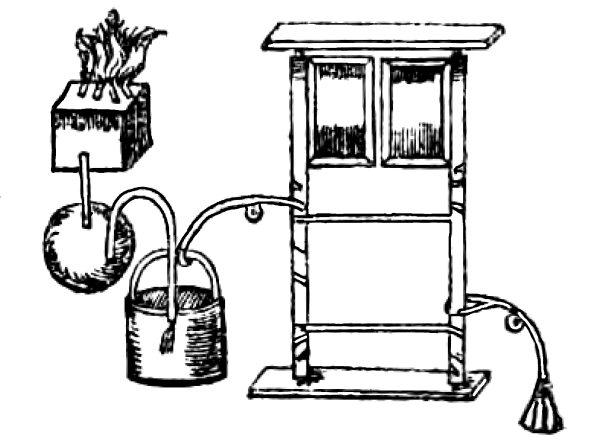

But Bate was not the only pirate of Hero’s work; a few years after Bate had written, that is, in 1659, there appeared another curious book by Isaak de Caus, upon Water Works,[5] and in that book we find our old [30] friend the owl keeping the small birds in order, the only difference being that this is a more indulgent owl, or perhaps he is a teacher of singing, for in this case the birds sing while he is looking at them and cease the moment he turns his back.

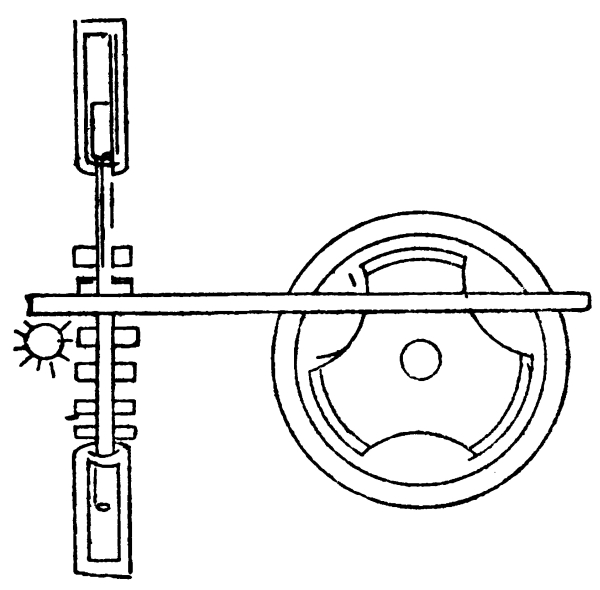

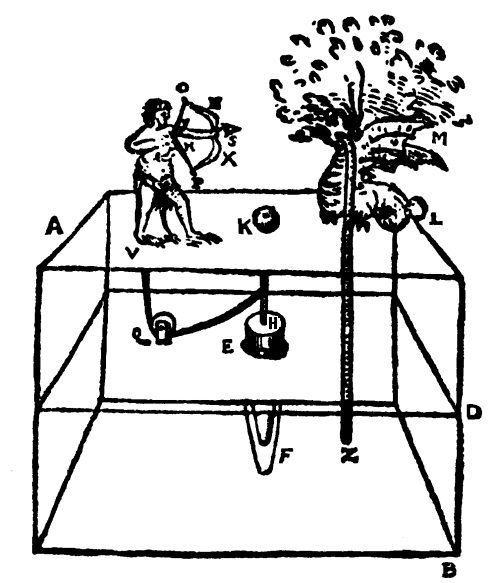

[31] Another pretty conceit of Hero’s is shown in Fig. 8, in which there is a bird which not only makes a noise but at certain times will drink any liquid which is presented to it. The flow of water being intermittent, the cistern forming the pedestal is alternately filled and emptied. While it is being filled the air escapes through a whistle and causes the bird to sing, and when it is being emptied, by means of a siphon, a partial vacuum is produced and liquid presented to it is drawn up through the beak.

The next automaton from Hero is very ingenious and interesting, because it combines hydraulic, pneumatic, and mechanical actions. Here (Fig. 9) is a figure of Hercules armed with a bow and arrow; there is also a dragon under an apple tree, from which an apple has fallen to the ground. Upon the apple being lifted, Hercules discharges the arrow at the dragon, which begins to hiss and continues to do so for some minutes. In this apparatus there is a double tank having a connection [32] by a valve (H), which is attached by a cord to the apple (K), another cord, passing over a pulley, connects the apple with a trigger in the right hand of Hercules. Upon lifting the apple the trigger is [33] released, and at the same time the valve is opened, allowing the water in the upper tank to flow into the lower, by which means air is forced through a tube (Z) into the dragon’s mouth, producing a hissing sound, and this will continue until the upper tank is empty. Here (Fig. 10) is Bate’s version of the same device, but very inferior to that from which it was taken.

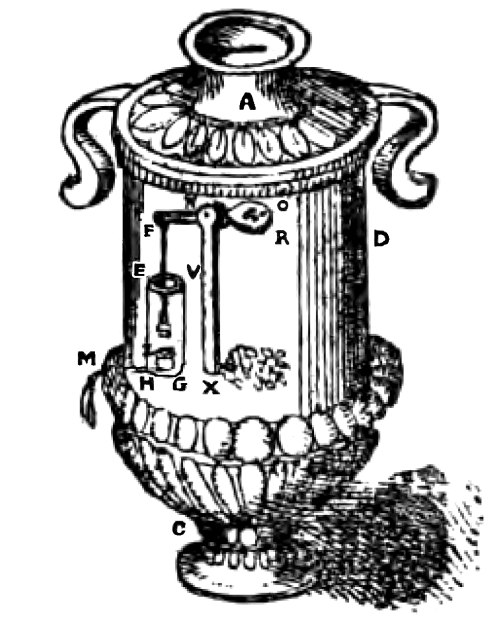

[34] The next photograph is taken from another work of Hero’s, “Quatro theoremi aggiunti a gli artifitiosi spiriti,” a copy of which I have here (Fig. 11), and which was printed at Ferrara in 1589.

This figure illustrates a very elaborate automaton, representing one of Vulcan’s workshops in which you will see a smith forging a piece of iron, and assisted by three hammermen. The smith first puts his iron in the fire and then lays it on the anvil when the hammermen begin to hammer it; then they leave off, and the smith turns round again to the fire. All these effects are produced by the machinery below the floor, and shown in the illustration. A shaft (A B) is driven by means of a water-wheel on the right, and on this shaft are projections or cambs which, by striking the ends of three levers (T, X, and V), pull the chains by which the arms of the hammermen are lifted. While this is going on the bucket (marked 20) is slowly filling, and when a sufficient weight of water has accumulated in it, it lifts the counterweight (17), and, in doing so, rotates the vertical shaft to [35] which the figure of the smith is attached, turning him round to the fire, and at the same time, by swinging round the conduit pipe (H I), cuts off the water from the wheel, and the hammermen cease to work until the smith is again ready for them. I think you will agree with me that this machine offers very fair evidence of the mechanical ingenuity of a man who flourished more than 2,000 years ago.

The last automaton of Hero to which I shall refer is perhaps the most ingenious of all, and it is one that those who were present when Brother Manning gave us his discourse on Robert-Houdin have already seen, I mean the little figure whose head cannot be severed from his body no matter how many times a knife be passed through his neck. Thanks to the kindness of my good friend I can show you one of these beautiful figures presented to me by him, and it will, I think, be of interest to him and to you to know that this device was invented nearly [36] 2,000 years before Robert-Houdin was born, and a description of it with accompanying figures may be seen to-day in the British Museum in a Greek manuscript of the fifteenth century, which is a copy of Hero’s Σπειριταλια, and I now throw on the screen a carefully made facsimile (Fig. 12) of the figure given in that manuscript (which is known as No. 5605 of the Harleian Collection).

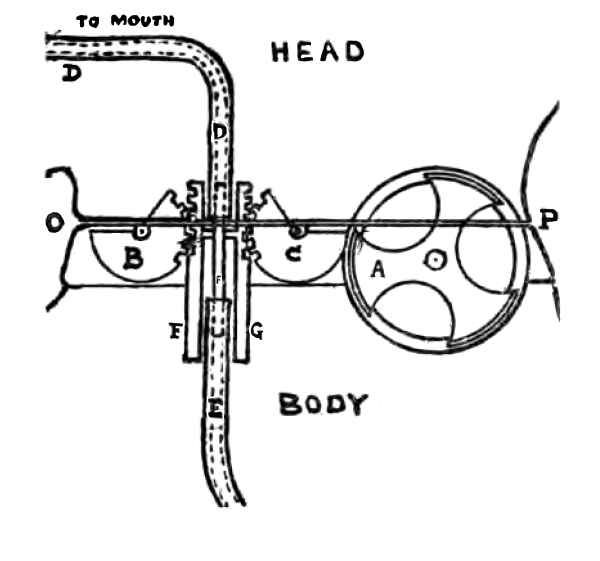

The head of this figure, which is otherwise separate from it, is attached to it by a peculiar shaped wheel pivotted between the shoulders of the body. This wheel may be described as a circular disc having an expanded rim so that a section taken through a radius would be of the form of the letter T, out of this wheel three nearly semicircular gaps are cut, each occupying sixty degrees of the circumference, and therefore leaving three portions of the rim, each also of sixty degrees. The neck attached to the head is fitted with a hollow T shaped circular groove into which the T ended [37] arms of the wheel pass in succession as the wheel is rotated. As the groove in the head occupies nearly sixty degrees it follows that as the wheel is rotated the rim of one arm can never leave the groove before [38] the rim of the following arm has entered it, and so the head is attached to the body in every position of the wheel. When the knife is passed between the head and the body it strikes against one of the spokes of the wheel, moving it forward and pushing one of the arms out of the groove in the head, while, at the same time, another, following behind the knife, takes its place, and thus the head can never be detached from the body. Such an automaton is the little negro which I hold in my hand, for which I am indebted to the fraternal generosity of Brother Manning. Hero’s description, however, carries the ingenuity of the device considerably farther, for in his automaton, not only is it impossible to sever the head from the body by passing a knife through the neck, but the figure can actually drink both before and after the operation. The illustration on the screen (Fig. 13) is a sort of modern restoration of the Harley drawing, showing the disposition of the various parts of the mechanism. (A) represents the wheel by which the [39] head is held on to the body, and it will be noticed that a tube D D leads from the mouth to the neck and another, E, from the neck through the body; these two tubes, marked respectively D D and E, are connected by the sliding tube F, which is attached to the two racks F and G, into [40] which are geared the two toothed wheels B and C. When the knife is passed from P to O it first rotates the holding-on wheel A, and then strikes against the radial face of the wheel C, turning it through a small arc, thereby moving the racks, and, sliding the connecting tube F out of D, allowing the knife to pass, which next strikes the radial face of the wheel B, and, by turning it, restores the sliding connecting tube F into D, and thus recompletes the connection. The sucking-up the liquid being accomplished in a similar manner to that in the drinking bird already described.[6]

I have now done with Hero of Alexandria, but, before passing to another period, I cannot resist showing you an invention of his which although not an automaton is too interesting in the light of modern civilization to omit. This (Fig. 14) is Hero’s automatic penny-in-the-slot machine for giving a drink in exchange for a coin. If a “coin of five drachmas” [41] be dropped into the slot it falls on a little plate at the end of a lever thereby opening a valve and allowing the liquid to escape through the nozzle.

It is more than probable that Hero was not himself the inventor of all the devices he describes, it is possible that many are due to Ctesibius whose pupil he was, and it is clear, from his own writings, that he was acquainted with the writings of Philo and of Archimedes. He was, [42] however, the first to describe these inventions, and therefore it is only fair, in the absence of other evidence, to give him the credit.

There can be no doubt that puppets or dolls are of great antiquity; they were common with the ancient Egyptians, and here (Fig. 15) is an illustration of a doll from Thebes which is now in the British Museum, and you will notice that the head is covered with holes which served for the insertion of strings of beads to represent hair. Puppets were also in use with the Greeks, and afterwards found their way to Rome, and it is an interesting fact that, about three years ago, while the ground was being excavated for the foundations of the new Palais de Justice at Rome, at a spot not far from the Vatican, a stone coffin was discovered containing the skeleton of a young girl of about fifteen years of age, who had teeth of great beauty, and in her arms was a [43] beautifully modelled wooden doll with jointed limbs which was dressed in a rich material. The interment had taken place in the time of Pliny, who refers to the child, and mentions that she was engaged to be married, a statement which is supported by the fact that on one of the fingers is a doubly-linked gold ring, besides other ornaments. The coffin, with its contents as they were found, is now in the museum in the Capitol and it is, I believe, the only instance of an ancient doll having been found in Rome, although moving puppets or marionettes were known in very ancient times, and are referred to by Xenophon, Aristotle, Horace, Antoninus, Galen, and Aulus Gellius.

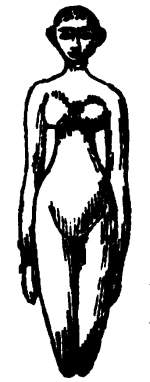

The next figure is an illustration of what I suppose must be the very earliest moving doll in existence to-day; it is now in the Museum van Oudheden at Leyden, and is a toy which belonged to a child of ancient Egypt; I have constructed a model of it by which you will see that it is worked by pulling a thread; and here I must make a passing reference [44] to the notorious phallic figures which were carried in procession during the festivals of Osiris and in the Dionysia of Bacchus. We are told by Lucian [7] that “Among the several sorts of Phalloi which the Greeks set up in honour of Bacchus there were figures of dwarfs with moving parts actuated by strings, which were called ‘Νευροσπαστα’.” In so eminently proper a community as We are in Ye Sette of Odd Volumes, I am unable to describe these figures in detail, or to exhibit them in action, but those who are curious as well as odd will find [45] abundant evidence of them in the writings of Herodotus, of Lucian, of Pausanias, of Athenæus, of Plutarch, of Gyraldus, and of several other writers.

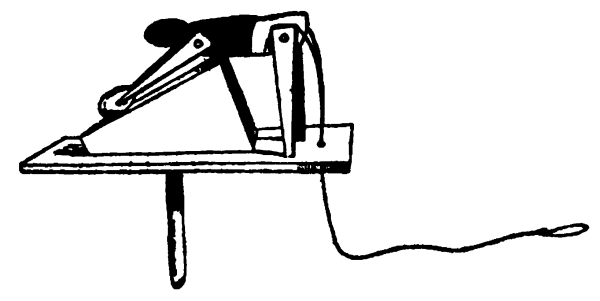

The earliest forms of moving puppets were set in motion by strings pulled by hand which were afterwards supplanted by cylinders turned by a winch, and the transition from that arrangement to the use of weights and springs was inevitable and was only a question of time.

From the time of Hero I have found nothing worth recording for nearly a thousand years, until the time of Charlemagne, to which monarch was presented by the Kalif Haroun al Raschid a most elaborate water clock. In front of the dial, and corresponding to the hours, were twelve little doors, and the time was shown by these doors opening one after another, each releasing a little brass ball which fell upon a small bell; after all the hours had struck, that is, at noon, another door opened, twelve little knights rode out, and, after careering round the [46] dial, they closed the doors and retired. The eminent mechanician Gerbert who occupied the papal chair in a.d. 1000, reigning under the name of Silvester II., is said to have constructed a speaking head of brass, and was in consequence arrested for practising magic, and Albertus Magnus, who flourished in the thirteenth century, spent, according to his own account, thirty years in the construction of an automaton of clay which not only spoke but walked and answered questions and solved problems submitted to it. It is recorded that his pupil, the celebrated St. Thomas Aquinas was so horrified when he saw and heard this figure that (believing it to be the work of his Satanic Majesty), he broke it into pieces, when Albertus cried aloud: “Sic periit opus triginta annorum.” I deeply regret this mischievous act of St. Thomas Aquinas, because it renders it impossible for me to show it to the Brethren and our guests this evening. Roger Bacon also is said to have made a similar automaton. [47]

Records of speaking androides or talking heads reach us from very early times. At Lesbos there was a head of Orpheus which delivered oracles and predicted to Cyrus his violent death, and we have it on the authority of Philostratus that the head was so celebrated for its oracular utterances, among both the Greeks and the Persians that even Apollo became jealous of its fame.

Then again the mighty Odin had among his mystical possessions a speaking head, believed to be that of Minos, which Odin preserved by encasing it in solid gold. He is said to have consulted it on all occasions, and its utterances were regarded as oracles.

Mention might here be made of the colossal figure of Amunoph III. on the plain of Thebes, and which is commonly known as the “vocal Memnon,” of which a photograph is now before you; it is the more eastern of the two Colossi, and, when the first rays of the morning sun fell on it, it [48] emitted a sound which has been described as similar to that of the snapping of a harp string, but it has been silent since the time of Severus. It is a seated figure nearly sixty feet in height, and is in no sense an automaton, but I mention it here because it was believed to utter sentences which the ancient priests of Egypt alone, for the very best of reasons, knew how to interpret.

In more modern times we hear of the eminent Dr. Wilkins, Bishop of Chester (who married the sister of Oliver Cromwell, and who may be regarded as the founder of the Royal Society), experimenting upon the transmission of sound; and Evelyn, in his “Diary,” writing on the 13th of July, 1654, says, “We all dined at that most obliging and universally curious Dr. Wilkins’s, at Wadham College. He had contrived a hollow statue, which gave a voice and uttered words”; and in his “Mathematicall Magick,” (a copy of which I have here) which was published in 1648, Wilkins refers to the speaking figures of the ancients. [49]

A contemporary of Wilkins was the celebrated Edward Somerset, Marquis of Worcester, who in his “Century of Inventions” gives as his 88th device: “How to make a Brazen or Stone-head in the midst of a great Field or Garden, so artificial and natural that though a man speak never so softly, and even whispers into the eare thereof, it will presently open its mouth, and resolve the Question in French, Latine, Welsh, Irish or English, in good terms uttering it out of his mouth, and then shut it untill the next Question be asked.”—But, unhappily, he does not tell us how it may be done.

The great period for the construction of automata began at the close of the fourteenth century, and reached its climax at the end of the seventeenth and beginning of the eighteenth century. One of the earliest mechanicians who devoted his skill to automata was Johann Müller, of Königsberg, commonly known as Regiomontanus. This eminent mathematician and astronomer made of iron a fly which is said to have [50] left his hand and, after flying to each of the guests in the room, returned to its master, alighting on his hand. Müller made also a still more wonderful machine; this was an artificial eagle which, on the authority of Peter Ramus, flew to meet the Emperor Maximilian on his entry into Nuremberg on the 7th of June, 1470. After soaring aloft in the air, Ramus informs us, the eagle met the emperor at some distance from the city, then returned and perched upon the city gate where it awaited the emperor’s approach. On his arrival the bird stretched out its wings and saluted him by bowing.

It is a remarkable fact that not one of Müller’s contemporaries, who often refer to this learned man and to his great accomplishments, makes any reference to these pieces of mechanism, and Peter Ramus was not born until forty-five years after, but they are referred to by Baptista Porta, Gassendi, Lana, and Bishop Wilkins, who, however, differ considerably in their dates. Strada, in his “De Bello Belgico,” tells [51] us that the Emperor Charles V., after his abdication in 1556, took a most keen interest in automata of various kinds, and he employed a very skilful artist, Janellus Turrianus, of Cremona, to construct them for him. This mechanic made figures of horsemen which marched along the table, played upon flutes and drums, and entered into combat with one another, and he exhibited wooden birds which flew up to their nests (they must, I think, have been wood pigeons). This Janellus Turrianus was evidently a very wonderful man, for he made a corn-mill so small that it could be concealed in a glove, and yet could grind in a day as much corn as would supply eight men with food. I never saw this machine myself, and I cannot help thinking that either the glove must have been rather large or the appetites of the men must have been rather small. Apart, however, from the exaggeration of the genius of this man, he was undoubtedly a most skilful mechanician, for he repaired and [52] considerably improved a most complex clock constructed by Wilhelm Zelandin for the city of Padua, in which moving figures and astronomical phenomena were represented.

The addition to clocks of automata set in motion by the train was a very favourite occupation of the horologists of the sixteenth century. Of these clocks perhaps the most celebrated was that at Strasburg, which was constructed by Conrad Dasypodius. This clock was finished in the year 1573. Apart from its interesting representations of various celestial phenomena, it is remarkable for the number of moving figures which embellish it, and which perform various functions; above the dial the four ages of man are represented by symbolical figures; one passes every quarter of an hour, marking the quarter by striking on a bell; the first quarter is struck by a child with an apple, the second by a youth with an arrow, the third by a man with his staff, and the fourth [53] by an old man with his crutch. After these follows the figure of Death, who, after sounding the hour on a large bell, is expelled by a figure representing Christ, while two small angels are set into motion, the one striking a bell with a sceptre, while the other turns over an hour-glass at the expiration of an hour. There are, besides, various animals, and among them a cock, which flaps its wings and crows just before the clock strikes the hour.

The great clock at Lyons, the work of Lippius of Basle, is hardly less interesting. Besides exhibiting mechanical illustrations of astronomical phenomena, a complete cycle of operations representing scriptural events is performed. Before each hour strikes a cock comes forward and crows three times, after which angels appear, who by striking upon a gamut of bells ring out the air of a hymn, and this is followed by a moving group illustrating the Annunciation of the Virgin and the descent of a dove, and the cycle is completed by the striking of the hour. [54]

In the Royal Palace of Versailles there was a very curious clock, the work of Martinot, a clockmaker of the seventeenth century. Before it struck the hour two cocks flapped their wings and crowed alternately, then two little doors opened and a figure came out of each carrying a gong which was struck by armed guards with their clubs. These figures having retired, a door in the centre opened and an equestrian figure of Louis XIV. came out. At the same time a group of clouds separated giving passage to the figure of Fame which hovered over the head of the king. An air was then chimed upon the bells, after which the figures retired; the two guards raised their clubs and the hour was struck.

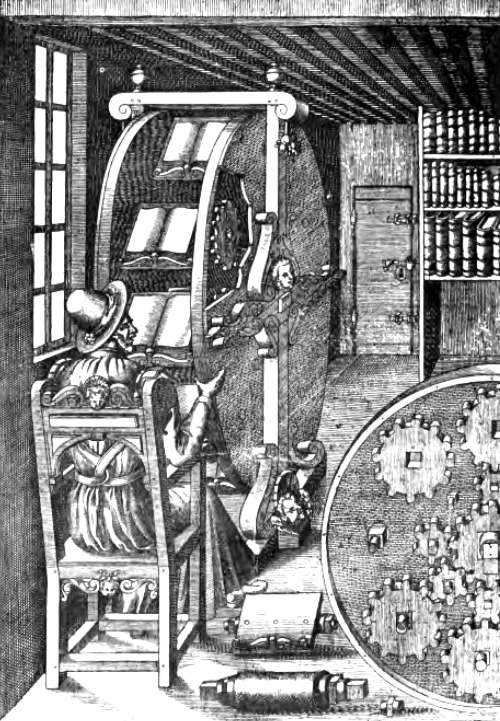

In the year 1788, Agostino Ramelli published his important work “Le diverse ed artificiose Machine,” and I have reproduced some of the plates in that beautiful book, a copy of which is before me (one of which, Fig. 17, see Frontispiece, I have chosen to adorn the menu which is on the table, for no other reason than that it appeared especially appropriate as figurative of the desire of your humble Mechanick to be for ever associated with Ye Sette of Odd Volumes).

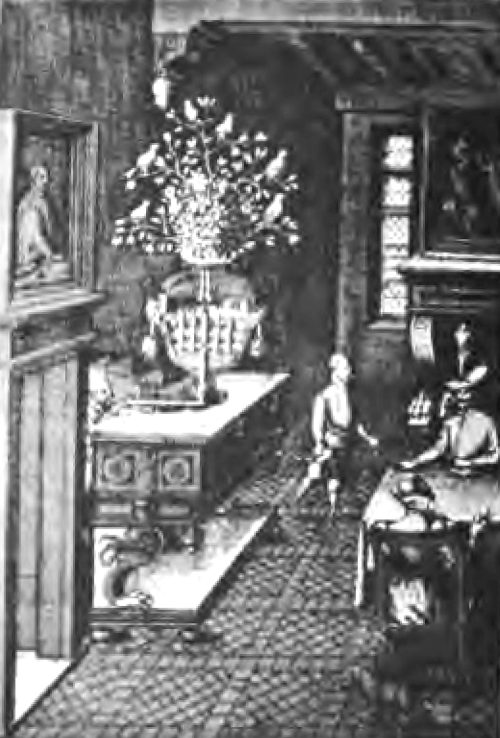

[55] In the next illustration (Fig. 18) we have a beautiful plate from Ramelli, in which another of Hero’s inventions, the group of singing birds is introduced as an ornament in an elaborately furnished room of the period. In this case the water is in the first instance lifted by air being blown in through a pipe by a person concealed behind the wall which in the drawing is broken away to show a mediæval old buffer engaged in this manly performance.

About the middle of the seventeenth century magnetism began to be employed for producing the effects of magic, and that extraordinary versatile all-round Odd Volume, Athanasius Kircher, in his “Magnes sive de Arte Magnetica,” which was published in 1641 (a copy of which I have here), describes and illustrates several automata which depend for [56] their action upon magnetism. Here, for example (Fig. 19), he gives a representation of the Dove of Archytas, which by the action of a revolving loadstone, is made to fly around a dial and mark the hours by pointing to the figures on its edge.

Time will not permit me to say as much about this curious old book as its quaintness and terribly bad science deserve, I will only show you one more illustration from it in which a wheel is driven round by two Æolipiles in the form of human heads, which blow out jets of steam against the cellular periphery of the wheel, and in the lower figure the little boilers (C and D) which the heads inclose, are shown separately, the nozzle of one pointing upwards, while that of the other has a downward direction.

[57] When Kircher’s book was published Louis XIV. was a child, and it is stated by several authorities that both Père Truchet and Camus made the most elaborate automata for his boyish amusement, but as Louis XIV. was forty years old when Truchet came of age and fifty-five When Camus was twenty-one it is difficult to reconcile these statements with facts.

Putting aside, however, the question of the period of life when the king amused himself with such things, it is well authenticated that Père Truchet, towards the end of the seventeenth century, constructed for him moving pictures which exhibited extraordinary mechanical skill. One of these was the representation of a five-act opera, the scenery of which was automatically changed between the acts. The actors came on and went off, and performed their parts in pantomime. The proscenium was [58] about sixteen inches in breadth and thirteen in height, and the whole of the machinery with the scenery occupied a space only an inch and a quarter in depth.[8]

The account given by Camus of a toy he constructed for this baby king of fifty summers is very wonderful. This elaborate automaton consisted of a small coach drawn by two horses and which contained the figure of a lady with a footman and a page behind. When this little coach was placed on the edge of a suitable table the coachman smacked his whip and the horses immediately started, moving their legs in a most natural manner; when they reached the opposite edge of the table they turned sharply at right angles and proceeded along that edge. As soon as the carriage arrived opposite the king it stopped and both the footman and page got down and opened the door, the lady alighted, and, curtseying to the king, presented a petition. After waiting a few minutes she bowed [59] again to the king and re-entered the carriage, the page got up again behind, the coachman whipped up his horses and drove on, and the footman running after the carriage jumped up into his former place. In the account given by M. de Camus he does not attempt to describe the mechanism of the machine and we have his word alone for the account of its performance.

The great philosopher Descartes formed the theory that all animals are merely automata of a high degree of perfection, and, to prove his notion, he is said to have constructed an automaton in the form of a young girl to which he gave the name of “Ma fille Francine.” This figure came unhappily to a watery grave, for during a voyage by sea the captain of the vessel in which it was travelling had the curiosity to open the case in which Francine was packed and, in his astonishment at the movements of the automaton, which were so wonderfully natural, he threw the whole thing overboard, believing it to be the work of the devil. [60]

I now come to what are, if not the most extraordinary pieces of mechanism, certainly the most wonderful automata the world has ever seen. In the year 1738 that great mechanical genius M. Vaucanson, a member of the Académie des Sciences exhibited at Paris three very remarkable automata which were, a flute-player, a figure which played the shepherd’s pipe of Provence and the drum, and an artificial duck. The first of these, the flute-player, he described in a Memoir read before the Académie on the 30th of April, 1738. This automaton was a wooden figure six feet six inches in height, representing a well-known antique statue of a Faun, sitting on a rock and mounted on a square pedestal four feet six from the ground. It was capable of performing twelve pieces of music on a German flute, the instrument being really played as a man would play it by blowing across the embouchure and projecting the air with variable force by movable lips, which imitated [61] in their action those of a living player, employing a tongue to regulate the opening, and producing the notes by the tips of the fingers closing or opening the holes.

The mechanical devices in this automaton are so beautiful and so scientifically thought out, that I am only sorry that time will not permit me to describe them in detail, but I will try and make its general principles clear.

Within the pedestal was a train of wheel-work driven by a weight, which set into motion a small shaft on which were six cranks disposed at equal angular distances around it; to these six cranks as many pairs of bellows were attached (their inlet valves being mechanically opened and closed so as to make them silent in action). The air supplied by these bellows was conveyed to three different wind chests, one loaded with a weight of four pounds, one with a weight of two pounds, and the last having only the weight of its upper board. These wind chests communicated with three little chambers in the body of the figure, and [62] these chambers were all connected with the windpipe which passed up the throat to the cavity of the mouth and terminated in the two movable lips which, between them, formed an orifice that could be protruded or drawn back, and might be further modified by the action of the tongue.

The train of wheels also set into motion a cylinder twenty inches in diameter and two feet six inches long; on this were fixed a number of brass bars of different lengths and thicknesses which in their revolution acted upon a row of fifteen keys or levers; three of these corresponded to the three little wind chambers containing air at different pressures, and, by means of little chains, operated their respective valves. There were seven levers set apart for operating the fingers, their respective chains making bends at the shoulders and elbows of the automaton, and terminated at the wrist in the ends of what I may call metacarpal levers attached to the fingers which were armed at their tips with leather to imitate the flesh of the natural hand. [63]

The motion of the mouth was controlled by four of the levers, one to open the lips so as to give to the wind a greater issue, one to bring them closer together, and so contract the passage, a third to draw the lips backward and away from the flute, and the fourth to push them forward over the edge of the embouchure.

The last of the fifteen levers is the cleverest of all, for it has the power of controlling the tongue, an accomplishment which I think everyone (unless he be an Odd Volume) will agree with me is a very difficult one to acquire.

The barrel worked upon a screwed bearing (similar to that of the cylinder of a phonograph), so that in its revolution all the levers described a spiral line sixty-four inches long, and, as the barrel during the performance made twelve revolutions it followed that the levers passed over a distance of no less than 768 inches in going through its performance of twelve tunes. [64]

In a Memoir read before the Académie des Sciences, M. Vaucanson described the very beautiful methods by which the barrel was set out, and by which the positions of the bars were determined on its surface so as to regulate the supply of air and to control the actions of the fingers, the motion of the lips and the movements of the tongue; and he gave a most interesting analysis of the acoustics of wind instruments; but time will not permit me to make more than this passing reference to them.

The picture on the screen (Fig. 21) is a photographic reproduction of the plate attached to M. Vaucanson’s Memoir (a somewhat rare little tract published in 1738) in which his three automata are shown, and I hold in my hand a copy of the translation by Dr. Desaguliers, published in London in 1742, which, the imprint tells us, was “sold at the long room at the Opera House in the Haymarket, where the mechanical figures are to be seen at 1, 2, 5, and 7 o’clock in the afternoon.”

[65] The second of Vaucanson’s automata was his celebrated model of a duck, which he himself described in a letter to the Abbé de la Fontaine in 1738. This extraordinary automaton (according to the inventor’s own account of it), exhibited a considerable amount of physiological and anatomical knowledge and the most profound mechanical skill, for in it the operation of eating, drinking, and digestion, were very closely imitated. The duck stretched out its neck to take corn from the hand, it swallowed it and discharged it in a digested condition, the digestion being effected not by trituration, but by dissolution, and (to quote the quaint expressions of the inventor), “The matter digested in the stomach is conducted by pipes (as in an animal by the guts), quite to the anus, where there is a sphincter that lets it out. I don’t pretend,” he says, “to give this as a perfect digestion, capable of producing blood and nutritive particles for the support of the animal. I hope nobody will be so unkind as to upbraid me with pretending to any such thing. I only pretend to imitate the mechanism of their action [66] in these things, i.e., first, to swallow the corn; secondly, macerate or dissolve it; thirdly, to make it come out sensibly changed from what it was.” But (on the same authority), besides being furnished with a digestive system, the wings were anatomical imitations of nature; not only was every bone imitated, but all the processes and eminences of each bone, and the joints were articulated as in a real animal.

After having been wound up, the duck ate and drank, played in the water with his bill, making what is described as a “gugling” sound, rose up on its legs and sat down, flapped its wings, dressed its feathers with its bill, and performed all these different operations without requiring to be touched again.

It is important, however, to point out that this digestion story can only be “digested” cum grano salis, and this is supplied in the sequel which furnishes the explanation. In the year 1840 the automaton was found hidden away in a garret in Berlin; it was very much out of [67] order, and a mechanician of the name of Georges Tiets undertook to repair it. It was taken to Paris, and in the year 1844 was exhibited in the Place du Palais Royal. In the course of this exhibition one of the wings became deranged, and it was put into the hands of Robert-Houdin for repairs. Robert-Houdin took advantage of this opportunity for examining the so-called digestive system of the automaton, and he thus describes its action:

“On présentait à l’animal un vase dans lequel était de la graine baignant dans l’eau. Le mouvement que faisait le bec en barbotant divisait la nourriture et en facilitait l’introduction dans un tuyau placé sous le bec inférieur du canard; l’eau et la graine, ainsi aspirés tombaient dans une boîte placée sous le ventre de l’automate, laquelle se vidait toutes les trois ou quatre séances. L’évacuation était chose préparée à l’avance; une espèce de boullie, composée de mie de pain colorée de vert, était poussée par un coup de pompe et [68] soigneusement reçue, sur un plateau en argent, comme produit d’une digestion artificielle,” so that, after all, this wonderful digestion of Vaucanson’s duck was nothing more than a clever trick.

The third automaton of Vaucanson was a figure that played on a shepherd’s pipe with one hand while it beat a drum with the other. The instrument played upon was a little pipe with only three holes, and the different notes were produced by a greater or less pressure of air and a more or less closing of the holes, and every note, no matter how rapid was the succession, had to be modified by the tongue. In this machine there were provided as many different pressures of air as there were notes to be sounded, and the mechanism by which these operations and the fingering of the keys were effected reflects the greatest credit on the memory of this remarkable man.[9]

[69] The Automaton duck of Vaucanson was, to a certain extent, anticipated by the Comte de Gennes, Governor of the Island of Saint Christopher, who, we are told by Père Labat, constructed a peacock which could walk about and pick up grains of corn, which it swallowed and digested. I have no means of determining whether or not Vaucanson took the idea of his duck from this automaton, but that Vaucanson had imitators there is abundant evidence to prove. In the year 1752, Du Moulin, a silversmith, travelled all over Europe with automata similar to those of Vaucanson, and they were afterwards purchased in Nuremberg, by Bereis, a counsellor of Helmstadt, at whose place they were seen by Beckmann in 1754.

In the year 1760, there was a writing automaton exhibited in Vienna, which was constructed by Friedrich von Knaus, and about the same time a [70] number of very curious automata were made by Le Droz, of Chaux de Fonds, in Neufchatel. One of these was a clock, presented to the King of Spain, which had, in addition to several moving figures, a sheep that bleated in a very natural way, and a dog mounting guard over a basket of fruit; if anyone attempted to touch the basket the dog barked and growled, and if any of the fruit were taken away the barking continued until it was restored.

The son of this man (who lived at Geneva), was no less skilful a mechanician, for he made a gold snuffbox about 4½ inches long by 3 inches broad, in which when a spring was touched a little door flew open and a beautifully modelled bird of green enamelled gold rose up, fluttered its wings and tail, and commenced a trilling song of great beauty and power, its beak keeping time with the notes. Such a snuffbox was exhibited in the Great Exhibition of 1851, proving as great a popular attraction as the Koh-i-nur diamond, and (owing to the kindness [71] of my friend Mr. Tripplin the well-known horologist) I am now able to show you one of these very beautiful triumphs of mechanical skill.

Another of the younger Le Droz’s inventions was his celebrated drawing automaton, which was a life-size figure of a man sitting behind a table and holding a style in his hand. A sheet of vellum was placed on the table, and the figure began to draw portraits of well-known persons with extraordinary correctness. This automaton was shown in London, and attracted considerable attention at the time.

I must now re-introduce to you another old friend, first shown here by Brother Manning. Here he is! a little acrobat that turns somersaults backwards down stairs. This is not, as many have thought, an invention of that great mechanical genius, Robert-Houdin, for it is figured and described in Musschenbroeck’s “Introductio ad philosophiam naturalem,” which was published in Leyden in 1762 (a year after the author’s [72] death), and half a century before Robert-Houdin was born, and on the screen you have a facsimile (Fig. 22) of Musschenbroeck’s illustration of this mechanical toy, which he refers to as “an old invention of the Chinese.” It is also described by Ozanam in his “Recréations Mathématiques et Physiques,” the first edition of which was published in 1694. The figure I now throw on the screen (Fig. 23), is taken from the second edition of this work which was edited by Montucla in 1790. The principle is exceedingly simple; the whole thing depends upon the [73] centre of gravity being suddenly changed by a shifting weight. Within a tube contained within the body, is a small quantity of mercury, and the moment that this tube is inclined to the horizon the mercury flows to the lower end tilting one figure over the other, and with such force [74] that it is carried over by its inertia far enough to tilt the tubes, and cause the mercury to flow to the opposite end, and the process is repeated as long as there are stairs to descend; by a very simple arrangement of strings passing over pulleys, the legs and arms are always brought into suitable positions to support the figure in every position of its descent.

I now come to the automaton which for some years was the wonder of every country in Europe, the automaton chess-player of the Baron Wolfgang von Kempelen, constructed in 1776. This automaton was a life-size sitting figure dressed as a Turk, and having before it a large rectangular chest or cabinet, 3 feet 6 inches long, 2 feet deep, and 2 feet 6 inches high, on the top of which was a chessboard and a [75] set of men. The seat on which the figure sat, was attached to the cabinet and the whole was on castors, so that it could be wheeled about the floor. When the automaton was exhibited, the exhibitor began operations by opening the doors of the cabinet so as to show its contents, and here I will throw on the screen a copy (Fig. 24) of one of the plates in a curious pamphlet,[10] printed anonymously in 1821, but probably by Professor Willis. It must, however, be recollected that these doors were opened in succession, and never all at the same time, but whichever door was opened, nothing could be seen but wheels, levers, connecting rods, strings and cylinders. After this the doors were closed and locked, the machinery was wound up, and the figure was ready to play a game of chess with any [76] one who would challenge him. On commencing the game the figure moved its head, and seemed to look at every part of the board. When it checked the king, it nodded its head three times, and when it threatened the queen, it nodded twice. It also shook its head when its adversary made a false move, and replaced the offending piece. It nearly always won the game, but occasionally lost.

When it was completed, it was exhibited in Riga, Moscow, St. Petersburg, Berlin, Presburg and Vienna, coming to London in 1783, and having been seen by many thousands during those years with out its secret being discovered, but in the year 1789, a book was published by Mr. Freyherre of Dresden, in which he showed that “a well taught boy very thin and tall of his age, (sufficiently so that he could be concealed in a drawer below the chessboard,) agitated the whole.” In the plate before you, you will see that the author has shown in dotted lines, the position a boy might take when the left hand door was opened. [77]

[78] The real story of this most ingenious and successful scientific fraud is so interesting that I must tell it here, although it puts for ever Baron von Kempelen’s chess-player outside the circle of true automata. In the year 1776, a regiment, half Russian and half Polish, mutinied at Riga. The mutineers were defeated, and their chief officer, Worouski, fell, having had both his thighs fractured by a cannon ball. He hid himself in a ditch until after dark, when he dragged himself to the neighbouring house of a doctor named Osloff, a man of great benevolence, who took him in and concealed him, but he had to amputate both his legs. During the time of Worouski’s illness, Osloff was visited by his intimate friend the Baron von Kempelen, and after many consultations and much thought, Kempelen hit upon the idea of conveying him out of the country by devising this automaton (as Worouski was a great chess-player), and in three months the figure was finished. [79]

In order to avoid suspicion he gave performances en route to the frontier. The first performance was given at Toula, on the 6th of November, 1777 (that is to say exactly 114 years ago to-day). The machine and Worouski were packed in a case and started for Prussia, but when they reached Riga, orders came from the Empress Katherine II., for Baron von Kempelen to go to St. Petersburg with his automaton. The Empress played several games with him, but was always beaten, and then she wanted to buy the figure. This was an awkward situation for Kempelen, and he was at his wits’ end to know how to wriggle out of it. He declared that his own presence was absolutely necessary for the working of the machine, and that it was quite impossible for him to sell it, and, after some further discussion, he was allowed to proceed on his journey.

This chess-player was, in the same year, purchased by Mons. Anthon, who took it all over Europe. At his death it came into the hands of Johann [80] Maelzel, the inventor of the Metronome, who sent it to the United States. It was afterwards sent back to Europe, and in the year 1844 was in the possession of a mechanician of Belleville, named Croizier.

Maelzel himself was a mechanician of very considerable skill, and he constructed an automaton trumpeter, which was exhibited at Vienna about the year 1804, which played the Austrian and French cavalry marches, and marches and allegros by Weigl, Dussek, and Pleyel. Maelzel was, after that, appointed mechanician to the Austrian Court, and constructed an automatic orchestra, in which trumpets, flutes, clarionets, violins, violoncellos, drums, cymbals, and a triangle, were introduced, and this attracted very great interest in the Austrian capital at the time.

In the year 1772 there was in Spring Gardens, near Charing Cross, a most remarkable collection of automata exhibited in a place of entertainment known as Cox’s Museum, and here I have an original copy [81] of the “Descriptive catalogue, of the several superb and magnificent pieces of mechanism and jewellery exhibited in Mr. Cox’s Museum, at Spring Gardens, Charing Cross.” To which this footnote is added, “Hours of Admission, 11, 2, and 7, every day (Sundays excepted), tickets Half a Guinea each, admitting one person, to be had at Mr. Cox’s, No. 103, Shoe Lane.” This was a very extraordinary exhibition, and contained upwards of twenty large and elaborate automata, several of them being adorned with gold and precious stones. Some were complicated clocks, some were large groups of animals, and figures with fountains and cascades around them. None of these objects was less than nine feet high, and some were as high as sixteen feet. I can find nothing important enough from a Mechanick’s point of view, to describe in detail, but it was the precursor in the same place of the exhibition of Monsieur Maillardet, which was one of the London attractions at the beginning of the present century. [82]

M. Maillardet exhibited a bird automaton (similar to that already referred to which was made by Le Droz), and whose performance lasted four minutes with one winding up. He constructed also a spider, entirely of steel, which imitated all the actions of the real animal, it ran round and round the table in a spiral line, tending towards the centre. Maillardet made automata representing a caterpillar, a mouse, a lizard, and a serpent; the last crawled about all over the table, darted its tongue in and out, and produced a hissing sound.

Maillardet’s most important automata were, however, his drawing and writing figure, and his pianoforte player. The former was a kneeling boy, who wrote in ink with an ordinary pen, sentences in English and in French, and drew landscapes. The pianist was a figure of a lady, who performed eighteen pieces of music. She began by bowing to the audience, her bosom heaved, and her eyes first looked at the music, and [83] then followed the motion of her fingers, and the music was produced by the keys being played on by the fingers; but the most remarkable of M. Maillardet’s machines, was a magician, or fortune-teller, which gave answers to some twenty given questions, which were inscribed on as many counters or medallions. One of these medallions having been put into a drawer, the figure arose from his seat, bowed to the audience, and described mystic circles in the air with his wand; after appearing to consult his book of mysteries, he struck a little door behind him, which flew open, and exhibited an appropriate answer to the question on the medallion.

The general principle upon which this automaton’s power of selection was founded lay in the fact that in the edge of each medallion there was a small hole drilled, but no two holes were drilled to the same depth, and, by an exceedingly delicate mechanism, the varying depth to which a pin could be thrust into the edge of a disc, was caused to control the mechanism by which the various answers were selected, and which were exhibited when the little door flew open. [84]

The next great master of automaton design and construction, was that wonderful genius Robert-Houdin (about whom our worthy Secretary and Seer discoursed to us so pleasantly and so instructively nearly a year ago). Brother Manning’s paper was so complete in itself, and that part of it which dealt with automata was so ably illustrated, that it will be quite unnecessary for me to add to the length of this communication, by going over that ground again, so I will merely enumerate the automata of that interesting man and pass on to still more recent times.

The first of the automata of Robert-Houdin was a confectioner’s shop, in which a pastry-cook came out of the door when requested and offered to the spectators patisserie, bonbons, and refreshments of every description, and within the shop might be seen the assistants making pastry, rolling out the dough, and putting it into the oven. Then he [85] made two clowns, known as Auriol and Débureau. The first of these performed a number of acrobatic feats upon a chair which was held at arm’s length by the other. After this, the figure of Auriol smoked a pipe, and accompanied on the flageolet an air played by the orchestra.

Another was an acrobat which performed tricks on the trapèze, and the last to which I shall refer, was his celebrated writing figure, which is illustrated in Brother Manning’s “Opusculum,” No. XXIV., to which I must refer you for a great deal of interesting information respecting that remarkable man.

A contemporary of Robert-Houdin was Mons. Mareppe, who constructed a very wonderful automaton violin player, and which was exhibited at the Conservatoire at Paris, in the year 1838, and which performed on the violin by bowing and fingering the strings, and in an account of the performance which was published at the time in “Galignani’s Messenger,” it is stated that the musical execution was so perfect as to bring tears into the eyes of the audience. [86]

Coming to our own period, from the time of Robert-Houdin, there have been no great automata which will live in the history of the subject, until the year 1875, when Mr. J. N. Maskelyne (who, I am happy to tell you, is honouring us with his presence to-night) exhibited at the Egyptian Hall his marvellous “Psycho.” This was a seated figure, supported by a cylindrical pedestal of glass which stood upon a little platform, and, being on castors, could be wheeled about the floor. This automaton can actually play a game of whist, selecting the cards from a rack in front of it, and playing a most skilful game. The machine works apparently without any mechanical connection with anything outside, and the delicacy and precision of its actions, display the most consummate skill in design, and give to its inventor a high position for mechanical science. This automaton also works out arithmetical [87] calculations, with numbers from one to a hundred millions, showing the result behind a door which opens in front of its box.

Another of Mr. Maskelyne’s automata, is the celebrated “Zoe” of 1877, a sitting figure supported like the last on a glass pedestal so as to exclude the possibility of an electrical system of communication. A sheet of paper is fastened on to the table in front, and the figure traces out very fair portraits of public characters chosen by the audience out of a list of some two hundred names.

In respect to these most beautiful machines I must refrain from revealing to you the secrets of their working, and that for two reasons, first, because I do not know them myself; and second, because Mr. Maskelyne is here and is doubtless only impatient to jump up when I sit down and tell us all about them.

I do not intend to say anything about speaking machines or to do more than make a passing reference to the very interesting work and [88] researches of Kircher in 1650, Van Helmont, 1667, Kratzenstein, in 1780, L’Abbé Mical, in 1783, Von Kempelen in 1791, Willis in 1829, Wheatstone in 1837, or of Faber in 1862. All these mechanicians and physicists studied the philosophy of speech and produced machines or parts of machines, which could utter vowels, words or even sentences, but these machines were operated by keys and stops and were, in no sense of the term, automata.

I must, however, refer to one of the greatest marvels of modern science, the phonograph which Mr. Edison has applied in the construction of his talking dolls. Edison’s talking doll is a figure, within which a little phonograph, driven by a little winch, is concealed, and which repeats in a clear voice any sentence or rhyme which may have been spoken against its recording cylinder or disc. I am deeply disappointed to be unable to show you one of these most interesting automata to-night, for one is on its way to me across the Atlantic. Colonel Gourand very kindly sent for one that I might show it [89] to you this evening, and I deeply regret that it has not arrived in time, for the Odd Volumes would, otherwise, have been the first to hear its voice in Europe.[11]

In the phonograph, that splendid triumph of acoustical and mechanical science, we have literally fulfilled, the prediction made by Sir David Brewster in 1883, when he wrote “I have no doubt that before another century is completed, a talking and a singing Machine will be numbered among the conquests of Science.”

No one who is familiar with any of the great European capitals can have failed to notice in the windows of the higher class of toy-shops, clock-work automata of various kinds. We have jugglers and rope dancers, conjurers, pianists, violinists, harpists and trumpeters, dancing niggers, figures fighting, knitting, sewing, writing, and [90] engaged in almost every occupation performed by human beings, but none that I have seen are fit for comparison with the wonderful mechanical works of Vaucanson, Robert-Houdin or Maskelyne; mechanically they are nearly identical with one another, and differ only in the external application of the internal machinery. At International Exhibitions one sees one or two of superior merit, but I have not recently seen any of sufficient importance to bring before you this evening. The pianists and other musicians merely move their hands on their instruments, but the music (save the mark) whether it be a violin or a trumpet, comes from a musical snuffbox inside which is generally wound up by a different key. These figures are usually very costly, and I am always puzzled to know who are the people who purchase them. The best are generally those mechanical toys which represent the movements of animals, and here I have a mechanical bear which is rather amusing, and it is ingenious because by a very simple combination of clock work with [91] cranks and strings a number of different motions is obtained; we have the mouth opening and shutting, the head going from side to side, the lips moving and the whole animal bowing to the spectators.

Within the last few years a most extraordinary amount of mechanical ingenuity has been brought to bear upon the construction of small automatic toys, which are sold in the streets for a few pence, and I think, even more than the extraordinarily simple and ingenious contrivances by which the various effects are produced, the great inventive merit consists in a design and method of manufacture by which they can be turned out, with a profit, at so insignificant a cost. I have brought together a few examples, a very minute fraction of the hundreds of forms that exist, but selected merely to illustrate the different types of principle of action.

A very favourite motive power is a wound up spring, consisting of strands of vulcanized india-rubber, and here I have one of the well-known butterflies which come out in Paris in 1878, where they [92] filled the air of the Avenue de l’Opera, the shops of which were then occupied chiefly by hawkers of toys. The motive power of this toy is nothing more than a light screw propeller or fan rotated by the untwisting of a spring, while on the body of the machine are two fixed wings or fins to prevent the whole machine from rotating. The action is wonderfully like that of an animal, perhaps most like that of a bat. Here again the same principle is applied in a running mouse, and this is especially interesting from the fact that the machine winds itself up the moment the tension of the cord is relaxed, and as the spindle of the wheels is the flexible rubber itself the peculiar scuttling action of a mouse is well imitated.

There is again a large class of mechanical toys in which there is a combination of a rubber spring with a wheel and escapement, the pallets of which by their reciprocating motion producing whatever effect may be desired; the swimming fish is one of them, the wagging of the tail being [93] produced in the way I have described. Here is another displaying considerable ingenuity. In this case an escapement wheel works a crutch which by a pair of cranks linked together causes each of two pugilists to turn a little way backwards and forwards on one heel, and the arms being hung loosely to the shoulders by rubber hinges give to the figures the appearance of hitting out vigorously.

I have here a couple of figures which I admit do not contain their motive power within themselves but they require so little aid from outside and do so much for themselves that I have been tempted to bring them in. Here is a monkey climbing a rope, and its progression is insured by the simplest possible device, the string passes over one pin and under another in his posterior hands while the anterior pair of hands grip the rope with a slight degree of friction: if the string be tightened the lower hands act as a lever which pushes the body up, but when it is slack it slips round the pins and does no work, in other [94] words the grip of the hands is greater than that of the feet when the cord is slack but less when it is tight.

In this little animated skeleton, we have an immense effect produced by an extraordinarily small external motion. The squeeze that I give to this U shaped spring, by varying the tension of the twisted strings, on which the skeleton is suspended, is almost infinitesimal—but it gives to the skeleton considerably more energy than is usually to be found in skeletons.

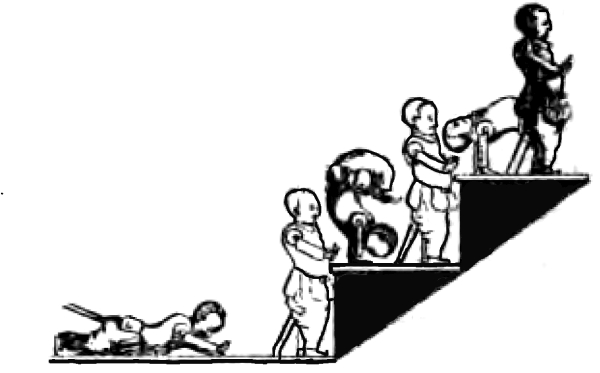

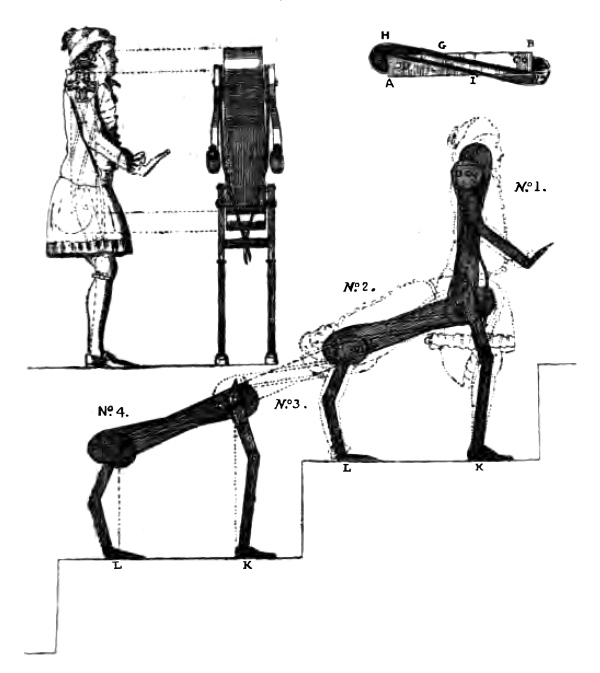

Here we have a walking figure whose action depends upon gravity, but his progression is checked by the friction of his feet on the board on which he performs, first one foot catches and then another, and each time his inertia turns him round, which gives him an appearance of having been in the company of teetotallers, or can he have been dining with the Sette of Odd Volumes?

A familiar form of mechanical or automatic toys is in the form of a box or frame having a glass front, behind which figures of acrobats, [95] rope-dancers and moving groups are set into motion by sand falling on a wheel within the case; and it is an ingenious feature of these toys that they are “wound up” by simply rolling the box over on its edge through one revolution, which has the effect of lifting the fallen sand back into the upper reservoir.

The last great class of mechanical figures, to which I shall refer, includes those which depend for their action upon the spinning of a top or fly-wheel, and some of them are particularly pretty and ingenious.

Here, for example, is a couple of figures, which the gentleman who sold it to me told me was “a Narry and a Narriet walking hout on ‘Ampstead ’Eath.” In this case the ruling spirit and go is as usual in the lady, and the man has to follow whither she leads, the legs of the man are connected together at the hips by a pair of cranks so disposed, that if one leg be pushed back, the other is thereby thrown forward. Now [96] the heels are so cut that they catch in the ground when in a forward position and can slide forward when behind; in being urged along, the forward leg catching in the ground is relatively pushed back and the other leg comes forward, which in its turn catches, and the effect of walking is produced.

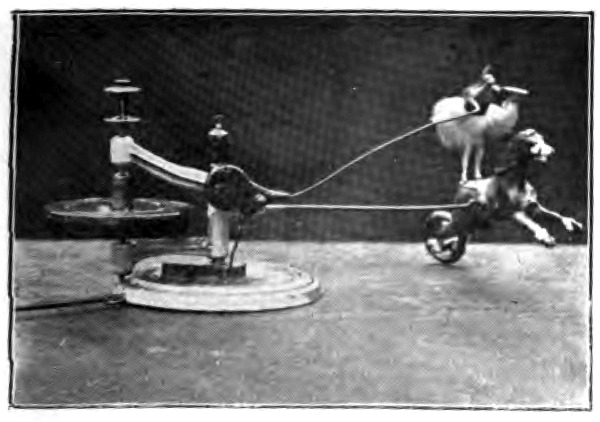

And here we have (Fig. 25) another on precisely the same principle, in which an ostrich appears to draw a cart, which in reality, is pushing him along, but the effect of the ostrich’s strut is delightfully reproduced.

Here is another in which several very curious motions are reproduced. This beautiful little mechanical toy (Fig. 26) represents a circus girl riding round the ring, and occasionally leaping over a bar or bowing to the audience, while the prancing action of the horse is ingeniously imitated. The motive power is derived from the spinning of a top or fly-wheel, supported in a frame attached to the bar to which the horse [97] is fixed; and, as the spindle of the top spins on the bevel edge of the circular base, the horse is caused to gallop round in a circle, and, being supported on the table by a roller mounted eccentrically on its axis, it prances up and down as it runs. The equestrienne is attached to a light lever pivotted on the rotating frame and revolving with it. Twice in its revolution this lever is lifted by a cam, forming part of the base; the first lift causes the figure to give a little bow, and the second, which is much greater, makes her leap over the bar under which the horse runs. This little machine is one of the most mechanically ingenious of the modern automaton toys, and it is made at the cost of only a few pence.

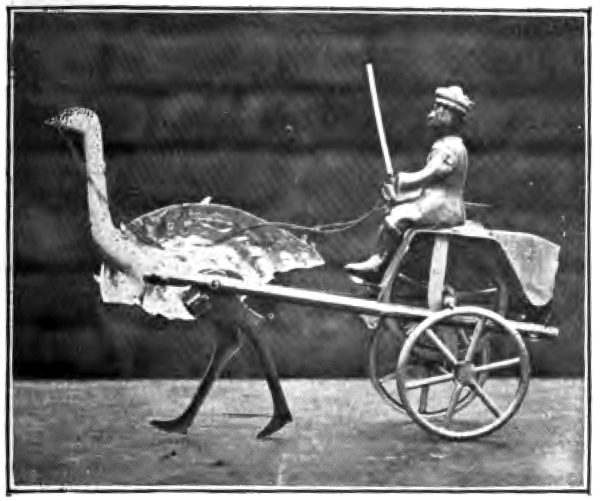

The last I shall show you is this elephant. In this little machine we have a fly-wheel, which with its vertical shaft looks like an umbrella over the Nabob who sits on the top, the vertical shaft passes into the body of the elephant, and there by a simple frictional gearing, rotates [98] a couple of cranks to which the legs are connected. The effect of spinning the umbrella is therefore merely to move the legs backwards and forwards; and, if that were all, no progression could be effected; but each foot rests on a little wheel or roller, which can only rotate in one direction so that while it catches the ground in its backward stroke it rolls freely over it while it is moving forward, and thus each leg in its turn contributes to the progressive movement of the toy.

Now I have come to the end, and it only remains to me to thank you all for having supported me by your presence in such numbers to-night, and to say to you in the words of Othello:
