The Indians of Carlsbad Caverns National Park

The National Park Service is dedicated to preserving the scenic, scientific, and historic heritage of the United States for the benefit and enjoyment of its people. Help protect your Park from its new exotic the “LITTERBUG.”

At work


Jack R. Williams

Cover by
Phyllis Freeland Broyles


Acknowledgements 2
The Indians of Carlsbad Caverns National Park 5
Early Man 9
The Carlsbad Basketmakers 10
The Mescalero Apaches 25
The Comanches 34
Bibliography 38
Footnotes 38


This booklet was prepared as an elementary basis for those interested in the Indians of this section. It is far from complete but if it answers only one question—the effort was well spent.

It is rare that research into any subject is done alone. This is no exception, for many are responsible in their contributions.

First, without the help, comments and criticism of Erik Reed this paper would have been nought. Then thanks must go to Charlie Steen and Stanley Stubbs for their pottery identification which helped establish the various time phases.

The persons listed in the bibliography represent the true basis of learning and I unhesitatingly refer one and all to them.

To Lynn Coffin for his encouragement and comments, grateful acknowledgement is made. To Bob Barrel for his help—talk, photos and all—thanks are extended.

Especial thanks must go to Mary Pauline Smith for taking care of the grammatical errors as well as typing the manuscript. And, to Phyllis Broyles for her art work.

The map, head sketches and photos not credited are by the author.

This is dedicated to my wife, Marie.

Copyright 1956 by Jack R. Williams, Carlsbad, New Mexico

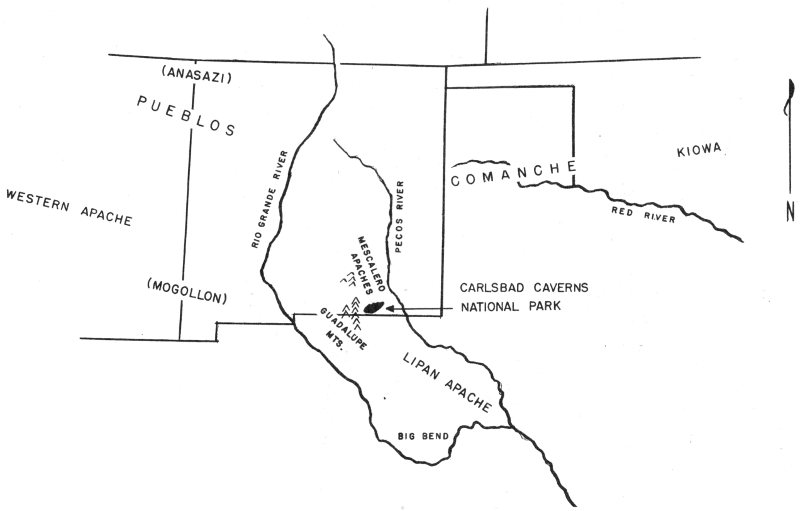

Map showing distribution of Indian groups

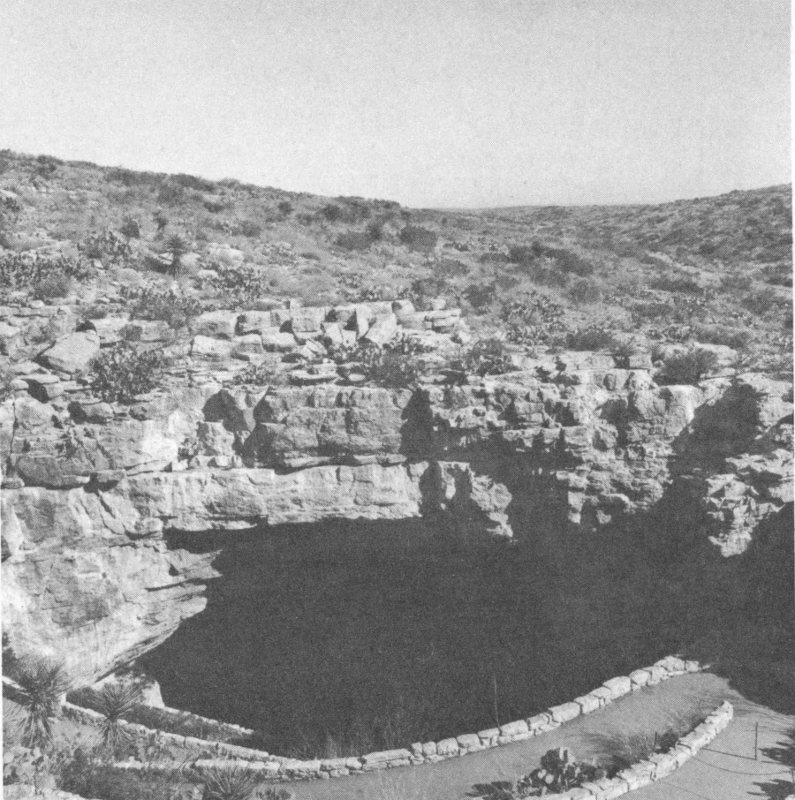

Natural entrance to the Carlsbad Caverns



The Indian story of the Park is quite complicated for several reasons. First, we cannot confine our story to the man-made boundaries of today, but to the natural geographic features which are mainly the Guadalupe Mountains. Second, we must deal with more than one group of people and outside cultural influences of each group. These groups, however, will be confined mostly to New Mexico and north and west Texas. Then, too, long periods of time must be taken into consideration.

So, let us start our story with man’s first entry into the new world some 15 to 25,000 years ago. Most archaeologists agree that man came from Asia via the Bering Straits, perhaps by a land bridge or over the ice. Undoubtedly many migrations over a long period of time were made by various small groups of peoples. These first people were nomadic followers of game and perhaps gatherers of seeds. Steadily moving southward, they eventually reached what is now southeastern New Mexico and north and west Texas. How long they lived here, where they went and who their ancestors were are unknown. Theory plus material evidence suggest that they may have evolved into what archaeologists call the Cochise complex to Basketmaker to Pueblo, with deviations in all groups. Yet, at the present time there is not enough evidence this last happened that simply, so we shall attempt to present the evidence as interpreted for each group or groups coming into contact with Carlsbad Caverns National Park and adjacent areas.

There appears to be a long time-lag between Early Man 6 and our next group, the Basketmakers. Positive proof indicates that the Basketmakers were here before 900 A.D., and possibly as early as 4000 years ago. Our Basketmakers, which are not to be confused in any manner with the San Juan Basketmakers, were a rather isolated group and tended to remain that way through numerous outside influences. While Pueblo groups to the west and north were progressing in agriculture, architecture, and esthetic arts, our group, because of their environment, remained more or less stable in their mode of life—hunter, and gatherers of seeds—in an area totally unsuitable for agriculture.

Next to enter our area were the Apaches from the north after 1300 A.D.(?) Whether they exerted pressure on the Basketmakers we do not know. After the Apaches acquired horses from the Spanish, thus making them mobile, different groups moved to other parts of New Mexico and Arizona. Branching to the south and southeast were the Mescalero and Lipan bands. The Mescalero band settled in an area which included the Guadalupe Mountains and surrounding districts whence they raided the Pueblo Indians and the Spanish until about 1725, when another Plains group, the Comanches, came into the country from the northeast. By pushing the Apaches north and west, the Comanches controlled a tremendous portion of the Southern Plains.

Quite probably all of the mentioned Indian groups knew of the entrance to the Carlsbad Caverns. However, physical evidence that they did was left by only one group—the Basketmakers. On the south wall of the natural entrance may be seen pictographs or paintings of some weather worn figures in red (ocher) and black (probably carbon). On the surface just above the cave mouth is a distinct “midden circle” or cooking pit. Many of these midden circles are found throughout the entire area and will be explained more fully in the chapter on the Carlsbad Basketmakers.

There is little physical evidence that any of the Indians went into the cave beyond the entrance which they obviously used as a means of shelter. It is very unlikely that they 7 ventured beyond the now Bat Cave section of the cave for several logical reasons. Light is the paramount factor in cave exploration, and the Indians’ only means of light would have been from rather crude torches of bark, grass, or wood, none of which gives off much light, nor burns for any appreciable length of time. Probably the young and agile only would attempt the precarious descent, if only to break the humdrum of everyday existence.

Upon first viewing the Caverns entrance, one readily notices the steep slope downward and the sheer drop to the floor of the Bat Cave section, and how, at the bottom of this drop, there is built up a sizeable pile of rubble. From this rubble and the bat guano deposits that led away from it in all directions have come numerous skeletal remains, burnt and worked stone, and fragments of woven articles, such as bags, sandals, and baskets. Burials were also found in the small solution pockets or holes seen in the vicinity of the paintings in the entrance proper.[1]

The Indians living any length of time in this area were concerned primarily with obtaining food, and this was a constant struggle. So, from this practical point of view, they wouldn’t have any business going into what we now call the scenic sections of the cave. On the other hand we cannot say they did not go down, because we know man’s curiosity can get the better of him sometimes. It is very logical to assume that, over the long period of time man has been in and around the area, someone climbed down and looked.

Some people are of the assumption that the superstitious nature of the Indians kept them out of the cave. True, man 8 has always been somewhat afraid of the dark and will probably always be so. That the Indians were superstitious of the bats, which fly out the entrance each summer evening in search of night-flying insects, is very questionable. First of all, if the people were afraid of the bats they would not have lived under the entrance overhang. This writer could find only one instance where bats were regarded other than “little brothers,” and this was a myth among the Guiana Indians of South America that concerned “big bats that suck humans dry of blood,” and also a “large bat that would carry people off.” The bats and night owls raided together, but the people overcame their fear and killed them.

Animals did not, as a rule, inhabit the cavern, so the Indians would not be down there hunting. Animals did from time to time stumble in; and, in 1946, there was found the skeletal remains of an extinct ground sloth. Beneath the entrance have been found skeletons of many small animals that died either from the fall or starvation.

Thus, we cannot say that the Indians went into the cave any distance, nor can we say that they did not, simply because we do not know.

To fully understand and appreciate the story of any group or groups of people, one must be acquainted somewhat with the country in which they lived. The country inhabited by the Indians of Carlsbad Caverns National Park has a wide temperature and altitude range, and four life zones (Upper and Lower Sonoran, Canadian, and Transition). The Guadalupe Mountains developed from a limestone reef laid down in a shallow sea during the Permian period of the earth’s history, over 200 million years ago. They are cut with many deep canyons containing numerous caves, but have little permanent water. Plant and animal life are abundant and varied. Due mainly to the lack of water, agriculture was not practiced in this particular area. The economy was one known as “hunting and gathering.”

Perhaps a brief description of each group that lived, hunted, and visited in this area will best picture how and why they did.



About all we can say for Early Man and the Park is that he was here. The only material remains found was a Folsom-like projectile point. This point was discovered in Burnet Cave in the Guadalupe Mountains in direct association with extinct animal bones.

What he looked like, we have no idea; but he was apparently a nomadic hunter and follower of game. Because he followed game is probably the main reason he arrived here from Asia in late Pleistocene times—15 to 25,000 years ago. He hunted the now extinct bison (antiquus), two species of the American horse (Equus fraternus and E. complicatus), a rare four-horned antelope (Tetrameryx), the California condor, camel, ground sloth, and a muskox or caribou-like animal (Bootherium sp.). Undoubtedly these old ones utilized plants for food too.

It is safe to assume that he dressed in skins, if he dressed at all. Whether caves were used as shelter we do not know; but quite probably they were, as the climate was pluvial.

The method of projection for the point mentioned likely was done either via a lance or the atlatl (spearthrower and dart). The latter is nothing more than a stick with a nock for the dart on one end. It extends and gives more leverage to the arm for throwing.

Where did he go? Some call him Folsom man; others say he is of the Cochise complex. He may have stayed where his descendants later became what we now call the “Basketmakers.”



Human head

The true occupants of Carlsbad Caverns National Park were a group of Indians known as “Basketmakers.” They may have been descendants of the early people, or perhaps a new and distinct group. This name was applied because these people made excellent baskets and other woven objects, and had some similarity in culture traits to the San Juan Basketmakers or Anasazi of the Four Corners area. Moreover, there is some similarity in culture traits to the Big Bend Basketmakers of Texas and the Ozark Bluff Dwellers. Perhaps the name best suited for this group would be “cave dwellers,” as they used caves of all sizes, from small overhangs to those of huge proportions, for shelter. Yet, it must be remembered that seasonally they lived in the open. However, to avoid later confusion, we shall refer to them as the Carlsbad Basketmakers.

The Carlsbad Basketmakers were an unusual group only “here and there adopting a few cultural traits from their neighbors, but essentially remaining food gatherers and hunters,” 11 a rather simple state of culture as compared to their contemporaries.

Our group was in contact with the Mogollon people to the west before 900 A.D., and possibly 600 years earlier. Pottery found here indicates this as well as other contacts. (See Map.) Pottery is somewhat like a fingerprint. There are certain features about it which are peculiar to only one particular area, and that is the area within which it was made. Consequently, pottery can show time, trade, contact, and movement of ceramic-making prehistoric peoples. At about this same time, social intercourse was also being carried on with the Hueco Basketmakers to the west and the Big Bend Basketmakers to the south.

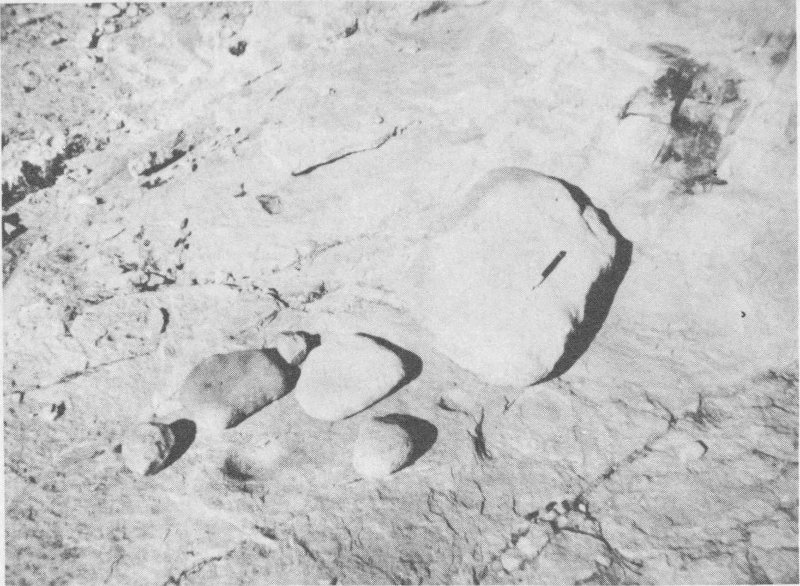

The combined use of metate and mortar was found here

After 1200, we find Chaco or true Anasazi influence coming into the Rio Grande valley to Gran Quivera, thence to southeastern New Mexico. This influence represents the Pueblo 12 Indians who apparently changed the Carlsbad Basketmakers’ way of life more than any other. This continued until sometime between 1500 and 1600, when a drastic and complete change came over all the aboriginal peoples in this section.

The Spanish entered the Southwest, bringing the horse, which prompted this change. The Apaches had slowly been working their way southward from sometime after 1300 A.D. By trade and theft they acquired horses from the Spanish, and, in so doing, the long and bloody career of the Apaches got under way. This freedom and rapidity of movement afforded by the horse allowed them to raid, pillage, and murder Indians and Spanish alike. It is about this time that we lose track of our Basketmakers.

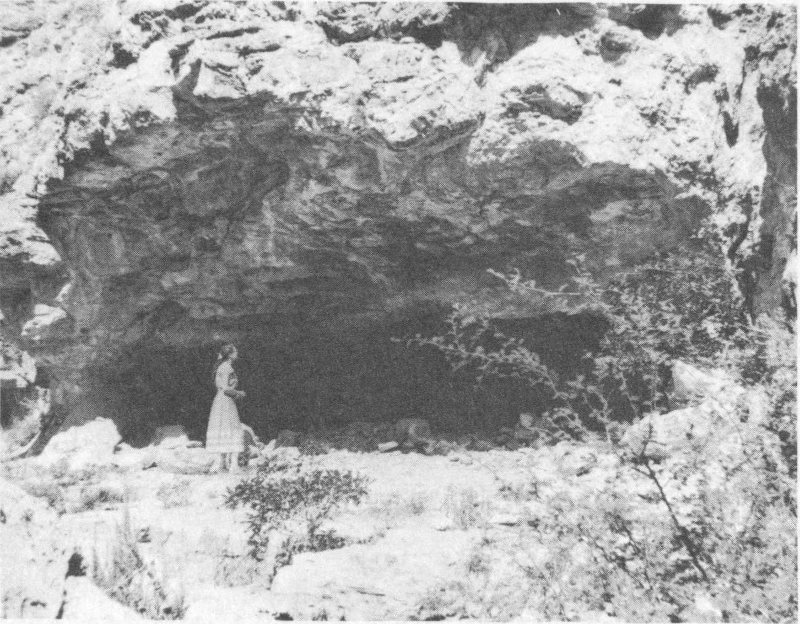

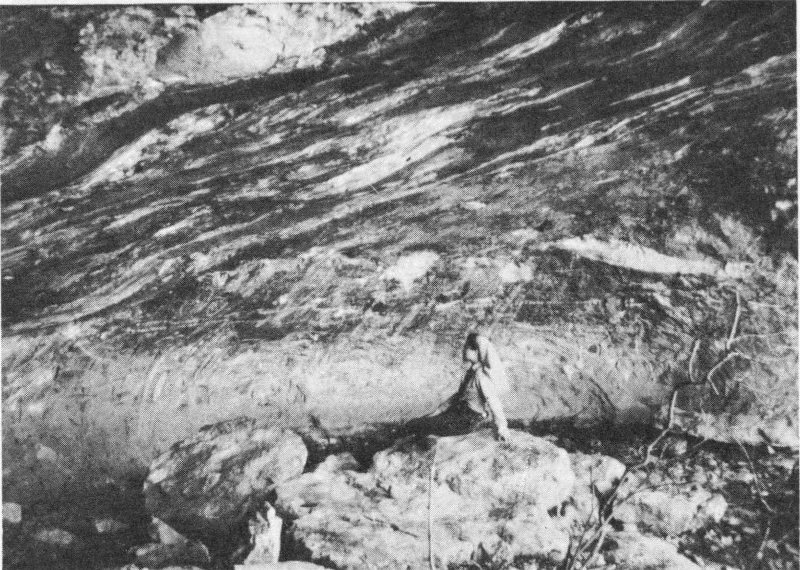

A small cave dwelling in Walnut Canyon

What happened to them is pure supposition. The Carlsbad Basketmakers, for defense or economic reasons, probably joined the Pueblo groups of either the Gran Quivera or El Paso 13 areas and became completely absorbed. Many Pueblo traits found here contribute to this supposition, such as pottery changes and physical changes of the people themselves. For example, the early Carlsbad Basketmakers were long-headed individuals (dolichocephalic). Near the end of their era the head shape changed by artificial deformation, or flattening, brought about by the use of a hard cradle board, to a broad head or brachycephalic type. All along the line there was an admixture of physical types, with the three types being present; long, medium (mesocephalic), and broad.

The Carlsbad Basketmaker would very likely fit into practically any present Pueblo group and not be noticed. He was of medium stature, about 5′4″-5′6″ in average height. His life span was between 30-35 years, and he suffered from arthritis, bad teeth, and broken bones quite often.

The material culture of a people is, perhaps, their most important characteristic, as it represents the utilization of the natural resources in a particular area or environment. Caves were used for a number of purposes: burial, ceremonial, transitory living, etc. It is from these caves that archaeologists dig out the material objects left by prehistoric people and are able to reconstruct the story of the occupants.

As previously mentioned, the name of our Carlsbad Caverns National Park Indians was applied because they made excellent baskets and woven objects. Coiled baskets of yucca with grass, sotol, or twigs of flexible wood as the binder were the most common. Most baskets have designs of various colors woven into them. Red-brown dye was probably made from mountain mahogany. The black was strips of Devil’s Claw (Martynia arenaria). Baskets were waterproofed by smearing pine pitch or mesquite gum on them.

Sandals of yucca and grasses are found in abundance. The square-toed sandal is the most prominent, although the round fishtailed type is common. Both were woven with a variety of ply-thicknesses. They ranged from 5 to 11 inches in length, and 2½ to 4 inches in width. The only known sandal fragment found in the natural entrance to the Caverns is of the square-toed type and is classed as a two warp-two ply.

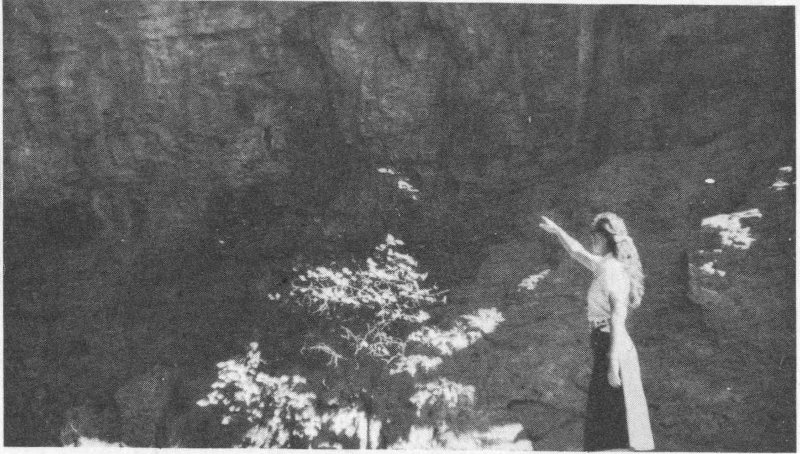

The Basketmaker paintings on the south wall of the natural entrance to the Carlsbad Caverns

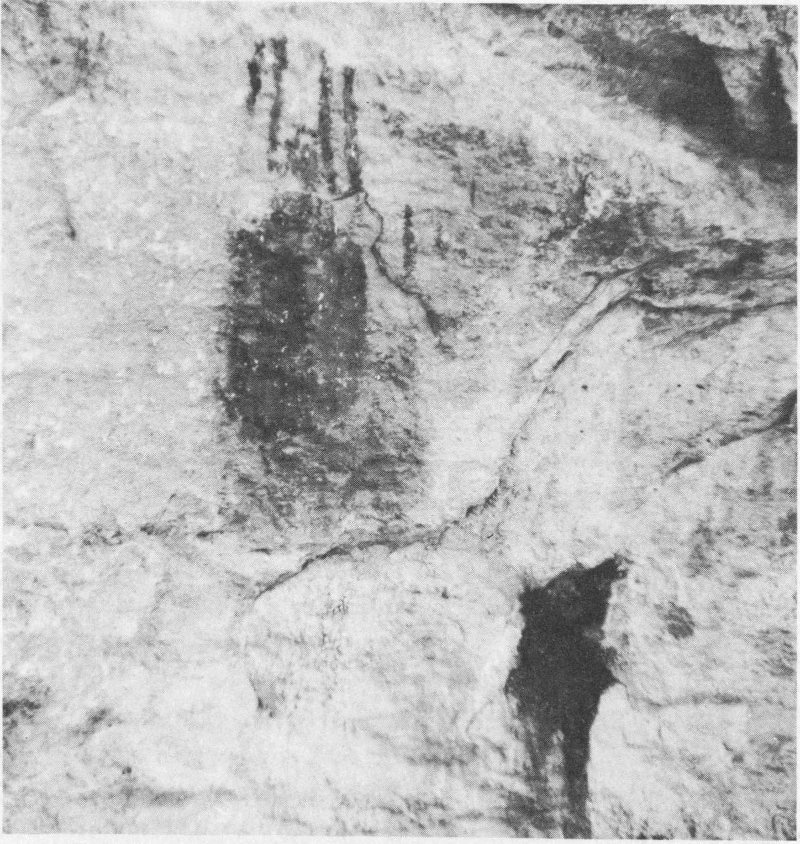

Basketmaker paintings

Yucca seems to have been the most-used plant for weaving. Mats of yucca and beargrass were woven in a variety of ways. A coarse cloth netting and cordage of yucca fiber was used for snaring rabbits and other small game, and large bags of yucca fiber cordage were made for burial purposes. These cone-shaped, twine-woven bags were sometimes quite elaborately woven of red and white cords with horizontal black and yellow bands running completely around them.

Cotton was grown to the west, and some combination of cotton and yucca fabrics was made here. Clothing or blankets of animal fur (usually rabbit) and feather (turkey) cloth was common. (This turkey cloth was probably traded from the Pueblos.) Too, plain fur, cloth, and skin robes were used for covering.

Hair was woven into rope, as were mesquite fiber and agave. Raw material apparently kept on hand as fiber bundles and rings of grass were common finds. V-shaped cradles were made of grass, and sleeping pits were lined with it.

Pottery is really incidental; and, for the most part, intrusive to southeastern New Mexico. It is questionable if the area inhabitants made pottery, but they probably did to some extent. There is found a considerable amount of plain brown ware, and it occurs from early to late times. This ware, although unnamed except for “plain Brown,” is thought to be of local manufacture. Practically all pottery found here was fired in the presence of oxygen (oxidizing atmosphere). A number of types, varying in color from a terracotta, through brown, to reddish tones, are all classed as brown ware.

The earliest pottery found in southeastern New Mexico is Mogollon in origin. Mogollon pottery is a derivative from southwestern New Mexico and southeastern Arizona. The Mogollon brown and red wares found in this section are definitely pre-900 A.D., and possibly pre-700. These wares are found to have been used through 1150 A.D.

The big influx of pottery came during late Pueblo III and Pueblo IV times from 1150 to 1450 A.D. From the west 16 came Mimbres Black on White, which dates from 1050 to 1200 A.D., Jornada Brown, El Paso Polychrome, and Brown wares. From the north, northwest, and west, because of Pueblo expansion, came Three Rivers Red on Terracotta, St. Johns Polychrome (from the Zuni area), Chupadero Black on White (from Gran Quivira), Lincoln Black on Red, and Rio Grande glaze wares. It is interesting to note that pottery changes in this area parallel those of the Mogollon to some degree.

Our Basketmakers were dependent primarily upon wild plant foods, as corn seems to be lacking; and they supplemented their diet by some hunting of game. To the south of the Park is the Black River. In this fertile valley, with its continuous water supply, it is logical to assume that corn was probably cultivated; but there is absolutely no evidence to prove this. Corn was grown about 50 miles north, near Hope, New Mexico, where Pueblo-like settlements were common from 1150 to 1300 A.D. Corn, beans, and squash may have been traded to our cave people by the Pueblos. Lack of practiced agriculture in the Guadalupe Mountain area was probably due to the scarcity of water. Water from seeps, springs, and shallow depressions in the limestone was, of course, utilized.

The roasted young bud and heart of the mescal or agave plant apparently was the paramount food, with the cabbage-like base or heart of the sotol running a close second. Yucca pulp and seeds, mesquite beans (Tornillo or screwbean), grass seeds, piñon nuts, acorns, walnuts, cactus fruits (prickly pear and cholla), wild onions, wild potatoes and other bulb or tuber-bearing plants, grapes, berries and others were utilized. Herbs from true sage brush (Artemisia), wild tobacco, and possibly soap made from the roots of the yucca radiosa were used. A favorite quick food was the young flower stalks of yucca in season.

Mescal hearts and baked sotol leaves were stored in caves in cists lined with grass, twigs and bark. Stone slab-lined storage cists were known also.


Mesquite beans were pulverized into meal, as substantiated by the many mortar holes throughout the area. The meal was probably fashioned by pounding the beans and pods together, winnowing out the pods, grinding until fairly uniform, and eating them either raw or molded into cakes and cooked in ashes, or into soups. Gourds were used for a household receptacle, probably as a ladle or dipper.

The entire country is dotted with large “midden circles.” The one most seen by visitors is located at the natural entrance. For years these circles have erroneously been called “mescal pits” and were thought to have been used strictly for baking or roasting the mescal plant by both our Basketmakers and later the Apaches. In remote instances, it is possible that the Apaches used them, but not as a common practice.

The main difference between the Basketmaker midden circle and the Apache mescal pit is that the true mescal pit or earth oven is a depression definitely sunk below the ground level, whereas the midden circle is on ground level. Consequently, the midden circle had other uses than the preparation of mescal hearts.

There are three types of midden circles. The most common is the circular mound, which is found up to an altitude of 7500 feet, and out considerable distances into the flats. It is of interest to note that no midden circles of the Carlsbad Basketmakers are found east of the Pecos River. The circular ones will average from 30 to 35 feet in diameter in this area.

“The first stage (of development) seems to have begun with the construction of a fireplace composed of fairly large rocks. When heat had cracked these into fragments too small to be useful, the broken bits were then cleared away from a circle about the fire and the hearth rebuilt with other large stones, which in turn were discarded when broken down by heat. When this process had been repeated many times, the cleared circle immediately around the fire was surrounded by a ring formed by an accumulation of the rejected small stones. In course of time and with constant additions of ash and discarded rock, the resulting mound grew to such height that 18 it might even have proved serviceable as a wind break. That such a method was employed seems quite probable, because all the stones composing the outer ring show hard firing, while scattered through the mass are found ashes and rejecta of a camp. If this hypothesis is accepted, a large number of these structures would indicate an extended occupation or perhaps repeated occupation over a comparatively long period.” (Mera)

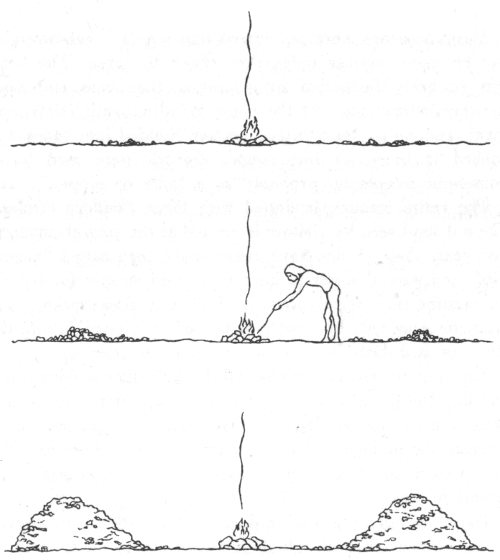

This drawing shows the three stages of development of the midden circle

The second type is found on ledges or narrow terraces along canyon walls and was elongated in shape. The third is built out in front of caves and shelters and takes on a rough half-circle shape. The mescal pit as used by the Apaches is described in their section.

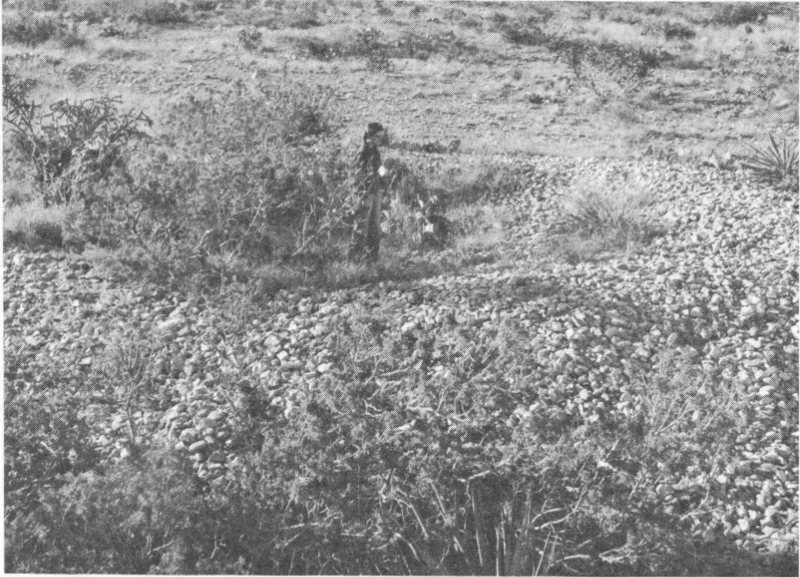

A Basketmaker Midden Circle or cooking pit

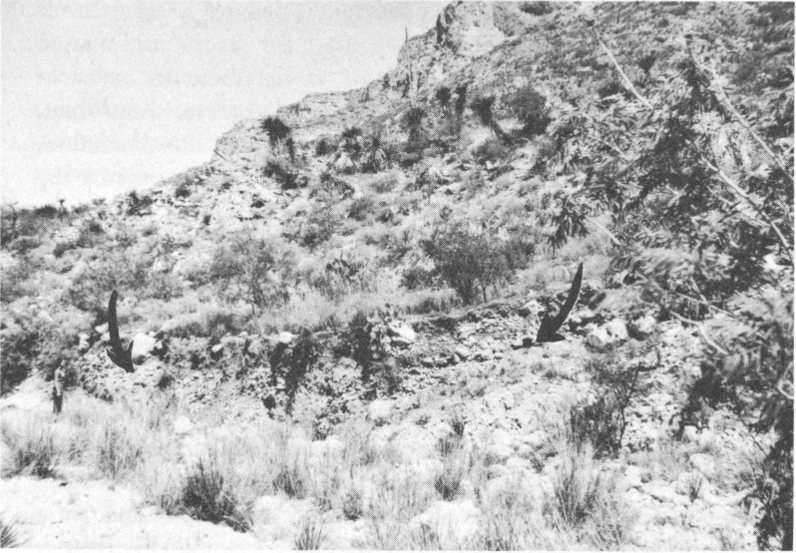

A cut-bank showing an elongated Basketmaker Midden in Slaughter Canyon


Practically all game was hunted, notably mule deer, elk, and buffalo; and next, if not the most important, rabbits, both the cottontail and jackrabbit. Also, antelope, plains white-tail deer, big horn sheep, peccary (Javelina), mountain lion, bobcat, wolf, fox, coyote, badger, porcupine, ring-tailed cat, opossum, prairie dog, armadillo, pack rat, kangaroo-rat, muskrat, field mouse, white-foot mouse, beaver, pocket mouse, ground squirrel, pocket gopher as well as fish, ducks, hawks, owls, quail, desert tortoise, pigeons, doves, large terrapin, lizards, and snakes were utilized.

Our people had the dog and probably ate him in time of famine. Although some turkey bones have been found, it is quite certain that this bird was not domesticated here as it was among the Pueblos. Needless to say, leather was fashioned from the skins of practically all animals and was used for pouches, snares, etc.

Usually the first thing to enter our minds when stone is mentioned in connection with aboriginal peoples is arrowheads or projectile points. Stone was used for many and varied purposes, and it would be difficult to list these in order of importance. Projectile points were, of course, important, though used primarily for hunting rather than warfare. Points of various sizes, shapes and materials were used by the Carlsbad Basketmakers. First were the dart and lance points, and later, as arrow points, after the introduction of the bow to the Southwest. Flints, cherts, and chalcedonies were the most common materials used for points and small tools, although rhyolite, felsite, etc., have been found. Stone was worked by grinding, pecking, drilling, and percussion and pressure flaking.

Mortars were usually cut into stationary rock near camping places such as those seen near the natural entrance to the Caverns, although small portable mortars were used to some extent. The pestles were usually made of granite and were carried from camp to camp, as pestles with yucca leaf carrying-straps have been found.

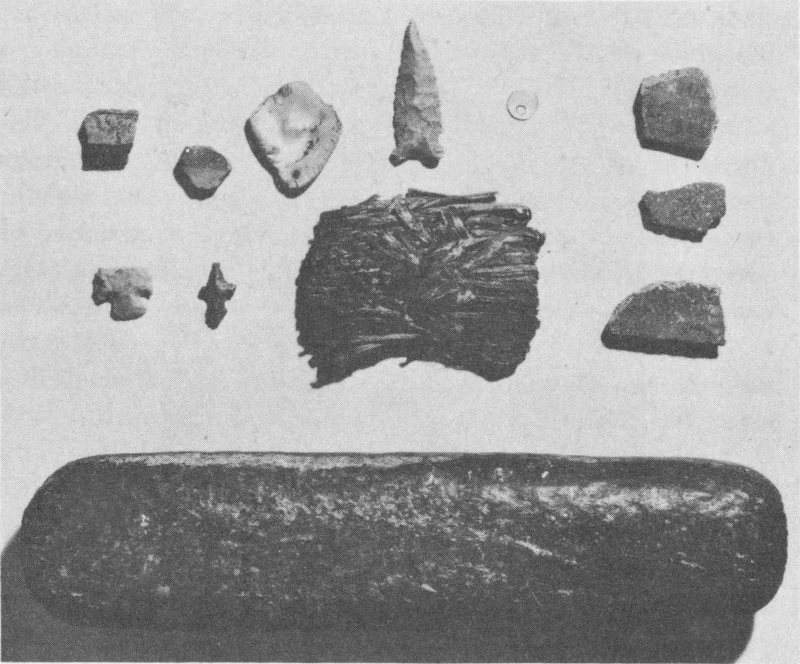

Projectile points, pottery, decorated sea shell, a mano-pestle and a sandal fragment from Carlsbad Caverns National Park
(National Park Service Photo)

Metates or grinding bowls are less common. Metates were made from limestone, sandstone, and granite, while the mano, the small stone used for crushing and grinding on the metate, was composed of limestone, granite, and travertine. The metates are oval, circular, and semi-flat in appearance, and the manos are of the one-hand type.

Leaf-shaped knives, end scrapers, side scrapers, drills, choppers, hammerstones, rubbing or smoothing stones, axes and stone pipes were made and used.

Found throughout the Guadalupe Mountains, sometimes at the head of canyons, usually on the canyon floors, are small stone cairns and stone rings or circles. To date, no feasible explanation is given as to their function. These are not to be confused with the “midden circles” previously mentioned.

For other than fuel, wood was widely used as clubs, digging 22 sticks, atlatl, darts, spear foreshafts, bows, arrows, projectile points, fire sets (drill and hearth), seed storage tubes, fending sticks, throwing sticks (rabbit sticks), and wooden stoppers for canteens.

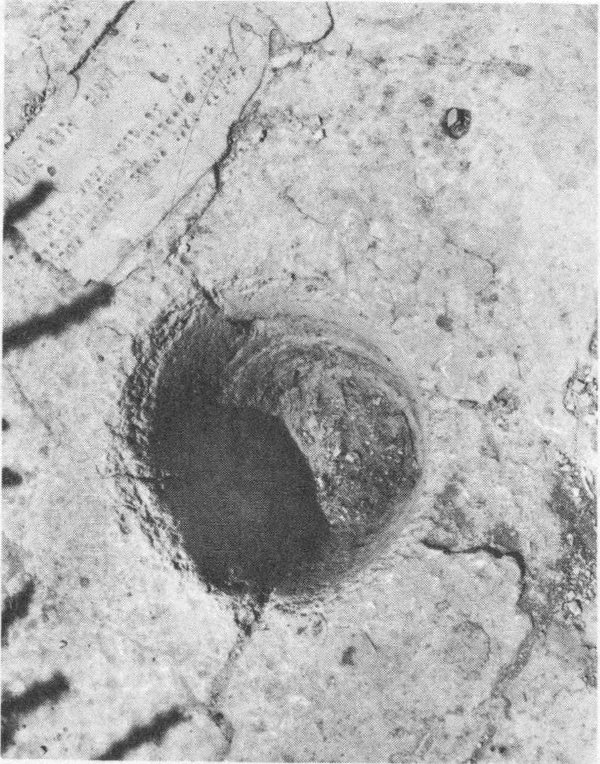

One of the mortar holes near the mouth of the entrance to the Carlsbad Caverns
(National Park Service Photo)

Woodworking with stone tools consisted of seven methods: chopping, whittling, shaving and planing, sawing, splitting, gouging and scoring, scraping and sanding.

Fire was made with the use of a wooden hearth. Friction was created by revolving the point of a stick with the hands in a small depression in the hearth, which contained tinder of punk wood, shredded inner bark or grass. Cedar or juniper bark was probably used for torches.

Animal bone was used for awls, stone flaking tools, jewelry ornaments and weaving tools; animal horn or antler was used much the same. There is a slight possibility that bone gaming dice were made and used, as perhaps were horn ladles and dippers.


In earlier times our Basketmakers used the atlatl as their predominant weapon or hunting implement. It was composed of two parts; the stick for throwing the dart, and the dart itself. Later the bow and arrow replaced this implement in importance. Atlatls were from 19 to 25 inches in length and were made of oak, mesquite, thorn growth Tornillo, sinew and buckskin. Occasionally a small stone was attached to add weight and balance. Atlatl dart shafts consisted of two parts. The foreshaft was of heavy oak or comparatively hard wood with a stone point. This was inserted into the main shaft of sotol bloom stalks. The idea being upon impact that the base would fall away from the foreshaft, thus allowing full penetration and less chance of the animal or man knocking or pulling it out. Both the atlatl and dart shafts were sometimes highly decorated. A variety of stone points were used as was the dart bunt, which possibly was used as a stunner as its appearance suggests. The dart bunt was a round wooden knob carved to insert into the main shaft.

Bows and arrows were made of varied hardwoods and reeds. Bows had an average pull of about 40 pounds and were from 3½ to 5 feet in length. Arrows were 20 to 28 inches long, and the bowstring was either yucca fiber or sinew.

The lance or spear, ordinary stick clubs, grooved fending sticks, round fending sticks, flattened and round throwing sticks found may also have been used as weapons.

Disposition of the dead was accomplished by burying with offerings in a flexed or semi-flexed position on the back, or cremated with the burned remains being buried in bags or baskets.

The graves are usually small and quite shallow. Burials are found in caves, midden circles, and open sites—practically any place where digging was easy. Quite often the unburned burials had a “kill hole” pottery bowl placed over the face. Cremation, from all appearances, was practiced earlier and was concurrent to inhumation.

The few skeletal remains found in the natural entrance and Bat Cave section of the Carlsbad Caverns suggest midden type 24 burials or accidental demise, perhaps by falling.

Possibly one of the most interesting and still visible bits of evidence of the Carlsbad Basketmakers are the pictographs or paintings on the south wall of the Cave entrance. These markings are badly weathered, but one can distinguish what appears once to have been a red figure with black up-raised arms of a person, and blobs of red and black which may have been anything.

In other caves over the area have been found other pictographs (paintings) and petroglyphs (pecked) designs. Paints were made from red hematite (red oxide of iron); red and yellow ochers; blue and green from copper carbonates, azurite and malachite; black carbon and white kaolinite.

Occasionally there are found small pebbles with painted designs or lines on them, but their function is unknown.

Jewelry consisted of wooden combs and wooden pin hair ornaments, beads and pendants of white and pink shell, gypsum, black beidellite, turquoise, bone, squash seeds and sections of reeds. Beads were strung on hair cord or yucca fiber cord. Bracelets of Glycimeris shell were worn.

For the most part the shell tells of considerable trade to the Gulf of Mexico and the Gulf of California by our people. Fresh water mussel shells common to the Pecos River were also used for ornaments. Trade was carried on from Mexico into this general region as indicated by the finds of copper bells and macaw parrot feathers from Pueblo ruins in southern New Mexico.

Ceremonial paraphernalia finds are rather rare. Fragments of a golden eagle feather headdress, rattles of gourds, and turtle or tortoise shells, pahos (prayer sticks), wooden wands and wooden painted tablitas (headdresses) have been unearthed in Guadalupe Mountain caves. Closely related to ceremonial purposes, and usually found in close association with the above, are reed cigarettes and whistles, prayer offerings of miniature fending sticks, fiber balls, gaming dice (sticks or counters), as well as possible ceremonial bow sets. As to how the ceremonial objects were used is, naturally, conjecture.



Human head

From the north they came, this much we know, and comparatively recently. About 600 years ago many tribes of Apaches slowly worked their way southward, following the game and gathering the wild plant food, eventually ranging over a great land area from the Pecos River on the east to the borders of the Papago country in southern Arizona on the west; from Colorado to northern Mexico, to the Gulf of Mexico in Texas. The Apaches, members of the Athapascan linguistic family, were first recorded historically on the southern plains by the Spanish in 1540-41, who called them Querecho. However, it is entirely possible that Cabeza de Baca in 1534-35 encountered them. The Mescalero, Lipan, and Tuetenene (a hybrid of the former two) were living in this area at that time. They were first called Apaches in 1598 by Oñate.

The Mescalero Apaches ranged from the Rio Grande to the Staked Plains, and were closely allied with both the western Apache groups and tribes of the southern plains. The “Natohene” or “Natshene” (mescal people or water willow people), as they called themselves, were composed of three bands; the Kahoane, Ni’ahane, and Huskaane.

The Ni’ahane band lived in the Sacramento, Guadalupe, Sierra Blanca, and Capitan Mountains, an area that included what is now Carlsbad Caverns National Park. Their name means “people of the terraced mountains.” To the south of this band were the Tuetenene; and southeast of them, in the Big Bend country, lived the Lipan Apaches (a true Plains Indian group).

In order to avoid confusion between the various Apache 26 tribes and bands to frequent the area of Carlsbad Caverns National Park, the term Mescalero will be used. It should be pointed out that actually very little is known about this group, so the material presented is far from complete and is only general information.

Although of a war-like nature, the Mescaleros were never considered as dangerous as their brethren farther west. Yet, after acquiring horses from the Spanish, they raided and warred until about 1875, when subdued; and the Mescalero Reservation was established in the White Mountains northeast of the White Sands in New Mexico.

Culturally speaking, the Mescaleros, Lipans, and their hybrid, the Tuetenenes, were basically Plains with some western Apache traits common only to the Mescaleros.

The Painted Grotto, a highly painted Mescalero Apache ceremonial cave located in Slaughter Canyon, Carlsbad Caverns National Park, New Mexico

Actual physical evidence left by the Mescalero Apaches in Carlsbad Caverns National Park is scant. Their most prominent calling card is found in a small cave in West Slaughter 27 Canyon. About 4½ miles from the mouth of the canyon, some 65 feet above the dry stream bed, is the “Painted Grotto.” This little cave is approximately 57 feet across the front, 21 feet at the deepest point, and the ceiling slopes from 16 feet at the front to about 6 feet at the back. On the walls and ceiling are several hundred multicolored pictographs, all painted with earth ground ochers in red, yellow, white, golden yellow, and shades of pink. Caves of this type were used as shrines or media for ceremonies or religious dances, incantations, etc., and are considered very sacred. This bit of evidence definitely establishes the Mescalero on the Park proper, and a legend handed down to the Modern Apaches indicated that they knew of the main Caverns entrance as well. This legend tells of a medicine man who went into the cave to make “big medicine.” Supposedly, he was last seen wandering away from the entrance, beating his tom-tom; and yearly, on the anniversary of this exploit, the Apaches would come to the entrance to leave offerings of food for him.

The Mescaleros were attracted to the Guadalupe Mountains area due to the abundance of plant and animal life and the many springs found here. The cooking of their favorite food, the mescal, arouses some curiosity. Found throughout the region are remains of the Carlsbad Basketmakers’ midden circles previously mentioned. In remote instances perhaps the Apaches cooked in these so-called “mescal pits.” Quite likely though, they cooked on the surface without the aid of a pit. Today, in many places along the ridges, can be seen spaces of ground, devoid of vegetation, covered with rocks which have obviously been broken from fire. The Chiricahua Apaches to the west tell of a method of baking mescal without digging a pit. Rocks are heated and scattered on the level ground; the mescal crowns are put on them, and fresh grass and dirt are piled over all. This “oven” has the appearance of a mound when in use; but after the mescal is removed, and time has elapsed, it would appear to be simply a space of barren ground covered with burnt stones.

To the north of the Guadalupe Mountains is found evidence 28 of true Apache mescal pits, and they are just that, a pit dug into the ground. The pit is dug round, about 7 feet across and from 3 to 4 feet deep. “The method of using these pits is as follows: great fires are first kindled in them, after which, heated stones are thrown in; on these stones are laid, agave leaves, sometimes to a depth of 2 to 3 feet. Fire is kindled over this accumulation and by action of the heat below and above, the leaves are roasted without being burnt.” (Fewkes) Other plants and meats were also cooked in this type oven, and many families could and did cook in one pit at the same time by marking their food in some manner. From 24 to 36 hours were required to cook the mescal heart. Mescal heads baked in this manner are somewhat like candied sweet potatoes.

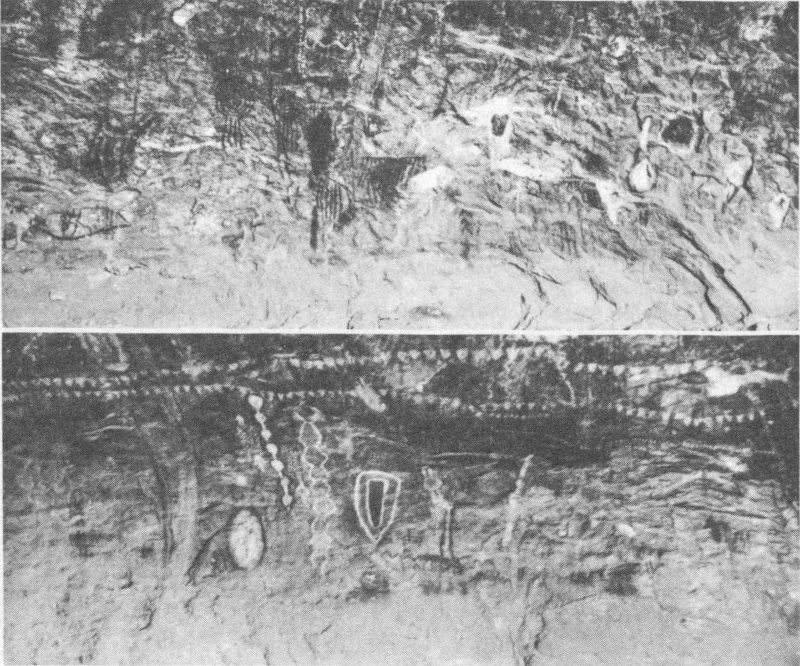

Close-up of the paintings in the Painted Grotto of Slaughter Canyon (photos courtesy of Lynn Coffin)

Occasionally the Mescaleros farmed. Most farming was done to the north of the Park; but Rattlesnake Springs, (source of the Park’s water supply), about 7 miles south of 29 the Caverns entrance, is said to have been an Apache campsite, and possibly some farming was done there.

The Mescalero Apaches show a curious mixture of culture traits, both plains and western Apache. Following is a brief summary of some of these that may be of interest.

They were great stalkers of game and frequently employed the use of animal mask decoys, driving, game calls, and the running down or wearing out of game. They smoked or flooded rodents from their dens, set snares of rope for game, and hunted from blinds or pits. Communal hunting was supervised by a hunt master; and game, such as rabbits, peccary, and buffalo were surrounded by people in a circle and clubbed, shot or driven to hidden hunters, lassoed or run over a cliff or bank. Dogs were used for hunting as well as for watch dogs and pets.

Religious ceremony was practiced before, during, and after the hunt. Prayers, songs, tobacco, pollen, and meat were offered to the hunt deity; and an amulet for good hunting was worn.

The Mescalero did not, as a rule, eat wildcat, wolf, coyote or turkey vultures. Dogs, hawks, turkeys and eagles were kept as pets. They were never eaten and were buried at death. Sometimes plucked eagles were released alive. Tortoise, turtles, and fish were eaten.

Hardwood digging sticks were used for gathering bulbs, roots, etc., and a special stone knife was used for cutting mescal. Seeds were collected on a blanket and carried in a skin bag. Acorns were boiled like beans, parched (never leached), shelled and ground on a metate or stone mortar and stored in a skin bag. The meal was eaten with meat stew. Mesquite and screwbean mesquite pods were pounded either in stone or hide mortars; and the seeds were thrown away, and the pod flour was soaked or boiled and the juice drunk, eaten as mush, or stored in cake form.

Mescal heads were pit-roasted as mentioned; a buffalo shoulder-blade was used as a shovel to scoop coals over the pit. The fire was usually lit by a lucky person. The cooked 30 head and leaf bases were pounded and dried on frames and stored dry. Syrup was made from the flowers and the stalk above the head was eaten.

Yucca fruit was eaten either cooked on coals or dried, and the root stalk was used for soap. This pertained to practically all of the yucca family. Most cacti fruit and some of the pulp was eaten.

Pinon seeds were gathered and eaten raw, roasted or mashed into a butter. Pinon pitch was chewed as gum. Walnuts, wild plums, cherries, grass seeds, etc., tule and some greens (cooked) were used. Fruit juices, mescal, mesquite, and sotol juices were drunk either fresh, or boiled and fermented. In later years a maize wine was made. Salt and honey were gathered and used.

Meat was sliced, dried and made into pemmican; bone marrow extracted; blood boiled in paunch and sausages were made in gut. Meat food was stored either in skin bag, parfleche or pot.

Little agriculture was practiced. Irrigation with ditches from streams was known. Farming was confined to the sandy soil in the stream bottom land. All farming was a man’s job except the harvest when women helped. A two-handed planting stick was used. Corn was eaten green, roasted or dried and shelled by women. Two varieties of beans, pumpkins, squash and gourds were grown. Gourds were used as canteens, dishes and spoons.

Mescal harvest camps were sometimes set up in small caves, but tipis or thatched wickiups were the permanent houses. Tipis were three-pole foundation, buffalo hide with ventilator flaps, faced east or downwind, and had a fireplace and smoke-hole in the center. They were pegged to the ground, had a covered door, and a dew-cloth inner liner. When moved, they were carried on a travois or drag with horse.

Temporary lean-tos, shades, windbreaks, domed sweat houses, log rafts and log bridges were built and used. Swimming was done only when necessary, or when water was available.

Grass and agave hair brushes were made. Horn, wood and 31 shell were used as containers. Knives, awls, and needles were made from stone and bone. Wood was worked with stone hammers, mauls, axes and fire. Stone was flaked, ground and polished. Fire was made by stone or a pump drill.

Bows were made of mulberry, oak, juniper, walnut and other woods. Bow strings were made of sinew and vegetable fiber. Arrows of willow and other woods—points were stone. Mescalero arrow points were supposedly stemmed base, or the base was side notched. These types of projectile points are common to the Carlsbad Basketmakers, too; so it is impossible to differentiate the two when found. Undoubtedly, those found on the Park fit into both cultures. Arrows were feathered with three feathers from the eagle, hawk, turkey and crow; and arrows were carried in an open-skinned, sewn quiver of deerskin, mountain lion or wildcat. They were carried on the back, under the arm, or on the belt.

Spears, shields, warbonnets (short, Plains type), armour of hide and clubs were used in battle. Rabbitsticks of wood and slingshots were also used.

Beads and ornaments were of shell, bone, wood, feathers, seeds, claws and hooves, bear ears, turquoise, red stone, cannel coal (jet), and porcupine quills. Paint from mineral and vegetable sources was used for decorating objects or the body, which was painted primarily to prevent sunburn.

The hair was worn full length by both men and women, but beard and eyebrows were plucked completely with fingers or tweezers of willowwood. During periods of mourning, hair was cropped with a stone knife, sometimes to about the level of the chin by women. Hair was worn loose, tied in a bunch or with headband, in braids and decorated with pendants, feathers, flowers, etc.

Ear lobes of children were pierced with a snakeweed stem, and nose straightening was practiced on babies if nose was too broad. There was no cradle deformation of the head known among the Mescaleros.

Tattooing of the face and arms by these people was quite an ancient practice, and was performed with cactus spines and 32 black mineral pigment only, not charcoal as other tribes might use.

Clothing consisted of fur caps, robes, shawls, ponchos, and capes of animal skin with the hair either on or off the hide, and woven vegetable fibers. Highly painted and fringed buckskin-sleeved shirts were worn by the men. The women wore buckskin gowns or dresses, painted and fringed. Buckskin belts held up a skin wrapped around the waist to serve as a kilt for the men, or skirts of buckskin for the women. Hard-soled moccasins were worn by both sexes, while only the men wore a hip-length buckskin leggin. Hide overshoes were used in winter.

The winter bed was usually composed of a grass and hide mattress with hide coverings, whereas the summer bed was a willow rack or mat with a rawhide twining bedstead supported by four forked posts covered with skins (Plains type).

Burdens were transported with the aid of a tump line back pack or other slings, baskets, gourds, pottery, rawhide or leather bags or containers and horse travois. Baskets (water-proofed with pitch), mats, cradles, cordage of vegetable and animal materials, including hair and pottery, were manufactured by both men and women.

A variety of games were played by all, including foot racing, shinny, hoop and pole, etc. Gambling by adults was done with a hand game of guessing with bones, moccasin game, drawing straws, dice, and heads or tails with flat stones (wet or dry). The children played games of war, wrestled, and had toys of guns, dolls, stones, etc.

Tobacco was gathered and smoked in an elbow pipe. Both tobacco and pipe were kept in a buckskin bag which was usually highly decorated.

The people assembled at the Chief’s dwelling or in an open space. Unlike most Plains tribes, the Mescaleros did not carry a medicine bundle but carried “medicine” inside themselves.

For music and ceremony there were rattles of gourds or horn, drums of pottery and wood, a musical bow, whistles and flutes.


The calendar was divided into four named seasons with daily and monthly tallies kept on a notched stick. Counting was done on the fingers, and some observations of astronomy were made. Various colors were symbolic. East was black; south, blue; west, yellow; and north, white. Their God, Nayiizone, when coming from or going to the sky, rode on a black ray to the east, on a blue horse to the south, on a yellow (sorrel) horse to the west, and on a white horse to the north.

Mysticism, taboo, and definite procedure governed childbirth, naming, education of the young, marriage, affinal relations, death, mourning, labor by both sexes, slaves, land ownership, personal property, war, scalping, dances, ceremonies, political and clan organizations, peyote, kinship systems, religion and shaman ritual.

Little is known about Mescalero pottery, except that it was tempered with vegetable material, made only by women, fired in an open fire, and made with pointed or rounded bottom for inserting into fire coals, and perhaps decorated with incised marks near the rim on occasion. The knowledge of when this art was first practiced is unknown, but is logically historic and very limited. No known sherds of this pottery have been found on the Park.

In 1875, the Mescalero Apache Reservation was established for the Mescalero and Lipan tribes; but in 1913, a band of Geronimo’s Chiricahuas was released from Ft. Sill in Oklahoma and came to Mescalero where they now reside.

Locally there is a rumor that the Apaches have a myth concerning the bats of Carlsbad Caverns. The bats are said to be an ancient lost war or hunting party, but research has failed to verify this story. Most of the Western Apaches regard BAT as an excellent horseman. The Chiricahua Apaches say, “If a bat bites you, you had better never ride a horse any more. If you do ride a horse after being bitten, you are just as good as dead.” They were cautious of bats but not superstitious of them.



Human head

Originally the Comanches lived far to the north of southeastern New Mexico; but about 1700, moved to the South Plains. By this time they were well adapted to their relatively new life of mobility brought about by the acquisition of horses directly or indirectly, and by hook or crook from the Spanish. With horses it was much easier to follow the buffalo, fight their enemies, raid, and trade.

Comanche is a Ute Indian word meaning “enemy,” and it is often felt that they found their way to New Mexico under the tutelage of the Utes. Yet, sometime between 1747, and April, 1749, the two became deadly enemies. After 1750, the Utes joined the Apaches to fight the Comanches.

Actually, there are about 20 different names given for Comanche, meaning everything from “enemies” to “snake people.” The Ute definition is more fitting, however; for from about 1705 to 1875, they raided and fought the Spanish, Utes, Apaches, Pueblos, Texans and the U. S. Army among others. They ranged from Kansas to Mexico in thirteen different bands.

That they were practical and businesslike is perhaps best shown by their dealings with the French. The Comanches were first contacted about 1725 by the French, who traded them 35 guns and ammunition. Yet the Comanches would not let the French cross their territory to trade with the Apaches and others, thus monopolizing the source of firearms.

These Shoshonean speaking people were a true South Plains horse Indian. They were often considered the finest horsemen of the plains, these nomadic buffalo hunters who lived in tipis of the skins from this animal. The Comanche tongue was universally spoken by numerous other Indian tribes of the South Plains; so little sign language was necessary, as was the case farther north.

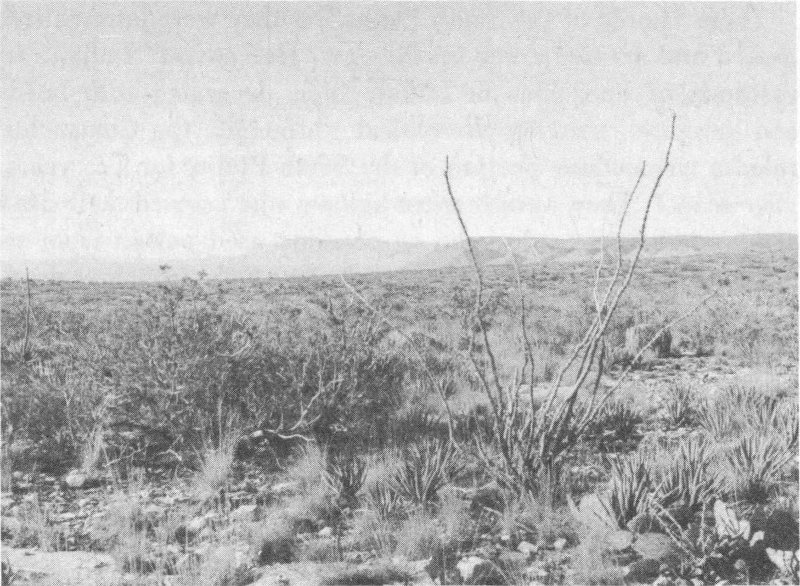

A general view of the rough terrain in the Carlsbad Caverns—Guadalupe Mountains area

Buffalo were reported on the South Plains in 1540-41, by the Spanish. As there was constant warfare between the Comanches and the Apaches, it may well have started over the bison.

The words fighting and Comanche go hand in hand. They were spasmodically at war with most of their neighbors; yet if peace and alliance achieved a goal, they would concede, 36 as is shown in their relationship with the Kiowa. Bitter enemies, these two, until 1790, when an alliance was made which lasted until sometime in the 1870s. Together they raided the Spanish, Pueblos, Apaches, and their first real enemy, the Anglo-Americans of Texas.

Although the Park and Guadalupe Mountains area was not part of the Comanches positive range, which lay north, east and southeast of the Pecos River, it was frequently crossed by hunting and raiding parties. There is no reason to assume that the Kiowas did not accompany them from time to time, especially when raiding into Mexico.

These “Lords of the South Plains,” as they were later called, looked and dressed every bit the now “Hollywood” Indian. In costumes of buckskins or buffalo hide, decorated with beads and gewgaws, wearing the typical warbonnet, the Comanches ruled a tremendous portion of the South Plains for 175 years. (See Map.) They were fearless fighters who rescued their dead and wounded in battle, who on occasion used poison from an unknown plant on their arrow-points, or stuck them in a dead, ripe skunk to create the same effect; and were great thieves and gamblers. The successful theft of horses from the enemy was a high mark of prestige to a man; yet this same man could and did lose his spoils to other Comanches through the media of dice and hand games.

The Comanches were one of the few tribes of the South Plains who did not eat dog or human flesh. Their religion contained the belief of an after life in a “Happy Hunting Ground” beyond the sun. Naturally, these people utilized many wild plants. One among these that grows in the Park is mescal, which was used as a drug. (Quite a contrast to the Apaches, this.)

A valiant but bloody chapter in the history of the Southwest was closed in June, 1875, when the Comanches surrendered to the U. S. Army at Ft. Sill, and went on to a reservation in the then Indian Territory of Oklahoma. It is said the introduction of the Colt revolver, in the hands of the Texas Rangers, was the deciding factor toward their surrender.

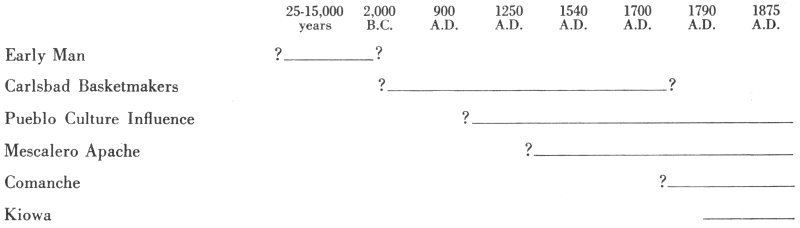

Early Man 25,000-15,000 B.P.? — 2,000 B.C.?
Carlsbad Basketmakers 2000 B.C.? — 1750 A.D.?
Pueblo Culture Influence 1000 B.C.? —
Mescalero Apache 1300 A.D.? —
Comanche 1700 A.D.? —
Kiowa 1800 A.D.? —


Bailey, Vernon—Animal Life of the Carlsbad Cavern, 1928.
Bourke, John G.—Medicine Men of the Apache, B.A.E. #9, 1887-88.
Colton, Harold S. and Hargrave, L. L.—Handbook of Northern Arizona Pottery Types, MNA, 1937.
Cosgrove, C. B.—Caves of the Upper Gila and Hueco Areas in New Mexico and Texas, Papers of the Peabody Museum, 1947.
Dodge, Natt N.—Flowers of the Southwest Deserts, SMA, 1952.
Ferdon, Edwin N., Jr.—An Excavation of Hermit’s Cave, New Mexico, 1946.
Fewkes, J. W.—Casa Grande Arizona, Antiquities of the Upper Verde River and Walnut Creek, Arizona, B.A.E. #28, 1906-07.
Gale, Bennett T.—Historical Sketch Carlsbad Caverns National Park, manuscript, 1952.
Carlsbad Caverns—An Interpretation of Their Origin and Development, manuscript.
Gifford, E. W.—Culture Element Distributions: XII Apache-Pueblo, Anthropological Records, Vol. 4, No. 1, 1940.
Hawley, Florence M.—Field Manual of Prehistoric Southwestern Pottery Types, U. of N. M., 1936.
Henshaw, Henry W.—Animal Carvings from the Mounds of the Mississippi Valley, B.A.E. #2, 1880-81.
Howard, E. B.—Caves Along the Slopes of the Guadalupe Mountains, Bul. Texas Arch. and Pal. Soc., Vol. 4, 1932.
Jennings, J. D.—A Variation of Southwestern Pueblo Culture, Lab. of Anth., Tech. Series, Bul. #10, 1940.
Lehmer, Donald J.—The Jornada Branch of the Mogollon, U. of Ariz. SS Bul. #17, 1948.
Mallery, Garrick—Picture Writing of the American Indians, B.A.E. #10, 1888-89.
McGee, W. J.—The Seri Indians, B.A.E. #17, Part 2, 1895-96.
Mera, H. P.—An Outline of Ceramic Developments in Southern and Southeastern New Mexico, Lab. of Anth., Tech. Series, Bul. #11.
Reconnaissance and Excavation in Southeastern New Mexico, AAA Memoir #51, 1938.
Mooney, James—Myths of the Cherokee, B.A.E. #19, 1897-98.
The Ghost Dance Religion, B.A.E. #14, 1892-93.
Calendar History of the Kiowa Indians, B.A.E. #17, 1895-96.
Neumann, George—Analysis of the Skeletal Material, Lab. of Anth., Tech. Series, Bul. #10, 1940.
Opler, Morris Edward—An Apache Life-Way, 1941.
Pearce, Dr. J. E.—Kitchen Middens, Bul. Texas Arch. and Pal. Soc., Vol. 4, 1932—See also Victor J. Smith.
Reed, Erik—Historical Narrative and Archaeological Values, Interpretive Section, Master Plan, Carlsbad Caverns National Park.
Roth, W. E.—Animism and Folklore of Guiana Indians, B.A.E. #30, 1908-09.
Schmitt, Martin F. and Brown, Dee—Fighting Indians of the West, 1948.
Swanton, John R.—The Indian Tribes of North America, B.A.E. Bul. 145, 1952.
Thomas, Alfred Barnaby—The Plains Indians and New Mexico 1751-1778, 1940.
Wallace, Ernest and Hoebel, E. Adamson—The Comanches, U. of Okla., 1952.
Williams, Jack R.—Papago, manuscript, 1952.


[1]Unfortunately, the National Park Service has been unable to obtain any of these burials. However, Vernon Bailey in his Animal Life of Carlsbad Cavern points out that they were found. (Also, this has been corroborated by writings of the late Carl B. Livingston, well known attorney, writer, historian, and an outstanding authority on history and prehistory of New Mexico. Too, present and former employees of the National Park Service who played an important part in the early stages of the development and operation of the Carlsbad Caverns National Park are familiar with the evidences of prehistoric man found in and around the Caverns. T. Cal Miller.)
Early Man, Carlsba Baketmaker, Mescalero Apache, Comanche, Kiowa



Transcriber’s Note




******* This file should be named 52971-h.htm or *******

This and all associated files of various formats will be found in:

Updated editions will replace the previous one--the old editions will be renamed.

Creating the works from print editions not protected by U.S. copyright law means that no one owns a United States copyright in these works, so the Foundation (and you!) can copy and distribute it in the United States without permission and without paying copyright royalties. Special rules, set forth in the General Terms of Use part of this license, apply to copying and distributing Project Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm concept and trademark. Project Gutenberg is a registered trademark, and may not be used if you charge for the eBooks, unless you receive specific permission. If you do not charge anything for copies of this eBook, complying with the rules is very easy. You may use this eBook for nearly any purpose such as creation of derivative works, reports, performances and research. They may be modified and printed and given away--you may do practically ANYTHING in the United States with eBooks not protected by U.S. copyright law. Redistribution is subject to the trademark license, especially commercial redistribution.



To protect the Project Gutenberg-tm mission of promoting the free distribution of electronic works, by using or distributing this work (or any other work associated in any way with the phrase "Project Gutenberg"), you agree to comply with all the terms of the Full Project Gutenberg-tm License available with this file or online at

Section 1. General Terms of Use and Redistributing Project Gutenberg-tm electronic works

1.A. By reading or using any part of this Project Gutenberg-tm electronic work, you indicate that you have read, understand, agree to and accept all the terms of this license and intellectual property (trademark/copyright) agreement. If you do not agree to abide by all the terms of this agreement, you must cease using and return or destroy all copies of Project Gutenberg-tm electronic works in your possession. If you paid a fee for obtaining a copy of or access to a Project Gutenberg-tm electronic work and you do not agree to be bound by the terms of this agreement, you may obtain a refund from the person or entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B. "Project Gutenberg" is a registered trademark. It may only be used on or associated in any way with an electronic work by people who agree to be bound by the terms of this agreement. There are a few things that you can do with most Project Gutenberg-tm electronic works even without complying with the full terms of this agreement. See paragraph 1.C below. There are a lot of things you can do with Project Gutenberg-tm electronic works if you follow the terms of this agreement and help preserve free future access to Project Gutenberg-tm electronic works. See paragraph 1.E below.

1.C. The Project Gutenberg Literary Archive Foundation ("the Foundation" or PGLAF), owns a compilation copyright in the collection of Project Gutenberg-tm electronic works. Nearly all the individual works in the collection are in the public domain in the United States. If an individual work is unprotected by copyright law in the United States and you are located in the United States, we do not claim a right to prevent you from copying, distributing, performing, displaying or creating derivative works based on the work as long as all references to Project Gutenberg are removed. Of course, we hope that you will support the Project Gutenberg-tm mission of promoting free access to electronic works by freely sharing Project Gutenberg-tm works in compliance with the terms of this agreement for keeping the Project Gutenberg-tm name associated with the work. You can easily comply with the terms of this agreement by keeping this work in the same format with its attached full Project Gutenberg-tm License when you share it without charge with others.

1.D. The copyright laws of the place where you are located also govern what you can do with this work. Copyright laws in most countries are in a constant state of change. If you are outside the United States, check the laws of your country in addition to the terms of this agreement before downloading, copying, displaying, performing, distributing or creating derivative works based on this work or any other Project Gutenberg-tm work. The Foundation makes no representations concerning the copyright status of any work in any country outside the United States.

1.E. Unless you have removed all references to Project Gutenberg:

1.E.1. The following sentence, with active links to, or other immediate access to, the full Project Gutenberg-tm License must appear prominently whenever any copy of a Project Gutenberg-tm work (any work on which the phrase "Project Gutenberg" appears, or with which the phrase "Project Gutenberg" is associated) is accessed, displayed, performed, viewed, copied or distributed:

This eBook is for the use of anyone anywhere in the United States and most other parts of the world at no cost and with almost no restrictions whatsoever. You may copy it, give it away or re-use it under the terms of the Project Gutenberg License included with this eBook or online at If you are not located in the United States, you'll have to check the laws of the country where you are located before using this ebook.

1.E.2. If an individual Project Gutenberg-tm electronic work is derived from texts not protected by U.S. copyright law (does not contain a notice indicating that it is posted with permission of the copyright holder), the work can be copied and distributed to anyone in the United States without paying any fees or charges. If you are redistributing or providing access to a work with the phrase "Project Gutenberg" associated with or appearing on the work, you must comply either with the requirements of paragraphs 1.E.1 through 1.E.7 or obtain permission for the use of the work and the Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or 1.E.9.

1.E.3. If an individual Project Gutenberg-tm electronic work is posted with the permission of the copyright holder, your use and distribution must comply with both paragraphs 1.E.1 through 1.E.7 and any additional terms imposed by the copyright holder. Additional terms will be linked to the Project Gutenberg-tm License for all works posted with the permission of the copyright holder found at the beginning of this work.

1.E.4. Do not unlink or detach or remove the full Project Gutenberg-tm License terms from this work, or any files containing a part of this work or any other work associated with Project Gutenberg-tm.

1.E.5. Do not copy, display, perform, distribute or redistribute this electronic work, or any part of this electronic work, without prominently displaying the sentence set forth in paragraph 1.E.1 with active links or immediate access to the full terms of the Project Gutenberg-tm License.

1.E.6. You may convert to and distribute this work in any binary, compressed, marked up, nonproprietary or proprietary form, including any word processing or hypertext form. However, if you provide access to or distribute copies of a Project Gutenberg-tm work in a format other than "Plain Vanilla ASCII" or other format used in the official version posted on the official Project Gutenberg-tm web site (, you must, at no additional cost, fee or expense to the user, provide a copy, a means of exporting a copy, or a means of obtaining a copy upon request, of the work in its original "Plain Vanilla ASCII" or other form. Any alternate format must include the full Project Gutenberg-tm License as specified in paragraph 1.E.1.

1.E.7. Do not charge a fee for access to, viewing, displaying, performing, copying or distributing any Project Gutenberg-tm works unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8. You may charge a reasonable fee for copies of or providing access to or distributing Project Gutenberg-tm electronic works provided that

1.E.9. If you wish to charge a fee or distribute a Project Gutenberg-tm electronic work or group of works on different terms than are set forth in this agreement, you must obtain permission in writing from both the Project Gutenberg Literary Archive Foundation and The Project Gutenberg Trademark LLC, the owner of the Project Gutenberg-tm trademark. Contact the Foundation as set forth in Section 3 below.


1.F.1. Project Gutenberg volunteers and employees expend considerable effort to identify, do copyright research on, transcribe and proofread works not protected by U.S. copyright law in creating the Project Gutenberg-tm collection. Despite these efforts, Project Gutenberg-tm electronic works, and the medium on which they may be stored, may contain "Defects," such as, but not limited to, incomplete, inaccurate or corrupt data, transcription errors, a copyright or other intellectual property infringement, a defective or damaged disk or other medium, a computer virus, or computer codes that damage or cannot be read by your equipment.

1.F.2. LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right of Replacement or Refund" described in paragraph 1.F.3, the Project Gutenberg Literary Archive Foundation, the owner of the Project Gutenberg-tm trademark, and any other party distributing a Project Gutenberg-tm electronic work under this agreement, disclaim all liability to you for damages, costs and expenses, including legal fees. YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH DAMAGE.

1.F.3. LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a defect in this electronic work within 90 days of receiving it, you can receive a refund of the money (if any) you paid for it by sending a written explanation to the person you received the work from. If you received the work on a physical medium, you must return the medium with your written explanation. The person or entity that provided you with the defective work may elect to provide a replacement copy in lieu of a refund. If you received the work electronically, the person or entity providing it to you may choose to give you a second opportunity to receive the work electronically in lieu of a refund. If the second copy is also defective, you may demand a refund in writing without further opportunities to fix the problem.

1.F.4. Except for the limited right of replacement or refund set forth in paragraph 1.F.3, this work is provided to you 'AS-IS', WITH NO OTHER WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PURPOSE.

1.F.5. Some states do not allow disclaimers of certain implied warranties or the exclusion or limitation of certain types of damages. If any disclaimer or limitation set forth in this agreement violates the law of the state applicable to this agreement, the agreement shall be interpreted to make the maximum disclaimer or limitation permitted by the applicable state law. The invalidity or unenforceability of any provision of this agreement shall not void the remaining provisions.

1.F.6. INDEMNITY - You agree to indemnify and hold the Foundation, the trademark owner, any agent or employee of the Foundation, anyone providing copies of Project Gutenberg-tm electronic works in accordance with this agreement, and any volunteers associated with the production, promotion and distribution of Project Gutenberg-tm electronic works, harmless from all liability, costs and expenses, including legal fees, that arise directly or indirectly from any of the following which you do or cause to occur: (a) distribution of this or any Project Gutenberg-tm work, (b) alteration, modification, or additions or deletions to any Project Gutenberg-tm work, and (c) any Defect you cause.

Section 2. Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of electronic works in formats readable by the widest variety of computers including obsolete, old, middle-aged and new computers. It exists because of the efforts of hundreds of volunteers and donations from people in all walks of life.

Volunteers and financial support to provide volunteers with the assistance they need are critical to reaching Project Gutenberg-tm's goals and ensuring that the Project Gutenberg-tm collection will remain freely available for generations to come. In 2001, the Project Gutenberg Literary Archive Foundation was created to provide a secure and permanent future for Project Gutenberg-tm and future generations. To learn more about the Project Gutenberg Literary Archive Foundation and how your efforts and donations can help, see Sections 3 and 4 and the Foundation information page at

Section 3. Information about the Project Gutenberg Literary Archive Foundation

The Project Gutenberg Literary Archive Foundation is a non profit 501(c)(3) educational corporation organized under the laws of the state of Mississippi and granted tax exempt status by the Internal Revenue Service. The Foundation's EIN or federal tax identification number is 64-6221541. Contributions to the Project Gutenberg Literary Archive Foundation are tax deductible to the full extent permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is in Fairbanks, Alaska, with the mailing address: PO Box 750175, Fairbanks, AK 99775, but its volunteers and employees are scattered throughout numerous locations. Its business office is located at 809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887. Email contact links and up to date contact information can be found at the Foundation's web site and official page at

For additional contact information:

Dr. Gregory B. Newby
Chief Executive and Director

Section 4. Information about Donations to the Project Gutenberg Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide spread public support and donations to carry out its mission of increasing the number of public domain and licensed works that can be freely distributed in machine readable form accessible by the widest array of equipment including outdated equipment. Many small donations ($1 to $5,000) are particularly important to maintaining tax exempt status with the IRS.

The Foundation is committed to complying with the laws regulating charities and charitable donations in all 50 states of the United States. Compliance requirements are not uniform and it takes a considerable effort, much paperwork and many fees to meet and keep up with these requirements. We do not solicit donations in locations where we have not received written confirmation of compliance. To SEND DONATIONS or determine the status of compliance for any particular state visit

While we cannot and do not solicit contributions from states where we have not met the solicitation requirements, we know of no prohibition against accepting unsolicited donations from donors in such states who approach us with offers to donate.

International donations are gratefully accepted, but we cannot make any statements concerning tax treatment of donations received from outside the United States. U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation methods and addresses. Donations are accepted in a number of other ways including checks, online payments and credit card donations. To donate, please visit:

Section 5. General Information About Project Gutenberg-tm electronic works.

Professor Michael S. Hart was the originator of the Project Gutenberg-tm concept of a library of electronic works that could be freely shared with anyone. For forty years, he produced and distributed Project Gutenberg-tm eBooks with only a loose network of volunteer support.

Project Gutenberg-tm eBooks are often created from several printed editions, all of which are confirmed as not protected by copyright in the U.S. unless a copyright notice is included. Thus, we do not necessarily keep eBooks in compliance with any particular paper edition.

Most people start at our Web site which has the main PG search facility:

This Web site includes information about Project Gutenberg-tm, including how to make donations to the Project Gutenberg Literary Archive Foundation, how to help produce our new eBooks, and how to subscribe to our email newsletter to hear about new eBooks.
