University of Kansas Publications
Museum of Natural History


Volume 12, No. 15, pp. 657-680, 11 figs.
May 18, 1964


The Adductor Muscles of the Jaw
In Some Primitive Reptiles

BY

RICHARD C. FOX


University of Kansas
Lawrence
1964


University of Kansas Publications, Museum of Natural History

Editors: E. Raymond Hall, Chairman, Henry S. Fitch,
Theodore H. Eaton, Jr.


Volume 12, No. 15, pp. 657-680, 11 figs.
Published May 18, 1964


University of Kansas
Lawrence, Kansas


PRINTED BY
HARRY (BUD) TIMBERLAKE, STATE PRINTER
TOPEKA, KANSAS
1964

30-1522


[Pg 659]

The Adductor Muscles of the Jaw
In Some Primitive Reptiles

BY

RICHARD C. FOX

Information about osteological changes in the groups of reptiles that gave rise to mammals is preserved in the fossil record, but the musculature of these reptiles has been lost forever. Nevertheless, a reasonably accurate picture of the morphology and the spatial relationships of the muscles of many of these extinct vertebrates can be inferred by studying the scars or other marks delimiting the origins and insertions of muscles on the skeletons of the fossils and by studying the anatomy of Recent genera. A reconstruction built by these methods is largely speculative, especially when the fossil groups are far removed in time, kinship and morphology from Recent kinds, and when distortion, crushing, fragmentation and overzealous preparation have damaged the surfaces associated with the attachment of muscles. The frequent inadequacy of such direct evidence can be partially offset by considering the mechanical demands that groups of muscles must meet to perform a particular movement of a skeletal member.

Both direct anatomical evidence and inferred functional relations were used to satisfy the purposes of the study here reported on. The following account reports the results of my efforts to: 1, reconstruct the adductor muscles of the mandible in Captorhinus and Dimetrodon; 2, reconstruct the external adductors of the mandible in the cynodont Thrinaxodon; and 3, learn the causes of the appearance and continued expansion of the temporal fenestrae among the reptilian ancestors of mammals.

The osteology of these three genera is comparatively well-known. Although each of the genera is somewhat specialized, none seems to have departed radically from its relatives that comprised the line leading to mammals.

I thank Prof. Theodore H. Eaton, Jr., for suggesting the study here reported on, for his perceptive criticisms regarding it, and for his continued patience throughout my investigation. Financial assistance was furnished by his National Science Foundation Grant (NSF-G8624) for which I am also appreciative. I thank Dr. Rainer Zangerl, Chief Curator of Geology, Chicago Museum of Natural History, for permission to examine the specimens of Captorhinus[Pg 660] and Dimetrodon in that institution. I am grateful to Mr. Robert F. Clarke, Assistant Professor of Biology, The Kansas State Teachers College, Emporia, Kansas, for the opportunity to study his specimens of Captorhinus from Richard's Spur, Oklahoma. Special acknowledgment is due Mr. Merton C. Bowman for his able preparation of the illustrations.

Captorhinus

The outlines of the skulls of Captorhinus differ considerably from those of the skulls of the primitive captorhinomorph Protorothyris. Watson (1954:335, Fig. 9) has shown that in the morphological sequence, Protorothyris—Romeria—Captorhinus, there has been flattening and rounding of the skull-roof and loss of the primitive "square-cut" appearance in transverse section. The quadrates in Captorhinus are farther from the midline than in Protorothyris, and the adductor chambers in Captorhinus are considerably wider than they were primitively. Additionally, the postorbital region of Captorhinus is relatively longer than that of Protorothyris, a specialization that has increased the length of the chambers within.

In contrast with these dimensional changes there has been little shift in the pattern of the dermal bones that roof the adductor chambers. The most conspicuous modification in Captorhinus is the absence of the tabular. This element in Protorothyris was limited to the occiput and rested without sutural attachment upon the squamosal (Watson, 1954:338); later loss of the tabular could have had no effect upon the origins of muscles from inside the skull roof. Changes in pattern that may have modified the origin of the adductors in Captorhinus were correlated with the increase in length of the parietals and the reduction of the supratemporals. Other changes that were related to the departure from the primitive romeriid condition of the adductors included the development of a coronoid process, the flattening of the quadrate-articular joint, and the development of the peculiar dentition of Captorhinus.

The adductor chambers of Captorhinus are large. They are covered dorsally and laterally by the parietal, squamosal, postfrontal, postorbital, quadratojugal and jugal bones. The chamber extends medially to the braincase, but is not limited anteriorly by a bony wall. The occiput provides the posterior limit. The greater part of the adductor chambers lies mediad of the mandibles and thus of the Meckelian fossae; consequently the muscles that arise from the dermal roof pass downward and outward to their insertion on the mandibular rami.

[Pg 661]

Mandible

The mandibular rami of Captorhinus are strongly constructed. Each ramus is slightly convex in lateral outline. Approximately the anterior half of each ramus lies beneath the tooth-row. This half is roughly wedge-shaped in its lateral aspect, reaching its greatest height beneath the short posterior teeth.

The posterior half of each ramus is not directly involved in supporting the teeth, but is associated with the adductor musculature and the articulation of the ramus with the quadrate. The ventral margin of this part of the ramus curves dorsally in a gentle arc that terminates posteriorly at the base of the retroarticular process. The dorsal margin in contrast sweeps sharply upward behind the teeth and continues posteriorly in a long, low, truncated coronoid process.

A prominent coronoid process is not found among the more primitive members of the suborder, such as Limnoscelis, although the mandible commonly curves upward behind the tooth-row in that genus. This area in Limnoscelis is overlapped by the cheek when the jaw is fully adducted (Romer, 1956:494, Fig. 213), thereby foreshadowing the more extreme condition in Captorhinus.

The coronoid process in Captorhinus is not oriented vertically, but slopes inward toward the midline at approximately 45 degrees, effectively roofing the Meckelian fossa and limiting its opening to the median surface of each ramus. When the jaw was adducted, the coronoid process moved upward and inside the cheek. A space persisted between the process and the cheek because the process sloped obliquely away from the cheek and toward the midline of the skull. The external surface of the process presented an area of attachment for muscles arising from the apposing internal surface of the cheek.

Palate

The palate of Captorhinus is of the generalized rhynchocephalian type (Romer, 1956:71). In Captorhinus the pterygoids and palatines are markedly arched and the relatively large pterygoid flange lies almost entirely below the lower border of the cheek. The lateral edge of the flange passes obliquely across the anterior lip of the Meckelian fossa and abuts against the bottom lip of the fossa when the jaw is closed.

The palatines articulate laterally with the maxillary bones by means of a groove that fits over a maxillary ridge. This presumably allowed the halves of the palate to move up and down rather freely. The greatest amplitude of movement was at the midline. Anteroposterior[Pg 662] sliding of the palate seems impossible in view of the firm palatoquadrate and quadrate-quadratojugal articulations.

The subtemporal fossa is essentially triangular, and its broad end is bounded anteriorly by the pterygoid flange. The fossa is lateral to much of the adductor chamber; consequently muscles arising from the parietals passed ventrolaterally, parallel to the oblique quadrate ramus of the pterygoid, to their attachment on the mandible.

Musculature

These osteological features indicate that the adductor muscles of the jaw in Captorhinus consisted of two primary masses (Figs. 1, 2, 3). The first of these, the capitimandibularis, arose from the internal surface of the cheek and roof of the skull and inserted on the bones of the lower jaw that form the Meckelian canal and the coronoid process.

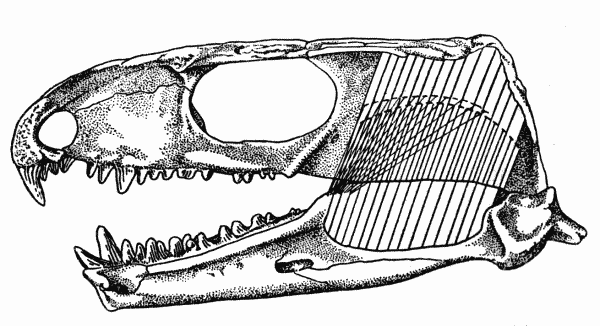

Fig. 1. Captorhinus. Internal aspect of skull, showing
masseter, medial adductor, and temporal muscles. Unnumbered
specimen, coll. of Robert F. Clarke. Richard's Spur, Oklahoma.  2. Fig. 1. Captorhinus. Internal aspect of skull, showing masseter, medial adductor, and temporal muscles. Unnumbered specimen, coll. of Robert F. Clarke. Richard's Spur, Oklahoma. 2.

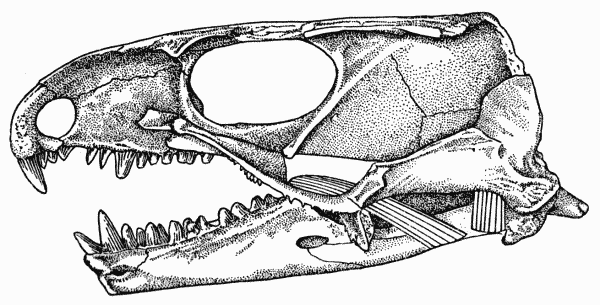

Fig. 2. Captorhinus. Internal aspect of skull, showing anterior
and posterior pterygoid muscles. Same specimen shown in Fig. 1.  2. Fig. 2. Captorhinus. Internal aspect of skull, showing anterior and posterior pterygoid muscles. Same specimen shown in Fig. 1. 2.

The muscle was probably divided into a major medial mass, the temporal, and a lesser, sheetlike lateral mass, the masseter. The[Pg 663] temporal was the largest of the adductors and arose from the lateral parts of the parietal, the dorsal parts of the postorbital, the most posterior extent of the postfrontal, and the upper parts of the squamosal. The muscle may have been further subdivided, but evidence for subordinate slips is lacking. The fibers of this mass were nearly vertically oriented in lateral aspect since the parts of the ramus that are available for their insertion lie within the anteroposterior extent of the adductor chamber. In anterior aspect the fibers were obliquely oriented, since the jaw and subtemporal fossa are lateral to much of the skull-roof from which the fibers arose.

The masseter probably arose from the quadratojugal, the jugal, and ventral parts of the squamosal, although scars on the quadratojugal and jugal are lacking. The squamosal bears an indistinct, gently curved ridge, passing upward and forward from the posteroventral corner of the bone and paralleling the articulation of the squamosal with the parietal. This ridge presumably marks the upper limits of the origin of the masseter from the squamosal.

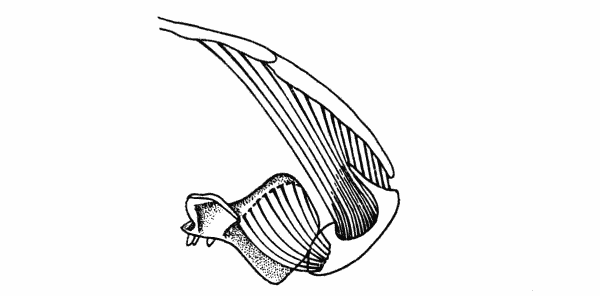

Fig. 3. Captorhinus.
Cross-section of right half of skull immediately behind the pterygoid flange,
showing masseter, temporal, and anterior pterygoid muscles. Same specimen
shown in Fig. 1.  2. Fig. 3. Captorhinus. Cross-section of right half of skull immediately behind the pterygoid flange, showing masseter, temporal, and anterior pterygoid muscles. Same specimen shown in Fig. 1. 2.

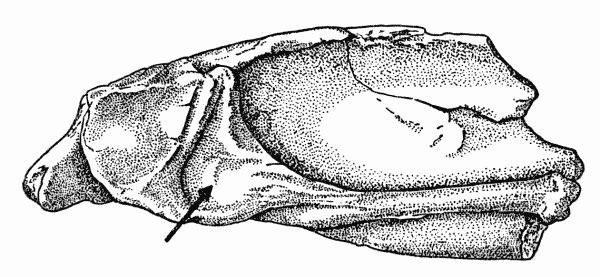

Fig. 4. Captorhinus. Internal aspect of left mandibular
fragment, showing insertion of posterior pterygoid muscle.
KU 8963, Richard's Spur, Oklahoma.  2.8. Fig. 4. Captorhinus. Internal aspect of left mandibular fragment, showing insertion of posterior pterygoid muscle. KU 8963, Richard's Spur, Oklahoma. 2.8.

[Pg 664]

The masseter inserted on the external surface of the coronoid process, within two shallow concavities separated by an oblique ridge. The concavities and ridge may indicate that the muscle was divided into two sheets. If so, the anterior component was wedge-shaped in cross-section, and its thin posterior edge overlapped the larger mass that inserted on the posterior half of the coronoid process.

From a functional standpoint it is doubtful that a major component of the adductors arose from the quadrate wing of the pterygoid, for when the jaw is closed the Meckelian fossa is directly lateral to that bone. If the jaw were at almost any angle but maximum depression, the greatest component of force would be mediad, pulling the rami together and not upward. The mediad component would increase as the jaw approached full adduction. Neither is there anatomical evidence for an adductor arising from the quadrate wing of the pterygoid. The bone is smooth, hard, and without any marks that might be interpreted as muscle scars.

The internal adductor or pterygoid musculature in Captorhinus consisted of anterior and posterior components. The anterior pterygoid arose from the lateral edge and the dorsal surface of the pterygoid flange. The burred dorsal recurvature of the edge resembles that of the flange of crocodiles, which serves as part of the origin of the anterior pterygoid in those animals. In Captorhinus the attachment of the anterior pterygoid to the edge of the flange was probably tendinous, judging from the extent of the development of the edge of the flange. From the edge the origin extended medially across the dorsal surface of the flange; the ridging of this surface is indistinct, leading to the supposition that here the origin was more likely to have been fleshy than tendinous.

The anterior pterygoid extended obliquely backward and downward from its origin, passed medial to the temporal muscle and inserted on the ventral and medial surfaces of the splenial and angular bones beneath the Meckelian fossa. The spatial relationship between the palate and quadrate-articular joint indicate that the muscle was probably a minor adductor in Captorhinus.

When the jaw was adducted, the insertion of the anterior pterygoid was in a plane nearly level with the origin. Contraction of the anterior pterygoid when the jaw was in this position pulled the mandible forward and did not adduct it. Maximum depression of the mandible produced maximum disparity vertically between the levels of the origin and insertion. The force exerted by the anterior[Pg 665] pterygoid upon the mandible when fully lowered most nearly approached the perpendicular to the long axes of the mandibular rami, and the resultant force acting on the mandible was adductive.

The adductive component of force therefore decreased as the jaw swung upward, with the result that the anterior pterygoid could only have been active in initiating adduction and not in sustaining it.

The evidence regarding the position and extent of the posterior pterygoid is more veiled. On the medial surface of the mandible, the prearticular and articular bones meet in a ridge that ventrally rims the glenoid cavity (Fig. 4). The ridge extends anteriorly and curves slightly in a dorsal direction and meets the Meckelian fossa. The curved part of the ridge is made of the prearticular bone alone. A small hollow above the ridge, anterior to the glenoid cavity, faces the medial plane of the skull and is bordered by the articular bone behind and above, and by the Meckelian fossa in front.

The surfaces of the hollow and the prearticular-articular ridge bear tiny grooves and ridges that seem to be muscle scars. The entire area of the hollow and its bordering features was probably the area of insertion of the posterior pterygoid.

However, the area of insertion lies mostly ventral to the articulating surface of the articular bone and extends but slightly in front of it. Seemingly little lever effect could be exercised by an adductor attaching in this position, namely, at the level of the fulcrum of the mandibular ramus.

The posterior pterygoid muscle probably arose from the anterior portion of the pterygoid wing of the quadrate, from a ridge on the ventromedial surface. From the relationship of the muscle to the articulation of the jaw with the skull, it may be deduced that the muscle was limited in function to the stabilization of the quadrate-articular joint by keeping the articular surfaces in close contact with each other and by preventing lateral slipping.

Finally there is evidence for an adductor between the temporal and masseter masses. The anterior dorsal lip of the Meckelian fossa supports a small knob to which this muscle attached, much as in Sphenodon (Romer, 1956:18, Fig. 12). Presumably the muscle was sheetlike and attached to the skull roof, medial to the attachment of the masseter.

A pseudotemporal may have been present, but evidence to indicate its extent and position is lacking. The muscle usually arises from the epipterygoid and nearby areas of the braincase and skull roof and inserts in the anterior parts of the fossa of the jaw. In Captorhinus the lateral wing of the pterygoid cuts across the fossa,[Pg 666] effectively blocking it from the upper and medial parts of the skull, the areas of origin for the pseudotemporal.

Dimetrodon

The morphology of the skull of Dimetrodon closely resembles that of the primitive Haptodus (Haptodontinae, Sphenacodontidae), and "hence may be rather confidently described as that of the family as a whole" (Romer and Price, 1940:285). The major differences between the two genera are in the increased specialization of the dentition, the shortening of the lacrimal, and the development of long vertebral spines in Dimetrodon. The absence of gross differences in the areas of the skull associated with the groups of muscles with which this study is concerned, implies a similarity in the patterns of musculature between the two groups. Romer and Price suggest that Haptodus, although too late in time to be an actual ancestor, shows "all the common features of the Dimetrodon group on the one hand and the therapsids on the other." The adductors of the jaw of Dimetrodon were probably little changed from those of the Haptodontinae and represent a primitive condition within the suborder.

Dimetrodon and Captorhinus differ in the bones associated with the adductor mechanism; the area behind the orbit in Dimetrodon is relatively shorter, reducing the comparative longitudinal extent of the adductor chamber. Furthermore, the dermal roof above the adductor chamber slopes gently downward from behind the orbit to its contact with the occipital plate in Dimetrodon. Temporal fenestrae are, of course, present in Dimetrodon.

Musculature

The adductor musculature of the lower jaw in Dimetrodon was divided into lateral and medial groups (Figs. 5, 6). The lateral division consisted of temporal and masseter masses. The temporal arose from the upper rim of the temporal opening, from the lateral wall of the skull behind the postorbital strut, and from the dorsal roof of the skull. The bones of origin included jugal, postorbital, postfrontal, parietal and squamosal. This division may also have arisen from the fascia covering the temporal opening (Romer and Price, 1940:53). The muscle passed into the Meckelian fossa of the mandible and inserted on the angular, surangular, prearticular, coronoid and dentary bones. Insertion on the lips of the fossa also probably occurred.

The lateral division arose from the lower rim of the temporal opening and from the bones beneath. Insertion was in the[Pg 667] Meckelian fossa and on the dorsal surface of the adjoining coronoid process.

Fig. 5. Dimetrodon. Internal aspect of skull, showing masseter and
temporal muscles. Skull modified from Romer and Price (1940).
Approx.  1/4. Fig. 5. Dimetrodon. Internal aspect of skull, showing masseter and temporal muscles. Skull modified from Romer and Price (1940). Approx. 1/4.

The reconstruction of the progressively widening masseter as it traveled to the mandible follows from the progressively widening depression on the internal wall of the cheek against which the muscle must have been appressed. The depressed surface included the posterior wing of the jugal, the whole of the squamosal, and probably the anteriormost parts of the quadratojugal. Expansion of the muscle rostrally was prevented by the postorbital strut that protected the orbit (Romer and Price, 1940:53).

The sphenacodonts possess the primitive rhynchocephalian kind of palate. In Sphenodon the anterior pterygoid muscle arises from the dorsal surface of the pterygoid bone and from the adjacent bones. A similar origin suggests itself for the corresponding muscle, the second major adductor mass, in Dimetrodon.

From the origin the muscle passed posterodorsad and laterad of the pterygoid flange. Insertion was in the notch formed by the reflected lamina of the angular, as suggested by Watson (1948).

In Dimetrodon the relationship of the dorsal surface of the palate and the ventromedial surface of the mandible in front of the articulation with the quadrate is unlike that in Captorhinus. When the mandible of Dimetrodon is at rest (adducted), a line drawn between[Pg 668] these two areas is oblique, between 30 and 40 degrees from the horizontal. Depression of the mandible increases this angle. The insertion of the anterior pterygoid is thus always considerably below the origin, permitting the muscle to be active throughout the movement of the mandible, from maximum depression to complete adduction. This was a major factor in adding substantially to the speed and power of the bite.

The presence and extent of a posterior pterygoid is more difficult to assess, because of the closeness of the glenoid cavity and the raised ridge of the prearticular, and the occupancy of at least part of this region by the anterior pterygoid. In some specimens of Dimetrodon the internal process of the articular is double (see Romer and Price, 1940:87, Fig. 16) indicating that there was a double insertion here. Whether the double insertion implies the insertion of two separate muscles is, of course, the problem. Division of the pterygoid into anterior and posterior portions is the reptilian pattern (Adams, 1919), and such is adhered to here, with the posterior pterygoid arising as a thin sheet from the quadrate wing of the pterygoid and the quadrate, and inserting by means of a tendon on the internal process of the articular, next to the insertion of the anterior pterygoid.

Fig. 6. Dimetrodon. Internal aspect of
right cheek, showing anterior and posterior
pterygoid muscles. Skull modified from
Romer and Price (1940). Approx.  1/4. Fig. 6. Dimetrodon. Internal aspect of right cheek, showing anterior and posterior pterygoid muscles. Skull modified from Romer and Price (1940). Approx. 1/4.

Watson (1948) has reconstructed the musculature of the jaw in Dimetrodon with results that are at variance with those of the present study. Watson recognized two divisions, an inner temporal[Pg 669] and an outer masseteric, of the capitimandibularis, but has pictured them (830: Fig. 4; 831: Fig. 5C) as both arising from the inner surface of the skull roof above the temporal opening. But in Captorhinus the masseter arose from the lower part of the cheek close to the outer surface of the coronoid process. Watson has shown (1948:860, Fig. 17B) the same relationship of muscle to zygoma in Kannemeyeria sp. It is this arrangement that is also characteristic of mammals and presumably of Thrinaxodon. In view of the consistency of this pattern, I have reconstructed the masseter as arising from the lower wall of the cheek beneath the temporal opening.

Watson's reconstruction shows both the temporal and masseter muscles as being limited anteroposteriorly to an extent only slightly greater than the anteroposterior diameter of the temporal opening. The whole of the posterior half of the adductor chamber is unoccupied. More probably this area was filled by muscles. The impress on the inner surface of the cheek is evident, and the extent of both the coronoid process and Meckelian opening beneath the rear part of the chamber indicate that muscles passed through this area.

Watson remarked (1948:829-830) that the Meckelian opening in Dimetrodon "is very narrow and the jaw cavity is very small. None the less, it may have been occupied by the muscle or a ligament connected to it. Such an insertion leaves unexplained the great dorsal production of the dentary, surangular and coronoid. This may merely be a device to provide great dorsal-ventral stiffness to the long jaw, but it is possible and probable that some part of the temporal muscle was inserted on the inner surface of the coronoid. Indeed a very well-preserved jaw of D. limbatus? (R. 105: Pl. I, Fig. 2) bears a special depressed area on the outer surface of the extreme hinder end of the dentary which differs in surface modelling from the rest of the surface of the jaw, has a definite limit anteriorly, and may represent a muscle insertion. The nature of these insertions suggests that the muscle was already divided into two parts, an outer masseter and an inner temporalis." But, unaccountably, Watson's illustration (1948:830, Fig. 4) of his reconstruction limits the insertion of the temporal to the anterior limit of the Meckelian opening and a part of the coronoid process above it. No muscle is shown entering the Meckelian canal. It seems more likely that the temporal entered and inserted in the canal and on its dorsal lips. The masseter inserted lateral to it, over the peak of the coronoid process, and overlapping onto the dorsalmost portions of[Pg 670] its external face, as Watson has illustrated (Plate I, middle fig.).

I am in agreement with Watson's reconstruction of the origins for both the anterior and posterior pterygoid muscles. On a functional basis, however, I would modify slightly Watson's placement of the insertions of these muscles. Watson believed that the jaw of Dimetrodon was capable of anteroposterior sliding. The articular surfaces of the jaws of Dimetrodon that I have examined indicate that this capability, if present at all, was surely of a very limited degree, and in no way comparable to that of Captorhinus. The dentition of Dimetrodon further substantiates the movement of the jaw in a simple up and down direction. The teeth of Dimetrodon are clearly stabbing devices; they are not modified at all for grinding and the correlative freedom of movement of the jaw that that function requires in an animal such as Edaphosaurus. Nor are they modified to parallel the teeth of Captorhinus. The latter's diet is less certain, but presumably it was insectivorous (Romer, 1928). With the requisite difference in levels of origin and insertion of the anterior pterygoid in Dimetrodon insuring the application of force throughout the adduction of the jaws, it would seem that the whole of the insertion should be shifted downward and outward in the notch. If this change were made in the reconstruction, the anterior pterygoid would have to be thought of as having arisen by a tendon from the ridge that Watson has pictured (1948:828, Fig. 3) as separating his origins for anterior and posterior pterygoids. The posterior pterygoid, in turn, arose by tendons from the adjoining lateral ridge and from the pterygoid process of Romer and Price. Tendinous origins are indicated by the limitations of space in this area, by the strength of the ridges pictured and reported by Watson, and by the massiveness of the pterygoid process of Romer and Price.

Discussion

A comparison of the general pattern of the adductor musculature of Captorhinus and Dimetrodon reveals an expected similarity. The evidence indicates that the lateral and medial temporal masses were present in both genera. The anterior pterygoid aided in initiating adduction in Captorhinus, whereas in Dimetrodon this muscle was adductive throughout the swing of the jaw. Evidence for the presence and extent of a pseudotemporal muscle in both Captorhinus and Dimetrodon is lacking. The posterior division of the pterygoid is small in Captorhinus. In Dimetrodon this muscle has been reconstructed by Watson as a major adductor, an arrangement that is adhered to here with but slight modification.[Pg 671]

The dentition of Captorhinus suggests that the jaw movement in feeding was more complex than the simple depression and adduction that was probably characteristic of Dimetrodon and supports the osteological evidence for a relatively complex adductor mechanism.

In Captorhinus the presence of an overlapping premaxillary beak bearing teeth that are slanted posteriorly requires that the mandible be drawn back in order to be depressed. Conversely, during closure, the jaw must be pulled forward to complete full adduction. The quadrate-articular joint is flat enough to permit such anteroposterior sliding movements. The relationship of the origin and insertion of the anterior pterygoid indicates that this muscle, ineffective in maintaining adduction, may well have acted to pull the mandible forward, in back of the premaxillary beak, in the last stages of adduction. Abrasion of the sides of the inner maxillary and outer dentary teeth indicates that tooth-to-tooth contact did occur. Whether such abrasion was due to contact in simple vertical adduction or in anteroposterior sliding is impossible to determine, but the evidence considered above indicates the latter probability.

Similarities of Protorothyris to sphenacodont pelycosaurs in the shape of the skull and palate already commented upon by Watson (1954) and Hotton (1961) suggest that the condition of the adductors in Dimetrodon is a retention of the primitive reptilian pattern, with modifications mainly limited to an increase in size of the temporalis. Captorhinus, however, seems to have departed rather radically from the primitive pattern, developing specializations of the adductors that are correlated with the flattening of the skull, the peculiar marginal and anterior dentition, the modifications of the quadrate-articular joint, and the development of the coronoid process.

Thrinaxodon

The evidence for the position and extent of the external adductors of the lower jaw in Thrinaxodon was secured in part from dissections of Didelphis marsupialis, the Virginia opossum. Moreover, comparison of the two genera reveals striking similarities in the shape and spatial relationships of the external adductors. These are compared below in some detail.

The sagittal crest in Thrinaxodon is present but low. It arises immediately in front of the pineal foramen from the confluence of bilateral ridges that extend posteriorly and medially from the base of the postorbital bars. The crest diverges around the foramen,[Pg 672] reunites immediately behind it, and continues posteriorly to its junction with the supraoccipital crest (Estes, 1961).

In Didelphis the sagittal crest is high and dorsally convex in lateral aspect, arising posterior to and medial to the orbits, reaching its greatest height near the midpoint, and sloping down to its termination at the supraoccipital crest. Two low ridges extend posteriorly from the postorbital process to the anterior end of the sagittal crest and correspond to ridges in similar position in Thrinaxodon.

The supraoccipital crest flares upward to a considerable extent in Thrinaxodon and slopes posteriorly from the skull-roof proper. The crest extends on either side downward to its confluence with the zygomatic bar. The area of the crest that is associated with the temporal musculature is similarly shaped in Didelphis.

The zygomatic bar in each genus is stout, laterally compressed, and dorsally convex on both upper and lower margins. At the back of the orbit of Thrinaxodon, the postorbital process of the jugal extends posterodorsally. At this position in Didelphis, there is but a minor upward curvature of the margin of the bar.

In Thrinaxodon the dorsal and ventral postorbital processes, arising from the postorbital and jugal bones respectively, nearly meet but remain separate. The orbit is not completely walled off from the adductor chamber. The corresponding processes in Didelphis are rudimentary so that the confluence of the orbit and the adductor chamber is complete.

The adductor chamber dorsally occupies slightly less than half of the total length of the skull of Thrinaxodon; in Didelphis the dorsal length of the chamber is approximately half of the total length of the skull.

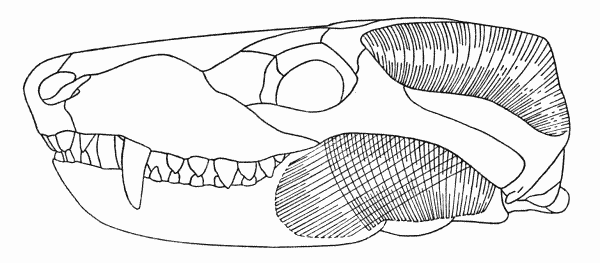

Fig. 7. Thrinaxodon. Showing masseter and temporal muscles.
Skull after Romer (1956). Approx.  7/10. Fig. 7. Thrinaxodon. Showing masseter and temporal muscles. Skull after Romer (1956). Approx. 7/10.

The coronoid process in Thrinaxodon sweeps upward posterodorsally at an angle oblique to the long axis of the ramus. Angular, surangular and articular bones extend backward beneath and[Pg 673] medial to the process. The process extends above the most dorsal point of the zygomatic bar, as in Didelphis. The mandibular ramus is ventrally convex in both genera.

The relationships described above suggest that Thrinaxodon and the therapsids having similar morphology in the posterior region of the skull possessed a temporal adductor mass that was split into major medial and lateral components (Fig. 7). The more lateral of these, the masseter, arose from the inner surface and lower margin of the zygomatic bar and inserted on the lateral surface of the coronoid process.

The medial division or temporal arose from the sagittal crest and supraoccipital crest and the intervening dermal roof. The muscle inserted on the inner and outer surfaces of the coronoid process and possibly on the bones beneath.

Thrinaxodon represents an advance beyond Dimetrodon in several respects. The zygomatic bar in Thrinaxodon extends relatively far forward, is bowed outward and dorsally arched. Consequently, the masseter was able to extend from an anterodorsal origin to a posterior and ventral insertion. The curvature of the jaw transforms the anterodorsal pull of the muscle into a dorsally directed adductive movement regardless of the initial angle of the jaw. This is the generalized mammalian condition.

With the development of the secondary palate the area previously available for the origin of large anterior pterygoid muscles was reduced. The development of the masseter extending posteroventrally from an anterior origin presumably paralleled the reduction of the anterior pterygoids. The therapsid masseter, as an external muscle unhindered by the crowding of surrounding organs, was readily available for the many modifications that have been achieved among the mammals.

In the course of synapsid evolution leading to mammals, the temporal presumably became the main muscle mass acting in adduction of the lower jaw. Its primacy is reflected in the phyletic expansion of the temporal openings to permit greater freedom of the muscles during contraction. In the synapsids that lead to mammals, there is no similar change in the region of the palate that can be ascribed to the effect of the pterygoid musculature, even though these adductors, like the temporal, primitively were subjected to severe limitations of space.

Didelphis

Dissections reveal the following relationships of the external adductors of the jaw in Didelphis marsupialis (Fig. 8).[Pg 674]

1. Masseter

Origin: ventral surface of zygomatic arch.

Insertion: posteroventral and lateroventral surface of mandible.

2. External temporalis

Origin: sagittal crest; anteriorly with internal temporalis from frontal bone; posteriorly with internal temporalis from interparietal bone.

Insertion: lateral surface of coronoid process of mandible.

3. Internal temporalis

Origin: sagittal crest and skull roof, including posterior two-thirds of frontal bone, whole of parietal, and dorsalmost portions of squamosal and alisphenoid.

Insertion: medial surface of coronoid process; dorsal edge of coronoid process.

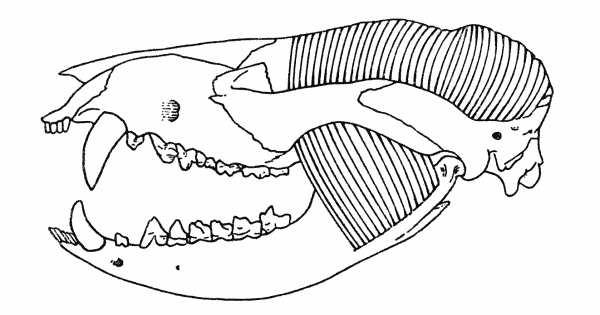

Fig. 8. Didelphis marsupialis. Showing masseter and
temporal muscles. Skull KU 3780, 1 mi. N Lawrence,
Douglas Co., Kansas.  3/5. Fig. 8. Didelphis marsupialis. Showing masseter and temporal muscles. Skull KU 3780, 1 mi. N Lawrence, Douglas Co., Kansas. 3/5.

Temporal Openings

In discussions of the morphology and functions of the adductor mechanism of the lower jaw, the problem of accounting for the appearance of temporal openings in the skull is often encountered. Two patterns of explanation have evolved. The first has been the attempt to ascribe to the constant action of the same selective force the openings from their inception in primitive members of a phyletic line to their fullest expression in terminal members. According to this theory, for example, the synapsid opening appeared originally to allow freer expansion of the adductor muscles of the jaw during contraction, and continued selection for that character caused the openings to expand until the ultimately derived therapsid or mammalian condition was achieved.

The second course has been the attempt to explain the appearance of temporal openings in whatever line in which they occurred by the action of the same constant selective force. According to the reasoning of this theory, temporal fenestration in all groups was[Pg 675] due to the need to decrease the total weight of the skull, and selection in all those groups where temporal fenestration occurs was to further that end.

Both of these routes of inquiry are inadequate. If modern views of selection are applied to the problem of explaining the appearance of temporal fenestrae, the possibility cannot be ignored that:

1. Selective pressures causing the inception of temporal fenestrae differed from those causing the continued expansion of the fenestrae.

2. The selective pressures both for the inception and continued expansion of the fenestrae differed from group to group.

3. Selection perhaps involved multiple pressures operating concurrently.

4. Because of different genotypes the potential of the temporal region to respond to selective demands varied from group to group.

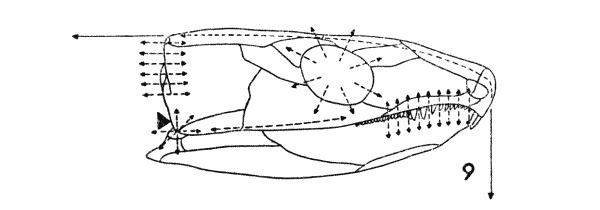

Fig. 9. Captorhinus. Diagram, showing
some hypothetical lines of stress. Approx.  1. Fig. 9. Captorhinus. Diagram, showing some hypothetical lines of stress. Approx. 1.


Fig. 10. Captorhinus. Diagram,
showing areas of internal thickening. Approx.  1. Fig. 10. Captorhinus. Diagram, showing areas of internal thickening. Approx. 1.

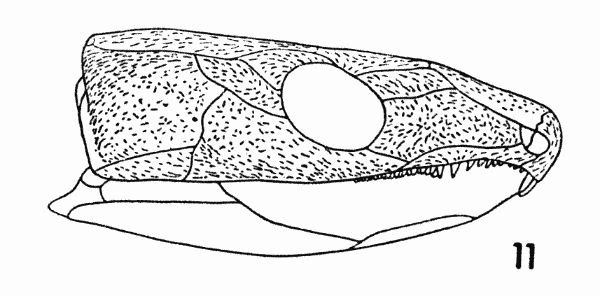

Fig. 11. Captorhinus. Diagram,
showing orientation of sculpture. Approx.  1. Fig. 11. Captorhinus. Diagram, showing orientation of sculpture. Approx. 1.

Secondly, the vectors of mechanical force associated with the temporal region are complex (Fig. 9). Presumably it was toward a more efficient mechanism to withstand these that selection on the cheek region was operating. The simpler and more readily analyzed of these forces are:

1. The force exerted by the weight of the skull anterior to the cheek and the distribution of that weight depending upon, for example, the length of the snout in relation to its width, and the density of the bone.

2. The weight of the jaw pulling down on the suspensorium when the jaw is at rest and the compression against the suspensorium when the jaw is adducted; the distribution of these stresses depending upon the length and breadth of the snout, the rigidity of the anterior symphysis, and the extent of the quadrate-articular joint.[Pg 676]

3. The magnitude and extent of the vectors of force transmitted through the occiput from the articulation with the vertebral column and from the pull of the axial musculature.

4. The downward pull on the skull-roof by the adductor muscles of the mandible.

5. The lateral push exerted against the cheek by the expansion of the mandibular adductors during contraction.

6. The necessity to compensate for the weakness in the skull caused by the orbits, particularly in those kinds of primitive tetrapods in which the orbits are large.

The distribution of these stresses is further complicated and modified by such factors as:

1. The completeness or incompleteness of the occiput and the location and extent of its attachment to the dermal roof.

2. The size and rigidity of the braincase and palate, and the extent and rigidity of their contact with the skull.

The stresses applied to the cheek fall into two groups. The first includes all of those stresses that ran through and parallel to the plane of the cheek initially. The weight of the jaw and snout, the pull of the axial musculature, and the necessity to provide firm anchorage for the teeth created stresses that acted in this manner. The second group comprises those stresses that were applied initially at an oblique angle to the cheek and not parallel to its plane. Within this group are the stresses created by the adductors of the jaw, pulling down and medially from the roof, and sometimes, during contraction, pushing out against the cheek.

It is reasonable to assume that the vectors of these stresses were concentrated at the loci of their origin. For example, the effect of the forces created by the articulation of the jaw upon the skull was concentrated at the joint between the quadrate, quadratojugal, and squamosal bones. From this relatively restricted area, the stresses radiated out over the temporal region. Similarly, the stresses transmitted by the occiput radiated over the cheek from the points of articulation of the dermal roof with the occipital plate. In both of these examples, the vectors paralleled the plane of the cheek bones. Similar radiation from a restricted area, but of a secondary nature, resulted from stresses applied obliquely to the plane of the cheek. The initial stresses caused by the adductors of the jaw resulted from muscles pulling away from the skull-roof; secondary stresses, created at the origins of these muscles, radiated out over the cheek, parallel to its plane.

The result of the summation of all of those vectors was a complex grid of intersecting lines of force passing in many directions both[Pg 677] parallel to the plane of the cheek and at the perpendicular or at an angle oblique to the perpendicular to the plane of the cheek.

Complexities are infused into this analysis with the division of relatively undifferentiated muscles into subordinate groups. The differentiation of the muscles was related to changing food habits, increased mobility of the head, and increase in the freedom of movement of the shoulder girdle and forelimbs (Olson, 1961:214). As Olson has pointed out, this further localized the stresses to which the bone was subjected. Additional localization of stresses was created with the origin and development of tetrapods (reptiles) that were independent of an aquatic environment and were subjected to greater effects of gravity and loss of bouyancy in the migration from the aqueous environment to the environment of air. The localization of these stresses was in the border area of the cheek, away from its center.

What evidence is available to support this analysis of hypothetical forces transmitted through the fully-roofed skull of such an animal as Captorhinus?

It is axiomatic that bones or parts of bones that are subject to increased stress become thicker, at least in part. This occurs ontogenetically, and it occurs phylogenetically through selection. Weak bones will not be selected for. Figure 10 illustrates the pattern of the areas of the skull-roof in the temporal region that are marked on the internal surface by broad, low thickened ridges. The position of these ridges correlates well with the position of the oriented stresses that were presumably applied to the skull of Captorhinus during life. It can be seen from Figure 10 that the central area of the cheek is thinner than parts of the cheek that border the central area. The thickened border areas were the regions of the cheek that were subjected to greater stress than the thin central areas.

External evidence of stress may also be present. The pattern of sculpturing of Captorhinus is presented in Figure 11. The longer ridges are arranged in a definite pattern. Their position and direction correlates well with the thickened border of the cheek, the region in which the stresses are distinctly oriented. For example, a ridge is present on the internal surface of the squamosal along its dorsal border. Externally, the sculptured ridges are long and roughly parallel, both to each other and to the internal ridge.

The central area of the cheek is characterized by a reticulate pattern of short ridges, without apparent orientation. The thinness of the bone in this area indicates that stresses were less severe here.[Pg 678] The random pattern of the sculpture also indicates that the stresses passed in many directions, parallel to the plane of the cheek and obliquely to that plane.

Possible Explanation for the Appearance of Temporal Openings

Bone has three primary functions: support, protection and participation in calcium metabolism. Let us assume that the requirements of calcium metabolism affect the mass of bone that is selected for, but do not grossly affect the morphology of the bones of that mass. Then selection operates to meet the needs for support within the limits that are set by the necessity to provide the protection for vital organs. After the needs for protection are satisfied, the remaining variable and the one most effective in determining the morphology of bones is selection for increased efficiency in meeting stress.

Let us also assume that bone increases in size and/or compactness in response to selection for meeting demands of increased stress, but is selected against when requirements for support are reduced or absent. Selection against bone could only be effective within the limits prescribed by the requirements for protection and calcium metabolism.

We may therefore assume that there is conservation in selection against characters having multiple functions. Since bone is an organ system that plays a multiple role in the vertebrate organism, a change in the selective pressures that affect one of the roles of bone can only be effective within the limits set by the other roles. For example, selection against bone that is no longer essential for support can occur only so long as the metabolic and protective needs of the organism provided by that character are not compromised. If a character no longer has a positive survival value and is not linked with a character that does have a positive survival value, then the metabolic demands for the development and maintenance of that character no longer have a positive survival value. A useless burden of metabolic demands is placed upon the organism because the character no longer aids the survival of the organism. If selection caused, for example, muscles to migrate away from the center of the cheek, the bone that had previously provided support for these muscles would have lost one of its functions. If in a population of such individuals, variation in the thickness of the bone of the cheek occurred, those with thinner bone in the cheek would be selected for, because less metabolic activity was diverted to building and maintaining what is now a character of reduced functional[Pg 679] significance. A continuation of the process would eliminate the bone or part of the bone in question while increasing the metabolic efficiency of the organism. The bone is no longer essential for support, the contribution of the mass of bone to calcium metabolism and the contribution of this part of the skeleton to protection have not been compromised, and the available energy can be diverted to other needs.

The study of Captorhinus has indicated that the central area of the cheek was subjected to less stress than the border areas. A similar condition in basal reptiles may well have been present. A continued trend in reducing the thickness of the bone of the cheek in the manner described above may well have resulted in the appearance of the first reptiles with temporal fenestrae arising from the basal stock.

Such an explanation adequately accounts for an increased selective advantage in the step-by-step thinning of the cheek-wall prior to the time of actual breakthrough. It is difficult to see the advantage during such stages if explanations of weight reduction or bulging musculature are accepted.

After the appearance of temporal fenestrae, selection for the classical factors is quite acceptable to explain the further development of fenestration. The continued enlargement of the temporal fenestrae in the pelycosaur-therapsid lineage undoubtedly was correlated with the advantages accrued from securing greater space to allow increased lateral expansion of contracting mandibular adductors. Similarly, weight in absolute terms can reasonably be suggested to explain the dramatic fenestration in the skeletons of many large dinosaurs.

Literature Cited

Adams, L. A.
1919. Memoir on the phylogeny of the jaw muscles in recent and fossil vertebrates. Annals N. Y. Acad. Sci., 28:51-166, 8 pls.

Estes, R.
1961. Cranial anatomy of the cynodont reptile Thrinaxodon liorhinus. Bull. Mus. Comp. Zool., 125(6):165-180, 4 figs., 2 pls.

Hotton, N.
1960. The chorda tympani and middle ear as guides to origin and development of reptiles. Evolution, 14(2):194-211, 4 figs.

Olson, E. C.
1961. Jaw mechanisms: rhipidistians, amphibians, reptiles. Am. Zoologist, 1(2):205-215, 7 figs.

Romer, A. S.
1928. Vertebrate faunal horizons in the Texas Permo-Carboniferous redbeds. Univ. Texas Bull., 2801:67-108, 7 figs.
1956. Osteology of the reptiles. Univ. Chicago Press, xxii + 772 pp., 248 figs.[Pg 680]

Romer, A. S. and Price, L. I.
1940. Review of the Pelycosauria. Geol. Soc. Amer. Special Papers, No. 28, x + 538 pp., 71 figs., 46 pls.

Watson, D. M. S.
1948. Dicynodon and its allies. Proc. Zool. Soc. London, 118:823-877, 20 figs., 1 pl.
1954. On Bolosaurus and the origin and classification of reptiles. Bull. Mus. Comp. Zool., 111(9):200-449, 37 figs.

Transmitted December 5, 1963.

30-1522






End of the Project Gutenberg EBook of The Adductor Muscles of the Jaw In
Some Primitive Reptiles, by Richard C. Fox

*** END OF THIS PROJECT GUTENBERG EBOOK ADDUCTOR MUSCLES OF THE JAW ***

***** This file should be named 30321-h.htm or 30321-h.zip *****
This and all associated files of various formats will be found in:
        https://www.gutenberg.org/3/0/3/2/30321/

Produced by Chris Curnow, Joseph Cooper, Diane Monico, and
the Online Distributed Proofreading Team at
https://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
https://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH F3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at https://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
https://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at https://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit https://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including including checks, online payments and credit card
donations.  To donate, please visit: https://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart was the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     https://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
