Italian Harpsichord-Building
in the
16th and 17th Centuries

by John D. Shortridge

(REPRINTED WITH CHANGES—1970)







CONTRIBUTIONS FROM THE MUSEUM OF HISTORY AND TECHNOLOGY
UNITED STATES NATIONAL MUSEUM BULLETIN 225 · Paper 15, Pages 93–107
SMITHSONIAN INSTITUTION PRESS · WASHINGTON, D.C. · 1970

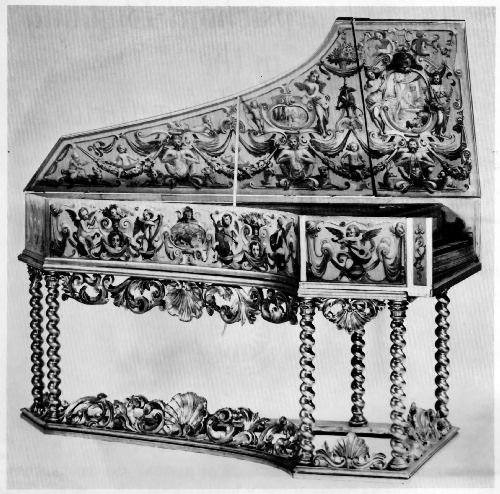

Figure 1.—Outer case of Albana harpsichord. Figure 1.—Outer case of Albana harpsichord.

Italian Harpsichord-Building
in the 16th and 17th Centuries

By John D. Shortridge

The making of harpsichords flourished in Italy throughout the 16th and 17th centuries. The Italian instruments were of simpler construction than those built by the North Europeans, and they lacked the familiar second manual and array of stops.

In this paper, typical examples of Italian harpsichords from the Hugo Worch Collection in the United States National Museum are described in detail and illustrated. Also, the author offers an explanation for certain puzzling variations in keyboard ranges and vibrating lengths of strings of the Italian harpsichords.

The Author: John D. Shortridge is associate curator of cultural history in the United States National Museum, Smithsonian Institution.

PERHAPS the modern tendency to idealize progress has been responsible for the neglect of Italian harpsichords and virginals during the present day revival of interest in old musical instruments. Whatever laudable traits the Italian builders may have had, they cannot be considered to have been progressive. Their instruments of the mid-16th century hardly can be distinguished from those made around 1700. During this 150 years the pioneering Flemish makers added the four-foot register, a second keyboard, and lute and buff stops to their instruments. However, the very fact that the Italian builders were unwilling to change their models suggests that their instruments were good enough to demand no further improvements. Anyone who has heard a properly restored Italian harpsichord or an accurately made reproduction will agree that the tone of such instruments is of exceptional beauty.

This paper consists of a description of the structural features of two typical Italian instruments and a general discussion of the stringing and tuning of Italian harpsichords and virginals that is based on certain measurements of 33 instruments housed in various museums in the United States. To the curators and other staff members of these institutions I express my sincere gratitude for making it possible for me to measure valuable instruments entrusted to their care or for supplying similar information by mail.

The first type of instrument described below usually has been designated in modern books about musical instruments and in catalogs of instrument collections as a spinet, the term virginal being applied to the rectangular instruments having the keyboard along the long side. Since both of these types have basically the same arrangement of keyboard, wrest plank, hitch pins, strings and jacks, and since both types were known as virginals in 17th-century England, it is logical to reserve the term spinet for another kind of instrument, namely the one with the wrest plank and tuning pins in front over the keyboard, and with the strings stretched diagonally. Such instruments were popular in England in the late 17th and early 18th centuries and were known in English as spinets during the period of their popularity. By using the term polygonal virginal we can distinguish, when necessary, the five-sided Italian model from the rectangular instruments usually produced in northern Europe. Some rectangular virginals were made in Italy; one Flemish polygonal virginal, made by the elder Hans Ruckers in 1591, survives. Long instruments, resembling the grand piano in shape, are called harpsichords. Of course it is understood that both types of virginals as well as the spinet and the harpsichord were keyed chordophones employing the plucking action of jacks and plectra.

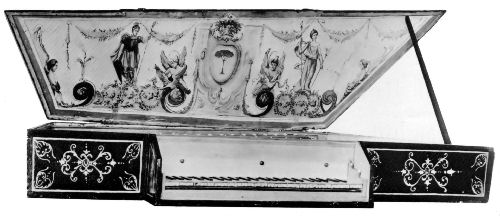

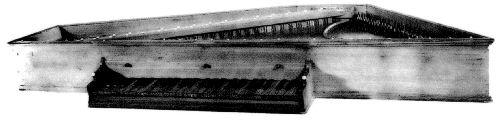

Figure 2.—Polygonal virginal in outer case. Figure 2.—Polygonal virginal in outer case.

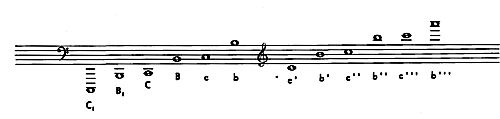

Throughout this paper the different octaves are indicated according to the following system:



Figure 3.—Polygonal virginal removed from outer case. Figure 3.—Polygonal virginal removed from outer case.

The Typical Italian Polygonal Virginal

To give a clear idea of the construction of the Italian polygonal virginal, a detailed description of one particular example is presented here. This virginal is included in the Hugo Worch collection at the U.S. National Museum. The maker's name is not known, but the instrument is believed to have been built around 1600.

As is true of the great majority of Italian virginals and harpsichords of the 16th and 17th centuries, the instrument proper is removable from its outer case. The outer case (fig. 2), of sturdier construction than the virginal which it was designed to protect, is made of wood about 1/2" thick and is decorated with paintings of female figures and garlands. The original legs are missing.

Our main interest is in the virginal proper (fig. 3), the construction of which is comparable in some ways to that of the violin. The very thin sides of the virginal are held together at the corners by blocks, and the soundboard is supported by a lining.

The cross section drawing (fig. 4) shows the 916" thick bottom and the sides which are 18" thick. The lining, 12" by 1-13", runs around four sides of the instrument, the wrest plank replacing it on the fifth side. The soundboard thickness, measured inside the holes through which the jacks pass, varies from 116" in the bass to 18" in the treble. The manner in which variations in thickness are distributed over the entire soundboard has not been determined. The cross section drawing also shows the beautifully executed mouldings that make the sides appear to be thicker than they really are.

The positions of the knee braces, the shape of which can be seen in figure 4, are shown along either side of the keyboard in figure 5. These braces are 34" thick. The positions of the blocks, small pieces with the grain running perpendicular to the bottom, and the wrest plank, which is 1-14" thick, are also shown. The two ribs are attached to the underside of the soundboard in the positions indicated. The jack guide, built up of separate pieces held together by long strips down either side, is glued to the underside of the soundboard and extends as far as the lining in the treble but stops a little short of it in the bass (fig. 5). The jack guide is 1516" thick.

The layout of the soundboard in figure 6 gives the relative positions of the bridges, tuning pins, hitch pins, strings, jacks, and jack rail. There is, of course, one jack and one string per key. The jacks presently in this virginal, not being original, will not be described. Typical Italian jacks will be described later. The bridges are 516" wide and vary in height from 716" in the bass to 38" in the treble. A cross section of one of the bridges appears in figure 4. The jack rail, also shown in figure 4, extends over the jacks 1-18" above the soundboard. It serves not only to prevent the jacks from flying out during play but also to terminate the downward fall of the fronts of the keys. The keys do not drop far enough to touch the key frame, but instead are stopped by the jacks striking the jack rail.

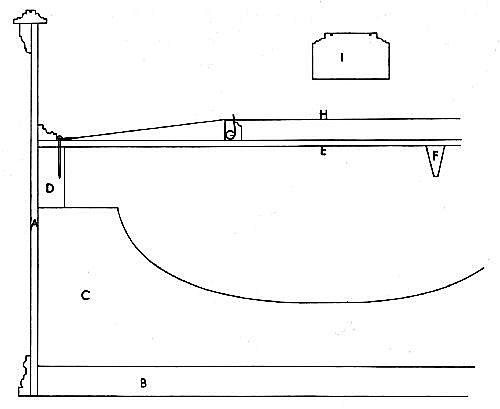

Figure 4. Figure 4.—Cross section of polygonal virginal. a, side; b, bottom; c, knee; d, liner; e, soundboard; f, rib; g, bridge; h string; i, jack rail. Scale, 1:2.

The keyboard has an apparent compass of four octaves and one note from E to f´´´. Short octave tuning would have extended the compass down a major third to C in the bass, with the E key sounding C, the F# key sounding D, the G# key sounding E, and the remaining keys sounding their proper pitches. These three keys will hereafter be referred to as C/E, D/F# and E/G#.

The lowest eight keys have small wire eyes attached to their undersides near the front. A corresponding slot is cut through the inner and outer cases, allowing the eyes to be connected to a short pedal keyboard which has not survived.

The keys themselves vary in length from 10" in the bass to 18-12" in the treble; they are mounted on a trapezoidal key frame which is removable from the instrument. The balance rail and balance rail pins are on a diagonal, resulting in a gradual but noticeable change in the touch from one end of the keyboard to the other. The rack, 12" thick and 1-34" high, is fastened along the back of the key frame and has one vertical saw cut for each key. Projecting from the back of each key is a small sliver of wood which rides in its proper saw cut and serves to guide the key. The natural keys are veneered with boxwood and have arcaded boxwood fronts. The sharps are small blocks of hardwood stained black.

The sides, soundboard, ribs, jacks, guide, jackrail, and mouldings are made of cypress, the wrest plank and bridges are of walnut, and the framework, bottom, keys, and key frame are of pine.

The photographs (figs. 2, 3) show the decorative use of ivory studs. On the soundboard appears the Latin inscription Vita brevis, ars longa. A laminated parchment rose, 3-316" in diameter, is placed in the soundboard in the position indicated in figure 6. A typical example of this decorative device is shown in figure 12.

The above-described virginal is typical of Italian practice. Other examples studied generally have differed from it only in small details, except in the case of compass and vibrating lengths of strings. These factors will be discussed in detail in a following section.

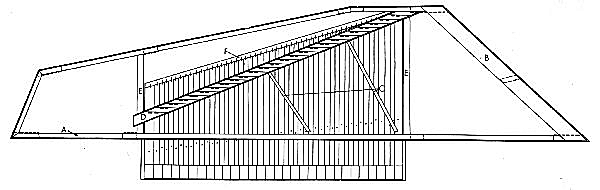

 Figure 5. Figure 5.—Interior of polygonal virginal. a, lining; b, wrest plank; c, rib; d, jack guide; e, knee; f, rack. Broken lines indicate positions of corner blocks and brace under wrest plank. Scale, 1:8.

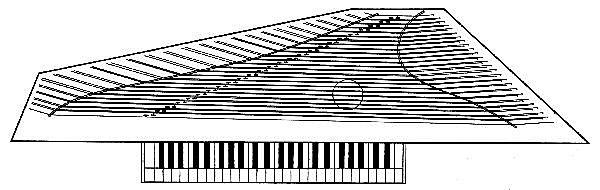

Figure 6.—Soundboard layout of polygonal virginal.
Scale, 1:8. Figure 6.—Soundboard layout of polygonal virginal. Scale, 1:8.

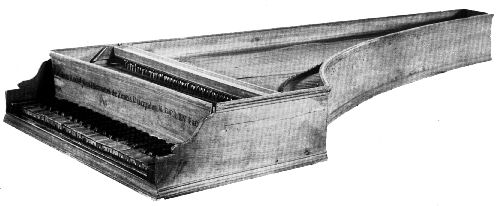

Figure 7.—Ridolfi harpsichord removed from case. Figure 7.—Ridolfi harpsichord removed from case.

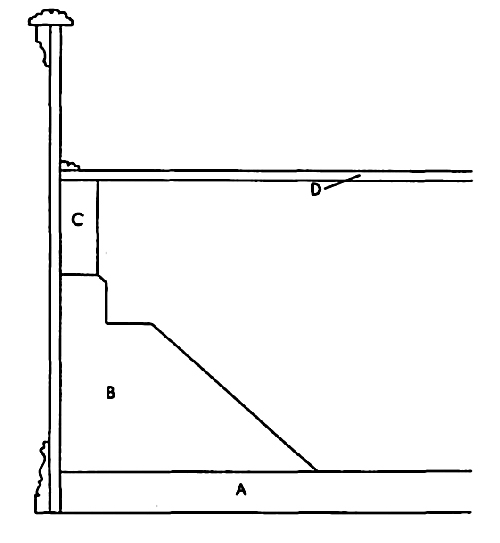

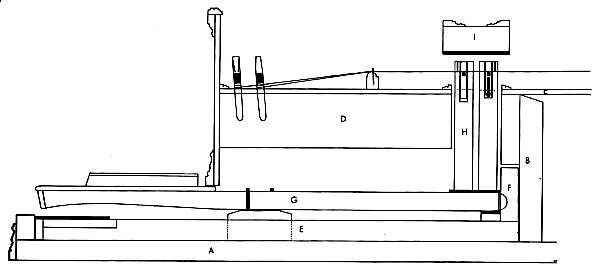

Figure 8.—Cross section of Ridolfi harpsichord. a,
bottom; b, knee; c, lining; d, soundboard. Scale, 1:2. Figure 8.—Cross section of Ridolfi harpsichord. a, bottom; b, knee; c, lining; d, soundboard. Scale, 1:2.

The Typical Italian Harpsichord

The instrument chosen to illustrate the stylistic features of the Italian harpsichord is also in the collection of the U.S. National Museum. This harpsichord, purchased for the Museum in 1892 by Dr. G. Brown Goode, was made in 1665 by Giacomo Ridolfi, who claimed Girolamo Zenti as his teacher. The inscription on the nameboard reads "Jacobus Rodolphus Hieronymi de Zentis Discipulus MDCLXV Facieba."

Like the virginal described above, this harpsichord is separable from its outer case. The outer case rests on a separate stand consisting of three gilt cupids and a floral garland. Since the painted decoration of this case is not original, another outer case, belonging to a harpsichord made by Horatius Albana in 1633, was selected for the illustration (fig. 1).

Two unison strings per key and two registers of jacks are provided. The apparent compass of the keyboard is from C/E to c´´´. The remains of pedal connections can be seen on the lowest eight keys.

The sides of the harpsichord are 532" thick; the bottom is 916" thick. The sides and lining are supported by knees that do not extend clear across the bottom of the instrument as they do in the virginal.

The knees are small triangular pieces, as shown in figure 8. Since the added tension of the second set of strings demands a somewhat more substantial framework than that employed in the virginal, a series of braces are attached to the floor. These are connected to the lining by several diagonal braces (fig. 9). This produces a remarkably strong but very light structure. The keys (not shown) are of more constant length than those of the virginal; therefore, the touch is much more uniform.

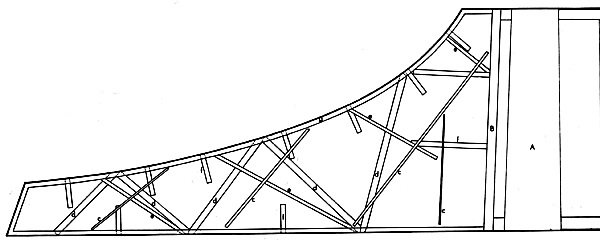

Figure 9.— Figure 9.—Framework of harpsichord. a, wrest plank; b, belly rail; c, rib; d, bottom brace; e, diagonal brace; f, knee; g, lining. Scale, 1:8.

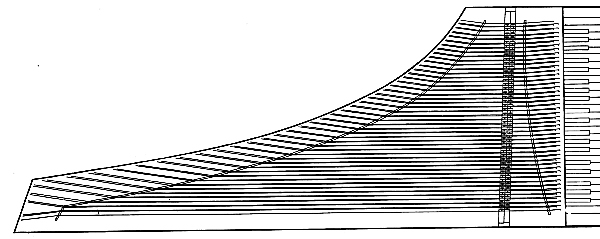

Figure 10.—Layout of harpsichord soundboard. Scale,
1:8. Figure 10.—Layout of harpsichord soundboard. Scale, 1:8.

The wrest plank is supported by two end blocks, against which the partition behind the action (called the belly rail) is also placed. The soundboard is glued to the top of the belly rail. The wrest plank is veneered with cypress, giving the appearance that the soundboard extends over it. The jack guides also rest on the end blocks in the space between the wrest plank and the belly rail. Figures 8 and 11 clarify the arrangement of these structural features.

Figure 10 shows the layout of ribs, bridges, and strings on the soundboard. The soundboard is about 18" thick. The bridge on the wrest plank tapers in height from 38" in the treble to 716" in the bass and in width from 516" to 716". The soundboard bridge measures about 38" by 14" and has virtually no taper. The soundboard does not have a rose, although that decorative device is fairly common on Italian harpsichords.

The jack guides are built up of spacer blocks held together by thin strips along the sides. There is now no provision for moving the guides, although plugged-up holes visible in the right end of each guide suggest that they originally could be disengaged. In Italian harpsichords generally, the jack guides were controlled by knobs projecting through the sides of the case. Sometimes these harpsichords had levers pivoted on the wrest plank and attached to the guides. The Ridolfi case has not been patched and there are no holes in the wrest plank where levers could have been attached; so, the guides probably were not intended to be movable.

The jacks are simple slips of walnut measuring about 316" by 716" by 3-18". The arrangement of the tongue, spring, plectrum, and damper are shown in figure 11. The dampers are small pieces of buckskin held in slots at the tops of the jacks. The plectra, perhaps not original, are of leather. Of course, there are no adjusting screws or capstans of any variety.

The direction in which the plectra of each row of jacks should be pointing is not known. Two clavicytheria having two registers of strings and a single row of double tongue jacks have been examined by the author. Each of these jacks has two plectra, one pointing to the right and one to the left. Turning these jacks around does not alter the order of direction. The plectra nearest the keyboard points the same way whether the jack is upside down or not. In the clavicytherium at the Smithsonian Institution the plectra nearest the keyboard points to the player's left. In a clavicytherium at the Boston Museum of Fine Arts the opposite is true. Probably both arrangements were used in harpsichords also.

String Lengths and Pitch Standards

The vibrating lengths of the strings of the polygonal virginal and of the Ridolfi harpsichord can be roughly determined from the drawings. For purposes of comparison, a tabulation of the vibrating lengths (in inches) of the C strings on both instruments follows:

 Polygonal
virginal
Harpsichord
c´´´6-585-116
c´´ (pitch C)12-151610
c´ (middle C)25-91620-12
c43-51642-116
C/E50-5661-14

The lengths shown for the harpsichord represent the shorter of the two strings with which each key is provided.

In order to produce a uniform tone color throughout the compass of a stringed instrument, it is necessary, among other things, to have the tension of all the strings reasonably uniform. In the treble this is accomplished by varying the string lengths. Since the length of a vibrating string is inversely proportional to its frequency, each string is made about half as long as the string an octave below, two thirds as long as the string a fifth below, etc. This principle cannot be carried all the way into the bass since the lowest strings would be inconveniently long, so somewhere below middle C the strings are gradually shortened and the diameters of the wires are increased in compensation.

As the above comparison shows, the string lengths are approximately doubled at each descending octave down to on the virginal and c on the harpsichord. The shape of the case allows the harpsichord to have longer bass strings than the virginal; between and c the string length is doubled in the harpsichord. However, in the virginal the c string is considerably less than twice as long as the string an octave above. In fact, the bass strings of the virginal are shortened to such an extent that the lowest string of the harpsichord is much longer than the lowest string of the virginal, although in the treble the virginal has longer strings than the harpsichord.

If the length of one treble string of an instrument of this sort is known, the lengths of all but the bass strings can be readily inferred; we can approximately describe the lengths of two-thirds to three-fourths of the strings of either of the above instruments by giving the length of one string. It has become customary to use c´´ for this purpose, and to refer to it in such cases as pitch C.

In examining a number of Italian harpsichords and virginals dating from 1540 to 1694, lengths for pitch C ranging from 8" to 13-34" have been found. This seems to be a great discrepancy for instruments that are otherwise so standardized. Since a uniform standard of pitch did not yet exist in the 16th and 17th centuries, we would expect the string lengths employed to be varied somewhat in order to accommodate the instruments to higher or lower tunings. Also, a preference for the sound of thinner, longer wires or shorter, thicker ones may have caused some builders to increase or decrease the string lengths on their instruments in proportion to the string diameters chosen. We have no precise evidence concerning the original wire gauges of the strings of Italian harpsichords and virginals. Although the variety of pitch C lengths encountered on the instruments studied can partially be accounted for by these two factors, a third and more important cause existed.

Among the 33 instruments about which information has been secured, a correlation is discernible between the apparent manual compass and the pitch C string lengths. Sixteen of the instruments ascend to f´´´. For these, the length of the pitch C string varies from 10-14" to 13-34". The remaining instruments, with either a´´ or c´´´ as the highest notes, have pitch C strings ranging from 8" to 11-38" in length. If the average tension and wire diameter of the two groups are assumed to have been about equal, the difference in string lengths would suggest a corresponding difference in pitch, the instruments having the compass extended to f´´´ sounding somewhat lower than the others.



Figure 11. Figure 11.—Action of harpsichord. a, bottom; b, belly rail; c, soundboard; d, wrest plank; e, key frame; f, rack; g, key; h, jack; i, jack rail. Scale, 1:2.

There is some historical evidence that this actually was the case. In his Theatrum Instrumentorum Michael Praetorius[1] pictures a polygonal virginal, which appears to be very much like the many Italian examples that survive today, and a rectangular virginal that seems to be Flemish. He specifies that both are so recht Chor-Thon (at regular choir pitch). Praetorius also shows a harpsichord[2] that looks like a typical Italian instrument except for the presence of a set of strings tuned an octave above unison pitch, a rare feature on Italian harpsichords. This harpsichord is described as so eine Quart tieffer alss Chor-Thon (a fourth lower than choir pitch), clearly indicating that single manual keyboard instruments a fourth apart in pitch were in existence. Since no reason is given for the harpsichord being tuned a fourth lower than the two virginals, we may assume that the author considered the matter commonplace enough as to demand no further elaboration and that instruments a fourth apart in pitch were not rare.

Praetorius does not state that the harpsichord in his illustration was tuned to a low pitch standard, which was actually used for certain purposes or in particular localities. He discussed the numerous pitches in use before and during his time, but the only one that he mentioned as being a fourth below choir pitch he considered obsolete and suitable only for plainsong. If the harpsichord was not intended to be tuned to this standard and used for this purpose, it must have been tuned to choir pitch and treated as a transposing instrument.

Querinus van Blankenburg,[3] writing in 1739, states:

At that time [the beginning of the 17th century], men had so little experience in transposition that in order to be able to transpose a piece a fourth downwards they made a special second keyboard in the harpsichord for this purpose. This seems incredible, but the very remarkable proof is the fact that the famous Ruckers from the beginning of the last century for a period of more than thirty years made harpsichords only in this way.[4]

That the second manual of the two-manual harpsichord originated as a device for transposition is well known. In an article titled "Transposing Keyboards on Extant Flemish Harpsichords," Sibyl Marcuse[5] discusses surviving examples that show how the second keyboard was arranged. The upper keyboard was the principal one, with the lower keyboard sounding a fourth below. The strings acted upon by a c key on the upper manual were sounded by an f key on the lower; so, in changing from the upper manual to the lower, the player would have to move his hands to the left the distance of a perfect fourth in order to strike the same keys, thus producing the downward transposition. The compass of the upper manual was E/C to c´´´. Since the lower keyboard was shifted to the left, space was provided for five additional keys at its treble end. The apparent treble range of the lower keyboard was therefore extended to f´´´, although the lower f´´´ and upper c´´´ keys worked on the same strings and produced the same pitch. Room was also made for five extra bass keys at the lower end of the upper manual. However, since short octave tuning was employed and it was desirable to be able to use the same fingering in the bass on both manuals, the tails of the C/E, D/F# and E/G# keys of the upper manual had to be bent to the left in order to work on the strings played by the F, G, and A keys respectively of the lower manual. The vacant space to the left of the upper manual C/E was filled by a block of wood. Hence the five extra bass strings not used by the upper manual were those played by the C/E, D/F#, E/G#, B, and c# keys of the lower keyboard.

Of the 16 Italian harpsichords and virginals studied that ascend in the treble to f´´´, 13 range to C/E in the bass, thus having exactly the same compass as the lower (transposing) keyboard of the Flemish two-manual instruments. Twelve of the 14 Italian examples having c´´´ as the highest key stop on C/E in the bass and are identical in apparent compass to the Ruckers upper manual.

The correlation of compass and string length of the Italian instruments, the statements of Praetorius, and the similarity of the Italian keyboard ranges to those of the Ruckers transposing harpsichords have been considered. A plausible conclusion is that the Italian instruments extending to f´´´ were transposing instruments sounding a perfect fourth lower than the prevailing pitch standard. Adopting the terminology used for orchestral wind instruments, these could be referred to as harpsichords in G.

The evidence of the correlation between string length and compass becomes much more convincing if we assume that the Italian builders abandoned the practice of making transposing harpsichords about the same time that the Ruckers family stopped employing the transposing lower manual. In the quotation previously given, Querinus van Blankenburg tells us that the Ruckers did not make transposing instruments later than the 1630's. Of the 10 dated Italian instruments with the keyboard extended to f´´´, only three were made after the third decade of the 17th century. Each of these has a shorter pitch C string than any of the seven earlier instruments. These three harpsichords, dated 1654, 1658, and 1666, are accordingly considered nontransposing instruments, with the extra treble keys representing an actual extension of the upward range. The six undated instruments with f´´´ in the treble are classified as transposing instruments because of their pitch C lengths and are accordingly believed to have been made before about 1635.

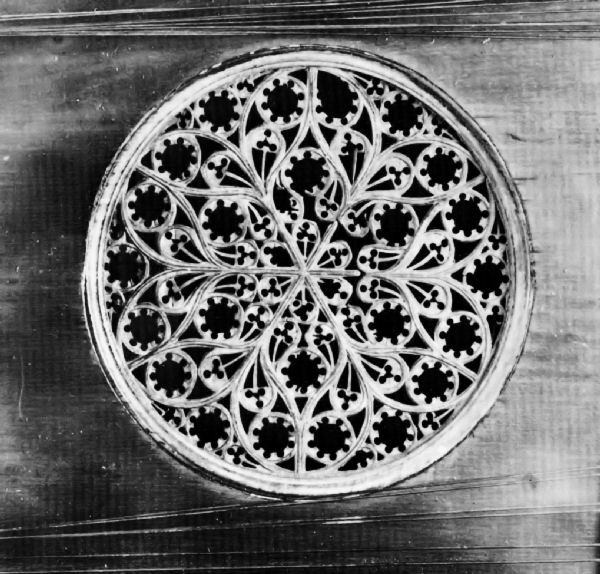

Figure 12.—Typical decorative device, known as rose,
that appeared in soundboards of virginals and harpsichords. Figure 12.—Typical decorative device, known as rose, that appeared in soundboards of virginals and harpsichords.

The 33 instruments on which this study is based are classified in the list on page 107. They are grouped according to whether the highest key is f´´´ or c´´´, with the exceptions of the three harpsichords mentioned in the preceding paragraph and three instruments that go only to a´´. That the three instruments ending on a´´ belong with the nontransposing group is indicated by their string lengths.

The listing gives additional information about each example. String lengths of instruments having two registers are for the shorter of the two pitch C strings.

Information has been secured on two Italian virginals which were not included in the tabulation. Their measurements are completely at variance with the pattern consistently set by the other 33 examples studied. One, made by Giovanni Domenico in 1556, is in the Skinner collection; it has a pitch C string 14-116" in length and an apparent compass of C/E to c´´´. The other, with the same apparent compass and a 7-12" pitch C string, is at Yale University. Whether these instruments are exceptional in terms of the pitch to which they were tuned, the tension which was applied to the strings, or the thickness and weight of the strings themselves, has not been determined.

The average of the pitch C lengths of the transposing instruments in the list is 12.78"; that of the nontransposing group is 10.45". This suggests a separation between the two groups of about a major third since the first average is roughly 54 of the second. However, the fact that the separation of the two averages is not great enough to positively indicate a perfect fourth—the first average would have to be 43 of the second to do so—does not disprove the theory of transposition by a fourth. In the first place, a considerable variety of pitches is no doubt represented in both groups since a universal pitch standard did not exist in the 16th and 17th centuries. Also, a margin of error of only a semitone is as good as could be expected considering the small number of examples on which the averages are based.

A further possible justification for the relationship of the two averages is found in Praetorius' discussion of the pitch standards with which he was familiar.[6] He states that choir pitch was a major second lower than chamber pitch and that tertiam minorem was a minor third lower than chamber pitch. Praetorius says of tertiam minorem:[7]

But in Italy and in various Catholic choirs in Germany, the said lower pitch is much in use. For some Italians, not unjustly, take no pleasure in high singing, and maintain it is not beautiful, and the words cannot be properly understood, and it sounds like crowing, yelling, singing at the top of one's voice....

Possibly some of the nontransposing instruments were tuned to choir pitch and others to tertiam minorem, while the transposing instruments were set a fourth lower than choir pitch.

Three of the instruments listed are ottavinas, small instruments tuned an octave higher than usual. Ottavinas correspond to a four-foot register. Mersenne[8] mentions that they existed in two sizes, one a fifth above the usual pitch and the other an octave above. The three ottavinas included in the table are considered to be of the size sounding an octave above the usual pitch because they have C/E to c´´´ ranges and pitch C string lengths about half the average length of the other instruments in the nontransposing group. Although no examples were found for inclusion in this study, it is probable that some ottavinas a fifth above the usual pitch—and therefore an octave higher than the transposing instruments in our listing—survive. Such instruments would be expected to have apparent ranges of C/E to f´´´ and pitch C strings between 5-34" and 6-34" in length.

DATA ON THE 33 INSTRUMENTS STUDIED

Date Pitch C length
(in inches)
Apparent
compass
Type Registers Maker Present Location
Transposing Instruments
1540 11-1116 C/E-f´´´ Polygonal virginal Vi ... ies Metropolitan Museum of Art
1569 13-14 C/E-f´´´ Polygonal virginal Annibale Rossi Juilliard School of Music
1602 13-14 C/E-f´´´ Rectangular virginal Ioannes Baptista Bononien Smithsonian Institution
1610 13-12 C/E-f´´´´ Polygonal virginal Pasquino Querci Harding Museum, Chicago
1613 11-12 C/E-f´´´ Harpsichord 8´8´ Pasquino Querci Smithsonian Insitution
1617 13-34 C/E-f´´´ Polygonal virginal Giovanni Battista Boni Yale University, New Haven, Conn.
1620 13-916 C/E-f´´´ Polygonal virginal Francesco Poggio Rhode Island School of Design, Providence
  11-1516 C/E-f´´´ Polygonal virginal Anonymous Skinner Collection, Holyoke, Mass.
  12-1516 C/E-f´´´ Polygonal virginal Anonymous Smithsonian Institution
  13" C/E-f´´´ Polygonal virginal Anonymous Boston Museum of Fine Arts
  11-12 C-f´´´ Polygonal virginal Anonymous Folger Library, Washington, D.C.
  12-34 C/E-f´´´ Polygonal virginal Anonymous Cincinnati Art Museum
  13-58 C/E-f´´´ Polygonal virginal Anonymous Smithsonian Institution
Nontransposing Instruments
1548 11 C/E-c´´´ Polygonal virginal Domenicus Pesaurensis Metropolitan Museum of Art
1554 [a]10-12 C/E-c´´´ Harpsichord 8´8´ Padre Stoppacio Vassar College, Poughkeepsie, New York
1585 [b]11-12 C/E-a´´ Ottavina Franciscus Bonafinis Metropolitan Museum of Art
1602 10-12 C/E-c´´´ Harpsichord ...... Christoforus Rigunini Stearns Collection, Ann Arbor, Mich.
1615 [b]9-34 C/E-a´´ Ottavina Pasquino Querci Metropolitan Museum of Art
1625 10-18 C/E-c´´´ Harpsichord Valerius Peres Skinner Collection, Holyoke, Mass.
1633 11-38 C/E-c´´´ Harpsichord 8´8´ Horatius Albana Smithsonian Instituion
1645 11 C/E-c´´´ Harpsichord 8´8´ Horatius Albana Vizcaya, Miami, Fla.
1654 10-14 C/E-f´´´ Harpsichord 8´8´ Anonymous Smithsonian Institution
1658 11-18 C-f´´´ Harpsichord 8´8´ Hieronymus de Zentis Metropolitan Museum of Art
1665 10 C/E-c´´´ Harpsichord 8´8´ Giacomo Ridolfi Smithsonian Institution
1666 10-1516 A1-f´´´ Harpsichord 8´8´ Hieronymus de Zentis Metropolitan Museum of Art
1682 10-78 C/E-c´´´ Harpsichord 8´8´ Giacomo Ridolfi Rhode Island School of Design, Providence
1683 8 C/E-c´´´ Polygonal virginal B. Obici Harding Museum, Chicago
1690 10-1316 C/E-c´´´ Harpsichord Giovanni Andrea Menegoni Smithsonian Institution
1693 10-516 G1-c´´´ Harpsichord 8´8´ Anonymous Smithsonian Institution
1694 9-78 C-c´´´ (minus C#) Harpsichord 8´8´4´ Nicolaus de Quoco Smithsonian Institution
  9-34 C/E-a´´ Clavicytherium 8´8´ Anonymous Smithsonian Institution
  [b]10-38 C/E-c´´´ Clavicytherium (Ottavina) Anonymous Boston Museum of Fine Arts
  11 C/E-c´´´ Polygonal virginal Anonymous Smithsonian Institution

a This length is approximate. It is double the length of the shortest string on the instrument.

bIn order to arrive at a meaningful average value for the string lengths of the nontransposing group, it was necessary to double the measured lengths of the pitch C strings of the three instruments tuned an octave higher.


Figure Negative
Number
Catalog
Number
1 56322 326,905
2 46792 303,544
3 49355A 303,544
4 49355B 303,544
5 49356A 303,544
6 49356 303,544
7 49356D 332,173
8 49356D 332,173
9 49357A 332,173
10 49357 332,173
11 49355C 332,173
12 46795 303,545





GPO: 1970 O—380-228

For sale by the Superintendent of Documents, U.S. Government Printing Office, Washington 25, D.C. Price 25 cents.

FOOTNOTES:

[1] Michael Praetorius, Theatrum Instrumentorum, Wolfenbüttel, 1620, pl. 14.

[2] Ibid., pl. 6.

[3] Querinus van Blankenburg, Elementa Musica, The Hague, 1739.

[4] Translation by Arthur Mendel in "Devices for Transposition in the Organ before 1600," Acta Musicologica, 1949, p. 33.

[5] Sibyl Marcuse, "Transposing Keyboards on Extant Flemish Harpsichords," Musical Quarterly, July 1952.

[6] Michael Praetorius, Syntagma Musicum, Wolfenbüttel, 1614–1620, vol. 2 (Organographia), chapter 2.

[7] Translation by Arthur Mendel in "Pitch in the 16th and early 17th Centuries, Part II," Musical Quarterly, April 1948.

[8] Marin Mersenne, Harmonie Universelle, Paris, 1636, p. 101.






End of the Project Gutenberg EBook of Italian Harpsichord-Building in the
16th and 17th Centuries, by John D. Shortridge

*** END OF THIS PROJECT GUTENBERG EBOOK ITALIAN HARPSICHORD-BUILDING ***

***** This file should be named 27149-h.htm or 27149-h.zip *****
This and all associated files of various formats will be found in:
        https://www.gutenberg.org/2/7/1/4/27149/

Produced by Chris Curnow, Joseph Cooper, Greg Bergquist
and the Online Distributed Proofreading Team at
https://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
https://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH F3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, is critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at https://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
https://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at https://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit https://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including including checks, online payments and credit card
donations.  To donate, please visit: https://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart was the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     https://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
