LECTURES
ON STELLAR STATISTICS

BY

C. V. L. CHARLIER

SCIENTIA PUBLISHER
LUND 1921


HAMBURG 1921
PRINTED BY LÜTCKE & WULFF[Pg 3]


CHAPTER I.

APPARENT ATTRIBUTES OF THE STARS.

1.

Our knowledge of the stars is based on their apparent attributes, obtained from the astronomical observations. The object of astronomy is to deduce herefrom the real or absolute attributes of the stars, which are their position in space, their movement, and their physical nature.

The apparent attributes of the stars are studied by the aid of their radiation. The characteristics of this radiation may be described in different ways, according as the nature of the light is defined. (Undulatory theory, Emission theory.)

From the statistical point of view it will be convenient to consider the radiation as consisting of an emanation of small particles from the radiating body (the star). These particles are characterized by certain attributes, which may differ in degree from one particle to another. These attributes may be, for instance, the diameter and form of the particles, their mode of rotation, &c. By these attributes the optical and electrical properties of the radiation are to be explained. I shall not here attempt any such explanation, but shall confine myself to the property which the particles have of possessing a different mode of deviating from the rectilinear path as they pass from one medium to another. This deviation depends in some way on one or more attributes of the particles. Let us suppose that it depends on a single attribute, which, with a terminology derived from the undulatory theory of Huyghens, may be called the wave-length (λ) of the particle.

The statistical characteristics of the radiation are then in the first place:—

(1) the total number of particles or the intensity of the radiation;

(2) the mean wave-length0) of the radiation, also called (or nearly identical with) the effective wave-length or the colour;[Pg 4]

(3) the dispersion of the wave-length. This characteristic of the radiation may be determined from the spectrum, which also gives the variation of the radiation with λ, and hence may also determine the mean wave-length of the radiation.

Moreover we may find from the radiation of a star its apparent place on the sky.

The intensity, the mean wave-length, and the dispersion of the wave-length are in a simple manner connected with the temperature (T) of the star. According to the radiation laws of Stephan and Wien we find, indeed (compare L. M. 41[1]) that the intensity is proportional to the fourth power of T, whereas the mean wave-length and the dispersion of the wave-length are both inversely proportional to T. It follows that with increasing temperature the mean wave-length diminishes—the colour changing into violet—and simultaneously the dispersion of the wave-length and also even the total length of the spectrum are reduced (decrease).

2.

The apparent position of a star is generally denoted by its right ascension (α) and its declination (δ). Taking into account the apparent distribution of the stars in space, it is, however, more practical to characterize the position of a star by its galactic longitude (l) and its galactic latitude (b). Before defining these coordinates, which will be generally used in the following pages, it should be pointed out that we shall also generally give the coordinates α and δ of the stars in a particular manner. We shall therefore use an abridged notation, so that if for instance α = 17h 44m.7 and δ = +35°.84, we shall write

(αδ) = (174435).

If δ is negative, for instance δ = -35°.84, we write

(αδ) = (174435),

so that the last two figures are in italics.

This notation has been introduced by Pickering for variable stars and is used by him everywhere in the Annals of the Harvard[Pg 5] Observatory, but it is also well suited to all stars. This notation gives, simultaneously, the characteristic numero of the stars. It is true that two or more stars may in this manner obtain the same characteristic numero. They are, however, easily distinguishable from each other through other attributes.

The galactic coordinates l and b are referred to the Milky Way (the Galaxy) as plane of reference. The pole of the Milky Way has according to Houzeau and Gould the position (αδ) = (124527). From the distribution of the stars of the spectral type B I have in L. M. II, 14[2] found a somewhat different position. But having ascertained later that the real position of the galactic plane requires a greater number of stars for an accurate determination of its value, I have preferred to employ the position used by Pickering in the Harvard catalogues, namely (αδ) = (124028), or

α = 12h 40m = 190°, δ = +28°,

which position is now exclusively used in the stellar statistical investigations at the Observatory of Lund and is also used in these lectures.

The galactic longitude (l) is reckoned from the ascending node of the Milky Way on the equator, which is situated in the constellation Aquila. The galactic latitude (b) gives the angular distance of the star from the Galaxy. On plate I, at the end of these lectures, will be found a fairly detailed diagram from which the conversion of α and δ of a star into l and b may be easily performed. All stars having an apparent magnitude brighter than 4m are directly drawn.

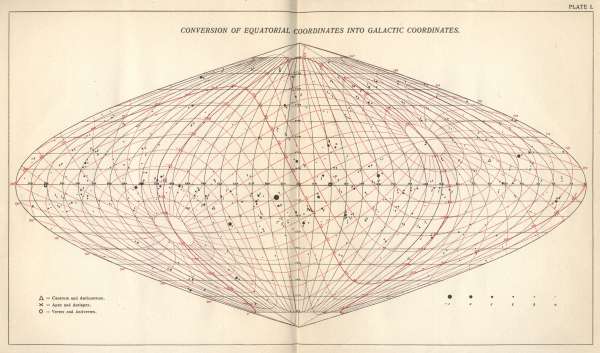

Instead of giving the galactic longitude and latitude of a star we may content ourselves with giving the galactic square in which the star is situated. For this purpose we assume the sky to be divided into 48 squares, all having the same surface. Two of these squares lie at the northern pole of the Galaxy and are designated GA1 and GA2. Twelve lie north of the galactic plane, between 0° and 30° galactic latitude, and are designated GC1, GC2, ..., GC12. The corresponding squares south of the galactic equator (the plane of the Galaxy) are called GD1, GD2, ..., GD12. The two polar squares at the south pole are called GF1 and GF2. Finally we have 10 B-squares, between the A- and C-squares and 10 corresponding E-squares in the southern hemisphere.

[Pg 6]

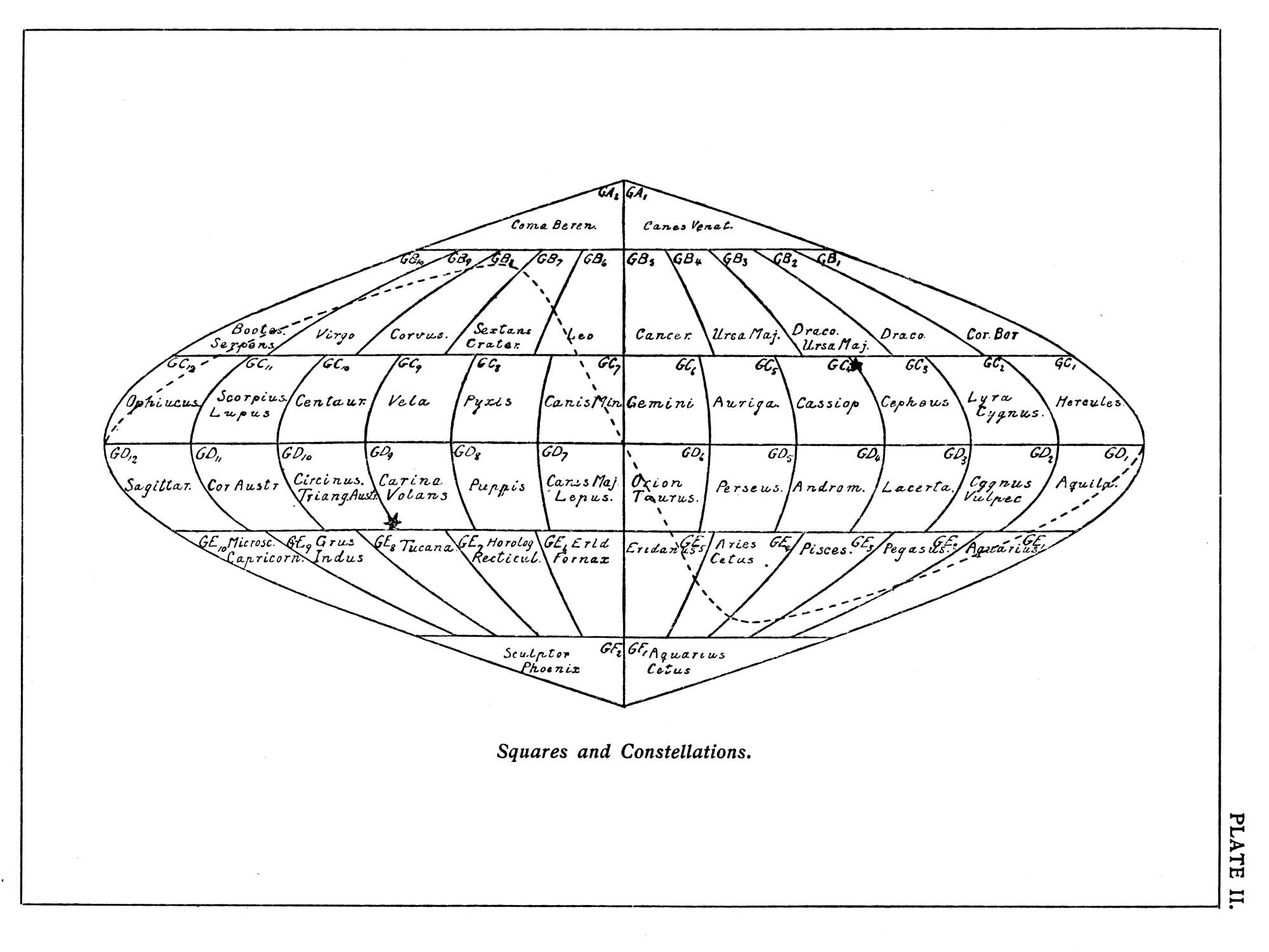

The distribution of the squares in the heavens is here graphically represented in the projection of Flamsteed, which has the advantage of giving areas proportional to the corresponding spherical areas, an arrangement necessary, or at least highly desirable, for all stellar statistical researches. It has also the advantage of affording a continuous representation of the whole sky.

The correspondence between squares and stellar constellations is seen from plate II. Arranging the constellations according to their galactic longitude we find north of the galactic equator (in the C-squares) the constellations:—

Hercules, Cygnus, Cepheus, Cassiopæa, Auriga, Gemini, Canis Minor, Pyxis, Vela, Centaurus, Scorpius, Ophiuchus,

and south of this equator (in the D-squares):—

Aquila, Cygnus, Lacerta, Andromeda, Perseus, Orion, Canis Major, Puppis, Carina, Circinus, Corona australis, Sagittarius,

mentioning only one constellation for each square.

At the north galactic pole (in the two A-squares) we have:—

Canes Venatici and Coma Berenices,

and at the south galactic pole (in the two F-squares):—

Cetus and Sculptor.

3.

Changes in the position of a star. From the positions of a star on two or more occasions we obtain its apparent motion, also called the proper motion of the star. We may distinguish between a secular part of this motion and a periodical part. In both cases the motion may be either a reflex of the motion of the observer, and is then called parallactic motion, or it may be caused by a real motion of the star. From the parallactic motion of the star it is possible to deduce its distance from the sun, or its parallax. The periodic parallactic proper motion is caused by the motion of the earth around the sun, and gives the annual parallax (π). In order to obtain available annual parallaxes of a star it is usually necessary for the star to be nearer to us than 5 siriometers, corresponding to a parallax greater than 0″.04. More seldom we may in this manner obtain trustworthy values for a distance amounting[Pg 7] to 10 siriometers (π = 0″.02), or even still greater values. For such large distances the secular parallax, which is caused by the progressive motion of the sun in space, may give better results, especially if the mean distance of a group of stars is simultaneously determined. Such a value of the secular parallax is also called, by Kapteyn, the systematic parallax of the stars.

When we speak of the proper motion of a star, without further specification, we mean always the secular proper motion.

4.

Terrestrial distances are now, at least in scientific researches, universally expressed in kilometres. A kilometre is, however, an inappropriate unit for celestial distances. When dealing with distances in our planetary system, the astronomers, since the time of Newton, have always used the mean distance of the earth from the sun as universal unit of distance. Regarding the distances in the stellar system the astronomers have had a varying practice. German astronomers, Seeliger and others, have long used a stellar unit of distance corresponding to an annual parallax of 0″.2, which has been called a “Siriusweite”. To this name it may be justly objected that it has no international use, a great desideratum in science. Against the theoretical definition of this unit it may also be said that a distance is suitably to be defined through another distance and not through an angle—an angle which corresponds moreover, in this case, to the harmonic mean distance of the star and not to its arithmetic mean distance. The same objection may be made to the unit “parsec.” proposed in 1912 by Turner.

For my part I have, since 1911, proposed a stellar unit which, both in name and definition, nearly coincides with the proposition of Seeliger, and which will be exclusively used in these lectures. A siriometer is put equal to 106 times the planetary unit of distance, corresponding to a parallax of 0″.206265 (in practice sufficiently exactly 0″.2).

In popular writings, another unit: a light-year, has for a very long time been employed. The relation between these units is

1 siriometer= 15.79 light-years,
1 light-year= 0.0633 siriometers.

5.

In regard to time also, the terrestrial units (second, day, year) are too small for stellar wants. As being consistent with the unit of[Pg 8] distance, I have proposed for the stellar unit of time a stellar year (st.), corresponding to 106 years. We thus obtain the same relation between the stellar and the planetary units of length and time, which has the advantage that a velocity of a star expressed in siriometers per stellar year is expressed with the same numerals in planetary units of length per year.

Spectroscopic determinations of the velocities, through the Doppler-principle, are generally expressed in km. per second. The relation with the stellar unit is the following:

1 km./sec.= 0.2111 sir./st.,
= 0.2111 planetary units per year,
1 sir./st.= 4.7375 km./sec.

Thus the velocity of the sun is 20 km./sec. or 4.22 sir./st. (= 4.22 earth distances from the sun per year).

Of the numerical value of the stellar velocity we shall have opportunity to speak in the following. For the present it may suffice to mention that most stars have a velocity of the same degree as that of the sun (in the mean somewhat greater), and that the highest observed velocity of a star amounts to 72 sir./st. (= 340 km./sec.). In the next chapter I give a table containing the most speedy stars. The least value of the stellar velocity is evidently equal to zero.

6.

Intensity of the radiation. This varies within wide limits. The faintest star which can give an impression on the photographic plates of the greatest instrument of the Mount Wilson observatory (100 inch reflector) is nearly 100 million times fainter than Sirius, a star which is itself more than 10000 million times fainter than the sun—speaking of apparent radiation.

The intensity is expressed in magnitudes (m). The reason is partly that we should otherwise necessarily have to deal with very large numbers, if they were to be proportional to the intensity, and partly that it is proved that the human eye apprehends quantities of light as proportional to m.

This depends upon a general law in psycho-physics, known as Fechner's law, which says that changes of the apparent impression of light are proportional not to the changes of the intensity but to these changes divided by the primitive intensity. A similar law is valid for all sensations. A conversation is inaudible in the vicinity of a waterfall.[Pg 9] An increase of a load in the hand from nine to ten hectograms makes no great difference in the feeling, whereas an increase from one to two hectograms is easily appreciable. A match lighted in the day-time makes no increase in the illumination, and so on.

A mathematical analysis shows that from the law of Fechner it follows that the impression increases in arithmetical progression (1, 2, 3, 4, ...) simultaneously with an increase of the intensity in geometrical progression (I, I2, I3, I4, ...). It is with the sight the same as with the hearing. It is well known that the numbers of vibrations of the notes of a harmonic scale follow each other in a geometrical progression though, for the ear, the intervals between the notes are apprehended as equal. The magnitudes play the same rôle in relation to the quantities of light as do the logarithms to the corresponding numbers. If a star is considered to have a brightness intermediate between two other stars it is not the difference but the ratio of the quantities of light that is equal in each case.

The branch of astronomy (or physics) which deals with intensities of radiation is called photometry. In order to determine a certain scale for the magnitudes we must choose, in a certain manner, the zero-point of the scale and the scale-ratio.

Both may be chosen arbitrarily. The zero-point is now almost unanimously chosen by astronomers in accordance with that used by the Harvard Observatory. No rigorous definition of the Harvard zero-point, as far as I can see, has yet been given (compare however H. A. 50[3]), but considering that the Pole-star (α Ursæ Minoris) is used at Harvard as a fundamental star of comparison for the brighter stars, and that, according to the observations at Harvard and those of Hertzsprung (A. N. 4518 [1911]), the light of the Pole-star is very nearly invariable, we may say that the zero-point of the photometric scale is chosen in such a manner that for the Pole-star m = 2.12. If the magnitudes are given in another scale than the Harvard-scale (H. S.), it is necessary to apply the zero-point correction. This amounts, for the Potsdam catalogue, to -0m.16.

It is further necessary to determine the scale-ratio. Our magnitudes for the stars emanate from Ptolemy. It was found that the scale-ratio[Pg 10]—giving the ratio of the light-intensities of two consecutive classes of magnitudes—according to the older values of the magnitudes, was approximately equal to 2½. When exact photometry began (with instruments for measuring the magnitudes) in the middle of last century, the scale-ratio was therefore put equal to 2.5. Later it was found more convenient to choose it equal to 2.512, the logarithm of which number has the value 0.4. The magnitudes being themselves logarithms of a kind, it is evidently more convenient to use a simple value of the logarithm of the ratio of intensity than to use this ratio itself. This scale-ratio is often called the Pogson-scale (used by Pogson in his “Catalogue of 53 known variable stars”, Astr. Obs. of the Radcliffe Observatory, 1856), and is now exclusively used.

It follows from the definition of the scale-ratio that two stars for which the light intensities are in the ratio 100:1 differ by exactly 5 magnitudes. A star of the 6th magnitude is 100 times fainter than a star of the first magnitude, a star of the 11th magnitude 10000 times, of the 16th magnitude a million times, and a star of the 21st magnitude 100 million times fainter than a star of the first magnitude. The star magnitudes are now, with a certain reservation for systematic errors, determined with an accuracy of 0m.1, and closer. Evidently, however, there will correspond to an error of 0.1 in the magnitude a considerable uncertainty in the light ratios, when these differ considerably from each other.

Sun-26m.60
Full moon-11m.77
Venus- 4m.28
Jupiter- 2m.35
Mars- 1m.79
Mercury- 0m.90
Saturn+ 0m.88
Uranus+ 5m.86
Neptune+ 7m.66

A consequence of the definition of m is that we also have to do with negative magnitudes (as well as with negative logarithms). Thus, for example, for Sirius m = -1.58. The magnitudes of the greater planets, as well as those of the moon and the sun, are also negative, as will be seen from the adjoining table, where the values are taken from “Die Photometrie der Gestirne” by G. Müller.

The apparent magnitude of the sun is given by Zöllner (1864). The other values are all found in Potsdam, and allude generally to the maximum value of the apparent magnitude of the moon and the planets.

The brightest star is Sirius, which has the magnitude m = -1.58. The magnitude of the faintest visible star evidently depends on the penetrating power of the instrument used. The telescope of [Pg 11]William Herschel, used by him and his son in their star-gauges and other stellar researches, allowed of the discerning of stars down to the 14th magnitude. The large instruments of our time hardly reach much farther, for visual observations. When, however, photographic plates are used, it is easily possible to get impressions of fainter stars, even with rather modest instruments. The large 100-inch mirror of the Wilson Observatory renders possible the photographic observations of stars of the 20th apparent magnitude, and even fainter.

The observations of visual magnitudes are performed almost exclusively with the photometer of Zöllner in a more or less improved form.

7.

Absolute magnitude. The apparent magnitude of a star is changed as the star changes its distance from the observer, the intensity increasing indirectly as the square of the distance of the star. In order to make the magnitudes of the stars comparable with each other it is convenient to reduce them to their value at a certain unit of distance. As such we choose one siriometer. The corresponding magnitude will be called the absolute magnitude and is denoted by M.[4] We easily find from the table given in the preceding paragraph that the absolute magnitude of the sun, according to Zöllner's value of m, amounts to +3.4, of the moon to +31.2. For Jupiter we find M = +24.6, for Venus M = +25.3. The other planets have approximately M = +30.

For the absolute magnitudes of those stars for which it has hitherto been possible to carry out a determination, we find a value of M between -8 and +13. We shall give in the third chapter short tables of the absolutely brightest and faintest stars now known.

8.

Photographic magnitudes. The magnitudes which have been mentioned in the preceding paragraphs all refer to observations taken with the eye, and are called visual magnitudes. The total intensity of a star is, however, essentially dependent on the instrument used in measuring the intensity. Besides the eye, the astronomers use a photographic plate, bolometer, a photo-electric cell, and other instruments. The[Pg 12] difference in the results obtained with these instruments is due to the circumstance that different parts of the radiation are taken into account.

The usual photographic plates, which have their principal sensibility in the violet parts of the spectrum, give us the photographic magnitudes of the stars. It is, however, to be remarked that these magnitudes may vary from one plate to another, according to the distributive function of the plate (compare L. M. 67). This variation, which has not yet been sufficiently studied, seems however to be rather inconsiderable, and must be neglected in the following.

The photographic magnitude of a star will in these lectures be denoted by m′, corresponding to a visual magnitude m.

In practical astronomy use is also made of plates which, as the result of a certain preparation (in colour baths or in other ways), have acquired a distributive function nearly corresponding to that of the eye, and especially have a maximum point at the same wave-lengths. Such magnitudes are called photo-visual (compare the memoir of Parkhurst in A. J. 36 [1912]).

The photographic magnitude of a star is generally determined from measurements of the diameter of the star on the plate. A simple mathematical relation then permits us to determine m′. The diameter of a star image increases with the time of exposure. This increase is due in part to the diffraction of the telescope, to imperfect achromatism or spherical aberration of the objective, to irregular grinding of the glass, and especially to variations in the refraction of the air, which produce an oscillation of the image around a mean position.

The zero-point of the photographic magnitudes is so determined that this magnitude coincides with the visual magnitude for such stars as belong to the spectral type A0 and have m = 6.0, according to the proposal of the international solar conference at Bonn, 1911.

Determinations of the photographic or photo-visual magnitudes may now be carried out with great accuracy. The methods for this are many and are well summarised in the Report of the Council of the R. A. S. of the year 1913. The most effective and far-reaching method seems to be that proposed by Schwarzschild, called the half-grating method, by which two exposures are taken of the same part of the sky, while at one of the exposures a certain grating is used that reduces the magnitudes by a constant degree.[Pg 13]

9.

Colour of the stars. The radiation of a star is different for different wave-lengths (λ). As regarding other mass phenomena we may therefore mention:—(1) the total radiation or intensity (I), (2) the mean wave-length0), (3) the dispersion of the wave-length (σ). In the preceding paragraphs we have treated of the total radiation of the stars as this is expressed through their magnitudes. The mean wave-length is pretty closely defined by the colour, whereas the dispersion of the wave-length is found from the spectrum of the stars.

There are blue (B), white (W), yellow (Y) and red (R) stars, and intermediate colours. The exact method is to define the colour through the mean wave-length (and not conversely) or the effective wave-length as it is most usually called, or from the colour-index. We shall revert later to this question. There are, however, a great many direct eye-estimates of the colour of the stars.

Colour corresponding to a given spectrum.

Sp.ColourNumber
B3YW-161
A0YW-788
A5YW115
F5YW, WY-295
G5WY216
K5WY+, Y-552
MY, Y+95
Sum ...2222

Spectrum corresponding to a given colour.

ColourSp.Number
W, W+A0281
YW-A0356
YWA5482
YW+, YW-F3211
WYG4264
WY+, Y-K1289
Y, Y+K4254
RY-, RYK585
Sum ...2222

The signs + and - indicate intermediate shades of colour.[Pg 14]

The preceding table drawn up by Dr. Malmquist from the colour observations of Müller and Kempf in Potsdam, shows the connection between the colours of the stars and their spectra.

The Potsdam observations contain all stars north of the celestial equator having an apparent magnitude brighter than 7m.5.

We find from these tables that there is a well-pronounced regression in the correlation between the spectra and the colours of the stars. Taking together all white stars we find the corresponding mean spectral type to be A0, but to A0 corresponds, upon an average, the colour yellow-white. The yellow stars belong in the mean to the K-type, but the K-stars have upon an average a shade of white in the yellow colour. The coefficient of correlation (r) is not easy to compute in this case, because one of the attributes, the colour, is not strictly graduated (i.e. it is not expressed in numbers defining the colour).[5] Using the coefficient of contingency of Pearson, it is, however, possible to find a fairly reliable value of the coefficient of correlation, and Malmquist has in this way found r = +0.85, a rather high value.

In order to facilitate the discussion of the relation between colour and spectrum it is convenient to deal here with the question of the spectra of the stars.

10.

Spectra of the stars. In order to introduce the discussion I first give a list of the wave-lengths of the Frauenhofer lines in the spectrum, and the corresponding chemical elements.

Frauenhofer lineElementλ
A759.4
B686.8
C(α)H (hydrogen)656.3
D1Na (sodium)589.6
D3He587.6
EFe (iron)527.0
F(β)H486.2
  (γ)H434.1
GCa (calcium)430.8
h(δ)H410.2
H(ε)Ca(H)396.9
KCa393.4

[Pg 15]

The first column gives the Frauenhofer denomination of each line. Moreover the hydrogen lines α, β, γ, δ, ε are denoted. The second column gives the name of the corresponding element, to which each line is to be attributed. The third column gives the wave-length expressed in millionths of a millimeter as unit (μμ).

On plate III, where the classification of the stellar spectra according to the Harvard system is reproduced, will be found also the wave-lengths of the principal H and He lines.

By the visual spectrum is usually understood the part of the radiation between the Frauenhofer lines A to H (λ = 760 to 400 μμ), whereas the photographic spectrum generally lies between F and K (λ = 500 to 400 μμ).

In the earliest days of spectroscopy the spectra of the stars were classified according to their visual spectra. This classification was introduced by Secchi and was later more precisely defined by Vogel. The three classes I, II, III of Vogel correspond approximately to the colour classification into white, yellow, and red stars. Photography has now almost entirely taken the place of visual observations of spectra, so that Secchi's and Vogel's definitions of the stellar spectra are no longer applicable. The terminology now used was introduced by Pickering and Miss Cannon and embraces a great many types, of which we here describe the principal forms as they are defined in Part. II of Vol. XXVIII of the Annals of the Harvard Observatory. It may be remarked that Pickering first arranged the types in alphabetical order A, B, C, &c., supposing that order to correspond to the temperature of the stars. Later this was found to be partly wrong, and in particular it was found that the B-stars may be hotter than those of type A. The following is the temperature-order of the spectra according to the opinion of the Harvard astronomers.

Type O (Wolf-Rayet stars). The spectra of these stars consist mainly of bright lines. They are characterized by the bright bands at wave-lengths 463 μμ and 469 μμ, and the line at 501 μμ characteristic of gaseous nebulae is sometimes present.

This type embraces mainly stars of relatively small apparent brightness. The brightest is γ Velorum with m = 2.22. We shall find that the absolute magnitude of these stars nearly coincides with that of the stars of type B.[Pg 16]

The type is grouped into five subdivisions represented by the letters Oa, Ob, Oc, Od and Oe. These subdivisions are conditioned by the varying intensities of the bright bands named above. The due sequence of these sub-types is for the present an open question.

Among interesting stars of this type is ζ Puppis (Od), in the spectrum of which Pickering discovered a previously unknown series of helium lines. They were at first attributed (by Rydberg) to hydrogen and were called “additional lines of hydrogen”.

Type B (Orion type, Helium stars). All lines are here dark. Besides the hydrogen series we here find the He-lines (396, 403, 412, 414, 447, 471, 493 μμ).

To this type belong all the bright stars (β, γ, δ, ε, ζ, η and others) in Orion with the exception of Betelgeuze. Further, Spica and many other bright stars.

On plate III ε Orionis is taken as representative of this type.

Type A (Sirius type) is characterized by the great intensity of the hydrogen lines (compare plate III). The helium lines have vanished. Other lines visible but faintly.

The greater part of the stars visible to the naked eye are found here. There are 1251 stars brighter than the 6th magnitude which belong to this type. Sirius, Vega, Castor, Altair, Deneb and others are all A-stars.

Type F (Calcium type). The hydrogen lines still rather prominent but not so broad as in the preceding type. The two calcium lines H and K (396.9, 393.4 μμ) strongly pronounced.

Among the stars of this type are found a great many bright stars (compare the third chapter), such as Polaris, Canopus, Procyon.

Type G (Sun type). Numerous metallic lines together with relatively faint hydrogen lines.

To this class belong the sun, Capella, α Centauri and other bright stars.

Type K. The hydrogen lines still fainter. The K-line attains its maximum intensity (is not especially pronounced in the figure of plate III).

This is, next to the A-type, the most numerous type (1142 stars) among the bright stars.

We find here γ Andromedæ, β Aquilæ, Arcturus, α Cassiopeiæ, Pollux and Aldebaran, which last forms a transition to the next type.

Type M. The spectrum is banded and belongs to Secchi's third type. The flutings are due to titanium oxide.[Pg 17]

Only 190 of the stars visible to the naked eye belong to this type. Generally they are rather faint, but we here find Betelgeuze, α Herculis, β Pegasi, α Scorpii (Antares) and most variables of long period, which form a special sub-type Md, characterized by bright hydrogen lines together with the flutings.

Type M has two other sub-types Ma and Mb.

Type N (Secchi's fourth type). Banded spectra. The flutings are due to compounds of carbon.

Here are found only faint stars. The total number is 241. All are red. 27 stars having this spectrum are variables of long period of the same type as Md.

The spectral types may be summed up in the following way:—

Whitestars:—Secchi'stypeI:—HarvardB and A,
Yellow" :—""II:—"F, G and K,
Red" :—""III:—"M,
"" :—""IV:—"N.

The Harvard astronomers do not confine themselves to the types mentioned above, but fill up the intervals between the types with sub-types which are designated by the name of the type followed by a numeral 0, 1, 2, ..., 9. Thus the sub-types between A and F have the designations A0, A1, A2, ..., A9, F0, &c. Exceptions are made as already indicated, for the extreme types O and M.

11.

Spectral index. It may be gathered from the above description that the definition of the types implies many vague moments. Especially in regard to the G-type are very different definitions indeed accepted, even at Harvard.[6] It is also a defect that the definitions do not directly give quantitative characteristics of the spectra. None the less it is possible to substitute for the spectral classes a continuous scale expressing the spectral character of a star. Such a scale is indeed implicit in the Harvard classification of the spectra.

Let us use the term spectral index (s) to define a number expressing the spectral character of a star. Then we may conveniently define this conception in the following way. Let A0 correspond to the spectral index s = 0.0, F0 to s = +1.0, G0 to s = +2.0, K0 to s = +3.0 M0 to s = +4.0 and B0 to s = -1.0. Further, let A1, A2, A3, &c., have[Pg 18] the spectral indices +0.1, +0.2, +0.3, &c., and in like manner with the other intermediate sub-classes. Then it is evident that to all spectral classes between B0 and M there corresponds a certain spectral index s. The extreme types O and N are not here included. Their spectral indices may however be determined, as will be seen later.

Though the spectral indices, defined in this manner, are directly known for every spectral type, it is nevertheless not obvious that the series of spectral indices corresponds to a continuous series of values of some attribute of the stars. This may be seen to be possible from a comparison with another attribute which may be rather markedly graduated, namely the colour of the stars. We shall discuss this point in another paragraph. To obtain a well graduated scale of the spectra it will finally be necessary to change to some extent the definitions of the spectral types, a change which, however, has not yet been accomplished.

12.

We have found in §9 that the light-radiation of a star is described by means of the total intensity (I), the mean wave-length (λ0) and the dispersion of the wave-length (σλ). λ0 and σλ may be deduced from the spectral observations. It must here be observed that the observations give, not the intensities at different wave-lengths but, the values of these intensities as they are apprehended by the instruments employed—the eye or the photographic plate. For the derivation of the true curve of intensity we must know the distributive function of the instrument (L. M. 67). As to the eye, we have reason to believe, from the bolometric observations of Langley (1888), that the mean wave-length of the visual curve of intensity nearly coincides with that of the true intensity-curve, a conclusion easily understood from Darwin's principles of evolution, which demand that the human eye in the course of time shall be developed in such a way that the mean wave-length of the visual intensity curve does coincide with that of the true curve (λ = 530 μμ), when the greatest visual energy is obtained (L. M. 67). As to the dispersion, this is always greater in the true intensity-curve than in the visual curve, for which, according to §10, it amounts to approximately 60 μμ. We found indeed that the visual intensity curve is extended, approximately, from 400 μμ to 760 μμ, a sixth part of which interval, approximately, corresponds to the dispersion σ of the visual curve.

In the case of the photographic intensity-curve the circumstances[Pg 19] are different. The mean wave-length of the photographic curve is, approximately, 450 μμ, with a dispersion of 16 μμ, which is considerably smaller than in the visual curve.

13.

Both the visual and the photographic curves of intensity differ according to the temperature of the radiating body and are therefore different for stars of different spectral types. Here the mean wave-length follows the formula of Wien, which says that this wave-length varies inversely as the temperature. The total intensity, according to the law of Stephan, varies directly as the fourth power of the temperature. Even the dispersion is dependent on the variation of the temperature—directly as the mean wave-length, inversely as the temperature of the star (L. M. 41)—so that the mean wave-length, as well as the dispersion of the wave-length, is smaller for the hot stars O and B than for the cooler ones (K and M types). It is in this manner possible to determine the temperature of a star from a determination of its mean wave-length (λ0) or from the dispersion in λ. Such determinations (from λ0) have been made by Scheiner and Wilsing in Potsdam, by Rosenberg and others, though these researches still have to be developed to a greater degree of accuracy.

14.

Effective wave-length. The mean wave-length of a spectrum, or, as it is often called by the astronomers, the effective wave-length, is generally determined in the following way. On account of the refraction in the air the image of a star is, without the use of a spectroscope, really a spectrum. After some time of exposure we get a somewhat round image, the position of which is determined precisely by the mean wave-length. This method is especially used with a so-called objective-grating, which consists of a series of metallic threads, stretched parallel to each other at equal intervals. On account of the diffraction of the light we now get in the focal plane of the objective, with the use of these gratings, not only a fainter image of the star at the place where it would have arisen without grating, but also at both sides of this image secondary images, the distances of which from the central star are certain theoretically known multiples of the effective wave-lengths. In this simple manner it is possible to determine the effective wave-length, and this being a tolerably well-known function of the spectral-index, the latter can also be found. This method was first proposed[Pg 20] by Hertzsprung and has been extensively used by Bergstrand, Lundmark and Lindblad at the observatory of Upsala and by others.

15.

Colour-index. We have already pointed out in §9 that the colour may be identified with the mean wave-length (λ0). As further λ0 is closely connected with the spectral index (s), we may use the spectral index to represent the colour. Instead of s there may also be used another expression for the colour, called the colour-index. This expression was first introduced by Schwarzschild, and is defined in the following way.

We have seen that the zero-point of the photographic scale is chosen in such a manner that the visual magnitude m and the photographic magnitude m′ coincide for stars of spectral index 0.0 (A0). The photographic magnitudes are then unequivocally determined. It is found that their values systematically differ from the visual magnitudes, so that for type B (and O) the photographic magnitudes are smaller than the visual, and the contrary for the other types. The difference is greatest for the M-type (still greater for the N-stars, though here for the present only a few determinations are known), for which stars if amounts to nearly two magnitudes. So much fainter is a red star on a photographic plate than when observed with the eye.

The difference between the photographic and the visual magnitudes is called the colour-index (c). The correlation between this index and the spectral-index is found to be rather high (r = +0.96). In L. M. II, 19 I have deduced the following tables giving the spectral-type corresponding to a given colour-index, and inversely.

TABLE 1.

GIVING THE MEAN COLOUR-INDEX CORRESPONDING TO A GIVEN SPECTRAL TYPE OR SPECTRAL INDEX.

Spectral Colour-index
type index
B0 -1.0 -0.46
B5 -0.5 -0.23
A0 0.0  0.00
A5 +0.5 +0.23
F0 +1.0 +0.46
F5 +1.5 +0.69
G0 +2.0 +0.92
G5 +2.5 +1.15
K0 +3.0 +1.38
K5 +3.5 +1.61
M0 +4.0 +1.84

[Pg 21]

TABLE 1*.

GIVING THE MEAN SPECTRAL INDEX CORRESPONDING TO A GIVEN COLOUR-INDEX.

Colour-index Spectral
index type
-0.4 -0.70 B3
-0.2 -0.80 B7
 0.0 +0.10 A1
+0.2 +0.50 A5
+0.4 +0.90 A9
+0.6 +1.30 F3
+0.8 +1.70 F7
+1.0 +2.10 G1
+1.2 +2.50 G5
+1.4 +2.90 G9
+1.6 +3.30 K3
+1.8 +3.70 K7
+2.0 +4.10 M1

From each catalogue of visual magnitudes of the stars we may obtain their photographic magnitude through adding the colour-index. This may be considered as known (taking into account the high coefficient of correlation between s and c) as soon as we know the spectral type of the star. We may conclude directly that the number of stars having a photographic magnitude brighter than 6.0 is considerably smaller than the number of stars visually brighter than this magnitude. There are, indeed, 4701 stars for which m < 6.0 and 2874 stars having m′ < 6.0.

16.

Radial velocity of the stars. From the values of α and δ at different times we obtain the components of the proper motions of the stars perpendicular to the line of sight. The third component (W), in the radial direction, is found by the Doppler principle, through measuring the displacement of the lines in the spectrum, this displacement being towards the red or the violet according as the star is receding from or approaching the observer.

The velocity W will be expressed in siriometers per stellar year (sir./st.) and alternately also in km./sec. The rate of conversion of these units is given in §5.

17.

Summing up the remarks here given on the apparent attributes of the stars we find them referred to the following principal groups:—

I. The position of the stars is here generally given in galactic longitude (l) and latitude (b). Moreover their equatorial coordinates (α and δ) are given in an abridged notation (αδ), where the first four numbers give the right ascension in hours and minutes and the last[Pg 22] two numbers give the declination in degrees, the latter being printed in italics if the declination is negative.

Eventually the position is given in galactic squares, as defined in §2.

II. The apparent motion of the stars will be given in radial components (W) expressed in sir./st. and their motion perpendicular to the line of sight. These components will be expressed in one component (u0) parallel to the galactic plane, and one component (v0) perpendicular to it. If the distance (r) is known we are able to convert these components into components of the linear velocity perpendicular to the line of sight (U and V).

III. The intensity of the light of the stars is expressed in magnitudes. We may distinguish between the apparent magnitude (m) and the absolute magnitude (M), the latter being equal to the value of the apparent magnitude supposing the star to be situated at a distance of one siriometer.

The apparent magnitude may be either the photographic magnitude (m′), obtained from a photographic plate, or the visual magnitude (m) obtained with the eye.

The difference between these magnitudes is called the colour-index (c = m′-m).

IV. The characteristics of the stellar radiation are the mean wave-length (λ0) and the dispersion (σ) in the wave-length. The mean wave-length may be either directly determined (perhaps as effective wave-length) or found from the spectral type (spectral index) or from the colour-index.

There are in all eight attributes of the stars which may be found from the observations:—the spherical position of the star (l, b), its distance (r), proper motion (u0 and v0), radial velocity (W), apparent magnitude (m or m′), absolute magnitude (M), spectral type (Sp) or spectral index (s), and colour-index (c). Of these the colour-index, the spectral type, the absolute magnitude and also (to a certain degree) the radial velocity may be considered as independent of the place of the observer and may therefore be considered not as only apparent but also as absolute attributes of the stars.

Between three of these attributes (m, M and r) a mathematical relation exists so that one of them is known as soon as the other two have been found from observations.[Pg 23]


CHAPTER II.

SOURCES OF OUR PRESENT KNOWLEDGE OF THE STARS.

18.

In this chapter I shall give a short account of the publications in which the most complete information on the attributes of the stars may be obtained, with short notices of the contents and genesis of these publications. It is, however, not my intention to give a history of these researches. We shall consider more particularly the questions relating to the position of the stars, their motion, magnitude, and spectra.

19.

Place of the stars. Durchmusterungs. The most complete data on the position of the stars are obtained from the star catalogues known as “Durchmusterungs”. There are two such catalogues, which together cover the whole sky, one—visual—performed in Bonn and called the Bonner Durchmusterung (B. D.), the other—photographic—performed in Cape The Cape Photographic Durchmusterung (C. P. D.). As the first of these catalogues has long been—and is to some extent even now—our principal source for the study of the sky and is moreover the first enterprise of this kind, I shall give a somewhat detailed account of its origin and contents, as related by Argelander in the introduction to the B. D.

B. D. was planned and performed by the Swedish-Finn Argelander (born in Memel 1799). A scholar of Bessel he was first called as director in Åbo, then in Hälsingfors, and from there went in 1836 to Bonn, where in the years 1852 to 1856 he performed this great Durchmusterung. As instrument he used a Frauenhofer comet-seeker with an aperture of 76 mm, a focal length of 650 mm, and 10 times magnifying power. The field of sight had an extension of 6°.

In the focus of the objective was a semicircular piece of thin glass, with the edge (= the diameter of the semicircle) parallel to the circle of declination. This edge was sharply ground, so that it formed[Pg 24] a narrow dark line perceptible at star illumination. Perpendicular to this diameter (the “hour-line”) were 10 lines, at each side of a middle line, drawn at a distance of 7′. These lines were drawn with black oil colour on the glass.

The observations are performed by the observer A and his assistant B. A is in a dark room, lies on a chair having the eye at the ocular and can easily look over 2° in declination. The assistant sits in the room below, separated by a board floor, at the Thiede clock.

From the beginning of the observations the declination circle is fixed at a certain declination (whole degrees). All stars passing the field at a distance smaller than one degree from the middle line are observed. Hence the name “Durchmusterung”. When a star passes the “hour line” the magnitude is called out by A, and noted by B together with the time of the clock. Simultaneously the declination is noted by A in the darkness. On some occasions 30 stars may be observed in a minute.

The first observation was made on Febr. 25, 1852, the last on March 27, 1859. In all there were 625 observation nights with 1841 “zones”. The total number of stars was 324198.

The catalogue was published by Argelander in three parts in the years 1859, 1861 and 1862[7] and embraces all stars between the pole and 2° south of the equator brighter than 9m.5, according to the scale of Argelander (his aim was to register all stars up to the 9th magnitude). To this scale we return later. The catalogue is arranged in accordance with the declination-degrees, and for each degree according to the right ascension. Quotations from B. D. have the form B. D. 23°.174, which signifies: Zone +23°, star No. 174.

Argelander's work was continued for stars between δ = -2° and δ = -23° by Schönfeld, according to much the same plan, but with a larger instrument (aperture 159 mm, focal length 1930 mm, magnifying power 26 times). The observations were made in the years 1876 to 1881 and include 133659 stars.[8]

The positions in B. D. are given in tenths of a second in right ascension and in tenths of a minute in declination.

[Pg 25]

20.

The Cape Photographic Durchmusterung[9] (C. P. D.). This embraces the whole southern sky from -18° to the south pole. Planned by Gill, the photographs were taken at the Cape Observatory with a Dallmeyer lens with 15 cm. aperture and a focal-length of 135 cm. Plates of 30 × 30 cm. give the coordinates for a surface of 5 × 5 square degrees. The photographs were taken in the years 1885 to 1890. The measurements of the plates were made by Kapteyn in Groningen with a “parallactic” measuring-apparatus specially constructed for this purpose, which permits of the direct obtaining of the right ascension and the declination of the stars. The measurements were made in the years 1886 to 1898. The catalogue was published in three parts in the years 1896 to 1900.

The positions have the same accuracy as in B. D. The whole number of stars is 454875. Kapteyn considers the catalogue complete to at least the magnitude 9m.2.

In the two great catalogues B. D. and C. P. D. we have all stars registered down to the magnitude 9.0 (visually) and a good way below this limit. Probably as far as to 10m.

A third great Durchmusterung has for some time been in preparation at Cordoba in Argentina.[10] It continues the southern zones of Schönfeld and is for the present completed up to 62° southern declination.

All these Durchmusterungs are ultimately based on star catalogues of smaller extent and of great precision. Of these catalogues we shall not here speak (Compare, however, §23).

A great “Durchmusterung”, that will include all stars to the 11th magnitude, has for the last thirty years been in progress at different observatories proposed by the congress in Paris, 1888. The observations proceed very irregularly, and there is little prospect of getting the work finished in an appreciable time.

21.

Star charts. For the present we possess two great photographic star charts, embracing the whole heaven:—The Harvard Map (H. M.) and the Franklin-Adams Charts (F. A. C.).

The Harvard Map, of which a copy (or more correctly two copies) on glass has kindly been placed at the disposal of the Lund Observatory[Pg 26] by Mr. Pickering, embraces all stars down to the 11th magnitude. It consists of 55 plates, each embracing more than 900 square degrees of the sky. The photographs were taken with a small lens of only 2.5 cms. aperture and about 32.5 cms. focal-length. The time of exposure was one hour. These plates have been counted at the Lund Observatory by Hans Henie. We return later to these counts.

The Franklin-Adams Charts were made by an amateur astronomer Franklin-Adams, partly at his own observatory (Mervel Hill) in England, partly in Cape and Johannesburg, Transvaal, in the years 1905-1912. The photographs were taken with a Taylor lens with 25 cm. aperture and a focal-length of 114 cm., which gives rather good images on a field of 15 × 15 square degrees.

The whole sky is here reproduced on, in all, 206 plates. Each plate was exposed for 2 hours and 20 minutes and gives images of the stars down to the 17th magnitude. The original plates are now at the observatory in Greenwich. Some copies on paper have been made, of which the Lund Observatory possesses one. It shows stars down to the 14th-15th magnitudes and gives a splendid survey of the whole sky more complete, indeed, than can be obtained, even for the north sky, by direct observation of the heavens with any telescope at present accessible in Sweden.

The F. A. C. have been counted by the astronomers of the Lund Observatory, so that thus a complete count of the number of stars for the whole heaven down to the 14th magnitude has been obtained. We shall later have an opportunity of discussing the results of these counts.

A great star map is planned in connection with the Paris catalogue mentioned in the preceding paragraph. This Carte du Ciel (C. d. C.) is still unfinished, but there seems to be a possibility that we shall one day see this work carried to completion. It will embrace stars down to the 14th magnitude and thus does not reach so far as the F. A. C., but on the other hand is carried out on a considerably greater scale and gives better images than F. A. C. and will therefore be of a great value in the future, especially for the study of the proper motions of the stars.

22.

Distance of the stars. As the determination, from the annual parallax, of the distances of the stars is very precarious if the distance[Pg 27] exceeds 5 sir. (π = 0″.04), it is only natural that the catalogues of star-distances should be but few in number. The most complete catalogues are those of Bigourdan in the Bulletin astronomique XXVI (1909), of Kapteyn and Weersma in the publications of Groningen Nr. 24 (1910), embracing 365 stars, and of Walkey in the “Journal of the British Astronomical Association XXVII” (1917), embracing 625 stars. Through the spectroscopic method of Adams it will be possible to enlarge this number considerably, so that the distance of all stars, for which the spectrum is well known, may be determined with fair accuracy. Adams has up to now published 1646 parallax stars.

23.

Proper motions. An excellent catalogue of the proper motions of the stars is Lewis Boss's “Preliminary General Catalogue of 6188 stars” (1910) (B. P. C.). It contains the proper motions of all stars down to the sixth magnitude (with few exceptions) and moreover some fainter stars. The catalogue is considered by the editor only as a preliminary to a greater catalogue, which is to embrace some 25000 stars and is now nearly completed.

24.

Visual magnitudes. The Harvard observatory has, under the direction of Pickering, made its principal aim to study the magnitudes of the stars, and the history of this observatory is at the same time the history of the treatment of this problem. Pickering, in the genuine American manner, is not satisfied with the three thirds of the sky visible from the Harvard observatory, but has also founded a daughter observatory in South America, at Arequipa in Peru. It is therefore possible for him to publish catalogues embracing the whole heaven from pole to pole. The last complete catalogue (1908) of the magnitudes of the stars is found in the “Annals of the Harvard Observatory T. 50” (H. 50). It contains 9110 stars and can be considered as complete to the magnitude 6m.5. To this catalogue are generally referred the magnitudes which have been adopted at the Observatory of Lund, and which are treated in these lectures.

A very important, and in one respect even still more comprehensive, catalogue of visual magnitudes is the “Potsdam General Catalogue” (P. G. C.) by Müller and Kempf, which was published simultaneously with H. 50. It contains the magnitude of 14199 stars and embraces [Pg 28]all stars on the northern hemisphere brighter than 7m.5 (according to B. D.). We have already seen that the zero-point of H. 50 and P. G. C. is somewhat different and that the magnitudes in P. G. C. must be increased by -0m.16 if they are to be reduced to the Harvard scale. The difference between the two catalogues however is due to some extent to the colour of the stars, as has been shown by Messrs. Müller and Kempf.

25.

Photographic magnitudes. Our knowledge of this subject is still rather incomplete. The most comprehensive catalogue is the “Actinometrie” by Schwarzschild (1912), containing the photographic magnitudes of all stars in B. D. down to the magnitude 7m.5 between the equator and a declination of +20°. In all, 3522 stars. The photographic magnitudes are however not reduced for the zero-point (compare §6).

These is also a photometric photographic catalogue of the stars nearest to the pole in Parkhurst's “Yerkes actinometry” (1912),[11] which contains all stars in B. D. brighter than 7m.5 between the pole and 73° northern declination. The total number of stars is 672.

During the last few years the astronomers of Harvard and Mount Wilson have produced a collection of “standard photographic magnitudes” for faint stars. These stars, which are called the polar sequence,[12] all lie in the immediate neighbourhood of the pole. The list is extended down to the 20th magnitude. Moreover similar standard photographic magnitudes are given in H. A. 71, 85 and 101.

A discussion of the colour-index (i.e., the difference between the photographic and the visual magnitudes) will be found in L. M. II, 19. When the visual magnitude and the type of spectrum are known, the photographic magnitude may be obtained, with a generally sufficient accuracy, by adding the colour-index according to the table 1 in §15 above.

26.

Stellar spectra. Here too we find the Harvard Observatory to be the leading one. The same volume of the Annals of the Harvard Observatory (H. 50) that contains the most complete catalogue of visual magnitudes, also gives the spectral types for all the stars there included, i.e., for all stars to 6m.5. Miss Cannon, at the Harvard Observatory, deserves the principal credit for this great work. Not content with this result she is now publishing a still greater work embracing more than 200000 stars. The first four volumes of this work are now[Pg 29] published and contain the first twelve hours of right ascension, so that half the work is now printed.[13]

27.

Radial velocity. In this matter, again, we find America to be the leading nation, though, this time, it is not the Harvard or the Mount Wilson but the Lick Observatory to which we have to give the honour. The eminent director of this observatory, W. W. Campbell, has in a high degree developed the accuracy in the determination of radial velocities and has moreover carried out such determinations in a large scale. The “Bulletin” No. 229 (1913) of the Lick Observatory contains the radial velocity of 915 stars. At the observatory of Lund, where as far as possible card catalogues of the attributes of the stars are collected, Gyllenberg has made a catalogue of this kind for the radial velocities. The total number of stars in this catalogue now amounts to 1640.[14]

28.

Finally I shall briefly mention some comprehensive works on more special questions regarding the stellar system.

On variable stars there is published every year by Hartwig in the “Vierteljahrschrift der astronomischen Gesellschaft” a catalogue of all known variable stars with needful information about their minima &c. This is the completest and most reliable of such catalogues, and is always up to date. A complete historical catalogue of the variables is given in “Geschichte und Literatur des Lichtwechsels der bis Ende 1915 als sicher veränderlich anerkannten Sterne nebst einem Katalog der Elemente ihres Lichtwechsels” von G. Müller und E. Hartwig. Leipzig 1918, 1920.

On nebulae we have the excellent catalogues of Dreyer, the “New General Catalogue” (N. G. C.) of 1890 in the “Memoirs of the Astronomical Society” vol. 49, the “Index catalogues” (I. C.) in the same memoirs, vols. 51 and 59 (1895 and 1908). These catalogues contain all together 13226 objects.

Regarding other special attributes I refer in the first place to the important Annals of the Harvard Observatory. Other references will be given in the following, as need arises.

[Pg 30]


CHAPTER III.

SOME GROUPS OF KNOWN STARS.

29.

The number of cases in which all the eight attributes of the stars discussed in the first chapter are well known for one star is very small, and certainly does not exceed one hundred. These cases refer principally to such stars as are characterized either by great brilliancy or by a great proper motion. The principal reason why these stars are better known than others is that they lie rather near our solar system. Before passing on to consider the stars from more general statistical points of view, it may therefore be of interest first to make ourselves familiar with these well-known stars, strongly emphasizing, however, the exceptional character of these stars, and carefully avoiding any generalization from the attributes we shall here find.

30.

The apparently brightest stars. We begin with these objects so well known to every lover of the stellar sky. The following table contains all stars the apparent visual magnitude of which is brighter than 1m.5.

The first column gives the current number, the second the name, the third the equatorial designation (αδ). It should be remembered that the first four figures give the hour and minutes in right ascension, the last two the declination, italics showing negative declination. The fourth column gives the galactic square, the fifth and sixth columns the galactic longitude and latitude. The seventh and eighth columns give the annual parallax and the corresponding distance expressed in siriometers. The ninth column gives the proper motion (μ), the tenth the radial velocity W expressed in sir./st. (To get km./sec. we may multiply by 4.7375). The eleventh column gives the apparent visual magnitude, the twelfth column the absolute magnitude (M), computed from m with the help of r. The 13th column gives the type of spectrum (Sp), and the last column the photographic magnitude (m′). The difference between m′ and m gives the colour-index (c).[Pg 31]

TABLE 2.

THE APPARENTLY BRIGHTEST STARS.

1234567891011121314
NamePositionDistanceMotionMagnitudeSpectrum
(αδ)SquarelbπrμWmMSpm′
sir.sir./st.m′
1Sirius(064016)GD7195°- 8°0″.8760.51″.32- 1.56-1m.58-0m.3A-1.58
2Canopus(062152)GD8229-240.00729.50.02+ 4.39-0.86-8.2F-0.40
3Vega(183338)GC230+170.0942.20.35- 2.910.14-1.6A0.14
4Capella(050945)GC5131+ 50.0663.10.44+ 6.380.21-2.8G1.13
5Arcturus(141119)GA2344+680.0752.72.28- 0.820.24-1.9K1.62
6α Centauri(143260)GD10284- 20.7590.33.68- 4.690.33+3.2G1.25
7Rigel(050908)GD6176-240.00729.50.00+ 4.770.34-7.0B8p0.25
8Procyon(073405)GC7182+140.3240.61.24- 0.740.48+1.5F51.17
9Achernar(013457)GE8256-590.0514.00.09..0.60-2.4B50.87
10β Centauri(135659)GC10280+ 20.0375.60.04+ 2.530.86-2.9B10.45
11Altair(194508)GD115-100.2380.90.66- 6.970.89+1.2A51.12
12Betelgeuze(054907)GD6168- 80.0306.90.03+ 4.430.92-3.3Ma2.76
13Aldebaran(043016)GD5149-190.0782.80.20+11.631.06-1.2K52.67
14Pollux(073928)GC6160+250.0643.20.07+ 0.821.21-1.3K2.59
15Spica(131910)GB8286+51....0.06+ 0.341.21..B20.84
16Antares(162326)GC11320+140.0297.10.03- 0.631.22-3.0Map3.06
17Fomalhaut(225230)GE10348-660.1381.50.37+ 1.411.29+0.4A31.43
18Deneb(203844)GC251+ 1....0.00- 0.841.33..A21.42
19Regulus(100312)GB6196+500.0336.30.25..1.34-2.7B81.25
20β Crucis(124159)GC10270+ 30.00825.80.06+ 2.741.50-5.6B11.09
sir.m′
Mean.........23°.50″.1347.30″.563.26+0m.64-2m.1F1+1.13

[Pg 32]

The values of (αδ), m, Sp are taken from H. 50. The values of l, b are computed from (αδ) with the help of tables in preparation at the Lund Observatory, or from the original to plate I at the end, allowing the conversion of the equatorial coordinates into galactic ones. The values of π are generally taken from the table of Kapteyn and Weersma mentioned in the previous chapter. The values of μ are obtained from B. P. C., those of the radial velocity (W) from the card catalogue in Lund already described.

There are in all, in the sky, 20 stars having an apparent magnitude brighter than 1m.5. The brightest of them is Sirius, which, owing to its brilliancy and position, is visible to the whole civilized world. It has a spectrum of the type A0 and hence a colour-index nearly equal to 0.0 (observations in Harvard give c = +0.06). Its apparent magnitude is -1m.6, nearly the same as that of Mars in his opposition. Its absolute magnitude is -0m.3, i.e., fainter than the apparent magnitude, from which we may conclude that it has a distance from us smaller than one siriometer. We find, indeed, from the eighth column that r = 0.5 sir. The proper motion of Sirius is 1″.32 per year, which is rather large but still not among the largest proper motions as will be seen below. From the 11th column we find that Sirius is moving towards us with a velocity of 1.6 sir./st. (= 7.6 km./sec.), a rather small velocity. The third column shows that its right ascension is 6h 40m and its declination -16°. It lies in the square GD7 and its galactic coordinates are seen in the 5th and 6th columns.

The next brightest star is Canopus or α Carinæ at the south sky. If we might place absolute confidence in the value of M (= -8.2) in the 12th column this star would be, in reality, a much more imposing apparition than Sirius itself. Remembering that the apparent magnitude of the moon, according to §6, amounts to -11.6, we should find that Canopus, if placed at a distance from us equal to that of Sirius (r = 0.5 sir.), would shine with a lustre equal to no less than a quarter of that of the moon. It is not altogether astonishing that a fanciful astronomer should have thought Canopus to be actually the central star in the whole stellar system. We find, however, from column 8 that its supposed distance is not less that 30 sir. We have already pointed out that distances greater than 4 sir., when computed from annual parallaxes, must generally be considered as rather uncertain. As the value of M[Pg 33] is intimately dependent on that of r we must consider speculations based on this value to be very vague. Another reason for a doubt about a great value for the real luminosity of this star is found from its type of spectrum which, according to the last column, is F0, a type which, as will be seen, is seldom found among giant stars. A better support for a large distance could on the other hand be found from the small proper motion of this star. Sirius and Canopus are the only stars in the sky having a negative value of the apparent visual magnitude.

Space will not permit us to go through this list star for star. We may be satisfied with some general remarks.

In the fourth column is the galactic square. We call to mind that all these squares have the same area, and that there is therefore the same probability a priori of finding a star in one of the squares as in another. The squares GC and GD lie along the galactic equator (the Milky Way). We find now from column 4 that of the 20 stars here considered there are no less than 15 in the galactic equator squares and only 5 outside, instead of 10 in the galactic squares and 10 outside, as would have been expected. The number of objects is, indeed, too small to allow us to draw any cosmological conclusions from this distribution, but we shall find in the following many similar instances regarding objects that are principally accumulated along the Milky Way and are scanty at the galactic poles. We shall find that in these cases we may generally conclude from such a partition that we then have to do with objects situated far from the sun, while objects that are uniformly distributed on the sky lie relatively near us. It is easy to understand that this conclusion is a consequence of the supposition, confirmed by all star counts, that the stellar system extends much farther into space along the Milky Way than in the direction of its poles.

If we could permit ourselves to draw conclusions from the small material here under consideration, we should hence have reason to believe that the bright stars lie relatively far from us. In other words we should conclude that the bright stars seem to be bright to us not because of their proximity but because of their large intrinsic luminosity. Column 8 really tends in this direction. Certainly the distances are not in this case colossal, but they are nevertheless sufficient to show, in some degree, this uneven partition of the bright stars on the sky. The mean distance of these stars is as large as 7.5 sir. Only α Centauri,[Pg 34] Sirius, Procyon and Altair lie at a distance smaller than one siriometer. Of the other stars there are two that lie as far as 30 siriometers from our system. These are the two giants Canopus and Rigel. Even if, as has already been said, the distances of these stars may be considered as rather uncertain, we must regard them as being rather large.

As column 8 shows that these stars are rather far from us, so we find from column 12, that their absolute luminosity is rather large. The mean absolute magnitude is, indeed, -2m.1. We shall find that only the greatest and most luminous stars in the stellar system have a negative value of the absolute magnitude.

The mean value of the proper motions of the bright stars amounts to 0″.56 per year and may be considered as rather great. We shall, indeed, find that the mean proper motion of the stars down to the 6th magnitude scarcely amounts to a tenth part of this value. On the other hand we find from the table that the high value of this mean is chiefly due to the influence of four of the stars which have a large proper motion, namely Sirius, Arcturus, α Centauri and Procyon. The other stars have a proper motion smaller than 1″ per year and for half the number of stars the proper motion amounts to approximately 0″.05, indicating their relatively great distance.

That the absolute velocity of these stars is, indeed, rather small may be found from column 10, giving their radial velocity, which in the mean amounts to only three siriometers per stellar year. From the discussion below of the radial velocities of the stars we shall find that this is a rather small figure. This fact is intimately bound up with the general law in statistical mechanics, to which we return later, that stars with large masses generally have a small velocity. We thus find in the radial velocities fresh evidence, independent of the distance, that these bright stars are giants among the stars in our stellar system.

We find all the principal spectral types represented among the bright stars. To the helium stars (B) belong Rigel, Achernar, β Centauri, Spica, Regulus and β Crucis. To the Sirius type (A) belong Sirius, Vega, Altair, Fomalhaut and Deneb. To the Calcium type (F) Canopus and Procyon. To the sun type (G) Capella and α Centauri. To the K-type belong Arcturus, Aldebaran and Pollux and to the M-type the two red stars Betelgeuze and Antares. Using the spectral indices as[Pg 35] an expression for the spectral types we find that the mean spectral index of these stars is +1.1 corresponding to the spectral type F1.

31.

Stars with the greatest proper motion. In table 3 I have collected the stars having a proper motion greater than 3″ per year. The designations are the same as in the preceding table, except that the names of the stars are here taken from different catalogues.

In the astronomical literature of the last century we find the star 1830 Groombridge designed as that which possesses the greatest known proper motion. It is now distanced by two other stars C. P. D. 5h.243 discovered in the year 1897 by Kapteyn and Innes on the plates taken for the Cape Photographic Durchmusterung, and Barnard's star in Ophiuchus, discovered 1916. The last-mentioned star, which possesses the greatest proper motion now known, is very faint, being only of the 10th magnitude, and lies at a distance of 0.40 sir. from our sun and is hence, as will be found from table 5 the third nearest star for which we know the distance. Its linear velocity is also very great, as we find from column 10, and amounts to 19 sir./st. (= 90 km./sec.) in the direction towards the sun. The absolute magnitude of this star is 11m.7 and it is, with the exception of one other, the very faintest star now known. Its spectral type is Mb, a fact worth fixing in our memory, as different reasons favour the belief that it is precisely the M-type that contains the very faintest stars. Its apparent velocity (i.e., the proper motion) is so great that the star in 1000 years moves 3°, or as much as 6 times the diameter of the moon. For this star, as well as for its nearest neighbours in the table, observations differing only by a year are sufficient for an approximate determination of the value of the proper motion, for which in other cases many tens of years are required.

Regarding the distribution of these stars in the sky we find that, unlike the brightest stars, they are not concentrated along the Milky Way. On the contrary we find only 6 in the galactic equator squares and 12 in the other squares. We shall not build up any conclusion on this irregularity in the distribution, but supported by the general thesis of the preceding paragraph we conclude only that these stars must be relatively near us. This follows, indeed, directly from column 8, as not less than eleven of these stars lie within one siriometer from our sun. Their mean distance is 0.87 sir.[Pg 36]

TABLE 3.

STARS WITH THE GREATEST PROPER MOTION.

1234567891011121314
NamePositionDistanceMotionMagnitudeSpectrum
(αδ)SquarelbπrμWmMSpm′
sir.sir./st.m′
1Barnards star(175204)GC12358°+12°0″.5150.4010″.29-199m.7+11m.7Mb11.5
2C. Z. 5h.243(050744)GE7218 -35 0.3190.658.75+519.2+10.1K210.6
3Groom. 1830(114738)GA1135 +75 0.1022.027.06-206.5+5.0G57.6
4Lac. 9352(225936)GE10333 -66 0.2920.716.90+27.5+8.2K8.9
5C. G. A. 32416(235937)GF2308 -75 0.2300.896.11+58.2+8.5G9.1
661 Cygni(210238)GD250 - 7 0.3110.665.27-135.6+6.5K57.2
7Lal. 21185(105736)GB5153 +66 0.4030.514.77-187.6+9.1Mb8.9
8ε Indi(215557)GE9304 -47 0.2840.734.70-84.7+5.4K56.3
9Lal. 21258(110044)GB4135 +64 0.2031.024.47+148.5+8.5Ma10.3
10O2 Eridani(041007)GE5168 -36 0.1741.194.11-94.7+4.3G55.8
11Proxima Centauri(142262)GD10281 - 2 0.7800.263.85..11.0+13.9..13.5
12Oe. A. 14320(150415)GB9314 +35 0.0355.903.75+619.0+5.1G09.9
13μ Cassiopeiæ(010154)GD493 - 8 0.1121.843.73-215.7+4.4G36.8
14α Centauri(143260)GD10284 - 2 0.7590.273.68-50.3+3.2G1.2
15Lac. 8760(211139)GE10332 -44 0.2480.833.53+36.6+7.0G7.5
16Lac. 1060(031543)GE7216 -55 0.1621.273.05+185.6+5.1G56.7
17Oe. A. 11677(111466)GB8103 +50 0.1981.043.03..9.2+9.1Ma11.0
18Van Maanens star(004304)GD892 -58 0.2460.843.01..12.3+12.7F012.9
sir.sir./st.m′
Mean.........41°0″.2980.875″.0017.87m.3+7m.6G88.7

[Pg 37]

That the great proper motion does not depend alone on the proximity of these stars is seen from column 10, giving the radial velocities. For some of the stars (4) the radial velocity is for the present unknown, but the others have, with few exceptions, a rather great velocity amounting in the mean to 18 sir./st. (= 85 km./sec.), if no regard is taken to the sign, a value nearly five times as great as the absolute velocity of the sun. As this is only the component along the line of sight, the absolute velocity is still greater, approximately equal to the component velocity multiplied by √2. We conclude that the great proper motions depend partly on the proximity, partly on the great linear velocities of the stars. That both these attributes here really cooperate may be seen from the absolute magnitudes (M).

The apparent and the absolute magnitudes are for these stars nearly equal, the means for both been approximately 7m. This is a consequence of the fact that the mean distance of these stars is equal to one siriometer, at which distance m and M, indeed, do coincide. We find that these stars have a small luminosity and may be considered as dwarf stars. According to the general law of statistical mechanics already mentioned small bodies upon an average have a great absolute velocity, as we have, indeed, already found from the observed radial velocities of these stars.

As to the spectral type, the stars with great proper motions are all yellow or red stars. The mean spectral index is +2.8, corresponding to the type G8. If the stars of different types are put together we get the table

TypeNumberMean value of M
G85.3
K47.5
M49.6

We conclude that, at least for these stars, the mean value of the absolute magnitude increases with the spectral index. This conclusion, however, is not generally valid.

32.

Stars with the greatest radial velocities. There are some kinds of nebulae for which very large values of the radial velocities have been found. With these we shall not for the present deal, but shall confine ourselves to the stars. The greatest radial velocity hitherto found is[Pg 38] possessed by the star (040822) of the eighth magnitude in the constellation Perseus, which retires from us with a velocity of 72 sir./st. or 341 km./sec. The nearest velocity is that of the star (010361) which approaches us with approximately the same velocity. The following table contains all stars with a radial velocity greater than 20 sir./st. (= 94.8 km./sec.). It is based on the catalogue of Voute mentioned above.

Regarding their distribution in the sky we find 11 in the galactic equator squares and 7 outside. A large radial velocity seems therefore to be a galactic phenomenon and to be correlated to a great distance from us. Of the 18 stars in consideration there is only one at a distance smaller than one siriometer and 2 at a distance smaller than 4 siriometers. Among the nearer ones we find the star (050744), identical with C. P. D. 5h.243, which was the “second” star with great proper motion. These stars have simultaneously the greatest proper motion and very great linear velocity. Generally we find from column 9 that these stars with large radial velocity possess also a large proper motion. The mean value of the proper motions amounts to 1″.34, a very high value.

In the table we find no star with great apparent luminosity. The brightest is the 10th star in the table which has the magnitude 5.1. The mean apparent magnitude is 7.7. As to the absolute magnitude (M) we see that most of these speedy stars, as well as the stars with great proper motions in table 3, have a rather great positive magnitude and thus are absolutely faint stars, though they perhaps may not be directly considered as dwarf stars. Their mean absolute magnitude is +3.0.

Regarding the spectrum we find that these stars generally belong to the yellow or red types (G, K, M), but there are 6 F-stars and, curiously enough, two A-stars. After the designation of their type (A2 and A3) is the letter p (= peculiar), indicating that the spectrum in some respect differs from the usual appearance of the spectrum of this type. In the present case the peculiarity consists in the fact that a line of the wave-length 448.1, which emanates from magnesium and which we may find on plate III in the spectrum of Sirius, does not occur in the spectrum of these stars, though the spectrum has otherwise the same appearance as in the case of the Sirius stars. There is reason to suppose that the absence of this line indicates a low power of radiation (low temperature) in these stars (compare Adams).[Pg 39]

TABLE 4.

STARS WITH THE GREATEST RADIAL VELOCITY.

1234567891011121314
NamePositionDistanceMotionMagnitudeSpectrum
(αδ)SquarelbπrμWmMSpm′
sir.sir./st.m′
1A. G. Berlin 1366(040822)GD5141° -20° 0″.00730.80″.54+728m.9+1m.4F09.4
2Lal. 1966(010361)GD493 - 2 0.01612.90.64-697.9+ 2.3F38.5
3A. Oe. 14320(150415)GB9314 +35 0.0355.93.75+619.0+ 5.1G09.9
4C. Z. 5h.243(050744)GE7218 -35 0.3190.68.75+519.2+10.1K210.6
5Lal. 15290(074730)GC6158 +26 0.0239.01.96-518.2+ 3.4G09.1
653 Cassiop.(015563)GC498 + 2 ....0.01-445.6..B85.5
7A. G. Berlin 1866(055719)GD6159 - 2 0.0219.80.76-409.0+ 4.0F09.9
8W Lyræ(181136)GC231 +21 ......-39var...Mdvar.
9Boss 1511(055926)GD7200 -20 0.01217.00.10+395.2- 1.0G56.4
10ω Pavonis(184960)GD11304 -24 ....0.14+385.1..K6.5
11A. Oe. 20452(201721)GE10351 -31 0.01513.51.18-388.1+ 2.4G8p9.4
12Lal. 28607(153710)GB10325 +34 0.0336.21.18-367.3+ 3.3A2p7.4
13A. G. Leiden 5734(161132)GB121 +45 0.00289.20.04-358.3- 1.5K49.9
14Lal. 37120(192932)GC233 + 6 0.0504.10.52-346.6+ 3.5G27.6
15Lal. 27274(145421)GB9308 +34 0.01316.20.79+348.3+ 2.2F48.9
16Lal. 5761(030225)GD5126 -28 0.0395.10.86-328.0+ 4.4A3p8.1
17W. B. 17h.517(172906)GC12358 +20 0.01414.10.63-318.6+ 2.8F19.1
18Lal. 23995(124717)GB8271 +46 0.01217.00.88+308.2+ 2.0F38.8
sir.sir./st.m′
Mean.........23°.90″.04116.71″.3416.77m.7+3m.0F98.5

[Pg 40]

33.

The nearest stars. The star α in Centaurus was long considered as the nearest of all stars. It has a parallax of 0″.75, corresponding to a distance of 0.27 siriometers (= 4.26 light years). This distance is obtained from the annual parallax with great accuracy, and the result is moreover confirmed in another way (from the study of the orbit of the companion of α Centauri). In the year 1916 Innes discovered at the observatory of Johannesburg in the Transvaal a star of the 10th magnitude, which seems to follow α Centauri in its path in the heavens, and which, in any case, lies at the same distance from the earth, or somewhat nearer. It is not possible at present to decide with accuracy whether Proxima Centauri—as the star is called by Innes—or α Centauri is our nearest neighbour. Then comes Barnard's star (175204), whose large proper motion we have already mentioned. As No. 5 we find Sirius, as No. 8 Procyon, as No. 21 Altair. The others are of the third magnitude or fainter. No. 10—61 Cygni—is especially interesting, being the first star for which the astronomers, after long and painful endeavours in vain, have succeeded in determining the distance with the help of the annual parallax (Bessel 1841).

From column 4 we find that the distribution of these stars on the sky is tolerably uniform, as might have been predicted. All these stars have a large proper motion, this being in the mean 3″.42 per year. This was a priori to be expected from their great proximity. The radial velocity is, numerically, greater than could have been supposed. This fact is probably associated with the generally small mass of these stars.

Their apparent magnitude is upon an average 6.3. The brightest of the near stars is Sirius (m = -1.6), the faintest Proxima Centauri (m = 11). Through the systematic researches of the astronomers we may be sure that no bright stars exist at a distance smaller than one siriometer, for which the distance is not already known and well determined. The following table contains without doubt—we may call them briefly all near stars—all stars within one siriometer from us with an apparent magnitude brighter than 6m (the table has 8 such stars), and probably also all near stars brighter than 7m (10 stars), or even all brighter than the eighth magnitude (the table has 13 such stars and two near the limit). Regarding the stars of the eighth magnitude or fainter no systematic investigations of the annual parallax have been made and among these stars we may get from time to time a new star belonging to the sirio[Pg 41]meter sphere in the neighbourhood of the sun. To determine the total number of stars within this sphere is one of the fundamental problems in stellar statistics, and to this question I shall return immediately.

TABLE 5.

THE NEAREST STARS.

1234567891011121314
NamePositionDistanceMotionMagnitudeSpectrum
(αδ)SquarelbπrμWmMSpm′
sir.sir./st.m′
1Proxima Centauri(142262)GD10281° - 2° 0″.7800.263″.85..11m.0+13m.9..13.5
2α Centauri(143260)GD10284 - 2 0.7590.273.68- 50.33+ 3.2G1.25
3Barnards p. m. star(175204)GC12358 +12 0.5150.4010.29-199.7+11.7Mb11.5
4Lal. 21185(105736)GB5153 +66 0.4030.514.77-187.6+ 9.1Mb8.9
5Sirius(064016)GD7195 - 8 0.3760.551.32- 2-1.58- 0.3A-1.58
6..(111357)GC6158 + 3 0.3370.602.72........12.5
7τ Ceti(013916)GF1144 -74 0.3340.621.92- 33.6+ 4.6K04.6
8Procyon(073405)GC7182 +14 0.3240.641.24- 10.48+ 1.5F50.90
9C. Z. 5h.243(050744)GE7218 -35 0.3190.658.75+519.2+10.1K210.6
1061 Cygni(210238)GD250 - 7 0.3110.665.27-135.6+ 6.5K57.2
11Lal. 26481(142515)GB9124 -40 0.3110.660.47..7.8+ 8.7G58.9
12ε Eridani(032809)GE5153 -42 0.2950.700.97+ 33.8+ 4.6K04.8
13Lac. 9352(225936)GE10333 -66 0.2920.716.90+ 27.5+ 8.2K8.9
14Pos. Med. 2164(184159)GC256 +24 0.2920.712.28..8.9+ 9.6K10.3
15ε Indi(215557)GE9304 -47 0.2840.734.70- 84.7+ 5.4K56.3
16Groom. 34(001243)GD384 -20 0.2810.732.89+ 18.1+ 8.8Ma9.5
17Oe. A. 17415(173768)GC865 +32 0.2680.771.30..9.1+ 9.7K10.5
18Krüger 60(222457)GC372 0.2560.810.94..9.2+ 9.6K510.8
19Lac. 8760(211139)GE10332 -44 0.2480.883.53+ 36.6+ 7.0G7.5
20van Maanens p. m. star(004304)GE392 -58 0.2460.843.01..12.3+12.7F012.9
21Altair(194508)GD115 -10 0.2380.870.66- 70.9+ 1.2A51.12
22C. G. A. 32416(235937)GF2308 -75 0.2300.896.11+ 58.2+ 8.5G9.1
23Bradley 1584(112932)GC6252 +28 0.2160.951.06- 56.1+ 6.2G6.9
sir.sir./st.m′
Mean......30°.80″.3440.673″.429.16m.3+7m.3G67.5

[Pg 42]The mean absolute magnitude of the near stars is distributed in the following way:—

M01345678910111213
Number1212121441111.

What is the absolute magnitude of the near stars that are not contained in table? Evidently they must principally be faint stars. We may go further and answer that all stars with an absolute magnitude brighter than 6m must be contained in this list. For if M is equal to 6 or brighter, m must be brighter than 6m, if the star is nearer than one siriometer. But we have assumed that all stars apparently brighter than 6m are known and are contained in the list. Hence also all stars absolutely brighter than 6m must be found in table 5. We conclude that the number of stars having an absolute magnitude brighter than 6m amounts to 8.

If, finally, the spectral type of the near stars is considered, we find from the last column of the table that these stars are distributed in the following way:—

Spectral typeBAFGKM
Number022593.

For two of the stars the spectrum is for the present unknown.

We find that the number of stars increases with the spectral index. The unknown stars in the siriometer sphere belong probably, in the main, to the red types.

If we now seek to form a conception of the total number in this sphere we may proceed in different ways. Eddington, in his “Stellar movements”, to which I refer the reader, has used the proper motions as a scale of calculation, and has found that we may expect to find in all 32 stars in this sphere, confining ourselves to stars apparently brighter than the magnitude 9m.5. This makes 8 stars per cub. sir.

We may attack the problem in other ways. A very rough method which, however, is not without importance, is the following. Let us suppose that the Galaxy in the direction of the Milky Way has an extension of 1000 siriometers and in the direction of the poles of the[Pg 43] Milky Way an extension of 50 sir. We have later to return to the fuller discussion of this extension. For the present it is sufficient to assume these values. The whole system of the Galaxy then has a volume of 200 million cubic siriometers. Suppose further that the total number of stars in the Galaxy would amount to 1000 millions, a value to which we shall also return in a following chapter. Then we conclude that the average number of stars per cubic siriometer would amount to 5. This supposes that the density of the stars in each part of the Galaxy is the same. But the sun lies rather near the centre of the system, where the density is (considerably) greater than the average density. A calculation, which will be found in the mathematical part of these lectures, shows that the density in the centre amounts to approximately 16 times the average density, giving 80 stars per cubic siriometer in the neighbourhood of the sun (and of the centre). A sphere having a radius of one siriometer has a volume of 4 cubic siriometers, so that we obtain in this way 320 stars in all, within a sphere with a radius of one siriometer. For different reasons it is probable that this number is rather too great than too small, and we may perhaps estimate the total number to be something like 200 stars, of which more than a tenth is now known to the astronomers.

We may also arrive at an evaluation of this number by proceeding from the number of stars of different apparent or absolute magnitudes. This latter way is the most simple. We shall find in a later paragraph that the absolute magnitudes which are now known differ between -8 and +13. But from mathematical statistics it is proved that the total range of a statistical series amounts upon an average to approximately 6 times the dispersion of the series. Hence we conclude that the dispersion (σ) of the absolute magnitudes of the stars has approximately the value 3 (we should obtain σ = [13 + 8] : 6 = 3.5, but for large numbers of individuals the total range may amount to more than 6 σ).

As, further, the number of stars per cubic siriometer with an absolute magnitude brighter than 6 is known (we have obtained 8 : 4 = 2 stars per cubic siriometer brighter than 6m), we get a relation between the total number of stars per cubic siriometer (D0) and the mean absolute magnitude (M0) of the stars, so that D0 can be obtained, as soon as M0 is known. The computation of M0 is rather difficult, and is discussed [Pg 44]in a following chapter. Supposing, for the moment, M0 = 10 we get for D0 the value 22, corresponding to a number of 90 stars within a distance of one siriometer from the sun. We should then know a fifth part of these stars.

34.

Parallax stars. In §22 I have paid attention to the now available catalogues of stars with known annual parallax. The most extensive of these catalogues is that of Walkey, containing measured parallaxes of 625 stars. For a great many of these stars the value of the parallax measured must however be considered as rather uncertain, and I have pointed out that only for such stars as have a parallax greater than 0″.04 (or a distance smaller than 5 siriometers) may the measured parallax be considered as reliable, as least generally speaking. The effective number of parallax stars is therefore essentially reduced. Indirectly it is nevertheless possible to get a relatively large catalogue of parallax stars with the help of the ingenious spectroscopic method of Adams, which permits us to determine the absolute magnitude, and therefore also the distance, of even farther stars through an examination of the relative intensity of certain lines in the stellar spectra. It may be that the method is not yet as firmly based as it should be,[15] but there is every reason to believe that the course taken is the right one and that the catalogue published by Adams of 500 parallax stars in Contrib. from Mount Wilson, 142, already gives a more complete material than the catalogues of directly measured parallaxes. I give here a short resumé of the attributes of the parallax stars in this catalogue.

The catalogue of Adams embraces stars of the spectral types F, G, K and M. In order to complete this material by parallaxes of blue stars I add from the catalogue of Walkey those stars in his catalogue that belong to the spectral types B and A, confining myself to stars for which the parallax may be considered as rather reliable. There are in all 61 such stars, so that a sum of 561 stars with known distance is to be discussed.

For all these stars we know m and M and for the great part of them also the proper motion μ. We can therefore for each spectral type compute the mean values and the dispersion of these attributes. We thus get the following table, in which I confine myself to the mean values of the attributes.

[Pg 45]

TABLE 6.

MEAN VALUES OF m, M AND THE PROPER MOTIONS (μ) OF PARALLAX STARS OF DIFFERENT SPECTRAL TYPES.

Sp.NumbermMμ
B15+2.03-1.670″.05
A46+3.40+0.640.21
F125+5.60+2.100.40
G179+5.77+1.680.51
K184+6.17+2.310.53
M42+6.02+2.300.82

We shall later consider all parallax stars taken together. We find from table 6 that the apparent magnitude, as well as the absolute magnitude, is approximately the same for all yellow and red stars and even for the stars of type F, the apparent magnitude being approximately equal to +6m and the absolute magnitude equal to +2m. For type B we find the mean value of M to be -1m.7 and for type A we find M = +0m.6. The proper motion also varies in the same way, being for F, G, K, M approximately 0″.5 and for B and A 0″.1. As to the mean values of M and μ we cannot draw distinct conclusions from this material, because the parallax stars are selected in a certain way which essentially influences these mean values, as will be more fully discussed below. The most interesting conclusion to be drawn from the parallax stars is obtained from their distribution over different values of M. In the memoir referred to, Adams has obtained the following table (somewhat differently arranged from the table of Adams),[16] which gives the number of parallax stars for different values of the absolute magnitude for different spectral types.

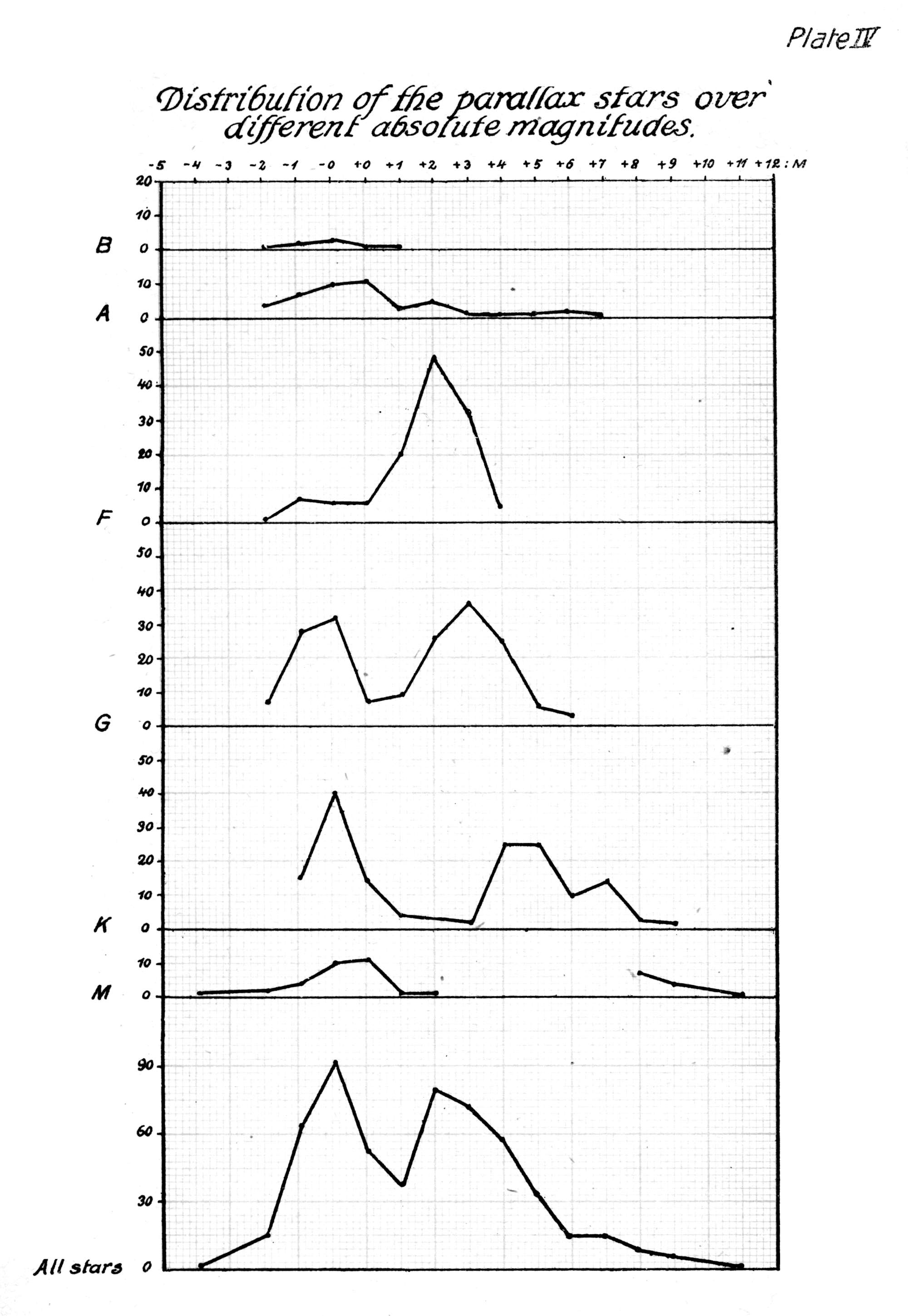

A glance at this table is sufficient to indicate a singular and well pronounced property in these frequency distributions. We find, indeed, that in the types G, K and M the frequency curves are evidently resolvable into two simple curves of distribution. In all these types we may distinguish between a bright group and a faint group. With[Pg 46] a terminology proposed by Hertzsprung the former group is said to consist of giant stars, the latter group of dwarf stars. Even in the stars of type F this division may be suggested. This distinction is still more pronounced in the graphical representation given in figures (plate IV).

TABLE 7.

DISTRIBUTION OF THE PARALLAX STARS OF DIFFERENT SPECTRAL TYPES OVER DIFFERENT ABSOLUTE MAGNITUDES.

M B A F G K M All
- 4 .. .. .. .. .. 1 ..
- 3 .. .. .. .. .. .. ..
- 2 1 4 1 7 .. 2 15
- 1 2 7 7 28 15 4 63
- 0 3 10 6 32 40 10 91
+ 0 1 11 6 7 14 11 50
+ 1 1 3 20 9 4 1 38
+ 2 .. 5 48 26 .. 1 80
+ 3 .. 1 32 36 2 .. 71
+ 4 .. 1 5 25 25 .. 56
+ 5 .. 1 .. 6 25 .. 32
+ 6 .. 2 .. 3 10 .. 15
+ 7 .. 1 .. .. 14 .. 15
+ 8 .. .. .. .. 3 7 10
+ 9 .. .. .. .. 2 4 6
+10 .. .. .. .. .. .. ..
+11 .. .. .. .. .. 1 1
Total 8 46 125 179 154 42 554

In the distribution of all the parallax stars we once more find a similar bipartition of the stars. Arguing from these statistics some astronomers have put forward the theory that the stars in space are divided into two classes, which are not in reality closely related. The one class consists of intensely luminous stars and the other of feeble stars, with little or no transition between the two classes. If the parallax stars are arranged according to their apparent proper motion, or even according to their absolute proper motion, a similar bipartition is revealed in their frequency distribution.

Nevertheless the bipartition of the stars into two such distinct classes must be considered as vague and doubtful. Such an apparent bipartition[Pg 47] is, indeed, necessary in all statistics as soon as individuals are selected from a given population in such a manner as the parallax stars are selected from the stars in space. Let us consider three attributes, say A, B and C, of the individuals of a population and suppose that the attribute C is positively correlated to the attributes A and B, so that to great or small values of A or B correspond respectively great or small values of C. Now if the individuals in the population are statistically selected in such a way that we choose out individuals having great values of the attributes A and small values of the attribute B, then we get a statistical series regarding the attribute C, which consists of two seemingly distinct normal frequency distributions. It is in like manner, however, that the parallax stars are selected. The reason for this selection is the following. The annual parallax can only be determined for near stars, nearer than, say, 5 siriometers. The direct picking out of these stars is not possible. The astronomers have therefore attacked the problem in the following way. The near stars must, on account of their proximity, be relatively brighter than other stars and secondly possess greater proper motions than those. Therefore parallax observations are essentially limited to (1) bright stars, (2) stars with great proper motions. Hence the selected attributes of the stars are m and μ. But m and μ are both positively correlated to M. By the selection of stars with small m and great μ we get a series of stars which regarding the attribute M seem to be divided into two distinct classes.

The distribution of the parallax stars gives us no reason to believe that the stars of the types K and M are divided into the two supposed classes. There is on the whole no reason to suppose the existence at all of classes of giant and dwarf stars, not any more than a classification of this kind can be made regarding the height of the men in a population. What may be statistically concluded from the distribution of the absolute magnitudes of the parallax stars is only that the dispersion in M is increased at the transition from blue to yellow or red stars. The filling up of the gap between the “dwarfs” and the “giants” will probably be performed according as our knowledge of the distance of the stars is extended, where, however, not the annual parallax but other methods of measuring the distance must be employed.[Pg 48]

TABLE 8.

THE ABSOLUTELY FAINTEST STARS.

1234567891011121314
NamePositionDistanceMotionMagnitudeSpectrum
(αδ)SquarelbπrμWmMSpm′
sir.sir./st.m′
1Proxima Centauri(142262)GD10281° - 2° 0″.7800.263″.85..11m.0+13m.9..13.5
2van Maanens star(004304)GE892 -58 0.2460.843.01..12.3+12.7F012.95
3Barnards star(175204)GC12358 +12 0.5150.4010.29-199.7+11.7Mb8.9
417 Lyræ C(190332)GC231 +10 0.1281.601.75..11.3+10.3..12.5
5C. Z. 5h.243(050744)GE7218 -35 0.3190.658.75+519.2+10.1K210.68
6Gron. 19 VIII 234(161839)GB129 +44 0.1621.270.12..10.3+ 9.8....
7Oe. A. 17415(173768)GB865 +32 0.2680.771.30..9.1+ 9.7K10.5
8Gron. 19 VII 20(162148)GB241 +43 0.1331.551.22..10.5+ 9.6....
9Pos. Med. 2164(184159)GC256 +24 0.2920.712.28..8.9+ 9.6K10.3
10Krüger 60(222457)GC872 0.2560.810.94..9.2+ 9.6K510.8
11B. D. +56°532(021256)GD8103 - 4 0.1951.06....9.5+ 9.4....
12B. D. +55°581(021356)GD8103 - 4 0.1851.12....9.4+ 9.2G510.2
13Gron. 19 VIII 48(160438)GB127 +46 0.0912.270.12..11.1+ 9.3....
14Lal. 21185(105736)GB5153 +66 0.4030.514.77-187.6+ 9.1Mb8.9
15Oe. A. 11677(111466)GB3103 +50 0.1981.043.03..9.2+ 9.1Ma11.0
16Walkey 653(155359)GB257 +45 0.1751.18....9.5+ 9.1....
17Yerkes parallax star(021243)GD8107 -16 0.0454.58....12.4+ 9.1....
18B. D. +56°537(021256)GD8103 - 4 0.1751.18....9.4+ 9.0....
19Gron. 19 VI 266(062084)GC397 +27 0.0712.800.09..11.3+ 9.0....
sir.sir./st.m′
Mean......27°.50″.2440.992″.9629.310m.0+9m.9K110.9

[Pg 49]Regarding the absolute brightness of the stars we may draw some conclusions of interest. We find from table 7 that the absolute magnitude of the parallax stars varies between -4 and +11, the extreme stars being of type M. The absolutely brightest stars have a rather great distance from us and their absolute magnitude is badly determined. The brightest star in the table is Antares with M = -4.6, which value is based on the parallax 0″.014 found by Adams. So small a parallax value is of little reliability when it is directly computed from annual parallax observations, but is more trustworthy when derived with the spectroscopic method of Adams. It is probable from a discussion of the B-stars, to which we return in a later chapter, that the absolutely brightest stars have a magnitude of the order -5m or -6m. If the parallaxes smaller than 0″.01 were taken into account we should find that Canopus would represent the absolutely brightest star, having M = -8.17, and next to it we should find Rigel, having M = -6.97, but both these values are based on an annual parallax equal to 0″.007, which is too small to allow of an estimation of the real value of the absolute magnitude.

If on the contrary the absolutely faintest stars be considered, the parallax stars give more trustworthy results. Here we have only to do with near stars for which the annual parallax is well determined. In table 8 I give a list of those parallax stars that have an absolute magnitude greater than 9m.

There are in all 19 such stars. The faintest of all known stars is Innes' star “Proxima Centauri” with M = 13.9. The third star is Barnard's star with M = 11.7, both being, together with α Centauri, also the nearest of all known stars. The mean distance of all the faint stars is 1.0 sir.

There is no reason to believe that the limit of the absolute magnitude of the faint stars is found from these faint parallax stars:—Certainly there are many stars in space with M > 13m and the mean value of M, for all stars in the Galaxy, is probably not far from the absolute value of the faint parallax stars in this table. This problem will be discussed in a later part of these lectures.


PLATE I.

CONVERSION OF EQUATORIAL COORDINATES INTO GALACTIC COORDINATES. PLATE I.

CONVERSION OF EQUATORIAL COORDINATES INTO GALACTIC COORDINATES.

PLATE II.

Squares and Constellations. PLATE II.

Squares and Constellations.

PLATE III.

The Harvard Classification of Stellar Spectra. PLATE III.

The Harvard Classification of Stellar Spectra.

Plate IV.

Distribution of the parallax stars over
different absolute magnitudes. Plate IV.

Distribution of the parallax stars over different absolute magnitudes.

Scientia Publisher

K. G. MALMQUIST:

A study of the stars of spectral type A. L. M. II, 22.

Price: 6 Kr.

C. V. L. CHARLIER:

Vorlesungen über die Grundzüge der mathematischen Statistik.

Price: 10 Kr.

F. ESSCHER:

Über die Sterblichkeit in Schweden. 1886-1914. Eine Stabilitäts- und Korrelationsuntersuchung. L. M. II, 23.

Price: 6 Kr.

B. FÄNGE:

On the distances and luminosities of stars of spectral type G as derived from their proper motions. L. M. II, 25.

Price: 5 Kr.

C. V. L. CHARLIER:

Introduction to Stellar Statistics.

Price: 4 Kr.

NILS H. RASMUSON:

A Research on moving clusters. L. M. II, 26.

Price: 5 Kr.

SIGFRID RAAB:

A Research on open clusters. L. M. II, 28.

Price: 8 Kr.

CARL WIRTZ:

Flächenhelligkeiten von 566 Nebelflecken und Sternhaufen. Nach photometrischen Beobachtungen am 49 cm.-Refraktor der Universitäts-Sternwarte Straßburg (Elsaß) 1911-1916. L. M. II, 29.

Price: 5 Kr.

C. V. L. CHARLIER:

Stargauges by William Herschel (H) and John Herschel (h). L. M. II, 30.

Price: 5 Kr.


PRINTED BY LÜTCKE & WULFF, HAMBURG


FOOTNOTES:

[1] Meddelanden från Lunds Observatorium, No. 41.

[2] Meddelanden från Lunds Astronomiska Observatorium, Serie II, No. 14.

[3] Annals of the Harvard Observatory, vol. 50.

[4] In order to deduce from M the apparent magnitude at a distance corresponding to a parallax of 1″ we may subtract 3m.48. To obtain the magnitude corresponding to a parallax of 0″.1 we may add 1.57. The latter distance is chosen by some writers on stellar statistics.

[5] The best colour-scale of the latter sort seems to be that of Osthoff.

[6] Compare H. A. 50 and H. A. 56 and the remarks in L. M. II, 19.

[7] “Bonner Sternverzeichnis” in den Astronomischen Beobachtungen auf der Sternwarte zu Bonn, Dritter bis Fünfter Band. Bonn 1859-62.

[8] “Bonner Durchmusterung”, Vierte Sektion. Achter Band der Astronomischen Beobachtungen zu Bonn, 1886.

[9] “The Cape Photographic Durchmusterung” by David Gill and J. C. Kapteyn, Annals of the Cape Observatory, vol. III-V (1896-1900).

[10] “Cordoba Durchmusterung” by J. Thome. Results of the National Argentine Observatory, vol. 16, 17, 18, 21 (1894-1914).

[11] Aph. J., vol. 36.

[12] H. A., vol. 71.

[13] H. A., vol. 91, 92, 93, 94.

[14] A catalogue of radial velocities has this year been published by J. Voute, embracing 2071 stars. “First catalogue of radial velocities”, by J. Voute. Weltevreden, 1920.

[15] Compare Adams' memoirs in the Contributions from Mount Wilson.

[16] The first line gives the stars of an absolute magnitude between -4.9 and -4.0, the second those between -3.9 and -3.0, &c. The stars of type B and A are from Walkey's catalogue.


Transcriber's Note: The following corrections have been made to the original text.

Page 4: "Terrestial distances" changed to "Terrestrial distances"

Page 9: "we must chose," changed to "we must choose,"

Page 12: "acromasie" changed to "achromatism"

Page 15: "inparticular" changed to "in particular"

"supposing, that" changed to "supposing that"

Page 16: "393.4 mm" changed to "393.4 μμ"

Page 20: "for which stars if" changed to "for which stars it"

Page 22: "sphaerical" changed to "spherical"

Page 23: "principal scource" changed to "principal source"

Page 25: "lense with 15 cm" changed to "lens with 15 cm"

Page 27: "Through the spectroscopie method" changed to "Through the spectroscopic method"

"made to its principal" changed to "made its principal"

"american manner" changed to "American manner"

Page 35: "many tenths of a year" changed to "many tens of years"

Page 38: "same appearence" changed to "same appearance"

Page 47: "red stears" changed to "red stars"

"dispersion in M" changed to "dispersion in M"

Page 49: "smaller the" changed to "smaller than"






End of the Project Gutenberg EBook of Lectures on Stellar Statistics, by
Carl Vilhelm Ludvig Charlier

*** END OF THIS PROJECT GUTENBERG EBOOK LECTURES ON STELLAR STATISTICS ***

***** This file should be named 22157-h.htm or 22157-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/2/2/1/5/22157/

Produced by Susan Skinner and the Online Distributed
Proofreading Team at http://www.pgdp.net (The original
copy of this book was generously made available for scanning
by the Department of Mathematics at the University of
Glasgow.)


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
http://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH F3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, is critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at http://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
http://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at http://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit http://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including checks, online payments and credit card donations.
To donate, please visit: http://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart is the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     http://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
