What Philately Teaches

FEBRUARY 24, 1899




NEW YORK. Third Edition




What Philately Teaches


By way of preface, I wish to say, that I have prepared this paper with the hope of interesting those who are not stamp collectors and my endeavor will be to indicate some of the interesting and instructive things that may be learned by those who follow this fascinating pursuit. Much that I have to say will be ancient history to philatelists, but I trust they will remember that this is not especially intended for them and pardon any dryness in it, in view of its intent.

Stamp collecting, as pursued to-day, has become something more than an amusement for children. It affords instruction and mental relaxation to those who are older and more serious.

On the title page of every stamp album and catalogue should be inscribed the old latin motto: "Te doces 4" thou teachest, for it is certainly an instructor and affords much intellectual entertainment.

Stamp, "Hankow Local Post", 2 cents

In connection with this motto we have a little philatelic joke from the orient. In one of the Chinese treaty ports a stamp has been issued which bears the motto. We find them on the tea chests, written in excellent Chinese, and, even if we do not read the language, we cannot doubt that they refer to the tea doses which the chests contain.

By some, philately has been called a science. Perhaps it hardly merits so exalted a title but it opens for us a wide field for research, in which we may find many curious, interesting and instructive things. It trains our powers of observation, enlarges our perceptions, broadens our views, and adds to our knowledge of history, art, languages, geography, botany, mythology and many kindred branches of learning.

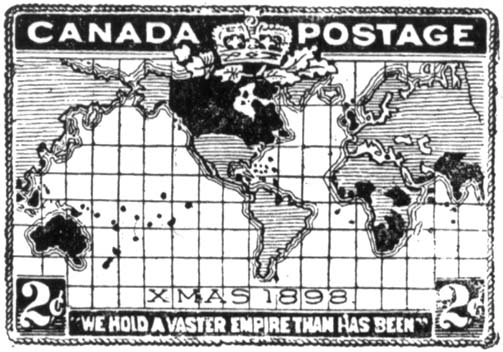

Stamp, "Canada Postage", 2 cents

Philately embraces the whole earth and likewise the whole earth is sometimes embraced within the limits of a postage stamp. As an example of this, witness the recent effort of our Canadian cousins in 5celebration of the achievement of the long-desired ocean penny postage, at present an inter-colonial rate of the British Empire, but some day to be an international rate. The motto is a trifle bombastic and suggests the Teutonic superlative; "So bigger as never vas," and the "Xmas 1898" reads like the advertisement of a department store: "Gents pants for Xmas gifts." But we must admit that the stamp is a pretty conceit, in spite of these defects and of the ambition of the artist, which has spread the "thin red line" over territory that has not otherwise been acquired. In addition to the things to be learned from the pictorial part of stamps, there are other things which attract the attention of the thoughtful and bring with them knowledge that is both interesting and valuable. The mechanical part of stamp making may be studied with much profit and entertainment. Considered in all its aspects, philately is even more instructive than matrimony. You will remember the elder Weller's views on the latter subject: "Ven you're a married man, Samivel, you'll understand a good many things as you don't under 6stand now; but vether its worth while going through so much to learn so little, as the charity boy said ven he got to the end of the alphabet, is a matter o' taste. I rather think it isn't." This reproach cannot be applied to philately. It teaches even the unwilling and careless. In the effort to fill the spaces in their albums they must learn what varieties they are lacking and in what these differ from other and similar varieties. Thus some knowledge must be gained, even if unsought. To the studious and the careful, in this as in other things in life, the greatest benefits naturally accrue.

In my remarks this evening I shall endeavor to touch upon a few subjects which are quite certain to attract the attention of any one who takes up stamp collecting with any degree of earnestness and thoroughness. That these subjects open up other fields for interesting and profitable study will be readily apparent.

Let us take a postage stamp and consider it. Aside from the name of the country whence it emanates and the expression of value, what do we find in it to study? First the design, next the means by which the design was prepared and placed upon the paper, thirdly the paper upon which the stamp is 7printed, and lastly the finishing touches of gum, perforation, etc.

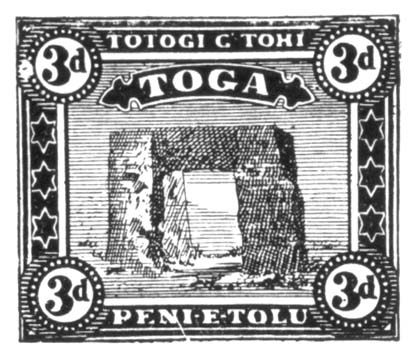

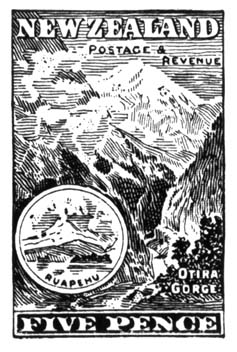

Stamp, "New Zealand", 9 pence Stamp, "Toga", 5 s.

In the early days of stamps most countries made their own and they were, in some degree, an indication of the artistic progress, or want of it, in a country. But we have changed all that and to-day all effort seems to be directed toward producing artistic and attractive stamps. Sometimes this is due to national pride and occasionally it is intended to draw attention to the resources and natural wonders of a country. As an example of the latter, here are the marvelous pink terraces of New Zealand, which were, unfortunately, destroyed by volcanic disturbances a few years ago. But too often, we fear, these picture stamps are produced merely with a view to their ready salability to collectors. More frequently than not, these brilliant labels are the product of a distant country and are no longer indicative of the artistic status of the country by which they are 8issued. For example, a late issue from the Tonga islands but made in London. Indeed, the wilds of Africa, the distant islands of the Pacific and the tumultuous republics of Central America far outshine the cultured countries of the old world in their postal stationery. The designs of stamps may suggest many things: the power of nations, the march of history, the glory of victory, the advance of civilization, art, industry, natural resources, scenic grandure, the dead and storied past, the living breathing present.

The majority of stamps bear a portrait, usually that of a sovereign. The stamps of our own country present a portrait gallery of our great and heroic dead, for by law the faces of the living may not appear on our stamps or money. This is the reverse of the rule in monarchical countries, where the portrait of the reigning sovereign usually adorns the postal issues. The likeness most frequently seen on postage stamps is that of her most gracious Majesty the Queen of England. For more than half a century her portrait has adorned the numerous stamps of Great Britain and the British Colonies, beginning in 1840 with a beautiful portrait—painted by an American, we may be proud to say— 9the portrait of the girl queen, wearing her coronation crown, and continuing, until to-day she wears a widow's veil beneath the crown of the Empress of India. In the issue by which Canada commemorated the sixtieth year of Her Majesty's reign the two portraits are happily combined.

Stamp, "Canada Postage", 1837-1897, 1/2 cent Stamp, "Haiti", 1 cent Stamp, "Tonga", 2 d. Stamp, "Samoa Postage", 2-1/2 pence Stamp, Siam Stamp, "Republic Liberia Postage", 1884-1892, 8 cents Stamp, "Holkar State Postage", 1/2 Anna

Following the lead of Europe and America, other countries have placed the portraits of their rulers on their stamps and from this custom we may gain some slight information on the subject of ethnography. Hayti, Tonga, Samoa, Siam, Liberia, 10Holkar, etc., have shown us types of other races than the Caucassian. One of the stamps of Congo is adorned by a couple of natives in local full dress which appears to be much on the order of that of the lady in the ballad who wore a wreath and a smile. Japan has placed on her stamps the portraits of two heroes of her late war with China. Guatemala has the head of an Indian woman. The stamps of British North Borneo have the arms of the company with two stalwart natives as supporters and a similar device is used by the British Central Africa Co. The stamps of Obock show a group of natives. The 11picture is entitled "the missionary at dinner with the native chiefs." For further particulars of the missionary enquire within.

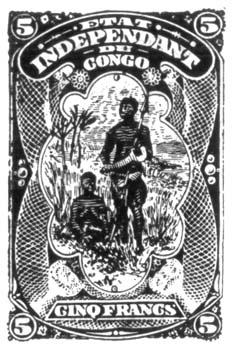

Stamp, "Congo", 5 francs Stamp, "Emperial Japanese Post", 5 sen Stamp, "Emperial Japanese Post", 5 sen Stamp, "Guatemala", 1/2 real Stamp, "British North Borneo", 50 cents Stamp, "Brit. Central Africa", 2 s. & 6 p. Stamp, "République Française Obock", 1 ct.

Another large group of stamps have numerals of value as their distinguishing feature. As examples of this we find, the early issues of Brazil and Hawaii, many stamps of Sweden, Netherlands, Denmark, etc., as well as the postage due stamps of many countries, including our own.

Stamp, Brazil, "30" Stamp, "Hawaiian Postage", 2 cents Stamp, "Lösen", 1 øre Stamp, "Nederland", 2-1/2 cent Stamp, "Danmark", 5 øre Stamp, Arabic

In other countries only inscriptions are used. This is especially the case with the Native States of India, in some of which as many as four languages are said to be em 12ployed on one stamp. These are interesting for their crude and curious designs but are not popular with collectors, probably because of our inability to read them.

Stamp, Arabic

Afghanistan has varied the idea by placing on her stamps a tiger's head surrounded by a broad circle of inscriptions. Owing to the short comings of native art the tiger is more often droll than ferocious.

The method of cancellation used in that country is crude but effective. It consists in cutting or tearing a piece out of the stamp. Needless to say, it is not popular with stamp collectors.

Stamp, Arabic, Hindi

Jhalawar, one of the Native States of India, has also varied the monotony of inscriptions by the addition of a sort of jumping-jack figure. By some writers this is claimed to be a dancing dervish and by others a Nautch girl. As pictured on the stamp the figure does not present the sensuous outlines which have always been attributed to those delectable damsels. Bossakie 13wicz, in his Manuel du Collectionneur de Timbres Poste says: "A dancing nymph, belonging to the secondary order of Hindu divinities and known as an apsara." Here is a problem which the next convert to philately may undertake to solve. You see there are still worlds to conquer, in spite of all the inky battles that have been waged by philatelic writers.

Stamp, "Diligencia", 60 centavos Stamp, "Escuelas", 1 centesimo

The first stamps of Uruguay bear the inscription "diligencia" (stagecoach), thus plainly indicating the method then employed for transporting the mails. On some of the Venzuelan stamps is the word "escuelas" (schools), a portion of the revenue from this source being devoted to the maintenance of the state schools.

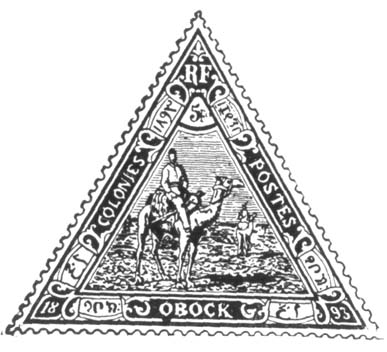

Stamp, "North Borneo", 12 cents Stamp, "Obock", 1893, 5 c. Stamp, "Sudan Postage", 1 millieme Stamp, "Correo Lima", 2 centavos Stamp, "Guatemala", 20 centavos Stamp, "New South Wales", 8 pence Stamp, "New South Wales", 1 shilling Stamp, "Newfoundloand", 5 cents Stamp, "Newfoundloand", 2 cents Stamp, "Postage W. Australia", 1 shilling Stamp, "Republic Liberia", 4 cents Stamp, "Republic Liberia", 1 dollar Stamp, "New Zealand", 6 pence Stamp, "Stamp Duty Tasmania", 6 pence

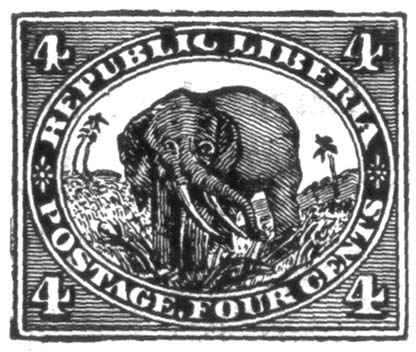

The animal world has been thoroughly exploited by designers of stamps and many curious products have they shown us. This creature with the fine open countenance hails from North Borneo but 14it is said that similar creatures have been seen by earnest philatelists after an evening of study in the billiard room of the Collectors Club, followed by a light supper of broiled lobster and welsh rarebit. Very familiar to collectors are the camel of Obock and the Soudan, the Llama of Peru, the sacred quetzal of Guatemala—the transmigrated form of the god-king of the Aztecs—the lyrebird and Kangaroo of New South Wales. New Foundland has pictured the seal and cod fish, Western Australia the black swan, Li 15beria the elephant and rhinocerous, and New Zealand the curious bird called the apterix, which is wingless and clothed in hair instead of feathers. Tasmania shows us her animal freak, the platypus paradoxus, the beast with a bill, first cousin to our tailors and butchers, all of whom are beasts with bills. Our own country has added to the philatelic "zoo" by placing a herd of cattle on one of the Trans-Mississippi issue. That it is a pretty picture cannot be denied but the connection between cows and postage stamps is not obvious.

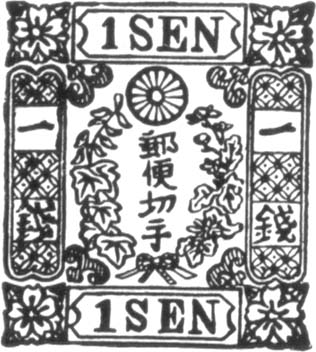

Stamp, "New Brunswick Postage", 3 pence Stamp, Japanese, 1 sen Stamp, "Imperio do Brazil", 300 reis

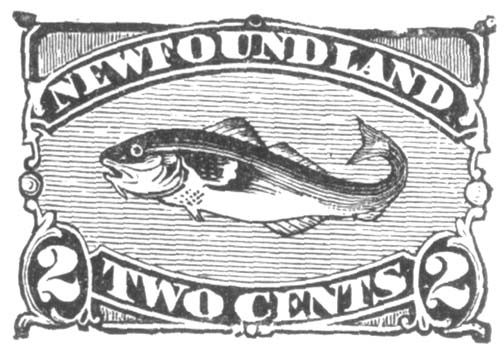

New Foundland, Nova Scotia and New Brunswick have adorned their stamps with the heraldic 16rose, thistle and shamrock of the British Empire. Japan, ever artistic and ever a lover of the beautiful, has placed on her stamps the chrysanthemum, both as a flower and in its conventionalized form as the crest of the Imperial family. And Nepal has the lotus, sacred to Buddha. Brazil has shown us the brilliant constellation of the Southern Cross which sparkles in the tropic sky.

Stamp, "Malta", 5 shilling

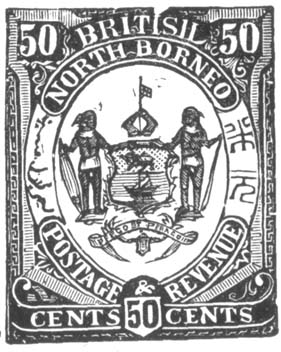

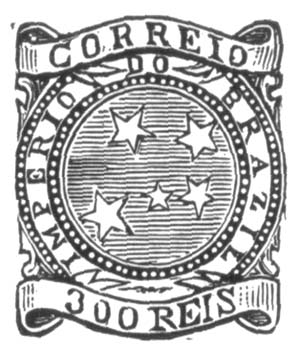

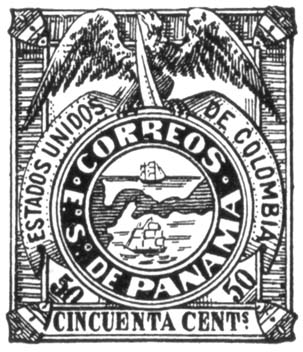

Many nations have used their coats of arms as appropriate decorations for their postal issues. On the five shilling stamps of Malta we find the Maltese cross, emblem of the Knights of St. John and reminiscent of the crusades.

Stamp, "Poste Egyptiennes", 5 piastres Stamp, "Hellas", 2 Drachmes Stamp, "Hellas", 10 Drachmes Stamp, "Hellas", 5 Drachmes Stamp, "Fiji", 1 penny Stamp, "Labuan", 8 cents Stamp, "Congo", 40 centimes Stamp, "Congo", 10 francs

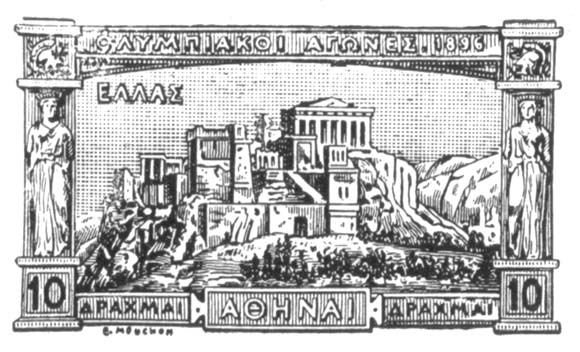

Egypt has her sphynx and pyramids; Greece an artistic series of pictures of her famous statues and ruins. Fiji shows a pirogue, the native canoe, rudely shaped from a tree trunk and hollowed out by fire. Labuan has a piratical 17looking native dhow. The stamps of Rhodesia and the Congo Free State depict the advance of civilization on the dark continent. History is sumptuously illustrated in the series of stamps issued by our Government to commemorate the 400th anniversary of the discovery of the new world by Columbus and to celebrate the settlement and growth of the great west. Portugal also has cele 18brated, in an elaborate issue of stamps, the voyage of Vasco da Gama to India. Other countries have been quite too ready to do likewise until we have feared we were in danger of being drowned in the flood of commemorative and celebration stamps, many of which we felt were designed to replenish an empty treasury rather than to honor the glorious deeds of the past.

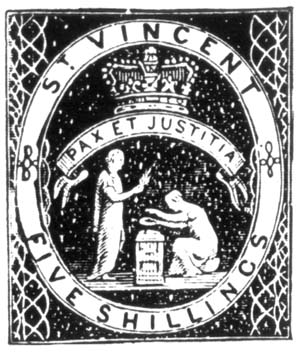

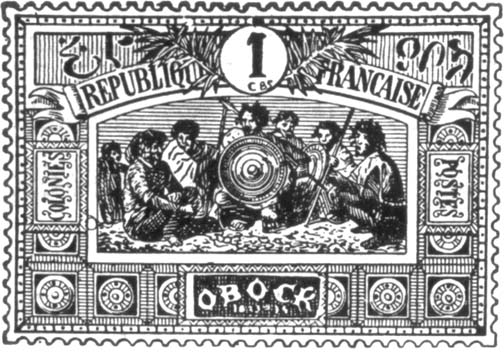

Stamp, "St. Vincent", 5 shilling Stamp, "République Française", 1 Stamp, "Cape of Good Hope", 1 penny Stamp, "Trinidad" Stamp, "British East Africa", 1/2 Anna

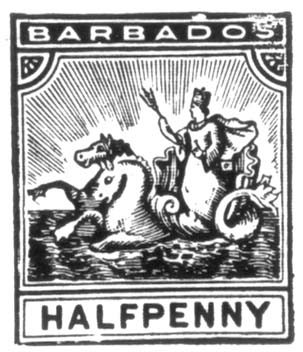

Quite a number of stamps have allegorical designs. One of the most beautiful examples comes from St. Vincent. Familiar figures to philatelists are those of Peace and Commerce on the stamps of France, Hope with her anchor on the issues of the Cape of Good Hope and Britannia on several of the British Colonies. The stamps of British East Africa bear a flaming sun 19and the legend "light and liberty," typical of the light of civilization and progress now dawning upon that part of the world. And on one of the late issues of Portugal is a beautiful allegory of the muse of history watching Da Gama's voyage to the East.

Stamp, "Portugal", 1498-1898, 23 reis Stamp, Greece Stamp, "Uruguay", 50 centesimos Stamp, "Barbados", 1/2 penny

From allegory to mythology is but a step. Greece has long displayed on her stamps the winged head of Mercury and Uruguay has given us a dainty picture of the messenger of the gods. The late issues of Barbados have a picture of Amphitrite, the spouse of Neptune, in her chariot drawn by sea-horses. The handsome stamps of the United States, intended for the payment of postage on newspapers and periodicals bear the pictures of nine of the goddesses of Grecian mythology. The stamps of China, Shanghai and Japan introduce subjects from oriental myths. This is not a pussy cat in a fit or trying 20to dance a pas seul on the end of its tail. It is one of the most venerated of the Chinese dragons. One of its provinces is to guard the sacred crystal of life. It has a human head, the wings of a bird, the claws of a tiger and the tail of a serpent.

Stamp, "Shanghai LPO", 80 cash Stamp, "Nicaragua", 1 centavo Stamp, "Estados Unidos de Colombia", 50 cents Stamp, "Venezuela", 50 c's Stamp, "State of North Borneo", 18 cents

One of the stock arguments advanced in favor of philately, by those who think it needs other excuse than the entertainment it affords, is that it teaches geography. This is undoubtedly true, and, as if in support of the argument, several countries have given us what might be called map stamps. Of late years, it has become customary for countries to exploit their attractions by issues of "picture" stamps, many of which show views of local 21scenery. One of the first in this line came from North Borneo, showing a view of Mt. Kimbal, a celebrated volcano of the island. Congo has given us two pictures which are microscopic gems of art. The first is a view of the railroad crossing the Mopoxo river and the second the Falls of Inkissi. British Guiana has recently shown us two of her natural wonders, Mount Roraima, a great table-topped mountain, and the Kaiteur Falls. New Zealand has an extensive series of views, one of the most striking of which is Mount Cook. Among the latest of these attractive issues is one from Tonga, 22which includes a picture of a wonderful work of the pre-historic inhabitants of those islands, a tri-lithon, believed to have been erected as a burial place and monument of a chieftain. In its arrangement and massive simplicity it is suggestive of the Druidic ruins of other lands.

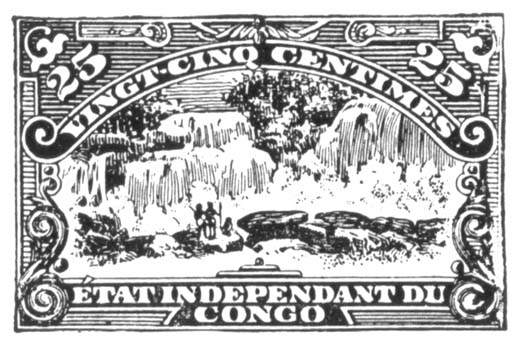

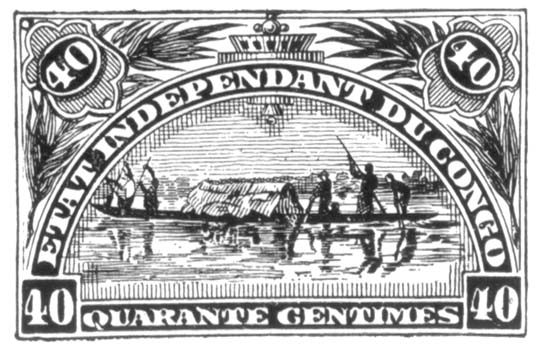

Stamp, "Etat Independant du Congo", 50 centimes Stamp, "Etat Independant du Congo", 25 centimes Stamp, "British Guayana", 1897, 1 cent Stamp, "British Guayana", 1897, 2 cents Stamp, "New Zealand", 5 pence Stamp, "Toga", 3 d. Stamp

Crowns and post-horns figure on many stamps and both are significant of the authority and purpose of these seemingly trifling bits of paper. An interesting combination of these two emblems is found on one of the newspaper stamps of Hungary. In this case the crown is not merely a creation of the artist's fancy but the historic crown of Saint Stephen, the "iron crown of Hungary," so called because it has within its rim an iron band said to be made from one of the nails of the cross.

In all these subjects of thought I have mentioned only a few examples under each head. The number might be multiplied many times, did I not fear to weary you.

But, turning from the purely pictorial side, let us 23consider the material side of stamps and the various methods employed in producing them. The design having been selected, it becomes necessary to reproduce it in some form suitable for making stamps in large quantities. In a general way we may divide stamp printing into two classes: printing from metal plates and printing from stone, or lithography. The first class contains two grand sub-divisions. In the first of these sub-divisions the lines to be reproduced are sunken below the surface of the plate. This is known as taille douce or line engraving. It is also called copper plate and steel engraving. The copper plates for our visiting cards are familiar examples of this style of work and our national paper currency presents very beautiful and elaborate results of the process.

The second sub-division is known as typography or surface printing. As its name indicates, the lines to be reproduced are at the surface of the plate, the other parts being cut away. A newspaper is an example of typographical printing, the term being applied to designs made up from type, as well as to specially prepared plates.

I need not suggest to you how wide a field for thought and exploration this subject of engraving 24opens to us, leading as it does directly into the world of books, pictures and art. But at present we must confine ourselves to the subject as applied to postage stamps, save for a brief consideration of its origin and history.

The art of engraving owes its origin to the Florentine goldsmiths of the fifteenth century. They were accustomed to ornament their work with incised lines which were filled with black enamel. A design thus filled with enamel was called a niello, a derivative of the word nigellum (the most black). The brass and nickel signs with black letters, which we find at the doors of business houses, are modern forms of nielli. While making a niello, the artist naturally wished to see how the work was progressing and if any alterations were required. It was not desirable to put the enamel in the design because it was difficult to remove. To avoid this an impression of the work was taken in clay, from which a sulphur cast was made. The lines of the cast were filled with lamp black. Thus a copy of the work was obtained which reproduced its coloring and showed the condition of the engraving. A more simple process was discovered later. This consisted in filling the lines of the engraving 25with a thick ink and pressing a sheet of damp paper against them. Sufficient pressure was used to force the paper into the lines and take up the ink on its surface. This was the beginning of line engraving and plate printing. The process was at first employed for the preservation and duplicating of designs for goldsmith's engraving and afterwards for the sake of the work itself. It was not until the next century that the process assumed a leading place in the world of art. If it were not going too far away from our subject we might study the early engravers and their work with much profit and entertainment. But it is our purpose to consider the subject only so far as it applies to postage stamps.

Until the early part of the present century copper was practically the only metal used for engraving. Only a limited number of impressions can be taken from a copper plate because it wears rapidly, and it is not suited to such work as the production of postage stamps. About 1830 the way was found to make steel of sufficient softness and fineness of grain to be available for engraving. To-day annealed steel is almost exclusively used for this purpose. Annealed steel is steel which has been soft 26ened without being decarbonized. The surface is carefully ground and polished to a mirror-like brightness. Any work which is to be reproduced many times, such as postage stamps and parts of bank-notes, is made on small pies of steel called dies.

If the design to be used is in the shape of a drawing or engraving, a sheet of gelatin may be laid over it and the outlines traced with a sharp-pointed instrument. More often a photograph is taken on a ferrotype plate and the outlines scratched into the plate. These outlines are filled with vermilion. A piece of paper is then laid on the plate and the two passed through a hand-press. This is called "pulling" an impression. While the ink of the impression is still moist it is sprinkled with powdered vermilion to strengthen the lines. The block of steel is then covered with an etching ground (a composition of asphaltum, wax, resin and ether) and the impression is transferred to this. The outlines are cut through the etching ground and bitten into the steel with acid. The coating is then removed from the block and the artist proceeds with the engraving. The mechanical details and various methods of engraving are highly interesting but time will not permit their discussion.

27An engraver is seldom expert in more than one style of work. Each makes a specialty of some branch, portraiture, lettering, scroll-work, etc. For this reason several engravers are usually employed on each die for a postage stamp. And in this inability of one individual to do all styles of work equally well lies one of the great securities against counterfeiting.

In the course of making a die, proofs are usually taken and these are much prized by collectors.

The die being finished, it is placed in a bath of cyanide of potassium and heated until the vessel containing it is red hot. This process occupies from fifteen minutes to half an hour for dies but may take as much as an hour for a large plate. The die is then transferred to a bath of oil, to cool and temper it. By this process it is thoroughly hardened.

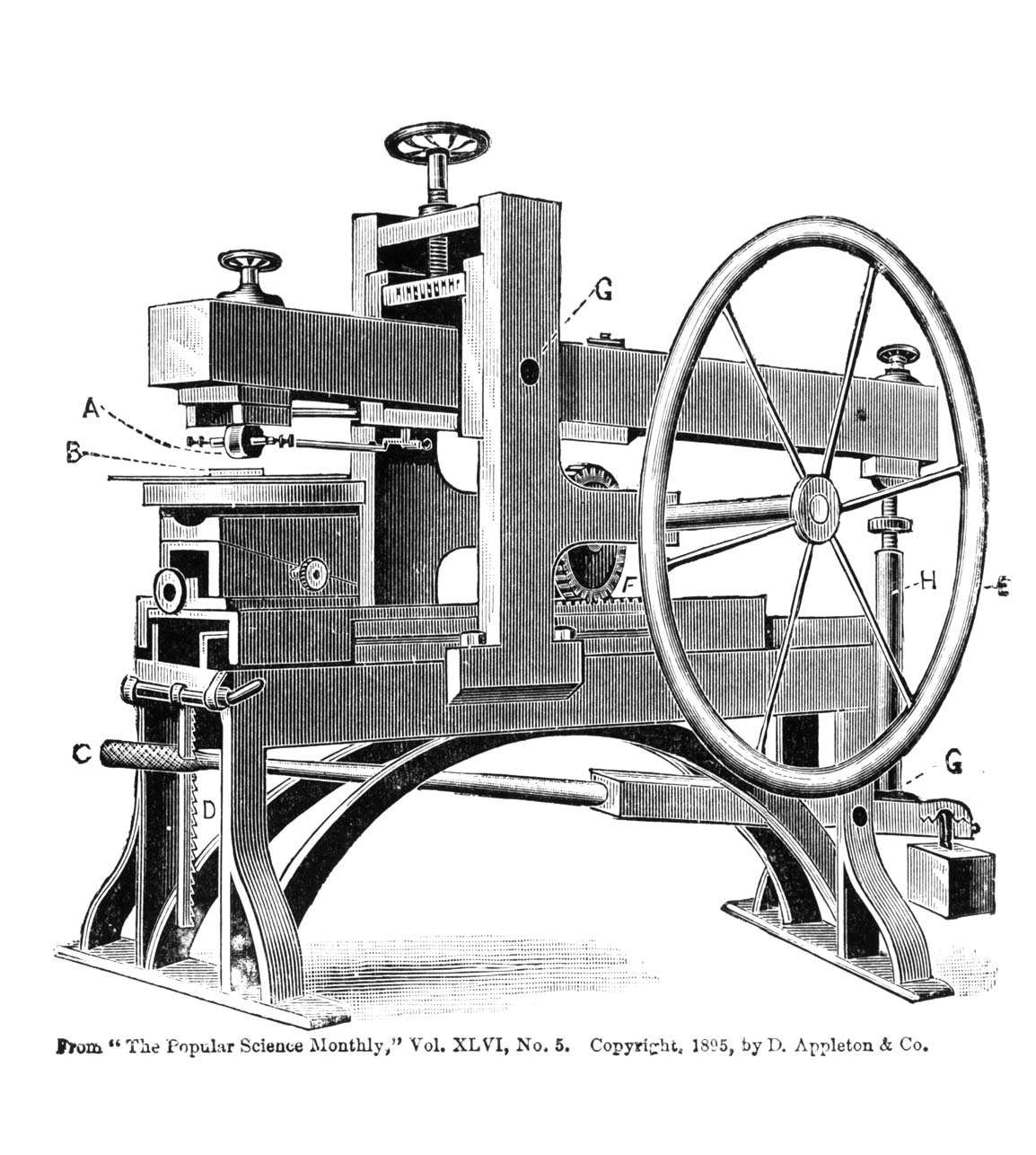

28 From "The Popular Science Monthly," Vol. XLVI, No. 5.
Copyright, 1895, by D. Appleton & Co.

From "The Popular Science Monthly," Vol. XLVI, No. 5. Copyright, 1895, by D. Appleton & Co.

In the case of postage stamps, where it is desired to exactly duplicate the design many times on a plate, recourse is had to transfer rolls. A transfer roll is a piece of soft steel, in shape a cross section of a cylinder. The edge is sufficiently wide to receive an impression from the die. We show you here a picture of a transfer press. From each side 29of the roll projects a small pin or trunion. These pins form an axle for the roll and by them it is held in the carrier of the press. A is the roll in the carrier. The die is placed on the table or bed B. The roll is held against the die with a pressure of many tons, obtained by compound leverage. By means of the wheel, E, and the connecting pinion and rack, the bed, carrying with it the die, is moved back and forth under the roll. This is called "rocking" and by it the soft steel of the roll is forced into the die and a reverse impression of the design is obtained. The roll is then hardened and, by a reversal of the process, impressions from it are transferred to the steel plate from which the stamps are to be printed. The plate is, of course, soft at first and is hardened after the required number of designs have been transferred to it. This process is so perfect that the most delicate lines of the die are repeated with absolute fidelity on the plate. When many plates of a stamp are likely to be needed, it is customary, in order to avoid risk of wear or damage to the original die, to make duplicate dies, called transfer dies, and from them the necessary rolls to make the plates.

The plates are made with great care. They are 30touched up by hand and subjected to close scrutiny and the work is often gone over a number of times before the result is pronounced satisfactory. Incidentally any guide lines and marks used by the transferrer are removed by burnishing. In the older issues of United States stamps, such lines and dots are frequently found on the stamps but the later issues are very free from them.

Plates that have become worn are "re-entered," that is to say, the transfer roll is applied to the plate in the original position and the lines thus sharpened and deepened. If, by any mistake in making or re-entering a plate, the roll is incorrectly placed and then changed to the correct spot, a double impression of some of the stronger lines will result. This is called a "double transfer" and sometimes, though wrongly, a "shifted die." These double transfers are quite common in the United States stamps made before 1861 but are scarce in the late issues, either because the work is now more carefully done or because any mistakes have been corrected. Such a correction is effected by turning the plate on its face on a hard substance, hammering on the back until the surface is driven up smooth and then entering the design anew.

31A number of very delicate machines are used as aids to the engraver, though much more for bank-notes and large pieces of work than for postage stamps. These are called ruling machines, medallion rulers, cycloidal and geometric lathes. Ruling machines are used to make the backgrounds of portraits, the shadings of letters and similar work.

Coin Stamp, "New South Wales", 5 shillings

Here is a very pretty example of ruling, in the so-called "coin" stamp of New South Wales. These machines rule either straight or curved lines. They can be adjusted to rule several thousand lines to an inch, but that is only done for microscopical work, not for engraving. The general principle of a medallion ruling machine is a rod, fixed on a pivot, at one end of which is a pin which is drawn across a medallion, while at the other end a graving point traces a corresponding line on the steel. The large stamps issued in the United States in 1865, for the payment of postage on newspapers and periodicals, are examples of this work.

Cycloidal ruling in its simplest form resembles a series of loops. It is produced by a fixed point which is held against a plate while the latter is 32moved in a circle and, at the same time, forward. By altering the size of the circle and the speed of the forward movement a great variety of results are obtained. By cutting one series of loops over another, lace-like effects are produced. The process is still further varied by the use of eccentrics.

Ruling Patterns

The geometric lathe is a most delicate and complicated machine. By means of elaborate attachments very involved and eccentric motions are given to the plate under the graving point and extremely complicated and beautiful designs are produced. I 33think we are all familiar with these from the examples on our national currency. Geometric lathework was used on a number of the United States stamps of the issue of 1861 and also on the $5,000 revenue stamp. The work of this machine is regarded as a great safeguard against counterfeiting. The most skillful engraver would have difficulty in imitating the simplest designs produced by it. The machines are too expensive to be obtained by anyone but a government or a great banknote company and there are very few men who thoroughly understand operating them. A turn of a screw or a variation of a single cog will change the result entirely. Finally the work of the lathe is often reversed, so that the line which is cut by the graver and should print in color prints white, and vice versa. It would not be possible to imitate this by hand engraving.

Printing from line-engraved plates is largely done by hand presses. The ink used is very thick. When black it is made of finely pulverized carbon, mixed with oil. Colored inks are composed of zinc white and dry colors, ground in oil. The colors are animal, vegetable or mineral. The latter cause the plates to wear out rapidly. Green is an especi 34ally destructive color. In recent years aniline colors have been largely employed. They afford an elaborate range of shades and color combinations which are most puzzling to describe. Soluble inks are much used by the leading English firm of stamp printers. They are very sensitive to water and are regarded as one of the best preventatives of the cleaning of used stamps. Beautiful results are obtained by printing stamps in two colors. Of course, this necessitates the use of two plates for each design. This also gives rise to some interesting varieties, caused by one part of the design being printed upside down. Such oddities are scarce and are highly valued by philatelists.

When a plate is to be printed from, it is first warmed, then the ink is applied and rubbed into the lines with a pad. The surface of the plate is wiped off with a cloth, then with the hand and lastly, polished with whiting. A sheet of dampened paper is next laid on the plate and the whole is passed under the roller of a press, which forces the paper into the lines of the plate, where it takes up the ink. When the plate is deeply engraved the ink seems to stand up from the surface of the paper in ridges and some times we find correspond 35ing depressions on the backs of the stamps. The sheets are then dried, gummed and dried again. They are now so much curled and wrinkled that they are placed between sheets of bristol board and subjected to hydraulic pressure of several hundred tons which effectively straightens them out.

The second process of printing from metallic plates is called typography. The plates for this process are the exact reverse of those engraved in taille douce. Instead of the design being cut into the plate, it is on the surface and everything else is cut away. Hence, the term "surface printing." This form of engraving is also called épargné engraving, because the parts of the plate which bear the design are épargné (preserved.)

The dies for typographical plates are cut in wood or steel, usually the former. They are reproduced by two methods, stereotyping and electrotyping. In the former process casts of the die are taken in papier maché or plaster of Paris. From these casts other casts are taken in type-metal. A sufficient number of these casts are clamped together or fastened to a backing of wood and thus form a plate. This process is not much used for stamps. It may interest you to know that 36most of our large newspapers employ this process. The type-set forms are, of course, flat. From them papier maché impressions are taken and bent into a curve, so that the casts made from them will fit the cylinders of the printing presses.

In electrotyping, an impression is taken from the die in wax or gutta percha. The surface of this impression is coated with powdered plumbago. It is placed in a solution of sulphate of copper and, by the action of a galvanic battery, a thin shell of copper is deposited on it. This shell is backed with type-metal and is then ready for use. A number of these elecrotypes may be fastened together and electrotyped in one piece.

There is also a photographic process for making typographical dies. This is said to be used in making the stamps of France and her colonies.

Cliché with two stamps, "Colombia", 5 cents Cliché with two stamps, "Colonies de l'Empire Français",
10 c.

Stereotypes or electrotypes of single stamps are called clichés. In making up a plate it sometimes happens that a cliché is placed upside down. The 37result, after printing, is a stamp in that position. This is called a tête bêche. We illustrate here such a stamp and another which is semi tête bêche, i.e., turned half around instead of being entirely inverted. Like all oddities these are prized by stamp collectors.

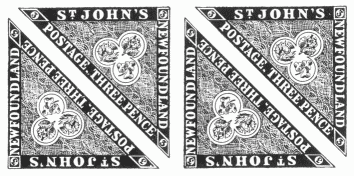

Stamp Arrangement, "Newfoundland", 3 pence

The triangular stamps of the Cape of Good Hope and New Foundland are so arranged in the plate that half of them are tête bêche to the other half. The same is true of the stamps of Grenada of the issue of 1883.

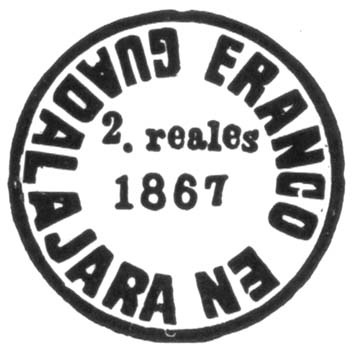

Stamp, "Hawaiian Postage", 5 cents Stamp, "Petersburg, Virgina", 5 cents Stamp, "Eranco en Guadalajara", 2 reales Stamp, "Ile de la Réunion", 15 centimes

Another form of typography is found in stamps which are composed of printer's type and ornaments. These are usually called "type-set", to distinguish them from stamps produced by the normal process of typography. Stamps made in this manner are often of a high degree of rarity, having been produced in remote parts of the world, where facilities were limited and the use of stamps restricted. To 38this class belong the stamps of the first issues of British Guiana, Hawaii and Reunion, which rank among the greatest philatelic rarities. We show you here a number of type-set stamps. The first was used in the Hawaiian Islands, in payment of postage on letters between the different islands. There are a number of plates of these stamps, of different values, and each containing ten varieties. The second stamp was issued by the postmaster of Petersburg, Va., in the early days of the war of the rebellion and before the postal service of the Confederate government was in working order. The third was used in the city of Guadalajara, 39Mexico, in 1869, during the war between France and that country. It was made from the cancellation stamp in use in the post office, the usual date being replaced by the value. The stamps were struck by hand on sheets of paper which had been previously ruled into squares with a lead pencil. The fourth stamp is one of the Reunion stamps previously mentioned. There were eight stamps in the setting, four having a central device like the stamp shown, and the other four being of a different design.

It is interesting to remark that most of these type-set stamps show an evidence of their provisional nature and the stress under which they were made, in the paper on which they were printed. It was usually writing paper, such as would be found at a stationers at that period. Some of the rare type-set stamps of British Guiana were printed on the paper used for lining sugar barrels.

Stamp, "Shanghai LPO", 2 candareens

The stamps of the first issue of Shanghai supply an unique variety in typographed stamps. In these stamps the central design is cut upon a block of 40ivory and the surroundings are set up from printer's type and rules. The stamps were printed one at a time upon a hand press. The value, in both English and Chinese, was changed as required, and it is recorded that on occasions the different values were produced literally "while you wait." Under such circumstances it is not surprising to learn that minor varieties are very numerous.

In printing from typographical plates the ink is applied to the surface by means of a roller. Impressions from these plates, before they have been pressed, show the design forced into the paper, instead of raised above it, as in taille douce printing.

Stamp, "Confederate States", 5 cents

There is often a noticeable difference in the impressions made from the same plate by different workmen, owing to the varying degree of skill and care employed. We frequently find in stamp catalogues such terms as "London print" contrasted with "local print." These terms indicate a fine impression and an inferior one. We find a good example in two five cent stamps of the Confederate States. They are both from the same plate but the first was printed in London by the skilled workmen of Messrs. De La 41Rue & Co., and the last was locally made with poor facilities.

Embossing is a variety of printing connected with both line engraving and typography. Embossing dies are produced by sinking lines in the plate but, as a rule, they are intended for such productions as stamped envelopes and the sunken portions are a series of hollows rather than sharply cut lines. An envelope, viewed from the reverse, will give an excellent idea of the appearance of such a die. In printing from these dies very heavy pressure is used and the paper usually is backed by a piece of leather or something of similar nature. In its simplest form embossing is a stamping in relief without color. The stamp of Natal shown here was produced in this manner. The stamps of Scinde, issued in 1850, were embossed and for the red one large wafers, at that date in common use for sealing letters, were used. The brittle nature of this material is probably responsible for the scarcity of this stamp, especially of copies in fine condition.

Stamp, embossed, "Natal" Stamp, embossed, "Scinde District Dawk", 1/2 anna Stamp, "Halfpenny Postage" Stamp, "Heligoland", 2 Pfennig Stamp, "Bayern", 1 Kreuzer

Embossing is usually combined 42with typography. The surface of the die being inked, that part of the design is printed in color at the same time that the rest is embossed. These three stamps show this class of work, one being an envelope stamp with the head deeply embossed. The Heligoland stamp like all the stamps of that island is in the local colors, red, white and green, of which the inhabitants are so proud. In the case of the Heligoland and Bavaria stamps the entire sheets are embossed at one time and not each stamp singly, as is usual.

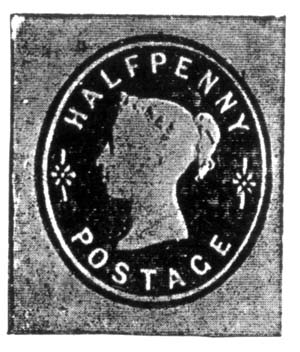

Some curious varieties of this sort of printing are found among the early issues of Peru. The ma 43chine in use there printed the stamps one at a time on long strips of paper. When the end of a strip was reached another was attached to it with gum, in order that the process might be continuous. It frequently happened that an impression was printed upon or partly upon the overlapping ends of the strips. In the course of time these ends became separated and thus we find stamps embossed partly with and partly without color and occasionally entirely without it. Philatelists call these varieties semi-albinos and albinos. The latter term is also applied to envelope stamps which have been embossed without the die being inked.

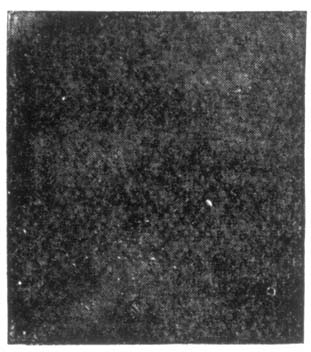

Lithography, while a simpler and less expensive mode of making stamps than those previously described, is not often employed for the purpose. The work is inferior in quality and too easily counterfeited to commend itself. In lithography the lines of the design are neither sunken nor, to any appreciable extent, raised above the surface. The design is practically a drawing, in a certain greasy ink, upon stone of a particular quality. When several colors are used, as in chromo-lithography, a separate stone is prepared for each. The design is sometimes drawn directly on the stone and at 44others transferred to it. For stamps a die is made in wood, metal or stone. Impressions from this are made in transfer ink (a very "fat" ink, made of soap, resin, tallow, etc.) upon transfer paper. These impressions are placed, face downward, on the stone and the paper is moistened. On being passed through a press the ink adheres to the stone and the paper is easily removed. A wet sponge is passed over the stone, the water adhering to the exposed surface but not to the greasy ink. While it is moist a roller, covered with transfer ink, is rolled over the designs to which it adheres. The wetting and rolling are alternated until the designs have sufficient body. Lastly, a very weak solution of nitric acid, gum arabic and water is passed over the stone. This is at once washed off. It bites the stone to a very trifling extent and serves to clean the surface and add sharpness to the design.

Impressions taken from a lithographic stone are perfectly flat and smooth, the surface of the paper being neither raised nor depressed. They have usually a slightly greasy feel.

, Stamp, "N. Caledonie", 10 c.

An interesting specimen of lithography is supplied by the first issue of 45New Caledonia. The design (fifty stamps in five rows of ten) was drawn upon the stone by a sergeant of Marines, named Triquéra. It is said the work was done with a pointed nail. As might be expected, it was very crude.

Another interesting stamp was issued in the island of Trinidad in 1855. In this case, the stone, after the designs had been placed upon it, was very deeply bitten with acid, so that it might properly be called etched and the impressions from it be said to be typographed from stone. This stone was used in 1855, 1858 and 1860. Owing to its friable nature and want of care the stone deteriorated, so that the last impressions from it are little better than blurs.

Having considered the design and the methods of preparing plates and printing stamps the next thing to attract our attention is the paper. We here show you some photographs of paper. These were not taken by reflected light but by transmitting light through the paper, so that we have the fibre and structure of it.

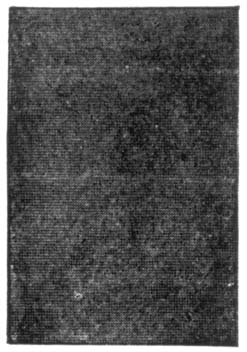

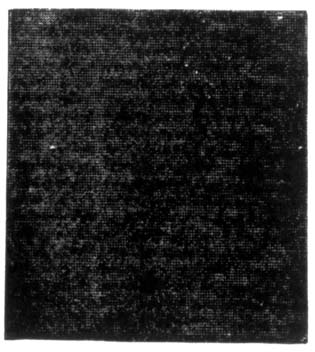

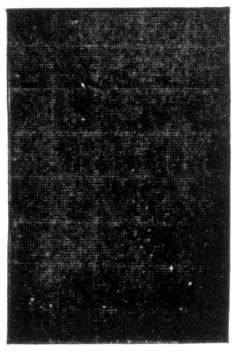

The two varieties of paper most used for stamps are termed 46wove and laid. Wove paper has an even texture suggestive of cloth. Like cloth it may show no grain when held to the light or it may have the appearance of interwoven threads. The paper ordinarily used for books and newspapers is wove. There is a very thin, tough wove paper, much like that familiarly known as "onion-skin," which is called pelure by philatelists. On a few occasions a wove paper, which is nearly as thick as card board, has been used for stamps.


Laid paper shows alternate light and dark lines, parallel and close together. These lines are called vergures. There are usually other lines, an inch or more apart, crossing the vergures at right angles.

Ribbed paper has much the appearance of a fine closely laid paper. It is, however, a wove paper with a corrugated surface. In oriental countries, especially Japan, a peculiar, tough, cottony paper is produced. It is sometimes wove and sometimes laid, usually thin and hard to tear. I believe this is made from rice straw. Paper which has thin lines about the distance apart of the ruled lines in writing paper is called 47 batonné, from the French baton, a stick or rule. If the paper between the batons is wove, it is called wove batonné. If the space is filled with fine laid lines, it is called laid batonné. Quadrillé paper has laid lines which form small squares. When these lines form rectangles, it is called oblong quadrillé.

Paper Paper Paper

Some of the stamps of Mexico were printed on paper ruled with blue lines. This was merely ordinary foolscap paper. Many of the early stamps of Russia were on a paper having the surface coated with a soluble enamel. This not only gave a very fine impression but, on an attempt to clean a cancelled stamp, the enamel would wash off, carrying the design with it.

Two stamps of Prussia, issued in 1866, are usually said to be on gold-beater's skin. But they are really on a very thin tough paper which has been treated with shellac, parrafine, or something which makes it transparent, and afterwards coated with a 48gelatine preparation. On this the design was printed reversed, i.e. only to be seen correctly when viewed through the paper. The stamps were gummed on the printed side. When they were affixed to an envelope any attempt to soak them off resulted in the paper coming away while the design adhered to the envelope, like a decalcomanie. Essays of this nature were made in a number of countries, including our own, but Prussia was the only one to make and use the stamps.

There are several varieties of paper which have threads of silk or other fibre. The first of these is known as Dickinson paper, from the name of its inventor. It has one or two threads of silk incorporated in the paper in the course of manufacture. For stamped envelopes two threads were generally used. They were placed about half an inch apart and the envelope was usually so printed that the threads would cross the stamp. For adhesive stamps only one thread was used. Great Britain and several of the German States made extensive use of this paper. It has never been successfully counterfeited. The best imitation was made by gumming together two thin pieces of paper 49with a silk thread between them but the fraud was not difficult to detect.

Some of the United States revenue stamps were printed on a paper which had a few bits of silk fibre scattered through it. The paper called granite or silurian has a quantity of colored threads mixed with the pulp. In Switzerland blue and red threads were used, giving the paper a slightly grayish tone. In Servia only red threads were used but in sufficient quantity to make the paper appear a faint rose color.

Manila is a coarse buff paper made from manila fibre. It is generally used for newspaper wrappers.

It will scarcely be necessary to say that paper is found in a great variety of colors and that such colored paper has frequently been used for stamps.

We cannot consider paper without treating of watermarks, since they are made in the process of paper making and constitute an important feature of stamp paper. Watermarks are designs impressed in the paper pulp. The paper is slightly thinner in the lines of these designs and appears lighter when held to the light. Of course you are all familiar with this appearance from having noticed 50the watermarks in note paper. On rare occasions the watermark is a thickening of the paper instead of a thinning. In such a case the watermark appears more opaque than the paper. Watermarks in paper used for stamps are, of course, intended as a security against counterfeiting.

Watermark U.S.P. (mirrored letters)

There are a great variety of watermarks; words, letters, figures, heraldic devices, etc., etc. Sometimes the design covers the whole sheet and at other times several stamps, but usually there is a separate watermark for each stamp. The current stamps of the United States are watermarked with the letters "U. S. P. S.", United States Postal Service. This is so set up that the letters read in sequence from any point and in any direction. At one time several of the British colonies in Australia employed paper watermarked with a figure or word of the value of the stamp intended to be printed on it. It can readily be understood that these would sometimes get mixed and result in more of those oddities in which philatelists delight.

51 Watermarks, Crown with letters CC Watermarks, Crown with letters CA Watermarks, Cross and Orb, Anchor, Elephant Head, Pine-Apple, Castle Watermarks, Post Horn, Turtle, Geneva Cross

Here are some well-known watermarks. The letters CC under the Crown stand for "Crown Colonies." This was extensively used on stamps of the British Colonies. It has been replaced by a similar design, lettered CA, "Crown Agents for the Colonies," which is still in use. A great variety of crowns have been used, as also of stars. The cross and orb are found on stamps of Great Britain. The anchor belongs to the Cape of Good Hope, the elephant to India, the pine-apple to Jamaica, the castle to Spain (where else would we have castles if not in Spain?) the post horn to Denmark, the turtle to Tonga. The Geneva cross belongs to Switzerland but is not really a watermark, as it is impressed in the paper after the stamps are printed. The pyramid 52 and sun and the star and crescent both belong to Egypt. The lion comes from Norway, the sun from the Argentine Republic, the wreath of oak leaves from Hanover, the lotus flower from Siam.

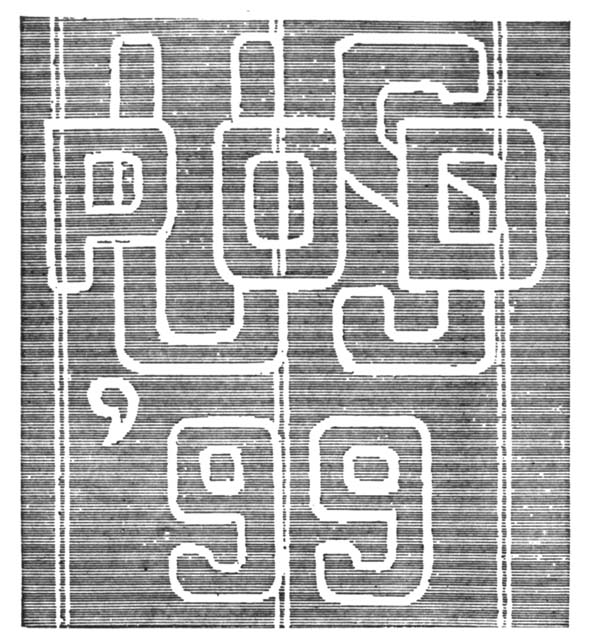

US POD '99 Double Eagle

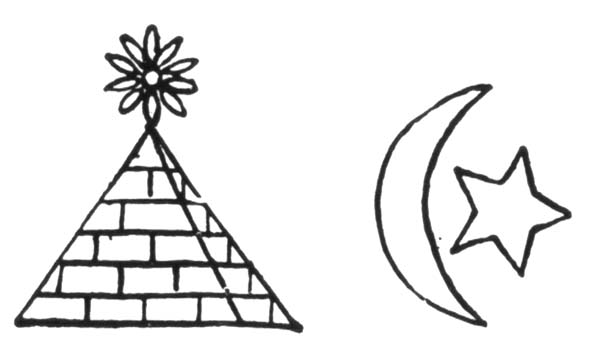

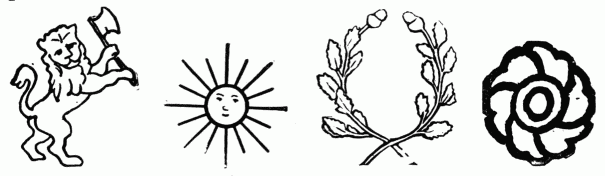

53 Watermark, Pyramid, Moon and Star Watermark, Lion with Axe,
Sun, Wreath, Flower

Here is one from Travancore, it represents a shell sacred to the god Vishnu. On the stamps of Shanghai we find these Chinese characters. They read Kung Pu, literally labor board, otherwise Municipal Council, by whose authority the stamps were issued.

Watermark, Shell Watermark, Chinese Characters

The watermarks on the preceding page are from envelopes of the United States and Russia. Of course there are many more watermarks than those we show. On many sheets there are watermarked borders with the name of the country, the word "postage," or other inscriptions.

There is much that is interesting in paper mak 54ing. The best paper is made from linen rags but many other substances are used, cotton rags, esparto grass, straw, etc. Very common paper, such as that used for the daily newspapers, is made from wood pulp. Paper is made in two ways, by hand and by machinery.

Hand made paper is made by means of a mould and a deckle. A mould is a piece of fine wire gauze, tightly stretched on a wooden frame. If the paper is to be laid, coarser lines are woven in the gauze. If it is to be watermarked, the designs, made of wire bent in the desired shape or of bits of metal, are fastened to the surface. A deckle is a narrow wooden frame which fits on and around the sides of the mould. The deckle is movable, in order that it may be used with more than one mould. The mould is dipped in paper pulp and a quantity taken upon it. It is then shaken, to make the pulp cover the whole surface evenly and rid it of water. The edges of the resulting sheet are, naturally, rough and irregular and are called deckle edges.

To make the paper pulp the rags are first boiled with soda and lime, to rid them of dirt and grease. They are then macerated in a vat, through 55which fresh water continually flows. When thoroughly ground the pulp is treated with a bleaching fluid which removes all color. It is then pressed and is ready for use. When about to be used the pulp is mixed with water and color is added if desired. When the paper is to be made by machinery the pulp is allowed to flow slowly from the vat upon a wide, endless band, usually made of fine wire gauze but occasionally of canvas or other form of cloth. This band is stretched upon rollers and travels slowly forward while, at the same time, it is shaken from side to side to distribute the pulp. Two narrow bands of India rubber are stretched lengthwise of the gauze band and resting upon it. They serve to confine the pulp and regulate the width of the paper. These bands are also called deckles and produce the same edge as the frame used in making hand-made paper.

As the pulp moves along with the gauze band it passes under a roller called the "dandy roll." The covering of this roll determines the character of the paper. When the paper is to be wove, it is covered with wire gauze. If it is to be watermarked the designs are attached to the surface of the roll and duly pressed into the paper. To make laid paper 56the surface of the roll is covered with longitudinal wires, with spaces the width of a wire between them. Rings of wire pass around the roll at regular intervals and hold the longitudinal wires in place. For batonné paper, there are thick longitudinal wires at intervals and between them either smaller wires or gauze, as the paper is to be laid batonné or wove batonné. After passing the dandy roll the paper goes over a number of rollers covered with felt and cylinders heated by steam, until it is dry. It is then sized, dried again, pressed between heavy rollers, to give it a surface, and the edges trimmed by revolving cutters. It is then wound up in a roll or cut into sheets, as may be required.

Having duly considered the design, printing and paper of stamps, the next thing to attract our attention is the gum. Most gums are prepared from potato starch, dextrin or gum arabic. Gelatin is sometimes added to supply body and glycerine to give smoothness. Gum varies much in thickness and color. The first three cent stamp of the Danish West Indies furnishes an instance of this. The stamps were sent from Denmark without gum, as is frequently done with stamps for tropical countries. When they reached the islands the stamps were 57given to two druggists to be gummed. One used gum of good quality and, light color, while the other used poor material and of so dark color as to stain the paper and even darken the ink of the stamps. In Hanover rose-colored gum was used for a number of issues. Some of the earliest local prints of the South African Republic were made upon paper sent out ready gummed from Germany. The paper was much wrinkled by the gum and the effect may be seen in the wavy and broken lines of the ink.

The stamps of the first issue of Reunion were sold ungummed and were affixed to letters in any way that pleased the writers. Some were fastened by wafers and some even were pinned on.

Formerly, sheets of stamps to be gummed were fastened in a frame and the gum applied by hand with a large brush. They were then sent to the drying room and hung up to dry. Now the process is entirely mechanical. The sheets are fed into a machine in which they first pass under a gummed roller. Then they are carried on an endless chain through a long box filled with steam pipes and emerge at the further end dry and ready to be pressed and perforated.

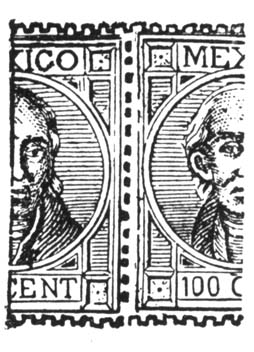

58The subject of perforations is also worthy of some brief attention. The first stamps were imperforate, necessitating the use of scissors or other instrument in separating them. This was a manifest inconvenience. In 1847, Henry Archer, an Irishman, began experimenting with machines for perforating stamps. After a number of attempts he succeeded in making a machine which was accepted by the English government and for which, in 1852, he was allowed a compensation of £4,000. James M. Napier greatly improved on this machine and adapted it for steam power.

The general principle of all perforating machines is a series of hollow needles, which remove rows of small disks of the paper from between the stamps, and thus fit them to be readily torn apart. For convenience of reference and description philatelists have adopted, as a standard of measurement, the space of two centimetres. The gauge of a perforation is determined by the number of holes in this distance. Scales have been prepared for measuring perforations but it would be superfluous to attempt to describe them here. One of the largest perforations that has been used for stamps has seven holes in two centimetres. This was used on 59the stamps of France by Susse Freres, a firm of stationers. It was done for the convenience of themselves and their customers. Some of the stamps of Mexico have a still larger perforation gauging 5-1/2. The finest gauge is about 19. This is an unofficial perforation and was applied to some of the early stamps of Tasmania.

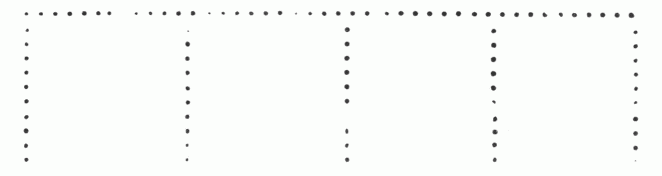

Perforation Perforation Perforation Perforation

We show you here a variety of perforations. The first two are ordinary perforations of different gauges, 9-1/2 and 14. The third shows a perforation in square holes instead of round. The next is an example of pin perforation, the holes being far apart and small. Two sides of the stamp show the holes before the stamps have been torn apart and a third side shows the ragged effect produced by separating them. Another form of pin perforation is made 60by needles which are not hollow and merely prick holes in the paper without removing any of it. This sort of perforation has sometimes been made by a sewing machine with an unthreaded needle.


The last form of perforation shown is called lozenge. In this the machine removes small diamond shaped pieces from the paper. The effect before the separation is shown between the pair of stamps, while the outer edges show the appearance of single copies.


A variety of machines are used in perforating stamps. One perforates only a single row of holes at a time. This is known as the guillotine machine because its action suggests that unpleasant instrument. Another machine is called the comb machine because the needles are arranged to perforate across the top of a row of stamps and at the same time between the stamps of that row. This arrangement somewhat resembles a comb. It will be seen that 61the first application perforates the stamps of one row on three sides. The application of the machine to the next row below completes the fourth side. In the best perforating machines the needles are arranged in circles around a spindle. The sheets pass under this roller and are perforated in one direction. A similar machine makes the perforations in the other direction.

There is another form of separation called rouletting, from the French "roulette", a little wheel, its simplest form being produced by a small wheel with an edge of sharp points. By this process a series of small cuts is made between the stamps but none of the paper is removed.

Rouletting, Large Gauge Rouletting, Small Gauge

In these two illustrations are shown roulettes of large and small gauge. The same result is also obtained by setting printers rules which have a notched edge between the clichés which compose the plate. These rules are set a trifle higher than the clichés so that, when the sheet of paper is pressed against the plate in printing, the points of the rules 62are forced through it. These points receive ink the same as other parts of the surface of the plate and the effect thus produced is called rouletting in colored lines.

Rouletting Forms, "Braunschweig", 1 Groschen Rouletting Forms

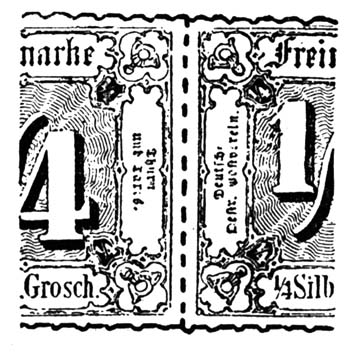

There are a number of systems which produce the effect of rouletting in a variety of fancy forms. One is called percé en arc. This produces a series of arches on one stamp and a series of scallops on the adjacent one. Here is an example of this rouletting, in a small gauge. A similar form is called serpentine perforation. It is here shown.

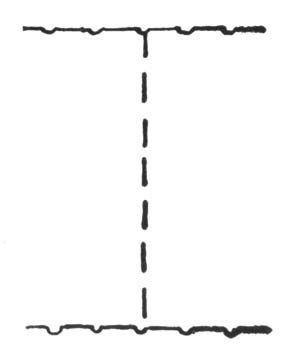

Rouletting Forms Rouletting Forms

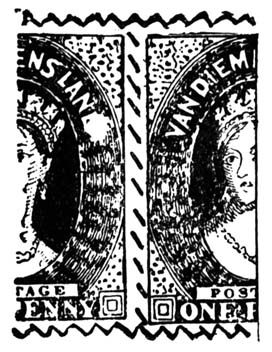

Still another form leaves the edges of the stamps in sharp points. This is called percé en scie or saw-tooth perforation. When this perforation is very fine it is called serrate. There is still another form of rouletting, which we also show you. It is called rouletting in 63oblique parallel cuts and consists of a row of short cuts placed obliquely and parallel to each other. Stamps thus rouletted have a very ragged edge when torn apart. This roulette was only used in Tasmania and was a private production.

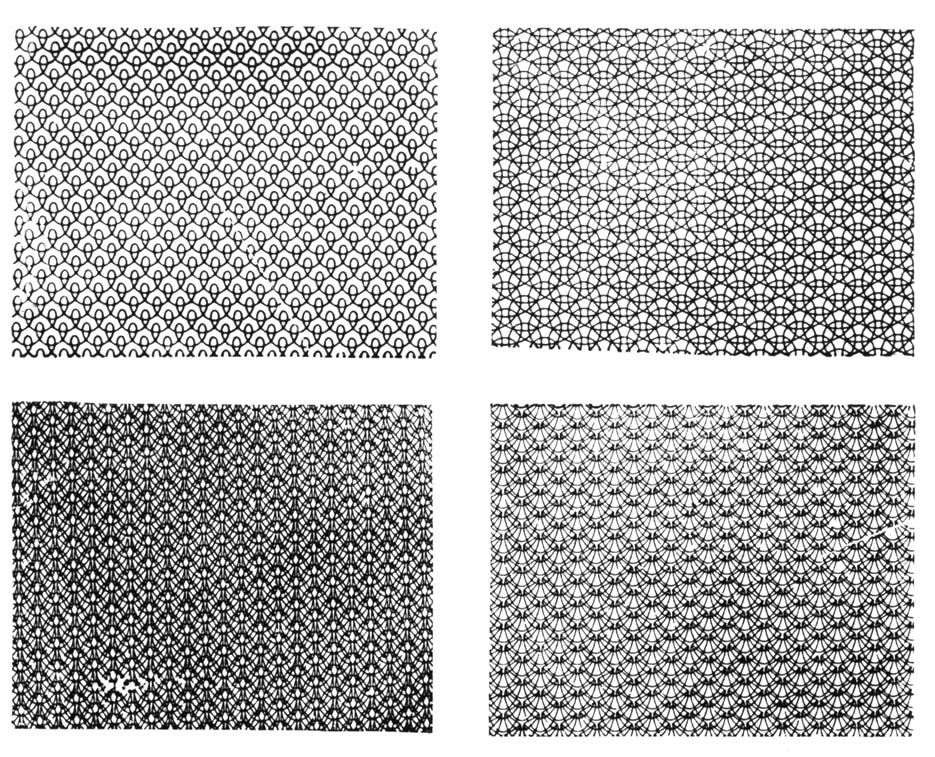

Burelage Control Number, 70 Moirée Pattern

One of the nightmares of every government is the fear that its securities will be counterfeited or tampered with. I have several times mentioned precautions against such abuses in the shape of fine engraving, watermarks, enameled paper, sensitive inks, etc. There are numerous other devices which have been used with the same end in view. The patterns here shown were printed on the backs of the stamps in blue ink. The first is a band of interlaced lines, called a burelage. The second is a sort of control number. The number differs for each stamp on the sheet. The third resembles the 64lines in watered silk and is called moirée. It covers the entire back of the sheet. Sometimes the stamps are covered with a network which only becomes visible on the application of certain chemicals. In this country the experiment has been tried of breaking the fibre of the paper by pressing into the stamps a group of tiny pyramids, called a grill. The idea was that the cancelling ink would penetrate the broken paper and could not be removed.

We cannot finish our study of the material side of stamps without reference to another feature, i.e., surcharges. Correctly speaking, a surcharge is an added charge, but in philately the term is applied to a variety of overprints, the majority of which indicate a reduction rather than an increase in value. Years ago the word surcharge usually suggested a makeshift, something of a temporary nature prepared to meet an emergency and, therefore, interesting and likely to become valuable. But our little weaknesses are now well understood by those who are exploiting the commercial side of postage stamps and we have reason to fear that many recent surcharges were made for revenue only and not from any real necessity. The majority of surcharges are made to supply a value which has 65been temporarily exhausted. For example, many of the British Colonies obtained their supplies of stamps in London. It may happen that an order is not placed early enough or there is delay in filling it and delivering the stamps. Owing to this, the values most in use may be exhausted. Under such circumstances, it is customary to provide a temporary supply by printing the needed value on some other stamp, usually one of higher value. To use a lower value would tempt the counterfeiting of the surcharge, for the profit to be made through the increased value.

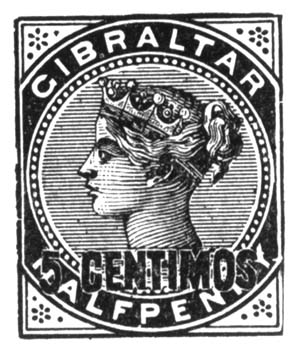

Stamp, "Mauritius", surcharged: 4 cents Stamp, "Gibraltar", Halfpenny, surcharged: 5 centimos

There are, however, a variety of other surcharges, a few of which may interest you. The first two stamps indicate a change in the form of the currency of the country, from pence to cents in Mauritius and from the English half penny to its Spanish equivalent in Gibraltar. The Seychelles stamp was prepared to meet a change in the rate for letters to countries in the International Postal Union.

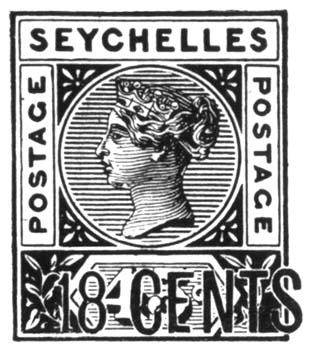

Stamp, "Seychelles", surcharged 8 cents Stamp, "St. Helena", surcharged 1 penny

66The first stamp made in St. Helena was a six pence. For a long time no other value was engraved but the six pence stamps were printed in a variety of colors and surcharged with the desired values. The Ceylon stamp has been made available for revenue purposes, as well as postal. The last stamp shown is from Shanghai. Its original value was 100 cash. This was overprinted "20 cash" and the equivalent Chinese characters in a double-lined frame, and again surcharged "100 cash."

Stamp, "Ceylon", 15 cents, surcharged 5 cents, Postage,
Revenue Stamp, "Shanghai LPO", 100 cash, surcharged 20 cash,
surcharged again 100 cash

There is an interesting bit of history connected with these surcharges. The supply of 20 cash stamps was exhausted and the postmaster surcharged that value on eight hundred of the 100 cash stamps. A tourist, learning this and knowing that the regular 20 cash stamps were expected to arrive at any moment, bought the entire lot. But the expected stamps 67failed to arrive and the postmaster made a second lot of surcharges but on the 80 cash this time. When the tourist learned this he wished to return the stamps he had bought. The postmaster refused to take them back but, pressure being brought through the Municipal Council, finally consented. In the mean time the 20 cash stamps had arrived and, not needing provisionals of that value, he restored them to their original value by the second surcharge, "100 cash."

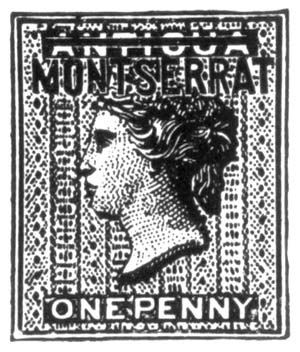

Stamp, 1 penny, surcharged "Cyprus", 30 paras Stamp, "Antigua", 1 penny, surcharged "Montserrat" Stamp, "Bermuda", surcharged "Gilbraltar" Stamp, "Straits Settlement", surcharged "Perak"

This group illustrates stamps of one country or state surcharged for use in another. For a long time Cyprus was supplied by overprinting the stamps of Great Britain. In like manner Montserrat was 68surcharged on Antigua stamps, Gibraltar on Bermuda and Perak on the Straits Settlements. In the case of Gibraltar some of the stamps were printed in other colors than were used in Bermuda. The colony of Eritrea has always been supplied by overprinting the Italian stamps.


In 1883 a large quantity of stamps were stolen in Cuba and to prevent their being used the remaining stock were overprinted with the devices shown here. These were the clichés used to print the control numbers on the tickets of the Havana lottery.

Stamp, "Z. Afr. Republiek", 1 penny, surcharged "Transvaal" Stamp, "Transvaal Postage", 6 pence, "Z.A.R."

Sometimes surcharges are the outcome of historic events or are at least suggestive of such. The first stamp in this group is one of the crude products of 69the South African Republic, which was surcharged during the British occupation of the country. The second is a stamp issued during the same occupation and surcharged after the Boers again came into power. The Chilian coat of arms on the stamps of Peru tells its own story of war and invasion. Lastly we have a stamp of Fiji on which the initials "C.R.", Cakambau Rex, are overprinted with the "V.R." of the Queen of England.

Stamp, "Correos del Peru", 1 centavo Stamp, "Fiji", surcharged "V.R."

During the Carlist insurrection in Spain, the stamps of France, surcharged with a fleur de lys surrounded by a five-rayed star, were used by Don Carlos to frank his correspondence across the frontier into France. These stamps were in use for only a brief period, pending the preparation and issue of the Carlist stamps.


It may be remarked that there are many suggestions of history in stamps that are not surcharged. The succession of portraits and other devices in the issues of a country is often elo 70quent of the march of great events, and there is a touch of pathos in Poland's solitary stamp.

Finally, I wish to call your attention to a few stamps which tell most interesting stones, and which have a touch of mysticism and symbolism, which is not of to-day.

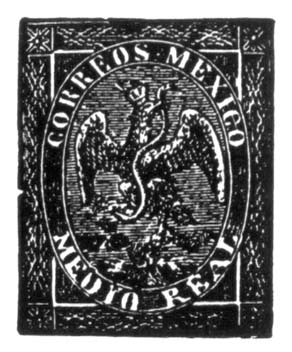

Stamp, "Correos Mexico", 1/2 real

The coat of arms of Mexico has its origin in the distant past. General Lew Wallace says in his historical romance the Fair God: "The site of the city of Tenochtitlan was chosen by the gods. In the south-western border of Lake Tezcuco, one morning in 1300, a wandering tribe of Aztecs saw an eagle perched, with outspread wings, upon a cactus, and holding a serpent in its talons. At a word from their priests, they took possession of the marsh and there stayed their migration and founded the city; such is the tradition. As men love to trace their descent back to some stoned greatness, nations delight to associate the gods with their origin."

Stamp, Persia

Many stamps of Persia bear the lion and the sun, the arms of the country and the insignia of its highest order of nobility. It is the lion of Iran, hold 71ing in its paw the sceptre of the Khorassan while behind it shines the sun of Darius. There is a legend concerning the latter symbol to the effect that Darius, hunting in the desert, threw his spear at a lion and missed. The beast crouched to spring, when the sun, shining on a talisman on Darius' breast, so overpowered it that it came fawning to his feet and followed him back to the city. And for this reason the sun became part of the arms of the kingdom. But I think we may look further than this and find in it a relic of the ancient fire worship and of oriental pretentions to power over heaven and earth.


How much of Egypt's myths and splendors are here depicted; the temple column called Pompey's pillar, the obelisk of Luxor, the mighty pyramids, last of all the sphynx, that fabled creature with the face of a woman, the body of a tigress and the heart of both. In fancy we can see her, crouched on a rock beside the great highway to Thebes, propounding her fatal riddle to the bewildered passers by, till Oedipus shall come.

72 Turkey

On the stamps and coins of Turkey we miss the portrait of the reigning sovereign, which we find on such issues of most monarchies. This is due to a law of Mohammed, which forbids the reproduction of the human figure. On the stamps we find the crescent, said to have been the emblem of the Byzantine empire and adopted by the Turks after the fall of Constantinople. We also find an elaborate device called the Toughra or signature of the Sultan. It owes its origin to the Sultan Murad I, a liberal sovereign and founder of many schools and institutions of learning but unable to write his own name. He signed imperial decrees by dipping his fingers in ink and placing them on the documents with three fingers close together and the little finger and thumb extended. In course of time this was adopted and, so to speak, consecrated as the signature of the Sultan. It was also elaborated and arranged to form a written phrase, while preserving, in a general way, its original form. The toughra contains certain characters which are permanent and minor ones which change. The latter are the names of the sovereign and his father. Thus the 73toughra which we illustrate reads: "His Majesty Abdul Hamid, son of Mejid, may he be always victorious." The small inscription at the side reads "el ghazi," the victorious, one of the titles of the Sultan. The toughra is often referred to as the hand. In an article published in 1867 I find the following on this subject:

[Arabic: El Ghazi]

"The hand has to Mussulmen three mystic significations; it denotes providence; it is the expression of law; and thirdly, of power; it restores the courage of the faithful and strikes terror to the hearts of their enemies.

"As an emblem of law, the Mussulman thus explains the meaning of the hand. It has five fingers, each, with the exception of the thumb, having three joints, all the fingers are subordinate to the unity of the hand, their common foundation. The five fundamental precepts of the law are: 1st—Belief in God and his prophet. 2nd—Prayer. 3rd—Giving alms. 4th—Fasting during the sacred months and at the appointed times. 5th—Visiting the temples of Mecca and Medina. Each of these 74precepts admits of three divisions, except the first, symbolized by the thumb, which has only two, heart and work. These dogmas and their modifications have for their source the central doctrine of the unity of God; and all the creed of Mohametanism is contained in the hand,—the five fingers and their forty joints.

"The hand placed above the gates of the Alhambra, upon the Sultan's seal, and upon the stamps, symbolises the spiritual and temporal power which protects the good and the faithful and punishes their adversaries."

Stamp, "Korea", 5 Poon

This stamp is from Corea, the Land of the Morning Calm. In the corners are the plum blossom, the royal flower of the present dynasty which has existed over 500 years. In the four corners of the central square are letters taken from the original alphabet of all languages and representing the four spirits that stand at the four corners of the earth and support it on their shoulders. The central device is an ancient Chinese symbol which represents the dual principle in nature, the male and the female, the beginning and the end, the union of 75all opposite forces, of which the highest product is man. This symbol pervades all oriental art and thought. Those of you who have seen Vedder's illustrations of the Rubaiyat of Omar Khayyam will remember the ever recurring swirl which "represents the gradual concentration of the elements that combine to form life; the sudden pause through the reverse of the movement that marks the instant of life, and then the gradual, ever-widening dispersion again of these elements into space." The swirl is only another form of the Chinese symbol.

A postage stamp is a tiny thing but it holds in its pictured space thoughts that embrace the beginning and the end of things, life, death and—we know not what.



******* This file should be named 15713-h.txt or *******

This and all associated files of various formats will be found in:

Updated editions will replace the previous one--the old editions will be renamed.

Creating the works from public domain print editions means that no one owns a United States copyright in these works, so the Foundation (and you!) can copy and distribute it in the United States without permission and without paying copyright royalties. Special rules, set forth in the General Terms of Use part of this license, apply to copying and distributing Project Gutenberg-tm electronic works to protect the PROJECT GUTENBERG-tm concept and trademark. Project Gutenberg is a registered trademark, and may not be used if you charge for the eBooks, unless you receive specific permission. If you do not charge anything for copies of this eBook, complying with the rules is very easy. You may use this eBook for nearly any purpose such as creation of derivative works, reports, performances and research. They may be modified and printed and given away--you may do practically ANYTHING with public domain eBooks. Redistribution is subject to the trademark license, especially commercial redistribution.



To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at

Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (,
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.


1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal

defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS,' WITH NO OTHER

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.

Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, is critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at

Section 3.  Information about the Project Gutenberg Literary Archive

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director

Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including including checks, online payments and credit card
donations.  To donate, please visit:

Section 5.  General Information About Project Gutenberg-tm electronic

Professor Michael S. Hart was the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.

Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.

Each eBook is in a subdirectory of the same number as the eBook's
eBook number, often in several formats including plain vanilla ASCII,
compressed (zipped), HTML and others.

Corrected EDITIONS of our eBooks replace the old file and take over
the old filename and etext number.  The replaced older file is renamed.
VERSIONS based on separate sources are treated as new eBooks receiving
new filenames and etext numbers.

Most people start at our Web site which has the main PG search facility:

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.

EBooks posted prior to November 2003, with eBook numbers BELOW #10000,
are filed in directories based on their release date.  If you want to
download any of these eBooks directly, rather than using the regular
search system you may utilize the following addresses and just
download by the etext year.

    (Or /etext 05, 04, 03, 02, 01, 00, 99,
     98, 97, 96, 95, 94, 93, 92, 92, 91 or 90)

EBooks posted since November 2003, with etext numbers OVER #10000, are
filed in a different way.  The year of a release date is no longer part
of the directory path.  The path is based on the etext number (which is
identical to the filename).  The path to the file is made up of single
digits corresponding to all but the last digit in the filename.  For
example an eBook of filename 10234 would be found at:

or filename 24689 would be found at:

An alternative method of locating eBooks:
