[Pg 579]

University of Kansas Publications

Museum of Natural History



Volume 9, No. 23, pp. 579-670, 4 pls., 12 figs. in text

 June 16, 1960


Speciation and Evolution of the
Pygmy Mice, Genus Baiomys

BY

ROBERT L. PACKARD

University of Kansas
Lawrence
1960

[Pg 580]

University of Kansas Publications, Museum of Natural History

Editors: E. Raymond Hall, Chairman, Henry S. Fitch,

Robert W. Wilson

Volume 9, No. 23, pp. 579-670, 4 pls., 12 figs. in text
Published June 16, 1960


University of Kansas
Lawrence, Kansas


PRINTED IN
THE STATE PRINTING PLANT
TOPEKA, KANSAS

1960

Look for the Union Label
28-3030


[Pg 581]

Speciation and Evolution of the Pygmy Mice, Genus Baiomys
BY
ROBERT L. PACKARD

CONTENTS
  PAGE
Introduction 583
Materials, Methods and Acknowledgments 584
Paleontology of the Genus 587
    Baiomys sawrockensis 588
    Baiomys rexroadi 589
    Baiomys kolbi 590
    Baiomys brachygnathus 590
    Baiomys minimus 591
Phyletic trends 592
Non-Geographic Variation 595
    Variation with age 595
    Secondary sexual variation 597
    Individual variation 597
    Pelage and molts 598
Taxonomic Characters and Relationships 600
    External parts 600
    Pelage 600
    Skull 600
    Teeth 601
    Hyoid apparatus 601
    Baculum 603
    Auditory ossicles 605
Genus Baiomys 607
Systematic Accounts of Species and Subspecies 608
    Baiomys musculus 608
    Baiomys musculus brunneus 612
    Baiomys musculus grisescens 614
    Baiomys musculus handleyi 617
    Baiomys musculus infernatis 618
    Baiomys musculus musculus 620
    Baiomys musculus nigrescens 623
    Baiomys musculus pallidus [Pg 582] 625
    Baiomys musculus pullus 628
    Baiomys taylori 630
    Baiomys taylori allex 633
    Baiomys taylori analogous 637
    Baiomys taylori ater 640
    Baiomys taylori canutus 643
    Baiomys taylori fuliginatus 645
    Baiomys taylori paulus 647
    Baiomys taylori subater 650
    Baiomys taylori taylori 651
Evolution and Speciation 655
    Formation of the Recent Species 658
    Areas of present differentiation 661
    Zoogeographic position 661
Conclusions 664
Literature Cited 665


[Pg 583]

INTRODUCTION

Pygmy mice (Genus Baiomys) are the smallest cricetine rodents in North America. They occur from Nicaragua in Central America into the southwestern United States. The principal part of the geographic range of the pygmy mice lies in the Republic of México. They are notably common in central México, but are only locally common to the north and to the south, and then only in certain seasons.

Pygmy mice were first brought to the attention of biologists in 1887 when Oldfield Thomas described a diminutive species of cricetine rodent, Hesperomys (Vesperimus) taylori. The description was based on a specimen obtained by William Taylor from San Diego, Duval County, Texas. C. Hart Merriam (1892:70) described Sitomys musculus on the basis of specimens from Colima [City of], Colima, México. Merriam (loc. cit.) mentioned that the two kinds of mice, Hesperomys taylori and Sitomys musculus, "in general appearance look almost precisely like the common house mouse (Mus musculus) but are still smaller and have shorter tails." He placed the two species in the genus Sitomys. Frederick W. True in 1894 regarded them as composing a distinct subgenus of Sitomys, Baiomys. According to True (1894:758), S. taylori and S. musculus possessed a different combination of characters (ascending ramus of mandible short and erect, condyle terminal, coronoid process well-developed, uncinate, and near the condyle, size small, tail short, plantar tubercles six, soles hairy) than either Vesperimus, or Onychomys (which had been considered as a subgenus of Hesperomys until 1889). In 1907, E. A. Mearns accorded Baiomys generic rank. Osgood (1909:252) treated Baiomys us a subgenus of Peromyscus, whereas, Miller, in 1912, regarded Baiomys as a distinct genus. Most recent students of North American mammals have followed Miller, but usually with reservations. Ellerman (1941:402) emphasized that the taxonomic position of the genus was uncertain, and wrote that Baiomys "… seems to be considerably distinct from Peromyscus, and may perhaps be a northern representative of Hesperomys or one of the small South American genera."

Only two comprehensive analyses of geographic variation and interspecific taxonomic relationships have been made; the first was by Osgood (1909) who had fewer than a fourth of the specimens of Baiomys available to me; the second was by Hooper (1952a:90-97) [Pg 584] who contributed importantly to understanding the relationships of the two living species in central México. No attempts heretofore have been made to correlate and understand the relationships of the five fossil species to one another and to the living species assigned to the genus.

Six objectives of the following report are to: (1) list characters taxonomically useful in recognizing species and subspecies; (2) record amount of variation within and between populations; (3) correlate observed variations with known biological principles; (4) show geographic ranges of the two living species; (5) indicate relationships between fossil and living species of the genus; and (6) clarify the systematic position of the genus.

MATERIALS, METHODS AND ACKNOWLEDGMENTS

This report is based on the study of approximately 3,520 museum study skins, skulls, complete skeletons, and entire animals preserved in liquid. Most specimens examined were accompanied by an attached label bearing data on locality and date of capture, name of collector, external measurements, and sex. In addition, 49 fossil specimens referable to Baiomys were studied. Nearly two-thirds of the specimens were assembled at the University of Kansas Museum of Natural History; the remainder were examined in other institutions.

Specimens studied were grouped by geographic origin, sex, age, and season of capture. Individual variation was then measured in several of the larger samples of each living species and in measurable fossil material. External measurements used were those recorded by the collectors on the labels attached to the skins. Twenty cranial measurements employed in the past in the study of Baiomys and closely related cricetine rodents were statistically analyzed. The coefficient of variation was calculated for each of the 20 measurements in order to determine which varied least. In general, measurements having the least coefficient of variation were used in comparing samples from different geographic areas. Figure 1 shows the points between which measurements were taken.

Occipitonasal length.—From anteriormost projection of nasal bones to posteriormost projection of supraoccipital bone. A to A' Zygomatic breadth.—Greatest distance across zygomatic arches of cranium at right angles to long axis of skull. B to B' Postpalatal length.—From posterior margin of hard palate to anterior margin of foramen magnum. C to C' Least interorbital breadth.—Least distance across top of skull between orbits. D to D' [Pg 585] Length of incisive foramina.—From anteriormost point to posteriormost point of incisive foramina. E to E' Length of rostrum.—The distance in a straight line from the notch that lies lateral to the lacrimal to the tip of the nasal on the same side. F to F' Breadth of braincase.—Greatest distance across braincase, taken at right angles to long axis of skull. G to G' Depth of cranium.—The distance from the dorsalmost part of the braincase to a flat plane touching tips of incisors and ventral border of each auditory bulla. A glass slide one millimeter thick was placed on the ventral side of the skull. One jaw of the caliper was on the lower surface of the slide and the other jaw on the dorsalmost part of the braincase. The depth of the slide was subtracted from the total reading. H to H' Alveolar length of maxillary tooth-row.—From anterior border of alveolus of M1 to posterior alveolus of M3. I to I'

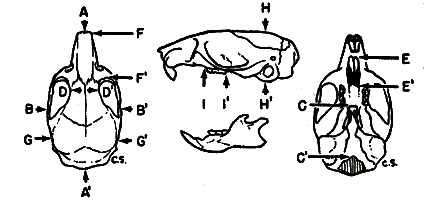

Fig. 1. Three views of the skull to show points between which measurements were taken.
Based on B. m. pullus, adult, female, No. 71611 KU, 8 mi. S Condega, Estelí, Nicaragua. × 11/3.

Capitalized color-terms refer to Ridgway (1912). Color terms without initial letters capitalized do not refer to any one standard.

The names of the cusps and ridges of the teeth (see Figure 2) are those suggested by Wood and Wilson (1936:389-390). Terminology of the enamel grooves and folds is that of Hershkovitz (1944:17) and Hooper (1952b:20-21).

Because secondary sexual variation was not significant (see page 597), both males and females of like age and pelage were used in comparisons of samples designed to reveal geographic variation.

The species are arranged from less to more progressive; the subspecies are arranged alphabetically.

In the synonymy of each subspecies, the plan has been to cite: (1) the name first proposed; (2) the first usage of the name combination employed by me; (3) all other name combinations in chronological order that have been applied to the subspecies concerned.

The localities of specimens examined are listed by country from north to south. Within a country, the listing is by state, beginning with the northwesternmost state and proceeding by tiers (west to east) to the southeasternmost state. Within a state of the United States, the listing is by counties in the same geographic order as described for states. Within any county in the United States, within any state in México, and within any country in Central America, the listing of localities is from north to south. When more than one locality is on the same line of latitude, the westernmost locality is listed first. Marginal localities for each subspecies are listed in a paragraph at the end of each account. Each marginal locality is mapped by means of a circle. The circles are listed in clockwise order, beginning with the northernmost. When more than one of these localities lies on the same line of latitude, the westernmost is cited first. Localities not represented on the distribution maps, so as to avoid undue crowding of symbols, are italicized in the lists of specimens examined.

[Pg 586]

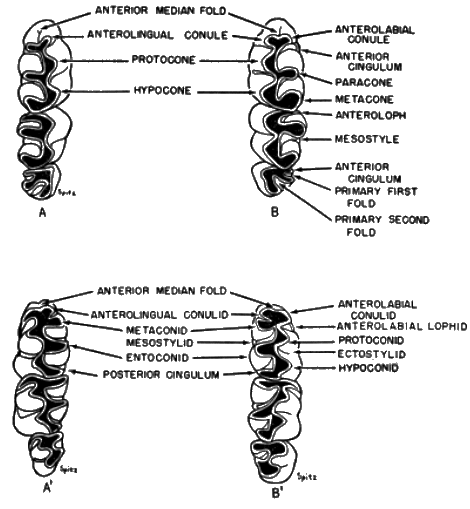

Fig. 2. Occlusal views of molars. × 13.

A. B. taylori analogous, subadult, female, No. 28102 KU, 4 km. ENE Tlalmanalco, 2290 meters, Estado de México. Right, upper molars.
B. B. musculus musculus, subadult, male, No. 45456 USNM, Colima, Colima, México. Left, upper molars.
A'. B. taylori analogous, subadult, female, No. 28102 KU 4 km. ENE Tlalmanalco, 2290 meters, Estado de México. Left, lower molars.
B'. B. musculus musculus, subadult, male, No. 45456 USNM, Colima, Colima, México. Right, lower molars.

[Pg 587]

The largest single collection of pygmy mice is in the University of Kansas Museum of Natural History, and, unless otherwise indicated, specimens cited in the taxonomic accounts beyond are there.

I am indebted to the following named institutions and persons for making specimens available for study:

  American Museum of Natural History, G. G. Goodwin and R. G. VanGelder.
  Carnegie Museum, J. K. Doutt.
  California Academy of Sciences, Robert T. Orr.
  Chicago Natural History Museum, Phillip H. Hershkovitz.
  Cleveland Museum of Natural History (Collection now a part of Museum of Zoology, University of Michigan, W. H. Burt, E. T. Hooper).
  Louisiana State University, Museum of Natural History, George H. Lowery, Jr.
  Los Angeles County Museum, Charles A. McLaughlin.
  United States National Museum (Biological Survey Collections), David A. Johnson, and Viola S. Schantz.
  United States National Museum, Division of Vertebrate Paleontology, C. Lewis Gazin.
  University of Arizona, E. L. Cockrum, and G. VR. Bradshaw.
  University of California, Museum of Vertebrate Zoology, Seth B. Benson, and W. Z. Lidicker.
  University of Illinois, Museum of Natural History, Donald F. Hoffmeister.
  University of Michigan, Museum of Zoology, W. H. Burt, E. T. Hooper, and Claude W. Hibbard.
  University of New Mexico, James S. Findley.
  University of Texas, Frank W. Blair.
  Texas A & M, Cooperative Wildlife Research Collection, W. B. Davis.
  The Museum, Michigan State University, Rollin H. Baker.
  University of Florida Collections, James N. Layne.

I am especially grateful to Professor E. Raymond Hall who guided me in my study and gave critical assistance with the manuscript. Additional appreciated suggestions were made by Professors A. Byron Leonard, Robert W. Wilson, Henry S. Fitch, Ronald L. McGregor, and fellow graduate students. For the illustrations, I am indebted to Mrs. Lorna Cordonnier, Miss Lucy Remple and Mrs. Connie Spitz. Mr. B. J. Wilks of the University of Texas, Department of Zoology, provided a number of living pygmy mice for study in captivity. Mr. J. Raymond Alcorn and his son, Albert, collected a large share of specimens of pygmy mice now in the University of Kansas, Museum of Natural History. My wife, Patricia, aided me in secretarial work and typing of the manuscript.

For financial assistance, I am indebted to the National Science Foundation when I was a Research Assistant, to the Sigma Xi-RESA Research Fund for a Grant-in-Aid, and to the Kansas University Endowment Association through its A. Henley Aid Fund, and the Watkins Fund for out-of-state field work by the Museum of Natural History.

PALEONTOLOGY OF THE GENUS

Five fossil species, all extinct, have been assigned to the genus and range in time from early late Pliocene (Saw Rock Canyon fauna of Hibbard, 1953:408) to Mid-Pleistocene (see Hibbard, [Pg 588] 1958:25, who assigns the Curtis Ranch fauna to late Kansan or early Yarmouth).

I examined all known fossil material and compared it with Recent material. When the antiquity of the genus is considered, the degree of difference between the oldest fossil species and the two living species is much less than might be expected.

Baiomys sawrockensis Hibbard
Baiomys sawrockensis Hibbard, Papers Mich. Acad. Sci., Arts and Letters, 38:402, April 27, 1953.

Type.—No. 27506, Univ. Michigan; left mandibular ramus bearing m1-m3 and incisor; Saw Rock Canyon, early late Pliocene, XI member of the Rexroad formation, sec. 36, T. 34 S, R. 31 W, Seward County, Kansas (University of Kansas, Locality 6).

Referred material.—Univ. Michigan, Nos. 25781, 27503-27505, 28159-28165, 29708-29715, 31015.

Diagnosis.—Ramus of medium size to small for the genus; lower incisor broad, moderately recurved; diastemal region broad; anterior median fold between anterior labial conulid and anterior lingual conulid of m1 deep; primary first fold between anteroconulid and protoconid of m2 deep; cingular ridge (ectolophid) at entrance to posteroexternal reëntrant valley (major fold, see Figure 2) between protoconid and hypoconid of m1 and m2; average and extreme measurements of lower molar row of eight specimens are, 2.65 (2.5-2.7).

Comparisons.—For comparisons with B. brachygnathus, see account of that species. From B. rexroadi, B. sawrockensis differs in: anterior median fold of m1 deeper; incisor narrower; diastemal region broader; coronoid process broader and better developed; cingular ridges (ectolophids and mesolophids) more pronounced in their development; incisors less proödont, more retrodont.

From B. kolbi, B. sawrockensis differs in: crowns of molars narrower; incisors less proödont; cingular ridges (ectolophids and mesolophids) of m1 and m2 more pronounced in their development.

From B. minimus, B. sawrockensis differs in: incisor less procumbent; masseteric ridge extending farther anteriorly; anterior cingulum of m2 slightly larger.

From B. musculus, B. sawrockensis differs in: over-all size of jaw and molar row less; diastema more acutely curved; incisors shorter; anterior median fold of m1 slightly deeper.

From B. taylori, B. sawrockensis differs in: m1 and m2 smaller; cingular ridges in m1 and m2 more pronounced; anterolingual conulid farther forward; incisors shorter, more proödont; molar teeth depressed, less hypsodont; diastemal region broader, more acutely curved; masseteric ridge not extending so far anteriorly.

Remarks.B. sawrockensis is the oldest known pygmy mouse. The extreme development of the anterior median fold between the [Pg 589] anterolingual conulid and the anterolabial conulid is regarded as a primitive feature in the pygmy mice. In this character, the Recent species can be traced back in time through B. minimus to B. sawrockensis. B. sawrockensis resembles Calomys laucha of South America in general conformation of jaw and tooth structure. The molars of sawrockensis are smaller than those of C. laucha, and the anterolingual conulid of sawrockensis is farther forward.

Baiomys rexroadi Hibbard
Baiomys rexroadi Hibbard, Amer. Midland Nat., 26:351, September, 1941; Hibbard, Contrib. Mus. Paleo., Univ. Michigan, 8(2):145, June 29, 1950 (part); Hibbard, Papers Mich. Acad. Sci., Arts and Letters, 38:403, April 27, 1953.

Type.—No. 4670, Univ. Kansas; left mandibular ramus bearing m1-m3, and incisor; Rexroad fauna, Locality no. 2, Upper Pliocene, Meade County, Kansas.

Referred material.—Univ. of Michigan Nos. 24840, 24851, 27493, 27496, 27501, 28862-28867.

Diagnosis.—Ramus medium in size for the genus; incisors small, proödont; anterior median fold of m1 slight; cingulum of all molars poorly developed; average and external measurements of lower molar row of seven specimens are, 2.7 (2.6-3.0).

Comparisons.—For comparisons with B. sawrockensis and B. minimus, see accounts of those species. From B. kolbi, B. rexroadi differs in: over-all size of mandibular ramus, incisors, and molars smaller; anterior median fold of m1 present, though poorly developed.

From B. brachygnathus, B. rexroadi differs in: over-all size of mandibular ramus smaller; m3 larger; posterior cusps (hypoconid and entoconid) elongated; diastema shorter, less acutely recurved; incisors less proödont; cingular ridges of m1 and m2 less well-developed.

From B. musculus, B. rexroadi differs in: over-all size of mandibular ramus less; cingular ridges of m1 and m2 less well-developed; incisors smaller, more proödont; molars less depressed.

From B. taylori, B. rexroadi differs in: m3 more triangular, posterior part narrower; mental foramen closer to anterior root of m1; masseteric ridge closer to alveolus of m1; incisor shorter, more proödont; molars more depressed.

Remarks.—Two maxillary tooth-rows and associated parts were studied. On one of these specimens, the M2 has a well-developed mesostyle; the anterior median fold of M1 is also well-developed. The other specimen possesses a low cingular ridge (enteroloph) between the protocone and the hypocone, a reduced cingular ridge (mesoloph) between the paracone and metacone of M1. On the second molar, M2, a mesostyle joins with the mesoloph somewhat in the fashion indicated by Hooper (1957:9, encircled number 2).

[Pg 590]

Baiomys kolbi Hibbard
Baiomys kolbi Hibbard, Trans. Kansas Acad. Sci., 55:201, June 18, 1952; Hibbard, Papers Mich. Acad. Sci., Arts and Letters, 38:403, April 27, 1953.

Type.—No. 24846, Univ. Michigan; right mandibular ramus bearing m1-m3 and incisor; Fox Canyon, upper Pliocene, Rexroad formation, Rexroad fauna, Univ. Michigan Locality K1-47, sec. 35, T. 34 S, R. 30 W, XI Ranch, Meade County, Kansas.

Referred material.—Univ. Michigan Nos. 24845-24848, 27494, 27497, 27499, 28566, 28861, 28878, 28880-28882, 28884, 28886.

Diagnosis.—Ramus of medium size to large for the genus; lower incisor short, narrow transversely, proödont; anterior median fold of m1 reduced or absent; cingular ridges of m1 and m2 moderately well-developed; m3 large relative to m1 and m2; average and extreme measurements of lower molars of seven specimens are, 3.0 (3.0-3.1).

Comparisons.—For comparisons with B. sawrockensis and B. rexroadi, see accounts of those species. From B. brachygnathus, B. kolbi differs in: molar row longer; m3 and jaw larger; diastema longer; masseteric ridge not so far forward; molars more depressed.

From B. minimus, B. kolbi differs in: molar row longer; m3 larger; jaw larger; diastema not so acutely curved; incisor shorter, narrower transversely, more proödont.

From B. musculus, B. kolbi differs in: anterior median fold of m1 slightly developed or absent, instead of well-developed; m3 larger (not reduced), external reëntrant valley broad and extending farther across crown of tooth; incisor smaller, and more proödont; cingular ridges of m1 and m2 less well-developed.

From B. taylori, B. kolbi differs in: molars larger, more depressed; incisor shorter, more proödont; m3 smaller relative to m1 and m2; external reëntrant valley of m3 broad, extending farther across crown of tooth.

Remarks.—The slight development or absence of the anterior median fold in kolbi suggests that it was specialized. The anterior median fold is well-developed in all species of Baiomys save B. brachygnathus and B. taylori, in which the fold is only slightly developed or absent. B. kolbi may have paralleled B. taylori in specialization for a diet of grasses and for a life in open country.

Baiomys brachygnathus (Gidley)
Peromyscus brachygnathus Gidley, U. S. Geol. Surv. Prof. Papers, 131:124, March 15, 1922.
Baiomys brachygnathus, Hibbard, Amer. Midland Nat., 26:352, September, 1941.
P. [eromyscus] brachygnathus, Wilson, Carnegie Inst. Washington Publ., 473:33, May 21, 1936.

Type.—No. 10501, U. S. Nat. Mus.; right mandibular ramus bearing m1-m3, and incisor; 2 mi. NE Curtis Ranch house, near a line between sec. 28 and 29, T. 18 S, R. 21 E, Mid-Pleistocene (Hibbard, 1958:25), Cochise County, Arizona.

[Pg 591]

Referred material.—None.

Diagnosis.—Ramus small for the genus; m3 reduced; jaw reduced anteroposteriorly; incisor short, slender, proödont; cingular ridges well-developed, posterior ectolophid continuous from protoconid to hypoconid in m1 and m2; diastema short; length of molar row 2.8 mm.

Comparisons.—For comparisons with B. rexroadi and B. kolbi, see accounts of those species. From B. minimus, B. brachygnathus differs in: jaw not so slender anteriorly; masseteric ridge not so far anterior; cheek-teeth slightly broader, less depressed, therefore, more hypsodont; incisor shorter, more proödont.

From B. sawrockensis, B. brachygnathus differs in: molar row slightly longer; teeth slightly less depressed; masseteric ridge extends farther anteriorly; incisors more proödont.

From B. musculus, B. brachygnathus differs in: jaw smaller; molar row slightly shorter; molars less depressed; incisors slender, shorter, narrower, and more proödont.

From B. taylori, B. brachygnathus differs in: incisor more slender, shorter, more proödont; diastema shorter.

Remarks.—The molar teeth of B. brachygnathus, although worn, resemble those of B. taylori more than those of any known fossil species. Gidley (1922:124) stated that the absence of the divided anterior lobe of the first molar (anterior median fold) in brachygnathus was one of the chief characters separating brachygnathus from taylori. In taylori, the anterior median fold characteristically is only slightly developed, and in some specimens is absent. B. brachygnathus differs from taylori chiefly in proödont incisors, which feature seems to preclude brachygnathus being ancestral to taylori. B. brachygnathus may have been a specialized divergence from B. minimus.

Baiomys minimus (Gidley)
Peromyscus minimus Gidley, U. S. Geol. Surv. Prof. Papers, 131:124, March 15, 1922.
Baiomys minimus, Hibbard, Amer. Midland Nat., 26:352, September, 1941; Gazin, Prof. U. S. Nat. Mus., 92(3155):488, 1942.
P. [eromyscus] minimus, Wilson, Carnegie Inst. Washington Publ., 473:33, May 21, 1936.

Type.—No. 10500, U. S. Nat. Mus.; left mandibular ramus bearing m1-m3 and incisor; 2 mi. S Benson, sec. 22, T. 17 S, R. 20 E, Late Pliocene (Blancan, Gazin, 1942:482), Cochise County, Arizona.

Referred material.—None.

Diagnosis.—Ramus small for the genus; molar teeth depressed; cingular ridges (ectolophids) of m1 and m2 well-developed; anterior median fold present (appearing larger owing to chip of enamel missing); external reëntrant fold of m3 progresses half way across crown of tooth; diastema short; incisor moderately large, recurved; length of molar row, 2.6 mm.

Comparisons.—For comparisons with B. brachygnathus, B. kolbi, and B. sawrockensis, see accounts of those species. From B. rexroadi, B. minimus [Pg 592] differs in: anterior median fold deeper; incisor longer, more recurved, less proödont; molars slightly more depressed (though worn).

From B. musculus, B. minimus differs in: over-all size of jaw and molars smaller; incisors shorter; masseteric ridge more depressed.

From B. taylori, B. minimus differs in: anterior median fold slightly deeper; molar teeth more depressed; cingular ridges on m1 and m2 better developed; masseteric ridge more depressed.

Remarks.—Gidley (1922:124) stated that B. minimus differed considerably from B. taylori in that the coronoid portion of the ascending ramus diverges at a wider angle from the alveolar part of the jaw. Study of large samples of lower jaws of B. taylori reveals considerable individual variation in the angle formed between the coronoid part of the jaw and the alveolar part.

B. minimus, except for its small size, is like B. musculus and is considered to be ancestral to that species.

PHYLETIC TRENDS

It seems that the important trends in phyletic development in the pygmy mice have been from an ancestral stock (see Figure 3) that possessed relatively brachydont teeth having raised cingular ridges (ectolophids and mesolophids) and relatively short orthodont to proödont incisors, to species having teeth more hypsodont on which cingular ridges were reduced, stylids were isolated or completely absent, and incisors were longer and more recurved or retrodont. Baiomys sawrockensis, or an unknown stock resembling it, might have been ancestral to the other known species. Of the four remaining fossil species, B. kolbi seems least likely to have been ancestral to the two living species, owing to its proödont incisors, reduction of cingular ridges, loss of an anterior median fold in m1, and long mandibular tooth-row. B. kolbi may have been an early, specialized derivation from the ancestral stock. From his knowledge of the habitats of B. musculus, the larger species, and B. taylori, the smaller species, Hibbard (1952:203) suggests that B. kolbi, a large species, might have inhabited lowlands, and B. rexroadi, a small species, highlands. I have no evidence to dispute this suggestion except that B. musculus has more prominent cingular ridges (or at least vestiges of this lophid condition) than either B. kolbi or B. rexroadi. B. musculus (see page 610) is less of an open grassland inhabitant than is B. taylori. Therefore, both B. kolbi and B. rexroadi, because of their poorly developed cingular ridges, might be expected to have lived in a relatively open grassland habitat.

[Pg 593]

The relationship of B. rexroadi to fossil species other than B. kolbi is not clear. Superficially, the former resembles B. taylori, but, owing to the specialized development of the molars of rexroadi, it could hardly have been ancestral to either of the living species. The resemblance of B. rexroadi to B. taylori may result from each having occupied the same ecological niche in different periods. The incisors of B. rexroadi, however, are much shorter than those of B. taylori and suggest somewhat different food habits.

B. minimus seemingly is more closely related to B. sawrockensis and B. musculus than to the other described species. The development of the cingular ridges leads one to suspect that B. minimus was the ancestor of B. musculus. B. minimus may have been derived from a sawrockensis-like stock and probably gave rise to B. musculus.

Hershkovitz (1955:643-644) suggests that "… primitive brachydont, buno-mesolophodont cricetines have survived … in forested parts of the range," whereas "… the progressive branch of cricetines with mesoloph absent or vestigal, has become increasingly specialized for life in open country and a diet of grasses." Species of the genus Baiomys can be divided into two morphological groups. One group, composed of B. sawrockensis, B. minimus, and B. musculus, includes those species, the teeth of which were relatively brachydont and had prominently developed cingular ridges (ectolophids or mesolophids) or, at least, showed some development of these ridges. B. sawrockensis probably lived in semi-wooded to shrubby habitats. According to Hibbard (1953:409), "The Saw Rock Canyon fauna lived in that area at a time when conditions were comparable to the conditions at the time the Rexroad fauna lived." The conditions in which the Rexroad fauna lived are discussed by Hibbard (1941:95). Presumably, there were at least some well-wooded situations, and the climate was warm. B. sawrockensis probably inhabited denser vegetation than did B. minimus or than does B. musculus. The teeth of the second group (B. kolbi, B. rexroadi, B. brachygnathus, and B. taylori) lack cingular ridges or have them much reduced and have more hypsodont molars. The three fossil species probably inhabited relatively open grassland. This assumption is based largely on the known habitat of B. taylori (see page 632).

The suggested grouping, based on supposed similarities in niches inhabited by the extinct species, does not necessarily indicate degree of relationship. B. taylori probably was not derived from an [Pg 594] ancestor like B. rexroadi or B. kolbi, although, in certain characters, the three species resemble one another. B. kolbi and B. rexroadi were already specialized in Blancan times, probably for living on grassland. B. taylori shows only a slight advance in specialization of molar structures compared to either of the aforementioned species but is slightly smaller and does have longer and more recurved incisors. If only morphological criteria of lower jaws were considered, without recourse to other data derived from the study of many samples of populations of the living species, time alone might account for the differences among B. taylori, B. rexroadi, and B. kolbi. The available evidence (see page 658) suggests, however, that B. taylori was derived from the B. sawrockensis-B. minimus-B. musculus line.

Fig. 3. Diagram indicating probable relationships of living and extinct species of pygmy mice.

Baiomys seems to have undergone little basic evolutionary and morphological change since Late Pliocene time. According to Simpson (1945:207), hesperomine rodents as a group have undergone little basic evolution, and "The rapid evolution of new genera was more a matter of segregation of characters in a group with a great variation than of the origin of significantly new characters." Perhaps, the living southern pygmy mouse retains many basic characteristics of one of the early North American cricetine-like stocks that emigrated to South America near the end of the Pliocene epoch. [Pg 595] There is much to suggest close relationship of the pygmy mice to certain species of South American hesperomine rodents of the genus Calomys.

NON-GEOGRAPHIC VARIATION

Non-geographic variation in pygmy mice (variation in a single population resulting from age, individual, seasonal, and secondary sexual differences) has been but little studied in the past. Mearns (1907:381) figured progressive stages of wear on the teeth of B. taylori; Osgood (1909:252) and Blair (1941:380) referred to changes in dentition, weights, and pelages.

The largest samples available for this study were 47 B. taylori from the vicinity of Altamira (6 mi. N, 6 mi. W; 5 mi. N, 5 mi. W; 1 mi. S), Tamaulipas, and 44 B. musculus from El Salvador (1 mi. S Los Planes, and 1 mi. NW San Salvador—two localities 3 miles apart).

VARIATION WITH AGE

Specimens of both species were segregated into five categories: Juveniles, young, subadults, adults, and old adults. Juvenal and young pygmy mice are readily separable from the other three categories; subadults are less easily distinguished from adults. In order to obtain an accurate understanding of geographic variation in these mice, only adults should be used in making taxonomic comparisons.

Juveniles.—Nestling mice yet unweaned; sutures in cranium incompletely closed; bony parts of skull fragile; M3 and m3 not erupted or only partly erupted and not protruding above margins of alveoli.

At birth, juveniles are pink, without pelage except for the mystacial vibrissae and a few hairs about the eye. Blair (op. cit.:381) recorded changes with age in color of the skin of new-born and suckling pygmy mice. Data obtained by me from three litters born in captivity agree with his findings. Pygmy mice are weaned when 17 to 24 days old. At that time, the mice possess a fine, but not dense, dusky-gray fur.

Young.—Weaned mice; cranium fragile; sutures between frontals and parietals, interparietal and parietals, basioccipital and basisphenoid, basisphenoid and presphenoid, premaxillaries and maxillaries widely open; M3 and m3 erupted beyond margins of their alveoli (molars erupt from anterior to posterior; M3 and m3, therefore, are last to erupt); in some specimens, molars slightly worn; pelage still dusky and relatively fine and sparse.

[Pg 596]

Subadults.—Sutures between bones of skull less widely open than in young; epiphyses of long bones incompletely coalesced to shaft; relative to length of skull, braincase higher and rostrum shorter than in adults; all cusps worn, but dentine not occlusally confluent; primary first and second folds of third upper molars present; primary first fold and major fold of lower molars visible; pelage a subtle mixture of colors of young and adult, but resembling most that of adult; molts into postjuvenal pelage between 46 and 50 days.

Adults.—Sutures of skull, and those between epiphyses and shaft of long bones obliterated except that, in some mice, sutures of skull persist between frontoparietal, and interparietal; cusps of molars so worn that dentine occlusally confluent; small island of enamel in third upper and lower molars of some specimens; relative to length of skull, cranium lower, rostrum longer, and interorbital region narrower than in subadult; cranium appears to be more flattened dorsoventrally; between subadult and adult stages, principal growth occurs in basioccipital, basisphenoid, frontals, and parietals; nasals grow less.

Although all bones of the skull grow in the subadult and early adult stages (see table 1), the above-named bones grow faster than others and thus cause the general flattening of the skull, typical of adults (similar to that reported by Hoffmeister, 1951:7). The body continues to lengthen, accounting for the increase in total length of the adult (see table 1). Hind foot, tail and ear, reach their maximum lengths by subadult stage. Adult pelage has been acquired, and the color is brighter than in either subadults or old adults.

Old Adults.—Characterized principally by well-worn molars; only thin peripheral band of enamel along with slight evidence of any primary or secondary folds on any teeth remain; all bones of skull coalesced; epiphyses and shafts of long bones ankylosed; small bony protuberances on many skulls; pelage usually ragged, tips of the hairs being worn away; white flecking and spotting not common, but occurs in some adults.

Table 1.—Average and Extreme Measurements (in Millimeters) of Skulls of Five Age-groups
of Baiomys taylori from vic. (see p. 595) Altamira, Tamaulipas, Mexico.

Age groups Juvenile Young Subadult Adult Old adult
Number examined 3 3 14 19 8

Total length 77.0
(74-79)
92.6
(89-96)
97.6
(91-103)
99.9
(93-105)
101.6
(98-107)

Length of tail 27.3
(24-29)
39.3
(37-41)
40.4
(36-43)
39.8
(35-45)
40.9
(38-45)

Length of body 49.6
(49-50)
53.3
(52-55)
57.0
(51-61)
60.0
(56-67)
60.7
(57-67)

Length of hind foot 11.0
(11)
13.6
(13-14)
14.3
(13.5-15.0)
14.5
(14-15)
14.2
(13-15)

Occipitonasal length 14.2
(13.6-15.2)
16.3
(15.8-16.9)
17.1
(16.7-17.6)
17.7
(17.2-18.3)
17.8
(17.6-18.1)

Zygomatic breadth 8.1
(7.8- 8.6)
8.7
(8.6-8.8)
8.9
(8.6-9.3)
9.3
(9.0-9.6)
9.4
(9.1-9.6)

Interorbital breadth 3.4
(3.3- 3.5)
3.4
(3.3-3.6)
3.4
(3.3-3.6)
3.6
(3.4-3.8)
3.5
(3.3-3.6)

Incisive foramina (length) 2.9
(2.8- 2.9)
3.5
(3.4-3.6)
3.7
(3.6-3.9)
3.9
(3.6-4.1)
3.9
(3.5-4.0)

Depth of cranium 5.9
(5.6- 6.2)
6.5
(6.3-6.8)
6.5
(6.2-6.8)
6.7
(6.4-7.0)
6.8
(6.5-7.1)

Alveolar length, upper molars 2.7
(2.5- 2.8)
2.9
(2.9-3.0)
2.9
(2.8-3.1)
3.0
(2.9-3.2)
3.0
(3.0-3.1)

Postpalatal length 4.8
(4.5- 5.3)
5.9
(5.8-6.0)
6.2
(5.8-6.6)
6.5
(6.2-7.2)
6.5
(6.3-6.7)

Breadth of braincase 8.1
(7.8- 8.7)
8.5
(8.5)
8.4
(8.0-8.7)
8.6
(8.3-8.9)
8.6
(8.4-8.8)

[Pg 597]

SECONDARY SEXUAL VARIATION

The method employed by Dice and Leraas (1936:2) was used to measure the secondary sexual differences, if there were any, in each of several age classes. As pointed out by Hooper (1952b:11), individual variation in small samples can obscure secondary sexual differences. The samples of B. taylori from the vicinity (see page 595) of Altamira, Tamaulipas, and the samples of B. musculus from El Salvador (table 2) were large enough to prevent individual variation from obscuring sexual differences. Nevertheless, no significant secondary sexual differences were found in either B. taylori or B. musculus (see table 2). Therefore, the sexes have been considered together for purposes of geographic studies.

Table 2.—Analysis of Secondary Sexual Variation in Adult B. taylori Vicinity of (see p. 595)
Altamira, Tamaulipas, and Adult B. musculus from El Salvador (see p. 595).
(One Standard Deviation on Either Side of the Mean is Given.)

Character Baiomys taylori Baiomys musculus
21 Males 18 Females 17 Males 13 Females

Total length 98.4 ± 2.95 100.5 ± 4.72 112.04 ± 5.49 113.12 ± 4.23

Length of tail 40.1 ± 2.31 40.3 ± 2.39 47.12 ± 2.95 45.70 ± 2.92

Length of body 57.83 ± 1.65 60.10 ± 4.13 66.67 ± 3.97 67.75 ± 2.38

Length of
hind foot
14.21 ± .53 14.44 ± .51 15.60 ± .49 15.38 ± .64

Length of ear 10.00 ± .00 10.00 ± .00 11.80 ± .65 12.00 ± .41

Occipitonasal
length
17.48 ± .40 17.47 ± .47 19.32 ± .35 19.04 ± .44

Zygomatic
breadth
9.17 ± .33 9.15 ± .30 9.84 ± .21 9.91 ± .28

Least
interorbital
breadth
3.53 ± .11 3.48 ± .11 3.88 ± .08 3.88 ± .12

Postpalatal
length
6.35 ± .19 6.38 ± .30 7.11 ± .15 6.95 ± .20

Depth
of cranium
6.65 ± .24 6.61 ± .17 7.10 ± .18 7.08 ± .18

Incisive
foramina
(length)
3.82 ± .15 3.81 ± .18 4.43 ± .11 4.35 ± .14

Length
of rostrum
5.87 ± .20 5.88 ± .21 6.81 ± .16 6.66 ± .31

Breadth
of braincase
8.54 ± .23 8.52 ± .12 9.84 ± .38 9.52 ± .20

Alveolar
length,
upper molars
2.98 ± .08 3.01 ± .08 3.20 ± .09 3.24 ± .10
INDIVIDUAL VARIATION

Length of tail varied more than any other measurement used by me in taxonomic comparisons. Clark (1941:298), Hoffmeister (1951:16), and Van Gelder (1959:239) point out that external measurements generally are more variable than measurements of the cranium, probably because different techniques of measuring are employed by different collectors. As can be noted in table 3, females varied more than males.

[Pg 598]

In the 3520 specimens examined, an extra tooth was observed in only one (see Hooper, 1955:298). The left mandibular tooth-row of an adult male (USNM 71539) from Omentepec, Guerrero, is worn more than the right one. Irregularities in number of teeth and abnormalities in individual teeth seem to be rare in pygmy mice.

Table 3.—Individual Variation: Coefficients of Variation for Dimensions of External
and Cranial Parts in a Population of B. Musculus and B. Taylori.

Measurement Baiomys taylori Baiomys musculus
Vic. (see page 595)
Altamira, Tamaulipas
Vic. (see page 595)
El Salvador
21 Males
C. V.
18 Females
C. V.
17 Males
C. V.
13 Females
C. V.

Total length 3.0 4.7 4.9 3.7
Length of tail 5.7 5.9 6.2 6.4
Length of body 2.8 5.0 5.9 3.5
Length of hind foot 3.7 3.4 3.0 4.1
Length of ear 0.0 0.0 5.5 3.3

Occipitonasal length 2.2 2.7 1.8 2.3
Zygomatic breadth 3.6 3.3 2.2 2.7
Interorbital breadth 3.2 3.3 2.2 2.9
Incisive foramina
(length)
3.8 4.6 2.5 3.2
Depth of cranium 3.6 2.5 2.5 2.5
Alveolar length,
upper molars
2.7 2.5 2.8 3.2
Postpalatal length 3.1 4.7 2.1 2.9
Length of rostrum 3.3 3.6 2.4 4.7
Breadth of braincase 2.7 1.4 4.0 4.9

The posterior margin of the bony palate varies from semicircular to nearly V-shaped. The suture between the nasals and frontals varies from V-shaped to truncate to W-shaped. The maxillary part of the zygoma varies from broad to slender in dorsoventral width in both species.

PELAGE AND MOLTS

There are three distinct pelages, juvenal, postjuvenal, and adult. The sequences of molt and change of pelage from the juvenal, to the postjuvenal, and from it to adult, are essentially as reported for Peromyscus by Collins (1918:78-81; 1924:58-60) and Hoffmeister (1951:5). The juvenal pelage is uniformly dusky gray throughout except for the paler gray on the venter. In most juvenal mice, the [Pg 599] yellow to ochraceous pigments of the subterminal bands are reduced or absent. Unlike Peromyscus, Baiomys has bright brownish hairs on the head as the first evidence of the postjuvenal molt (see Figure 4, part a). Blair (1941:381) reports adult pelage in pygmy mice being evident first at an age of 46 days. Two of my juveniles born in captivity began the postjuvenal molt on the 38th and 40th days. The area of new hairs on the head spreads most rapidly posteriorly. New hair appears ventrally and laterally at the end of 46 days (see Figure 4, part b). Hair replacement proceeds more slowly after the "saddle back" stage (described in Peromyscus by Collins, 1918:80) has been reached. That stage was reached in two pygmy mice at 52 days (see Figure 4, part c). Areas immediately posterior to the ears, in the scapular region, molt last. The postjuvenal pelage was seemingly complete in one captive pygmy mouse at the end of 60 days. Another captive failed to complete its growth of new pelage until two additional weeks had elapsed. Length of time required to molt in pygmy mice is about the same as that reported by Layne (1959:72) in Reithrodontomys.

Fig. 4. Diagrams showing progress of the postjuvenal molt in pygmy mice.
For explanation of a, b, and c, see text. All approximately 2/3 natural size.

[Pg 600]

If, after the postjuvenal molt, a distinct adult pelage is acquired it is difficult to separate it from the annual replacement of pelage in adults at the beginning of the rainy season. Adults of both species have been found in molt in all months of the year. To the north, in Texas, the pelage of winter-taken specimens is denser and slightly more reddish than that of specimens taken in spring and summer. In the two last mentioned seasons, the pelage is more uniformly gray. To the south, in México, the pelage is heavy and long in most specimens taken in the rainy season. The percentage of specimens in molt immediately before the rainy season and immediately before the dry season is slightly higher than in specimens taken at other times of the year. The adult or seasonal molt (both loss of old pelage and growth of new) resembles that in Peromyscus truei gilberti, described by Hoffmeister (1951:6) as proceeding "posteriorly as a wave over the entire back." The new hair is slightly brighter than the old. Old adults are usually in ragged pelage regardless of season; possibly only one regular annual change of pelage occurs in most animals before they die. Only one case of melanism was observed among all the specimens of both species examined. It was a young male B. t. taylori, KU 35943, from 6 mi. SW San Gerónimo, Coahuila, possessing black hairs throughout. Its hairs are longer and finer than those on specimens of comparable age and sex. No albino was found, although Stickel and Stickel (1949:145) record one—an adult male of B. taylori.

TAXONOMIC CHARACTERS AND RELATIONSHIPS

External parts.—Length of body, foot, ear, and tail are useful when considered together in distinguishing species and subspecies. I found as Hooper (1952a:91) did that length of ear in combination with length of hind foot suffices to identify nearly all specimens to species, especially where the two species occur together.

Pelage.—Color in adults is of especial value in subspecific determination; the manner in which it varies geographically is described on pages 609, 630.

Skull.—Difference in occipitonasal length and zygomatic breadth, both having low coefficients of variation, are useful in separating species, especially where they are sympatric. Shape of presphenoid, nasals, interparietal, frontoparietal sutures, and length and degree of the openings of the incisive foramina are useful in delimiting subspecies. The rostrum of B. taylori, in front of the frontonasal suture, is deflected three to five degrees ventrally in 85 per cent of [Pg 601] the adults examined, and in B. musculus is less, or not at all, deflected.

Teeth.—Alveolar length of the upper and lower molar tooth-rows aids in distinguishing fossil and Recent species, and to a lesser degree in delimiting subspecies. Occlusal pattern is useful in estimating the relationship of fossil and living species. Degree of development of the mesostyle, mesostylid, mesoloph, and mesolophid have been useful in determining relationship between fossil and living species as well as useful in separating the living species. Rinker (1954:119) and Hooper (1957:48) have shown the degree of variation in dental patterns in Peromyscus, Sigmodon, and Oryzomys, mice thought to be closely related to Baiomys. In pygmy mice, however, the dental patterns are relatively constant. The lophs and styles are subject to some geographic variation but, nevertheless, are useful in estimating relationships.

Fig. 5. Ventral view of hyoid bones. × 18.

A. Baiomys musculus brunneus, adult, female, No. 30182 KU, Potrero Viejo, 1700 feet, Veracruz.

B. Baiomys taylori analogous, adult, female, No. 36761 KU, 2 mi. N Ciudad Guzmán, 5000 feet, Jalisco.

Hyoid apparatus.—Shape and, to a lesser extent, size of the hyoid apparatus differentiate nearly all specimens of B. taylori from all those of B. musculus. The hyoid of B. taylori differs from that of B. musculus principally in the shape of the basihyal. It possesses [Pg 602] an anteriorly pointed entoglossal process in B. musculus, and is not rounded to completely absent as in B. taylori (see Figure 5). The shoulders of the basihyal protrude anteriorly in B. musculus, and are not flattened as in B. taylori. The total length was measured in a sample of 55 basihyals of B. musculus, and was compared to the total length of a sample of 80 basihyals of B. taylori. The means of the two samples differ significantly at the 95 per cent level; the mean plus two standard errors of B. musculus and B. taylori, are, respectively, 2.43 ± .02; 2.18 ± .03. There is sufficient overlap of the samples (mean plus one standard deviation of B. musculus and B. taylori, respectively: 2.43 ± .15; 2.18 ± .15) to make the total length of the basihyal of only secondary importance in distinguishing species, but shape and total length of the basihyal, when considered together, serve to identify all specimens to species. When length of the basihyal is plotted against occipitonasal length (see Figure 6), all specimens studied, regardless of age or geographical origin, were separated at the level of species. The hypohyals of B. taylori seemingly remain distinct throughout life; those of B. musculus completely fuse in some adults. The ceratohyals are highly variable in shape and of little taxonomic use.

Fig. 6. Relationship of length of basihyal to occipitonasal length of skull. Black symbols, all below the curved line, represent measurements of B. taylori; open symbols, all above the curved line, represent measurements of B. musculus.

The degree of geographic variation in shape of basihyal is not great. Specimens of B. musculus pallidus from 1 km. NW Chapa, [Pg 603] Guerrero, have a small indentation on the anteriormost part of the entoglossal process. The shoulder of the basihyal is directed less forward in specimens of B. taylori taylori from 6 mi. N, 6 mi. W Altamira, Tamaulipas, than in other specimens of the species. The variations observed seemed not to be clinal.

According to White (1953:548) the hyoid, like the baculum (Burt, 1936:146), is little influenced by changes in external environment and may serve to clarify intergeneric relationships. Hyoids of both species of Baiomys are smaller than hyoids of all subgenera of Peromyscus. In shape, the hyoids of Baiomys resemble those of Ochrotomys nuttalli (as explained on page 605, Ochrotomys is here accorded generic, instead of subgeneric, rank). In size, the hyoid of both species of Baiomys resembles that in Reithrodontomys. Sprague (1941:304) reports a resemblance in shape between the ceratohyals of Baiomys and Reithrodontomys. The thyrohyals differ from those of Reithrodontomys, being less boot-shaped, and having a slight terminal expansion as in Ochrotomys (see Sprague, loc. cit.). In shape, the large basihyal of Onychomys resembles the smaller one of B. musculus. The basihyal of Oryzomys lacks the entoglossal process present in Baiomys. On the basis of shape of hyoid, Baiomys seems to be most closely related to Ochrotomys.

Fig. 7. Dorsal view of bacula. × 16.

A. B. musculus brunneus, adult, No. 24336 KU, 3 kms. W Boca del Río, 10 feet, Veracruz.

B. B. taylori taylori, adult, No. 35937 KU, 6 mi. SW San Gerónimo, Coahuila.

Baculum.—Of Baiomys, 166 bacula were processed, using the method of White (1951:125), and studied. They provide characters of taxonomic worth at the level of species and aid in evaluating generic relationships.

The baculum of B. taylori differs from that of B. musculus in: shaft narrow; wings anterior to base projecting dorsolaterally instead [Pg 604] of anteriorly; anterior part knob-shaped having indentation at tip, instead of anterior part spatulate-shaped (in some) to knob-shaped (see Figure 7), without indentation; significantly shorter (see Table 4).

Table 4.—Length of Bacula

  Number of
specimens
Average
length
3 ×
standard
1
standard
Range
B. taylori 108 2.535 .078 .274 2.00-3.12

B. musculus 58 3.324 .090 .233 2.80-3.88

In each of the two species, individual and geographic variation in the baculum is slight; its length varies insignificantly according to age. Excluding juveniles contained in Table 4, but including young and subadults, only three bacula of B. taylori were longer than 3 mm., and only one baculum of B. musculus (a young) was shorter than 3 mm. The total length of the baculum, considered together with its shape, serves to identify to species all specimens examined by me.

The bacula of both species of Baiomys were compared with bacula of Akodon, Scotinomys, Holochilus, Oryzomys, Zygodontomys, Reithrodontomys, Thaptomys, and Calomys and illustrations of bacula by Blair (1942:197, 200) of Peromyscus (subgenera Peromyscus, Haplomylomys, Podomys), Ochrotomys, and material at the University of Kansas Museum of Natural History of Megadontomys. Shape of baculum most resembled that of Ochrotomys and Calomys. The bacula of Baiomys, as pointed out by Blair (op cit.:203), differ as much from those of the genus Peromyscus as do the bacula of Reithrodontomys and Onychomys. In size of baculum, Baiomys resembles Ochrotomys. Blair (op. cit.:202) pointed out that the length of the baculum of B. taylori subater was contained in the length of the animal's body 20.3 times, and 24.2 times in the length of that of Ochrotomys nuttalli. The length of the baculum of B. musculus (average of 58 specimens without regard to subspecies) is contained in the length of the body (of specimens from which the bacula were removed) 22.7 times, a figure approaching that in Ochrotomys. When bacula of both species of Baiomys were compared to those of O. nuttalli, bacula of B. musculus were found to most closely resemble those of O. nuttalli. The baculum of a single [Pg 605] specimen of Calomys (C. laucha) was contained in the length of the body 15.5 times. In general shape, as well as in possession of an anterior knob and the position of the expanded posterior wings, the baculum of C. laucha resembles the baculum of Ochrotomys and Baiomys musculus.

Blair (op. cit.:201) considers generic versus subgeneric rank for Ochrotomys, and on the basis of studies of the phallus Hooper (1958:23) stated that "it is clear that nuttalli should be removed from Peromyscus and should be listed as Ochrotomys nuttalli (Harlan)." I agree with Hooper (loc. cit.) and point out that on the basis of the baculum, there is less of a hiatus between Baiomys on the one hand, and Ochrotomys and Calomys on the other hand, than there is between any one of those three genera and Peromyscus.

White (1953:631) reported that the baculum of chipmunks might indicate relationships more clearly than do skulls and skins. He thought that skulls might more quickly than bacula reflect the habitus of the animal. The resemblance in cranial morphology between Peromyscus and Baiomys is judged to be the result of such a convergence of habitus and the baculum in Baiomys is thought to reflect relationships more accurately than does the skull.

Auditory ossicles.—Examination of a number of auditory ossicles of Baiomys reveals constant interspecific differences in the malleus and incus. There is only slight individual variation, slight variation with age, and no secondary sexual variation. In Baiomys taylori the orbicular apophysis of the malleus (see Figure 8, A) is rounded to nearly ovoid; the anterior process is pointed, and the neck is short, being slightly recurved. The body of the incus is round and the short process is elongate. The sides of the long limb of the incus are nearly parallel. The lenticular process is relatively large. The posterior and anterior crus of the stapes are bowed, and the muscular process is either absent or much reduced.

In Baiomys musculus, the orbicular apophysis of the malleus (see Figure 8, B) is round to oblong, and less ovoid than in B. taylori; the anterior process is less acutely pointed than in B. taylori, and the neck is long, less recurved than in B. taylori. The body of the incus, though tending to be round, is more flattened, and the short process is knob-shaped, not elongated. The sides of the long limb of the incus are not parallel. The lenticular process is, relative to the size of the incus, small. The posterior and anterior crus of the stapes are more nearly straight than in taylori. A prominent muscular process occurs on the posterior crus.

[Pg 606]

The auditory ossicles of representative species of all the subgenera of Peromyscus were studied as were the ossicles of Onychomys, Ochrotomys, Oryzomys, Akodon, Thaptomys, Zygodontomys, Calomys, Reithrodontomys, and Holochilus.

Fig. 8. Lateral views of auditory ossicles. × 20.

A. B. taylori analogous, adult, female, No. 28104 KU, 4 kms. ENE Tlalmanalco, 2290 meters, Estado de México.

B. B. musculus pallidus, adult, male, No. 28346 KU, Cahuilotal, Sacacoyuca, 960 meters, Guerrero.

The general plan of structure of the auditory ossicles in Baiomys resembles that in Calomys, Akodon, and Thaptomys. The ossicles of Calomys and Thaptomys, in particular, closely resemble the auditory ossicles of Baiomys musculus. The short process of the incus is knoblike in Calomys and Thaptomys, and the general conformation of malleus and stapes in those two genera is nearly identical to that in B. musculus. In Akodon, the anterior and posterior crus of the stapes is more rounded than in B. musculus, resembling that in B. taylori.

[Pg 607]

Reithrodontomys differ from Baiomys in having a more elongate orbicular apophysis on the body of the malleus, an elongated short limb on the incus, and a stapes having anterior and posterior crura bowed as in mice of the genus Peromyscus.

In Ochrotomys, the orbicular apophysis of the malleus resembles the orbicular apophysis of B. musculus, but the short process of the incus is longer, resembling the short process of B. taylori. In general conformation of the malleus, incus, and stapes, Ochrotomys shows closer resemblance to B. taylori than to B. musculus.

In Holochilus the anterior crus and posterior crus of the stapes are similar to those in B. musculus, but in shape and size of malleus and incus, Holochilus differs considerably from B. musculus and B. taylori.

In Zygodontomys, size and shape of the ossicles differ greatly from those of Baiomys.

In the genus Peromyscus, only Peromyscus floridanus (subgenus Podomys) possesses a knoblike short process on the incus similar to that in B. musculus; representatives of the other subgenera examined possess an elongated short limb on the incus. The conformation of the ossicles of both Onychomys and Oryzomys appears to be more nearly like that in Peromyscus than that of Baiomys.

On the basis of shape and size of auditory ossicles, Baiomys resembles South American hesperomines (Calomys and Thaptomys) rather than North American hesperomines.

Genus Baiomys True
1894. Baiomys True, Proc. U. S. Nat. Mus., 16:758, February 7. Type, Hesperomys (Vesperimus) taylori Thomas.

Diagnosis.—Size small (total length in adults, 93-135); tail shorter than head and body; hind foot in adults 12-17; ears small (8-12) and rounded; upper parts blackish sepia to ochraceous-buff; underparts slaty gray to white or pale buffy; eyes small; hind feet having six plantar pads, soles nearly naked except for some hairs on anterior parts of soles and anteriorly to base of toes and between toes; occipitonasal length of skull in adults, 17.0-21.5; zygomatic breadth, 9.0-11.5; coronoid process of mandible well developed, strongly recurved; ascending ramus of mandible short and erect; anterior palatine foramina (incisive foramina) long, usually terminating posterior to plane of the front of first molars; posterior palatine foramina nearly opposite middle of M2; interorbital space wide relative to widest part of frontals; nasals projecting only slightly over incisors; condyle terminal; upper incisors relatively heavy; primary first fold of M3 obliterated at an early stage of wear; major cusps of upper and lower anteriormost two molars alternating, more so in m1-m2 than in M1-M2, dental formula I/i, 1/1; C/c, 0/0; P/p, M/m, 3/3 = 16.

For distribution of the genus, see Figure 9.

[Pg 608]

Fig. 9. Geographic distribution of the genus Baiomys. Black area shows where the two species occur together. Black dot (Acultzingo, Veracruz) shows locality where Baiomys taylori occurs within the range of B. musculus, but B. musculus is not known to occur at that locality.

SYSTEMATIC ACCOUNT OF SPECIES AND SUBSPECIES
Baiomys musculus
Southern Pygmy Mouse
(Synonymy under subspecies)
Type.Sitomys musculus Merriam, Proc. Biol. Soc. Washington, 7:170, September 29, 1892.

Range.—Southern Nayarit, Michoacán, México, Morelos, Puebla, and central Veracruz, southeastward to western Nicaragua, but unknown from southern Veracruz, Tabasco, and the Yucatán Peninsula (see Figure 10); occurs principally in the arid upper and lower divisions of the Tropical Life-zone.

Characters for ready recognition.—Unless otherwise noted, characters are usable only for the two age-categories of adult and old adult. Differs from B. taylori in: hind foot 16 millimeters or more; occipitonasal length, 19 millimeters [Pg 609] or more; zygomatic breadth, 10 millimeters or more; rostrum not deflected ventrally at frontoparietal suture but, instead, curving gradually toward anteriormost point of nasals; cingular ridges and secondary cusps on teeth more pronounced; basihyal having anterior pointed entoglossal process, shoulders of basihyal protruding anteriorly (characteristic of all age categories); baculum having broader shaft, spatulate to knob-shaped tip, wings at base projecting anteriorly; baculum more than 3 millimeters long; short process of incus knob-shaped rather than attenuate; muscular process of posterior crus of stapes prominent.

Characters of the species.—Size large (extremes in external measurements of adults; total length, 100-135; length of tail vertebrae, 33-56; length of hind foot, 14.1-17; length of ear, 9-12); upper parts dark reddish brown, or ochraceous-buff to nearly black; underparts pale pinkish buff to white or pale buffy.

Geographic variation.—Eight subspecies are here recognized (see Figure 10). Features that vary geographically are external size, color of pelage, certain cranial dimensions (occipitonasal length, zygomatic breadth, least interorbital breadth, length of rostrum, length of incisive foramina, depth and breadth of cranium, and alveolar length of upper molar tooth-row).

External and cranial size (except for B. m. handleyi) is less in the southernmost subspecies, B. m. pullus, B. m. grisescens, B. m. nigrescens, and more in the northernmost subspecies, B. m. musculus, B. m. brunneus, and B. m. infernatis. Increase in size from south to north is in keeping with Bergman's Rule that within a species, smaller individuals occur in warmer parts of its geographic range. Southern pygmy mice at high altitudes average larger than those from low elevations, except where the two species are sympatric. There the Southern Pygmy Mouse is uniformly larger, regardless of altitude.

Osgood (1909:257, 259) suggested that degree of relative humidity might in some way control color of pelage in both B. taylori and B. musculus. In B. musculus, the darker subspecies, B. m. brunneus, B. m. nigrescens, and B. m. pullus, occur in zones of rather constant high relative humidity, whereas the paler subspecies infernatis, musculus, handleyi, and to a less extent grisescens and pallidus, occur in zones of lower relative humidity. This is in keeping with Gloger's Rule, which states that melanins increase in the warm and humid parts of the range of a species, and reddish or yellowish-brown phaeomelanins prevail in arid climates. B. m. musculus ranges into areas where relative humidity is such that darker pelages might be expected, but this is in the area where the two species are sympatric, and color of pelage may be an important character of recognition.

[Pg 610]

Fig. 10. Distribution of Baiomys musculus. Known localities of occurrence are represented by circles and black dots; the former denote localities that are peripheral (marginal) for the subspecies concerned.

1. B. m. brunneus
2. B. m. grisescens
3. B. m. handleyi
4. B. m. infernatis
     5. B. m. musculus
6. B. m. nigrescens
7. B. m. pallidus
8. B. m. pullus
Natural History

Habitat and numbers.—In Veracruz, Dalquest obtained the southern pygmy mouse in stands of tall grass (Spartina?) in sandy loam soil bordering, and in, dense vegetation; Davis (1944:394) found the species living in dense stands of grasses and seemingly utilizing underground burrows. Near Chilpancingo, Guerrero, rocky situations seemed to be the preferred habitat. Davis (loc. cit.) believed [Pg 611] that the species has a wide tolerance to kinds of habitats. In Morelos, Davis and Russell (1954:75) found these mice to be abundant along rock fences separating cultivated fields, and in arid lowlands. In Colima, Hooper (1955b:13) obtained specimens from an open thorn forest in sparse grass and rocky hillside bounding a stream and in litter below shrubs on the floor of a nut-palm forest; in Michoacán, these mice were taken in cane grass, shrubs, and mesquite near an irrigation ditch. From Guatemala, Goodwin (1934:39, 40) records specimens from Sacapulas, a hot, dry, sandy area where cactus and sparse grasses are present, and from La Primavera, on the edges of pine-oak-alder forests. Felten (1958:137) has taken musculus from bushy areas in El Salvadore. In 1955, I obtained the southern pygmy mouse 6 mi. SW Izucár de Matemores, Puebla, along a stream in heavy grass bordered by cypress, willow, fig, bamboo, and in rocky grazed area near sugar cane fields.

The southern pygmy mouse seems to be locally abundant in certain parts of its geographic range, and in other parts, scarce. For example, Dalquest (in. litt.) recorded the pygmy mouse as common at a place 2 km. N Paraje Nuevo, 1700 feet, Veracruz, where, by means of 50 traps, he took 14 of these mice in one night. The species was scarcer, although the habitat seemed suitable, 3 km. N Presidio, 1500 feet, Veracruz, where he caught only two pygmy mice in several days of trapping. Six miles southwest of Izucár de Matemores, the pygmy mouse was the most common rodent. I have trapped for it in Oaxaca and Veracruz in habitats that seemed almost identical to those mentioned by Dalquest, and also that at Izucár de Matemores, Puebla, with almost no success. The reason for the seeming disparity in numbers at different localities having nearly the same kind of habitat is unknown to me and bears further investigation.

Behavior.—Little is recorded concerning the behavior of this species. David and Russell (op. cit.:76) found that of small mammals B. musculus was the first to appear at night. I caught mice of this species by hand in the afternoon in Puebla. They seemed to be active from noon until dark. Albert Alcorn wrote in his field notes that specimens were taken near noon at a place 9 mi. NNW Estelí, Nicaragua. My impression is that musculus is diurnal to crepuscular.

Enemies and food.—Owl pellets (thought to be those of a barn owl, Tyto alba) from within the geographic range of B. musculus, from 6 mi. SW Izucár de Matemores, yielded mandibular tooth-rows belonging to musculus. Presumably, most of the carnivorous mammals [Pg 612] and raptorial birds within the range of the southern pygmy mouse could be listed as enemies. Diurnal to crepuscular habits of this mouse may protect it from some of the nocturnal carnivorous mammals and raptorial birds.

Food of the southern pygmy mouse includes nuts, bark, grass seeds, and leaves. Dalquest (MS) writes that bits of banana proved to be useful bait in trapping these mice in Veracruz.

Reproduction.—Notations concerning lactation and embryos on specimen labels of females suggest that the southern pygmy mouse breeds in all months. I have records of pregnant or lactating females in every month, save January, April, May, and June. The average of 26 counts of embryos or young per litter is 2.92 (1-4).

Baiomys musculus brunneus (J. A. Allen and Chapman)
Peromyscus musculus brunneus J. A. Allen and Chapman, Bull. Amer. Mus. Nat. Hist., 9:203, June 16, 1897; Elliott, Field Columb. Mus. Publ., 105(4):136, July 1, 1905; Elliott, Field Columb. Mus. Publ., 115(8):203, 1907; Osgood, N. Amer. Fauna, 28:259, April 17, 1909.
Baiomys musculus brunneus, Miller, Bull. U. S. Nat. Mus., 79:137, December 31, 1912; Miller, Bull. U. S. Nat. Mus., 128:318, April 29, 1924; Ellerman, The Families and Genera of Living Rodents, 2:402, March 21, 1941; Goldman, Smith. Miscl. Coll., 115:437, July 31, 1951; Goodwin, Bull. Amer. Mus. Nat. Hist., 102:318, August 31, 1953; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512, March 3, 1955; Booth, Walla Walla Publs., Dept. Biol. Sci., 20:15, July 10, 1957; Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part).
[Peromyscus musculus] brunneus, Elliott, Field Columb. Mus. Publ., 95(4): 176, 1904.
Peromyscus musculus [musculus], Osgood, N. Amer. Fauna, 28:258, April 17, 1909 (part).
Baiomys musculus musculus, Davis, Jour. Mamm., 25:394, December 12, 1944 (part); Goldman, Smith Miscl. Coll., 115:437, July 31, 1951; Hooper, Jour. Mamm., 33:97, February 18, 1952 (part); Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part).
B. [aiomys] m. [usculus] brunneus, Hooper, Jour. Mamm., 33:96, February 18, 1952.
Baiomys taylori, Hooper, Jour. Mamm., 33:97, February 18, 1952 (part).

Type.—Adult female, skin and skull; No. 12535/10845 American Museum of Natural History; Jalapa, Veracruz, Republic of México; obtained on April 13, 1897, by F. M. Chapman, original number 1203.

Range.—Central Veracruz, coastal plains and eastern slopes of the plateau of Central México, see Figure 10. Zonal range: Upper Tropical Life-zone (Lowery and Dalquest, 1951:537), parts of the Veracruz and eastern Transverse Volcanic biotic provinces of Goldman and Moore (1945:349). Occurs from near sea level at Boca del Río, Veracruz, up to 5500 feet 3 km. SE Orizaba.

Diagnosis.—Size medium to large for the species; ground color of dorsum of paratypes near Olive Brown; darkest of specimens of this subspecies examined (from Potrero Viejo, Veracruz) between Prouts Brown and Mummy [Pg 613] Brown; distal two-thirds of guard hairs of dorsum black, proximal third dark gray to sooty; hairs of dorsum black-tipped having subterminal band of Ochraceous-Tawny; sides paler (less of dark brown) than dorsum; venter Deep Olive Buff to clay color, individual hairs pale olive buff at tips, dark gray basally; region of throat and chin sooty gray; ventralmost vibrissae white to base, other vibrissae black to base; ears dark brown, sparsely haired; forefeet and hind feet flesh-colored in palest specimens, sooty in darkest; tail pale brown, slightly paler below than above; presphenoid only slightly constricted towards midline; average and extreme external and cranial measurements of 10 adults from Cerro Gordo, Veracruz, are as follows: total length, 118.9 (112-127); length of tail vertebrae, 45.1 (42-50); length of body, 74.0 (69-78); length of hind foot, 16.0 (16); length of ear from notch, 12.8 (12-13); occipitonasal length, 19.5 (19.0-20.0); zygomatic breadth, 10.3 (10.0-10.8); postpalatal length, 7.1 (6.7-7.5); least interorbital breadth, 3.9 (3.7-4.0); length of incisive foramina, 4.4 (4.1-4.6); length of rostrum, 6.9 (6.5-7.2); breadth of braincase, 9.5 (9.2-9.7); depth of cranium, 7.1 (7.1-7.4); alveolar length of maxillary tooth-row, 3.3 (3.2-3.3); for photographs of skull, see Plate 1a, and Plate 3a.

Comparisons.—For comparisons with B. m. nigrescens, see account of that subspecies. From B. m. pallidus, B. m. brunneus differs in: dorsal, lateral, and facial coloration deeper reddish brown, more melanins present; venter darker; buff gray rather than whitish buff to gray as in paratypical series; vibrissae black rather than brownish to white; tail sooty, less flesh-colored; forefeet and hind feet averaging slightly grayer; most external and cranial dimensions averaging slightly larger; nasals less attenuated; presphenoid less hour-glass shaped, sides more nearly straight.

From B. m. infernatis, B. m. brunneus differs in: side of face and neck deep reddish-brown rather than yellowish-gray (the differences in dorsal colorations are greater between brunneus and infernatis than between brunneus and pallidus); venter darker buff-gray; tail brownish rather than flesh-colored; forefeet and hind feet average slightly grayer; most external dimensions averaging slightly larger; cranial dimensions nearly the same except length of incisive foramina, which is smaller; presphenoid differs in much the same way as from pallidus.

Remarks.—Specimens from Chichicaxtle, Puente Nacional, 3 km. W Boca del Río, 1 km. E. Mecayucan, and Río Blanco (20 km. WNW Piedras Negras), are all paler than the paratypical series and other specimens from within the assigned range of B. m. brunneus. All these specimens from the coastal plain average considerably paler than those from the front range and slopes of the mountains. Specimens from Puente Nacional are intermediate in color between paler, grayish brown, specimens from the coastal plains and the darker, brown, specimens from the mountains. When Allen and Chapman (1897:203) described brunneus, they did so on the basis of the darker brown mice from the higher altitudes. The name, brunneus, sensu stricto, could be restricted to those mice from the [Pg 614] higher altitudes of central Veracruz. However, when the mice of intermediate color from Puente Nacional are considered, it seems best to include the material from the coastal plain with brunneus. Crania from the higher altitudes are slightly larger than, but not significantly different from, crania of specimens from the coastal plains. Specimens examined from the coastal plains resemble the darker series of B. m. pallidus to the west in central México. But there is no evidence of gene flow between the paler coastal specimens and B. m. pallidus to the west. In fact, these paler brown mice on the coastal plain grade in color into the darker brown mice from the mountains. The paler mice from the coast may be an incipient subspecies.

The type and paratypes seem to have faded somewhat since they were described by Allen and Chapman (loc. cit.) and by Osgood (1909:259). However, the color of the paratypes and other specimens herein assigned is the feature most useful for distinguishing brunneus from all other subspecies of B. musculus.

Specimens examined.—Total 187 all from Veracruz, Republic of México, and distributed as follows: type locality, 4400 ft., 16[1] (including the type), 6[2], 1[3]; Cerro Gordo, 1500 ft., 19; Teocelo [= Texolo], 4500 ft., 1; 2 mi. NW Plan del Río, 1000 ft., 14[4]; Plan del Río, 1000 ft., 2[5]; Carrizal, 4[2]; Chichicaxtle, 3[2]; Puente Nacional, 500 ft., 1[5], 2; Santa Maria, near Mirador, 1800 ft., 10[2]; Boca del Río, 10 ft., 1[5], 8; Córdoba [= Córdova], 14[1]; 4 km. WNW Fortín, 4; Río Atoyac, 8 km. NW Potrero, 1; 2 km. N. Paraje Nuevo, 1700 ft., 9; El Xuchil, 1 mi. W. Paraje Nuevo, 6[6]; Potrero Viejo, 1700 ft. 15; Cautlapán [= Ixtaczequitlán], 4000 ft., 16; Micayucan, 1; 3 km. SE Orizaba, 5500 ft., 3; Río Blanco, 20 km. WNW Piedras Negras, 400 ft, 7; 29 km. SE Córdoba, Presidio, 15[4]; 3 km. N Presidio, 1500 ft., 2; Presidio, 600 meters, 6[3].

Marginal records.Veracruz: type locality; Chichicaxtle; Boca del Río, 10 ft.; Río Blanco, 20 km. WNW Piedras Negras, 400 ft; Presidio; 3 km. SE Orizaba, 5500 ft.

[1] American Museum of Natural History.

[2] U. S. Nat. Museum (Biol. Surv. Coll.).

[3] Chicago Natural History Museum.

[4] Univ. Michigan, Museum of Zoology.

[5] Texas A & M, Coop. Wildlife Res. Coll.

[6] Univ. Illinois, Mus. Nat. History.

Baiomys musculus grisescens Goldman
Baiomys musculus griesescens Goldman, Proc. Biol. Soc. Washington, 45:121, July 30, 1932; Ellerman, The Families and Genera of Living Rodents, 2:402, March 21, 1941; Poole and Schantz, Bull. U. S. Nat. Mus., 178:259, March 6, 1942; Goodwin, Bull. Amer. Mus. Nat. Hist., 79(2):160-161, May 29, 1942 (part); Miller and Kellogg, Bull. U. S. Nat. Mus., 205:513, March 3, 1955 (part); Felten, Senck. Biol., 39:136, August 30, 1958; Packard, Univ. Kansas Publs., Mus. Nat. Hist., 9:401, December 19, 1958; Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part).

Type.—Adult female, skin and skull; No. 257083 U. S. Nat. Mus. (Biol. Surv. Coll.); Comayabuela [= Comayaguela] just south of Tegucigalpa, 3100 feet, Honduras; obtained on March 6, 1932, by C. F. Underwood, original number 838.

[Pg 615]

Range.—Central to south-central Guatemala, east to south-central Honduras. Zonal range: Lower parts of the Merendon Biotic Province of Smith (1949:235). Occurs from 3200 feet at a place 1/2 mi. N and 1 mi. W Salama, Guatemala, up to approximately 4500 feet at Monte Redondo, Guatemala.

Diagnosis.—Size medium to small for the species; general ground color of dorsum between Olive Brown and Buffy Brown; distal fourth of individual guard hairs of dorsum black-tipped, proximal three-fourths gray, underfur black-tipped with subterminal band of Vinaceous-Buff, gray basally; facial region below eye Olive-Buff to Deep Olive-Buff; regions of flanks without black-tipped guard hairs, therefore, appearing paler brownish-buff than dorsum; venter Pale Olive-Buff to whitish in midline, hairs there white to base, laterally grayish basally; hairs in region of throat and chin resemble those of underparts; forefeet and hind feet flesh-colored with grayish suffusion; ears dusky brown; tail almost unicolored, slightly darker brown above than below; coronoid process less acutely falcate than in other subspecies; zygoma bowed. Average and extreme external and cranial measurements of 14 adults from La Piedra de Jesús Sabana Grande, Honduras, are as follows: Total length, 110.7 (100-123); length of tail vertebrae, 44.0 (32-55); length of body, 66.7 (60-70); length of hind foot, 14.1 (12-15); length of ear from notch, 11.8 (10-13); occipitonasal length, 19.3 (18.9-19.8); zygomatic breadth, 10.1 (9.8-10.4); postpalatal length, 6.8 (6.2-7.3); least interorbital breadth, 3.9 (3.8-4.1); length of incisive foramina, 4.3 (4.0-4.5); length of rostrum, 6.9 (6.6-7.2); breadth of braincase, 9.6 (9.2-10.1); depth of cranium, 7.0 (6.8-7.3); alveolar length of maxillary tooth-row, 3.2 (3.0-3.4); for photographs of skull, see Plate 1b, and Plate 3b.

Comparisons.—For comparisons with B. m. pullus and B. m. handleyi, see accounts of those subspecies. From B. m. nigrescens, B. m. grisescens differs in: dorsum less blackish (dark brown to buffy); face buffy below eye rather than brownish-black; venter buffy to whitish in midline, not sooty gray; forefeet and hind feet flesh-colored with gray overtones, not dusky to sooty; zygoma bowed, sides less parallel; braincase and bony palate slightly broader.

Remarks.—Goodwin (1942:160) mentioned that a specimen from the type locality of grisescens was as dark as specimens of B. m. nigrescens from Guatemala. However, all specimens from Guatemala, other than those from Sacapulas, were referred by Goodwin (1934:40) to B. m. nigrescens. My studies reveal a grayish-brown population in central Honduras near to and including the type locality. This population appears to grade into a slightly paler, particularly as concerns color of hind foot and tail, group of Guatemalan mice from 1 mi. S Rabinal, from 1/2 mi. N, 1 mi. E Salama, and from Lake Atescatempa. Specimens from western Guatemala at Nentón and Jacaltenango, on the other hand, are darker brownish-black, more nearly like the paratypical series of nigrescens from the Valley of Comitán, Chiapas, Republic of México. This darker brownish-black color of the back persists in specimens from southern [Pg 616] Guatemala and El Salvador (see specimens examined of B. m. nigrescens for localities), and they are best referred to nigrescens. B. m. grisescens, in color and certain cranial characters, therefore, seems to grade into two different subspecies: (1) B. m. handleyi, pale mice in the Río Negro valley in central Guatemala, and (2) B. m. nigrescens, dark mice from southern Guatemala, and parts of El Salvador.

Felten (1958:136) referred all B. musculus from El Salvador to B. m. grisescens. Although I have not examined the specimens reported on by Felten (loc. cit.), I have examined specimens from Lake Atescatempa, Guatemala (which I refer to grisescens), not too distant from Cerro Blanco, and Finca Las Canarias, Department of Ahuachapan, and Laguna de Guija, Department of Santa Ana (localities listed by Felten). It would seem that specimens from these localities might indeed be grisescens. However, specimens that I examined from 1 mi. S Los Planes, and 1 mi. NW San Salvador were considerably darker than paratypes of grisescens and were nearly intermediate in color between nigrescens and pullus. I refer the specimens from 1 mi. NW San Salvador, and 1 mi. S Los Planes to nigrescens rather than to grisescens.

There is no positive evidence that B. m. grisescens intergrades with B. m. pullus to the south in Nicaragua. But, there is a suggestion that intergradation occurs between these subspecies in a series of 76 skins from La Piedra de Jesús Sabana Grande, Honduras, referable to grisescens. A total of 16 of 76 skins from this locality (21 per cent) possess the mid-ventral white stripe found in 18 of 20 skins (90 per cent), from the type locality of pullus in Nicaragua. Further collection in areas between central Honduras and western Nicaragua may yield specimens of B. musculus that are intermediate in characters between grisescens and pullus.

Specimens examined.—Total 149, distributed as follows: Guatemala: 1 mi. S Rabinal, 3450 ft., 14; 1/2 mi. N, 1 mi. E Salama, 3200 ft., 10; Lake Atescatempa, 10[7]. Honduras: Cementario, Gracias, 1[8]; Monte Redondo, 1[8]; El Caliche, Cedros, 1[8]; La Flor Archaga, 2[8], 1[9]; Hatillo, 1[8]; type locality, 7[8], 6[7] (including the type), 3[9]; El Zapote, Sabana Grande, 4[8]; La Piedra de Jesús Sabana Grande, 76[8]; Cerro de las Cuches Sabana Grande, 5.

Marginal records.Guatemala: 1/2 mi. N, 1 mi. E Salama, 3200 ft. Honduras: El Caliche, Cedros; Hatillo; La Piedra de Jesús Sabana Grande; Cementario. Guatemala: Lake Atescatempa; 1 mi. S Rabinal, 3450 ft.

[7] United States National Museum (Biol. Surv. Collections).

[8] American Museum of Natural History.

[9] Univ. Michigan, Museum of Zoology.

[Pg 617]

Baiomys musculus handleyi Packard
Baiomys musculus handleyi Packard, Univ. Kansas Publs., Mus. Nat. Hist., 9:399, December 19, 1958.
Baiomys musculus musculus, Goodwin, Bull. Amer. Mus. Nat. Hist., 68(1):39-40, December 12, 1934 (part); Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512, March 3, 1955 (part).
Baiomys musculus nigrescens, Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part).

Type.—Adult female, skin and skull; No. 275604 U. S. Nat. Mus. (Biol. Surv. Coll.); Sacapulas, El Quiche, Guatemala; obtained on April 24, 1947, by Charles O. Handley, Jr., original number 991.

Range.—Known only from the type locality in the valley of the Río Negro. Zonal range: Part of the Chimaltenangan Province of Smith (1949:235).

Diagnosis.—Size medium to large for the species; dorsum Wood Brown in some series to Buffy Brown; guard hairs of dorsum black-tipped, color of underhairs Avellaneous; hairs white to base in region of chin, throat, and median venter; in lateral region, hairs Neutral Gray at base; dorsal surfaces of forefeet and hind feet and ankles white; tail white below, brownish above; nasals truncate anteriorly; frontoparietal suture forming an obtuse angle with the suture separating the parietals; alveolar length of upper molar tooth-row and tail long. Average and extreme external and cranial measurements for nine adults from the type locality are as follows: Total length, 121.4 (115-128); length of tail vertebrae, 50.7 (49-54); length of body, 70.8 (66-77); length of hind foot, 15.3 (15-16); occipitonasal length, 19.6 (18.8-20.7); zygomatic breadth, 10.5 (10.2-11.0); postpalatal length, 6.9 (6.4-7.4); least interorbital breadth, 4.0 (3.9-4.0); length of incisive foramina, 4.2 (4.0-4.5); length of rostrum, 7.2 (7.0-7.7); breadth of braincase, 9.8 (9.7-10.2); depth of cranium, 7.1 (6.8-7.2); alveolar length of maxillary tooth-row, 3.5 (3.4-3.6); for photographs of skull, see Plate 1c, and Plate 3c.

Comparisons.—From B. m. nigrescens, B. m. handleyi differs as follows: everywhere paler; forefeet and hind feet whitish instead of dusky to sooty; hairs of anterior part of face white instead of brown; tail bicolored instead of unicolored; anterior tips of nasals truncate rather than rounded; frontoparietal suture forming obtuse angle with suture separating parietals instead of forming right angle; tail and upper molar tooth-row longer.

From B. m. grisescens, B. m. handleyi differs in: slightly paler above and below, primarily as a result of lacking buff-colored hairs; forefeet and hind feet white, not flesh-colored with gray overtones; tail bicolored, not unicolored; anterior tips of nasals truncate rather than flaring; tail and upper molar tooth-row longer.

Remarks.B. m. handleyi seems to be restricted to the valley of the Río Negro, in the region of Sacapulas, Guatemala. Stuart (1954:7) points out that the Río Negro drops down into a gorge at a place near Sacapulas and flows northward through a deep canyon [Pg 618] for approximately 60 kilometers. The Río Negro, then, flows onto the lowlands of the Yucatán Peninsula. The habitat is xerophytic in the valley of the Río Negro near Sacapulas. Stuart (op. cit.:10) suggests that this xerophytic habitat may be continuous to a place to the north of Chixoy, Chiapas, where the vegetation then becomes more mesic. The mesic conditions to the north in Tabasco and Yucatán probably have restricted the movement of pygmy mice to the north. No specimens of this mouse are known from the Yucatán Peninsula or from the State of Tabasco, México. B. m. handleyi intergrades with B. m. grisescens to the south. Specimens from 1 mi. S Rabinal, and those from a second locality 1/2 mi. N and 1 mi. E Salama, Guatemala, are intermediate in color of pelage between handleyi and grisescens. Stuart (op. cit.:5) mentions the continuity of habitat and tributaries from the Salama Basin into the valley of the Río Negro. Absence of physiographic and biotic barriers in the corridor between these two basins probably allows for some gene flow between handleyi and grisescens, and results in populations intermediate in color. To the north and northwest of Sacapulas, the Sierra de los Cuchumatanes rises abruptly and separates the known geographic range of handleyi from that of nigrescens to the north, while to the west the cactus-mesquite habitat of handleyi gives way to the oak-pine timber that, so far as known, does not support Baiomys. The difference in elevation and flora seems to restrict gene flow between handleyi and the more northern nigrescens. The only evidence of integration between these two subspecies is provided by one specimen from Chanquejelve, Guatemala. That specimen is intermediate in color between the pale handleyi and blackish-brown nigrescens.

The subspecies closest, geographically, to B. m. handleyi is B. m. nigrescens, from which B. m. handleyi differs more in color than from any of the other named subspecies, except B. m. pullus. There is a close correlation of pallor of mice and the xeric Río Negro Valley, and the darkness (melanistic color) of mice and the mesic mountains and valleys to the north.

Specimens examined.—Total 49, from Guatemala: type locality, including the type: 12 (U. S. Nat. Mus., Biol. Surv. Coll.), 37 (Amer. Mus. Nat. Hist.).

Baiomys musculus infernatis Hooper
Baiomys musculus infernatis Hooper, Jour. Mamm., 33:96, February 18, 1952; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512, March 3, 1955; Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959.
Baiomys musculus musculus, Hooper, Jour. Mamm., 28:50, February 15, 1947 (part).

[Pg 619]

Type.—Adult male, skin and skull; No. 91497 Univ. of Michigan, Museum of Zoology; Teotitlán, Oaxaca, Republic of México, obtained on February 24, 1947, by Helmuth O. Wagner, original number 2702.

Range.—Southeastern Puebla, in the basin drained by the Río Salado and Río Quiotepec, into northern Oaxaca. Zonal range: Arid Tropical in a part of the Orizaba-Zempoaltepec Faunal District of the Transverse Volcanic Biotic Province of Moore (1945:218). Occurs from 3100 feet in Oaxaca up to 6000 feet in Puebla.

Diagnosis.—Size medium for the species; dorsum Drab, terminal parts of individual guard hairs black, Neutral Gray basally, distal parts of underfur Pinkish Buff, proximally Neutral Gray; sides same color as dorsum; hairs in region of throat and chin white to base; venter whitish to Neutral Gray with tinges of Pinkish Buff; dorsal parts of forefeet and hind feet whitish with flesh-colored undertones, ventral parts whitish to dusky-gray; tail bicolored, grayish-brown above, white below; tip of tail not bicolored, instead grayish-brown throughout; ears pale brown, sparsely haired; incisive foramina long, not constricted posteriorly. Average and extreme external measurements for 9 adults from the type locality are as follows: total length, 113.9 (106-122); length of tail vertebrae, 44.1 (41-48); length of body, 71.0 (65-79); length of hind foot, 14.8 (13-16); length of ear, 11.9 (11-12). Average and extreme cranial measurements of 7 adults from the type locality are as follows: Occipitonasal length, 20.1 (19.7-20.4); zygomatic breadth, 10.4 (10.2-10.6); postpalatal length, 7.3 (7.0-7.7); least interorbital breadth, 4.2 (4.0-4.4); length of incisive foramina, 4.8 (4.4-5.6); length of rostrum, 7.2 (6.6-7.5); breadth of braincase, 9.6 (9.5-9.8); depth of cranium, 7.4 (7.1-7.6); alveolar length of maxillary tooth-row, 3.3 (3.1-3.4); for photographs of skull, see Plate 1d, and Plate 3d.

Comparisons.—For comparisons with B. m. nigrescens and B. m. brunneus, see accounts of those subspecies. From B. m. pallidus, B. m. infernatis differs in: sides, ears, and dorsum paler (less of dark brown); venter whitish gray rather than gray with tinge of buff and brown; forefeet and hind feet paler; tail bicolored, not unicolored; incisive foramina longer and not constricted posteriorly; mastoid process turning dorsally and sickle-shaped at posteriormost point rather than capitate.

Remarks.B. m. infernatis resembles B. m. handleyi more than any other subspecies in color of pelage and in external and cranial dimensions. The resemblance in color between B. m. pallidus, in certain parts of its range, and B. m. handleyi may have resulted from nearly parallel selective forces that gave rise to two subspecies, widely separated geographically. The same relation obtains between B. m. infernatis and B. m. handleyi. Both inhabit arid river basins. In them, pale soil and low relative humidity are important passive factors of selection that give adaptive value to the pale colors of pelage of both infernatis and handleyi.

Specimens from 61/2 mi. SW Izucár de Matemores, and 1 mi. SSW Tilapa, Puebla, are intergrades between B. m. infernatis and B. m. [Pg 620] pallidus. These specimens are intermediate in color and cranial characters between the aforementioned subspecies but possess more of the pale brown overtones seen in paratypes of pallidus, and are best referred to that subspecies.

Specimens examined (All in Univ. Michigan, Mus. Zool.).—Total 18, all from the Republic of México and distributed as follows: Puebla, Tepanaco, 6000 ft., 3, Tehuacán, 5400 ft., 3. Oaxaca: Type locality, 3100 ft., 12 (including the type).

Marginal records.—See specimens examined.

Baiomys musculus musculus (Merriam)
Sitomys musculus Merriam, Proc. Biol. Soc. Washington, 7:170, September 29, 1892; Lyon and Osgood, Bull. U. S. Nat. Mus., 62:135, January 15, 1909.
Baiomys musculus [= musculus], Mearns, Bull. U. S. Nat. Mus., 56:381, April 13, 1907; Hooper, Jour. Mamm., 36:29, May 26, 1955.
Peromyscus musculus [musculus], J. A. Allen and Chapman, Bull. Amer. Mus. Nat. Hist., 9:203, June 16, 1897; Elliot, Field Columb. Mus. Publ., 105(4):135, July 1, 1905; Osgood, N. Amer. Fauna, 28:257, April 17, 1909 (part).
[Peromyscus] musculus, Trouessart, Cat. Mamm., 1:518, 1898.
[Peromyscus] musculus [musculus], Elliot, Field Columb. Mus. Publ., 95(4):175, July 15, 1904.
Baiomys musculus musculus, Miller, Bull. U. S. Nat. Mus., 79:137, December 31, 1912 (part); Miller, Bull. U. S. Nat. Mus., 128:318, April 29, 1924 (part); Ellerman, The Families and Genera of Living Rodents, 2:402, March 21, 1941; Poole and Schantz, Bull. U. S. Nat. Mus., 178:258, March 6, 1942; Davis, Jour. Mamm., 25:394, December 12, 1944 (part); Hooper, Jour. Mamm., 28:50, February 15, 1947 (part); Hall and Villa-R., Univ. Kansas Publs., Mus. Nat. Hist., 1:460, December 27, 1949 (part); Hall and Villa-R., Anal. del Inst. Biol., 21:196, September 28, 1950 (part); Goldman, Smith. Miscl. Coll., 115:336, July 31, 1951 (part); Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512, March 3, 1955 (part); Hooper, Occas. Papers Mus. Zool. Univ. Michigan, 565:13, March 31, 1955; Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part).
B. [aiomys] m. [usculus] musculus, Hooper, Jour. Mamm., 33:97, February 18, 1952 (part); Packard, Univ. Kansas Publs., Mus. Nat. Hist., 9:400; December 19, 1958.
Baiomys taylori allex, Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).

Type.—Adult female, skin and skull; No. 33437/45460 U. S. Nat. Mus. (Biol. Surv. Coll.); Colima (City), Colima, Republic of México, obtained on March 9, 1892, by E. W. Nelson, original number 2055.

Range.—Southwestern Nayarit and northwestern Jalisco, south into Colima, thence eastward into Michoacán. Zonal range: part of arid Lower Tropical Subzone of Goldman (1951:330); approximates part of the Nayarit-Guerrero Biotic Province of Goldman and Moore (1945:349). Occurs from near sea level in Colima up to 5800 feet in Jalisco.

Diagnosis.—Size large for the species; dorsum Olive-Brown in darkest series to Buffy Brown with tones of Fawn Color in the palest series; guard [Pg 621] hairs of dorsum black-tipped, gray basally (in some specimens, guard hairs gray-tipped with subterminal black band, and gray base); underfur of dorsum black-tipped with subterminal band of fawn to buff, Neutral Gray basally; face and head paler than back because of greater number of fawn-colored and buff-colored hairs; hairs on throat and chin white to base; venter and flanks Pale Olive-Buff in palest series to Gray (Pale Gull Gray) in darkest series; individual hairs of venter tipped with white to buff, basally Gray (Dark Gull Gray); forefeet and hind feet white to gray with flesh-colored undertones; tail faintly bicolored, individual hairs above black, below white; nasals flared anteriorly; zygoma and zygomatic plate thick. Average and extreme external and cranial measurements for 8 adults from Armeria, Colima, are as follows: total length, 125.5 (115-135); length of tail vertebrae, 47.5 (42-54); length of body, 75.6 (68-81); length of hind foot, 16.5 (16-17); occipitonasal length, 20.3 (19.8-20.7); zygomatic breadth, 10.7 (10.3-11.1); postpalatal length, 7.4 (7.1-7.7); least interorbital breadth, 4.0 (3.9-4.1); length of incisive foramina, 4.3 (4.1-4.5); length of rostrum, 7.3 (6.9-7.6); breadth of braincase, 9.8 (9.4-10.0); depth of cranium, 7.1 (6.7-7.2); alveolar length of maxillary tooth-row, 3.4 (3.3-3.6); for photographs of skull, see Plate 1e, and Plate 3e.

Comparisons.—For comparisons with B. m. brunneus, B. m. infernatis, and B. m. pallidus, see accounts of those subspecies. From B. m. nigrescens, B. m. musculus differs in: dorsum paler throughout (less of blackish brown); region of face and ears paler, more buff and fawn-colored hairs rather than blackish-brown to grayish hairs; vibrissae paler; venter paler, less dark gray and less of sooty-colored undertones, tips of hairs whitish to pale Olive-Buff rather than light gray at tips becoming darker basally; forefeet and hind feet paler, whitish to pale buff-color with flesh-colored undertones, not sooty-colored to dark brown; tail paler below; nasals flaring outward, not tapering toward midline at anteriormost point; zygoma more massive; larger in external and cranial dimensions.

Remarks.—Merriam (1892:170) described Sitomys [= Baiomys] musculus on the basis of 23 specimens (from Colima City, Colima; Armeria, Colima; Plantinar, and Zapotlán, Jalisco). According to the original description, B. musculus resembled a small house mouse and was smaller than any known species of Sitomys except S. taylori [= Baiomys taylori]. From taylori, musculus differed in being larger [in size of body], and in having longer ears and tail, and larger hind feet. When Allen and Chapman (1897:203) described Peromyscus [= Baiomys] musculus brunneus from Jalapa, Veracruz, the specimens described by Merriam from Colima and Jalisco became representative of the nominal subspecies B. m. musculus. Osgood (1909:258) assigned specimens from Colima, Guerrero, Jalisco, Michoacán, Morelos, Oaxaca, Puebla, Sinaloa, Veracruz, and Zacatecas to the subspecies musculus. Subsequently, Russell (1952:21) named the subspecies pallidus from the arid lowlands of Morelos; Hooper (1952:96) described the subspecies infernatis [Pg 622] from northern Oaxaca and southeastern Puebla; and Goodwin (1959:1) described a new subspecies nebulosus from the Oaxaca highlands. Each of the subspecies mentioned immediately above was described from within the geographic range assigned to B. m. musculus by Osgood (loc. cit.). Hall and Kelson (1959:661) mapped the range of B. m. musculus so as to include Colima, parts of Jalisco, Michoacán, Guerrero, Oaxaca, and Veracruz. Lukens (1955:159), in a study of the mammals of Guerrero, has shown that the characters attributed to B. m. pallidus are not significantly different from those of pygmy mice studied from Guerrero. He (loc. cit.) concluded that: (1) if the specimens of pygmy mice from central Guerrero were typical of the subspecies musculus, then pallidus did not deserve subspecific recognition, or; (2) the name B. m. musculus should be restricted to the larger pygmy mice inhabiting the lowlands immediately adjacent to the Pacific Coast and the area to the north. My data (see Figure 12) show pygmy mice from southwestern Nayarit, northwestern and central Jalisco, Colima, and parts of Michoacán to be significantly larger in certain cranial and external measurements than pygmy mice from Guerrero, Oaxaca, Morelos, and parts of Puebla. This finding essentially corroborates Hooper's (1952a:96) findings. It seems advisable, therefore, to restrict the range of B. musculus musculus to the large mice inhabiting west-central México and the coastal lowlands of Colima and Michoacán. The name pallidus is applicable to the smaller mice occupying Morelos, southwestern Puebla, Guerrero, Oaxaca, and southwestern Chiapas.

B. m. musculus intergrades with B. m. pallidus in eastern Michoacán and central and western Guerrero. Specimens from San José Prura and 12 mi. S Tzitzio, Michoacán, though referable to B. m. musculus because of slightly larger size of crania are intermediate in size and color between the smaller and slightly darker pallidus to the south and east and the larger, slightly paler musculus to the northwest.

Specimens examined.—Total 156 all from the Republic of México, and distributed as follows: Nayarit: 3 mi. NNW Las Varas, 150 ft., 1. Jalisco: 7 mi. W Ameca, 4000 ft., 2[10]; 6 mi. W Ameca, 4300 ft., 3[10]; 10 mi. S Ameca, 5800 ft., 1[10]; 13 mi. S, 15 mi. W Guadalajara, 3; 13 mi. S, 91/2 mi. W Guadalajara, 1; 3 mi. ENE Santa Cruz de las Flores, 1; 27 mi. S, 12 mi. W Guadalajara, 1; 4 mi. NE Autlán, 3000 ft., 5[10]; Sierra de Autlán, 5000 ft., 2[10]; 21/2 mi. NNE Autlán, 3000 ft., 8; 2 mi. SSE Autlán, 1; 5 mi. S Purificación, 2; Chamela Bay, 1[10]; 2 mi. N La Resolana, 1500 ft., 6[10]; 1 mi. N San Gabriel, 4000 ft., 32[10]; 2 mi. N Cuidad Guzmán, 5000 ft., 1; 3 mi. E Navidad, 4300 ft., 10[10]. Colima: type locality, 10[11] (including the type); 3 mi. SE Colima (City), 5[10]; 4 mi. SW Colima City, 1; Armeria, 200 ft., 8[11]; Paso del Río, 20[10]. [Pg 623] Michoacán: 12 mi. S Tzitzio, 6[10]; San José Prura, 4[12]; 1 mi. E, 6 mi. S Tacámbaro, 4000 ft., 3[13]; La Salada, 3[11]; 1/2 mi. SE Coalcomán, 15[10].

Marginal records.Nayarit: 3 mi. NNW Las Varas, 150 ft. Jalisco: 3 mi. E Navidad, 4300 ft.; 27 mi. S, 12 mi. W Guadalajara. Michoacán: 12 mi. S Tzitzio; San José Prura; 1/2 mi. SE Coalcomán. Colima: Armeria, 200 ft. Jalisco: Chamela Bay.

[10] Univ. Michigan, Museum of Zoology.

[11] U. S. Nat. Museum (Biol. Surv. Coll.).

[12] Chicago Natural History Museum.

[13] Univ. California, Mus. Vert. Zoology.

Baiomys musculus nigrescens (Osgood)
Peromyscus musculus nigrescens Osgood, Proc. Biol. Soc. Washington, 17:76, March 21, 1904; Elliot, Field Columb. Mus. Publ., 105(4):136, July 1, 1905; Lyon and Osgood, Bull. U. S. Nat. Mus., 62:135, January 15, 1909; Osgood, N. Amer. Fauna, 28:259, April 17, 1909.
Baiomys musculus nigrescens, Miller, Bull. U. S. Nat. Mus., 79:137, March 31, 1912; Miller, Bull. U. S. Nat. Mus., 128:318, April 29, 1924; Goodwin, Bull. Amer. Mus. Nat. Hist., 68(1):40, December 12, 1934; Ellerman, The Families and Genera of Living Rodents, 2:402, March 21, 1941; Poole and Schantz, Bull. U. S. Nat. Mus., 178:259, March 6, 1942; Hooper, Jour. Mamm., 28:50, February 15, 1947; Goldman, Smith. Miscl. Coll., 115:357, July 31, 1951; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:513, March 3, 1955; Booth, Walla Walla Publs., Dept. Biol. Sci., 20:15, July 10, 1957; Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part).
[Peromyscus musculus] nigrescens, Elliot, Field Columb. Mus. Publ., 95(4):176, 1904.
B. [aiomys] m. [usculus] nigrescens, Goodwin, Bull. Amer. Mus. Nat. Hist., 79(2):160, May 29, 1942; Hooper, Jour. Mamm., 33:97, February 18, 1952 (part); Packard, Univ. Kansas Publs., Mus. Nat. Hist., 9:399, December 19, 1958.
B. [aiomys] m. [usculus] musculus, Booth, Walla Walla Publs., Dept. Biol. Sci., 20:15, July 10, 1957 (part).

Type.—Adult female, skin and skull; No. 76827 U. S. Nat. Mus. (Biol. Surv. Coll.); Valley of Comitán, Chiapas, Republic of México, obtained on December 9, 1895, by E. W. Nelson and E. A. Goldman, original number 8719.

Range.—Southern coastal region and eastern parts of Chiapas, southeastward into central and southern Guatemala, thence south into El Salvador (see Figure 10). Zonal range: parts of Lower Austral; also occurs in parts of the arid division of the Upper Tropical Life-zone, and in parts of the arid division of the Lower Tropical Life-zone; approximates a part of the Chiapas Highlands Biotic Province of Goldman and Moore (1945:349), and parts of the Guatemalan Subregion of Smith (1949:235).

Diagnosis.—Size medium to small for the species; dorsum Vandyke Brown mixed with blackish, individual hairs black-tipped with a subterminal band of Warm Buff, Neutral Gray at base; guard hairs of dorsum black distally, Neutral Gray basally; hairs on sides grayish-brown, facial region like dorsum; chin buffy-brown; vibrissae brown, ventrally some white; venter creamy-buff to grayish, individual hairs creamy-buff at tips, gray basally; in region of throat and chin, hairs tipped with Ochraceous-Buff; dorsal surface of forefeet and hind feet dull whitish gray to brownish-black; tail indistinctly bicolored, dusky above, grayish to brownish below; incisive foramina short, wide medially; [Pg 624] average and extreme external and cranial measurements of 15 adults from 6 mi. NW Tonalá, Chiapas, are as follows: total length, 107.5 (100-116); length of tail vertebrae, 41.1 (33-48); length of body, 66.1 (62-73); length of hind foot, 15.0 (14-16); length of ear, 10.9 (10-12); occipitonasal length, 18.9 (18.4-19.7); zygomatic breadth, 9.8 (9.4-10.2); postpalatal length, 6.9 (6.6-7.4); least interorbital breadth, 3.7 (3.5-3.8); length of incisive foramina, 4.4 (4.1-4.8); length of rostrum, 6.7 (6.1-7.1); breadth of braincase, 9.2 (9.0-9.4); depth of cranium, 6.9 (6.5-7.3); alveolar length of maxillary tooth-row, 3.1 (2.9-3.2); for photographs of skull, see Plate 1f, and Plate 3f.

Comparisons.—For comparisons with B. m. handleyi, B. m. grisescens, B. m. musculus, B. m. pallidus, and B. m. pullus, see accounts of those subspecies.

From B. m. brunneus, B. m. nigrescens differs in: dorsum blackish-brown rather than reddish to ochraceous brown; face and ears brownish-black rather than brownish with tinges of ochraceous; vibrissae darker; forefeet and hind feet darker; venter with more grayish tones; dorsalmost part of zygomatic plate projects farther anteriorly; interparietal oval to diamond-shaped and narrower anteroposteriorly; zygomata narrower at anteriormost part; slightly smaller in most cranial and external measurements.

From B. m. infernatis, B. m. nigrescens differs in: dorsum darker; region of face and ears darker; venter buffy to gray rather than whitish-buff; vibrissae darker; forefeet and hind feet darker; tail darker above and below; incisive foramina shorter, more constricted laterally; cranium slightly smaller in most dimensions.

Remarks.—Hooper (1952a:93-94) reported specimens from the coastal strip of southern Chiapas as the most intensely pigmented, whereas, specimens from central and western Chiapas were distinctly paler. Crania of specimens from the coastal region of southern Chiapas were smaller than crania from the central highlands and mountains of Chiapas. My studies essentially corroborate the findings of Hooper. The gradation of color between the pale brown pallidus to the north in Oaxaca, and the brownish-black nigrescens to the south in Chiapas is extremely gradual. Specimens from the central and western parts of Chiapas (see Figure 10 for localities) are difficult to assign to either pallidus or nigrescens. Equal justification exists for assignment to either subspecies. I have assigned the specimens to nigrescens because they are geographically closer to the type locality of nigrescens. Specimens from Reforma, Oaxaca (assigned by Hooper, 1952a:93-94, to nigrescens), are nearly identical in size and color to paratypes of pallidus. I assign the Reforma specimens to pallidus.

The darkest of all the specimens examined and assigned to nigrescens are from 1 mi. NW San Salvador and 1 mi. S Los Planes, El Salvador. The variations in color in this subspecies closely correspond to degree of relative humidity; the palest samples are from areas of low relative humidity and the darkest are from areas [Pg 625] of high relative humidity. In view of the present state of differentiation of specimens from the southern coastal areas of Chiapas and mountainous areas of El Salvador, it would seem that populations there might be incipient subspecies.

Specimens examined.—Total 319. Chiapas: 17 mi. W Bochil, 1[14]; 15 mi. W Bochil, 1[14]; 14 mi. W Bochil, 1[14]; Bochil, 6[15]; Ocuilapa, 3500 ft., 5[16]; 5 mi. NNW Tuxtla Gutiérrez, 9; 11 km. W Tuxtla Gutiérrez, 800 m., 2[15]; 10 km. W Tuxtla Gutiérrez, 800 m., 2[15]; Tuxtla Gutiérrez, 2600 ft., 8[16], 11; Ocozocoautla, 10[15], 2[16]; 25 mi. E Comitán, Las Margaritas, 1250 m., 5[17], 24[15]; Cintalpa, 555 m., 1[14], 18[15], 3[17]; Jiquilpilas, 2000 ft., 1[16]; San Bartolome, 3[16]; type locality, 5700 ft., 26[16] (including the type); 15 mi. SW Las Cruces, 1; Villa Flores, 600 m., 12[15]; 23 mi. S Comitán, 1[14]; 15 mi. S, 2 mi. E La Trinitaria, 4; 30 mi. S Comitán, 2[14]; 35 mi. S Comitán, 1[14]; 3 mi. E Arriga, 1[14]; 6 mi. NW Tonalá, 19; Tonalá, 8[16]; Los Amates, 1[14]; Pijijiapan, 10 m., 7[15]; Mapastepec, 45 m., 25[15], 4[17].

Guatemala: Chanquejelve, 1[14]; Nentón, 3000 ft., 1[16]; Jacaltenango, 5400 ft., 8[16]; La Primavera, 5[14]; 4 mi. S Guatemala City, 4700 ft., 3; 5 mi. S Guatemala City, 4050 ft., 10; 6 mi. S Guatemala City, 4680 ft., 1; Lake Amatitlán, 4500 ft., 13[16]; El Progresso (Distrito Santa Rosa), 3[15]; 2 mi. N, 1 mi. W Cuilapa, 2980 ft., 1[14]; 1 mi. WSW El Molino (Distrito Santa Rosa), 2; 21/2 mi. W, 21/4 mi. N San Cristobal, 2900 ft., 1; El Zapote, 1[15].

El Salvador: 1 mi. NW San Salvador, 29; 1 mi. S Los Planes, 15.

Marginal Records.Chiapas: Bochil; 25 mi. E Comitán, Las Margaritas, 1250 ft. Guatemala: Chanquejelve; La Primavera; Jacaltenango, 5400 ft.; 4 mi. S Guatemala City, 4700 ft.; El Progresso. El Salvador: 1 mi. NW San Salvador; 1 mi. S Los Planes. Guatemala: El Zapote. Chiapas: Mapastepec, 45 m.; Pijijiapan, 10 m.; 6 mi. NW Tonalá; 15 mi. SW Las Cruces; Cintalpa, 555 m.; Ocuilapa, 3500 ft.

[14] American Museum of Natural History.

[15] Univ. Michigan, Museum of Zoology.

[16] U. S. Nat. Museum (Biol. Surv. Coll.).

[17] University of Florida Collections.

Baiomys musculus pallidus Russell
Baiomys musculus pallidus Russell, Proc. Biol. Soc. Washington, January 29, 1952; Davis and Russell, Jour. Mamm., 35:75, February 10, 1954; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512; Hall and Kelson, The Mammals of North America, 2:662, March 31, 1959.
Peromyscus musculus brunneus, Elliot, Field Columb. Mus. Publ., 115(8):203, 1907 (part).
Peromyscus musculus [musculus], Osgood, N. Amer. Fauna, 28:257, April 17, 1909 (part).
Baiomys musculus musculus, Miller, Bull. U. S. Nat. Mus., 79:137, December 31, 1912 (part); Miller, Bull. U. S. Nat. Mus., 128:318, April 29, 1924 (part); Davis, Jour. Mamm., 25:394, December 12, 1944 (part); Hooper, Jour. Mamm., 28:50, February 15, 1947 (part); Goldman, Smith, Miscl. Coll., 115:336, July 31, 1951 (part); Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512, March 3, 1955 (part); Booth, Walla Walla Publs., Dept. Biol. Sci., 20:15, July 10, 1957 (part); Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part); Goodwin, Amer. Mus. Novitates, 1929:1, March 5, 1959.
B. [aiomys] m. [usculus] musculus, Hooper, Jour. Mamm., 33:97, February 18, 1952 (part).
B. [aiomys] m. [usculus] nigrescens, Hooper, Jour. Mamm., 33:97, February 18, 1952 (part).
Baiomys musculus nebulosus Goodwin, Amer. Mus. Novitates, 1929, March 5, 1959.

[Pg 626]

Type.—Adult female, skin and skull; No. 4501 Texas A&M Cooperative Wildlife Collection; 12 kms. NW Axochiapán, 3500 feet, Morelos, Republic of México, obtained on July 28, 1950, by W. B. Davis, original number 5112.

Range.—Guerrero thence eastward into Morelos and west central Puebla along the southern edge of the Transverse Volcanic Biotic Province (Goldman and Moore, 1945:349), south into Oaxaca, see Figure 10. Zonal range: largely Arid Lower Tropical Subzone of Goldman (1951:330). Occurs from near sea level in Oaxaca and Guerrero up to 6550 feet in Oaxaca.

Diagnosis.—Size medium for the species; dorsum Buffy Brown in palest series to Olive-Brown in darkest series, individual hairs Warm Buff, Neutral Gray basally, some with black tips and a subterminal band of Warm Buff, guard hairs of dorsum black-tipped, gray basally; hairs on sides creamy-buff, gray basally; face same color as back fading to white on throat; vibrissae white-tipped, pale brown basally; venter, whitish with tinges of buff on lower throat, individual hairs having tips white to buffy-white, light gray basally; dorsal surface of forefeet and hind feet whitish to flesh-color; tail indistinctly bicolored, brownish above, grayish brown below; zygoma bowed as in B. m. grisescens; tail short; average and extreme external and cranial measurements for 17 adults from Tehuantepec, Oaxaca, are: total length, 117.3 (110-126); length of tail vertebrae, 46.9 (41-51); length of body, 70.4 (65-76); length of hind foot, 15.8 (15-16); occipitonasal length, 18.9 (18.2-20.1); zygomatic breadth, 10.1 (9.7-10.6); postpalatal length, 6.9 (6.6-7.5); least interorbital breadth, 3.8 (3.6-3.9); length of incisive foramina, 4.4 (4.2-4.7); length of rostrum, 6.7 (6.3-7.2); breadth of braincase, 9.3 (8.7-9.7); depth of cranium, 6.6 (6.4-6.8); alveolar length of maxillary tooth-row, 3.2 (3.1-3.4); for photographs of skull, see Plate 1g, and Plate 3g.

Comparisons.—For comparisons with B. m. brunneus and B. m. infernatis, see accounts of those subspecies.

From B. m. musculus, B. m. pallidus differs in: dorsum more olive-gray and brown, less ochraceous on either side of mid-dorsal region; face below eye grayish, not buffy; sides gray with buffy overtone, not creamy with light yellow overtones; venter grayish-white rather than an olive-buff; zygomata more tapering anteriorly; maxillary part of zygoma narrower when viewed from above; external and cranial dimensions smaller.

From B. m. nigrescens, B. m. pallidus differs in: dorsum paler, fewer black hairs medially; face paler, less sooty; vibrissae brownish with white tips rather than black with brownish tips; venter paler; dorsal surface of forefeet and hind feet whitish to flesh-colored rather than sooty to dusky-white; tail paler; nasals slightly more attenuated; averaging slightly larger in external and cranial measurements.

Remarks.—Russell (1952:21) described pallidus, on the basis of specimens from the arid Balsas Basin, of Morelos, as pale gray dorsally. After examining the original material from Morelos, I find the dorsal color of pallidus to be much closer to a buffy brown than a pale grayish. Even so, smaller size differentiates pallidus from musculus. B. m. infernatis, not B. m. pallidus, is the most pallid of all named subspecies of B. musculus.

[Pg 627]

B. m. pallidus intergrades to the northwest with B. m. musculus, to the northeast with B. m. infernatis, and to the southeast with B. m. nigrescens.

According to Goodwin (1959:2), B. m. nebulosus (named on the basis of one specimen) differs from B. m. musculus [= pallidus] from southern Oaxaca in: darker and longer pelage; larger skull; interorbital region broader and less constricted posteriorly. From B. m. nigrescens and B. m. brunneus, B. m. nebulosus differs as follows: pelage longer and softer; skull larger.

Study of specimens of B. musculus from Oaxaca reveals considerable variation in external and cranial measurements as well as color, corresponding to that reported by Goodwin (loc. cit.). Specimens from higher altitudes average somewhat darker and larger in external and cranial size than those at lower elevations. These differences seem to be microgeographic and not of subspecific rank. Among specimens that I have studied in Oaxaca are several from different localities (KU 63052, an adult male, from 3 mi. W Miahuatlán; KU 68964, an adult male from 3 mi. W Mitla, 6000 ft.; KU 63055, an adult female from 3 mi. S Candelario, 1200 ft.) that, according to Goodwin (in. litt.) match nebulosus in reported color, size of body and skull (except for the region of the rostrum).

Two of the three specimens (KU 63052 and 63055) are the darkest of a series in which the palest are inseparable from B. m. pallidus. Goodwin, who kindly compared the three specimens with the type of nebulosus, mentioned (in. litt.) that the skull of the type has a slenderer rostrum. Included in the series of skulls of B. m. pallidus from 3 mi. W Mitla are several adults (not seen by Goodwin) with slender rostra. B. m. nebulosus is judged to be a synonym of B. m. pallidus.

Populations of pygmy mice occurring in partially isolated areas of highland in Oaxaca seem to me to be incipient subspecies.

Specimens examined.—Total 824 all from the Republic of México and distributed as follows: Puebla: 2 mi. S Atlixco, 5800 ft., 1; 1 mi. SSW Tilapa, 5800 ft., 2; 6 mi. SW Izucár de Matemores, 7; Piaxtla, 3900 ft., 4[18]; Acatlán, 4100 ft., 1. Morelos: 5 mi. W Tepoztlán, 6000 ft., 7[19]; 1 mi. W Tepoztlán, 6000 ft., 9[19]; 2 mi. SW Tepoztlán, 7000 ft., 1[20]; Cuernvaca, 9[19]; 6 mi. W Yautepec, 4500 ft., 1[20]; Yautepec, 12[19]; 3 mi. N Alpuyeca, 4000 ft., 2[20]; Puente de Ixtla, 2[19]; Tetecala, 4[21]; 2 km. S Jonacatepec, 4500 ft., 6[20]; type locality, 6 (including the type). Guerrero: Yerbabuena, 1800 m., 1; Cueva de tia Juana [= 1.5 km. SSW Yerbabuena], 1; Laguna Honda, 1840 m. [= 1.5 km. S Yerbabuena], 3; 9 mi. SE Taxco, 3800 ft., 1[22]; 17 km. S Taxco, 4000 ft., 2[20]; Iguala, 5[19]; 3.2 km. SSE Iguala, 970 m., 1; 1 km. SSE Texcaizintla, 1600 m., 2; Teloloapán, 20[19], 5[24]; 1 km. N Chapa, 1470 m., 6; Chapa, 1470 m., 5; El Limón, 3[18]; 21/2 mi. W Mexcala, 2100 ft., 1[20]; Río Balsas, 1[18]; Ayusinaha [= Ayotzinapa], 1[18]; Tlapa, [Pg 628] 3900 ft, 1[18]; 2.5 mi. S Almolonga, 5600 ft., 13[20]; 1 km. N Zihuatanejo, 1; Zihuatanejo Bay, 4[19]; Las Gatas [= 2 km. S. Zihuatanejo], 2; 2 km. SSE Zihuatanejo, 9; 4 mi. W Chilpancingo, 5800 ft., 3[20]; Chilpancingo, 4800 ft., 14[18], 21[19], 45[21]; 2 mi. N Tixtla, 4400 ft., 3[20]; 3.2 km. S Chilpancingo, 4; Cd. Chamilpa [= 12 km. ESE Chilpancingo], 5; Tlalixtaquilla, 4200 ft., 2[18]; 15 km. S. Chilpancingo, 4300 ft., 10[20]; 1 mi. SW Colotlipa, 2700 ft., 16[20]; 2 mi. SW Colotlipa, 2700 ft., 1[20]; Achuitzotla, 2800 ft., 7[20]; 8 mi. SW Colotlipa, 1[20]; 5 mi. S Rincón, 2600 ft., 2[20]; 8 mi. SW Tierra Colorado, 600 ft., 1[20]; Río Aguacatillo, 30 km. N Acapulco, 1000 ft., 3[20]; 5 mi. ESE Tecpán, 50 ft., 9; Ejido Viejo, 12 km. NNW Acapulco, 1; 2 mi. NNW Acapulco, 7; Acapulco, 3[18], 3[21]; Omentepec, 200 ft., 7[18]. Oaxaca: 4 mi. E Huajuapám, 5000 ft., 1; 2 mi. NW Tamazulapán, 6550 ft., 1; Yalalag, 3000 ft., 5[18]; 11 mi. NW Oaxaca [City], 1; Yaganiza, 3900 ft., 1[18]; Oaxaca [City], 5000 ft., 15, 7[21], 7[19], 5[24]; 3 mi. ESE Oaxaca [City], 30; 4 mi. ESE Oaxaca [City], 5050 ft., 1; 10 mi. SE Oaxaca [City], 1[22]; Cerro Ocotepec, 1[23]; Tepantepec, 9[23]; 1 mi. E Tlacolula, 5500 ft., 53[19]; 3 mi. W Mitla, 11; Jalapa, El Campanario, 1[23]; 2 mi. SE Matalán, 5950 ft., 14; Lachiguiri, 2[23]; Tres Cruces, 10[23]; Agua Blanca, 11[23]; San José, 1[23]; Reforma, 30[19], 7[21], 10[23], 6[24] Totolapa, 1[18]; Nejapa, 85 km. WNW Tehuantepec, 500 m., 12[19], 6[24]; Chicapa, 2[18]; Gueladu [= Jalapa], 6[23]; Juchitán, Laguna Superior; Manteca, 8[23], 1[23]; San Bartolo, 3000 ft., 1[18]; Ejutla, 1400 m., 21[19]; El Bambita, Tequisitlán 4[23]; Mixtequilla, 2[23]; Guiencola, 5[23]; Tehuantepec, 200 ft., 26[18], 11[19]; Sola de la Vega, 26[19], 3[24]; Huilotepec, 13[18], 3[23]; Santa Lucia, 24[23]; Cerro de Paste, Tenango, 7[23]; Sta. C. Quieri, 3[23]; Santa Marie Ecatepec, Zarzamora, 13[23]; Rincón Bamba, 11[23]; 3 mi. W Miahuatlán, 5300 ft., 1; Miahuatlán, 12[19], 1[23], 6[24]; San Juan Acaltepec, 5[23]; Zapotitlán, 1[23]; Llano Grande, 3[18]; Pinotepa, 700 ft., 2[18]; Juquila, 8[18]; Arroyo, San Juan, north of Cerro Otate, 1[23]; Cerro Otate, 3[23]; 3 mi. S Candelaria, 1.

Marginal records.Morelos: 5 mi, W Tepoztlán, 6000 ft. Puebla: 2 mi. S Atlixco, 5800 ft.; Acatlán, 4100 ft. Oaxaca: 2 mi. NW Tamazulapán, 6550 ft; Tepantepec; Oaxaca [City], 5000 ft; Yalalag, 3000 ft; Jalapa, El Campanario; Reforma; Huilotepec; 3 mi. S Candelaria; Cerro Otate; Pinotepa, 700 ft. Guerrero: Acapulco; Zihuatanejo Bay; El Limón; 9 mi. SE Taxco, 3800 ft.

[18] U. S. Nat. Museum (Biol. Surv. Coll.).

[19] Univ. Michigan, Museum of Zoology.

[20] Texas A & M, Cooperative Wildlife Research Collection.

[21] Chicago Natural History Museum.

[22] California Academy of Sciences.

[23] American Museum of Natural History.

[24] University of Florida Collections.

Baiomys musculus pullus Packard
Baiomys musculus pullus Packard, Univ. Kansas Publs., Mus. Nat. Hist., 9:401, December 19, 1958.
Baiomys musculus grisescens, Goodwin, Bull. Amer. Mus. Nat. Hist., 79(2):161, May 29, 1942 (part); Miller and Kellogg, Bull. U. S. Nat. Mus., 205:513, March 3, 1955 (part); Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part).

Type.—Adult female, skin and skull; No. 71605 University of Kansas Museum of Natural History; 8 mi. S Condega, Estelí, Nicaragua, obtained on July 15, 1956, by A. A. Alcorn, original number 4218.

Range.—West-central Nicaragua, from Matagalpa northwest into the valley of the Río Estelí, east as far as Jinotega, see Figure 10. Zonal range: Upper Tropical Life-zone.

Diagnosis.—Size medium to small for the species; dorsum Fuscous-Black, individual hairs black-tipped with a subterminal band of Ochraceous-Buff, Neutral Gray at base; some hairs on dorsum all black to Neutral Gray at base; hair on sides Neutral Gray tinged with blackish; face blackish, becoming buffy on sides [Pg 629] of head, and white on throat; vibrissae black; tail unicolored Chaetura Black; forefeet and hind feet sooty to dusky-white; mid-ventral region of venter white, hairs white to base; in region of anus and throat, hairs white-tipped, Neutral Gray at base; average and extreme external and cranial measurements of the type and 16 paratypes are as follows: total length, 117.3 (111-121); length of tail vertebrae, 47.2 (44-50); length of body, 70.4 (66-74); length of hind foot, 15.5 (14-17); length of ear from notch, 11.9 (10-13); occipitonasal length, 19.3 (18.9-19.8); zygomatic breadth, 10.2 (9.7-10.6); postpalatal length, 7.0 (6.8-7.3); least interorbital breadth, 3.9 (3.8-4.1); length of incisive foramina, 4.3 (4.0-4.6); length of rostrum, 7.0 (6.5-7.4); breadth of braincase, 9.6 (9.3-10.0); depth of cranium, 7.0 (6.8-7.3); alveolar length of maxillary tooth-row, 3.1 (3.0-3.2); for photographs of skull, see Plate 1h, and Plate 3h.

Comparisons.—From B. m. grisescens, B. m. pullus differs in: dorsum and tail darker; sides and lateral parts of venter grayish instead of buffy-brown, thus forming distinct mid-ventral white stripe; average length of body and tail significantly longer, thus total length greater; maxillary tooth-row significantly shorter; slightly larger in other cranial and external dimensions.

From B. m. nigrescens, B. m. pullus differs in: dorsum slightly darker; face grayish, not sooty; mid-ventral white stripe (absent in most specimens of nigrescens) present and becoming grayish laterally; tail darker, less hairy, and averaging significantly longer; smaller in most external and cranial dimensions.

Remarks.B. m. pullus resembles B. m. nigrescens in size and color but can readily be distinguished from nigrescens by the shorter tail. B. m. pullus intergrades with nigrescens as shown by specimens, referable to B. m. nigrescens, from 1 mi. NW San Salvador and from 1 mi. S Los Planes, El Salvador. In color of the dorsum, specimens from these localities are intermediate between nigrescens and pullus.

The mid-ventral white stripe characteristic of pullus is present in three of 28 adults from El Salvador. Goodwin (1942:160) reported white hairs on the pectoral region of several topotypes of B. m. grisescens. The areas of white hairs on the venter of grisescens occur in approximately 10 per cent of the specimens examined, whereas in pullus, the frequency of occurrence is 90 per cent. The areas of white hairs in grisescens are in broad patches on the pectoral region, while in pullus, a white stripe passes from the pectoral region to the inguinal region in both males and females. I know of no selective advantage that the presence of this white stripe would confer on the mice.

Specimens examined.—Total 46, all from Nicaragua, and distributed as follows: Type locality, 32 (including the type); 9 mi. NNW Estelí, 8; 8 mi. NNW Estelí, 3; San Rafael Del Norte, 1 (Amer. Mus. Nat. Hist.); 1 mi. NW Jinotega, 1; Matagalpa, 1 (Amer. Mus. Nat. Hist.).

Marginal records.Nicaragua: San Rafael Del Norte; Matagalpa; type locality.

[Pg 630]

Baiomys taylori

Northern Pygmy Mouse

(Synonymy under subspecies)

Type.Hesperomys (Vesperimus) taylori Thomas, Ann. Mag. Nat. Hist., Ser. 5, 19:66, January, 1887.

Range.—Southeastern Arizona and southwestern New Mexico, south into Chihuahua and Durango, just east of the Sierra Madre Occidental, thence southeast through Zacatecas, Aquascalientes, Jalisco, Querétaro, and Guanajuato; two fingerlike projections extend northward, one on the west along the coast of Sinaloa into southern Sonora, and the other on the east covering eastern San Luis Potosí, Tamaulipas, eastern Coahuila, Nuevo León, into south, southeast, and north-central Texas. Southern margin of range in central México approximates the 19th degree of latitude (see Figure 11). Arid lower and arid upper subdivisions of the Tropical Life-zone in south; principally Lower Sonoran and Lower Austral life-zones in north.

Characters for ready recognition.—Unless otherwise noted, characters are usable for the age-categories of adult and old adult. Differs from B. musculus in: hind foot less than 16 millimeters; occipitonasal length less than 19 millimeters; zygomatic breadth less than 10 millimeters; rostrum deflected ventrally at frontoparietal suture rather than curving gradually toward anteriormost point of nasals; cingular ridges and secondary cusps on teeth reduced or absent; basihyal having entoglossal process much reduced or absent, shoulders of basihyal not protruding anteriorly, but more flattened (characteristic of all age categories); baculum having narrower shaft, knob-shaped tip, wings at base projecting laterally, baculum less than 3 millimeters long; short process of incus attenuate; muscular process of posterior crus of stapes reduced.

Characters of the species.—Size small (extremes in external measurements of adults: total length, 87-123; length of tail vertebrae, 34-53; length of hind foot, 12-15; length of ear, 9-12). Upper parts pale drab or reddish-brown to almost black; underparts grayish to cream-buff.

Geographic variation.—Eight subspecies are here recognized (see Figure 11). Features that vary geographically are mostly the same as those that do so in B. musculus (see page 609).

External and cranial size is less in B. t. allex, the southernmost subspecies, and progressively more in B. t. paulus, B. t. taylori, B. t. ater, B. t. subater, B. t. fuliginatus, B. t. canutus, and B. t. analogous. Size is largest in subspecies that occur at higher altitudes. Those subspecies are B. t. analogous and B. t. fuliginatus. The correlation with Bergman's Rule is less exact in B. taylori than in B. musculus. It is noteworthy that the smallest subspecies, B. t. allex, occurs in the area where the two species are sympatric.

There is close correlation in B. taylori, as also in B. musculus, of darker pelages with zones of high relative humidity. The subspecies having dark pelages are: analogous, fuliginatus, and subater. The two first-mentioned subspecies occur at high altitudes, and [Pg 631] the other, subater, occurs in the humid coastal region of Texas. The paler subspecies, taylori, canutus, and allex, occur at lower altitudes. Two subspecies that occur at relatively high altitudes, ater and paulus, are reddish-brown. The color of pelage in these subspecies resembles the color of soil upon which they live. Blair and Blossom (1948:5) demonstrated close correlation of color of soil with color of pelage in B. t. ater by use of an Ives tint photometer.

Fig. 11. Distribution of Baiomys taylori. Known localities of occurrence are represented by circles and black dots; the former denote localities that are peripheral (marginal) for the subspecies concerned.

1. B. t. allex
2. B. t. analogous
3. B. t. ater
4. B. t. canutus
     5. B. t. fuliginatus
6. B. t. paulus
7. B. t. subater
8. B. t. taylori

[Pg 632]

Natural History

Habitat and numbers.—The habitat occupied by the northern pygmy mouse ranges from sparse grassy areas along rock walls in central México (see Davis, 1944:394), and mesquite-cactus associations in southern Texas (Blair, 1952:242) to heavy stands of grasses such as Bouteloua sp., Andropogon sp., Hilaria sp., and sacaton grass intermixed with Yucca glauca in New Mexico, Arizona (see Hoffmeister 1956:281), and Chihuahua. Baker (1951:213) reports the species from 2 km. W El Carrizo, Tamaulipas, in dense grass and weeds at the edge of a cornfield. Hooper (1953:7) recorded the northern pygmy mouse in a cultivated field overgrown with herbaceous vegetation at Pano Ayuctle, Tamaulipas. In the State of Sinaloa, Hooper (1955b:13) obtained specimens in grass and among shrubs and vines bordering a fallow field. The northern pygmy mouse, in general, lives in situations more xerophytic and more grassy than does the southern pygmy mouse.

The northern pygmy mouse, as the southern pygmy mouse, is locally abundant in its geographic range. Stickel and Stickel (op. cit.: 145) pointed out that on the third night of live-trapping in Bexar County, Texas, there was a sudden increase in unmarked pygmy mice trapped. This increase in numbers, after the resident population was seemingly marked, followed a one-half inch rainfall. Collectors from the University of Kansas, myself included, have had similar experiences in trapping these mice. In the Mexican states of Guanajuato, Querétaro, and Jalisco, B. taylori is one of the commonest small mammals. In New Mexico and Arizona and the Mexican states of Sonora and Sinaloa, nevertheless, these mice are rare.

Stickel and Stickel (loc. cit.) thought that the home range normal for B. taylori in a grassy habitat was less than 100 square feet, but Blair (1953:10) thought that a complete home range had not been recorded by Stickel and Stickel.

Behavior.—The northern pygmy mouse is crepuscular to nocturnal and where I trapped in northern Mexico was one of the first small rodents to appear in my traps in the evening. Hall and Villa-R (1949:460) recorded this habit in Michoacán. Observations of wild-taken B. taylori held in captivity, lend support to its being crepuscular. Captives were rarely active in bright lights, but in diffuse or dim lights the same mice were active.

Blair (1941:381) pointed out that captive B. t. subater were much more tolerant of one another than mice of the genus Peromyscus. He pointed out also that males aided in care of young. In one [Pg 633] litter born in captivity in the course of my study, the female killed the male when the young were four days old. In another instance, the female and two eight-day-old young were killed by the male. Until that time, the male, female, and young had lived together peacefully. In other litters born in captivity, adult males did not harm the other mice.

I have noted, as Blair (loc. cit.) did, that B. taylori utters high-pitched squeals in a "singing" posture resembling that of the coyote, yet remains silent when being handled.

The northern pygmy mouse makes runways in the grass, in miniature resembling those of Microtus, and often uses runways constructed by Sigmodon. A small firm nest of finely shredded plant material (mostly grasses) is constructed in burrows or under logs, rocks, or fallen cactus plants. Thomas (1888:447) recorded nests of fine curly grass and cornsilk. Secondary refuge nests are not uncommon. Thomas (loc. cit.) states, "If other mice live in the same place, the individuals of Baiomys watch till others disappear, then suddenly steal part of the other nest and run to their own with it."

Enemies and food.—Little is recorded of the animals that prey upon the northern pygmy mouse. Twente and Baker (1951:120) found remains of B. taylori in 16 per cent of barn owl pellets (Tyto alba pratincola) collected 21 mi. SW Guadalajara, Jalisco. Presumably most of the crepuscular and early nocturnal raptorial birds and carnivorous mammals feed on these mice.

Food of B. taylori consists in part of grass seeds and leaves, prickly pear (Opuntia sp.) and the softer exposed parts of roots of vegetation among which the mice reside.

Reproduction.—The northern pygmy mouse breeds throughout the year. The only months in which I have not recorded pregnant females or females with young are June and October. Forty-one records of embryos or young per litter average 2.48 (less than in B. musculus), and range from as few as one to as many as four per litter.

Baiomys taylori allex (Osgood)
Peromyscus allex Osgood, Proc. Biol. Soc. Washington, 17:76-77, March 21, 1904; Elliot, Field Columb. Mus. Publ., 105(6):135, July 1, 1905; Lyon and Osgood, Bull. U. S. Nat. Mus., 62:124, January 15, 1909.
Baiomys taylori allex, Packard, Proc. Biol. Soc. Washington, 71:17, April 11, 1958; Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).
[Peromyscus] allex, Elliot, Field Columb. Mus. Publ., 95(4):175, July 15, 1904.
Peromyscus taylori paulus, Osgood, N. Amer. Fauna, 28:255, April 17, 1909 (part).

[Pg 634]

Baiomys taylori paulus, Miller, Bull. U. S. Nat. Mus., 79:137, December 31, 1912 (part); Miller, Bull. U. S. Nat. Mus., 128:317, April 29, 1924 (part); Ellerman, The Families and Genera of Living Rodents, British Mus. Nat. Hist., 2:402, March 21, 1941 (part); Poole and Schantz, Bull. U. S. Nat. Mus., 178:259, March 6, 1942; Goldman, Smith. Miscl. Coll., 115:373, July 31, 1951 (part); Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512, March 3, 1955 (part); Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).
Baiomys taylori analogous, Hall and Kelson, Univ. Kansas Publs., Mus. Nat. Hist., 5:367, December 15, 1952 (part).

Type.—Adult male, skin and skull; No. 33429/45452 U. S. Nat. Mus. (Biol. Surv. Coll.); Colima (City), Colima, Republic of México, obtained on March 7, 1892, by E. W. Nelson, original number 2029.

Range.—Colima, western lowlands of Michoacán and Jalisco, thence north into southern half of Nayarit, see Figure 11. Zonal range: arid lower tropical, approximates northern half of the Nayarit-Guerrero Biotic Province of Goldman and Moore (1945:349). Occurs from near sea level in Nayarit, up to 4000 feet in Jalisco.

Diagnosis.—Size small for the species; dorsal ground color pale grayish-brown, near Isabella color; mid-dorsal region washed with blackish, individual guard hairs black to base, other hairs black-tipped with subterminal light olive bands, Neutral Gray at base; laterally, black-tipped hairs less abundant, hairs grayish-white to base; venter Pale Gull Gray to whitish, distal half of individual hairs white, proximal half Neutral Gray; hairs in regions of throat and chin white to base; facial region colored like dorsum, becoming paler below eye; in region of mouth, hairs white to base; dorsalmost vibrissae black to base, others white to base; ears flesh-colored, sparsely haired; tail unicolored, sparsely haired for the species; dark blotches on tail of some series (particularly the paratypical series); dorsal and ventral parts of forefeet and hind feet flesh-colored, whitish to gray in some series. Slightly smaller in most cranial dimensions. Maxillary part of zygoma forming almost a right angle with rostrum, rather than tapering at less than a right angle to rostrum; supraoccipital rounded posteriorly rather than indented on each side of foramen magnum; cranium, relative to length of rostrum, more nearly square; interparietal large relative to size of cranium. Average and extreme measurements of five adults from 2 mi. SSE Autlán are as follows: total length, 100.0 (93-107); length of tail vertebrae, 40.0 (37-44); length of body, 60.0 (56-63); length of hind foot, 14.0 (14); length of ear from notch, 10.5 (10-11); occipitonasal length, 17.3 (16.8-17.9); zygomatic breadth, 9.1 (8.7-9.4); postpalatal length, 6.3 (6.0-6.6); least interorbital breadth, 3.4 (3.3-3.5); length of incisive foramina, 3.9 (3.8-4.0); length of rostrum, 5.5 (5.2-5.8); breadth of braincase, 8.6 (8.0-8.9); depth of cranium, 6.4 (6.0-6.7); alveolar length of maxillary tooth-row, 3.0 (2.8-3.1); for photographs of skull, see Plate 1i and Plate 4a.

Comparisons.—For comparisons with B. t. canutus, see account of that subspecies. From B. t. analogous, B. t. allex differs in: external and cranial dimensions less; dorsal coloration paler; tail and ears paler and less hairy; dorsum and belly paler; dorsal and ventral parts of forefeet and hind feet paler; median parts of incisive foramina less constricted on either side of midline and wider open laterally; interparietal larger in relation to skull; interorbital breadth greater relative to occipitonasal length.

[Pg 635]

B. t. allex differs from B. t. paulus as follows: dorsum gray with yellowish-brown wash rather than fawn to buff; tail unicolored in most series, less hairy; hind feet flesh-colored to light sooty, rather than whitish; rostrum slightly longer relative to occipitonasal length; incisive foramina differ from those of paulus in much the same way as from analogous.

Remarks.—Osgood (1909:255-256) dismissed as taxonomically unimportant the differences in color of pelage and size of cranium that he observed between the specimens from Colima (City), Colima, representative of allex and those representing paulus and chose to synonomize allex with paulus. The differences that Osgood (loc. cit.) deemed "… scarcely worthy of recognition …," are, in fact, not only worthy of recognition, but also important in an understanding of the evolution of Baiomys taylori (see speciation p. 659). Recently, I (1958b:17-18) studied ten specimens from Colima (City), Colima, and chose to regard Peromyscus [= Baiomys] allex as a subspecies. I suggested (loc. cit.) that the geographic range of B. t. allex might encompass the southern part of Nayarit, and western Jalisco. Subsequent study of specimens from these areas reveals that the populations there are referable to allex. Most of the specimens obtained from these areas, however, merit special comment.

In color of pelage, those populations from south of the Río Grande de Santiago and northwest of Guadalajara (4 mi. SE Ahuacatlán; 1 mi. E Ixtlán; Etzatlán) show evidence of intergradation with paulus to the east and south (Magdalena, Tequila, and Tala, Jalisco), and with populations more closely adjacent to the south bank of that river. Intergradation is indeed complex in this area. Specimens from some localities seem to be intergrades between allex and paulus; from other localities, some specimens are referable to allex, and the others to paulus; from still other localities, all specimens are referable to allex.

A series of 39 specimens from 1 mi. SSE Ameca, 4000 ft., Jalisco, are uniformly grayish-brown. This series averages grayer than paratypes of allex. There is little, if any, difference between the series from 1 mi. SSE Ameca and paratypes of allex in external size of body, hind foot, length of ear, and size and conformation of the cranium. Populations from Ameca and vicinity might be expected to average considerably larger inasmuch as they occur at higher altitudes (see Bergman's Rule, p. 609) then the material from the lower coastal plains to the south in Colima and Michoacán, and at lower elevations in the west in Jalisco and Nayarit. The means of external [Pg 636] and cranial measurements are not significantly different between the specimens from the highlands and those from the lowlands. In the area of Ameca where the two species B. musculus and B. taylori occur together, interspecific competition seems to have limited, perhaps even reduced, size of external and cranial parts of taylori (see p. 660).

In color, specimens from the northern part of the valley of the Río Tepalcatepec (10 mi. S, 1 mi. W Apatzingán) in Michoacán resemble paratypes of allex. Intergradation probably occurs to the north with analogous.

In the eight specimens from 13 mi. E and 1 mi. N Talpa de Allendé, the skull, as reflected in occipitonasal length and zygomatic breadth relative to length of body, is larger than in other specimens here assigned to allex. The median part of the belly of the eight specimens is buff-colored rather than whitish-gray as in typical allex; the mid-dorsal region also averages darker than in any other specimens referred to allex. Additional specimens are needed from this and closely adjacent areas, especially to the west on the coastal plain, in order to determine more accurately the taxonomic status of the mice there. At present, it seems best to refer them to allex. Possibly the population represented by the eight specimens is an incipient subspecies.

There is no evidence of hybridization or intergradation of populations of B. t. allex with any population of B. musculus where the two species occur together.

Specimens examined.—Total 233, all from the Republic of México, distributed as follows: Nayarit: 3 mi. SE Mirador, 7; 2 mi. S. Compostela, 2900 ft., 5; 4 mi. N Santa Isabel, 3800 ft., 2[25]; 2 mi. N Santa Isabel, 3800 ft., 22[25]; 4 mi SE Ahuacatlán, 5200 ft., 2[26]; 1 mi. E Ixtlán, 4000 ft., 13[25]; 1 mi. E Ixtlán del Río, 3700 ft., 1; 2 mi. WNW Valle de Banderas, near sea level, 1. Jalisco: Arroyo de Gavalán, 16[28]; Etzatlán, 6[27]; Mascota, 3900 ft., 6[27]; 7 mi W Ameca, 15[25]; 6 mi. W Ameca, 15[25]; 3 mi. W Ameca, 5[25]; Ameca, 4000 ft., 11[27]; 1 mi. SSE Ameca, 4000 ft., 38; 2 mi. N Resolana, 1500 ft., 28[25]; 13 mi. E, 1 mi. N Talpa de Allendé, 8; 2 mi. SSE Autlán, 5; 1 mi. N San Gabriel, 4000 ft., 1[25]; Las Canoas, l[28]. Colima: Type locality, 10[27] (including the type). Michoacán: 9 mi. S Lombardia, 1500 ft., 1; 3 mi. W Apatzingán, 1000 ft, 1; Apatzingán, 3[25]; 10 mi. S, 1 mi. W Apatzingán, 800 ft., 10.

Marginal records.Nayarit: 3 mi. SE Mirador; 1 mi. E Ixtlán del Río. Jalisco: Etzatlán; Ameca; 2 mi. N Resolana; Las Canoas. Michoacán: 9 mi. S Lombardia; 10 mi. S, 1 mi. W Apatzingán. Colima: type locality. Nayarit: Valle de Banderas.

[25] Univ. Michigan, Museum of Zoology.

[26] California Academy of Sciences.

[27] U. S. Nat. Museum (Biol. Surv. Coll.).

[28] American Museum of Natural History.

[Pg 637]

Baiomys taylori analogous (Osgood)
Peromyscus taylori analogous Osgood, N. Amer. Fauna, 28:256, April 17, 1909 (part); Elliott, Check-List Mamm., N. Amer. Cont., West Indies and Neighboring Seas, Suppl., Amer. Mus. Nat. Hist., p. 44, January 8, 1917.
Baiomys taylori analogous, Miller, Bull. U. S. Nat. Mus., 79:137, December 31, 1912; Miller, Bull. U. S. Nat. Mus., 128:318, April 29, 1924; Ellerman, The Families and Genera of Living Rodents, British Mus. Nat. Hist., 2:402, March 21, 1941; Poole and Schantz, Bull. U. S. Nat. Mus., 178:259, March 6, 1942; Davis, Jour. Mamm., 25:394, December 12, 1944; Hooper, Jour. Mamm., 28:50, February 15, 1947; Hall and Villa-R., Univ. Kansas Publs., Mus. Nat. Hist., 1:460, December 27, 1949; Hall and Villa-R., Anal. del Inst. Biol., 21:196, September 28, 1950; Goldman, Smith. Miscl. Coll., 114:373, July 31, 1951 (part); Hall and Kelson, Univ. Kansas Publs., Mus. Nat. Hist., 5:367, December 15, 1952 (part); Villa-R., Anal. del Inst. Biol., 23:435, May 20, 1953; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512, March 3, 1955; Hooper, Occas. Papers Mus. Zool. Univ. Michigan, 565:13, March 31, 1955; Packard, Proc. Biol. Soc. Washington, 71:17, April 11, 1958.
Peromyscus musculus brunneus, Elliot, Field Columb. Mus. Publ., 115(8):203, 1907 (part).
Peromyscus musculus [musculus], Osgood, N. Amer. Fauna, 28:258, April 17, 1909 (part).
Baiomys musculus musculus, Hall and Villa-R., Univ. Kansas Publs., Mus. Nat. Hist., 1:460, December 27, 1949 (part); Hall and Villa-R., Anal. del Inst. Biol., 21:196, September 28, 1950 (part).
Baiomys taylori taylori, Dalquest, Louisiana State Univ. Studies (Biol. Sci. Ser.), 1:155, December 28, 1953 (part); Hall and Kelson, The Mammals of North America, 2:660, March 31, 1959 (part).
Baiomys taylori allex, Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).
Baiomys musculus musculus, Hall and Kelson, The Mammals of North America, 2:661, March 31, 1959 (part).

Type.—Adult male, skin and skull; No. 120261 U. S. Nat. Mus. (Biol. Surv. Coll.); Zamora, Michoacán, Republic of México, obtained on January 15, 1903, by E. W. Nelson, and E. A. Goldman, original number 15764.

Range.—Central and eastern Jalisco south into Michoacán, east through Guanajuato, Querétaro, thence into Estado México, and Distrito Federal, and west-central Veracruz, see Figure 11. Zonal range: approximately the Transverse Volcanic Biotic Province of Moore (1945:218) and of Goldman and Moore (1945:349). Occurs from 5000 feet, 7 mi. S Ocotlán, Jalisco, up to 8000 feet in Ixtapalapa, Distrito Federal.

Diagnosis.—Size large for the species; dorsum dark Sepia to near blackish medially in freshly taken specimens (Sepia fading to near Fuscous in prepared specimens); belly slaty-gray, hairs Deep Neutral Gray near tips and Dusky Neutral Gray at bases; hairs on back black-tipped with subterminal band of Ochraceous-Tawny (guard hairs blackish to base); hairs of throat and chin white-tipped, gray at bases; dorsal vibrissae black, ventral and anteriormost vibrissae white; hairs on face and sides black-tipped, and Ochraceous-Tawny at base; ears sparsely haired, individual hairs grayish, blackish, and ochraceous; [Pg 638] tail sooty to blackish dorsally, lighter ventrally; forefeet and hind feet sooty brown on dorsal and ventral surface. Skull relatively broad interorbitally; zygoma broad and squared; cranium larger in all dimensions than in most other subspecies. Average and extreme measurements of 10 adults from 1 mi. S, 11 mi. W Zamora, 5400 ft., Michoacán, are: total length, 109.4 (102-121); length of body, 64.3 (58-72); length of tail, 44.9 (39-51); length of hind foot, 14.6 (14-15); occipitonasal length, 18.0 (17.5-18.6); zygomatic breadth, 9.4 (9.1-9.7); postpalatal length, 6.6 (6.2-7.2); least interorbital breadth, 3.5 (3.3-3.8); length of incisive foramina, 4.0 (3.8-4.2); length of rostrum, 6.2 (5.8-6.5); breadth of braincase, 8.7 (8.5-8.9); depth of cranium, 6.6 (6.3-6.9); alveolar length of maxillary tooth-row, 3.1 (3.0-3.3); for photographs of skull, see Plate 2a and Plate 4b.

Comparisons.—For comparisons with B. t. allex, B. t. canutus, B. t. paulus, and B. t. fuliginatus, see accounts of those subspecies. From B. t. taylori, B. t. analogous differs as follows: sides and dorsum darker, differing most in freshly prepared specimens; dorsal surface of forefeet and hind feet darker; basal part of hairs on belly darker gray; frontal bones less constricted, causing less taper anteriorly in interorbital space; interparietal wider transversely; basioccipital more expanded laterally, narrowing more abruptly at suture between basioccipital and basisphenoid.

Remarks.—The pelage of analogous becomes paler with wear as pointed out by Osgood (1909:257). A paratype, U. S. Nat. Mus. 120260, and several specimens from 1 mi. S, 11 mi. W Zamora, Michoacán, are grayish rather than brownish-black. All of these are old adults having the terminal black parts of the hairs on the dorsum nearly worn away. Excluding such grayish individuals, B. t. analogous, like B. t. subater and B. t. fuliginatus, is uniformly brownish-black. Both analogous and fuliginatus occur in relatively high mountainous country on dark soils or pedregals, and all three of the aforementioned subspecies occur in zones of high relative humidity.

B. t. analogous intergrades with B. t. paulus (see account of that subspecies) and B. t. allex south and west of Lago de Chapala in Jalisco. Additional specimens are needed from Querétaro and San Luis Potosí in order to ascertain whether or not B. t. analogous intergrades with B. t. fuliginatus or B. t. taylori. Specimens from western Jalisco, in the past referred to B. t. analogous, are referable to B. t. allex (see account of that subspecies). Specimens obtained west of, and bordering, the Río del Naranjo in Jalisco show a mixture of characters of both B. t. allex and B. t. analogous. For example, specimens from 2 mi. N Ciudad Guzmán resemble analogous on the dorsum, whereas, on the belly, the individual hairs are white-tipped, pale gray at the base, and in over-all appearance are whitish-gray, unlike typical analogous (being like allex instead). The dorsal surface of the forefeet are sooty to light brownish (as in analogous), [Pg 639] whereas, the hind feet are flesh-colored (as in allex). Another series of specimens from 4 mi. W León, Guanajuato, are intergrades between B. t. analogous and B. t. paulus. These specimens are grayish to brownish on the dorsum, have sooty forefeet and hind feet (more nearly as in analogous than in paulus), are grayish-white on the venter, and have a distinctly bicolored tail (resembling that of paulus more than that of analogous). When the average of cranial characters is considered, both series are best referred to analogous.

Hooper (1947:50) pointed out that specimens from the pedregal San Gerónimo, Distrito Federal, were more nearly black than topotypes and generally showed less brownish hues typical of analogous. I have examined this series and several others from this area (see Specimens examined, p. 640) and am convinced that these populations average darker. Actually, the dorsum is more nearly black and the venter is more buffy than in typical analogous. The hairs of these individuals average longer than in other populations of analogous. Skulls of the specimens from the pedregal are indistinguishable from those of paratypes of analogous. The populations from the Distrito Federal seem to be incipient subspecies.

Specimens examined.—Total 696, all from the Republic of México, distributed as follows: San Luis Potosí: Hacienda Capulín, 5[33]; 3.3 mi. N Tamazunchale, by-road, 2[34]; 1 mi. N Tamazunchale, 700 ft., 1[35]. Veracruz: Acultzingo, 4[29], 1[31]. Jalisco: 1 mi. S Jalostotitlán, 5700 ft., 5; 7 mi. NW Tepatitlán, 3[29]; 6 mi. N, 4 mi. E Tepatitlán, 6400 ft., 25; 21/2 mi. E Tepatitlán, 6200 ft., 15; 2 mi. S, 1/2 mi. W Tepatitlán, 9; near Tepatitlán, 2; 5 mi. SW Arrandas, 6700 ft., 6; 2 mi. E Zapotlanejo, 23; 21/2 mi. E Puente Grande (51/2 mi. SW Zapotlanejo), 3; 8 mi. S Guadalajara, 10[29]; 3 mi. ENE Santa Cruz de las Flores, 9; 4 mi. NE Ocotlán, 5050 ft., 18; 13 mi. S, 91/2 mi. W Guadalajara, 1; 2 mi. WNW Ocotlán, 5000 ft., 15; 13 mi. S, 15 mi. W Guadalajara, 2; Ocotlán, 5000 ft., 8[30]; 1 mi. S Ocotlán, 5000 ft., 12; 27 mi. S, 12 mi. W Guadalajara, 9; 11/2 mi. N Mazatmitla, 6[29]; 1/2 mi. NW Mazatmitla, 4; 3 mi. WSW Mazatmitla, 4; 2 mi. N Ciudad Guzmán, 5000 ft., 18. Guanajuato: 4 mi. N, 5 mi. W León, 7000 ft., 25; 5 mi. S Salamanca, 2[29]; 5 mi. E Celaya, 6000 ft., 6; 1 mi. E Yuriria, 5725 ft., 3; Salvatierra, 5775 ft., 8; NE edge Acambaro, 6050 ft., 10; Acambaro, 3[30]. Querétaro: Tolimán, 7[30]; 6 mi. E Querétaro, 6550 ft., 37. Hidalgo: Tula, 2050 m., 1[31]. Michoacán: 2 mi. E La Palma, SE side Lago de Chapala, 7; type locality, 4000 ft., 10[30] (including the type); 9 mi. E Zamora (Camenaro), 2[29]; 1 mi. S, 11 mi. W Zamora, 5400 ft., 17; S Cuitzeo, 36[29]; Jiquilpan, 4800 ft., 15; 11 mi. W Jiquilpan, 6700 ft., 2; 1 mi. E Jiquilpan, 7; 1 mi. E Zinapecuaro, 6300 ft., 17; 41/2 mi. NE Tarequato (Tarecuato), 6600 ft, 1; Tanganciguaro (Tangancicuaro), 5500 ft., 4; 2 mi. N Tarecuato, 7200 ft., 1; 2 mi. S Maravatio, 6650 ft, 6; 2 mi. SE Zacapu, 6600 ft., 11; 1 mi. N Tinquindin (Tinguindin), 6300 ft., 2; 3 mi. E Morelia, 6600 ft., 3; 11 mi. E, 2 mi. S Morelia, 1; 2 mi. SE Hidalgo (Villa Hidalgo), 6; 11/2 mi. N Los Reyes, 1; E Los Reyes, 18[29]; Los Reyes, 8[30]; 3 mi. W, 1 mi. N Pátzucuaro, 6600 ft., 2; N Pátzucuaro, 2[29]; Pátzucuaro 9[31], 4[30], 4[29]; Uruapan, 1[29]; E Uruapan, 12; 21/2 mi. E Uruapan (La Presca), 2[29]; 2 mi. SW Zitacuaro, 1; 1 mi. E, 6 mi. S Tacámbaro, 4000 ft., 11[37]; La Huacana, 1[30]. Mexico: Templo del Sol, Pyramídes de San Juan, [Pg 640] Teotihuacán, 8000 ft., 1; 31 km. E México City, 7500 ft., 11[36]; 17 km. E México City, 7500 ft, 1[36]; Cerro La Caldera, 11 mi. ESE México, 2350 m., 5; 4 km. ENE Tlalmanalco, 2290 m., 9; Hacienda Córdoba (Córdova), 6. Mexico, D. F.: Cerro de la Estrella, Ixtapalapa, 2450 m., 1; 3/4 mi. S, 1 mi. E Churubusco, 2400 m., 2; 5 km. S México City, South of Cd. Universitaria, l[32]; Pedregal San Angel, 2.6 mi. S Monumento a Obregón, 2; El Pedregal, 1 km. S San Angel, 2260 m., 1; Falda SW Cerro Zacatepec, 3.9 mi. SW Monumento a Obregón, 1; 2 mi. N Tlalpan, Zacayuca, 2380 m., 5; Tlalpan (Pedregal), 2400 m., 21[31]; San Gerónimo, 37[29], 6[38]; Santa Rosa, 2700 m., 1[32]; Tlalpan, 8; 3/4 mi. SW Las Fuentes, Tlalpan, 2450 m., 25[30]; Tepepán, 6[29]; Rancho La Noria, 1 mi. W Xochimilco, 2270 m., 4; 500 meters N Xochitepec, 2250 m., 7; 200 m. N San Mateo Xalpa (Jalpa), 2390 m., 2.

Marginal records.San Luis Potosí: Hacienda Capulín; 1 mi. N Tamazunchale. Hidalgo: Tula, 2050 m. Mexico: Templo del Sol, Pyramídes de San Juan, Teotihuacán. Veracruz: Acultzingo. Mexico: 4 km. ENE Tlalmanalco. Mexico, D. F.: 200 m. N San Mateo Xalpa (Jalpa), 2390 m. Michoacán: 2 mi. SW Zitacuaro; 1 mi. E, 6 mi. S Tacámbaro; Uruapan. Jalisco: 2 mi. N Ciudad Guzmán; 27 mi. S, 12 mi. W Guadalajara; 13 mi. S, 15 mi. W Guadalajara; 7 mi. NW Tepatitlán; 1 mi. S Jalostotitlán, 5700 ft. Guanajuato: 4 mi. N, 5 mi. W León. Querétaro: 6 mi. E Querétaro, 6550 ft.; Tolimán.

[29] Univ. Michigan, Museum of Zoology.

[30] U. S. Nat. Museum (Biol. Surv. Coll.).

[31] Chicago Natural History Museum.

[32] American Museum of Natural History.

[33] Museum of Natural History, Louisiana State University.

[34] Univ. Illinois, Mus. Nat. History.

[35] The Museum, Michigan State Univ.

[36] Texas A & M, Cooperative Wildlife Research Collection.

[37] Univ. California, Mus. Vert. Zoology.

[38] University of Florida Collections.

Baiomys taylori ater (Blossom and Burt)
Baiomys taylori ater Blossom and Burt, Occas. Papers Mus. Zool., Univ. Michigan, 465:2, October 8, 1942; Blair and Blossom, Contrib. Lab. Vert. Biol., Univ. Michigan, 40:1, March, 1948; Hoffmeister and Goodpaster, Ill. Biol. Monogr., 24(1):115, December 31, 1954; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:511, March 3, 1955; Hoffmeister, Amer. Midland Nat., 55:281, April, 1956; Packard, Jour. Mamm., 40:146, February 20, 1959; Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).
Peromyscus taylori paulus, Osgood, N. Amer. Fauna, 28:256, April 17, 1909 (part).
Baiomys taylori [ater], Justice, Jour. Mamm., 38:520, November 20, 1957.

Type.—Adult male, skin and skull; No. 85425, University of Michigan, Museum of Zoology; 7 mi. W Hereford, Cochise County, Arizona, obtained on March 25, 1941, by Philip M. Blossom, original number 2195.

Range.—Southeastern Arizona, north to Graham County, thence east to the Animas Valley, Hidalgo County, New Mexico; south to northern Chihuahua and northwest to the southern border of Cochise County, Arizona, see Figure 11. Zonal range: largely lower Sonoran (Apachian Biotic Province of Dice, 1943:56). Occurs from 4300 feet in Chihuahua up to 6200 feet in New Mexico.

Diagnosis.—Size medium for the species; dorsum between Mummy Brown and Prouts Brown; individual tips of hairs intermixture of black and Ochraceous-Tawny, bases of all hairs slate-gray; sides of body and face, Buffy Brown to Cinnamon Brown; belly Cinnamon Buff, proximal half of individual hairs Deep Neutral Gray, distal half white; in region of throat, proximal [Pg 641] fourth of individual hairs gray, distal three-fourths white; dorsal vibrissae black to base, ventral vibrissae white to base; tail brownish above, gray below; dorsal and ventral surface of forefeet and hind feet buffy to gray; interparietal somewhat compressed anteroposteriorly. Average and extreme cranial measurements of 15 adults from 91/2 mi. W New Mexico State Line, 51/2 mi. N Mexican border, Cochise County, Arizona, are as follows: occipitonasal length, 18.0 (17.5-18.6); zygomatic breadth, 9.5 (9.2-9.9); postpalatal length, 6.6 (6.0-7.1); least interorbital breadth, 3.6 (3.4-3.8); length of incisive foramina, 4.0 (3.8-4.2); length of rostrum, 6.1 (5.7-6.4); breadth of braincase, 8.6 (8.4-9.1); depth of cranium, 6.5 (6.3-6.9); alveolar length of maxillary tooth-row, 3.2 (3.1-3.4). Average and extreme external measurements for six adults from 9 mi. W Hereford, Cochise County, are as follows: total length, 106.3 (98-115); length of tail vertebrae, 42.3 (39-46); length of body, 64 (59-69); length of hind foot, 13.6 (13-14.2); length of ear from notch, 11.1 (10.5-11.5); for photographs of skull, see Plate 2b, and Plate 4c.

Comparisons.—For comparisons with B. t. canutus, see account of that subspecies. From B. t. paulus, the subspecies to the southeast, B. t. ater differs in: dorsum darker brown; tail less strikingly bicolored; belly buffy rather than whitish to white-gray; forefeet and hind feet darker dorsally and ventrally; posterior margin of basioccipital bowed anteriorly in a broad U-shape with a secondary small median anteriorly directed U-shaped curve, rather than bowed anteriorly in a simple U-shape; interparietal more compressed anteroposteriorly; coronoid process of mandible so acutely recurved that tip of coronoid points posteroventrally and appears sickle-shaped.

Remarks.—Blossom and Burt (1942:1) described B. t. ater as the darkest of the known subspecies. It is dark, but specimens from some parts of the ranges of B. t. analogous, B. t. fuliginatus, and B. t. subater exceed in melanins the darkest individuals of ater. Blair and Blossom (1948:5) also concluded by the use of an Ives tint photometer that B. t. subater was significantly darker than B. t. ater.

When paratypes of ater and specimens of B. t. paulus are compared, the darkest individuals of ater exceed but slightly the darkest of paulus. The darkest specimens of paulus occur in southern Zacatecas, and northern Jalisco, and the palest of the series are in northern Durango and southern Chihuahua. When paratypes of ater and paulus are compared, the difference in color is readily distinguishable. Specimens from 11/2 mi. N San Francisco, in northern Chihuahua, appear to be intermediate in color between ater and paulus except for a faint tinge of buff ventrally. In characters of the crania, these specimens resemble ater and are referred to that subspecies. A slightly different pattern of color is present in pygmy mice from the Peloncillo Mountains and the Animas Valley of New Mexico; the upper parts resemble those of paratypes of ater, but the venter has only the faintest suggestion of the [Pg 642] buffy wash. Crania of these specimens from New Mexico are inseparable from those of paratypes of ater, and the specimens are, therefore, referred to ater.

When specimens are arranged by localities from Arizona east into southern New Mexico, thence south into Chihuahua and Durango, gradual intergradation in color is evident from dark in the north to pale browns in the south, whereas, size and shape of interparietal and size and shape of coronoid process of the lower jaw divide quite distinctly into two morphological types in central Chihuahua.

Cranial variation in size and proportion among adults is slight throughout the range of ater compared to variation detected in other subspecies of Baiomys taylori. Perhaps such a relatively stable pattern of characters of the crania reflects the homogeneity of the gene pool, with respect to these characters, of the populations sampled. The fact that the color of the pelage of this subspecies varies considerable throughout its known range and that the crania do not is perhaps a clue to the mode of inheritance of characters in these mice. Seemingly, color of pelage is inherited independently of characters of the cranium. The relative lack of variability in the crania of ater may result from uniform environmental conditions, which have served to select for uniform characters in the populations. All of the other wide-ranging subspecies of B. taylori occupy more diverse habitats than ater. Secondly, the rather abrupt change in the cline of measured characters of the crania between ater and paulus in central Chihuahua suggests a secondary zone of intergradation. The probable cessation of gene flow in the past between these two subspecies, allowing ater to be isolated for a time, may also, in part, account for the relative lack of variability in the crania of ater.

Specimens examined.—Total 58, distributed as follows: Arizona: Graham County: 11/2 mi. SW Ft. Grant, Graham Mts., 1[39]; Pima County: 11/2 mi. ENE Greaterville, Thurber Ranch, 2[39]; Santa Cruz County: Patagonia, 3[39]; Cochise County: 9 mi. W Hereford, 10[43]; type locality, 2[43] (including the type); 5 mi. W Hereford, 5[43]; 91/2 mi. W New Mexico State Line, 51/2 mi. N Mexican border, 20[42]; 3 mi. E, 1 mi. N Chiricahua, 1[42]. New Mexico: Hidalgo County: 18 mi. S, 2 mi. W Animas, 2; 22 mi. S, 2 mi. W Rodeo, 6000 ft., 1[40]; 22 mi. S, 2 mi. E Rodeo, 6000 ft., 3[40]; 251/2 mi. S Animas, 6200 ft. (in Big Bill Canyon), 1[40]. Chihuahua: 51/2 mi. N, 2 mi. W San Francisco, 5100 ft., 1; 21/2 mi. N, 3 mi. W San Francisco, 5200 ft., 1; 11/2 mi. N San Francisco, 5100 ft., 4; Casas Grandes, 4300 ft., 1[41].

Marginal records>Arizona: 11/2 mi. SW Ft. Grant, Graham Mts. New Mexico: 18 mi. S, 2 mi. W Animas; 251/2 mi. S Animas (in Big Bill Canyon). Chihuahua: 11/2 mi. N San Francisco; Casas Grandes. Arizona: Patagonia; 11/2 mi. ENE Greaterville, Thurber Ranch.

[39] University of Illinois, Museum of Natural History.

[40] University of New Mexico.

[41] U. S. Nat. Museum (Biol. Surv. Coll.).

[42] University of Arizona.

[43] Univ. Michigan, Museum of Zoology.

[Pg 643]

Baiomys taylori canutus, new subspecies
Peromyscus taylori paulus, Osgood, N. Amer. Fauna, 28:255, April 17, 1909 (part).
Peromyscus musculus [musculus], Osgood, N. Amer. Fauna, 28:256, April 17, 1909 (part).
Baiomys taylori paulus, Miller, Bull. U. S. Nat. Mus., 79:137, December 31, 1912 (part); Miller, Bull. U. S. Nat. Mus., 128:317, April 29, 1924 (part); Burt, Miscl. Publ., Mus. Zool., Univ. Michigan, 39:54, February 14, 1938; Goldman, Smith. Miscl. Coll., 115:373, July 31, 1951 (part); Miller and Kellogg, Bull. U. S. Nat. Mus., 205:512, March 3, 1955 (part); Hooper, Occas. Papers Mus. Zool., Univ. Michigan, 565:13, March 31, 1955; Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).
Baiomys musculus musculus, Goldman, Smith. Miscl. Coll., 115:336, July 31, 1951 (part).

Type.—Adult male, skin and skull; No. 62075, University of Kansas, Museum of Natural History; 1 mi. S Pericos, Sinaloa, Republic of México; obtained on June 14, 1954, by A. A. Alcorn, original number 1754.

Range.—Central Nayarit northward through western Sinaloa, to as far north as south-central Sonora, see Figure 11. Zonal range: Lower arid tropical, closely approximating the Sinaloan Biotic Province of Goldman and Moore (1945:349). Occurs from near sea level at Escuinapa (43 feet), Sinaloa, to 3200 feet at a place 2 mi. WNW Tepic, Nayarit.

Diagnosis.—Dorsal ground color Buffy Brown (some specimens near Olive Brown); proximal fourth of individual guard hairs of dorsum black-tipped, distal three-fourths dark grayish; dorsal underfur black-tipped having subterminal band of Buffy Brown; hair around eyes buffy to base; belly Pallid Neutral Gray with overtones of buff; individual hairs in region of chin whitish-gray to bases; vibrissae blackish to bases except ventralmost, those being white to base; tail Dark Olive above, slightly paler below. Average and extreme external measurements of 13 adults from 15 mi. N Rosario, Chelé, Sinaloa, 300 ft., are as follows: Total length, 109.6 (99-120); length of tail, 43.4 (38-49); length of body, 66.2 (58-75); length of hind foot, 11.2 (10-12). Average and extreme cranial measurements of 19 adults from the same place are as follows: occipitonasal length, 18.2 (17.7-18.9); zygomatic breadth, 9.6 (9.2-10.1); postpalatal length, 6.9 (6.5-7.3); least interorbital breadth, 3.6 (3.4-3.8); length of incisive foramina, 3.9 (3.5-4.2); length of rostrum, 5.9 (5.5-6.6); breadth of braincase, 8.7 (8.3-8.9); depth of cranium, 6.5 (6.2-6.7); alveolar length of maxillary tooth-row, 3.1 (3.0-3.2); breadth of zygomatic plate, 1.8 (1.6-2.0); for photographs of skull, see Plate 2c, and Plate 4d.

Comparisons.—From B. t. ater, B. t. canutus differs in: dorsum slightly grayer; belly whitish to pale-gray with only faint tones of buff, rather than cinnamon-buff to buff-gray; forefeet and hind feet flesh-colored to grayish above instead of whitish to flesh-colored; tail paler above, less hairy, scales more evident; interparietal relatively larger from anteriormost to posteriormost points; incisive foramina tapering less abruptly posteriorly, not constricted towards midline; over-all size of body and cranium somewhat larger.

From B. t. paulus, B. t. canutus differs in: dorsum grayish-brown rather than fawn-colored (not differing appreciably from extremes of darker brown specimens of paulus); forefeet and hind feet flesh-colored to grayish above [Pg 644] rather than white above; tail less hairy, unicolored to faintly bicolored rather than distinctly bicolored; braincase slightly larger; alveolar length of maxillary tooth-row slightly less.

From B. t. analogous, B. t. canutus differs in: dorsum paler, less of dark brown hues; belly paler; forefeet and hind feet slightly paler, less sooty above; tail less hairy, paler and having scales evident; jugal of zygoma extending ventrally to a point immediately above, instead of below, level of alveolus of upper molars; nasals more nearly truncate anteriorly; infraorbital foramina less deeply notched toward midline of skull; body and skull averaging smaller throughout.

From B. t. allex, B. t. canutus differs in: dorsal ground color grayish rather than fawn color having grayish overtones; underfur on dorsum darker gray; dorsal surface of forefeet and hind feet flesh-colored to grayish rather than flesh-colored; incisive foramina tapering to a point posteriorly rather than rounded posteriorly; interparietal relatively smaller; body and skull averaging larger throughout.

Remarks.—Burt (1938:54) reluctantly assigned specimens from Ciudad Obregón to B. t. paulus, probably being influenced by the resemblance in size. He suggested that, perhaps, a distinct subspecies occurs in the State of Sonora. Study of larger series of specimens than were available to Burt reveals that populations of pygmy mice inhabiting the northwest coastal plains of México are indeed distinct.

The darkest of the material assigned to canutus is from Nayarit (for specific localities see specimens examined). According to Tamayo (1949:Carta de Suelos), color of soil changes from chestnut in northern Sinaloa to black in southern Sinaloa and northern Nayarit. There seems, therefore, to be a close correlation between color of pelage and color of soil in this area. In Nayarit, particularly in the central and southern parts, the mice are intermediate in color between the paler, grayer population to the north and the more brownish samples, representative of allex to the south. The coastal vegetation changes from the arid tropical thorn forests of the north and central parts of Sinaloa to a savannah in Nayarit, thence to a tropical deciduous forest farther south (see Leopold, 1950:508).

In size and color, specimens from 3 mi. SE Tepic and 2 mi. SW Rosa Morada are intermediate between the larger, grayer canutus and the smaller, light-brownish allex. In size of cranium, these specimens are more nearly like canutus, and are referred to that subspecies. Mice from the western coastal plain are relatively homogeneous as regards size of body and skull, except that those from 13.5 mi. S Acaponéta, Nayarit, average somewhat larger.

B. t. canutus, like B. t. subater, is predominantly a lowland or coastal subspecies. The pallor of the former, that lives on generally paler soils, presumably is of adaptive value.

[Pg 645]

Pygmy mice are seemingly rare in the northern part of the range of this subspecies. J. Raymond Alcorn and Albert Alcorn were successful in collecting only two specimens from the type locality after three successive nights of trapping with 100 traps set each night. Only six specimens are known from Sonora. These were obtained in the irrigated regions of Ciudad, Obregón, and Navajoa. Charles Sibley obtained one specimen 10.6 mi. SE Ciudad Obregón in a "maguey field." I obtained one specimen 1 mi. NNW Navajoa in a sparse grassway, 20 feet wide, bordering an open sewer, which coursed northward into the Río Mayo. Irrigated wheat fields bordered the grassway and ditch.

Specimens examined.—Total 70 all from the Republic of México and distributed as follows: Sonora: [Ciudad] Obregón, 4[44]; 10.6 mi. SE [Ciudad] Obregón, 1[45]; 1 mi. NNW Navajoa, 1. Sinaloa: type locality, 2 (including the type); Culiacán, 175 ft., 2[46]; Mazatlán, 1[48]; 15 mi. N Rosario, Chelé, 300 ft., 35[47]; Rosario, 3[46]; Escuinapa, 5[48]; Railroad Station Escuinapa, 43 ft., 2[45]. Nayarit: Acaponéta, 4[46]; 13.5 mi. S Acaponéta Junction, 6[49]; 2 mi. SW Rosa Morada, 2; 2 mi. WNW Tepic, 3200 ft., 1; 3 mi. SE Tepic, 1.

Marginal records.Sonora [Ciudad] Obregón. Sinaloa: type locality; Escuinapa. Nayarit: Acaponéta; 3 mi. SE Tepic. Sinaloa: Mazatlán.

[44] Coll. Univ. California, Los Angeles.

[45] Univ. California, Mus. Vert. Zoology.

[46] U. S. Nat. Museum (Biol. Surv. Coll.).

[47] Univ. Michigan, Museum of Zoology.

[48] American Museum of Natural History.

[49] Univ. Illinois, Mus. Nat. History.

Baiomys taylori fuliginatus, new subspecies
Baiomys taylori taylori, Dalquest, Louisiana State Univ. Studies (Biol. Sci. Ser.) 1:155, December 28, 1953 (part).
Baiomys taylori taylori, Booth, Walla Walla Publs. Dept. Biol. Sci., 20:15, July 10, 1957 (part).

Type.—Adult male, skin and skull; No. 36765, University of Kansas, Museum of Natural History; 10 mi. E, 2 mi. N Ciudad del Maíz, 4000 ft., San Luis Potosí, Republic of México; obtained on January 17, 1950, by J. R. Alcorn, original number 10400.

Range.—Occurs in the Sierra Madre Oriental of the northeastern third of San Luis Potosí. Zonal range: Upper Tropical (see Dalquest, 1953:10); approximates a part of the Sierra Madre Oriental Biotic Province of Goldman and Moore (1945:349, 356). Occurs from 2000 feet at El Salto up to 4000 feet at Ciudad del Maíz.

Diagnosis.—Size large for the species; ground color of dorsum Chaetura Drab; individual guard hairs of dorsum black to base, distal fourth of hairs of underfur in posterior half of dorsum tipped with grayish-brown, proximal three-fourths Dark Neutral Gray; in anterior region of dorsum, posterior to ears, distal third of hairs grayish-brown and proximal two-thirds Dark Neutral Gray to base; sides slightly paler than dorsum; ground color of belly Neutral Gray, individual hairs of belly and throat tipped with Pallid Neutral Gray, basally Deep Neutral Gray to Dark Neutral Gray; tips of individual hairs of face Ochraceous-Tawny; lateral vibrissae whitish, dorsal and ventral vibrissae black to base; forefeet and hind feet sooty above and below, thigh bearing [Pg 646] some white-tipped hairs; tail near Chaetura Drab above, Pale Neutral Gray below; anterior part of jugal projecting slightly ventrally and forming small protuberance at point of articulation with maxillary part of zygoma; jugal extending anteriorly nearly to lacrimal. In most cranial measurements averaging as large as B. t. analogous. Average and extreme measurements of the type and three additional paratypes, all adults, are: total length, 105.5 (101-109); length of tail, 39.8 (35-42); length of body, 65.8 (63-68); length of hind foot, 14.3 (14-15); length of ear from notch, 11 (11); occipitonasal length, 18.1 (18.1-18.8); zygomatic breadth, 9.6 (9.3-9.8); postpalatal length, 6.5 (6.0-6.7); least interorbital breadth, 3.4 (3.3-3.6); length of incisive foramina, 4.0 (3.8-4.2); length of rostrum, 6.3 (6.1-6.4); breadth of braincase, 8.8 (8.6-8.9); depth of cranium, 6.7 (6.5-6.8); alveolar length of maxillary tooth-row, 3.2 (3.1-3.3); for photograph of skull, see Plate 2d, and Plate 4e.

Comparisons.—From B. t. taylori, B. t. fuliginatus differs in: dorsum slightly darker than in darkest taylori; tail densely haired, bicolored rather than unicolored; belly sooty to grayish rather than grayish to whitish; forefeet and hind feet sooty to grayish rather than flesh-colored; incisive foramina less bowed laterally, more nearly straight; interparietal compressed anteroposteriorly, less diamond-shaped.

From B. t. paulus, B. t. fuliginatus differs in: dorsum dusky to blackish rather than fawn color; belly sooty to grayish rather than buffy to whitish-gray; forefeet and hind feet sooty to grayish rather than whitish; zygoma more nearly forming a right angle with rostrum or skull, less tapered anteriorly; anterior part of jugal possessing ventral projection; jugal extending nearly to lacrimal on posterior surface of maxillary part of zygoma.

From B. t. analogous, B. t. fuliginatus differs in: mid-dorsal region blacker, less brownish; tail distinctly bicolored rather than unicolored to faintly bicolored; incisive foramina not constricted medially; presphenoid broader (at narrowest point); jugal differs much the same as it does from paulus; nasals anteriorly truncate instead of rounded.

Remarks.—Dalquest (1953:155-157) and Booth (1957:15) assigned all of the pygmy mice that they examined from the state of San Luis Potosí to B. t. taylori. Examination of all of the material that was available to Dalquest, plus additional specimens at the University of Kansas Museum of Natural History, reveals that there are three subspecies in San Luis Potosí. B. t. taylori occurs in the eastern part of the State at lower altitudes; B. t. analogous occurs to the southeast at higher altitudes; B. t. fuliginatus occurs in the northeastern part of the State in the Sierra Madre Oriental.

Specimens obtained from Ebano, Pujal, and Tamuín, representative of B. t. taylori, are much paler on the belly and on the ventral surface of the forefeet and hind feet than are specimens from Ciudad del Maíz, representative of B. t. fuliginatus. The tail in B. t. taylori is nearly unicolored and less hairy than in the paratypical series of fuliginatus. Specimens from 4 km. NE Ciudad Valles are nearly intermediate in color of the belly, dorsum, forefeet and hind [Pg 647] feet, and tail, between the palest mice from the coastal plain and the darker mice in the mountains of the northeastern part of the State (specimens from El Salto average paler, however, than the type and paratypes). These specimens seem to be intergrades between B. t. taylori to the east on the coastal plain and fuliginatus to the northwest in the mountains. It seems best to refer the mice from 4 km. N Ciudad Valles to B. t. taylori on the basis of the average of external and cranial characters. Specimens from 6 mi. SW San Gerónimo, Coahuila, also referred to B. t. taylori, resemble in color the mice from 4 km. N Ciudad Valles. When more specimens are obtained from the front range of the Sierra Madre Oriental, at lower altitudes, the manner in which these two subspecies intergrade with one another will be better understood. At present, populations from higher altitudes in the mountains seem to represent a dark subspecies; populations from the coastal plain represent a pale subspecies, and those from the lower slopes and high valleys seemingly are intergrades. B. t. fuliginatus occurs in a somewhat limited strip of chernozem soil (or suelos negros of Tamayo, 1949: Carta de Suelos). The populations occurring at lower altitudes on the coastal plain are on generally paler soils.

Specimens examined.—Total 39, all from the Republic of México, as follows: San Luis Potosí: El Salto, 24 Mus. Nat. Hist., Louisiana State Univ., 7 Amer. Mus. Nat. Hist.; type locality, 8 (including the type).

Marginal records.—See specimens examined.

Baiomys taylori paulus (J. A. Allen)
Peromyscus paulus, J. A. Allen, Bull. Amer. Mus. Nat. Hist., 19:598, November 12, 1903; Elliot, Field Columb. Mus. Publ., 105(6): 136, July 1, 1905.
Baiomys taylori paulus, Miller, Bull. U. S. Nat. Mus., 79:137, December 31, 1912 (part); Miller, Bull. U. S. Nat. Mus., 128:317, April 29, 1924 (part); Ellerman, The Families and Genera of Living Rodents, 2:402, March 21, 1941 (part); Goldman, Smith, Miscl. Coll., 115:373, July 31, 1951 (part); Hall and Kelson, Univ. Kansas Publs., Mus. Nat. Hist., 26:367, December 15, 1952; Goodwin, Bull. Amer. Mus. Nat. Hist., 102:318, August 31, 1953; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:511, March 3, 1955 (part); Packard, Proc. Biol. Soc. Washington, 71:17, April 11, 1958; Packard, Jour. Mamm., 40:146, February 20, 1959; Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).
[Peromyscus] paulus, Elliot, Field Columb, Mus. Publ., 95(4):136, July 15, 1904.
Peromyscus taylori paulus, Osgood, N. Amer. Fauna, 28:255, April 17, 1909 (part).
Peromyscus musculus [musculus], Osgood, N. Amer. Fauna, 28:256, April 17, 1909 (part).
Baiomys taylori [= paulus], Twente and Baker, Jour. Mamm., 32:121, February 15, 1951.

[Pg 648]

Baiomys musculus musculus, Goldman, Smith. Miscl. Coll., 115:336, July 31, 1951 (part).
Baiomys taylori allex, Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).

Type.—Adult male, skin and skull; No. 21165, American Museum of Natural History; Río Sestín, Durango, Republic of México; obtained on April 15, 1903, by J. H. Batty, original number 455.

Range.—Central Chihuahua south through Durango (west to eastern edge of Sierra Madre Occidental), to Zacatecas and Aguascalientes, thence west into northern and northwestern Jalisco, see Figure 11. Zonal range: Lower Sonoran, approximately the Chihuahua Desert Biotic Province of Goldman and Moore (1945:349). Occurs from 4000 feet 2 mi. ESE Tequila, Jalisco, up to 6700 feet 2 mi. W Miñaca, Chihuahua.

Diagnosis.—Size medium to small for the species; dorsum Buffy Brown to fawn color; dorsal ground color of unworn pelage of adults varying from Buffy Brown in darkest series (especially those from higher altitudes) to Avellaneous with grayish overtones in palest series; worn pelage in mid-dorsal region of adults fawn to grayish; terminal parts of individual hairs buffy, gray basally; guard hairs on dorsum black-tipped, grayish basally; belly Light Gull Gray, distal half of hairs white, proximal half Neutral Gray; hairs in region of throat and chin white to base (some specimens with faint buffy overtones); forefeet dusky below, whitish above; hind feet whitish above, ventral surface whitish to dusky; dorsal and lateral vibrissae black, other vibrissae white. Average and extreme measurements of six adults from the type locality are as follows: total length, 109 (106-117); length of tail, 44.5 (43-48); length of body, 63 (57-69); length of hind foot, 13.1 (12.7-14.0); occipitonasal length, 17.5 (17.4-18.0); zygomatic breadth, 9.3 (9.1-9.5); postpalatal length, 6.6 (6.2-6.9); least interorbital breadth, 3.5 (3.4-3.6); length of incisive foramina, 3.8 (3.6-4.1); length of rostrum, 5.9 (5.7-6.0); breadth of braincase, 8.6 (8.5-8.8); depth of cranium, 6.6 (6.2-6.9); alveolar length of maxillary tooth-row, 3.2 (3.1-3.4); for photographs of the skull, see Plate 2e and Plate 4f.

Comparisons.—For comparisons with B. t. allex, B. t. canutus, B. t. ater, and B. t. taylori, see accounts of those subspecies. From B. t. analogous, B. t. paulus differs as follows: dorsal color paler having more reddish-brown than blackish-brown tones; venter whitish to buffy, instead of gray to light-gray; tail bicolored (not unicolored), usually having more hairs; hind feet white (not sooty) above. Cranially, B. t. paulus differs from B. t. analogous in: skull slightly smaller in all dimensions; maxillary part of zygoma narrowing and forming oblique angle rather than a near right angle with rostrum; anterior incisive foramina constricted posteriorly; tips of nasals truncate (less rounded).

Remarks.—J. A. Allen (1903:599) correctly pointed out that young specimens, in first pelage, were gray brown; young adults were darker and more varied with some blackish; adults and old adults were buffy to grayish. The change in color of pelage with increasing age is more pronounced in paulus than in other subspecies of B. taylori. Of two males collected on April 12, 1949, one, an adult, is buffy brown, and the other, an old adult with worn pelage, is grayish-brown. In mice in the earlier stages of adulthood, [Pg 649] underfur of the dorsum is buffy at the tips and gray basally. With increased wear, the buffy tip is lost. Consequently, mice in the later stages of adulthood are grayish.

B. t. paulus intergrades with ater to the north in Chihuahua (see account of that subspecies), with analogous to the south in Jalisco, and with allex (see account of that subspecies) to the southwest in Nayarit and Jalisco. The zone of intergradation between paulus and analogous in Jalisco approximately borders the Río Grande de Santiago from the western part of the State to the northwest shore of Lago de Chapala. Nineteen specimens from 2 mi. WNW Lagos de Moreno in northwest Jalisco seem to be intermediate between paulus and analogous in color, averaging slightly grayer than typical paulus. The series of 19 is referable to paulus on the basis of cranial characters.

A series of 34 specimens from 3 mi. W La Venta, Jalisco (referable to paulus), is indistinguishable in color of pelage from two series of paulus from 5 mi. N Durango, and from 8 mi. NE of Durango, except that the antiplantar surfaces of the hind feet are sooty as in analogous. Seemingly, features of color mentioned above as diagnostic of the two subspecies are either present or absent and there is no tendency toward intermediacy in color in the population from 3 mi. W La Venta.

The Río Grande de Santiago may have acted in the past as a physical barrier reducing gene flow between allex and paulus and in separating completely the two populations for limited periods.

Specimens examined.—Total 176, all from the Republic of México and distributed as follows: Chihuahua: Rancho Sanignacio, 4 mi. S, 1 mi. W Santo Tomás, 1; El Rosario, 6700 ft., 1; 2 mi. W Miñaca, 6900 ft., 11; Balleza, 1[50]. Durango: Rosario, 1[51]; type locality, 14[51] (including the type); San Gabriel, 2[51]; Rancho Santuario, 2[51]; 1 mi. N Chorro, 6450 ft., 1; 8 mi. NE Durango, 6200 ft., 2; 5 mi. N Durango, 6400 ft., 2. Zacatecas: Valparaíso, 6500 ft., 10[50]. Aguascalientes: 18 mi. W, 2 mi. S Aguascalientes, 6000 ft., 1; 16 mi. S Aguascalientes, 5[52]. Jalisco: 1 mi. NE Villa Hidalgo, 6500 ft., 1; 2 mi. WNW Lagos de Moreno, 6370 ft., 19; 2 mi. ESE Tequila, 4000 ft., 11; 3 mi. W La Venta, 33, 1[53]; 12 mi. W Guadalajara, 3[54]; Atemajac, 12[50]; 4 mi. W Guadalajara, 5100 ft., 3; 2 mi. N, 1/2 mi. W Guadalajara, 11; 2 mi. NW Magdalena, 4500 ft., 7[50]; 1 mi. N Tala, 4400 ft., 3; 3 mi. W Tala, 4300 ft., 18.

Marginal records.Chihuahua: Rancho Sanignacio, 4 mi. S, 1 mi. W Santo Tomás; El Rosario; Balleza. Durango: Rosario, 6700 ft.; 1 mi. E Zarca (Blossom and Burt, 1942:1); 1 mi. N Chorro, 6450 ft. Zacatecas: Valparaíso, 6500 ft. Aguascalientes: 1 mi. N Chicalote (Blossom and Burt, 1942:4). Jalisco: 2 mi. WNW Lagos de Moreno, 6370 ft.; 4 mi. W Guadalajara, 5100 ft.; 3 mi. W Tala, 4300 ft.; 2 mi. NW Magdalena, 4500 ft. Durango: 5 mi. N Durango, 6400 ft.; type locality. Chihuahua: 2 mi. W Miñaca, 6900 ft.

[50] United States National Museum (Biol. Surv. Collections).

[51] American Museum of Natural History.

[52] Univ. Illinois, Mus. Nat. History.

[53] The Museum, Michigan State Univ.

[54] Univ. Michigan, Museum of Zoology.

[Pg 650]

Baiomys taylori subater (V. Bailey)
Peromyscus taylori subater, V. Bailey, N. Amer. Fauna, 25:102, October 24, 1905; Lyon and Osgood, Bull. U. S. Nat. Mus., 62:139, January 15, 1909; Osgood, N. Amer. Fauna, 28:255, April 17, 1909; Elliot, Check-List Mamm. N. Amer. Continent, West Indies and Neighboring Seas, Suppl., Amer. Mus. Nat. Hist, p. 44, January 8, 1917.
Baiomys taylori subater, Miller, Bull. U. S. Nat. Mus., 79:136, December 31, 1912; Miller, Bull. U. S. Nat. Mus., 128:317, April 29, 1924; Anthony, Field Book of North American Mammals, p. 348, 1928; Baker, Jour. Mamm., 21:223, May 14, 1940; Ellerman, The Families and Genera of Living Rodents, 2:402, March 21, 1941; Blair, Jour. Mamm., 22:378, November 14, 1941; Poole and Schantz, Bull. U. S. Nat. Mus., 178:259, March 6, 1942; Blair, Jour. Mamm., 23:196, May 14, 1942; Blair and Blossom, Contrib. Lab. Vert. Biol., Univ. Michigan, 40:1, March, 1948; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:511, March 3, 1955; Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959.
Baiomys taylori [= subater], Taylor and Davis, Texas Game, Fish and Oyster Comm. Bull., 27:56, August, 1947 (part).

Type.—Subadult female, skin and skull; No. 32616/44539 U. S. Nat. Mus. (Biol. Surv. Coll.); Bernard Creek, near Columbia, Brazoria County, Texas; obtained on February 25, 1892, by W. Lloyd, original number 1122.

Range.—Southeastern Texas, north of Matagorda Bay west to Lavaca County, north to Brazos and Walker counties thence east to Jefferson County, see Figure 11. Occurs from near sea level in Brazoria and Galveston counties, up to 500 feet in western part of range. Zonal range: Humid division of lower Austral (the western part of the Austroriparian Biotic Province of Dice, 1943:18-21).

Diagnosis.—Size medium to large for the species; mid-dorsal region Clove Brown (sooty in freshly captured specimens); some parts of mid-dorsal region all blackish; individual guard hairs of dorsum black-tipped, Deep Neutral Gray basally; underfur black-tipped with subterminal band of light buff, Neutral Gray at base; belly grayish-white, laterally Isabella Color; distal three-fourths of hairs in region of throat and chin white, proximal fourth light gray; in median region of belly distal half of individual hairs white, proximal half dark gray; vibrissae in most specimens black to base. Average and extreme cranial measurements of six adults from 7 mi. S La Belle are as follows: occipitonasal length, 18.9 (17.5-19.4); zygomatic breadth, 9.6 (9.1-9.9); postpalatal length, 6.8 (6.2-7.2); least interorbital breadth, 3.7 (3.4-3.9); length of incisive foramina, 4.0 (3.6-4.2); length of rostrum, 6.5 (6.1-6.8); breadth of braincase, 8.7 (8.3-8.9); depth of cranium, 6.7 (6.6-6.8); alveolar length of maxillary tooth-row, 3.1 (2.9-3.2). Average and extreme external measurements of four adults from Richmond are as follows: total length, 111.5 (108-118); length of tail vertebrae, 43.5 (41-47); length of body, 68 (67-71); length of hind foot, 14 (13-15); for photographs of the skull, see Plate 2f, and Plate 4g.

Comparisons.—Because B. t. subater intergrades only with B. t. taylori to the south and west, subater is compared only with taylori. Young adults of both subspecies in unworn pelage show best the colors that differentiate the two subspecies. Old adults of subater in worn pelage appear grayish, resembling taylori, and at that age, only certain cranial characters are of taxonomic use. Cranially, subater differs from taylori in: presphenoid not shaped like an hour-glass; parapterygoid processes thicker medially; interparietal diamond-shaped instead of elongated and compressed. Skull slightly larger in most measurements.



PLATE 1


Photographs of skulls in dorsal view of Baiomys. × 2.

a. B. m. brunneus, ♀ ad., 10834, AMNH, Jalapa, Veracruz.
b. B. m. grisescens, ♀ ad., 257080, USNM, Comayabuela, Honduras.
c. B. m. handleyi, ♀ ad., 275597, USNM, Sacapulas, Guatemala.
d. B. m. infernatis, ♀ ad., 91499, MZUM, Teotitlán, Oaxaca.
e. B. m. musculus, ♀ ad., 45462, USNM, Colima, Colima.
f. B. m. nigrescens, ♂ ad., 76834, USNM, Comitán, Chiapas.
g. B. m. pallidus, ♀ ad., 4802, Texas A & M, Axochiapán, Morelos.
h. B. m. pullus, ♀ ad., 71608, KU, 8 mi. S Condega, Nicaragua.
i. B. t. allex, ♀ ad., 45453, USNM, Colima, Colima.


PLATE 2


Photographs of skulls (a-g) in dorsal view of Baiomys. × 2.

a. B. t. analogous, ♀ ad., 120265, USNM, Zamora, Michoacán.
b. B. t. ater, ♀ ad., 15056, UI, 11/2 mi. ENE Greaterville, Arizona.
c. B. t. canutus, ♀ ad., 62076, KU, 1 mi. S Pericos, Sinaloa.
d. B. t. fuliginatus, ♀ ad., 36771, KU, type locality.
e. B. t. paulus, ♀ ad., 40032, KU, 18 mi. W, 2 mi. S Aguascalientes.
f. B. t. subater, ♀ ad., 44543, USNM, type locality.
g. B. t. taylori, ♀ ad., 57944, KU, 5 mi. E San Antonio, Texas.
h. Photo. of captive ♂ B. t. taylori, 25 mi. E Austin, Texas. × 1.


PLATE 3


Photographs of skulls in ventral view of Baiomys. × 2.

a. B. m. brunneus, ♀ ad., 10834, AMNH, Jalapa, Veracruz.
b. B. m. grisescens, ♀ ad., 257080, USNM, Comayabuela, Honduras.
c. B. m. handleyi, ♀ ad., 275597, USNM, Sacapulas, Guatemala.
d. B. m. infernatis, ♀ ad., 91499, MZUM, Teotitlán, Oaxaca.
e. B. m. musculus, ♀ ad., 45462, USNM, Colima, Colima.
f. B. m. nigrescens, ♂ ad., 76834, USNM, Comitán, Chiapas.
g. B. m. pallidus, ♀ ad., 4802, Texas A & M, Axochiapán, Morelos.
h. B. m. pullus, ♀ ad., 71608, KU, 8 mi. S Condega, Nicaragua.


PLATE 4


Photographs of skulls in ventral view of Baiomys. × 2.

a. B. t. allex, ♀ ad., 45453, USNM, Colima, Colima.
b. B. t. analogous, ♀ ad., 120265, USNM, Zamora, Michoacán.
c. B. t. ater, ♀ ad., 15056, UI, 1 mi. ENE Greaterville, Arizona.
d. B. t. canutus, ♀ ad., 62076, KU, 1 mi. S Pericos, Sinaloa
e. B. t. fuliginatus, ♀ ad., 36771, KU, type locality.
f. B. t. paulus, ♀ ad., 40032, KU, 18 mi. W, 2 mi. S Aguascalientes.
g. B. t. subater, ♀ ad., 44543, USNM, type locality.
h. B. t. taylori, ♀ ad., 57944, KU, 5 mi. E San Antonio, Texas.


[Pg 651]

Remarks.—This subspecies retains its chief diagnostic character, blackish mid-dorsal region, throughout nearly all parts of its range. Specimens from the general area of Matagorda Bay and Lavaca County grade into taylori in characters of color and crania. The Colorado and Brazos rivers seemingly serve as barriers reducing gene flow between taylori and subater. These rivers may well have been important factors in the origin and the limitation of these two seemingly closely-related subspecies.

Baiomys taylori subater is not differentiated in color of pelage and characters of crania from B. t. taylori to the same degree that B. t. paulus is differentiated from B. t. analogous, or that B. t. taylori is differentiated from several of the other subspecies of Baiomys taylori. B. t. subater probably is a more recent occupant of the area in which it now lives than is the case with any other one of the subspecies of taylori. Sufficient time probably has not elapsed to allow for formation of more distinctive phenotypic patterns.

Specimens examined.—Total 65, all from Texas and distributed as follows: Brazos County: 1/2 mi. NW College Station, 1[55]; 3 mi. W College Station, 1 mi. W Easterwood Airport, 1[55]; College Station, 1[55]. Walker County: Huntsville, 1[55]. Hardin County: Sour Lake, 1[57]. Jefferson County: 7 mi. S Labelle, 10. Harris County: 6 mi. NE Crosby, 1[56]. Colorado County: 10 mi. N Eagle Lake, 1[55]; 9 mi. N Eagle Lake, 1[55]; 2 mi. W Eagle Lake, 1; Eagle Lake, 1[55], 5. Fort Bend County: Richmond, 4[57]. Galveston County: Texas City, 6[58]; Virginia Point, 1[57]. Brazoria County: Austin Bayou near Alvin, 2[57]; 14 mi. SSE Alvin, 2[59]; type locality, 7[57] (including the type). Lavaca County: 4 mi. W Hallettsville, 1[55]; 1 mi. SW Hallettsville, 3[55]; 13.7 mi. SW Hallettsville, 2[55]; 4 mi. NE Yoakum, 11.

Marginal records.Texas: Huntsville; Sour Lake; 7 mi. S La Belle; Virginia Point; 14 mi. SSE Alvin; type locality; 4 mi. NE Yoakum; 4 mi. W Hallettsville; 1/2 mi. NW College Station.

[55] Texas A & M, Cooperative Wildlife Research Collection.

[56] Carnegie Museum.

[57] U. S. Nat. Museum (Biol. Surv. Coll.).

[58] Los Angeles County Museum.

[59] American Museum of Natural History.

Baiomys taylori taylori (Thomas)
Hesperomys (Vesperimus) taylori Thomas, Ann. Mag. Nat. Hist., ser. 5, 19:66, January, 1887.
Baiomys taylori [taylori], Mearns, Bull. U. S. Nat. Mus., 56:381, April 13, 1907; Stickel and Stickel, Jour. Mamm., 30:141, May 23, 1949.
Baiomys taylori taylori, Miller, Bull. U. S. Nat. Mus., 79:136, December 31, 1912; Miller, Bull. U. S. Nat. Mus., 128:317, April 29, 1924; Anthony, Field Book of North American Mammals, p. 327, 1928; Ellerman, The Families and Genera of Living Rodents, 2:402, March 21, 1941; Taylor and Davis, Texas Game, Fish and Oyster Comm. Bull., 27:56, August, 1947 (part); Blair, Texas Jour. Sci., 2:104, March 31, 1950; Goldman, [Pg 652] Smith. Miscl. Coll., 115:373, 426, July 31, 1951; Baker, Univ. Kansas Publs., Mus. Nat. Hist., 5:212, December 15, 1951; Blair, Texas Jour. Sci., 4:242, June 30, 1952; Hooper, Occas. Papers, Univ. Michigan, Mus. Zool., 544:7, March 25, 1953; Dalquest, Louisiana State Univ. Studies (Biol. Sci. Ser.), 1:155, December 28, 1953 (part); Blair, Adv. in Genetics, 5:10, January 27, 1954; Miller and Kellogg, Bull. U. S. Nat. Mus., 205:511, March 3, 1955; Baker, Univ. Kansas Publs., Mus. Nat. Hist., 9:273, June 15, 1956; Packard, Proc. Biol. Soc. Washington, 71:17, April 11, 1958; Hall and Kelson, The Mammals of North America, 2:659, March 31, 1959 (part).
Cricetus (Vesperimus) taylori, Thomas, Proc. Zool. Soc. London, 68:446, November 20, 1888.
Sitomys taylori, Merriam, Proc. Biol. Soc. Washington, 7:170, September 29, 1892.
Sitomys (Baiomys) taylori, True, Proc. U. S. Nat. Mus., 16(972):758, February 7, 1894; J. A. Allen, Bull. Amer. Mus. Nat. Hist., 6:181, May 31, 1894.
S. [itomys] taylori, Rhoads, Proc. Acad. Nat. Sci. Philadelphia, 46:256, October, 1894.
Peromyscus (Baiomys) taylori, J. A. Allen, Bull. Amer. Mus. Nat. Hist., 8:65, April 22, 1896.
[Peromyscus] taylori, Trouessart, Cat. Mamm., 1:517, 1898.
Peromyscus taylori [taylori], Elliot, Field Columb. Mus. Publ., 105(4):135, July 1, 1905; V. Bailey, N. Amer. Fauna, 25:101, October 24, 1905; Elliot, Field Columb. Mus. Publ., 115(8):203, 1907; Osgood, N. Amer. Fauna, 28:253, April 17, 1909.

Type.—Adult male, skin and skull; No. 87.11.24.1, British Museum, Natural History; San Diego, Duval County, Texas; obtained by William Taylor.

Range.—North-central to southeastern Texas, excluding the coastal plain north of the region of Matagorda Bay, thence south into the southern part of Tamaulipas and west into Coahuila and Nuevo León, see Figure 11. Occurs from near sea level in Texas up to 1500 feet in Coahuila. Zonal range: mostly Lower Austral (in México and southeastern half of Texas, the Tamaulipas Biotic Province of Goldman and Moore, 1945:349, and Blair, 1952:230).

Diagnosis.—Size medium for the species; dorsum grayish in freshly taken specimens to Hair Brown in preserved specimens; individual guard hairs of dorsum black-tipped, grayish basally, underfur black-tipped with a subterminal band of olive-buff; sides of body pale-grayish near venter, individual hairs buffy proximally, grayish basally; belly pale grayish, individual hairs white-tipped, Pale Neutral Gray basally; throat and chin colored as is belly; forefeet and hind feet sooty-gray dorsally, sparsely-haired ventrally, thus appearing flesh-colored; tail unicolored gray to sooty-gray. Average and extreme cranial measurements of 22 adults from 6 mi. SW San Gerónimo, Coahuila, are as follows: occipitonasal length, 18.0 (17.4-19.0); zygomatic breadth, 9.6 (9.2-10.2); postpalatal length, 6.5 (5.9-7.1); least interorbital breadth, 3.6 (3.3-3.8); length of incisive foramina, 4.0 (3.6-4.3); length of rostrum, 6.1 (5.7-6.7); breadth of brain case, 8.8 (8.5-9.1); depth of cranium, 6.5 (6.0-7.0); alveolar length of maxillary tooth-row, 3.1 (3.0-3.3). Average and extreme external measurements of 19 adults from 6 mi. SW San Gerónimo are as follows: total length, 102.2 (95-115); length of tail vertebrae, 39.4 (21-46); length of body, 62.8 (53-76); length of hind foot, 14.0 (12-15); length of ear from notch, 10.7 (10-12); for photographs of skull, see Plate 2g, and Plate 4h.

[Pg 653]

Comparisons.—For comparisons with B. t. subater, B. t. analogous, and B. t. fuliginatus, see accounts of those subspecies. From B. t. paulus, found to the southwest, B. t. taylori differs as follows: dorsum grayish rather than fawn-colored; hairs on dorsal parts of forefeet and hind feet sooty-gray (not white to white-brown); venter gray to Light Drab-Gray, rather than whitish with gray overtones; tail unicolored instead of bicolored; skull averaging slightly larger over-all; maxillary part of zygoma forms right angle with rostrum rather than obtuse angle; incisive foramina extending posteriorly to anterior plane of first upper molars instead of to a transverse plane at middle of right and left first upper molars; bullae less inflated; interorbital region broader relative to length of skull; rostrum sloping gently from frontonasal suture to anterior tip of nasals rather than declining abruptly from frontonasal suture to anterior tip of nasals.

Remarks.—The geographic range of taylori is relatively large, and the subspecies is locally variable. Nevertheless, none of the external and cranial measurements of specimens assigned to this subspecies differs significantly from the corresponding measurements of material from the type locality and adjacent areas in southeastern Texas. In southeastern Texas, south of the Guadalupe River, south to the coastal plain of Tamaulipas, this subspecies differs in color (being paler) from B. t. subater with which taylori might be confused. The foothills of the Sierra Madre Oriental in western Tamaulipas, north through Nuevo León and Coahuila, seem to mark the southwestern limit of the range assignable to taylori.

On December 27, 1958, a specimen, KU 81552, was obtained 3 mi. N Bowie, Montague County, Texas. This record station extends the known range of B. taylori 65 miles northward from the previous northernmost locality, listed by Hunsaker, Raun, and Swindells (1959:447). Two specimens, KU 81553 and 81554, were collected by the author 2 mi. NE Cedar Hill, Dallas County, Texas, on October 31, 1958. These two specimens, plus the single specimen from Bowie County are all paler with more buffy bellies than either B. t. taylori or B. t. subater. They may represent an incipient subspecies. I tentatively assign them to B. t. taylori because of the pale rather than dark (like B. t. subater) pelage. Additional specimens are needed from these areas and from the hiatus between the ranges of B. t. taylori and B. t. subater the better to understand the manner in which these two subspecies intergrade.

Among named subspecies of Baiomys taylori, B. t. taylori most closely resembles B. t. subater to the north in Texas. Nine specimens examined from Yoakum are intergrades between taylori and subater. These specimens have the sooty dorsal color of subater, but ventrally are inseparable from topotypes of taylori. In length of body and [Pg 654] tail, specimens from Yoakum are like subater, but in length of hind foot, they are intermediate between the two subspecies. Cranially, they are like subater. When all characters are considered, the specimens are best referred to subater. Bailey (1905:103) suggested that specimens from the southern part of the range, which he ascribed to subater, tended to a more grayish color than topotypes of subater, therefore, grading into taylori. The zone of intergradation runs from Matagorda Bay northwest through Lavaca County, thence north to the Colorado River, and closely follows the boundary between the Lower Austral and Humid Division of Lower Austral Life-zone as plotted by Bailey (loc. cit.). Findley (1955:44) pointed out that where two life-zones meet, the resulting populations of shrews are mostly intergrades. Such is the case between these two subspecies of Baiomys taylori in an area where life-zones might seem less important than in the mountainous west.

In the southern part of the range of taylori, intergradation occurs between B. t. taylori in western Tamaulipas and B. t. fuliginatus in the mountains of San Luis Potosí.

Dalquest (1953:156) found no indication of intergradation between the two species, B. taylori and B. musculus, in San Luis Potosí. After examination of specimens from San Luis Potosí, I am in agreement that they are all referable to the species taylori.

Specimens examined.—Total 435. Texas: Montague County: 3 mi. N Bowie, 1. Dallas County: 2 mi. NE Cedar Hill, 2. Travis County: 8 mi. NW Austin, 2[60]; Austin, 2[60]; 4 mi. E Austin, 4[60]; 5 mi. E Austin, 3[60]; 6 mi. E Austin, 16[60], 1; 7 mi. E Austin, 1[60]; 15 mi. E Austin, 1[60]; 4 mi. S Austin, 1[60]. Bastrop County: 25 mi. E Austin, 2. Kendall County: Boerne, 1[61]. Bexar County: 1 mi. N Randolph Field, 3[64]; 5 mi. ENE (on U. S. Highway 81) San Antonio, 1; 3 mi. NE San Antonio, 1; San Antonio, 26[61], 11[62], 1[63]; 5 mi. E San Antonio, 11; 41/2 mi. E Sayers, 3. Gonzales County: 7 mi. S Luling, 2[60]. Wilson County: 4 mi. W LaVernia, 3; 12 mi. W Floresville, 1. Atascosa County: 9 mi. SW Somerset, 1. Goliad County: 8 mi. NE Goliad, 1[60]. Bee County: Beeville, 1[61]. Aransas County: Aransas (Wildlife) Refuge, 1[65]; 5 mi. E Copana Bay, 1[65]; 4.6 mi. NE Rockport, 5[60]; 4.5 mi. NW Rockport, 2[60]; 3 mi. N, 2 mi. E Rockport, 4; Rockport, 1[60], 1[61], 1[63]; 11/2 mi. SW Rockport, 1[60]; 2 mi. SW Rockport, 2[60]; 13.4 mi. SW Rockport, 1[60]; 14 mi. SW Rockport, 1. San Patricio County: Welder Wildlife Refuge, 7. Duval County: type locality, 2[61], 1[66]. Nueces County: Corpus Christi (south Nueces Bay), 1[64] (Cleveland Mus. Coll.). Kleberg County: 2 mi. S Riviera, 3[65]. Brooks County: 3 mi. S Falfurrias, 2[65]. Hidalgo County: 6 mi. S McAllen, 17[60]. Willacy County: 28 mi. E Raymondville, 10[65]. Cameron County: Brownsville, 31[61], 23[62], 5[64]. Coahuila: 6 mi. SW San Gerónimo, 32. Nuevo León: Santa Catarina, 1[61]; 14 mi. N Monterrey, 1950 ft., 2[67]; Monterrey, 1[61]; 20 km. N General Terán, 3[64]. Tamaulipas: Near Headwaters Río Sabinas, 8 km. W, 10 km. N El Encino, 400 ft., 1; Camargo, 5[61]; Charco Escondido, 20 mi. S Reynosa, 3[67]; Matomoras, 5[61]; Ejido Santa Isabel, 2 km. W Inter-American Highway, 2000 ft., 7; Hidaglo, 7[61]; Hda. Station Engracia, 4[63]; 4 mi. N La Pesca, 1; 29 mi. N Ciudad Victoria, 1[67]; Ciudad Victoria, 6[61], 3; Jaumavé, 2400 ft., 6[64], 10; Sierra de Tamaulipas, 3[64]; 25 mi. N El Manté, 3 km. W Inter-American Highway (on Rancho Pano Ayuctle), 300 ft., 4; 6 mi. N Gomez Farias (on Rancho Pano Ayuctle), 1; 5 mi. NE Gomez Farias, 12[64], 1[62]; 70 km. (by highway) [Pg 655] S Ciudad Victoria, 2 km. W El Carrizo, 5[62], 2; Antigua Morelos, 5[64]; 6 mi. N, 6 mi. W Altamira, 31; 5 mi. N, 5 mi. W Altamira, 4; Alta Mira (Altamira), 2[61]; 1 mi. S Altamira, 6; 10 mi. NW Tampico, 1. San Luis Potosí: Ebano, 5[68]; 4 km. NE Ciudad Valles, 1; Ciudad Valles, 1; 3 km. W Tamuín, 1[68]; Tamuín, 6[68]; Pujal, 300 m., 1[64]. Veracruz: Tampico Alto, 50 ft., 1; Potrero Llano, 350 ft., 1; Ozulama, 2; Cerro Azul, 350 ft., 1.

Marginal Records.Texas: 3 mi. N Bowie; 2 mi. NE Cedar Hill; 25 mi. E Austin; 7 mi. S Luling; 8 mi. NE Goliad; Aransas (Wildlife) Refuge; 3 mi. N, 2 mi. E Rockport; Corpus Christi (South Nueces Bay); 2 mi. S Riviera; 28 mi. E Raymondville; Brownsville. Tamaulipas: Matomores; 4 mi. N La Pesca; 1 mi. S Altamira. Veracruz: Tampico Alto; Ozulama; Cerro Azul; Potrero Llano. San Luis Potosí: Ciudad Valles. Tamaulipas: Antigua Morelos; 70 km. S Ciudad Victoria, 2 km. W El Carrizo; Jaumavé; Hidalgo. Nuevo León: 20 km. N General Terán; Santa Catarina. Coahuila: 6 mi. SW San Gerónimo. Texas: 9 mi. SW Somerset; Boerne; 8 mi. NW Austin.

[60] Coll. University of Texas.

[61] U. S. Nat. Museum (Biol. Surv. Coll.).

[62] American Museum of Natural History.

[63] Chicago Natural History Museum.

[64] Univ. Michigan, Museum of Zoology.

[65] Texas A & M Coop. Wildlife Res. Coll

.

[66] Carnegie Museum.

[67] Univ. California, Mus. Vert. Zool.

[68] Museum of Natural History, Louisiana State University.

EVOLUTION AND SPECIATION

The history of the genus dates back to the early late Pliocene, but morphological change since then has been slight insofar as can be judged from lower jaws. Baiomys seems to have been relatively conservative also in types of habitat occupied.

According to Wilson (1937:59), the late Pliocene was a time of decided expansion of myomorph rodents, more particularly cricetines. Furthermore, at this time, the climate in the interior basin of southwestern North America presumably was becoming arid, if we can judge from the spread of elements of the Madro-Tertiary flora. Axelrod (1950:266) points out that the drier, continental climate initiated in the early Tertiary probably had its culmination in middle Pliocene time. Some floras of early late Pliocene of the southwestern United States reflect a climate slightly cooler and more moist than the climates of the middle Pliocene. However, late Pliocene times reflect an arid climate. The flora of the southwestern interior basin of North America in early late to late Pliocene was intermediate between the previous grassland floras of the middle Pliocene and the savannah flora of upper Pliocene. Axelrod (loc. cit.) suggests that this intermediate flora of the interior basin of southwestern North America resulted from the folding of the Cascades and uplifting of the Sierra Nevada and Peninsular ranges to the south. The development of these mountains produced greater aridity to the lee of the mountains, thus accounting for the grassland-savannah flora. Pygmy mice probably originated in that time, I judge in México, and moved northward and southward in [Pg 656] a grassland-savannah habitat that seemingly existed as far north as what is now Meade County, Kansas (where the Sawrock fauna lived). Further evidence for occupancy of a grassland-savannah habitat by ancestral pygmy mice stems from the distribution of the living species, B. taylori, that at present occupies territory adjacent to parts of the Sonoran and Chihuahuan deserts. B. taylori seems to be morphologically more specialized for life in an arid grassland than was B. sawrockensis.

The geographic range of ancestral pygmy mice possibly extended farther south in late Pliocene time than the range of B. musculus does now. Anyhow, B. sawrockensis of the early late Pliocene dwelt in a more mesic type of habitat than B. musculus does, and such habitat may have existed from the Pacific lowlands of Central America to the Caribbean lowlands of northern South America (see Duellman, 1958:136, and Dunn, 1940:156) during late Pliocene times. An ancestral stock of hesperomine mice, not greatly different from Baiomys, may have emigrated from the North American continent into South America across the continuous land connection, which Simpson (1950:395) suggests was formed in the Chapadmalalan age (= Blancan age of North American terminology). The length of time of interchange of genes between northern and southern populations of mice across the Central American land connection probably was brief. Duellman (op. cit.:129) pointed out that once the Panamanian portal was closed, the warm counter equatorial current, El Niño, combined with the uplifting of the Andes, began to produce heavy rain forests in Central America and northern South America in late Pliocene or early Pleistocene times. These forests presumably isolated the stock in North America from that in South America where the latter probably evolved rapidly into kinds that differed from one another and from Baiomys in shape of body, type of pelage, and shape of skull. Internal structures such as hyoid apparatus, auditory ossicles, and baculum remained almost unchanged, as for example in Calomys now living in South America. The present resemblance in internal morphological features between it and Baiomys, I judge, reflects taxonomic relationships more accurately than do shape and conformation of body and skull that seem to respond more rapidly to external environmental changes. The cranial characters distinguishing Baiomys musculus from Calomys laucha are as follows: posterior lacerate foramina between second, rather than first, upper molars; parapterygoid fossa shallower; mesopterygoid fossa as wide or [Pg 657] wider, instead of narrower, than parapterygoid processes; burr for attachment of superficial masseter muscle hypertrophied instead of well-developed. In other cranial characters studied, the two genera closely resemble each other. Such similarities of crania between Calomys and Baiomys may reflect convergence, but the total of internal and external morphological characters shared, I think reflects true relationships.

Peromyscus has a large number of living and extinct species and exhibits a wide range of morphological variation, whereas Baiomys has a small number (7) of species and exhibits a narrow range of morphological variation. The small number of known species of pygmy mice suggests their conservatism in elaboration of morphological characters. Possibly this is because the habitat, or even the ecological niche, occupied in geological time by these mice was restricted, geographically and in kind. If the habitat of the pygmy mice oscillated between savannah and arid grassland, then an hypothesis can be made possibly accounting for the origin of species of these mice. My idea is that the geographical distribution of Baiomys today reflects a predilection on the part of these mice for a relatively uniform warm climate. Therefore, in the past, in times of warmer continental climate, these mice moved toward favorable habitat northward from an area in central and northern México. In cooler periods, the mice moved southward as habitats to the north became unfavorable.

Dr. W. B. Davis (in. litt.) informs me that B. taylori was uncommon in Brazos County, Texas, approximately 15 years ago, and suggests that the abundance there now of this mouse and my taking it in 1958 northward nearly to the southern border of Oklahoma reflects a definite movement northward. Movement in the same direction in late years has been suggested for the nine-banded armadillo and the hispid cotton rat (Hall, 1959:373) that are associated with warm climates to the south. These movements possibly reflect only minor fluctuations of climate, but in a long period of warmth movements northward would be expected to be pronounced and extensive.

Extinct species of Baiomys may have originated as a result of extension northward of the geographical range and subsequent retreat southward of the northern populations, as follows: (1) the range of the genus moved northward in a warm period; (2) in cooler times, most of the mice in the north disappeared and only isolated colonies remained in small patches of remaining habitat [Pg 658] still favorable to the mice; (3) the small populations of isolated pygmy mice after a time changed through mutations, recombinations and subsequent selection to a degree that prevented crossbreeding once populations from the south again moved northward and came in contact with previously isolated stocks; (4) then competition caused further divergence in morphological characters. Such an hypothesis would account for the morphological differences between the extinct B. kolbi and B. rexroadi. The extinct B. brachygnathus, presumably a dweller of a xerophytic grassland, may have had its origin from a B. minimus-like stock in the manner outlined.

FORMATION OF THE RECENT SPECIES

The morphological difference between the extinct B. minimus and the living B. musculus is not great, and musculus seems to be the product of the B. sawrockensis-B. minimus line of development. Morphological characters of the parental stock of the two living species, musculus and taylori, may have been intermediate between those of B. minimus and those of B. musculus. The principal part of the range of Baiomys today is in México, and probably was there through much of Pleistocene time. Extension northward of the species and retreat southward of those northern populations of pygmy mice would not only have left isolated populations in the north, but would have allowed the mice that retreated south to share a common gene pool. Therefore, populations of pygmy mice occurring to the south in central México might be expected to maintain a relatively high degree of heterozygosity in morphological and behavioral characters. The occurrence of any physical or biotic barrier that would have separated this homogeneous group would be conducive to speciation. There is evidence that a barrier occurred in the Pleistocene in central México sufficient to separate the supposed interbreeding, relatively homogeneous populations of pygmy mice. According to Sears (1955:529) and De Terra et al. (1949:51), parts of the higher regions in the Valley of México, and the transverse volcanic zone in central México were glaciated. On the mountain Ixtaccihuatl, De Terra (op. cit.:52) found evidence of four marked advances of ice, from oldest to youngest, as follows: Salto, ice advanced to 3100 meters; Xopano, ice at 3200-3300 meters; Trancas, ice to 3400 meters; Ayolotepito, ice to 4350 meters. The Salto advance is correlated by De Terra (loc. cit.) with the Iowan glacial period. The advance of ice down the mountain sides in the transverse volcanic zone was accompanied by cool moist climates [Pg 659] or pluvial periods. Such climates probably altered habitat formerly suitable for Baiomys. There is no record of Baiomys known to me exceeding 8000 feet in elevation, although the lower edge of the ice on Ixtaccihuatl is at approximately 15,300 feet (4600 meters, Sears, loc. cit.). Presumably, the advance of ice down the mountains forced the pygmy mice to move to lower altitudes. Pluvial conditions possibly rendered the habitat even at lower altitudes uninhabitable for the mice, with the result that none continued to live in the transverse volcanic zone, but only north and south thereof. Long-continued separation of these northern and southern segments allowed species formation to occur. As climatic and habitat conditions became more favorable in central México, the two species moved back toward each other, and eventually their geographic ranges overlapped.

An analysis of external and cranial characters of pygmy mice (see Figure 12) reveals that both species are essentially largest to the north and smallest to the south. There are exceptions to this cline in both species. For example, B. taylori analogous is a large subspecies; it lives allopatrically in the southern part of the range of the species. B. musculus pallidus is not the largest subspecies; it lives allopatrically in the northern part of the range of the species. In west-central México, where the two species are sympatric, B. taylori is smaller than elsewhere and B. musculus is larger than elsewhere. B. t. analogous lives in the mountains of the transverse volcanic zone in central México. Its large size may be a result of the cooler climate in the mountains. B. t. allex, the smallest subspecies, lives sympatrically with B. musculus musculus at lower elevations in west-central México. The small size of allex could be a result of the warmer climate of the lower elevations. B. m. pallidus, at lower elevations in southern Oaxaca, is smaller than other subspecies of musculus to the south at higher elevations. B. m. musculus lives at low elevations along the coast of west-central México. Unlike B. m. pallidus, B. m. musculus is large at lower elevations. It occurs sympatrically with B. t. allex. It is my idea that during the period of separation, when the two species were evolving, larger subspecies evolved to the north or at higher altitudes where climates were cooler; smaller subspecies evolved to the south or at lower elevations; the two cognate species, musculus and taylori, made contact at lower elevations where individuals of taylori may have been smallest, but individuals of musculus were not the largest of the species. The differences, therefore, between the two species in their initial contact probably were slight. Hybrids, [Pg 660] if they occurred, were probably inviable, sterile, or ill-suited for occupancy of the habitat of either of the parental stocks. The occurrence of hybrids, therefore, would result in what geneticists call "gamete wastage," and any further divergence in the parental stock, either in external characters (size and shape of body and head), or behavior, useful in recognition of species, would be favored by natural selection (see Dobzhansky, 1951:225; and Koopman, 1950:147). The two species seem to have diverged more in external characters where they occur together than in areas where they live separately (see Figure 12). The two species could be confused if a sample of adults of taylori from 7 mi. S La Belle, Jefferson County, Texas, were compared to a sample of adults of musculus from Tehuantepec, Oaxaca (see Figure 12). No confusion in species identity would arise, however, if a sample of adults was taken from the area where the two species live together (see Figure 12). Brown and Wilson (1956:49) pointed out that where two closely related species occur together, characters (morphological, ecological, physiological, or behavioral) of each species are easily distinguished. However, where the two species are allopatric, the two closely related species so resemble one another that the species are not easily distinguished. This phenomenon has been called "character displacement" by Brown and Wilson (loc. cit.).

In the area where the two species of pygmy mice occur together, there seems to be a disparity in numbers between them. Hooper (1952a:91) has recorded the collection of both B. musculus and B. taylori in a single trap line. A series of pygmy mice collected from San Gabriel, Jalisco, contained one taylori and 33 musculus; another sample from La Resolana, Jalisco, had a ratio of 25 taylori to 6 musculus. The disparity in numbers where the two species occur together has been further substantiated by collections of the University of Kansas. Possibly this disparity in numbers is a result of interspecific competition. Hooper (op. cit.:90) pointed out that where the range of B. musculus (typical of arid tropical lowlands) meets that of B. taylori (typical of arid temperate highlands), the two geographic ranges interdigitate with parts of the range of musculus extending into the highlands and parts of the range of taylori extending into the lowlands. In the lowlands, musculus may be better adapted to environmental conditions and, therefore, more successful in competition with taylori for available habitat. The reverse situation may exist in the highlands. Also, the fact that musculus is more of a diurnal animal than is taylori [Pg 661] may account for the difference in numbers of individuals of the two species taken in trap lines. Many collectors set their traps in late afternoon or evening and retrieve them in early morning. Such a schedule might not yield many musculus. If interspecific competition does occur in the area where the two species occur, any change in habits or microhabitat by either species that would reduce this competition would be favored by natural selection (see Mayr, 1949:518; Lack, 1944:262-263; and Brown, 1958:154-155). Brown (op. cit.:154), as I understand him, pointed out (taking account of Gause's principle) that when two species having similar ecological valences move into the same niche in the same locality, one of three things must eventually happen: (a) the two species occupy different geographic ranges; (b) they compete and one is eventually eliminated; (c) the two species, because of differentiation or specialization, exploit different aspects of the niche. In Baiomys, (c) seems to apply. Natural selection probably would favor a continuation of diurnal activity in musculus and nocturnal activity in taylori, thereby preventing frequent meeting of the two species.

AREAS OF PRESENT DIFFERENTIATION

In both species of Baiomys, the most distinct subspecies, B. t. allex and B. m. musculus, occur in the area where the two species are sympatric. Seven subspecies, or 44 per cent, occur either in or adjacent to the transverse volcanic zone. This area is the major area of active differentiation. Incipient subspecies are also evident in these areas. A secondary area of differentiation is indicated within the range of B. musculus in Guatemala, El Salvador and Honduras. Three subspecies occur in this area (grisescens, handleyi and nigrescens) and incipient subspeciation is in evidence there.

ZOOGEOGRAPHIC POSITION

Hooper (1949:25) regards Baiomys as a member of the rodent fauna of the arid, western Sonoran region, whereas Hershkovitz (1958:609) suggests that Baiomys is a nearctic-neotropical varicant (a kind that occurs in contiguous zoogeographic regions without our knowing in which region the taxon originated). The findings from my study do not contradict either of the above suggestions. Because of the close resemblance of Baiomys to certain hesperomine mice of South America, it is postulated that Baiomys, in more primitive form than now, occurred farther south in past times than it does now. Fossils show that primitive stocks of the genus [Pg 662] in late Pliocene or early Pleistocene times occurred also north of the present range of the genus. The belt in west-central México between nearctic and neotropical regions is the current center of distribution of the genus and probably has been for a considerable time.

[Pg 663]

Fig. 12. Averages of the occipitonasal lengths of skulls of adults at 19 localities of occurrence (solid symbols) of Baiomys taylori, and at 17 localities of occurrence (open symbols) of Baiomys musculus. Note that the occipitonasal length decreases from north to south in each of the two species, and that in the region where the two species occur together, west-central México, B. taylori is smallest and B. musculus is largest. Average, extremes, number of specimens averaged (in italic type), and name of locality, from north to south for each species, are as follows:
Baiomys taylori

18.0  (17.5-18.6)  15,  91/2 mi. W New Mexico state line, Ariz.
18.9  (18.2-19.4)   6,  7 mi. S. La Belle, Jefferson Co., Texas.
18.2  (17.8-18.5)  10,  San Antonio, Bexar Co., Texas.
18.2  (18.0-18.5)   5,  2 mi. W Miñaca, Chihuahua.
18.0  (17.6-19.0)  22,  6 mi. SW San Gerónimo, Coahuila.
18.2  (18.1-18.3)   3,  Ciudad Obregón, Sonora.
18.1  (17.4-18.5)   5,  vic. (see p. 649) Durango, Durango.
18.1  (17.5-18.5)   9,  Jaumavé, Tamaulipas.
18.2  (17.7-18.9)  19,  15 mi. N Rosario Chelé, Sinaloa.
17.9  (17.4-18.3)  27,  vic. (see p. 655) Altamira, Tamaulipas.
18.3  (17.9-18.7)   9,  Valparaíso, Zacatecas.
18.1  (18.1-18.2)   4,  Ciudad del Maíz, San Luis Potosí.
18.6  (18.3-18.9)   8,  Tepic, Nayarit.
18.0  (17.7-18.4)  18,  4 mi. N, 5 mi. W León, Guanajuato.
18.1  (17.5-18.9)  28,  6 mi. E Querétaro, Querétaro.
17.7  (17.1-18.1)  17,  1 mi. SSE Ameca, Jalisco.
17.3  (16.8-17.9)  10,  2 mi. SSE Autlán, Jalisco.
18.0  (17.5-18.6)  10,  1 mi. S, 11 mi. W Zamora, Michoacán.
17.6  (17.4-18.2)   8,  Colima, Colima.

Baiomys musculus

20.2  (19.9-20.3)   6,  vic. (see p. 622) Ameca, Jalisco.
20.2  (19.9-20.3)   6,  2 mi. SSE Autlán, Jalisco.
19.6  (19.2-20.1)   6,  Jalapa, Veracruz.
20.3  (19.7-20.9)   9,  Colima, Colima.
19.5  (19.0-20.0)  10,  Cerro Gordo, Veracruz.
19.8  (19.4-20.3)   6,  6 mi. S Izucár de Matemores, Puebla.
20.0  (18.8-20.5)   7,  Teotitlán, Oaxaca.
20.1  (19.7-20.7)   7,  1 km. NW Chapa, Guerrero.
19.9  (19.4-20.4)   8,  5 mi. ESE Tecpán, Guerrero.
19.5  (19.1-20.1)  22,  3 mi. ESE Oaxaca, Oaxaca.
19.5  (19.1-19.9)  11,  Valley of Comitán, Chiapas.
18.9  (18.2-20.1)  17,  Tehuantepec, Oaxaca.
18.9  (18.4-19.7)  15,  6 mi. NW Tonalá, Chiapas.
19.1  (18.8-20.4)  10,  1 mi. S Rabinal, Guatemala.
19.7  (18.8-20.4)  10,  Lake Amatitlán, Guatemala.
19.2  (18.4-19.8)  26,  vic. (see p. 625) San Salvador, El Salvador.
19.3  (18.9-19.9)  24,  8 mi. S Condega, Estelí, Nicaragua.

[Pg 664]

CONCLUSIONS

1. Two Recent species, each polytypic with eight subspecies, and five fossil species are recognized.

2. The phyletic trends in the genus Baiomys have been from an ancestral stock that possessed relatively brachydont teeth having raised cingular ridges and orthodont to proödont incisors, to species having hypsodont teeth with reduced cingular ridges and retrodont incisors.

3. Reduction of cingular ridges in pygmy mice is associated with an existence in open grassland (more xeric than mesic), whereas, the presence of cingular ridges is associated with an existence in a savannah habitat (more mesic than xeric).

4. Shifts of geographical range of populations of pygmy mice at and near the periphery of their geographic range may account for the differentiation of the extinct species.

5. The two living species, B. musculus and B. taylori, are seemingly derived from a common ancestor that in morphological structure was intermediate between B. minimus and B. musculus.

6. The living species of pygmy mice resulted from a geographic separation, perhaps occurring in the Iowan glacial period (See De Terra, 1949:51) in the transverse volcanic zone of central México.

7. The two species are now sympatric in west central México, where morphological characters (size and shape of body and length of skull) differ most. Where the two species are allopatric, these same morphological characters differ least.

8. This is a documented instance of character displacement in mammals.

9. On the basis of internal morphological characters studied (auditory ossicles, hyoid apparatus, and baculum), Baiomys seems to be more closely related to a South American hesperomine, perhaps Calomys, than to any North American cricetine.

10. Pygmy mice were more widely distributed in the past than they are at present. Part of the ancestral stock of the pygmy mice may have emigrated from North America into South America in a brief period in the Pliocene; if so, it is easy to understand why certain South American hesperomines resemble Baiomys.

[Pg 665]

11. The combination of morphological and behavioral characters in the living pygmy mice warrants generic status for them. If Baiomys were treated as a subgenus of the genus Peromyscus, there would be adequate justification for including in the genus Peromyscus a number of other genera, some of them occurring in South America. Such lumping of genera would reduce our understanding of the natural relationships among this group of cricetine rodents.



LITERATURE CITED
Allen, J. A.
1903.  List of mammals collected by Mr. J. H. Batty in New Mexico and Durango, with descriptions of new species and subspecies. Bull. Amer. Mus. Nat. Hist., 19:587-612, November 12.

Allen, J. A., and Chapman, F. M.
1897.  On a collection of mammals from Jalapa and Las Vigas, state of Veracruz. Bull. Amer. Mus. Nat. Hist., 9:197-208, June 16.

Axelrod, D. I.
1950.  Evolution of the desert vegetation in western North America. Carnegie Inst. Washington (Contrib. Paleo.), Publ. 590(6):215-306, 4 figs., 3 pls., 1 table, December 27.

Bailey, V.
1905.  Biological survey of Texas. N. Amer. Fauna, 25:1-222, 16 pls., 24 figs., October 24.

Baker, R. H.
1951.  Mammals from Tamaulipas México. Univ. Kansas Publ., Mus. Nat. Hist., 5:207-218, December 15.

Blair, W. F.
1941.  Observations on the life history of Baiomys taylori subater. Jour. Mamm., 22:378-383, 1 fig., November 14.
1942. Systematic relationships of Peromyscus and several related genera as shown by the baculum. Jour. Mamm., 23:196-204, 2 figs., 1 table, May 14.
1952.  Mammals of the Tamaulipan Biotic Province in Texas. Texas Jour. Sci., 4:230-250, 1 fig., 2 tables, June 30.
1953.  Population dynamics of rodents and other small mammals. Advances in Genetics, 5:1-41, 1 table.

Blair, W. F., and Blossom, P. M.
1948.  Variation in the pygmy mouse (Baiomys taylori) from Texas and Arizona. Contrib. Lab. Vert. Biol., Univ. Michigan, 40:1-7, 3 tables, March.

Blossom, P. M., and Burt, W. H.
1942. A new race of pygmy mouse (Baiomys) from Arizona. Occas. Papers, Univ. Michigan, 465:1-4, October 8.

Booth, E. S.
1957.  Mammals collected in Mexico from 1951 to 1956 by the Walla Walla College Museum of Natural History. Walla Walla College Publs., Dept. Biol. Sci. and Biol. Station, 20:1-19, 4 unnumbered figures, July 10.

[Pg 666]

Brown, W. L.
1958.  Some zoological concepts applied to problems in evolution of the hominid lineage. Amer. Scientist, 46:151-158, 1 fig., June.

Brown, W. L., Jr., and Wilson, E. O.
1956. Character displacement. Soc. Syst. Zool., 5:49-64, 6 figs., June.

Burt, W. H.
1936.  A study of the baculum in the genera Perognathus and Dipodomys. Jour. Mamm., 17:145-156, 6 figs., 2 tables, May 14.
1938.  Faunal relationships and geographic distribution of mammals in Sonora, México. Miscl. Publ. Mus. Zool., Univ. Michigan, 39:1-77, 2 tables, 26 maps, February 15.

Clark, F. H.
1941.  Correlation and body proportions in mature mice of the genus Peromyscus. Jour. Genetics, 26:283-300, 8 tables, May.

Collins, H. H.
1918.  Studies of normal moult and of artificially induced regeneration of pelage in Peromyscus. Jour. Exper. Zool., 27:73-95, 3 figs., 2 pls., October.
1924.  Studies of the pelage phases and of the nature of color variations in mice of the genus Peromyscus. Jour. Exper. Zool., 38:45-107, 57 figs.

Dalquest, W. W.
1953.  Mammals of the Mexican state of San Luis Potosí. Louisiana State Univ. Studies, Biol. Ser., 1:1-229, 1 fig., December 28.

Davis, W. B.
1944.  Notes on Mexican mammals. Jour. Mamm., 25:370-403, 1 fig., 3 tables, November 12.

Davis, W. B., and Russell, J. R., Jr.
1954.  Mammals of the Mexican state of Morelos. Jour. Mamm., 35:63-80, February 10.

Deterra, H., Romero, J., and Steward, T. D.
1949.  Tepexpan Man. Viking Fund Publ. in Anthropology, 11:1-160, 22 figs., 37 pls., 10 tables.

Dice, L. R.
1943.  The biotic provinces of North America. Univ. Michigan Press, Ann Arbor, viii + 78 pp., 1 map.

Dice, L. R., and Leraas, H. J.
1936.  A graphic method for comparing several sets of measurements. Contrib. Lab. Vert. Genetics, Univ. Michigan, 3:1-3, 1 fig., July.

Dobzhansky, T.
1951.  Genetics and the origin of species. Columbia Univ. Press, x + 364 pp., 23 figs., 15 tables.

Duellman, W. E.
1958.  A monographic study of the colubrid snake genus Leptodeira. Bull. Amer. Mus. Nat. Hist., 114(1):1-152, 25 figs., 31 pls., 25 maps, 30 tables, February 24.

Dunn, E. R.
1940.  Some aspects of herpetology in lower Central America. Trans. New York Acad. Sci., 2:156-158, April.

[Pg 667]

Ellerman, J. R.
1941.  The families and genera of living rodents with a list of named forms (1758-1936). British Museum (Nat. Hist.), London, 2: xii + 690, 50 figs., March 21.

Felten, H.
1958.  Nagetiere (Mammalia, Rodentia) aus El Salvador. Senckenbergiana Biologica, 39:133-144, August 30.

Findley, J. S.
1955.  Speciation of the wandering shrew. Univ. Kansas Publ., Mus. Nat. Hist., 9:1-68, 18 figs., 1 table, December 10.

Gazin, C. Lewis
1942.  The late Cenozoic vertebrate faunas from the San Pedro Valley, Ariz. Proc. U. S. Nat. Mus., 92(3155):475-518.

Gidley, J. W.
1922.  Preliminary report on fossil vertebrates of the San Pedro Valley, Arizona, with descriptions of new species of Rodentia and Lagomorpha. U. S. Geol. Surv. Prof. Paper, 131:119-131, 2 pls., March 15.

Goldman, E. A.
1951.  Biological investigations in México. Smiths. Miscl. Coll., 115: xiii + 476, frontispiece, 71 pls., 1 map, July 31.

Goldman, E. A. and Moore, R. T.
1945.  The biotic provinces of México. Jour. Mamm., 26:347-360, 1 fig., November 14.

Goodwin, G. G.
1934.  Mammals collected by A. W. Anthony in Guatemala, 1924-1928. Bull. Amer. Mus. Nat. Hist., 68:1-60, pls. 1-5, December 12.
1942.  Mammals of Honduras. Bull. Amer. Mus. Nat. Hist., 79:107-195, May 29.
1959.  A new pygmy mouse of the genus Baiomys from Oaxaca, Mexico. Amer. Mus. Novit., 1929:1-2, March 5.

Hall, E. R.
1959.  Geographic distribution of contemporary organisms, pp. 371-373, in Zoogeography. Publ., Amer. Assoc. Adv. Sci., 55:x + 509 pp. January 19.

Hall, E. R., and Kelson, K. R.
1959.  The mammals of North America. 2 Vols., xxx + 1083 pp. (79 pp. index), 553 figs., 500 maps, March 31, 1959.

Hall, E. R., and Villa-R., B.
1949.  An annotated check list of the Mammals of Michoacán, México. Univ. Kansas Publ., Mus. Nat. Hist., 1:431-472, pls. 4-5, 1 fig., December 27.

Hershkovitz, P.
1944.  A systematic review of the neotropical water rats of the genus Nectomys (Cricetinae). Miscl. Publ. Mus. Zool., Univ. Michigan, 58:1-101, 4 pls., 5 figs., 2 maps, 19 tables, January 4.
1955.  South American marsh rats Genus Holochilus with a summary of sigmodont rodents. Fieldiana-Zool., Chicago Nat. Hist. Mus., 37:639-673, 6 figs., 29 pls., 5 tables, June 19.

[Pg 668]

1958.  A geographical classification of neotropical mammals. Fieldiana-Zool., Chicago Nat. Hist. Mus., 36:583-620, 2 figs., 13 tables, July 11.

Hibbard, C. W.
1941.  Paleoecology and correlation of the Rexroad Fauna from the upper Pliocene of southwestern Kansas, as indicated by the mammals. Univ. Kansas Sci. Bull., 27:79-104, 1 fig., December 15.
1952.  A contribution to the Rexroad Fauna. Trans. Kansas Acad. Sci., 55:196-208, 2 figs., June 18.
1953.  The saw rock canyon fauna and its stratigraphic significance. Papers, Michigan Acad. Sci., Arts and Letters, 38:387-411, 5 figs., April 27.
1958.  Summary of North American Pleistocene mammalian local faunas. Papers, Michigan Acad. Sci., Arts and Letters, 43:3-32, 1 table.

Hoffmeister, D. F.
1951.  A taxonomic and evolutionary study of the pinon mouse, Peromyscus truei. Ill. Biol. Monogr., 21:x + 104, 5 pls., 24 figs., 7 tables, November 12.
1956.  Mammals of the Graham (Pinaleno) Mountains, Arizona. Amer. Midland Nat., 55:257-288, 7 figs., 1 table, April.

Hooper, E. T.
1947.  Notes on Mexican mammals. Jour. Mamm., 28:40-57, February 15.
1949.  Faunal relationships of recent North American rodents. Miscl. Publ. Mus. Zool., Univ. Michigan, 72:1-28, 5 tables, May 20.
1952a. Notes on the pygmy mouse (Baiomys), with description of a new subspecies from México. Jour. Mamm., 33:90-97, 3 figs., February 18.
1952b. A systematic review of the harvest mice (genus Reithrodontomys) of Latin America. Miscl. Publ. Mus. Zool., Univ. Michigan, 77:1-255, 9 pls., 24 figs., 12 maps, 7 tables, January 16.
1953.  Notes on the mammals of Tamaulipas, México. Occas. Papers Mus. Zool., Univ. Michigan, 544:1-12, March 25.
1955a. Extra teeth in the pygmy mouse, Baiomys musculus. Jour. Mamm., 36:298-299, May 26.
1955b. Notes on Mammals of western México. Occas. Papers Mus. Zool., Univ. Michigan, 565:1-26, November 9.
1957.  Dental patterns in mice of the Genus Peromyscus. Miscl. Publ. Mus. Zool., Univ. Michigan, 99:1-59, 24 figs., 3 tables, March 28.
1958.  The male phallus in mice of the genus Peromyscus. Miscl. Publ. Mus. Zool., Univ. Michigan, 105:1-24, 1 fig., 24 pls., 1 table, December 29.

Hunsaker, D., Raun, G. G., and Swindells, J. E.
1959.  Range expansion of Baiomys taylori in Texas. Jour. Mamm., 40:477-478, August 20.

Koopman, K. F.
1950.  Natural selection for reproductive isolation between Drosophila pseudoobscura and Drosophila persimilis. Evolution, 4:135-148, 3 figs., 7 tables, June.

Lack, D.
1944.  Ecological aspects of species formation in passerine birds. Ibis, 86:260-286, July.

[Pg 669]

Layne, James N.
1959.  Growth and development of the eastern harvest mouse, Reithrodontomys humulis. Bull. Florida State Mus., 4:61-82, 5 figs., April 27.

Leopold, A. S.
1950.  Vegetation zones of México. Ecol., 31:507-518, 1 fig., 1 table, October.

Lowery, G. H., and Dalquest, W. W.
1951.  Birds from the state of Veracruz, México. Univ. Kansas Publ., Mus. Nat. Hist., 3:531-649, 7 figs., 2 tables, October 10.

Lukens, P. W., Jr.
1955.  The mammals of the Chilpancingo area of the Mexican state of Guerrero. Unpublished Master's dissertation, Texas Agricultural and Mechanical College of Texas. 209 pp.

Mayr, E.
1949.  Speciation and selection. Proc. Amer. Phil. Soc., 93:514-519, December.

Mearns, E. A.
1907.  Mammals of the Mexican boundary of the United States … Pt. 1, Families Didelphidae to Muridae. Bull. U. S. Nat. Mus., 56:xv + 530, 13 pls., 126 figs., numerous tables, April 13.

Merriam, C. Hart
1892.  Descriptions of new mammals collected by E. W. Nelson in the states of Colima and Jalisco, México. Proc. Biol. Soc. Washington, 7:164-174, September 29.

Moore, R. T.
1945.  The transverse volcanic biotic province of central México and its relationship to adjacent provinces. Trans. San Diego Soc. Nat. Hist., 10:217-236, 1 map, 4 tables, August 31.

Osgood, W. H.
1909.  Revision of the mice of the American Genus Peromyscus. N. Amer. Fauna, 28:1-285, 8 pls., 12 figs., several tables, April 17.

Packard, R. L.
1958a. New subspecies of the rodent Baiomys from Central America. Univ. Kansas Publ., Mus. Nat. Hist., 9:397-404, 2 tables, December 19.
1958b. The taxonomic status of Peromyscus allex Osgood. Proc. Biol. Soc. Washington, 71:17-20, April 11.

Ridgway, R.
1912.  Color standards and color nomenclature. Published by the author, Washington, D. C., iii + 43 pp., 53 pls.

Rinker, G. C.
1954.  The comparative myology of the mammalian genera Sigmodon, Oryzomys, Neotoma, and Peromyscus (Cricetinae), with remarks on their intergeneric relationships. Miscl. Publ. Mus. Zool., Univ. Michigan, 83:1-124, 18 figs., 2 tables, June 4
.
Russell, R. J., Jr.
1952.  A new subspecies of pygmy mouse, Baiomys musculus, from Morelos, México. Proc. Biol. Soc. Washington, 65:21-22, January 29.

[Pg 670]

Sears, P. B.
1955.  Palynology in southern North America, Part 4: Pleistocene Climate in México. Bull. Geol. Soc. America, 66:521-530, 6 figs., 1 pl., 1 table, May.

Simpson, G. G.
1945.  The principles of classification and a classification of mammals. Bull. Amer. Mus. Nat. Hist., 85:xvi + 350, October 5.
1950.  History of the fauna of Latin America. Amer. Sci., 38(3):361-389, 10 figs.

Smith, H. M.
1949.  Herpetogeny in México and Guatemala. Ann. Association Amer. Geogr., 39:219-238, 1 fig., 1 table, September.

Sprague, J. M.
1941.  A study of the hyoid apparatus of the cricetinae. Jour. Mamm., 22:296-310, 5 figs., August 14.

Stickel, L. F., and Stickel, W. H.
1949.  A Sigmodon and Baiomys population in ungrazed and unburned Texas prairie. Jour. Mamm., 30:141-150, 3 tables, May 23.

Stuart, L. C.
1954.  A description of a subhumid corridor across northern central America, with comments on its herpetofaunal indicators. Contrib. Lab. Vert. Biol., Univ. Michigan, 65:1-26, 6 maps, 6 pls., March.

Tamayo, Jorge L.
1949.  Atlas Geografico general de México, con cartas fisicas, biologicas, demograficas, sociales, economicas, y cartogramas, Mexico, 24 maps, December 12.

Thomas, O.
1888.  On the small mammals of Duval County, Texas. Proc. Zool. Soc. London, pp. 443-450.

True, F. W.
1894.  On the relationships of Taylor's Mouse, Sitomys taylori. Proc. U. S. Nat. Mus., 16:757-758, February 7.

Twente, J. H., and Baker, R. H.
1951.  New records of mammals from Jalisco, México, from barn owl pellets. Jour. Mamm., 32:120-121, 1 table, February 15.

Van Gelder, R. G.
1959.  A taxonomic revision of the spotted skunks (Genus Spilogale). Bull. Amer. Mus. Nat. Hist., 117(5):229-392, 47 figs., 32 tables, June 15.

White, J. A.
1951.  A practical method for mounting the bacula of small mammals. Jour. Mamm., 32:125, February 15.
1953.  The baculum in the chipmunks of western North America. Univ. Kansas Publ., Mus. Nat. Hist., 5:611-631, 19 figs., December 1.

Wilson, R. W.
1937.  Pliocene rodents of western North America. Carnegie Inst. Washington, Publ. 487:21-73, 2 figs., July 23.

Wood, A. E., and Wilson, R. W.
1936.  A suggested nomenclature for the cusps of the cheek teeth of rodents. Jour. Paleon., 10:388-391, 2 figs.


Transmitted March 4, 1960.




28-3030


[Pg i]

UNIVERSITY OF KANSAS PUBLICATIONS
MUSEUM OF NATURAL HISTORY

Institutional libraries interested in publications exchange may obtain this series by addressing the Exchange Librarian, University of Kansas Library, Lawrence, Kansas. Copies for individuals, persons working in a particular field of study, may be obtained by addressing instead the Museum of Natural History, University of Kansas, Lawrence, Kansas. There is no provision for sale of this series by the University Library, which meets institutional requests, or by the Museum of Natural History, which meets the requests of individuals. However, when individuals request copies from the Museum, 25 cents should be included, for each separate number that is 100 pages or more in length, for the purpose of defraying the costs of wrapping and mailing.

* An asterisk designates those numbers of which the Museum's supply (not the Library's supply) is exhausted. Numbers published to date, in this series, are as follows:

 Vol.  1. Nos. 1-26 and index. Pp. 1-638, 1946-1950.
*Vol.  2. (Complete) Mammals of Washington. By Walter W. Dalquest. Pp. 1-444, 140 figures in text. April 9, 1948.
 Vol.  3. *1. The avifauna of Micronesia, its origin, evolution, and distribution. By Rollin H. Baker, Pp. 1-359, 16 figures in text. June 12, 1951.
  *2. A quantitative study of the nocturnal migration of birds. By George H. Lowery, Jr. Pp. 361-472, 47 figures in text. June 29, 1951.
  3. Phylogeny of the waxwings and allied birds. By M. Dale Arvey. Pp. 473-530, 49 figures in text, 13 tables. October 10, 1951.
  4. Birds from the state of Veracruz, Mexico. By George H. Lowery, Jr., and Walter W. Dalquest. Pp. 531-649, 7 figures in text, 2 tables. October 10, 1951.
  Index. Pp. 651-681.
*Vol. 4. (Complete) American weasels. By E. Raymond Hall. Pp. 1-466, 41 plates, 31 figures in text. December 27, 1951.
 Vol. 5. Nos. 1-37 and index. Pp. 1-676, 1951-1953.
*Vol. 6. (Complete) Mammals of Utah, taxonomy and distribution. By Stephen D. Durrant. Pp. 1-549, 91 figures in text, 30 tables. August 10, 1952.
 Vol. 7. *1. Mammals of Kansas. By E. Lendell Cockrum. Pp. 1-303. 73 figures in text, 37 tables. August 25, 1952.
  2. Ecology of the opossum on a natural area in northeastern Kansas. By Henry S. Fitch and Lewis L. Sandidge. Pp. 305-338, 5 figures in text. August 24, 1953.
  3. The silky pocket mice (Perognathus flavus) of Mexico. By Rollin H. Baker. Pp. 339-347, 1 figure in text, February 15, 1954.
  4. North American jumping mice (Genus Zapus). By Philip H. Krutzch. Pp. 349-472, 47 figures in text, 4 tables. April 21, 1954.
  5. Mammals from Southeastern Alaska. By Rollin H. Baker and James S. Findley. Pp. 473-477. April 21, 1954.
  6. Distribution of Some Nebraskan Mammals. By J. Knox Jones, Jr. Pp. 479-487. April 21, 1954.
  7. Subspeciation in the montane meadow mouse. Microtus montanus, in Wyoming and Colorado. By Sydney Anderson. Pp. 489-506, 2 figures in text. July 23, 1954.
  8. A new subspecies of bat (Myotis velifer) from southeastern California and Arizona. By Terry A. Vaughan. Pp. 507-512. July 23, 1954.
  9. Mammals of the San Gabriel mountains of California. By Terry A. Vaughan. Pp. 513-582. 1 figure in text, 12 tables. November 15, 1954.
  10. A new bat (Genus Pipistrellus) from northeastern Mexico. By Rollin H. Baker. Pp. 583-586. November 15, 1954.
  11. A new subspecies of pocket mouse from Kansas. By E. Raymond Hall. Pp. 587-590. November 15, 1954.
  12. Geographic variation in the pocket gopher, Cratogeomys castanops, in Coahuila, Mexico. By Robert J. Russell and Rollin H. Baker. Pp. 591-608. March 15, 1955.
  13. A new cottontail (Sylvilagus floridanus) from northeastern Mexico. By Rollin H. Baker. Pp. 609-612. April 8, 1955.
  14. Taxonomy and distribution of some American shrews. By James S. Findley. Pp. 613-618. June 10, 1955.
  15. The pigmy woodrat, Neotoma goldmani, its distribution and systematic position. By Dennis G. Rainey and Rollin H. Baker. Pp. 619-624, 2 figures in text. June 10, 1955.
  Index. Pp. 625-651.
 Vol. 8. 1. Life history and ecology of the five-lined skink, Eumeces fasciatus. By Henry S. Fitch. Pp. 1-156, 26 figures in text. September 1, 1954.
  2. Myology end serology of the Avian Family Fringillidae, a taxonomic study. By William B. Stallcup. Pp. 157-211, 23 figures in text, 4 tables. November 15, 1954.
  3. An ecological study of the collared lizard (Crotaphytus collaris). By Henry S. Fitch. Pp. 213-274, 10 figures to text. February 10, 1956.
  4. A field study of the Kansas ant-eating frog, Gastrophryne olivacea. By Henry S. Fitch. Pp. 275-306, 9 figures in text. February 10, 1956.
  5. Check-list of the birds of Kansas. By Harrison E. Tordoff. Pp. 307-359, 1 figure in text. March 10, 1956.
  6. A population study of the prairie vole (Microtus ochrogaster) in northeastern Kansas. By Edwin P. Martin. Pp. 361-416, 19 figures in text. April 2, 1956.
  7. Temperature responses in free-living amphibians and reptiles of northeastern Kansas. By Henry S. Fitch. Pp. 417-476, 10 figures in text, 6 tables. June 1, 1956.
  8. Food of the crow, Corvus brachyrhynchos Brehm, in south-central Kansas. By Dwight Platt. Pp. 477-498. 4 tables. June 8, 1956.
  9. Ecological observations on the woodrat, Neotoma floridana. By Henry S. Fitch and Dennis G. Rainey. Pp. 499-533, 3 figures in text. June 12, 1956.
  10. Eastern woodrat, Neotoma floridana: Life history and ecology. By Dennis G. Rainey. Pp. 535-646, 12 plates, 13 figures in text. August 15, 1956.
  Index. Pp. 647-675.
 Vol.  9. 1. Speciation of the wandering shrew. By James S. Findley. Pp. 1-68, 18 figures in text. December 10, 1955.
  2. Additional records and extensions of ranges of mammals from Utah. By Stephen D. Durrant, M. Raymond Lee, and Richard M. Hansen. Pp. 69-80. December 10, 1955.
  3. A new long-eared myotis (Myotis evotis) from northeastern Mexico. By Rollin H. Baker and Howard J. Stains. Pp. 81-84. December 10, 1955.
  4. Subspeciation in the meadow mouse, Microtus pennsylvanicus, in Wyoming. By Sydney Anderson. Pp. 85-104, 2 figures in text. May 10, 1956.
  5. The condylarth genus Ellipsodon. By Robert W. Wilson. Pp. 105-116, 6 figures In text. May 19, 1956.
  6. Additional remains of the multituberculate genus Eucosmodon. By Robert W. Wilson. Pp. 117-123, 10 figures in text. May 19, 1956.
  7. Mammals of Coahuila, Mexico. By Rollin H. Baker. Pp. 125-335, 75 figures in text. June 15, 1956.
  8. Comments on the taxonomic status of Apodemus peninsulae, with description of a new subspecies from North China. By J. Knox Jones, Jr. Pp. 337-346, 1 figure in text, 1 table. August 15, 1956.
  9. Extensions of known ranges of Mexican bats. By Sydney Anderson. Pp. 347-351. August 15, 1956.
  10. A new bat (Genus Leptonycteris) from Coahuila. By Howard J. Stains. Pp. 353-356. January 21, 1957.
  11. A new species of pocket gopher (Genus Pappogeomys) from Jalisco, Mexico. By Robert J. Russell. Pp. 357-361. January 21, 1957.
  12. Geographic variation in the pocket gopher, Thomomys bottae, in Colorado. By Phillip M. Youngman. Pp. 363-385, 7, figures in text. February 21, 1958.
  13. New bog lemming (genus Synaptomys) from Nebraska. By J. Knox Jones, Jr. Pp. 385-388. May 12, 1958.
  14. Pleistocene bats from San Josecito Cave, Nuevo León, México. By J. Knox Jones, Jr. Pp. 389-396. December 19, 1958.
  15. New Subspecies of the rodent Baiomys from Central America. By Robert L. Packard. Pp. 397-404. December 19, 1958.
  16. Mammals of the Grand Mesa, Colorado. By Sydney Anderson. Pp, 405-414, 1 figure in text. May 20, 1959.
  17. Distribution, variation, and relationships of the montane vole, Microtus montanus. By Emil K. Urban. Pp. 415-511. 12 figures in text, 2 tables. August 1, 1959.
  18. Conspecificity of two pocket mice, Perognathus goldmani and P. artus. By E. Raymond Hall and Marilyn Bailey Ogilvie. Pp. 513-518, 1 map. January 14, 1960.
  19. Records of harvest mice, Reithrodontomys, from Central America, with description of a new subspecies from Nicaragua. By Sydney Anderson and J. Knox Jones, Jr. Pp. 519-529. January 14, 1960.
  20. Small carnivores from San Josecito Cave (Pleistocene), Nuevo León, México. By E. Raymond Hall. Pp. 531-538, 1 figure in text. January 14, 1960.
  21. Pleistocene pocket gophers from San Josecito Cave, Nuevo León, México. By Robert J. Russell. Pp. 539-548, 1 figure in text. January 14, 1960.
  22. Review of the insectivores of Korea. By J. Knox Jones, Jr., and David H. Johnson. Pp. 549-578. February 23, 1960.
  23. Speciation and evolution of the pygmy mice, genus Baiomys. By Robert L. Packard. Pp. 579-670, 4 plates, 12 figures in text. June 16, 1960.
  Index will follow.
Vol. 10. 1. Studies of birds killed in nocturnal migration. By Harrison B. Tordoff and Robert M. Mengel. Pp. 1-44, 6 figures in text, 2 tables. September 12, 1956.
  2. Comparative breeding behavior of Ammospiza caudacuta and A. maritime. By Glen E. Woolfenden. Pp. 45-75, 6 plates, 1 figure. December 20, 1956.
  3. The forest habitat of the University of Kansas Natural History Reservation. By Henry S. Fitch and Ronald R. McGregor. Pp. 77-127, 2 plates, 7 figures in text, 4 tables. December 31, 1956.
  4. Aspects of reproduction and development in the prairie vole (Microtus ochrogaster). By Henry S. Fitch, Pp. 129-161, 8 figures in text, 4 tables. December 19, 1957.
  5. Birds found on the Arctic slope of northern Alaska. By James W. Bee. Pp. 163-211, pls. 9-10, 1 figure in text. March 12, 1958.
  6. The wood rats of Colorado; distribution and ecology. By Robert B. Finley, Jr. Pp. 213-552, 34 plates, 8 figures in text, 35 tables. November 7, 1958.
  7. Home ranges and movements of the eastern cottontail in Kansas. By Donald W. Janes. Pp. 553-572, 4 plates, 3 figures in text. May 4, 1959.
  8. Natural history of the salamander, Aneides hardyi. By Richard F. Johnston and Schad Gerhard. Pp. 573-585. October 8, 1959.
  9. A new subspecies of lizard, Cnemidophorus sacki, from Michoacán, México. By William E. Duellman. Pp. 587-598, 2 figures in text. May 2, 1960.
  10. A taxonomic study of the Middle American Snake, Pituophis deppei. By William E. Duellman. Pp. 599-612, 1 plate, 1 figure in text. May 2, 1960.
  Index will follow.
 Vol. 11. 1. The systematic status of the colubrid snake, Leptodeira discolor Günther. By William E. Duellman. Pp. 1-9, 4 figs. July 14, 1958.
  2. Natural history of the six-lined racerunner, Cnemidophorus sexlineatus. By Henry S. Fitch. Pp. 11-62, 9 figs., 9 tables. September 19, 1958.
  3. Home ranges, territories, and seasonal movements of vertebrates of the Natural History Reservation. By Henry S. Fitch, Pp. 68-326, 6 plates, 24 figures in text, 8 tables. December 12, 1958.
  4. A new snake of the genus Geophis from Chihuahua, Mexico. By John M. Legler. Pp. 327-334, 2 figures in text. January 28, 1959.
  5. A new tortoise, genus Gopherus, from north-central Mexico. By John M. Legler. Pp. 335-343. April 24, 1959.
  6. Fishes of Chautauqua, Cowley and Elk counties, Kansas. By Artie L. Metcalf. Pp. 345-400, 2 plates, 2 figures in text, 10 tables. May 6, 1959.
  7. Fishes of the Big Blue River Basin, Kansas. By W. L. Minckley. Pp. 401-442, 2 plates, 4 figures in text, 5 tables. May 8, 1959.
  8. Birds from Coahuila, México. By Emll K. Urban. Pp. 443-516. August 1, 1959.
  9. Description of a new softshell turtle from the southeastern United States. By Robert G. Webb. Pp. 517-525, 2 pls., 1 figure in text, August 14, 1959.
  10. Natural history of the ornate box turtle, Terrapene ornata ornata Agassiz. By John M. Legler. Pp. 527-669, 16 pls., 29 figures in text. March 7, 1960.
  Index will follow.
 Vol. 12. 1. Functional morphology of three bats: Eumops, Myotis, Macrotus. By Terry A. Vaughan. Pp. 1-153, 4 plates, 24 figures in text. July 8, 1959.
  2. The ancestry of modern Amphibia: a review of the evidence. By Theodore H. Eaton, Jr. Pp. 155-180, 10 figures in text. July 10, 1959.
  3. The baculum in microtine rodents. By Sydney Anderson. Pp. 181-216, 49 figures in text. February 19, 1960.
  4. A new order of fishlike Amphibia from the Pennsylvanian of Kansas. By Theodore H. Eaton, Jr., and Peggy Lou Stewart. Pp. 217-240, 12 figures inv text. May 2, 1960.
  More numbers will appear In volume 12.


Transcriber's Notes

The text presented is that of the original printed version except for the revisions below and a few assumed typesetting errors. The subsection headers under "VARIATION WITH AGE" were converted to italic only to match the rest. All other section title formatting retained as printed. The words Miscellaneous and Monograph were abbreviated as Miscl. and Mongr. respectively. Except for the two variant spellings of one word (Mexico/México) which were retained, the most prevalent form of accented words was used.

Both decimal and whole and fractional part of numbers (i.e., 91/2) were retained as printed. Where a relative size as indicated for illustrations (i.e., × 3), they may not be correct for the displayed images as resolution of monitors vary. Each set of footnotes were placed at the end of each species account. The list of KU Publications were compiled after the article's text.

Typographical Corrections
Page      Correction
591   proödent ⇒ proödont
694   hesperomyines ⇒ hesperomines








End of the Project Gutenberg EBook of Speciation and Evolution of the Pygmy
Mice, Genus Baiomys, by Robert L. Packard

*** END OF THIS PROJECT GUTENBERG EBOOK SPECIATION AND EVOLUTION OF ***

***** This file should be named 38290-h.htm or 38290-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/3/8/2/9/38290/

Produced by Chris Curnow, Tom Cosmas, Joseph Cooper and
the Online Distributed Proofreading Team at
http://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
http://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3. YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at http://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
http://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at http://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit http://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including checks, online payments and credit card donations.
To donate, please visit: http://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart is the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     http://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
