Phylogeny of the Waxwings
and Allied Birds


BY
M. DALE ARVEY






University of Kansas Publications
Museum of Natural History


Volume 3, No. 3, pp. 473-530, 49 figures in text, 13 tables
October 10, 1951







University of Kansas
LAWRENCE
1951










[Pg 473]





Phylogeny of the Waxwings
and Allied Birds


BY
M. DALE ARVEY






University of Kansas Publications
Museum of Natural History


Volume 3, No. 3, pp. 473-530, 49 figures in text, 13 tables
October 10, 1951







University of Kansas
LAWRENCE
1951






[Pg 474]

University of Kansas Publications, Museum of Natural History

Editors: E. Raymond Hall, Chairman, Edward H. Taylor,
A. Byron Leonard, Robert W. Wilson





Volume 3, No. 3, pp. 473-530, 49 figures in text, 13 tables

Published October 10, 1951





University of Kansas
Lawrence, Kansas





PRINTED BY
FERD VOILAND, JR., STATE PRINTER
TOPEKA, KANSAS
1950
Look for the Union Label
23-1019





[Pg 475]





Phylogeny of the Waxwings
and Allied Birds
by
M. DALE ARVEY





CONTENTS
 PAGE
Introduction476
Acknowledgments476
Nomenclatural History477
Materials478
Diagnoses478
Coloration485
Courtship489
Nest Building491
Food493
Skeleton494
Skull494
Humerus499
Pygostyle502
Sternum505
Relative Lengths of Bones505
Leg-trunk Percentages509
Arm-trunk Percentages511
Musculature514
Caudal Muscles514
Pectoral Muscles517
Hind Limb Musculature517
Digestive Tract517
Origin of the Species519
Conclusions521
Summary524
Bibliography525





[Pg 476]

INTRODUCTION

A small family of passerine birds, the Bombycillidae, has been selected for analysis in the present paper. By comparative study of coloration, nesting, food habits, skeleton and soft parts, an attempt is made to determine which of the differences and similarities between species are the result of habits within relatively recent geological time, and which differences are the result of inheritance from ancient ancestral stocks, which were in the distant past morphologically different. On the basis of this information, an attempt is made to ascertain the natural relationships of these birds. Previous workers have assigned waxwings alone to the family Bombycillidae, and a question to be determined in the present study is whether or not additional kinds of birds should be included in the family.

It has generally been assumed that the nomadic waxwings originated under boreal conditions, in their present breeding range, and that they did not undergo much adaptive radiation but remained genetically homogeneous. Also it is assumed that the species were wide ranging and thus did not become isolated geographically to the extent that, say, the Fringillidae did. The assumption that waxwings originated in the northern part of North America or Eurasia may be correct, but it is more probable that the origin was more southerly, perhaps, in northern Mexico, of North America (see p. 519.) Subsequent to the differentiation of this stock in the south, there was a northerly movement, while certain populations remained behind and underwent an evolution different from the northern group. Since the fossil record does not permit us to say when in geological time the family originated, we must rely on anatomical evidence and the distributional evidence of present-day species to estimate when the family stock had diverged from some unknown group sufficiently to merit the status of a separate family.





ACKNOWLEDGMENTS

It is with pleasure that I acknowledge the guidance received in this study from Professor E. Raymond Hall of the University of Kansas. I am indebted also to Dr. Herbert Friedmann of the United States National Museum for the loan of certain skins, skeletons, and alcoholic material; to Mr. Alexander Skutch, for notes on certain Central American birds; and to Dr. Henry W. Setzer, Mr. George H. Lowery, Jr., Mr. Victor E. Jones, Mr. Victor Housholder, [Pg 477] Mr. Alvaro Wille-Trejos, and Mr. Morton F. Davis, for gifts of specimens that have been used in this work. Suggestions and critical comments from Professors Worthie H. Horr, Charles G. Sibley and Edward H. Taylor are gratefully acknowledged. I wish also to thank Mrs. Virginia Unruh for the preparation of the drawings used in this work.





NOMENCLATURAL HISTORY

The oldest name available for any species of the waxwings is Lanius garrulus Linnaeus (1758). Lanius garrulus and Lanius garrulus variety B carolinensis were described as conspecific. The description has been associated with the first of the two names. The latter name is a nomen nudum since it was not accompanied by a separate description. The generic name Lanius was originally applied to both shrikes and waxwings by Linnaeus. Since that name is applied to the shrikes only, the next available generic name that may be applied to the generically different waxwings must be used. This is Bombycilla, a name originally proposed by Brisson (1760) for the Cedar Waxwing. In the 12th Edition of the Systemae Naturae (1766) Gmelin proposed the generic name Ampelis for the Bohemian Waxwing, and combined it with the specific name garrulus, the Cedar Waxwing being termed variety B. Vieillot (1807) proposed the generic name Bombycilla and combined it with a new specific name, cedrorum, for the Cedar Waxwing. Vieillot has been cited as the author of Bombycilla since that time, although Brisson used Bombycilla 33 years before. Oberholser (1917) did not cite Brisson's work in his discussion of the proper generic name for the waxwings, and Bombycilla should be ascribed to Brisson and not Vieillot, since Opinion 37, rendered by the International Zoölogical Committee on Nomenclature, states that generic names used by Brisson (1760) are valid under the Code. In consequence, the specific name available for the Cedar Waxwing, since Brisson is ruled not to be a binomialist, is Bombycilla cedrorum Vieillot (1807).

Most workers prior to 1900 utilized the family name Ampelidae to include waxwings, silky flycatchers, and palm-chats. Ridgway (1904:113) elevated the silky flycatchers to family rank under the name Ptilogonatidae, and assigned the palm-chats to a separate family, the Dulidae.





[Pg 478]

MATERIALS

The following specimens, numbering 238, and representing each currently recognized species and subspecies, were used in the study, and were supplemented by observation in 1947 on specimens in the United States National Museum.

Species or SubspeciesSkinSkeletonAlcoholic

Phainoptila melanoxantha melanoxantha812
Phainoptila melanoxantha minor 2
Ptilogonys cinereus cinereus   1334
Ptilogonys cinereus molybdophanes6
Ptilogonys caudatus1634
Phainopepla nitens nitens 15
Phainopepla nitens lepida1254
Bombycilla cedrorum53278
Bombycilla garrula garrula     43
Bombycilla garrula centralasiae92
Bombycilla garrula pallidiceps 732
Bombycilla japonica10
Dulus dominicus dominicus952
Dulus dominicus oviedo   41

Totals   1535431





DIAGNOSES



Family Bombycillidae

Diagnosis.—Bill short, flat, somewhat obtuse, minutely notched near tip of each maxilla, flared at base; gape wide and deeply cleft; culmen convex; nasal fossa broad, exposed, or filled with short, erect or antrorse, close-set velvety feathers; nostril narrowly elliptical; rictal vibrissae long, short, or absent; lacrimal bone free, articulating at two points; wings long and pointed, or short and rounded; primaries ten, tenth reduced in some species; tail short, narrow, even, two thirds or less length of wing, or much longer and forked or rounded; feet weak (except in Dulus and Phainoptila); tarsus generally shorter than middle toe and claw, distinctly scutellate with five or six divisions, the lateral plate subdivided (except in Phainoptila); lateral toes of nearly equal length; hallux approximately as long as inner lateral toe, or shorter; basal phalanx of middle toe more or less united to that of outer and inner toes; body stout; head generally conspicuously crested; plumage soft, smooth and silky (except in Dulus); eggs spotted; nest in trees; three subfamilies, five genera, eight species.



Subfamily Ptilogonatinae

Diagnosis.—Rictus with conspicuous bristles; nasal fossa almost entirely exposed; tail long and rounded, graduated, or square; caudal muscles and pygostyle well developed; wings rounded and short, first primary a half to a third as long as second; second primary shorter than third; humerus long, [Pg 479] with small external condyle; plumage soft and silky, less so in Phainoptila; sexes dissimilar, young like adult female; three genera, four species.



Genus Phainoptila Salvin

Phainoptila Salvin, Proc. Zoöl. Soc. London, 1877:367, April 17, 1877. Type Phainoptila melanoxantha Salvin.

Diagnosis.—Without crest; tarsus longer than middle toe and claw, and booted or very slightly reticulate; tail shorter than wing, rounded; nostril exposed, ovate; rictal bristles distinct; first primary well developed; plumage normal, bill flared slightly at base.

Range.—Costa Rica and Panamá.



Phainoptila melanoxantha melanoxantha Salvin

Phainoptila

Phainoptila melanoxantha melanoxantha Salvin, Proc. Zoöl. Soc. London, 1877:367; April 17, 1877.

Diagnosis.—Coloration of adult males: Pileum, hindneck, back, scapulars, and upper tail coverts Black (capitalized color terms after Ridgway, Color Standards and Color Nomenclature, Washington, D. C., 1912), with Bluish Gray-Green gloss; rump Lemon Yellow tinged with Olive; lower breast and abdomen Gull Gray or Slate Gray; sides and flanks clear Lemon Yellow; lower chest, upper breast, and under tail coverts Yellowish Olive-Green, extending to patch on sides and flanks of same color; bill and feet Black or Blackish Brown. Coloration of adult females: Most of upper parts Olive-Green, with Yellowish Olive on rump; thighs Olive-Gray, as are sides of head; rest of coloration as in male. Coloration of young: As in adult female, but duller throughout.

Measurements.—Wing 99.0, tail 88.5, culmen 15.2, tarsus 28.4.

Range.—Highlands of Costa Rica and extreme western Panamá (Volcán de Chiriquí).



Phainoptila melanoxantha minor Griscom

Phainoptila

Phainoptila melanoxantha minor Griscom, Amer. Mus. Novitates, 141:7, 1924.

Diagnosis.—Coloration as in P. m. melanoxantha, but female with hindneck more extensively gray and of slightly darker shade; rump, upper tail coverts, and edgings to tail feathers slightly greener, less yellow; average size smaller than in P. m. melanoxantha.

Range.—Highlands of westeran Panamá (Cerro Flores and eastern Chiriquí).



Genus Ptilogonys Swainson

Ptilogonys Swainson, Cat. Bullock's Mex. Mus., App. 4, 1824. Type Ptilogonys cinereus Swainson.

Diagnosis.—Tail much longer than wing, even or graduated; head with bushy crest; nostril large, rounded and fully exposed, bordered by membrane; rictal bristles well developed; tarsus shorter than middle toe with claw; plumage soft, blended.

Range.—Southwestern United States to Costa Rica.



[Pg 480]

Ptilogonys cinereus cinereus Swainson

Ashy Ptilogonys

Ptilogonys cinereus cinereus Swainson, Cat. Bullock's Mex. Mus., App. 4, 1824.

Diagnosis.—Coloration of adult male: Frontals, supralorals, malars, and chin White; orbital ring White; auriculars and nape grayish brown; rest of head smoke gray; back, scapulars, wing coverts, rump, and upper tail coverts plain Bluish Black; rectrices (except middle pair) with large patch of White midway between base and tip, rest plain Bluish Black; chest, breast, and anterior parts of sides plain Bluish Gray-Green, much lighter than back, and fading into paler Gray on throat; abdomen and thighs White; flanks and posterior part of sides Olive-Yellow or Yellowish Olive; under tail coverts Lemon Yellow; bill, legs and feet Black. Coloration of adult females: Head plain Smoke Gray, passing into White on frontals, malars, and chin; back, scapulars, wing coverts, and rump Hair Brown; upper tail coverts Dark Gull Gray; remiges and rectrices Black with faint Dusky Green gloss, edged with Gull Gray; chest Dark Grayish Brown lightening to Wood Brown on sides and flanks; abdomen White; under tail coverts Yellow Ocher. Coloration of young: As in adult female, but paler throughout.

Measurements.—In adult male, wing 94.0, and tail 104.2; in adult female, wing 93.3, and tail 94.8; both sexes, culmen 11.1, and tarsus 18.7.

Range.—Mountainous districts of central and southern Mexico, in states of Durango, Zacatecas, Hidalgo, México, Oaxaca, Colima, Morelos, Veracruz, San Luís Potosi, Guerrero and Michoacán.


Ptilogonys cinereus molybdophanes Ridgway

Ashy Ptilogonys

Ptilogonys cinereus molybdophanes Ridgway, Man. N. American Birds, 464 (footnote), 1887.

Diagnosis.—Coloration of adult male: Upper parts darker bluish than in P. c. cinereus; venter paler; flanks Olive-Green rather than Olive as in P. c. cinereus. Coloration of adult female: Like female of P. c. cinereus but colors darker throughout; dorsum more olivaceous.

Measurements.—In adult male, wing 89.4, and tail 97.1; in adult female, wing 89.4, and tail 93.3; both sexes, culmen 11.7, and tarsus 17.3.

Range.—Western Guatemala, in subtropical and temperate zones.



Ptilogonys caudatus Cabanis

Costa Rican Ptilogonys

Ptilogonys caudatus Cabanis, Jour. für Orn., 1866:402, Nov. 1866.

Diagnosis.—Coloration of adult male: Forehead and crown Pale Grayish Blue, slightly paler anteriorly; orbital ring Lemon Yellow; rest of head and neck, including crest, Olive-Yellow; throat paler and tinged with Light Gull Gray; back, scapulars, rump, upper tail coverts and wing coverts uniform Bluish Slate-Black; chest and breast similar but paler; sides and flanks Yellowish Olive-Green; thighs, lower abdomen, and under tail coverts Lemon Yellow; remiges, primary coverts, and tail Black, glossed with Bluish Black and edged with Gull Gray; inner webs of rectrices (except two middle pair) [Pg 481] with large middle patch of White; bill, legs, and feet Black. Coloration of adult female: Forehead and crown Pale Gull Gray, becoming paler anteriorly; rest of head, together with neck, back, scapulars, rump, and wing coverts plain Yellowish Olive Green; chest and breast similar but more grayish; lower abdomen and flanks White tinged with Yellowish Olive; under tail coverts Olive-Gray; remiges, primary coverts, and rectrices Black with Gull Gray edges. Coloration of young: Dorsum plain Light Grayish Olive; upper tail coverts Brownish Olive; underparts Grayish Olive anteriorly, becoming more Yellowish Olive on abdomen; under tail coverts pale Yellowish Olive with Grayish Olive base; bill and feet Brownish Drab.

Measurements—In adult male, wing 96.2, and tail 135.7; in adult female, wing 93.9, and tail 113.7; both sexes, culmen 12.6, and tarsus 19.1.

Range.—Highlands of Costa Rica and extreme western Panamá.



Genus Phainopepla Sclater

Phainopepla Sclater, Proc. Zoöl. Soc. London, 26:543, 1858. Type Phainopepla nitens (Swainson).

Diagnosis.—Tail almost as long as wing; head with pointed crest of narrow, separated feathers; rectrices without white; bill narrow, compressed terminally; conspicuous white patch under wing; nostril small, exposed; rictal bristles distinct; tail slightly rounded.



Phainopepla nitens nitens (Swainson)

Phainopepla

Phainopepla nitens nitens (Swainson), Anim. in Menag., 1838:285, Dec. 31, 1837.

Diagnosis.—Coloration of adult male: Uniform glossy Bluish Black; inner webs of primaries except innermost pair with middle portion White; bill, legs, and feet Black. Coloration of adult female: Plain Olivaceous Black, longer feathers of crest Black, edged with Gull Gray; remiges and rectrices Dusky Drab to Black; rectrices and coverts margined by White; bill and feet Brownish Drab to Dusky Brown. Coloration of young: Like adult female but more Brownish Drab.

Measurements.—No specimens examined; larger than P. n. lepida (Van Tyne, 1925).

Range.—Central and southern Mexico, in states of Coahuila, San Luís Potosi, Durango, Guanajuato, México, Puebla, and Veracruz.



Phainopepla nitens lepida Van Tyne

Phainopepla

Phainopepla nitens lepida Van Tyne, Occ. Pap. Bost. Soc. Nat. Hist., 5:149, 1925.

Diagnosis.—Coloration same as P. n. nitens; separated by smaller size.

Measurements.—Wing 91.0, tail 90.3, culmen 11.5, tarsus 17.6.

[Pg 482] Range.—Southwestern United States, from central California, southern Utah, and central western Texas southward to Cape San Lucas in Baja California, and into northwestern Mexico (Sonora and Chihuahua).



Subfamily Bombycillinae

Diagnosis.—Wings long and pointed, reaching almost to tip of tail; first primary spurious; second primary longest; tail short and even; rictal vibrissae few and short; secondaries generally, and sometimes also rectrices, tipped with red, corneous appendages; nasal fossa partly filled with short, antrorse, close-set velvety feathers; plumage soft, silky; tail tipped with yellow band (red in B. japonica); sexes alike; humerus short with large external condyle; caudal muscles and pygostyle not well developed; bill flared widely at base; one genus, three species.

Range of subfamily.—Holarctic breeding area; wanders nomadically south in winter to Central America and West Indies, southern Europe and Asia.



Genus Bombycilla Brisson

Bombycilla Brisson, Orn. ii, 1760:337. Type Bombycilla garrula (Linnaeus).

Diagnosis.—As described for the subfamily.



Bombycilla cedrorum Vieillot

Cedar Waxwing

Bombycilla cedrorum Vieillot, Hist. Nat. Amer., 1:88, Sept. 1, 1807

Diagnosis.—Coloration of adults: Shading from Saccardo's Umber on dorsum to Bister on top of head; upper tail coverts and proximal rectrices Gull Gray; underparts shade through pale Lemon Yellow wash on belly into White on under tail coverts; forehead, lores, and eye-stripe Black; chin same, soon shading into Blackish Mouse Gray and into color of breast; side of under jaw with sharp White line; narrow line bordering forehead, and lores, White; lower eyelid White; quills of remiges Dark Mouse Gray, darkening at tips; inner quills tipped with red horny wax appendages; tail feathers like primaries, but tipped with Lemon Yellow, and occasionally showing also red horny wax appendages; bill and feet Black. Coloration of young: Dorsum as in adult, but lightly streaked with White; head concolor with dorsum; forehead White; lores Black; eye stripe Black anterior to eye and White posterior to eye; throat Light Buff; belly with alternate streaks of Dresden Brown and light Ochraceous Buff but posteriorly White; tail tipped with Lemon Yellow bar; bill black at tip, shading to Sepia at base.

Measurements.—Wing 92.9, tail 55.5, culmen 10.9, tarsus 16.8.

Range.—Breeds from central British Columbia, central Alberta and Manitoba, northern Ontario, southern Quebec and Cape Breton Island south to northwestern California, northern New Mexico, Kansas, northern Arkansas, North Carolina, and northern Georgia. Winters south to Louisiana, Mississippi, Texas, Arizona, Colorado, Florida, Honduras, Costa Rica, Jamaica, Little Cayman Island, Haiti, and Panamá.



Bombycilla garrula (Linnaeus)

Bohemian Waxwing

Bombycilla garrula (Linnaeus), Syst. Nat., 10th Ed., 1758:55.

Diagnosis.—Coloration of adults: General color Olive-Brown, shading insensibly from clear Smoke Gray of upper tail coverts and rump to Cinnamon-Drab anteriorly, heightening on head and forehead to Hazel; narrow frontal line, lores, broader mask through eye, chin, and upper throat, Sooty Black; under tail-coverts Cinnamon-Brown; tail Smoke Gray, deepening to Blackish [Pg 483] Mouse Gray distally, and tipped with Lemon Yellow; wings Blackish Mouse Gray; primaries tipped with sharp spaces of Lemon Yellow or White, or both; secondaries with White spaces at ends of outer web, shafts usually ending with enlarged, horny red appendages; primary coverts tipped with White; bill Blackish Slate and paler at base; feet Black. Coloration of young: Much like adult, but general color duller; some streaking on venter and back; chin, throat, and malar region dull White. Three subspecies.



Bombycilla garrula garrula (Linnaeus)

Bohemian Waxwing

Bombycilla garrula garrula (Linnaeus), Syst. Nat., 10th Ed., 1758:55.

Diagnosis.—Coloration: As described for the species, but darkest of the three subspecies; tending to be more Vinaceous dorsally than either pallidiceps or centralasiae.

Measurements.—Wing 113.5, tail 63.1, culmen 12.5, tarsus 20.7.

Range.—Europe; breeds north to northern Russia and Norway, south to about 65° N latitude; winters south to England and Ireland, southern France, northern Italy, and Turkey.



Bombycilla garrula centralasiae Poljakov

Bohemian Waxwing

Bombycilla garrula centralasiae Poljakov, Mess. Orn. vi:137, 1915.

Diagnosis.—Coloration: As described for the subspecies garrula, but less Vinaceous dorsally, and more Cinnamon; venter lighter gray than garrula, and much paler than pallidiceps.

Measurements.—Wing 114.7, tail 63.0, culmen 12.2, tarsus 21.0.

Range.—Asia; breeds northern Siberia south to Vladivostok; winters to Turkestan and central eastern China and Japan.



Bombycilla garrula pallidiceps Reichenow

Bohemian Waxwing

Bombycilla garrula pallidiceps Reichenow, Orn. Monats. 16:191, 1908.

Diagnosis.—Coloration: As described for the species, but more grayish above and below than B. g. garrula; darker gray than in centralasiae.

Measurements.—Wing 115.1, tail 71.7, culmen 12.6, tarsus 21.1.

Range.—Breeds from western Alaska to northern Mackenzie and northwestern Manitoba south to southern British Columbia, southern Alberta, northern Idaho, and possibly Colorado (Bergtold 1924) and Montana (Burleigh 1929); winters east to Nova Scotia and irregularly over much of Canada, and south irregularly to Pennsylvania, Ohio, Michigan, Indiana, Kansas, Colorado, California, Arizona, and Texas.



Bombycilla japonica (Siebold)

Japanese Waxwing

Bombycilla japonica (Siebold), Nat. Hist. Jap., St. No. 2:87, 1824.

Diagnosis.—Coloration: Dorsum generally Brownish Drab shading to Light Brownish Drab on lower back, rump, and upper tail coverts; secondary and tertiary coverts Pale Brownish Drab, washed on outer web with Carmine; [Pg 484] primary coverts Blackish Slate, with White edging; tail feathers Slate-Gray, broadly tipped with Carmine, bordered anteriorly by subterminal Black bar; head crested, forehead Chestnut; lores, frontals, and stripe extending around eye and nape, Black; throat Black, narrowing on lower throat; breast, sides of flanks Light Drab; venter pale Sulphur Yellow; thighs Brownish Drab; under tail coverts Carmine; bill, legs, and feet Black.

Measurements.—Wing 108.3, tail 53.6, culmen 11.2, tarsus 19.4.

Range.—Breeds eastern Siberia, northern China; winters south in China, and to Japan (Hokkaido, Kyushu), Taiwan, and Korea.



Subfamily Dulinae

Diagnosis.—Bill deep and compressed, culmen strongly depressed; nostrils circular, wholly exposed; tail even, and shorter than wing; tenth primary less than half length of ninth; under parts streaked; plumage hard and harsh; rictal bristles minute; wing rounded; humerus long and with small external condyle; pygostyle and caudal muscles not well developed; one genus, one species.

Range of subfamily.—Islands of Haiti and Gonave, Greater Antilles.



Genus Dulus Vieillot

Dulus Vieillot, Analyse, 1816:42.

Diagnosis.—Like the subfamily.



Dulus dominicus dominicus (Linnaeus)

Palm-chat

Dulus dominicus dominicus (Linnaeus), Syst. Nat., 12th Ed., 1766:316.

Diagnosis.—Coloration: Dorsum Olive, back, scapulars, and wing coverts more Brownish Olive; lower rump and upper tail coverts Olive-Green; pileum and hindneck with indistinct streaks of Brownish Olive; tail Brownish Drab, edged with Light Olive Gray; lores, suborbital region, and auricular regions Dusky Brown; malars Dusky Brown and streaked with Sooty Black, streaks narrower on abdomen, broader and paler on under tail coverts, bill Light Brownish Drab; legs and feet Brownish Drab.

Measurements.—Wing 85.0, tail 68.8, culmen 15.0, tarsus 24.7.

Range.—Island of Haiti, Greater Antilles.



Dulus dominicus oviedo Wetmore

Palm-chat

Dulus dominicus oviedo Wetmore, Proc. Biol. Soc. Wash., 42:117, 1929.

Diagnosis.—Coloration: Like D. d. dominicus, but averaging more Grayish Olive; rump and tail coverts with less greenish wash.

Measurements.—Wing 90.1, tail 71.3, culmen 16.2, tarsus 25.1.

Range.—Gonave Island, off Haiti, Greater Antilles.





[Pg 485]

COLORATION

The general coloration of waxwings is cryptic, that is to say, concealing or blending. The lighter color of the venter, especially of the belly, contrasts with the duller, darker vinaceous color of the dorsum. Several ruptive marks tend to obliterate the outline of the body. The crest of the head, when elevated, tends to elongate the body, making the outline less like that of a normal bird. The facial mask effectively breaks up the outline of the head, and conceals the bright eye, which would otherwise be strikingly distinct. The white spots on the distal ends of the secondaries of B. garrula and the yellow color on the distal ends of the rectrices (red in B. japonica) are also ruptive. These ruptive marks on an otherwise blending type of plumage might be important to waxwings, and probably are more effective when the birds remain motionless in either a well-lighted area or in one that is partly in shadow, rather than in one that is wholly in shadow.

The red wax tips on the secondaries of the flight feathers, and sometimes found on the ends of the rectrices in Bombycilla, are puzzling and no wholly convincing reason has been suggested for their occurrence. Two instances are known of yellow instead of red-colored wax tips in B. cedrorum (Farley, 1924). It is well known that many individuals, especially of B. cedrorum, do not possess these tips; they are absent in a smaller proportion of individuals of B. garrula. Of the 53 skins of B. cedrorum available in the University of Kansas Museum of Natural History, which might be taken as a sampling at random of the general population of this species, only 17 possess wax tips. A few specimens are unilateral, and the tips are of varying sizes in different individuals. Of these 17 birds, 6 are female and 7 male, the others being unsexed at the time of skinning. This proportion is, roughly, half and half. Of the seven skins of B. garrula pallidiceps in the same Museum, five possess the tips, and two that are females have no trace of the red tips at all. Of the five which do have the tips, two are males, two are females, and one is unsexed. In a series of 13 specimens of the three subspecies of B. garrula, loaned by the United States National Museum, all but two individuals possess the tips on the secondaries, and, in addition, four specimens, equally divided between the two sexes, have color on the rachis of some rectrices, and small appendages of pigment extend beyond the feathers. Stevenson (1882) found that among 144 specimens of B. garrula garrula killed by storms in England in the winter of 1866-67, 69 individuals had [Pg 486] wax tips. Of these, 41 were males and 27 were females; the remaining one was of uncertain sex. Among 38 definitely sexed B. garrula pallidiceps in the California Museum of Vertebrate Zoölogy, Swarth (1922:276) lists tips in 22 males and 16 females. These data indicate that the proportion of birds with the wax tips is higher in B. garrula than in B. cedrorum. The potentiality for wax tips is possibly inherited according to Mendelian ratio.

Bombycilla japonica is of interest in that the adults, at least, seldom have the waxy appendages. Nevertheless, in the specimens observed, the entire distal ends of the feathers normally possessing the tips in other species are suffused with red color. This may be the original condition of all waxwings, or perhaps, instead, this species is in a transitional stage in the development of the tips. Swarth (1922:277) says concerning the probable derivation of the wax tips in B. garrula (and in B. cedrorum): "the ornamentation, in fact, may well have begun with the coloring of the shaft, spreading later over adjoining feather barbs. The last stage would have been the coalescing of the barbs, forming the waxlike scale as is now seen. Various steps of this hypothetical development are supplied in the wing and tail feathers of different birds of this series." Bombycilla japonica thus may be close to the ancestral condition in the waxwing stock in the development of the waxy appendage.

The rectrices of all three species of waxwings seldom possess the wax tips, unless the secondaries have the maximum number of tips. In these individuals, the pigment seems to "spill over" onto the tail feathers. Eight is the maximum number of tips found on the secondaries. Rectrices with wax tips are more frequently found in B. garrula, and only occasionally in B. cedrorum. The pigment in the tip of the tail of B. japonica is red rather than yellow as it is in the other two species, and some individuals of the Japanese Waxwing show a slight amount of coalescence of wax in the tail feathers as well as in the secondaries.

If the tips were present in all members of the two species, it could be postulated, in line with recent investigational work by Tinbergen (1947), that the tips are in the nature of species "releasers," facilitating species recognition. Such recognition is now regarded as of prime importance in the formation of species. It is improbable that sex recognition may be aided, as there is no evidence to indicate that the tips are found predominantly in either sex.

The wax tips are not limited to the adult birds in the species B. garrula. Swarth (op. cit.) mentions the capture of several young [Pg 487] Bohemian Waxwings, and describes them as "possessing all the distinctive markings of the most highly developed adult." This includes wax appendages, and several citations are given (Wolley 1857, Gould 1862) to indicate that this is the rule rather than the exception, not only for the American subspecies pallidiceps, but at least for the European subspecies garrula as well. On the other hand, the young of B. cedrorum lack the wax tips, at least as far as available data show.

Some characteristics of living animals are of the "relict" type; that is to say, they were developed in ancient times when some unknown ecological factor was operative which is no longer demonstrable, and the characteristic is now neutral or at least not detrimental, although of no positive value to the organism. Possibly the wax tips of waxwings are thus to be explained. I am more inclined to the opinion that the wax tips are adaptations to present-day ecological conditions for the birds.

The wax tips are ruptive in effect, since the birds, especially in winter, are habitués of bushes and trees that have berries, and the tips, on the otherwise dull body, suggest berries. The red tips tend further to disrupt the body outline at the midline, or slightly posterior to this. Perhaps the wax tips on the rectrices emphasize the end of the tail, the region of the body that is the least vital and that may be expendable in times of pursuit by an enemy.

Any characteristic is of survival value to an organism if in any way the characteristic enhances the chances of survival up to the time when the organism can successfully raise even a few young to maturity. If that character, as for example, the red wax tips on the secondaries, helps to maintain the individual until it can raise to independence a greater number than merely a few young, such a character can be said to be of greater survival value. The character may be effective for a brief period of time and may be uncommon; it might be effective for a split second in time, and only at a particular stage in the life history.

The winter period probably is the most hazardous for waxwings, in that they then depend at times upon long flights to find food. The food is vegetable, and thus is comparatively low in food value; the birds must ingest large quantities of berries or dried fruits to maintain themselves. In winter, in northern latitudes at least, predators are more apt to prey upon those species which, like waxwings, do not migrate south. The winter months are those in which waxwings frequent berry bushes, and it may well be that in these [Pg 488] months, the wax tips that appear like berries, are especially valuable to the birds, and operate selectively.

It is suggested, therefore, that the wax tips are of positive value to waxwings, rather than being relict characters. Coalescence of pigment has taken place in the formation of the wax tips. B. japonica is closer to the ancestral stock insofar as wax tips are concerned, and generally lacks the tips. B. cedrorum has the tips in approximately half of the adults, and not at all in the young. B. garrula has the tips in almost all the adults, and in a like proportion of the young, and probably has evolved further in the development and retention of the wax tips than has either of the other two species.

The streaked plumage of Dulus is decidedly generalized, and is probably more nearly like the color of the ancestral stock. In this connection it is notable that young Cedar Waxwings are streaked, and young Bohemian Waxwings are streaked to a lesser degree. This streaking is apparently a recapitulation of the feather color of the stock. Perhaps the color of Dulus has not changed, as the streaking would not be a disadvantage to the birds in their environment of light and shadow. In joining together in groups and in the construction of large communal nests, Dulus has evidently gained sufficient protection against predators; other birds solve this problem by modifying their coloration.

Ptilogonys is ruptively colored, but in a different fashion than Bombycilla. The tail markings, the distinct yellow on the under tail coverts, the sharply marked pileum, are all examples of ruptive coloration. The generally lighter venter (especially under tail coverts), the crest that may be elevated, and the generally drab bluish dorsum, are cryptic and serve to hide the animal insofar as is possible considering its habits. The very conspicuous coloration of the male, in contrast to the more drab color of the female, however, would lead one to believe that in Ptilogonys, following the pattern of many passerine birds, the male leads a predator from the nest, leaving the drab female to incubate the eggs, and thus preserve the young.

It is difficult to suggest reasons for the brilliant coloration of the male Phainopepla, unless it is for decoying predators away from the nest. Possibly some birds survive not because of, but in spite of, their coloration, and Phainopepla may be a case of this sort. Anyone who has observed Phainopepla in life will agree, certainly, that the male makes no attempt at concealment, and flaunts his color to all comers.

[Pg 489] The coloration of Phainoptila, in contrast to Phainopepla, is much more plain, and is suited to its habits of brush dwelling; in a brush habitat the drab coloration is difficult to detect. The Yellowish Olive under tail-coverts and the Olivaceous dorsum are all evidences of cryptic coloration, and undoubtedly, this bird depends upon hiding for escape from its enemies, since it is a bird of the dense forest cover.

Coloration, which varies relatively rapidly in response to differing ecological conditions, has become more different in the species of Bombycillidae than is true in many other families of passerine birds. The explanation lies in early geographical isolation of the three subfamilies, with consequent radiation in three directions. Waxwings have become adapted by possessing a thick protective layer of feathers and drab coloration broken by ruptive marks. They still retain the streaked plumage, which is probably ancestral, in the juveniles; this is lost at the first molt in the fall. In its evolution, Dulus has developed large feet, heavy decurved beak, and the large communal nest that affords protection from enemies; as a consequence, perhaps Dulus did not need a plumage different from the primitive and streaked one. The survival of Dulus may not have depended on either ruptive marks or on brilliant and outstanding plumage. The large feet and large bill seem to be responses to particular ecological requirements, as will be shown later.

The Ptilogonatinae, with habits paralleling those of the flycatchers, probably are considerably modified from the ancestral stock; the coloration probably is more brilliant and conspicuous. Perhaps this type of coloration and the habit of capturing insects from a perch are correlated. Some amount of territoriality is characteristic of this subfamily and dimorphism in color—the plumage of the male is outstandingly conspicuous—possibly is of selective value to the race. In a tropical forest community, a duller pattern possibly would be more visible and thus would be selectively disadvantageous.





COURTSHIP

Waxwings are gregarious birds and individuals establish no well-defined territories as do many birds. The nest itself is the only defended territory, and as Crouch (1936) has shown, the Cedar Waxwing will nest in close proximity to others of the same species. Swarth (1932:275) mentions that the Bohemian Waxwing is tolerant of the nests of other pairs near by. The extreme condition is that found in Dulus, in which the territory is not limited even to [Pg 490] the nest, but to the individual compartment of the community nest. Phainopepla, a less gregarious bird than Dulus and waxwings, has a much more definite territory, although individuals of Phainopepla are tolerant of others of the same species; no feeding territory is established, and small flocks of birds feed together at any time of the year.

In birds whose territories lack well-defined boundaries, it would be expected that elaborate song would not have evolved, and that most of the recognition of kind and sex would be dependent upon the behavior of the birds. This is the fact; song, as such, is lacking in the three subfamilies Bombycillinae, Ptilogonatinae, and Dulinae. Waxwings utter (1) notes that serve to keep the flock together, (2) calls used by the young in begging for food, and (3) some low notes that Crouch (op. cit.:2) considered as possibly concerned with courtship. Phainopepla has various call notes, and in addition, a succession of notes which are run together. Ptilogonys utters a note which Skutch (MS) characterizes as a loud, not unmusical "tu-whip" that is used as the birds "fly in straggling parties which keep in contact by their constant chatter." Dulus is described by Wetmore and Swales (1931:349) as having only a variety of rather harsh chattering notes in chorus.

The most notable behavior pattern associated with courtship in Waxwings, in the absence of song, is the so-called "mating dance" described by Crouch (1936), and observed by me in Lawrence, Kansas, in the spring of 1948. This consists of one bird of a pair (presumably the male) hopping along a branch toward the other bird (the female), then away again, repeating the procedure for some little time. The female remains motionless until, as the male approaches, mutual fondling of the head and neck feathers takes place, or the birds may peck at each other's bill. A berry may be passed from bill to bill, although generally the berry is not utilized for food, and this can be interpreted as a nervous reaction of the birds. It may be an instance of "false feeding" as is seen in many birds, in which the female begs for food, as a nestling would beg, as a preliminary to the sexual act. I am of the opinion that these reactions are in the nature of behavioristic patterns that bring the birds into the emotional balance for copulation, as copulation follows the "dance." Sometimes, however, copulation is preceded by a "nuptial flight" around the nesting area, at which time the birds utter loud calls. Armstrong (1924:183) is of the same opinion, citing numerous instances in which nuptial flights and elaborate [Pg 491] displays have evolved for just this purpose. The birds are then in the proper physiological balance to initiate the complicated sequence of copulation, nesting, incubation, feeding, and brooding of the young.

It would be valuable to know more concerning the life histories of the other birds considered in this paper, since behavior is inherent, and probably can be cited as evidence of close relationship or the opposite. All that I have been able to learn is that Phainopepla has a nuptial flight in which the male chases the female, and that Dulus (Wetmore and Swales, 1931:347) seeks the company of others of its kind at all times, and that two birds, presumably paired, will sidle up to one another when they are perched.





NEST BUILDING

There are numerous papers concerning the nesting of waxwings. B. garrula, owing to its nesting in the far north, where observers are few, has received less attention than B. cedrorum. There is, on the other hand, no literature that deals with the nesting habits of the majority of the Ptilogonatines, with the exception of Phainopepla, on which there is considerable literature (Merriam, 1896; Myers, 1907, 1908). No detailed study of the nesting of Dulus has been reported, although Wetmore and Swales (1931) have described carefully the large communal nest of this genus.

In Bombycilla, both members of a pair apparently aid in the construction of the nest (Crouch, 1936; Swarth, 1932). Although the sexes are alike in plumage and general appearance, most students of the nesting of waxwings agree that one bird, assumed to be the female, does most of the arranging of the material, and does the shaping of the nest, whereas both birds carry materials to the nest site. As is characteristic of many passerine birds, both members of the pair gather materials and fly back to the nest site, where the female takes the more active part in the construction of the nest itself.

Both species of American waxwings build bulky nests, with the base or platform composed of a large amount of twigs and sticks, from which there often trails a mass of sticks and moss or string. Softer materials such as moss, plant fibers, and string, are placed inside the platform; moss is readily available to, and preferred by, B. garrula according to Swarth (op. cit.:271), and various plant fibers and string are used by B. cedrorum. The inner lining consists of soft plant fibers or down, dry grasses, and feathers. The nest is usually unconcealed in a tree either adjacent to a trunk or on a main [Pg 492] side branch, but sometimes in a fork. Nest building by both Cedar and Bohemian waxwings is rapid, taking from three to five days, and is followed immediately by egg laying.

Nesting by waxwings is late in the season; June is the month in which the nest is usually started. This is readily explainable in Bohemian Waxwings, since adverse weather would prohibit earlier nesting in the area in which they spend the summer. Crouch (op. cit.:1) remarks that B. cedrorum possibly evolved in the far north where it was impossible for it to start nesting earlier, and that the habit has been retained. Perhaps, on the other hand, nesting is delayed until the berry crop is ripe, to insure sufficient food for the young.

Desertion of the nest is not uncommon in waxwings, despite the tolerance to other animals that is shown by the birds. A new nest may suddenly be begun before the first one is finished, and all the materials from the first nest may be removed, or the nest may be abandoned before it is completed. The eggs may be left at any time up to hatching, and the young may be deserted, especially in the earlier stages of development.

The very large and bulky communal nest of Dulus is not radically different from the nest of waxwings. In the absence of sufficient nesting sites, a pair of gregarious birds such as Dulus could combine their nest with those of other pairs, retaining for their own territory only the nest cavity, and in this way communal nests might have evolved. The nest of Dulus is communal probably because of the lack of suitable trees for nesting sites, and only incidentally does this type of nest afford better protection from natural marauders. Large numbers of Palm-chats work together in the construction of the nest platform, and both sexes probably take part in the work.

In Phainopepla the nest is built mostly by the male (Merriam, 1896; Myers, 1908), although the female does some of the work, especially in the shaping and lining of the nest. In this genus, the nest is usually a compact structure, but exceptional nests are of considerable bulk. The nest is commonly placed in a fork near the main trunk of a tree, in a conspicuous location, and generally is 10 to 20 feet from the ground. In shape and location, the nest closely corresponds to that of Bombycilla, but the materials used for a base are stems of annual plants, whereas Bombycilla uses more woody twigs. The finer materials used by Phainopepla are more readily obtainable in the ecological association inhabited by Phainopepla than would be heavier twigs such as Bombycilla uses.





[Pg 493]

FOOD

Waxwings are typically frugivorous; berries are the staple food. The birds are known to catch insects, especially in the spring and summer, and their insect gathering technique has been likened to that of Tyrannid flycatchers. Nice (1941) experimented with a young captive Cedar Waxwing and found that it had a decided preference for red or blue berries, and that meal worms were utilized as food only when the birds became educated by other captive birds of other species as to the food value of the worms. Post (1916) indicates that the food given to the nestlings of Cedar Waxwings is entirely animal for the first three days, and that a mixed diet of berries and insects is subsequently offered.

In feeding of the young, regurgitation of partly digested food does not take place, according to Wheelock (1905). Rather, the adults "store" food in the form of berries in the expanded esophagus or crop, feeding them whole to the young. Digestion is an unusually rapid process, involving merely minutes for the passage of berries and cherries. This is correlated with a short intestinal tract, which is unusual for a frugivorous bird. Nice's (1940) experiments with Cedar Waxwings revealed that cherries would pass through the digestive tract in 20 minutes, blueberries in 28 minutes, and chokecherries in 40 minutes. Heinroth (1924) states that berries pass through the digestive tract of Bohemian Waxwings in the space of a "few minutes." This rapid digestion is obviously adaptive, since the value of the food is slight and therefore large quantities of it must be ingested; the large seeds would hamper further ingestion until they were eliminated, since they seem not to be regurgitated.

Members of the subfamily Ptilogonatinae are both insectivorous and frugivorous insofar as available data show, although again there is relatively little information available concerning them. Skutch (MS) has found that the Guatemalan Ptilogonys cinereus catches insects by repeated sallies into the air from a perch, after the manner of flycatchers. He notes also that the birds feed on berries of Eurya theoides and Monnina xalapensis. It is well known that Phainopepla catches insects when these are available, and its liking for berries is so apparent that in parts of its range, it is known as the "pepper bird," since it frequents pepper trees (Schinus molle) and feeds on the small red berries. The preserved specimens of Ptilogonys and Phainoptila available for this study contain only berries in the digestive tract. Dulus feeds mostly, if not wholly, on plant food. According to Wetmore and Swales (1931:349), berries, fruits, and parts of flowers are eaten.





[Pg 494]

SKELETON

A critical analysis of the skeletons provides evidence that aids the student in estimating which differences are merely the result of habits developed in relatively recent geological time as opposed to those which owe their existence to more ancient heritage. Stresses caused by the action of different sets of muscles can apparently stimulate changes in bones to meet new needs, and the evidence from genetics is that such mutations in wild birds are minute and cumulative, rather than of large degree and of sudden appearance. Once adaptive mutations have occurred, if genetic isolation from one source or another accompanies it, a new population different from the parental stock may become established. Study of the skeleton of any species of living bird may indicate those characters identifiable as modifications fitting it to a particular environment. If no distinguishing characters are discovered that may be attributed to environmental factors, such a species can be spoken of as generalized; the inference then is that such a species is not modified for a single, particular ecological niche.

Some parts of the skeleton, obviously, are more adaptable or plastic than others. The beak seems to be the most adaptable part. Probably this results from its frequent use; it is the part of the bird to capture the food. The long bones, meeting the environment as legs which serve as landing mechanisms or as locomotory appendages, and as wings which provide considerable locomotion for most birds, probably come next in order as regards plasticity. In these parts, then, one may look for the most change in birds, which, within relatively recent geologic times, have been modified to fit a particular set of conditions. From the beak and long bones of a species in which habits are unknown, one can infer the habits and habitat from a comparison with the skeletal features of species of known habits.

[↑ TOC] Skull.—The skulls in all three subfamilies have essentially the same general appearance and structure, the most marked differences being, as would be expected, in the bills and associated bones.

The most specialized bill is to be found in Dulus; its bill is decurved, and the associated bones are correspondingly changed for support of the bill. For example, the palatines and "vomer" are much wider, the palatines are more concave from below and have longer posterior processes than the corresponding bones in Bombycilla. Moreover, the "vomer" in Dulus and in Phainoptila is larger and heavier than in Bombycilla, and the quadrate and pterygoid bones are relatively large for support of the beak. The palatines, however, [Pg 495] are weak in Phainoptila. In the Ptilogonatinae, with the exception of Phainoptila, the wings of the palatines flare more than in Bombycilla, but not to the extent that they do in Dulus, nor does the palatine bone present a concave appearance in the Ptilogonatinae. The premaxilla is a relatively weak bone in Bombycilla and Phainopepla, stronger in Ptilogonys, and is notably heavy in Phainoptila and Dulus, and in these latter two genera shows a sharply-ridged tomium. The maxillae connect to somewhat widened nasal and naso-lateral processes in all the genera, and the premaxillae narrow abruptly from this point forward. In the family, Phainopepla and Phainoptila show the least flaring in this region.



Fig.1
Fig.2 Fig.3
Fig.4 Fig.5
Fig.6 Fig.7

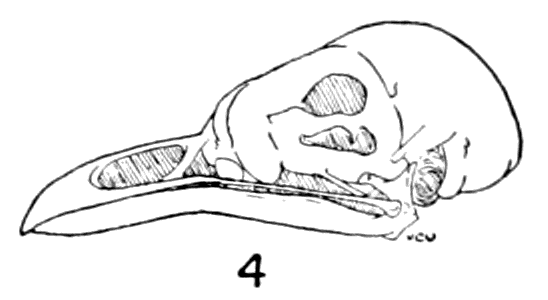

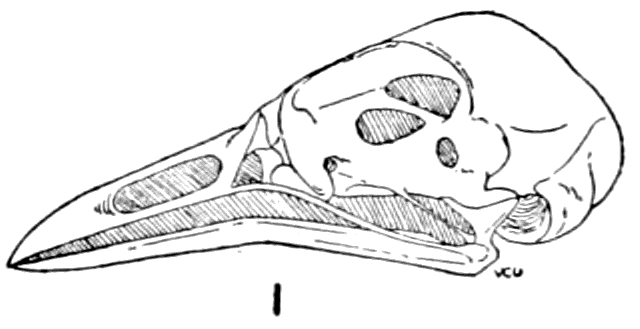

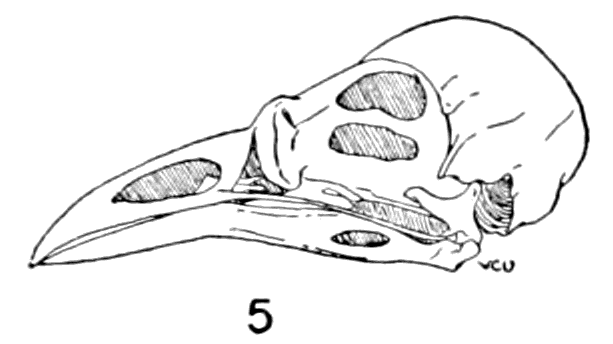

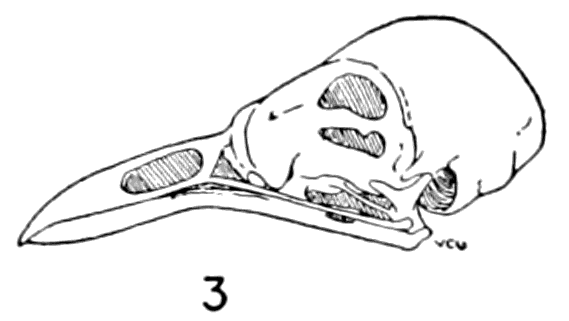

Figs. 1-7. Skulls in lateral view of five genera of Bombycillidae. Natural size.
 1.Phainoptila m. melanoxantha, sex?, MNH no. 26493, 15 mi. SE Cartago, Costa Rica.

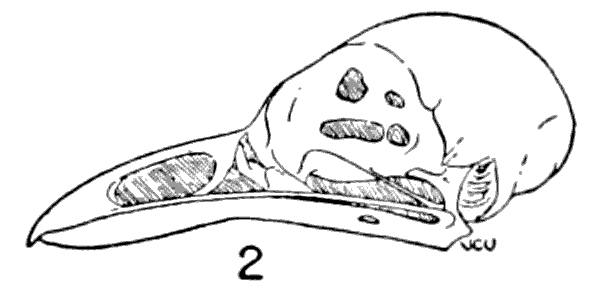

 2.Ptilogonys caudatus, male, MNH no. 24492, 15 mi. SE Cartago, Costa Rica.
 3.Phainopepla nitens, male, MNH no. 24752, Pima Co., Arizona.
 4.Ptilogonys cinereus, female, Louisiana State University no. 297,
Xilitla Region, San Luís Potosi, Mexico.
 5.Dulus dominicus, female, USNM no. 292652, Don Don, Haiti.

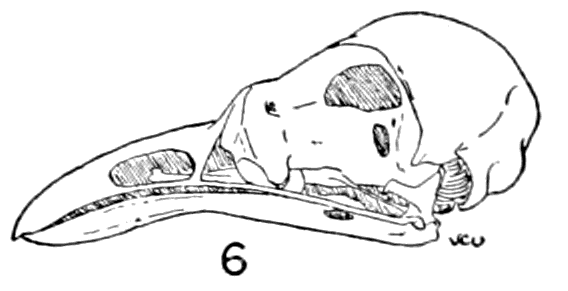

 6.Bombycilla cedrorum, male, MNH no. 15331, Bexar Co., Texas.

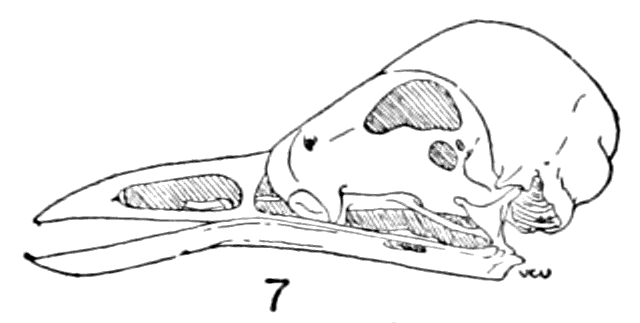

 7.Bombycilla garrula, sex?, USNM no. 223895, Bozeman, Montana.





[Pg 496]

Fig.8
Fig.9 Fig.10 Fig.11
Fig.12 Fig.13 Fig.14

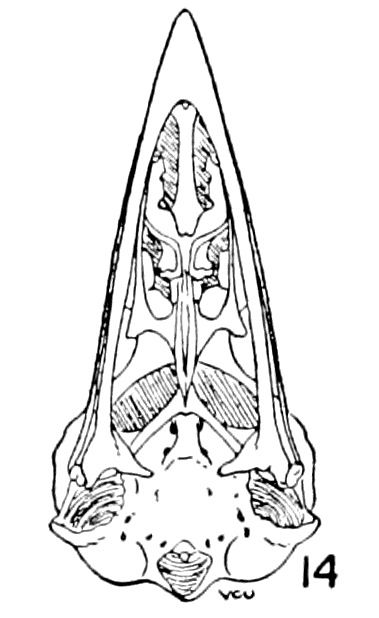

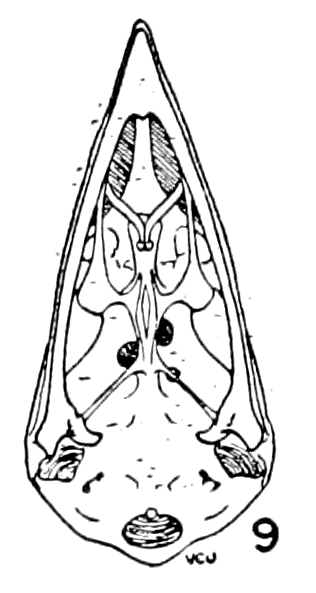

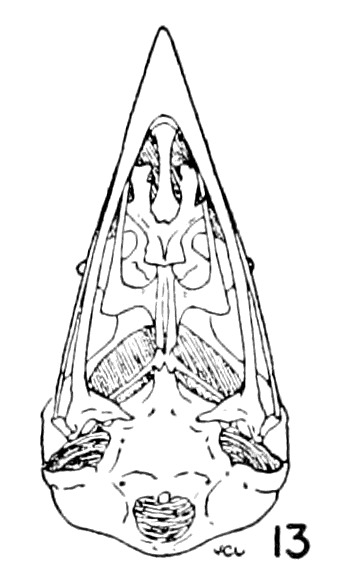

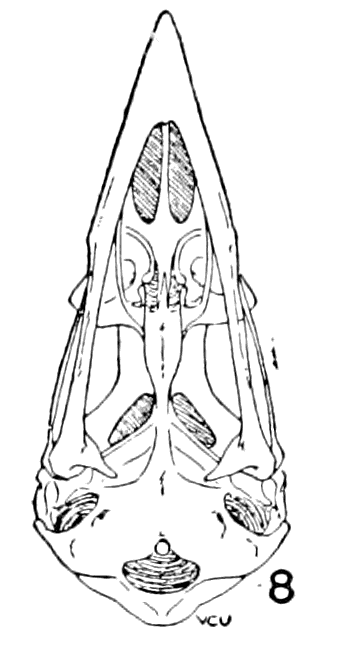

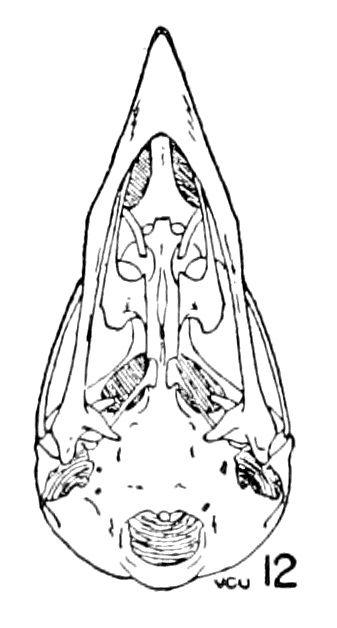

Figs. 8-14. Skulls in ventral view of five genera of Bombycillidae. Natural size.
 8.Phainoptila m. melanoxantha, sex?, MNH no. 26492, 15 mi. SE Cartago,
Costa Rica.
 9.Ptilogonys caudatus, male, MNH no. 24492, 15 mi. SE Cartago, Costa Rica.

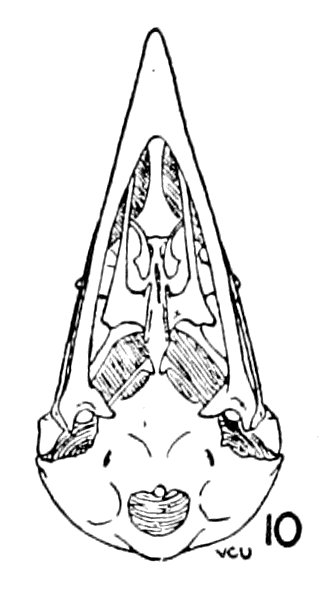

10.Phainopepla nitens, male, MNH no. 24754, Pima Co., Arizona.

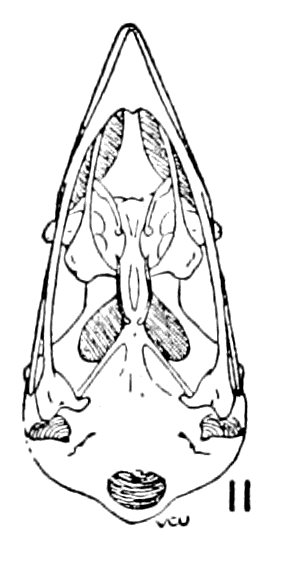

11.Ptilogonys cinereus, female, Louisiana State University no 297, Xilitla
Region, San Luís Potosi, Mexico.
12.Dulus dominicus, female, USNM no. 292652, Don Don, Haiti.
13.Bombycilla cedrorum, male, MNH no. 15331, Bexar Co., Texas.
14.Bombycilla garrula, sex?, USNM no. 223895, Bozeman, Montana.





[Pg 497]

Fig.15
Fig.16 Fig.17 Fig.18
Fig.19 Fig.20 Fig.21

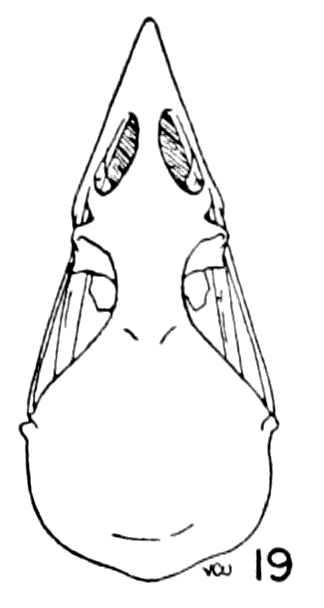

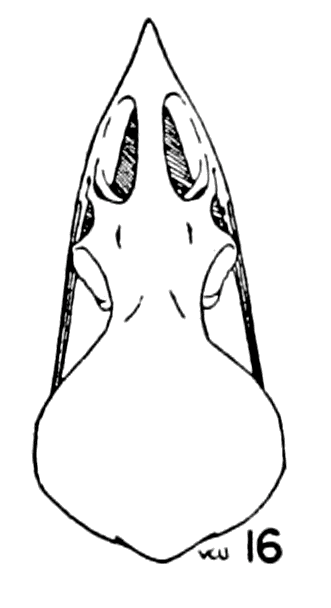

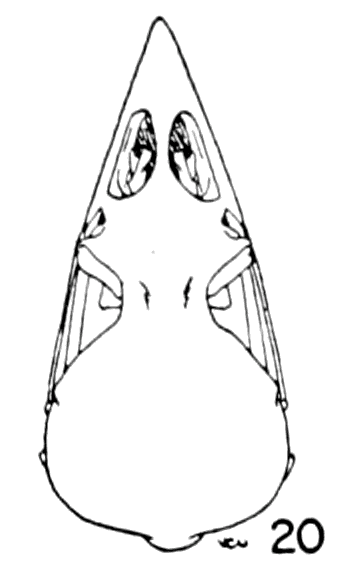

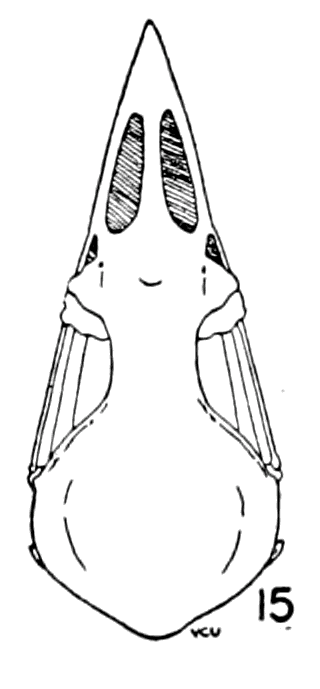

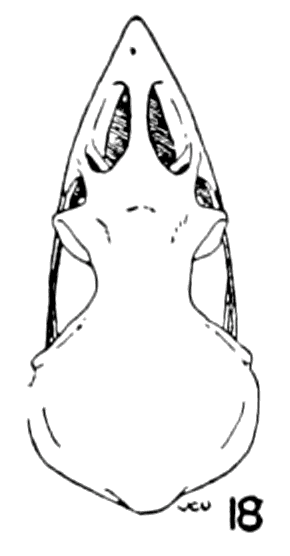

Figs. 15-21. Skulls in dorsal view of five genera of Bombycillidae. Natural size.
15.Phainoptila m. melanoxantha, sex?, MNH no. 26493, 15 mi. SE Cartago, Costa Rica.
16.Ptilogonys caudatus, male, MNH no. 24492, 15 mi. SE Cartago, Costa Rica.

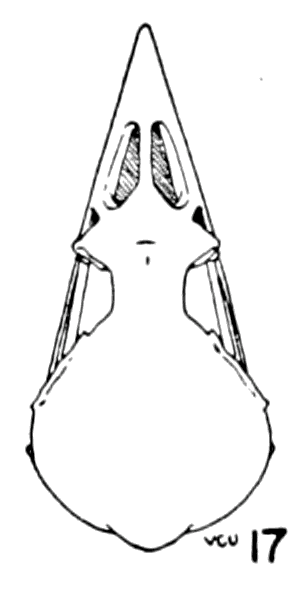

17.Phainopepla nitens, male, MNH no. 24752, Pima Co., Arizona.
18.Ptilogonys cinereus, female, Louisiana State University no. 297, Xilitla Region, San Luís Potosi, Mexico.
19.Dulus dominions, female, USNM no. 292642, Don Don, Haiti.
20.Bombycilla cedrorum, male, MNH no. 15331, Bexar Co., Texas.

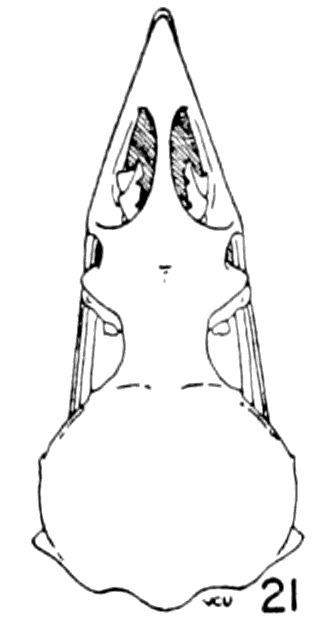

21.Bombycilla garrula, sex?, USNM no. 223895, Bozeman, Montana.





[Pg 498] This flaring, immediately lateral to the antorbital plate, is common to all Bombycillids and constitutes a major skeletal characteristic useful for recognition of the members of the family, since the swelling is easily discernible both externally and on the cleaned skulls. In Phainopepla there is much variability in this character; some specimens have a narrower antorbital bridge than others. Only one skeleton of Phainopepla n. nitens was available. The flaring in the skull of this specimen is identical with that in Ptilogonys. Among the skulls of P. n. lepida in the University of Kansas Museum of Natural History, is No. 19228, a juvenile, taken 5 miles south of Tucson, Arizona. In this specimen, the flaring in the antorbital region is clearly evident and equal in amount to that in skulls of P. n. nitens, but the bird had not attained full skeletal growth. However, the flaring of the antorbital region appears to be common in the nestlings of many species of passerine birds. Other specimens of the subspecies lepida show a varying amount of flaring, the least (in the series available) being in No. 24754, MNH, in which the proportion of the skull (length divided by width) closely corresponds to that in Phainoptila; the skull of No. 24754 is long and thin, and the base of the bill is only slightly swollen. The skull of Phainopepla nitens lepida is more generalized than that of Phainopepla n. nitens, having a longer and narrower bill like the generalized Phainoptila. In Phainopepla n. nitens and in members of the genus Ptilogonys, more flaring occurs in the antorbital region.

Phainoptila, as noted above, has no great amount of flaring in the antorbital region. When more specimens of Phainoptila are examined, the base of the bill probably will be found to flare more in some individuals than in others; this would be expected if we may judge by the data on Phainopepla. The premaxilla and maxilla of Phainoptila are similar to the same bones in Dulus, and there is a well-marked ridge on the tomium (possibly for cutting flower parts). In Phainoptila, the palatines are narrower than in any other genus of the family and abut the lacrimals. The entire skull appears to be modified along different lines from those of the skull of Dulus; the skull of Phainoptila seems to be modified for a frugivorous rather than an insectivorous diet. The skull of Phainoptila probably is more nearly similar to the ancestral skull than is that of any other living species in the family. The wide gape characteristic of some members of the family is undoubtedly a modification for aiding in the capture of insects, and Phainoptila has progressed less in this direction than have other species in the family.

[Pg 499] The mandibles vary somewhat in the shape and proportionate size of the bones. The mandible is proportionately, as well as actually, highest in Dulus. The medial condyle varies to some extent, being slightly flattened mediad in Bombycilla, and less so in the other genera. The mandible of Bombycilla narrows to the symphysis much more gradually than it does in the other genera.

The antorbital plate is large and divides the orbital chamber from the nasal chamber. The small lacrimal bone anterior to the plate articulates with the maxilla and the premaxilla. Shufeldt (1889) states that the free lacrimal ossicle might be of some taxonomic importance in the passerines, since it is found in the generalized Corvids and in nestling Turdids. I find it well developed and identical, with a double articulation and free ends, in all the Bombycillids. There is no significant variability in the family, and this is more evidence of close taxonomic relationship between the members of the family.

The size of the crania is somewhat variable, although the differences seem to be primarily those of proportion. Ptilogonatinae have long crania, whereas the crania of the Bombycillinae and Dulinae are shorter but deeper. I regard the longer cranium as primitive, and it is longest in Phainoptila. In order of decreasing relative length of the cranium, Phainoptila is followed by Ptilogonys caudatus, P. cinereus, and Phainopepla. Bombycilla garrula has the deepest cranium in the family.

The measurements of the lengths and widths of the skulls are given in Table 9. The relative length of the bill and relative width of the skull are given in Table 10. These relative measurements are calculated by using the actual measurements in Table 9 as numerators, the length of the skull from the lacrimal bone to the posteriormost end of the skull being used as the denominator. The data indicate that Phainoptila has a slightly narrower cranium.

[↑ TOC] Humerus.—Certain families of passerine birds have a noticeable variation in the characteristics of the humerus; the bone varies in length, in diameter, and in the complexity of the processes at either end. In the Bombycillids, however, the amount of variation is relatively small, and the diaphysis of the bone is somewhat twisted, especially so in Dulus. The deltoid tuberosity is variable, being shorter but more elevated in Bombycilla than it is in the Ptilogonatinae and in the Dulinae. The tendon from the pectoralis major muscle, which inserts on this process, probably finds better insertion on a higher process than on a lower but longer one.





[Pg 500]

Fig.22
Fig.23 Fig.24 Fig.25
Fig.26 Fig.27 Fig.28
Figs. 22-28. Humeri of five genera of Bombycillidae. Natural size.
22.Phainoptila m. melanoxantha, sex?, MNH no. 26493, 15 mi. SE Cartago, Costa Rica.
23.Ptilogonys caudatus, male, MNH no. 24492, 15 mi. SE Cartago, Costa Rica.
24.Phainopepla nitens, male, MNH no. 24754, Pima Co., Arizona.
25.Ptilogonys cinereus, female, Louisiana State University no. 297, Xilitla Region, San Luís Potosi, Mexico.
26.Dulus dominicus, female, USNM no. 292652, Don Don, Haiti.
27.Bombycilla cedrorum, male, MNH no. 15331, Bexar Co., Texas.
28.Bombycilla garrula, sex?, USNM no. 223895, Bozeman, Montana.





Distally, the two major condyles and the intercondylar groove or olecranon fossa that make efficient articulation with the ulnar process, are not variable. The external condyle, however, is significantly variable in the family. This condyle is longest and most pronounced in birds in which the humerus is short in relation to the trunk, as for example in Tachycineta. In the Bombycillidae the condyle is smallest in Phainoptila, where it is a mere suggestion of a process. In the remainder of the Ptilogonatinae, the condyle is larger but rounded, and shows a double process in Ptilogonys caudatus, and a slightly pointed process in P. cinereus. The external condyle in Dulus is not specialized, being low and rounded, but in Bombycilla, it is noticeably elongated, indicating a better attachment distally for [Pg 501] the deltoid muscle. (No measurements are tabulated for this condyle, as the percentage of error in measuring this small structure is great.) Table 1 gives lengths of humeri, and Table 2 gives lengths of the humeri expressed as percentages of the length of the trunk, a standard measurement.

The area of insertion of the deltoid muscle is elongated in those birds with shortened humeri; these birds have also greater flight power than do birds with longer humeri and therefore a shorter external condyle.

Table 1. Lengths of Arm Bones in cm.

SpeciesHumerusRadiusUlnaManus

Ptilogonys caudatus2.392.572.792.25
Ptilogonys cinereus2.242.482.782.38
Phainopepla nitens2.212.592.822.39
Phainoptila melanoxantha2.402.512.702.25
Dulus dominicus2.232.382.632.31
Bombycilla garrula2.352.582.882.67
Bombycilla cedrorum2.062.342.602.38





Table 2. Arm-trunk Ratios (in percent)

SpeciesHumerusRadiusUlnaManusTotal

Ptilogonys caudatus859293802.58
Ptilogonys cinereus8490103892.76
Phainopepla nitens8498107912.82
Phainoptila melanoxantha737782692.31
Dulus dominicus788392812.51
Bombycilla garrula697587782.34
Bombycilla cedrorum677685772.29





[Pg 502]

Table 3. Arm-trunk Ratios (in percent)

SpeciesHumerusRadiusUlnaManusTotal

Corvus brachyrynchos90101111106307
Dendroica audubonii68829077237
Setophaga ruticilla69829175235
Myadestes townsendi71849681248
Sialia sialis72849886256
Hylocichla mustelina75819280247
Parus atricapillus859010681272
Tachycineta thalassina7195107128306
Myiarchus crinitus8310511592290
Dumetella carolinensis76758978243
Polioptila caerulea859310571261
Eremophila alpestris919911095296
Muscivora forficata85111120108313





[↑ TOC] Pygostyle.—This part of the skeletal system is variable in the species dealt with, not so much in size as in complexity. It reflects, of course, the character of the caudal muscles and their size, as well as the length of the rectrices and the corresponding force necessary to hold these feathers upright and in a useful position. Firm attachment is important even in flight, because the tail is used as a rudder, and in the Ptilogonatinae as a brake. The pygostyle is most modified in this subfamily.

In lateral aspect, the pygostyles of the species of the Ptilogonatinae are similar. The crest of the bone is flattened dorsally, and has a broad anterior surface that is thin and bladelike. This is widest in Ptilogonys caudatus, and narrowest in Phainoptila, in which genus, however, the entire bone is of small size. The centrum is widest in Ptilogonys caudatus, and is progressively narrower in P. cinereus, Phainopepla, and Phainoptila. Greater width provides a larger area of attachment for the larger rectrices and also more area for insertion of the lateralis caudae muscle, the size of which varies more than that of the other caudal muscles in the different species of the Bombycillidae.





[Pg 503]

Fig.29
Fig.30 Fig.31
Fig.32 Fig.33
Fig.34 Fig.35



Figs. 29-35. Pygostyles in posterior view of five genera of Bombycillidae. × 2.
29.Phainoptila m. melanoxantha, sex?, MNH no. 26493, 15 mi. SE Cartago, Costa Rica.
30.Ptilogonys caudatus, male, MNH no. 24492, 15 mi. SE Cartago, Costa Rica.
31.Phainopepla nitens, male, MNH no. 24754, Pima Co., Arizona.
32.Ptilogonys cinereus, female, Louisiana State University no. 297, Xilitla Region, San Luís Potosi, Mexico.
33.Dulus dominicus, female, USNM no. 292652, Don Don, Haiti.
34.Bombycilla cedrorum, male, MNH no. 15331, Bexar Co., Texas.
35.Bombycilla garrula, sex?, USNM no. 223895, Bozeman, Montana.





In proportionate size (see Table 7), the pygostyle of Bombycilla is the smallest in the family. The dorsal spinous portion is acutely pointed instead of flattened as in the Ptilogonatinae. In Dulus, the spinous portion is extremely thin, and shows a decided curve dorsad from the centrum, and there is no flattened area anterior to the spinous portion as is seen in Ptilogonys.

The centrum in cross section varies considerably. In Bombycilla the walls are indented, with definite terminal knobs; both knobs and indentations are more pronounced in B. garrula than in cedrorum, however. The spinous portion is enlarged in both species, and the rest of the neck region is constricted (Figs. 29-35).

The centrum of Dulus in posterior aspect presents the appearance of a simple shield; little of the indentation seen in Bombycilla is [Pg 504] present. The spinous portion is plain, with no constriction nor terminal enlargement in the neck. The centrum in Phainopepla is similar to that in Dulus, but has a small expansion at the base of the spine, the entire centrum being wider in proportion to its over-all size than in any of the other species mentioned previously. The centrum in Ptilogonys shows great width, and the spine is in a large expanded tip as in Bombycilla. The lateral edges of the centrum in P. cinereus are "winged" and in two separate halves; whereas the centrum of P. caudatus is fairly plain, its specialization being reflected primarily in breadth and flatness. In cross section of the centrum, Phainoptila is similar to Phainopepla, although, in the former, the bone is smaller in proportion to the size of the animal, and the lateral wings are more angular than in Phainopepla.





Fig.36
Fig.37 Fig.38
Fig.39 Fig.40
Fig.41 Fig.42



Figs. 36-42. Pygostyles in lateral view of five genera of Bombycillidae. × 2.
36.Phainoptila m. melanoxantha, sex?, MNH no. 26493, 15 mi. SE Cartago, Costa Rica.
37.Ptilogonys caudatus, male, MNH no. 24492, 15 mi. SE Cartago, Costa Rica.
38.Phainoptila nitens, male, MNH no. 24754, Pima Co., Arizona.
39.Ptilogonys cinereus, female, Louisiana State University no. 297, Xilitla Region, San Luís Potosi, Mexico.
40.Dulus dominicus, female, USNM no. 292652, Don Don, Haiti.
41.Bombycilla cedrorum, male, MNH no. 15331, Bexar Co., Texas.
42.Bombycilla garrula, sex?, USNM no. 223895, Bozeman, Montana.





In specialization for muscle attachment, the centra of the pygostyles of the Ptilogonatinae have more area for muscle attachment [Pg 505] than do the centra in the Bombycillinae and Dulinae; the centrum is wide, the spinous portion is long, and the bone is flattened anteriorly. The most generalized pygostyle is in Phainoptila, and that of Dulus differs only slightly. In Bombycilla the pygostyle is proportionately small, but is complex in shape; there is seemingly not the need for greatly expanded areas since the caudal muscles are less specialized in this genus.

[↑ TOC] Sternum.—The sternum in Bombycillids is typically passerine in general shape and in having a long and deep carina or sternal crest. The caudal process of the bone is broad, with the terminal ends flattened, forming dorsally a graceful V-shaped outline, whereas the outline of the posterior end of the sternum is broad and convex.

In lateral aspect, the carina is deeper in Bombycilla than in other genera of the family, and is deepest in B. garrula. In this species, the manubrium is more extended and comparatively larger than in the other species of the family. The anterior edge of the keel forms the sharpest angle in B. cedrorum. In Dulus, the keel is moderately deep, the manubrium short, and there is a distinct indented curve between the manubrium and the anterior angle of the keel.

In ventral aspect the lateral processes of the sternum tend to flare outwards in adult Ptilogonatines on almost the same plane as the rest of the bone, whereas in Bombycilla and Dulus the same process is closer to the body of the sternum. In Bombycilla the xiphoid process is more dorsal in position than in other species in the family, and in Dulus an upward curve is very noticeable. The process in these two genera is narrower than in the Ptilogonatinae, and lacks the heavy distal terminal enlargement which is apparent in Ptilogonys.

[↑ TOC] Relative Lengths of Bones.—In instances where the animals being compared are obviously different in over-all size, it is useful to express the size of a given part in relation to some other part of the same individual organism if the aim is to obtain clues as to differences in functions of the parts being compared. Differences in actual lengths of corresponding bones in two kinds of animals often, of course, reflect only the difference in over-all size of the animals. Consequently, the relative size of the part is expressed as a percentage in this paper. In computing a percentage it is well, of course, to select some relatively stable part of the animal to use as a denominator in the mathematical expression that yields the percentage. The thoracic region of the vertebral column is thought to [Pg 506] be such a part. For example, the length of the humerus divided by the length of the thoracic region yields, in Phainopepla and Ptilogonys, respective percentages of .84 and .85. These are roughly the same, whereas the actual lengths of the humeri are 2.21 and 2.39 cm.





Table 4. Lengths of Leg Bones in cm.

SpeciesFemurTibiotarsusTarsometatarsus

Ptilogonys caudatus2.043.101.94
Ptilogonys cinereus1.892.901.77
Phainopepla nitens1.762.781.72
Phainoptila melanoxantha2.433.772.58
Dulus dominicus2.093.342.09
Bombycilla garrula2.323.461.99
Bombycilla cedrorum1.922.951.64





Table 5. Leg-trunk Ratios (in percent)

SpeciesFemurTibiotarsusTarsometatarsusTotal

Ptilogonys caudatus7311069252
Ptilogonys cinereus7110966246
Phainopepla nitens6910665240
Phainoptila melanoxantha7411560249
Dulus dominicus7311973265
Bombycilla garrula6810159228
Bombycilla cedrorum639653212





[Pg 507]

Table 6. Leg-trunk Ratios (in percent)

Species FemurTibiotarsusTarsometatarsusTotal

Corvus brachyrynchos7112077268
Corvus corax7313978290
Dendroica audubonii6210981252
Setophaga ruticilla6612794287
Myadestes townsendi619960220
Sialia sialis6611172249
Hylocichla mustelina7513397305
Parus atricapillus7813899315
Tachycineta thalassina619756214
Myiarchus crinitus6810674248
Dumetella carolinensis7313694303
Polioptila caerulea75144113332
Eremophila alpestris73113115301
Muscivora forficata629861221





Table 7. Actual Length and Width in mm. of Pygostyle and Proportionate Length and Width of Pygostyle in percent of Lacrimal Length

SpeciesLengthWidthLength,
percent
Width,
percent

Ptilogonys caudatus9.83.94518
Ptilogonys cinereus8.84.14119
Phainopepla nitens8.43.94119
Phainoptila melanoxantha8.53.53514
Dulus dominicus8.52.93813
Bombycilla garrula7.03.53115
Bombycilla cedrorum7.12.93514





[Pg 508]

Table 8. Length of Sternum and Depth of Carina expressed as percentages of the Length of the Trunk

SpeciesSternumCarina

Ptilogonys caudatus8528
Ptilogonys cinereus9132
Phainopepla nitens8126
Phainoptila melanoxantha7625
Dulus dominicus10728
Bombycilla garrula8833
Bombycilla cedrorum8231





Table 9. Skull and Sternum, Length and Width in mm.

SpeciesLength of SkullWidth of SkullLength of SternumWidth of Sternum

Ptilogonys caudatus34.915.623.97.8
Ptilogonys cinereus33.414.724.38.5
Phainopepla nitens33.315.121.36.9
Phainoptila melanoxantha39.716.024.88.2
Dulus dominicus36.416.630.58.0
Bombycilla garrula37.016.830.011.2
Bombycilla cedrorum34.015.525.39.6





The length of the trunk was taken as the distance from the anterior tip of the neural crest of the last cervical vertebra to the anterior edge of an acetabulum. The number of free thoracic vertebra was five in each specimen; consequently, there was no error from this source. In the cranium, a measurement was taken from the anterior edge of the lacrimal bone to the posteriormost end of the cranium, and the resultant figure was employed for a constant in cases in which small bones were compared.





[Pg 509]

Table 10. Relative Length and Width of Skull (in percent)

SpeciesLength of SkullWidth of Skull

Ptilogonys caudatus16072
Ptilogonys cinereus15869
Phainopepla nitens16273
Phainoptila melanoxantha16165
Dulus dominicus16475
Bombycilla garrula16474
Bombycilla cedrorum16274





skeleton of Bombycilla cedrorum

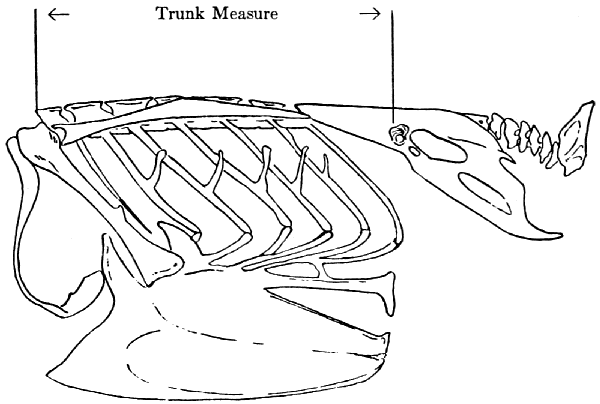

Fig. 43. Part of skeleton of Bombycilla cedrorum showing method of measuring the length of the trunk. Natural size.





[↑ TOC] Leg-trunk Percentages.Table 4 shows the relative lengths of the legs and of the separate bones in the legs of the different species of the Bombycillids. Table 5 shows corresponding lengths for other passerine birds. The total length of the leg was computed by adding the figures obtained for the lengths of the femur, tibiotarsus and [Pg 510] tarsometatarsus. The lengths of the toes were disregarded. Length of leg was recorded in this same way by Richardson (1942:333), who thought that only in swimming and running birds do the toes contribute to the functional length of the hind limb.

Table 4 shows that of the birds compared in this paper, Dulus has the longest legs. In order of decreasing length the others are the Ptilogonatinae, and finally the Bombycillinae, which have the shortest legs of all. In Waxwings the length of the legs, expressed as percentages of the body-lengths, are identical with those birds that are similar in habits, that is to say, birds which do not use the hind limb except in perching. It can be noted by reference to Table 5 that Tachycineta and Myadestes fall into this category. This shortness of limb is obviously adaptive, and each of the segments of the limb has been correspondingly shortened, with no element reduced at the expense of the other two. The short leg can be more easily folded against the body while the bird is in flight, than can a long leg which is more unwieldy. It may be noted from tables 4 and 5 that birds which spend much time on the ground, or that hop a great deal in the underbrush, have longer legs than do birds which spend much time in flight. Two birds with noticeably long legs are Hylocichla mustelina, a typical ground dweller, and Parus atricapillus, which hops about in the trees and underbrush.

Insofar as the lengths of the legs show, Dulus and Phainoptila are the most generalized of the Bombycillidae, since the relative length of leg is approximately the same as that of more generalized birds such as warblers, crows and thrushes of similar locomotory habits. In other words, Dulus and Phainoptila have remained unspecialized, in contrast to the waxwings in which adaptive changes fitting them for a perching habit have taken place. Ptilogonys and Phainopepla are intermediate in length of leg between Phainoptila and Bombycilla, and Ptilogonys and Phainopepla have progressed from life on the ground toward the perching habit. Bombycilla cedrorum is more specialized than is B. garrula in shortness of leg, and the reduction is comparable, as is noted above, to that in the legs of Tachycineta.

In birds which have the legs much modified for walking or for hopping in the brush, such as Polioptila and Eremophila, it is noteworthy that the distal segment, the tarsometatarsus, is the longest, whereas in birds such as Myiarchus and Tachycineta, that do not utilize the limbs in this manner, the tibiotarsus, the middle segment, is the longest. Mammals much modified for walking or hopping likewise [Pg 511] have the proximal segment, the femur, short, and the distal segment long (Howell, 1944). The waxwings have all of the segments short; these birds are modified for strong and sustained flight. Their hind limbs are used principally for landing devices and for perching. No one element of the leg has been shortened much, if any, more than any other.





leg bone lenghts

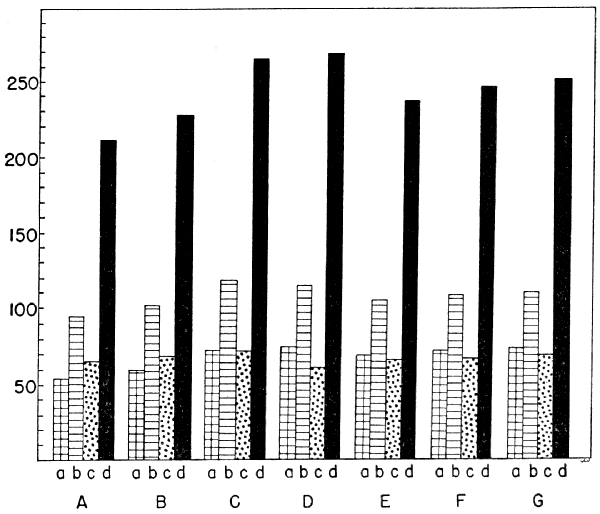

Fig. 44. Graph showing relative lengths of bones of the leg. The percentage values are shown on the axis of the ordinates.

A. Bombycilla cedrorum; B. Bombycilla garrula; C. Dulus dominicus; D. Phainoptila melanoxantha; E. Phainopepla nitens; F. Ptilogonys cinereus; G. Ptilogonys caudatus.
a. femur; b. tibiotarsus; c. tarsometatarsus; d. total.





[↑ TOC] Arm-trunk Percentages.Tables 1 and 2 show the total length of the arm, and lengths of the separate arm elements, relative to the trunk. Table 3 gives the corresponding lengths for birds other than the Bombycillidae. Total length of arm was obtained by adding together the lengths of the humerus, ulna, and manus, and by dividing the figure thus obtained by the length of the trunk as was done for leg lengths in tables 4 and 5. The method of adding together the component parts does not give the entire length of the [Pg 512] wing, since the length of the feathers, which add effectively to the total length, as well as do the lengths of the small carpal elements, is lacking.





wing bones

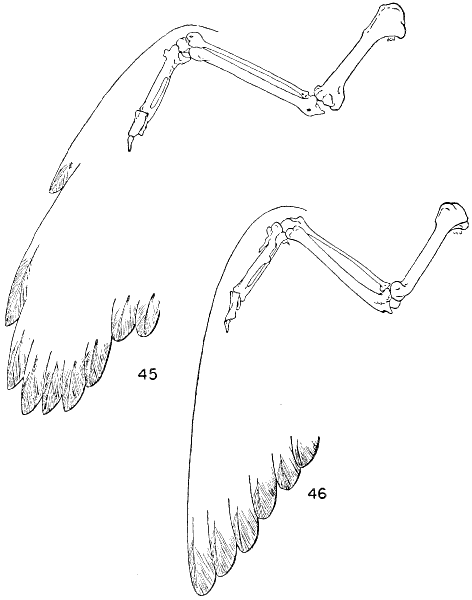

Figs. 45-46. Outlines of wings. × 1/2

45. Ptilogonys caudatus, showing relation of outline of wing to bones of arm.

46. Bombycilla cedrorum, showing relation of outline of wing to bones of arm.





It may be noted that Phainoptila and Bombycilla have the shortest arm in the family Bombycillidae. The humerus, radius and ulna are comparable to the same elements in thrushes and the catbird, and it is only the extremely short manus in Phainoptila that affects the total. The manus in Phainoptila is comparatively smaller than in any other genus of the family Bombycillidae, and this indicates poor flight power. Bombycilla has a total length corresponding [Pg 513] closely to that in warblers, but the lengths of the distal elements correspond closely to those in the catbird and thrushes. Of the three segments, the humerus is, relatively, the most shortened. Next in order of increasing length of arm is Dulus; measurements for it are roughly the same as those of Myadestes. The wing bones of the Ptilogonatinae, other than Phainoptila, are the longest in this series, and they most nearly resemble the same bones in flycatchers, Parids, and gnatcatchers.





arm bone lenghts

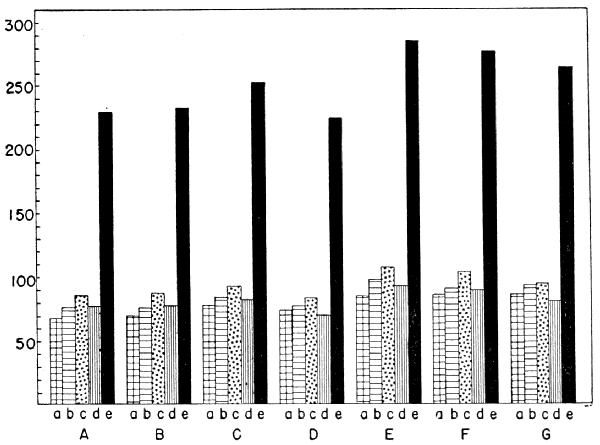

Fig. 47. Graph showing relative lengths of bones of the arm. The percentage values are shown on the axis of the ordinates.

A. Bombycilla cedrorum; B. Bombycilla garrula; C. Dulus dominicus; D. Phainoptila melanoxantha; E. Phainopepla nitens; F. Ptilogonys cinereus; G. Ptilogonys caudatus.
a. humerus; b. radius; c. ulna; d. manus; e. total.





It is notable that, in general, birds with long and narrow wings appear to have relatively the shortest humeri, with the distal bones, especially the manus, variable in length and seemingly correlated with the manner of feather attachment. Those birds with rounded and short wings have the longest humeri. In swallows, for example, the humerus is short, whereas the other arm bones are long, and the manus is unusually large and heavy. A short humerus gives better lever action in the flight stroke than a long humerus does.





[↑ TOC]
[Pg 514]

MUSCULATURE

Dissections showed the same muscles to be present in all genera of the Bombycillidae. There are, nevertheless, differences in the size of the muscles in the various species, and these differences have been investigated primarily as a check on differences noted in the structure of the bones. Even slight differences in mass can be important functionally, but the difficulty in accurately measuring the mass prevents wholly reliable conclusions. The method first used in the attempt to determine the mass of a given muscle was that of immersing the muscle in a liquid-filled graduated tube, and then measuring the amount of liquid displaced. This method, although adequate for large muscles, was subject to a great amount of error in the case of small muscles, and consequently was abandoned. The technique eventually used was that previously employed by Richardson (1942). It consisted of dissecting out the muscle, placing it in embalming solution, leaving it there until a later period, and finally, weighing the muscle on scales, accurate to a milligram, after the muscle had been out of the liquid for a period of one minute. After being weighed, the muscle was measured by the displacement method in a graduated tube, as a check. The results indicate that, although the two methods give the same general results, weighing is accurate to one-hundredth of a gram, whereas the displacement method was accurate to only a tenth of a gram.

In determining the percentage of the weight of a muscle in relation to the total weight of the bird, the weight of the muscle was used as the numerator, and the weight of the preserved specimen was used as the denominator. Before weights were taken, all specimens were plucked in identical fashion.

[↑ TOC] Caudal Muscles.—The muscles of the caudal area that were used for comparison were the levator caudae and the lateralis caudae. These muscles are used by the living bird to maintain the position of the pygostyle and therefore the rectrices; these muscles are especially important to those birds that utilize the tail as a rudder in flight and as a brake. As may be seen by reference to Table 11, the two muscles are largest in proportion to body weight in the Ptilogonatinae, in which subfamily the species have long rectrices and must have correspondingly well-developed muscles in order to utilize the rectrices to best advantage in flight. The lateralis caudae differs more according to species than does the levator caudae, showing that rudder action of the tail is of primary importance in the adaptation for capturing insects. It will be remembered that the [Pg 515] pygostyle in this subfamily has a flattened lateral surface for attachment of the levator caudae muscle, and it is therefore to be expected that this muscle will be larger in the Ptilogonatinae than it is in either the Bombycillinae or the Dulinae. The levator coccygis, together with the two muscles mentioned above, is responsible for elevation of the tail. The levator coccygis is less altered in different species of the family than is the lateralis caudae. It may be noted that the caudal muscles of Dulus and Bombycilla constitute a smaller percentage of the total weight of the bird than in any of the genera in the subfamily Ptilogonatinae.





caudal musculature

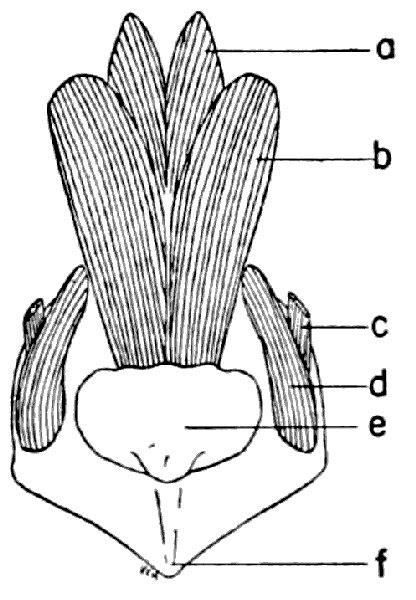

Fig. 48. Caudal musculature, of Phainopepla nitens lepida, in dorsal view. × 2.
a. Levator coccygis; b. Levator caudae; c. Lateralis caudae;
d. Lateralis coccygis; e. oil gland; f. dorsal tip of pygostyle.





Table 11. Caudal Muscles (Actual and Relative Weights)

SpeciesLevatorLateralis

Ptilogonys caudatus.145g..022g.
 .092%.045%
Ptilogonys cinereus.030g..010g.
 .076%.026%
Phainopepla nitens.025g..008g.
 .096%.029%
Phainoptila melanoxantha.040g..015g.
 .063%.014%
Dulus dominicus.028g..006g.
 .063%.014%
Bombycilla garrula.034g..010g.
 .048%.014%
Bombycilla cedrorum.026g..008g.
 .050%.014%





[Pg 516]

Table 12. Weights of Muscles (These percentages expressed in terms of weights of the body)

SpeciesP. majorP. minorDeltoidThighPeroneusGastrocnemius

Ptilogonys caudatus2.42g..29g..55g..43g..15g.
 4.94%.59%1.12%.88%.31%.96%
Ptilogonys cinereus2.19g..28g..53g..30g..08g.
 5.57%.71%1.35%.71%.21%1.02%
Phainopepla nitens1.30g..20g..30g..28g..10g.
 4.99%.77%1.15%1.12%.40%1.42%
Phainoptila melanoxantha3.93g..44g..92g.1.09g..48g.
 6.18%.69%1.45%1.61%.75%2.97%
Dulus dominicus2.09g..22g..50g..73g..18g.
 4.81%.50%1.15%1.68%.41%1.01%
Bombycilla garrula3.85g..45g..55g..50g..15g.
 5.31%.62%.76%.69%.18%.59%
Bombycilla cedrorum2.58g..35g..50g..37g..10g.
 5.00%.68%.97%.73%.19%.83%





[↑ TOC]
[Pg 517]

Pectoral Muscles.—The pectoral set of muscles varies but little in the family; flight power is seemingly not dependent upon size of either the pectoralis major or pectoralis minor. The data indicate that the insertion on the humerus, with consequent changes in the relative length of that bone, is more significant in type of flight and over-all flight power than is the actual size of the muscle mass. The deltoid muscle, for example, is smaller in Bombycilla than in members of the other two subfamilies. The humerus in Bombycilla is shortened, and the muscle therefore does not need to be large to accomplish the same powerful stroke that would be accomplished by a longer humerus and a larger, more powerful deltoid muscle. In the case of the deltoid, the shortening of the humerus and the more complex arrangement of the points of insertion have obviated the necessity of enlarging the muscle.

[↑ TOC] Leg Musculature.—The muscles of the thigh are noticeably larger in birds that have long leg bones. (See Table 12 for size of muscles.) On the tibiotarsus, the peroneus and gastrocnemius muscles were measured. When expressed as a percentage of the weight of the bird, the peroneus has much the same relative weight in all but one of the species, whereas the gastrocnemius varies much. The peroneus is proportionately large only in Phainoptila, in which genus all the leg muscles are well developed, but the gastrocnemius is larger in all the Ptilogonatinae and in Dulus than it is in the specialized Bombycilla, in which it has probably been reduced as the leg bones and other muscles have been reduced.

The volume of the muscles of the hind limb changes more readily in response to saltation and running than do the muscles of the forelimb to flying.





[↑ TOC]
DIGESTIVE TRACT

The digestive tract is relatively uniform in all genera of the family; there are only slight differences between the species. The degree of compactness of the visceral mass varies, Phainoptila and Ptilogonys caudatus having the folds of the digestive tract loosely arranged, whereas Ptilogonys cinereus and Phainopepla have folds which adhere more tightly to the ventriculus and liver. In Dulus and Bombycilla, as compared with the Ptilogonatinae, the visceral mass (primarily liver and ventriculus) is situated more posteriorly in the body cavity, and is more compact, and the intestine is more tightly coiled.

The coiling of the intestine, if its degree of compactness is disregarded, is nearly identical in the birds of the family; there are [Pg 518] four major loops between the ventriculus and the anus. The length of this section of the tract is, however, somewhat variable, as can be seen by reference to Table 13, in which the actual and relative lengths of the intestine are given. It may be seen that in Bombycilla and in Phainopepla, the tracts are much shortened. This is notable, since these are frugivorous birds, and in many frugivorous birds, the tract is lengthened for better extraction of edible portions of the food. Possibly the action of the digestive juices is correspondingly more rapid in Bombycilla and Phainopepla, thereby permitting the necessary nutriment to be extracted by a short digestive tract.

In a migratory bird, or one that depends on flight power to find food and escape capture by predators, as in the case of the waxwings, the compacted and shortened visceral mass would seem to be advantageous, because of the consequent reduction in weight. I consider the longer intestine to be the ancestral condition, and that the intestine has become shorter to meet new environmental conditions.

Table 13. Digestive Tract: Actual Length, and Length Relative to Thoracic Length

SpeciesLength
in mm.
Relative length
(in percent)

Ptilogonys caudatus134476.9
Ptilogonys cinereus111415.6
Phainopepla nitens94357.5
Phainoptila melanoxantha150457.1
Dulus dominicus130451.0
Bombycilla garrula102298.2
Bombycilla cedrorum95309.5





Beddard (1898:30) states that caecae in the tract may be highly variable in a single family of birds. The Bombycillidae is no exception in this regard. At the junction of the cloaca and the large intestine, there are two small caecae, the function of which is unknown to me. The caecae are largest in the Ptilogonatinae, smaller in the Bombycillinae, and smallest in the Dulinae. There may be a [Pg 519] correlation between large caecae and more insectivorous diet and small caecae and frugivorous diet; however, the data are not conclusive in this regard.





[↑ TOC]
ORIGIN OF THE SPECIES

It is here postulated that the center of origin for the ancestral stock of the Bombycillidae was in a region of North America, which at the time concerned was temperate or possibly even semi-tropical in climate. Probably Northern Mexico was the place and probably the climate was temperate. It is reasonably certain, because of the distribution of the species of the family, that they originated in the Americas. In the absence of paleontological data (Bombycilla alone is reported, in essentially its modern form, from the late Pleistocene—Wetmore, 1940a), the place and time of origin cannot certainly be determined.

The distribution of the family is such that the more primitive groups are in the south. These are the Ptilogonatinae in Central America and Mexico, and the isolated Dulinae in Haiti and the Dominican Republic. This distribution would support the view that the origin was in the south. However, the Holarctic Bombycillinae are so typically birds of northern latitudes that, were it not for such close relatives south of their range, it would appear logical to infer a northerly origin with a subsequent shifting of populations both southward and northward. The phyletic age of the family is probably great, however, as evidenced by the spotty distribution of the birds.

In the evolution of this family, population pressure possibly played the initial role in forcing members of the primitive, southern stock to seek habitable areas on the periphery of the range. Some birds also, being possessed of the "adventuresome spirit", aided the northerly movement, thus effecting an extension of the breeding ranges to the north. So far as is now known, this family did not seek living space in South America. By extending its range, a species might find more abundant food and nesting sites. This process of extending the range probably would be costly to the species concerned, because only those individuals best able to adapt themselves to the new environmental conditions would be able to survive long enough to reproduce their kind.

The return flight to the south could, in time, be dispensed with, except in the coldest weather or when the local berry- and fruit-crop failed. Birds such as waxwings are, of course, able to subsist on [Pg 520] dried fruits and berries in the critical winter season when strictly insectivorous birds, not so catholic in their food habits, must return south. It appears that waxwings are descendants of migratory birds that have adjusted themselves to a life in the north; and they are judged not to have evolved from year-round residents of the north.

Even a short migratory journey in spring by part of a population of birds, while the other part remained in the original range, would quickly isolate one breeding population from the other, resulting in the formation of different genetic strains that lead to subspecies, species, and finally to genera and families. Any variation away from the ancestral, "sedentary" stock would become established more quickly because of such isolation at the breeding period. By the same token, the parental stock can, and no doubt does, become modified to suit its environment more perfectly, thus accelerating the tempo of this type of divergent evolution.

The original "split" of the Bombycillines is thought then to have been the result of migration on the part of some of the ancestral stock, with subsequent loss of regular migration because the need to return south was lost. Early in development, and before the migrational tendency was entirely lost, an isolated population, which later became sedentary, as it was an island population, diverged to give rise to the Dulinae. The Dulinae are a homogeneous group since on the islands now inhabited by the birds, they have not been isolated sufficiently long to produce even well-marked subspecies.





family tree

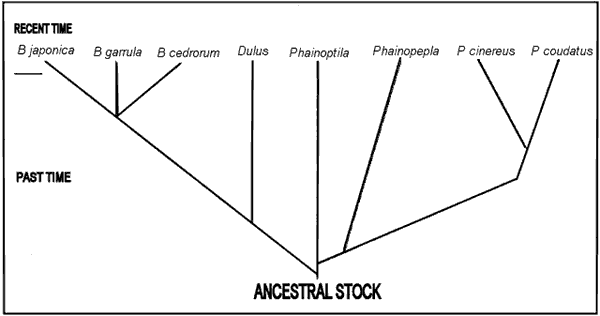

Fig. 49. Hypothetical family tree of the Bombycillidae.





The present day Phainoptila is most nearly like the ancestral group, and the remainder of the Ptilogonatinae have diverged to [Pg 521] fit conditions similar to those to which the Tyrannid flycatchers, which parallel them, are also fitted.

In comparatively recent geological time, two basic lines developed from the Bombycilline stock, the future B. garrula and B. cedrorum. Possibly garrula originally was isolated in Europe and Asia, and later came into contact with B. cedrorum, following the time at which the two species were genetically well differentiated. It appears certain that B. japonica was an offshoot of the Bombycilline stock at an early time, since it has characteristics that seem relatively unspecialized. It possibly was isolated in the Orient.

Structural affinities of Dulus and Bombycilla are more pronounced than are those of Dulus and Ptilogonys, for example. Many of the structural features of Dulus parallel those of Phainoptila, and it seems likely that the Dulinae were separated early in the history of the family, perhaps as an isolated offshoot of the early migratory Bombycillinae.





[↑ TOC]
CONCLUSIONS

Nomenclature, as used by a taxonomist, should of course indicate affinities as well as apply a name, and the rank of the family should be applied to a structural unit based on common anatomical characters that are more fundamental than, in my opinion, are those used by Ridgway (1904) in proposing family status for the silky flycatchers and the palm-chats. The characters in the diagnosis (page 478) of the family Bombycillidae are common features regarded as warranting a single family unit for the waxwings, silky flycatchers, and palm-chats. The differences in morphology used by previous workers to characterize each of these groups: (1) the silky flycatchers; (2) waxwings and; (3) palm-chats are regarded as more properly characters of only subfamily rank.

The existing coloration of the species of the Bombycillidae appears to have been acquired relatively late, geologically speaking. The three subfamilies responded to ecological stimuli in three different ways, and the resulting color patterns are unlike in the three groups. Dulinae to this day have a color pattern that is most like the ancestral color pattern, and this is recapitulated in the juvenal plumage of the Bombycillinae before they attain their adult plumage.

Consideration of the geographic distribution of the species of the family indicates that the center of origin of the family Bombycillidae [Pg 522] was south of the present range of the waxwings (subfamily Bombycillinae). Waxwings probably are the descendants of a migratory population that diverged from the primitive population at an early time in the history of the family. Owing to their adaptations to survive in the north, waxwings no longer return south in the autumn. Palm-chats (subfamily Dulinae) are descendants of an isolated population of the family stock that developed communal living habits as one specialization. Silky Flycatchers (subfamily Ptilogonatinae) became modified to catch insects, and have specializations that roughly parallel those of the Tyrannid flycatchers.

Osteologically, the various species of the Bombycillidae are remarkably similar. Small variations do exist, but these are primarily differences in relative size. The modifications of the beak enable palm-chats to feed on parts of plants, and the beak of Phainoptila shows some similarity in this respect. Rounded wings, which cause a bird to fly by means of short, relatively weak strokes, are correlated with a comparatively long humerus, whereas long and pointed wings, which enable a bird to fly with more powerful strokes of the wing, are correlated with a relatively short humerus. There is a positive correlation between a short humerus and a long external condyle, and between a long humerus and the absence or smallness of the external condyle.

In the Bombycillidae short bones of the leg are adaptive, and long bones of the leg are the generalized condition. Although all passerine birds were differentiated relatively late in geologic time, long hind limbs still could have been present in the immediate ancestors of passerine birds. As adaptive radiation took place in the class Aves, some birds, the Bombycillidae included, became more and more adapted for an arboreal, and eventually an aerial habitat, with consequent loss of saltatorial and running ability.

Birds, like mammals, have a short femur, the most proximal element in the leg, if the species is adapted to run fast. If the species is not adapted to run fast, birds, unlike mammals, have the tibiotarsus longer than any of the other elements; in mammals that are not adapted to run fast, the femur and tibia are approximately the same length. In non-running birds as compared with running birds, the leg element distal to the tibiotarsus, and the one proximal to it, are considerably shortened. In waxwings, all three elements of the hind limb are shortened, indicating that the reduction in length has been, evolutionarily speaking, a rapid process, in order to reduce the limbs to a convenient size as soon as possible.

[Pg 523] The shape of the pygostyle varies in the Bombycillidae, but the simple shieldlike bone of Phainoptila is judged to resemble closely the ancestral type. In Ptilogonys there is a tall dorsal spine, coupled with a wide and heavy centrum and flattened lateral areas, for support of the long rectrices. In Bombycilla the bone is small with knobs on the centrum that have been developed for muscle attachment.

The muscles were carefully dissected in each genus and in most of the species. The same homologous muscles are present in all species. Significant differences were found only in the relative size of certain muscles. No satisfactorily accurate method of measuring these differences was found. Consequently, less use was made of the results of the dissections than was originally planned.

The set of pectoral muscles varies but slightly in relative mass, and the variation is not considered significant. The deltoid muscle was selected for measurement since its point of insertion is unusually variable, while the mass of the muscle varies little. We can conclude that the extent of the area of insertion of the tendon of a muscle can determine that muscle's relative efficiency, while the muscle itself remains the same in bulk.

The muscles of the hind limb are notably larger in species that have long legs, and a good index of the hopping ability may be gained by study of certain of these muscles. In the Bombycillidae, and in those Ptilogonatinae that do not use the hind limbs for hopping, the bones are shortened, and the associated muscles are correspondingly smaller.

The gross anatomy of the digestive tract is practically identical in the members of the family. The variability noted is mainly in the degree of compactness of the visceral mass in Bombycilla and in Phainopepla. Also there is a tendency for the Bombycillinae and the Dulinae to have the mass situated more posteriorly than it is in the Ptilogonatinae. Moreover, Bombycilla has a shorter intestine than do the other genera. All of this indicates that the waxwings (Bombycillinae) have the center of gravity situated more advantageously for flight than do the birds of the two other subfamilies.





[↑ TOC]

[Pg 524]

SUMMARY
 1.The silky flycatchers, waxwings, and palm-chats are included in the family Bombycillidae; the Ptilogonatidae and Dulidae are reduced to subfamily rank.
 2.The coloration of the birds of each subfamily is different because the ecological needs are different.
 3.Waxwings were at one time regularly migratory, but are now nomadic, since they are adapted to live in northern latitudes for the entire year.
 4.The corresponding bones in different members of the family closely resemble one another, and the differences which do exist are the results of responses within relatively recent times to changes in habits.
 5.In the Bombycillidae a rounded wing is judged to be the primitive condition. As the wing becomes more pointed, the humerus becomes shorter and its external condyle longer.
 6.The hind limbs are short in birds that depend most on flight power, but are longer and the distal elements are disproportionately longer in birds that depend on saltation or on running.
 7.The pygostyle varies in shape and size between genera and even between some species.
 8.The pectoral muscles differ in size only slightly in the different members of the family, but the insertions are more extensive for these muscles in birds that fly a great deal.
 9.The muscles of the hind limb vary in mass, but not in kind, in the members of the family Bombycillidae.
10.In the Bombycillidae that depend on flight power, rather than on saltation or on running power, there is a tendency for the digestive tract to become shorter and for the whole visceral mass to become more compact.





[↑ TOC]

[Pg 525]

BIBLIOGRAPHY
Anderson, E. M.

1915. Nesting of the Bohemian Waxwing in northern British Columbia. Condor, 17(4):145-148, 1915.

Anderson, M. P.

1907. A collecting trip in Korea. Condor, 9(5):146-147, 1907.

Anderson, R. M.

1909. Nesting of the Bohemian Waxwing (Bombycilla garrulus). Auk, 26(1):10-12, 1909.

Armstrong, E. A.

1942. Bird display. Cambridge Univ. Press, xvi + 381 pp., 22 plates, 1942.

Baird, S. F.

1860. The birds of North America. J. B. Lippincott Co., lvi + 1003 pp., 1860.

Beddard, F. E.

1898. The structure and classification of birds. Longmans, Green & Co., xx + 548 pp., 252 figs., 1898.

Bergtold, W. H.

1917a. A study of the incubation period of birds. Kendrick-Bellamy Co., 109 pp., 1917.

1917b. Regurgitation in the Bohemian Waxwing. Auk, 34(3):341-342, 1917.

1924. A summer occurrence of the Bohemian Waxwing in Colorado. Auk, 41(4):614, 1924.

Boulton, R.

1926. Remarks on the origin and distribution of the Zonotrichiae. Auk, 18(3):326-332, 1926.

Burleigh, T. D.

1921. Breeding birds of Warland, Lincoln County, Montana. Auk, 38(4):552-565, 1921.

Burt, W. H.

1930. Adaptive modifications in the woodpeckers. Univ. California Publ. Zoöl., 32(8):455-524, 29 figs. in text, 1930.

Carriker, M. A., Jr.

1909-1912. An annotated list of the birds of Costa Rica including Cocos Island. Ann. Carnegie Mus., 6(1):314-915, 1909-1912.

Cory, C. B.

1886. The birds of the West Indies, etc. Auk, 3(2):187-245, 1886.

Crouch, J. E.

1936. Nesting habits of the Cedar Waxwing. Auk, 53(1):1-8, 1936.

1943. Distribution and habitat relationships of the Phainopepla. Auk, 60(3):319-333, 1943.

Engels, W. L.

1938. Cursorial adaptations in birds—limb proportions in the skeleton of Geococcyx. Jour. Morph., 63:207-217, 3 figs. in text, 1938.

1940. Structural adaptations in Thrashers (Mimidae: Genus Toxostoma) with comments on interspecific relationships. Univ. California Publ. Zoöl., 42(7):341-400, 24 figs. in text, 1940.

[Pg 526]

Farley, J. A.

1924. Abnormal Cedar Waxwing. Auk, 41(1):160, 1924.

Fisher, H. I.

1946. Adaptations and comparative anatomy of the locomotor apparatus of New World Vultures. Amer. Midl. Nat., 35:545-727, 14 plates, 42 tables, 28 figs. in text, 1946.

Frank, F.

1939. Die Färbung der Vogelfeder durch Pigment und Struktur. Jour. für Orn., 87:426-523, 1939.

Garrod, A. H.

1876. On some anatomical peculiarities which bear upon the major divisions of the passerine birds, Pt. I. Proc. Zoöl. Soc. London, 626-647, 1876.

Gerondet, P.

1948. Le jaseur boreal en Suisse pendant l'hiver 1946-1947. Der Orn. Beob., 45(1):1-5, 1948.

Gould, J.

1862. The birds of Great Britain. London, published by the author, 5 vols., text unpaged, 367 plates, 1862.

Grinnel, J.

1901. The status of the Cedar Waxwing in California. Condor, 3(6):146-147, 1901.

1909. A new cowbird of the genus Molothrus. Univ. California Publ. Zoöl., 5:275-281, 6 figs. in text, 1909.

Griscom, L.

1934. The ornithology of Guerrero, Mexico. Mus. Comp. Zoöl. Bull. 75:367-422, 1934.

Hamilton, W. J., Jr.

1933. A late nesting waxwing in central New York. Auk, 50(2):114-115, 1933.

Hanna, W. C.

1931. Nesting of the Bohemian Waxwing in British Columbia. Condor, 33(6):253-254, 1 fig., 1931.

Heinroth, O.

1924. Die Vögel Mitteleuropas. Berlin, Huge Bermühler, 1:51-58, 1924.

Hellmayr, C. E.

1935. Catalogue of the birds of the Americas. Field Mus. Nat. Hist. Mus. Publ. 347, 8(pt. 8):vi + 541 pp., 1935.

Howell, A. B.

1938. Muscles of the avian hip and thigh. Auk, 55(1):71-81, 2 figs. in text, 1938.

1944. Speed in animals, their specialization for running and leaping. Univ. Chicago Press, xi + 270 pp., 55 figs. 1944.

Hudson, G. E.

1937. Studies on the muscles of the pelvic appendage in birds. Amer. Midl. Nat., 18:1-108, 26 plates, 1937.

1948. Studies on the muscles of the pelvic appendages in birds II, the heterogeneous order Falconiformes. Amer. Midl. Nat., 39(1):102-127, 1948.

[Pg 527] Knowlton, F. H.

1909. Birds of the world. Henry Holt & Co., Ltd., xi + 873 pp., 15 plates, 233 figs. in text, 1909.

Konoda, N.

1943. A dictionary of animals. Tokyo, 3 + 767 + 50 pp., profusely illustrated, 1943.

Koshantschikov, I.

1930. Ein Beitrag zur Kenntnis der Okologie, Biologie, und Geographie des Zobels (Martes zibellina L.). Zeits. für Okol. der Tierre, 19(2):291-320, 2 maps, 1930.

Linsdale, J. M.

1928. Variations in the Fox Sparrow (Passerella iliaca) with reference to natural history and osteology. Univ. California Publ. Zoöl., 30(12):251-392, 4 plates, 38 figs. in text, 1928.

Littlefield, M. J., and Lemkan, F.

1928. History of a Cedar Waxwing family. Bull. NE Bird-Band. Assoc., 4:85-89, 1928.

Lucas, F. A.

1897. The tongues of birds. U. S. Nat. Mus. Report for 1895, 1001-1019 pp., 2 plates, 1897.

McGregor, R. C.

1906. Notes on birds observed while traveling from Yokohama to Manila. Condor, 8(4):98-100, 1906.

Matthew, W. D.

1939. Climate and evolution. N. Y. Acad. Sci., Spec. Publ., 1:xi + 223 pp., 1939.

Mayr, E.

1942. Systematics and the origin of species. Columbia Univ. Press, xiv + 334 pp., 29 figs. in text, 1942.

1947. Ecological factors in speciation. Evolution, 1(4):263-288, 1947.

Merriam, F. A.

1896. Nesting habits of Phainopepla nitens in California. Auk, 8(1):38-43, 1896.

Miller, A. H.

1933. Postjuvenal molt and the appearance of sexual characters of plumage in Phainopepla nitens. Univ. California Publ. Zoöl., 38(13):425-444 pp., 8 pls., 1 fig. in text, 1933.

1937. Structural modifications in the Hawaiian Goose (Nesochen sandvicensis). A study in adaptive evolution. Univ. California Publ. Zoöl., 42(1):1-80, 6 plates, 12 figs. in text, 1937.

1941. Speciation in the avian genus Junco. Univ. California Publ. Zoöl., 44(3):173-434, 33 figs. in text, 1941.

Muller, C. S.

1915. A northern winter record of the Phainopepla. Condor, 17(3):129, 1915.

Myers, H. W.

1907. Nesting habits of Phainopepla nitens. Condor, 9(4):101-103, 1907.

1908. Observations on the nesting habits of Phainopepla. Condor, 10(2):72-75, 1908.

[Pg 528]

1909. Notes on the habits of Phainopepla nitens. Condor, 11(1):22-23, 1909.

Newton, A., and Gadow, H.

1893-1896. A dictionary of birds. Adams and Charles Black, xii + 1086 pp., 1893-1896.

Nice, M. M.

1940. Observations on the behavior of a young Cedar Waxwing. Condor, 43(1):58-64, 1940.

Oberholser, H. C.

1917. A synopsis of the races of Bombycilla garrula (Linnaeus). Auk, 34(3):330-333, 1917.

Pemberton, J. R.

1908. Northern range of the Phainopepla. Condor, 10(6):238, 1908.

Plath, K.

1933. Molt of the Nonpareil. Auk, 50(2):121, 1933.

Post, K. C.

1916. The Cedar Waxwing (Bombycilla cedrorum) during July and August, 1916. Wilson Bull., 28:175-193, 1916.

Rand, A. L., and Rand, R. M.

1943. Breeding notes on Phainopepla. Auk, 60(3):333-341, 1943.

Richardson, F.

1942. Adaptive modifications for trunk foraging in birds. Univ. California Pub. Zoöl., 46(4):317-368, 2 plates, 16 figs. in text, 1942.

Ridgway, R.

1904. The birds of North and Middle America, Part III. U. S. Nat. Mus. Bull. 50:xx + 801 pp., 19 plates, 1904.

Saunders, A. A.

1911. A study of the nesting of the Cedar Waxwing. Auk, 28(3):323-329, 1911.

1912. The probable breeding of the Bohemian Waxwing in Montana. Condor, 14(6):224, 1912.

Sharpe, R. B.

1885. Catalogue of the birds in the British Museum, Vol. 10, British Mus., xiii + 682 pp., 12 plates, 1885.

Shaw, W. T., and Culbertson, A. E.

1944. A flock of Cedar Waxwings meets tragedy. Condor, 46(4):205-206, 1944.

Shufeldt, R. W.

1887. A review of the muscles used in the classification of birds. Jour. Comp. Med. and Sur., 8(4):321-344, 1887.

1889a. Comparative osteology of the families of North American birds. Jour. Morph., 3(1):81-114, 6 plates, 1889.

1889b. Studies on the Macrochires, morphological and otherwise, with the view of indicating their relationships and defining their several positions in the system. Linn. Soc. London, Jour., 20(122):299-394, 1889.

1890. The myology of the Raven. Macmillan & Co., x + 344 pp., 76 figs., 1890.

1909. Osteology of birds. New York State Mus. Bull., 130:381 pp., 1909.

[Pg 529]

Skutch, A.

Manuscript—unpublished notes and personal correspondence.

Stevenson, H.

1882. On the plumage of the waxwing, Ampelis garrulus, Linnaeus, from the examination and comparison of a large series of specimens killed, in Norfolk, in the winter of 1866-'67. Trans. Norfolk and Norwick Naturalists' Soc., 3:326-344, 2 figs. in text, 1882.

Sutton, G. M., and Burleigh, T. D.

1940. Birds of Las Vigas, Veracruz. Auk, 57(2):234-243, 1940.

1942. Birds recorded in the Federal District and States of Puebla and Mexico by the 1939 Semple Expedition. Auk, 59(3):418-423, 1942.

Swarth, H. S.

1922. Birds and mammals of the Stikine River region of northern British Columbia and southeastern Alaska. Univ. California Publ. Zoöl., 24(2):125-314, 8 plates, 34 figs. in text, 1922.

Taylor, W. P.

1918. Bohemian Waxwing (Bombycilla garrulus) breeding within the United States. Auk, 35(2):226-227, 1918.

Taverner, P. A.

1934. Birds of Canada. Nat. Mus. Canada Bull., 72, series 19, 445 pp., 77 plates, 488 figs. in text, 1934.

Wayne, A. T.

1924. A remarkable Cedar Waxwing. Auk, 41(3):485, 1924.

Wetmore, A.

1926. The migrations of birds. Cambridge, Harvard Univ. Press, vii + 217 pp., 1926.

1932. Notes from Dr. R. Ciferri on the birds of Hispaniola. Auk, 49(1):101-108, 1931.

1940a. A check-list of the fossil birds of North America. Smithson. Misc. Coll., 99(4):1-88 pp., 1940.

1940b. A systematic classification of the birds of the world. Smithson. Misc. Coll., 99(7):1-11 pp., 1940.

Wetmore, A., and Swales, B. H.

1931. The birds of Haiti and the Dominican Republic. U. S. Nat. Mus. Bull. 155:iv + 482 pp., 26 plates, 1931.

Wheelock, I. G.

1905. Regurgitation feeding of nestlings. Auk, 22(1):54-71, 1905.

Whittle, H. G.

1928. The biography of a Cedar Waxwing. Bull. NE Bird-Band. Assoc., 4:77-85, 1928.

Wolfson, A.

1945. The role of the pituitary, fat deposition, and body weight in bird migration. Condor, 47(3):95-127, 1945.

Wolley, J. J.

1857. On the nest and eggs of the Waxwing (Bombycilla garrula Tamm.). Proc. Zoöl. Soc. London, 25:55-56, 1857.



Transmitted July 29, 1949.





[Pg 530] Mention should be made here of an important paper by Jean Delacour and Dean Amadon (1949). The Relationships of Hypocolius (Ibis, 91:427-429, plates 19 and 20) which appeared after the present paper by Arvey was written. Delacour and Amadon stated that Hypocolius, a monotypic Persian genus, should be assigned to the Bombycillidae. Their conclusions (op. cit.:429) were as follows: "It might be advisable to set up three subfamilies in the Bombycillidae, one for Bombycilla, one for Hypocolius, and a third for the silky flycatchers, Ptilogonys, Phainopepla and Phainoptila. Further study may show that Dulus can be added as a fourth subfamily.

"Previously the Bombycillidae appeared to be an American group of which one genus (Bombycilla) had reached the Old World. Inclusion of Hypocolius in the family makes this theory uncertain. Without obvious affinities to other families, and consisting of a small number of scattered and rather divergent genera, the Bombycillidae would seem to be a declining group whose origin cannot safely be deduced from the distribution of the few existing species."

—Eds.









square

23-1019






[Pub i]

UNIVERSITY OF KANSAS PUBLICATIONS

The University of Kansas Publications, Museum of Natural History, are offered in exchange for the publications of learned societies and institutions, universities and libraries. For exchanges and information, address the Exchange Desk, University of Kansas Library, Lawrence, Kansas, U. S. A.

Museum of Natural History.—E. Raymond Hall, Chairman, Editorial Committee.

This series contains contributions from the Museum of Natural History. Cited as Univ. Kans. Publ., Mus. Nat. Hist.

Vol. 1.1.The pocket gophers (genus Thomomys) of Utah. By Stephen D. Durrant. Pp. 1-82, 1 figure in text. August 15, 1946.
  2.The systematic status of Eumeces pluvialis Cope, and noteworthy records of other amphibians and reptiles from Kansas and Oklahoma. By Hobart M. Smith. Pp. 85-89. August 15, 1946.
  3.The tadpoles of Bufo cognatus Say. By Hobart M. Smith. Pp. 93-96, 1 figure in text. August 15, 1946.
  4.Hybridization between two species of garter snakes. By Hobart M. Smith. Pp. 97-100. August 15, 1946.
  5.Selected records of reptiles and amphibians from Kansas. By John Breukelman and Hobart M. Smith. Pp. 101-112. August 15, 1946.
  6.Kyphosis and other variations in soft-shelled turtles. By Hobart M. Smith. Pp. 117-124. July 7, 1947.
  7.Natural history of the prairie vole (Mammalian genus Microtus). By E. W. Jameson, Jr. Pp. 125-151, 4 figures in text. October 6, 1947.
  8.The postnatal development of two broods of great horned owls (Bubo virginianus). By Donald F. Hoffmeister and Henry W. Setzer. Pp. 157-173, 5 figures in text. October 6, 1947.
  9.Additions to the list of the birds of Louisiana. By George H. Lowery, Jr. Pp. 177-192. November 7, 1947.
  10.A check-list of the birds of Idaho. By M. Dale Arvey. Pp. 193-216. November 29, 1947.
  11.Subspeciation in pocket gophers of Kansas. By Bernardo Villa-R. and E. Raymond Hall. Pp. 217-236, 2 figures in text. November 29, 1947.
  12.A new bat (genus Myotis) from Mexico. By Walter W. Dalquest and E. Raymond Hall. Pp. 237-244, 6 figures in text. December 10, 1947.
  13.Tadarida femorosacca (Merriam) in Tamaulipas, Mexico. By Walter W. Dalquest and E. Raymond Hall. Pp. 245-248, 1 figure in text. December 10, 1947.
  14.A new pocket gopher (Thomomys) and a new spiny pocket mouse (Liomys) from Michoacán, Mexico. By E. Raymond Hall and Bernardo Villa-R. Pp. 249-256, 6 figures in text. July 26, 1948.
 [Pub ii] 15.A new hylid frog from eastern Mexico. By Edward H. Taylor. Pp. 257-264, 1 figure in text. August 16, 1948.
  16.A new extinct emydid turtle from the Lower Pliocene of Oklahoma. By Edwin C. Galbreath. Pp. 265-280, 1 plate. August 16, 1948.
  17.Pliocene and Pleistocene records of fossil turtles from western Kansas and Oklahoma. By Edwin C. Galbreath. Pp. 281-284, 1 figure in text. August 16, 1948.
  18.A new species of heteromyid rodent from the Middle Oligocene of northeastern Colorado with remarks on the skull. By Edwin C. Galbreath. Pp. 285-300, 2 plates. August 16, 1948.
  19.Speciation in the Brazilian spiny rats (genus Proechimys, Family Echimyidae). By João Moojen. Pp. 301-406, 140 figures in text. December 10, 1948.
  20.Three new beavers from Utah. By Stephen D. Durrant and Harold S. Crane. Pp. 407-417, 7 figures in text. December 24, 1948.
  21.Two new meadow mice from Michoacán, México. By E. Raymond Hall. Pp. 423-427, 6 figures in text. December 24, 1948.
  22.An annotated check list of the mammals of Michoacán, México. By E. Raymond Hall and Bernardo Villa R. Pp. 431-472, 5 figures in text. December 27, 1949.
  23.Subspeciation in the kangaroo rat, Dipodomys ordii. By Henry W. Setzer. Pp. 473-573, 27 figures in text, 7 tables. December 27, 1949.
  24.Geographic range of the hooded skunk, Mephitis macroura, with description of a new subspecies from Mexico. By E. Raymond Hall and Walter W. Dalquest. Pp. 575-580, 1 figure in text. January 20, 1950.
  25.Pipistrellus cinnamomeus Miller 1902 referred to the genus Myotis. By E. Raymond Hall and Walter W. Dalquest. Pp. 581-590, 5 figures in text. January 20, 1950.
  26.A synopsis of the American bats of the genus Pipistrellus. By E. Raymond Hall and Walter W. Dalquest. Pp. 591-602, 1 figure in text. January 20, 1950.
 Index. Pp. 605-638.
Vol. 2.(Complete) Mammals of Washington. By Walter W. Dalquest. Pp. 1-444, 140 figures in text. April 9, 1948.
Vol. 3. 1.The Avifauna of Micronesia, its origin, evolution, and distribution. By Rollin H. Baker. Pp. 1-359, 16 figures in text. June 12, 1951.
  2.A Quantitative study of the nocturnal migration of birds. By George H. Lowery, Jr. Pp. 361-472, 46 figures in text. June 29, 1951.
  3.Phylogeny of the waxwings and allied species. By M. Dale Arvey. Pp. 473-530, 49 figures in text, 13 tables. October 10, 1951.










End of the Project Gutenberg EBook of Phylogeny of the Waxwings and Allied
Birds, by M. Dale Arvey

*** END OF THIS PROJECT GUTENBERG EBOOK PHYLOGENY OF THE WAXWINGS ***

***** This file should be named 34556-h.htm or 34556-h.zip *****
This and all associated files of various formats will be found in:
        https://www.gutenberg.org/3/4/5/5/34556/

Produced by Chris Curnow, Tom Cosmas, Joseph Cooper, The
Internet Archive for some images and the Online Distributed
Proofreading Team at https://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
https://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH 1.F.3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need are critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at https://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
https://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at https://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit https://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including including checks, online payments and credit card
donations.  To donate, please visit: https://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart was the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     https://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
