University of Kansas Publications
Museum of Natural History

Volume 13, No. 8, Pl. 25, figs. 1-2, pp. 349-357
April 27, 1961


Descriptions of Two Species of Frogs,
Genus Ptychohyla
Studies of American Hylid Frogs, V

BY

WILLIAM E. DUELLMAN


University of Kansas
Lawrence
1961


University of Kansas Publications, Museum of Natural History

Editors: E. Raymond Hall, Chairman, Henry S. Fitch,
Robert W. Wilson


Volume 13, No. 8, Pl. 25, figs. 1-2, pp. 349-357
Published April 27, 1961


University of Kansas
Lawrence, Kansas


PRINTED IN
THE STATE PRINTING PLANT
TOPEKA, KANSAS
1961

28-6442


[Pg 351]

Descriptions of Two New Species of Frogs,
Genus Ptychohyla
Studies of American Hylid Frogs, V

BY

WILLIAM E. DUELLMAN

Field studies on hylid frogs in southern México and northern Central America have resulted in the collection of numerous specimens of Ptychohyla, a genus of hylid frogs heretofore poorly represented in museum collections. Experience with the living frogs in their natural habitats has been helpful in defining the species and in formulating ideas concerning their relationships.

Taylor (1944) proposed the generic name Ptychohyla for a new species of frog, Ptychohyla adipoventris [= Ptychohyla leonhard-schultzei (Ahl)—fide Duellman, 1960] from Agua del Obispo, Guerrero. Taylor defined the genus as having large ventrolateral glands and horny nuptial spines in males. Stuart (1954:169) discussed the generic characters and pointed out that both the ventrolateral glands and horny nuptial spines were seasonal in their development, being found only in breeding males. Stuart then went on to describe Ptychohyla schmidtorum, a species characterized by the absence of horny nuptial spines in breeding males. My investigations of these frogs have revealed the presence of two groups of species. In both groups breeding males have large ventrolateral glands, but the two groups are easily separated by four characters. The first group contains, among others, Ptychohyla leonhard-schultzei, euthysanota, spinipollex, and another species in the Mesa Central of Chiapas to which I tentatively apply the name Ptychohyla macrotympanum (Tanner), 1957. This group of species is characterized by horny nuptial spines in breeding males, presence of a tarsal fold, a call consisting of a single long note, and tadpoles having lips not greatly expanded. The second group, as recognized here, is characterized by the absence of horny nuptial spines in breeding males, lack of a tarsal fold, a call consisting of a series of short notes, and tadpoles having greatly expanded lips. In this group belong Ptychohyla schmidtorum and the two species described below.

Only the descriptions of the new species are given in this paper; detailed comparisons, descriptions of osteological features, analyses[Pg 352] of calls, and discussions of relationships are reserved for a forthcoming review of the entire genus.

In the spring of 1959, collections of amphibians and reptiles were made in the cloud forests on the northern slopes of the Sierra Madre Oriental in northern Oaxaca. Among the hylids found, two specimens of a heretofore unnamed species of Ptychohyla have brilliant red flash-colors on the groin and thighs; in allusion to these fiery colors I propose that this species be named:

Ptychohyla ignicolor new species

(Plate 25, Fig. 1)

Holotype.—University of Michigan Museum of Zoology No. 119603, from a stream 6 kilometers south of Vista Hermosa, Oaxaca, México (1865 meters); obtained on March 31, 1959, by Thomas E. Moore. Original Number WED 14159.

Paratype.—UMMZ 119602 from Vista Hermosa, Oaxaca (1500 meters); obtained on March 30, 1959, by William E. Duellman.

Diagnosis.—A species of the schmidtorum-group of Ptychohyla differing from other known members of the group in having the diameter of the tympanum less than one-half the diameter of the eye, no white spot below the eye, no lateral light stripe, bright green dorsum in life and red flash-colors on groin and thighs.

Description of Holotype.—Adult male having a snout-vent length of 30.0 mm.; tibia length, 14.6 mm.; tibia length/snout-vent length, 48.7 per cent; foot length (measured from proximal edge of inner metatarsal tubercle to tip of longest toe), 12.3 mm.; head length, 9.2 mm.; head length/snout-vent length, 32.3 per cent; head width, 9.3 mm.; head width/snout-vent length, 31.0 per cent; diameter of eye, 3.2 mm.; diameter of tympanum, 1.3 mm.; tympanum/eye, 40.6 per cent. Snout in lateral profile square, in dorsal profile obtusely rounded; canthus pronounced; loreal region slightly concave; lips moderately flaring; top of head flat; nostrils protuberant; internarial distance, 2.8 mm.; interorbital distance, 3.3 mm., much broader than width of eyelid, 2.8 mm. A heavy dermal fold from posterior corner of eye above tympanum to insertion of forelimb, covering upper edge of tympanum; tympanum elliptical, its greatest diameter equal to its distance from eye. Forearm robust with a distinct fold on wrist; pollex moderately enlarged without nuptial spines; second and fourth fingers equal in length; subarticular tubercles round; none is bifid; disc of third finger slightly larger than tympanum; no web between first and second fingers; vestige of web between other fingers. Heels overlap when hind limbs adpressed; tibiotarsal articulation extends to anterior corner of eye; no tarsal fold; inner metatarsal tubercle large, flat, and elliptical; outer metatarsal tubercle near inner one and triangular; subarticular tubercles round; length of digits from shortest to longest 1-2-5-3-4; toes about one-half webbed; discs smaller on toes than on fingers. Anal opening directed posteriorly at upper level of thighs; no anal flap; pair of large tubercles below anal opening; small tubercles ventral and lateral to these. Skin of dorsum and ventral surfaces of limbs smooth, that of throat and belly granular. Ventrolateral glands noticeably thickened, extending from axilla nearly to groin and only narrowly separated medially on chest. Skin of anterior part of chin thickened and glandular. Tongue cordiform, shallowly notched behind and only slightly free posteriorly; vomerine teeth 0-3, situated on rounded elevations between somewhat larger, round inner nares; openings to vocal sac large, one situated along posterior margin of each mandibular ramus.

PLATE 25

Fig. 1. Paratype of Ptychohyla ignicolor
(UMMZ 119602). × 3. Fig. 1. Paratype of Ptychohyla ignicolor
(UMMZ 119602). × 3.


Fig. 2. Holotype of Ptychohyla chamulae
(KU 58063). × 3. Fig. 2. Holotype of Ptychohyla chamulae
(KU 58063). × 3.

[Pg 353]

Color (in alcohol) dull brown above with irregular dark brown blotches; dorsal surfaces of limbs brown with narrow darker brown transverse bars; posterior surfaces of thighs cream-color with brown spots and mottling; groin and dorsal surfaces of first and second toes white; belly cream-colored; glandular areas orange-brown; chest and chin having black spots. Ventral surfaces of hind limbs and first toes cream-colored; undersides of other toes and soles of feet brown.

Color (in life) uniform bright green above; venter pale creamy yellow; anterior and posterior surfaces of thighs, ventral surfaces of shanks, anterior surfaces of tarsi and upper proximal surfaces of first three toes red; iris pale golden color.

The paratype is an adult male, having a snout-vent length of 26.3 mm., and agrees with the holotype in proportions. The ventrolateral glands are less extensive and the chin less spotted than in the holotype.

Comparisons: Both Ptychohyla schmidtorum and the species described below differ from P. ignicolor in lacking red flash-colors and in having a white spot below the eye. Ptychohyla ignicolor also differs in having a small tympanum. As stated above, these species can be distinguished from the rest of the genus by the absence of a tarsal fold and absence of horny nuptial spines in breeding males.

Remarks: The holotype was found on a moss-covered log over a stream in dense cloud forest by day. The paratype was calling at night from a low herb at the edge of a small stream in the cloud forest. Nearby a Ptychohyla leonhard-schultzei was calling.


Along two cascading mountain streams in cloud forest on the northern slopes of the Mesa Central in central Chiapas numerous specimens of a distinctive species of Ptychohyla were found in association with two species of Hyla and two of Plectrohyla. The first specimen of this new species of Ptychohyla was discovered by Dale L. Hoyt, who found the frog on a rock at midday. At night on August 5, 1960, numerous individuals were found calling from leaves of plants growing on the slopes of the ravine by the streams. None was more than two meters above the ground. Tadpoles were found in the fast-flowing stream, where they were holding onto rocks with their mouths. Little is known of the herpetofauna of these mountains that are the home of the Chamula Indians. Since the little frog described here comes from the land of the Chamulas, I propose that it be named:

[Pg 354]

Ptychohyla chamulae new species

(Plate 25, Fig. 2)

Holotype.—University of Kansas Museum of Natural History No. 58063, from a stream above (6.2 kilometers by road south) Rayón Mescalapa, Chiapas, México (1690 meters); one of a series collected on August 5, 1960, by William E. Duellman, Dale L. Hoyt, and John Wellman. Original No. WED 17327.

Paratypes.—KU Nos. 58064-58073 collected with the holotype.

Diagnosis.—A species of the schmidtorum-group of Ptychohyla differing from other known members of the group in having the following combination of characters: diameter of tympanum not noticeably less than half that of eye; white spot below eye; white lateral stripe on body anteriorly; dorsum bright green in life; thighs yellowish brown.

Description of Holotype.—Adult male having snout-vent length of 27.3 mm.; tibia length, 12.8 mm.; tibia length/snout-vent length, 48.7 per cent; foot length (measured from proximal edge of inner metatarsal tubercle to tip of longest toe), 10.8 mm.; head length, 9.2 mm.; head length/snout-vent length, 33.7 per cent; head width, 9.0 mm.; head width/snout-vent length, 30.9 per cent; diameter of eye, 2.8 mm.; diameter of tympanum, 1.4 mm.; tympanum/eye, 50.0 per cent. Snout in lateral profile nearly square, slightly rounded above; in dorsal profile bluntly squared; canthus pronounced; loreal region concave; lips thick, rounded, and flaring; nostrils protuberant; internarial distance, 2.3 mm.; top of head flat; interorbital distance, 3.3 mm.; much broader than width of eyelid, 2.4 mm. A thin dermal fold from posterior corner of eye above tympanum to insertion of forelimb, covering upper edge of tympanum; tympanum nearly round, its diameter equal to its distance from eye. Forearm slender lacking distinct fold on wrist; a row of low, rounded tubercles on ventrolateral surface of forearm; pollex moderately enlarged without nuptial spines; second and fourth fingers equal in length; subarticular tubercles round, none bifid; discs small, that of third finger noticeably smaller than tympanum; no web between first and second fingers; vestige of web between other fingers. Heels overlap when hind limbs adpressed; tibiotarsal articulation reaches to middle of eye; no tarsal fold; inner metatarsal tubercle large, flat, and elliptical; outer metatarsal tubercle slightly more distal than inner, small, and elliptical; subarticular tubercles round; length of digits from shortest to longest 1-2-5-3-4; third and fifth toes webbed to base of disc; fourth toe webbed to base of penultimate phalanx; discs smaller on toes than on fingers. Anal opening directed posteriorly at upper level of thighs; no anal flap; pair of large tubercles below anal opening and a slightly smaller pair farther below. Skin of dorsum and ventral surfaces of forelimbs and shanks smooth; that of throat, belly, and ventral surfaces of thighs granular. Ventrolateral glands well developed, not reaching axilla or groin and broadly separated midventrally. Skin of anterior part of chin glandular. Tongue cordiform, shallowly notched behind and only slightly free posteriorly; vomerine teeth 2-2, situated on small triangular elevations between large, ovoid inner nares; openings to vocal sac large, one situated along inner posterior edge of each mandibular ramus.

Color (in alcohol) dark purplish brown on dorsal surfaces of head, body, and shanks; thighs brown above and yellowish tan posteriorly; white stripe extending from below eye above forearm to mid-flank. Ventral surfaces creamy[Pg 355] white; ventrolateral glands orange-tan flecked with dark brown; edge of lower lip with dark brown spots; narrow white line on upper lip; palms white and soles brown.

Color (in life) uniform dark bright green above with creamy white bar below eye; lateral stripe silvery white; ventral surfaces deep yellow; posterior surfaces of thighs yellow brown; iris reddish bronze.

Variation.—Sixteen adult males are available; these have snout-vent lengths of 26.3 to 28.5 mm. (average, 27.6 mm.). The tympanum/eye ratio is 48.2 to 58.6 per cent (average, 53.2 per cent). The number of vomerine teeth varies from four to six. The extent of the ventrolateral glands is variable. In five specimens the glands nearly meet midventrally; in two others the glands include the axillary region; in none do the glands extend into the groin. In other structural details there is no noticeable variation.

The greatest variation in color pattern is found in the lateral stripe. The pale spot or bar below the eye is present in all specimens; in one individual there is no lateral stripe; in three the stripe extends posteriorly only to above the forearm, in two to the mid-flank, and in the others to the groin.

Although all of the males were bright uniform green above when collected at night as they were calling, some changed color later. In these individuals the dorsum became a somewhat paler green with faint irregular yellowish tan blotches.

The one available female (UMMZ 121399) has a snout-vent length of 30.3 mm. and a tympanum/eye ratio of 52.8 per cent, and is colored like the males. The tubercles by the anal opening are placed irregularly and do not consist of two pairs below the opening. There are no ventrolateral glands, glandular area on the chin, or enlarged prepollex.

Comparisons.Ptychohyla chamulae resembles P. schmidtorum in color pattern and body proportions, but the ground color of schmidtorum is chocolate brown and not green as in chamulae. Also, in schmidtorum the webbing and posterior surfaces of the thighs are pale cream-color in preserved specimens as contrasted with tan in chamulae. In living schmidtorum the iris is bright red, not reddish bronze as in chamulae. The ventrolateral glands in schmidtorum more closely approximate one another midventrally than in chamulae. It is conceivable that these populations are subspecifically related; schmidtorum occurs in the same kind of habitat as does chamulae, but is known only from the Pacific slopes of southeastern Chiapas and southwestern Guatemala, whereas chamulae is known only from the Atlantic slopes of the Mesa Central in north-central Chiapas. Both of these species differ from Ptychohyla ignicolor in having a relatively larger tympanum, more webbing on the foot, different arrangement of anal tubercles, and different coloration.

Description of Tadpole.—Six tadpoles having fully developed mouth parts have body lengths of 5.5 to 11.9 mm. and total lengths of 17.3 to 44.0 mm. The following description is based on a tadpole (KU 58199) having small hind limbs, a body length of 10.5 mm., and a total length of 39.0 mm. Body ovoid, only slightly flattened dorsally and ventrally (Fig. 1); body only slightly deeper than wide; eyes directed dorsolaterally and slightly protuberant; nostrils small. Tail long and slender; greatest depth of tail-musculature two-thirds greatest depth of tail-fin; tail-musculature extending nearly to tip of tail-fin.

Mouth directed anteroventrally; thin fleshy lips greatly expanded and forming[Pg 356] large suckerlike disc; width of mouth greater than width of snout and nearly as wide as body. Outer edge of lips having small papillae; inner surface of mouth smooth; scattered large papillae, seemingly in rows, around teeth and beak (Fig. 2). Tooth rows 3/3; the upper rows subequal in length; upper rows one and three interrupted medially; lower rows one and two about equal in length to upper rows; third lower row short. Upper beak heavy and horn-covered.

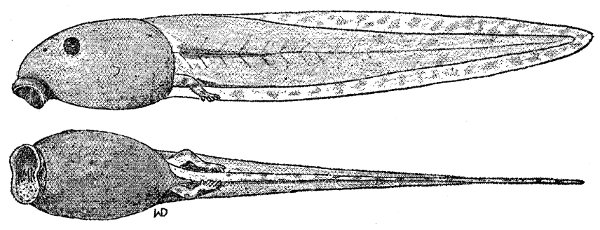

Fig. 1. Tadpole of Ptychohyla chamulae (KU 58199). × 2.5. Fig. 1. Tadpole of Ptychohyla chamulae (KU 58199). × 2.5.

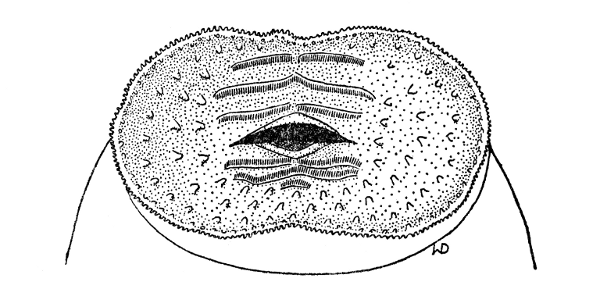

Fig. 2. Mouthparts of tadpole of Ptychohyla chamulae
(KU 58199). × 16. Fig. 2. Mouthparts of tadpole of Ptychohyla chamulae (KU 58199). × 16.

Color (in alcohol) dark brown over entire body and tail-musculature; a white area near base of tail, and a dark streak on anterior one-fourth of tail; tail-fin transparent having brown blotches.

Remarks.—Five metamorphosing tadpoles and juveniles (KU 58074, 58234-8) were found at night on vegetation by streams. Of two completely metamorphosed young each has a snout-vent length of 15.7 mm. Another having a snout-vent length of 16.2 mm. has a tail stub 2 mm. long and a completely metamorphosed mouth. Two others have snout-vent lengths of 13.6 and 14.1 mm. and tail lengths of 11.5 and 8.1 mm. respectively; in these the mouth parts are incompletely metamorphosed. The single female available (UMMZ 121399) contains approximately 60 ovarian eggs, the largest of which are about 2.5 mm. in diameter.[Pg 357]

Referred Specimens.—Chiapas: 6.2 km. S of Rayón Mescalapa, KU 58063-74, 58199 (1 tadpole), 58234-8; 5.6 km. S of Rayón Mescalapa, KU 58062, 58200 (5 tadpoles); 11.4 mi. N of Pueblo Nuevo Solistahuacán, UMMZ 121395-9. The specimens listed last were collected along a stream between Pueblo Nuevo Solistahuacán and Rayón Mescalapa, which, according to Floyd L. Downs, is probably the same stream listed above as 5.6 km. S of Rayón Mescalapa.

Acknowledgments

I take this opportunity to thank Dale L. Hoyt, Thomas E. Moore, and John Wellman, who ably assisted in collecting and studying these frogs in the field. I am indebted to Floyd L. Downs for permission to include specimens collected by him and John Winklemann. My studies on hylid frogs are supported by the National Science Foundation (Grant G 9827).

LITERATURE CITED

Duellman, W. E.
1960. Synonymy, variation, and distribution of Ptychohyla leonhard-schultzei Ahl. Studies of American Hylid Frogs. IV. Herpetologica, 16:191-197, September 23.

Stuart, L. C.
1954. Descriptions of some new amphibians and reptiles from Guatemala. Proc. Biol. Soc. Washington, 67:159-178, August 5.

Taylor, E. H.
1944. A new genus and species of Mexican hylid frogs. Univ. Kansas Sci. Bull., 30 (pt. 1):41-45, June 12.

Transmitted January 23, 1961.

28-6442


Transcriber's Notes

Page 352: Rejoined last paragraph, originally split by Plate 25.

Page 355: Changed typo "Comaprisons" to "Comparisons."
