[37]

AMERICAN SOCIETY OF CIVIL ENGINEERS

INSTITUTED 1852


TRANSACTIONS


Paper No. 1168


TESTS OF CREOSOTED TIMBER.

By W. B. Gregory, M. Am. Soc. C. E.


During the last few years a quantity of literature has appeared in which the treatment of timber by preservatives has been discussed. The properties of timber, both treated and untreated, have been determined by the Forest Service, United States Department of Agriculture, and through its researches valuable knowledge has come to engineers who have to deal with the design of wooden structures. There is very little information, however, regarding the effect of time on creosoted timber, and for this reason the results given herewith may prove of interest.

The material tested consisted of southern pine stringers having a cross-section approximately 6 by 16 in. and a length of 30 ft. For the purpose of testing, each beam was cut into two parts, each about 15 ft. long. This material had been in use in a trestle of a railroad near New Orleans for 26 years. The stringers were chosen at random to determine the general condition of the trestle. The timber had been exposed to the weather and subjected to heavy train service from the time it was treated until it was tested. The annual rainfall at New Orleans is about 60 in., and the humidity of the air is high. In spite of these conditions, there was no appearance of decay on any of the specimens tested. The specifications under which the timber was treated were as follows:

Timber.

The timber for creosoting shall be long-leafed or southern pine. Sap surfaces on two or more sides are preferred.

[38]Piles.—The piles shall be of long-leafed or southern pine, not less than 14 in. at the butt. They shall be free from defects impairing their strength, and shall be reasonably straight.

The piles shall be cleanly peeled, no inner skin being left on them. The oil used shall be so-called creosote oil, from London, England, and shall be of a heavy quality.

The treatment will vary according to the dimensions of the timbers and length of time they have been cut. Timbers of large and small dimensions shall not be treated in the same charge, neither shall timbers of differing stages of air seasoning, or the close-grained, be treated in the same charge with coarse or open-grained timbers.

The timbers shall be subjected first to live steam superheated to from 250 to 275° Fahr., and under a 30 to 40-lb. pressure. The live steam shall be admitted into the cylinders through perforated steam pipes, and the temperature shall be obtained by using superheated steam in closed pipes in the cylinders.

The length of time this steaming shall last will depend on the size of the timbers and the length of time they have been cut. In piles and large timbers freshly cut, as long a time as 12 hours may be required. After the steaming is accomplished, the live steam shall be shut off and the superheated steam shall be maintained at a temperature of 160° or more and a vacuum of from 20 to 25 in. shall be held for 4 hours or longer, if the discharge from the pumps indicates the necessity.

Oil Treatment.—The temperature being maintained at 160° Fahr., the cylinders shall be promptly filled with creosote oil at a temperature as high as practicable (about 100° Fahr.). The oil shall be maintained at a pressure ranging from 100 to 120 lb., as experience and measurements must determine the length of time the oil treatment shall continue, so that the required amount of oil may be injected.

After the required amount of oil is injected, the superheated steam shall be shut off, the oil let out, the cylinders promptly opened at each end, and the timber immediately removed from the cylinder.

In the erection of timbers the sap side must be turned up, and framing or cutting of timbers shall not be permitted, if avoidable. All cut surfaces of timbers shall be saturated with hot asphaltum, thinned with creosote oil. The heads of piles when cut shall be promptly coated with the hot asphaltum and oil, even though the cut-off be temporary.

Method of Testing.

The tests were made on a Riehlé 100,000-lb. machine in the Experimental Engineering Laboratory of Tulane University of Louisiana. The machine is provided with a cast-iron beam for cross-bending tests. The distance between supports was 12 ft. The method of support was [40]as follows: Each end of the beam was provided with a steel roller which rested on the cast-iron beam of the testing machine, while above the roller, and, directly under the beam tested, there was a steel plate 6 by 8 in. in area and 1 in. thick. The area was sufficiently great to distribute the load and prevent the shearing of the fibers of the wood. The head of the Riehlé machine is 10 in. wide. A plate, 3/8 in. thick, 6 in. wide and 18 in. long, was placed between the head of the machine and the beam tested.

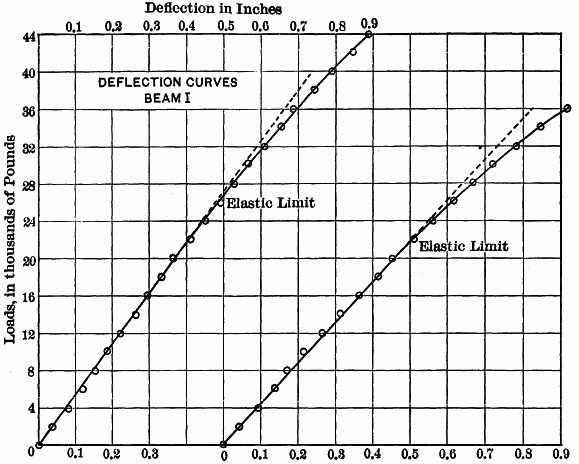

Fig. 1.—DEFLECTON CURVES BEAM I Fig. 1.—DEFLECTON CURVES BEAM I

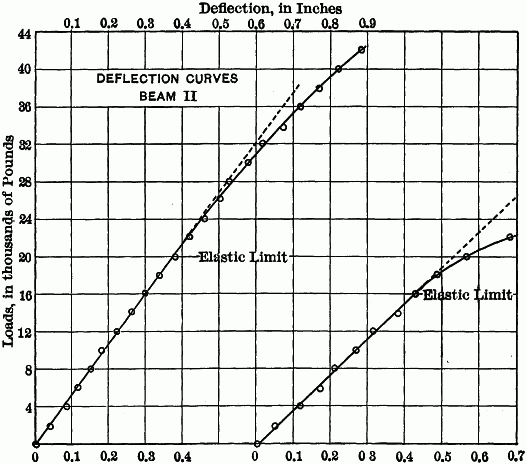

Fig. 2.—DEFLECTON CURVES BEAM II Fig. 2.—DEFLECTON CURVES BEAM II

TABLE 1.—Summary of Results of Transverse Tests of Beams at Tulane University, February 10th to March 2d, 1909.

Number of beam. Top or butt of log. b h I Loads: S = Plc/4I d, Inches. E Weight, in pounds per cubic foot. Remarks.
Width, in inches. Height, in inches. I = bh3/12 Actual at elastic limit. Maximum. At elastic limit. Maximum. At elastic limit. E = Pl3/48dI
I B 6.28 15.94 2,120 22,000 45,900 2,975 6,200 0.41 1,575,000 50.2 Close-grained pine, long-leaf.
I T 6.00 15.69 1,934 20,000 38,000 2,915 5,540 0.465 1,383,000 47.5
II[A] T 6.37 15.81 2,098 20,000 43,450 2,722 5,918 0.380 1,562,000 40.5 Coarse loblolly, large knots.
II B 6.41 16.41 2,360 16,000 25,040 1,999 3,130 0.430 979,000 42.2
III T 5.88 15.68 1,871 24,000 45,130 3,608 6,785 0.535 1,489,000 40.4 Close-grained, long-leaf no knots.
III B 5.88 15.90 1,965 21,000 35,190 3,054 5,120 0.515 1,288,000 44.2
IV T 6.00 15.43 1,835 22,000 38,425 3,320 5,810 0.465 1,601,000 40.8 Loblolly, with knots.
IV B 6.12 15.87 2,032 22,000 35,500 3,090 4,983 0.660 1,017,000 41.5
V B 6.00 16.00 2,048 22,000 47,000 3,090 6,610 0.400 1,670,000 47.2 Long-leaf yellow pine.
V[A] T 6.00 15.87 1,999 14,000 22,050 1,998 3,145 0.315 1,382,000 42.1
VI[A] B 5.50 15.75 1,790 22,000 51,330 3,484 8,925 0.450 1,695,000 50.2 Long-leaf yellow pine.
VI[A] T 5.87 15.62 1,865 20,000 44,000 3,013 6,627 0.410 1,625,000 45.2
VII B 6.56 15.62 2,083 34,000 51,900 4,580 6,985 0.620 1,637,000 43.7 Long-leaf yellow pine.
VII[A] T 6.22 15.62 1,975 20,000 49,000 2,845 6,970 0.380 1,658,000 40.2

[A] Failed in longitudinal shear.

The deflection was measured on both sides of each beam by using silk threads stretched on each side from nails driven about 2 in. above the bottom of the beam and directly over the rollers which formed the supports. From a small piece of wood, tacked to the bottom of the beam at its center and projecting at the sides, the distance to these threads was measured. These measurements were taken to the nearest hundredth of an inch. The mean of the deflections was taken as the true deflection for any load.

[41]

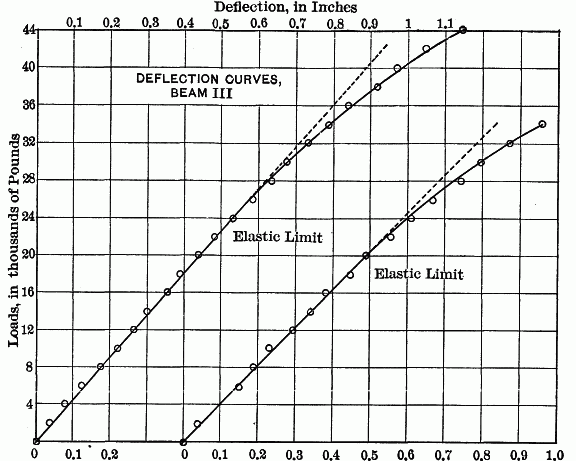

Fig. 3.—DEFLECTON CURVES BEAM III Fig. 3.—DEFLECTON CURVES BEAM III

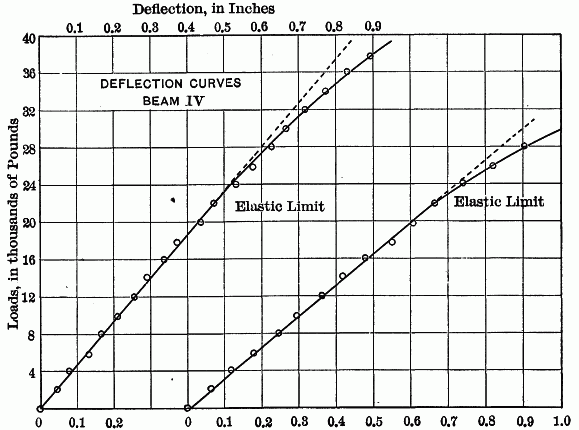

Fig. 4.—DEFLECTON CURVES BEAM IV Fig. 4.—DEFLECTON CURVES BEAM IV

[42]In computing the various quantities shown in Table 1, the summary of results, the load has been assumed as concentrated at the center of the beam. While it is true that the load was spread over a length of about 12 in., due to the width of the head of the machine and the plate between it and the beam tested, it is also true that there were irregularities, such as bolt-holes and, in some cases, abrasions due to wear, that could not well be taken into account. Hence, it was deemed sufficiently accurate to consider the load as concentrated. Besides the horizontal bolt-holes, shown in the photographs, there were vertical bolt-holes, at intervals in all the beams. The latter were 7/8 in. in diameter, and in every case they were sufficiently removed from the center of the length of the beam to allow the maximum moment at the reduced section to be relatively less than that at the center of the beam. For this reason, no correction was made for these holes. The broken beams often showed that rupture started at, or was influenced by, some of the holes, especially the horizontal ones.

While some of the heavy oils of a tarry consistency remained, they were only to be found in the sappy portions of the long-leaf pine and in the loblolly (Specimens II and IV). Exposure in a semi-tropical climate for 26 years had resulted in the removal of the more volatile portions of the creosote oil. The penetration of the oil into the sap wood seemed to be perfect, while in the loblolly it varied from a fraction of an inch to 1-1/2 in. In the heart wood there was very little penetration across the grain. The timber had been framed and the holes bored before treatment. The penetration of the creosote along the grain from the holes was often from 4 to 6 in.

Circular 39 of the Forest Service, U. S. Department of Agriculture, entitled "Experiments on the Strength of Treated Timber," gives the results of a great many tests of creosoted ties, principally loblolly pine, from which the following conclusions are quoted:

"(1) A high degree of steaming is injurious to wood. The degree of steaming at which pronounced harm results will depend upon the quality of the wood and its degree of seasoning, and upon the pressure (temperature) of steam and the duration of its application. For loblolly pine the limit of safety is certainly 30 pounds for 4 hours, or 20 pounds for 6 hours." [Tables 3, 6, and 7.]

"(2) The presence of zinc chlorid will not weaken wood under static loading, although the indications are that the wood becomes brittle under impact." [Tables 3 and 4.]

[43]

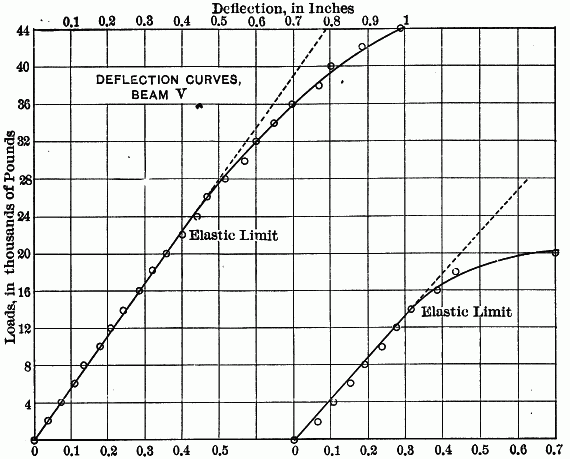

Fig. 5.—DEFLECTON CURVES BEAM V Fig. 5.—DEFLECTON CURVES BEAM V

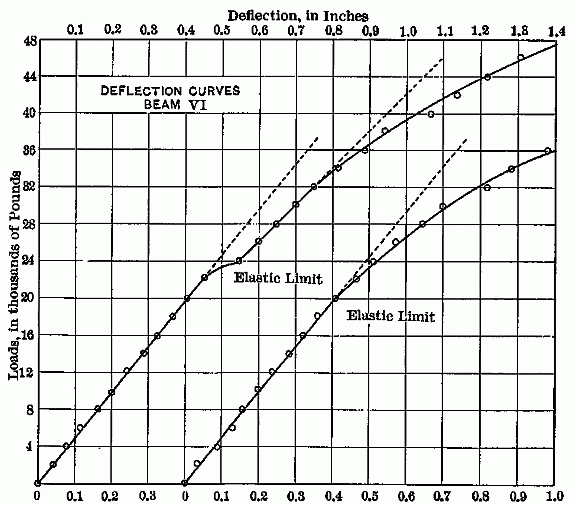

Fig. 6.—DEFLECTON CURVES BEAM VI Fig. 6.—DEFLECTON CURVES BEAM VI

[44]"(3) The presence of creosote will not weaken wood of itself. Since apparently it is present only in the openings of the cells, and does not get into the cell walls, its action can only be to retard the seasoning of the wood." [Tables 3, 4, 5, and 6.]

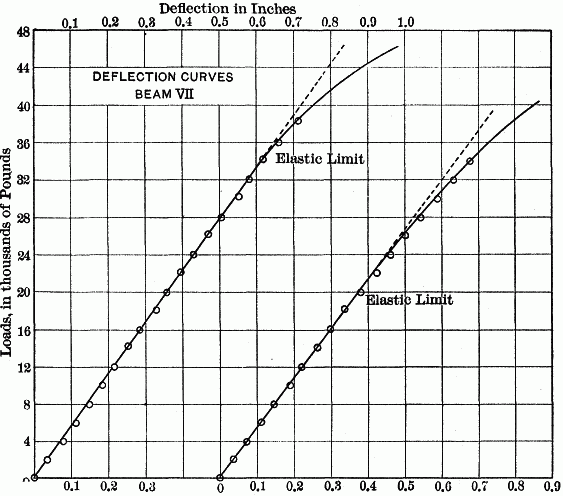

Fig. 7.—DEFLECTON CURVES BEAM VII Fig. 7.—DEFLECTON CURVES BEAM VII

Comparisons.

A comparison of the results obtained with tests made on untreated timber is interesting, and to this end Tables 2 and 3, from Circular 115, Forest Service, U.S. Department of Agriculture, by W. Kendrick Hatt, Assoc. M. Am. Soc. C. E., are quoted. The tests made by the writer were from timber raised in Louisiana and Mississippi, while the tests quoted were from timber raised farther north. The number of tests was not sufficient to settle questions of average strength or other qualities. It will be seen, however, that the treated timber 26 years old compares favorably with the new untreated timber.

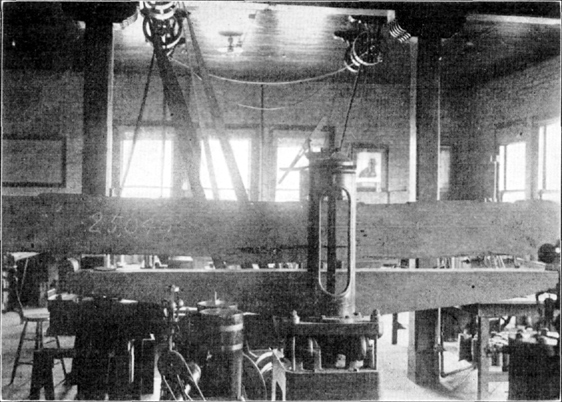

Plate I, Fig. 1.—Specimen in Testing Machine, Showing Method of Support. Plate I, Fig. 1.—Specimen in Testing Machine, Showing Method of Support.

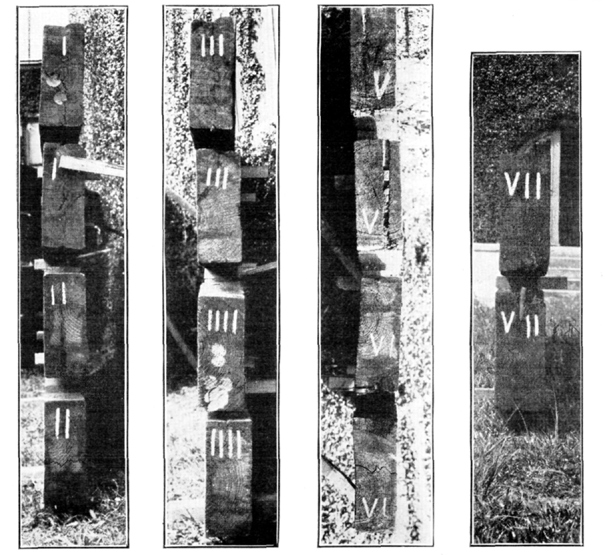

Plate I, Fig. 2.—End Views of Tested Timbers. Plate I, Fig. 2.—End Views of Tested Timbers.

[45]

TABLE 2.—Bending Strength of Large Sticks.

Loblolly Pine.
Reference number. Locality of Growth. Dimensions. Grade. Condition of seasoning.   Number of tests. Moisture, per cent. Rings per inch. Specific gravity, dry. Weight per Cubic Foot, in Pounds. Fiber stress at elastic limit, in pounds per square inch. Modulus of rupture, in pounds per square inch. Modulus of elasticity, in thousands of pounds per square inch. Elastic resilience, in inch pounds per cubic inch. Number failing by longi- tudinal shear. Remarks.
Section, in inches. Span, in feet As tested. Oven dry.
1 South Carolina.  6 by  7
 6 by 10
 4 by 12
 6 by 16
 8 by 14
 8 by 16
10 to 15.5 Square edge Green Average 42 48.0 5.7 0.50 46.2 31.2 3,150 5,580 1,426 0.45 7 Moisture above saturation point in all cases.
Maximum 92.1 11.7 0.60 56.8 37.5 5,210 8,460 1,920 0.99
Minimum 30.2 2.3 0.40 35.6 25.0 1,675 3,120 905 0.07
2 South Carolina.  6 by  7
 4 by 12
 6 by 10
 6 by 16
 8 by 16
10 by 16
10 to 16 Square edge Partially air dry. Average 18 27.7 5.0 0.50 40.0 31.2 3,380 5,650 1,435 0.45 0 Moisture from 25 to 30 per cent.
Maximum 29.2 8.2 0.55 43.7 34.4 4,610 8,090 1,880 0.76
Minimum 25.5 2.5 0.45 35.6 28.1 2,115 3,600 1,152 0.20
3 South Carolina.  6 by  7
 4 by 12
 6 by 10
 6 by 16
10 to 15 Square edge Partially air dry. Average 19 21.0 5.6 0.50 37.5 31.2 2,970 5,690 1,340 0.39 2 Moisture less than 25 per cent.
Maximum 24.9 17.2 0.58 45.6 36.2 4,850 8,100 2,040 0.69
Minimum 15.0 2.7 0.41 31.2 25.6 1,730 2,910 906 0.10
4 Virginia.  8 by  8 6 to 16 Square edge Partially air dry. Average 12 22.4 4.8 0.46 35.6 28.8 3,260 5,180 1,180 0.51 0
Maximum 27.7 8.8 0.58 43.1 36.2 5,300 8,950 1,728 1.05
Minimum 17.8 2.5 0.37 30.0 23.1 1,280 2,180 606 0.13
5 Virginia.  8 by  8 6 to 15.5 Square edge Green Average 17 64.0 3.0 0.43 43.7 26.9 1,935 3,490 744 0.31 0 Very rapid growth; poor quality.
Maximum 100.5 4.0 0.51 51.9 31.9 3,185 4,720 1,193 0.78
Minimum 38.8 2.5 0.35 35.0 21.9 956 2,180 357 0.12
Long-Leaf Pine.
6 South Carolina.  6 by  8
10 by 16
15 Merchantable Partially air dry Average   25.0 13.7 0.58 45.6 36.2 3,800 7,160 1,560 0.53 9
Maximum 22 40.3 25.4 0.76 60.0 47.5 4,970 10,020 2,010 0.78
Minimum   17.3 6.2 0.50 39.4 31.2 2,220 5,450 1,190 0.21
7 Georgia. 10 by 12 15 Merchantable Partially air dry. Average   27.3 18.0 0.69 54.7 42.9 5,581 8,384 1,820
6 Excellent merchantable grade.
Maximum 22 34.5 29.0 0.79
49.4 9,600 11,410 2,920
Minimum   20.0 11.0 0.50
31.4 3,547 4,836 1,167

[46]

TABLE 3.—Loblolly Pine.— Bending Tests on Beams Seasoned Under Different Conditions.
(8 by 16-in. section; 13-1/2 to 15-ft. span.)

Number of tests. Fiber stress at elastic limit, in pounds per square inch. Modulus of rupture, in pounds per square inch. Longitudinal shear at maximum load, in pounds per square inch. Modulus of elasticity, in thousands of pounds per square inch. Percentage of moisture. Rings per inch. Weight per cubic foot, oven dry, in pounds. Condition of seasoning.
Average 4 3,580 5,480 3644 1,780 23.2 9.4 33.7 Air dry, 3-1/2 months in the open.
Maximum 4,070 6,600 440 1,987 24.3 11.5 34.5
Minimum 3,090 5,000 327 1,530 21.5 8.0 32.5
Average 5 4,512 5,060 3383 1,685 20 7.7 33.9 Kiln dry, 6 days.
Maximum 5,840 7,320 488 1,790 22 10.2 38.0
Minimum 3,180 2,150 143 1,410 18 4.7 27.7
Average 12 4,331 6,721 4939 1,688
7.7
Air dry, 21 months under shelter.
Maximum 4,990 8,560 620 2,002
9.5
Minimum 3,110 5,160 380 1,398
5.5

Note.—Figures written as subscripts to the figures for longitudinal shear indicate the number of sticks failing in that manner.

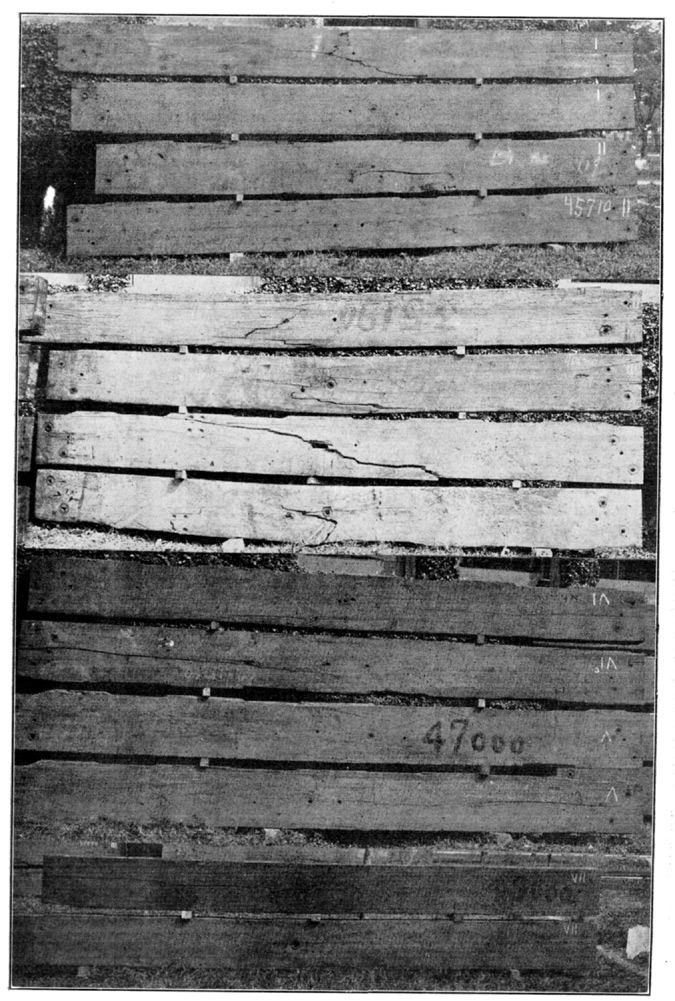

Plate II.—Side Views of Tested Timbers. Plate II.—Side Views of Tested Timbers.

[47]

TABLE 4.—Load and Deflection Log. Beam I.

Date: February 26th, 1909.
l = 12 ft.; b (mean) = 6-9/32 in.;
h (mean) = 15-15/16 in.;
c = 7.97 in. Time = 1 hour.
Date: February 24th, 1909.
l = 12 ft.; b (mean) = 6 in.;
h (mean) = 15.69 in.;
c = 7.84 in.
No. P Deflection, in Inches. P Deflection, in Inches.
Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection. Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection.
1 01.86 01.88 0 0 01.83 01.86 0 0
2 2,0001.920.051.900.020.035 2,0001.870.041.900.040.04
3 4,0001.960.101.940.060.080 4,0001.910.081.960.100.090
4 6,0001.990.131.980.100.115 6,0001.960.132.000.140.135
5 8,0002.030.172.020.140.155 8,0002.000.172.040.180.175
610,0002.050.192.060.180.18510,0002.040.212.080.220.215
712,0002.100.242.090.210.22512,0002.090.262.130.270.265
814,0002.130.272.130.250.26014,0002.140.312.180.320.315
916,0002.170.312.160.280.29516,0002.190.362.230.370.365
1018,0002.200.342.200.320.33018,0002.240.412.280.420.415
1120,0002.240.362.250.370.36520,0002.290.462.330.470.465
1222,0002.280.422.280.400.41022,0002.340.512.390.530.520
1324,0002.320.462.320.440.45024,0002.390.562.430.570.565
1426,0002.360.502.360.480.49026,0002.440.612.480.620.615
1528,0002.400.542.390.510.52528,0002.490.662.530.670.685
1630,0002.430.572.440.560.56530,0002.550.722.580.720.720
1732,0002.480.622.480.600.61032,0002.610.782.650.790.785
1834,0002.520.682.530.650.65534,000[B]2.680.852.700.840.845
1936,0002.560.702.560.680.69036,0002.740.912.780.920.915
2038,0002.610.752.620.740.74538,000 Broke.
2140,0002.650.792.670.790.790
2242,0002.700.842.730.850.845
2344,0002.750.892.770.890.890
37,500 lb., First Crack; 45,900 lb., Failed.
At Elastic Limit: Load, 22,000 lb.; deflection, 0.41 in.; S, 2,975 lb.At Elastic Limit: Load, 20,000 lb.; deflection, 0.465 in.; S, 2,975 lb.
Maximum: Load, 45,900 lb.; deflection,.....; S, 6,209 lb.Maximum: Load, 38,000 lb.; deflection,.....; S, 5,540 lb.
E = 1,575,000 lb.E = 1,383,000 lb.

[B] First crack.

[48]

TABLE 4.—(Continued.)—Load and Deflection Log. Beam II.

Date: February 20th, 1909.
l = 12 ft.; b (mean) = 6.38 in.;
h (mean) = 15.81 in.;
c = 7.91 in. Time = 47.5 min
Date: —
l = 12 ft.; b (mean) = 6.41 in.;
h (mean) = 16.41 in.;
c = 8.20 in.
No. P Deflection, in Inches. P Deflection, in Inches.
Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection. Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection.
1 01.65 01.68 0 0 01.86 01.87 0 0
2 2,0001.690.041.720.040.040 2,0001.910.051.920.050.05
3 4,0001.730.081.770.090.085 4,0001.980.121.980.110.115
4 6,0001.760.111.800.120.115 6,0002.050.192.020.150.170
5 8,0001.800.151.830.150.150 8,0002.070.212.080.210.210
610,0001.830.181.860.180.18010,0002.130.272.130.260.265
712,0001.870.221.900.220.22012,0002.180.322.180.310.315
814,0001.910.261.940.260.26014,0002.250.392.240.370.380
916,0001.950.301.980.300.30016,0002.300.442.290.420.430
1018,0001.980.332.020.340.33518,000[C]2.350.492.350.480.485
1120,0002.030.382.060.380.38020,0002.440.582.420.550.565
1222,0002.070.422.100.420.42022,0002.540.682.540.670.675
1324,0002.110.462.140.460.46025,040 Failed
1426,0002.150.502.180.500.500
1528,0002.180.532.220.540.535
1630,0002.230.582.260.580.580
1732,0002.270.622.300.620.620
1834,0002.320.672.350.670.670
1936,0002.370.722.400.720.720
2038,0002.420.772.450.770.770
2140,0002.480.832.500.820.825
2242,0002.530.882.560.880.880
2343,450Fracture.
2445,710Failed.

At Elastic Limit: Load, 20,000 lb.; deflection, 0.38 in.; S, 2,722 lb.At Elastic Limit: Load, 16,000 lb.; deflection, 0.43 in.; S, 1,999 lb.
Maximum: Load, 43,450 lb.; deflection,.....; S, 5,918 lb.Maximum: Load, 25,040 lb.; deflection,.....; S, 3,130 lb.
E = 1,562,000 lb.E = 979,000 lb.

[C] First crack.

[49]

TABLE 4.—(Continued.)—Load and Deflection Log. Beam III.

Date: February 13th, 1909.
l = 12 ft.; b (mean) = 5.88 in.;
h (mean) = 15.63 in.;
c = 7.82 in.
Date: —
l = 12 ft.; b (mean) = 5.88 in.;
h (mean) = 15.9 in.;
c = 7.95 in. Time = 45 min.
No. P Deflection, in Inches. P Deflection, in Inches.
Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection. Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection.
1 01.23 01.06 0 0 01.67 01.63 0 0
2 2,0001.27 .041.100.040.040 2,0001.700.031.680.050.040
3 4,0001.320.091.130.070.080 4,0001.720.051.720.090.070
4 6,0001.370.141.170.110.125 6,0001.820.151.780.150.150
5 8,0001.420.191.220.160.175 8,0001.860.191.820.190.190
610,0001.470.241.260.200.22010,0001.900.231.870.240.235
712,0001.510.281.310.250.26512,0001.970.301.920.290.295
814,0001.550.321.350.290.30514,0002.000.331.980.350.340
916,0001.600.371.400.340.35516,0002.030.362.040.410.385
1018,0001.640.411.440.380.39518,0002.100.432.090.460.445
1120,0001.680.451.490.430.44020,0002.130.462.140.510.485
1222,0001.720.491.540.480.48522,0002.200.532.200.570.550
1324,0001.780.551.580.520.53524,0002.260.592.260.630.610
1426,0001.820.591.640.580.58526,0002.310.642.320.690.665
1528,0001.880.651.680.620.63528,0002.380.712.400.770.740
1630,0001.920.691.730.670.68030,0002.420.752.470.840.795
1732,0001.970.741.790.730.73532,0002.490.822.550.920.870
1834,0002.020.791.850.790.79034,0002.580.912.620.990.950
1936,0002.070.841.900.840.840
2038,0002.130.901.970.910.915
2140,0002.200.972.030.970.970
2242,0002.271.042.111.051.045
2344,0002.371.142.211.151.145
39,100 lb. First Crack; 45,130 lb. Failed.22,000 lb. First Crack; 35,190 lb. Failed.
At Elastic Limit: Load, 24,000 lb.; deflection, 0.535 in.; S 3,608 lb.At Elastic Limit: Load, 21,000 lb.; deflection, 0.515 in.; S, 3,054 lb.
Maximum: Load, 45,130 lb.; deflection,.....; S 6,785 lb.Maximum: Load, 35,190 lb.; deflection,.....; S 5,120 lb.
E = 1,489,000 lb.E = 1,288,000 lb.

[50]

TABLE 4.—(Continued.)—Load and Deflection Log. Beam IV.

Date: February 16th, 1909.
l = 12 ft.; b (mean) = 6.0 in.;
h (mean) = 15.43 in.;
c = 7.71 in.
Date: February 10th, 1909.
l = 12 ft.; b (mean) = 6.12 in.;
h (mean) = 15.87 in.;
c = 7.93 in. Time = 30 min.
No. P Deflection, in Inches. P Deflection, in Inches.
Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection. Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection.
1 02.28 02.05 0 0 01.44 01.58 0 0
2 2,0002.310.032.100.050.040 2,0001.500.061.640.060.06
3 4,0002,340.062.140.090.075 4,0001.550.111.700.120.115
4 6,0002.400.122.190.140.130 6,0001.620.181.760.180.180
5 8,0002.430.152.230.180.165 8,0001.680.241.820.240.240
610,0002.470.192.280.230.21010,0001.720.281.890.310.295
712,0002.510.232.320.270.25012,0001.800.361.940.360.360
814,0002.540.262.370.320.29014,0001.850.412.000.420.415
916,0002.590.312.410.360.33516,0001.900.462.060.480.470
1018,0002.620.342.450.400.37018,0001.980.542.130.550.545
1120,0002.680.402.500.450.42520,0002.030.592.190.610.600
1222,0002.720.442.540.490.46522,0002.090.652.250.670.660
1324,0002.780.502.600.550.52524,0002.150.712.330.750.730
1426,0002.820.542.650.600.57026,0002.230.792.420.840.815
1528,0002.870.592.690.640.61528,0002.320.882.490.910.895
1630,0002.910.632.740.690.66030,0002.420.982.621.041.010
1732,0002.970.692.780.730.71032,0002.561.122.741.161.140
1834,0003.010.732.850.800.76534,0002.671.232.871.291.265
1936,0003.070.792.900.850.820
2038,0003.140.862.980.930.895
34,000 lb. First Crack; 38,425 lb. Failed.28,360 lb. Cracked; 35,500 lb, Failed.
At Elastic Limit: Load, 22,000 lb.; deflection, 0.465 in.; S 3,320 lb.At Elastic Limit: Load, 22,000 lb.; deflection, 0.66 in.; S, 3,090 lb.
Maximum: Load, 38,425 lb.; deflection,.....; S 5,810 lb.Maximum: Load, 35,500 lb.; deflection,.....; S 4,983 lb.
E = 1,601,000 lb. E = 1,017,000 lb.

[51]

TABLE 4.—(Continued.)—Load and Deflection Log. Beam V.

Date: —
l = 12 ft.; b (mean) = 6 in.;
h (mean) = 16 in.;
c = 8 in. Time = 40 min.
Date: February 27th, 1909.
l = 12 ft.; b (mean) = 6 in.;
h (mean) = 15.87 in.;
c = 7.94 in.
No. P Deflection, in Inches. P Deflection, in Inches.
Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection. Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection.
1 01.97 01.37 0 0 01.31 01.25 0 0
2 2,0002.010.041.400.030.035 2,0001.370.061.310.060.06
3 4,0002.060.091.430.060.075 4,0001.410.100.360.110.105
4 6,0002.080.111.470.100.105 6,0001.460.150.400.150.150
5 8,0002.110.141.500.130.135 8,0001.490.180.450.200.190
610,0002.160.191.540.170.18010,0001.540.231.490.240.235
712,0002.190.221.570.200.21012,0001.580.271.530.280.275
814,0002.220.251.610.240.24514,0001.620.311.570.320.315
916,0002.250.281.650.280.28016,0001.680.371.650.400.385
1018,0002.290.321,690.320.32018,0001.780.411.710.460.435
1120,0002.320.351.730.360.35520,0001.990.681.970.720.700
1222,0002.360.391.780.410.400
1324,0002.390.421.830.460.440
1426,0002.420.451.850.480.465
1528,0002.470.501.900.530.515
1630,0002.500.531.950.580.565
1732,0002.540.571.990.620.595
1834,0002.590.622.040.670.645
1936,0002.630.662.090.720.690
2038,0002.680.712.170.800.755
2140,0002.730.762.210.840.800
2242,0002.800.832.300.930.880
2344,0002.900.932.401.030.980
25,000 lb. Slight Crack; 47,000 lb. Failed.20,000 lb. First Crack; 22,050 lb. Failed.
At Elastic Limit: Load, 22,000 lb.; deflection, 0.40 in.; S, 3,090 lb.At Elastic Limit: Load, 14,000 lb.; deflection, 0.315 in.; S, 1,998 lb.
Maximum: Load, 47,000 lb.; deflection,.......; S, 6,610 lb.Maximum: Load, 22,050 lb.; deflection,.......; S, 3,145 lb.
E = 1,670,000 lb.E = 1,382,000 lb.

[52]

TABLE 4.—(Continued.)—Load and Deflection Log. Beam VI.

Date: February 12th, 1909.
l = 12 ft.; b (mean) = 5.5 in.;
h (mean) = 15.75 in.;
c = 7.88 in. Time = 40 min.
Date: February 13th, 1909.
l = 12 ft.; b (mean) = 5.87 in.;
h (mean) = 15.62 in.;
c = 7.81 in.
No. P Deflection, in Inches. P Deflection, in Inches.
Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection. Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection.
1 01.22 01.30 0 0 01.28 01.30 0 0
2 2,0001.260.041.340.040.04 2,0001.300.021.350.050.035
3 4,0001.290.071.380.080.075 4,0001.360.081.390.090.085
4 6,0001.330.111.420.120.115 6,0001.400.121.440.140.130
5 8,0001.370.151.470.170.160 8,0001.430.151.470.170.160
610,0001.420.201.510.210.20510,0001.470.191.510.210.200
712,0001.450.231.550.250.24012,0001.510.231.560.260.245
814,0001.500.281.590.290.28514,0001.550.271.600.300.285
916,0001.540.321.630.330.32516,0001.590.311.640.340.325
1018,0001.580.361.680.380.37018,0001.620.341.690.390.365
1120,0001.610.391.720.420.40520,0001.660.381.740.440.410
1222,0001.660.441.760.460.45022,0001.710.431.800.500.465
1324,0001.810.591.810.510.55024,0001.770.491.840.540.515
1426,0001.860.641.860.560.60026,0001.830.551.900.600.575
1528,0001.910.691.910.610.65028,0001.900.621.970.670.645
1630,0001.960.741.960.660.70030,0001.970.692.020.720.705
1732,0002.000.782.020.720.75032,0002.120.842.100.800.820
1834,0002.040.822.110.810.81534,0002.200.922.160.860.885
1936,0002.100.882.200.900.89036,0002.291.012.240.940.975
2038,0002.160.942.250.950.94538,0002.391.112.321.021.065
2140,0002.281.062.381.081.070
2242,0002.381.162.421.121.140
2344,0002.441.222.521.221.220
2446,0002.531.312.601.301.305
2548,0002.661.442.711.411.425
2650,0002.781.562.871.571.565
33,000 lb., First Crack; 51,330 lb., Failed.24,000 lb., First Crack; 44,000 lb., Failed.
At Elastic Limit: Load, 22,000 lb.; deflection, 0.45 in.; S, 3,484 lb.At Elastic Limit: Load, 20,000 lb.; deflection, 0.41 in.; S, 3,018 lb.
Maximum: Load, 51,330 lb.; deflection,.....; S, 8,925 lb.Maximum: Load, 44,000 lb.; deflection,.....; S, 6,627 lb.
E = 1,695,000 lb.E = 1,625,000 lb.

[53]

TABLE 4.—(Continued.)—Load and Deflection Log. Beam VII.

Date: March 2d, 1909.
l = 12 ft.; b (mean) = 6.56 in.;
h (mean) = 15.62 in.;
c = 7.81 in. Time = 1 hr.
Date: February 20th, 1909.
l = 12 ft.; b (mean) = 6.22 in.;
h (mean) = 15.62 in.;
c = 7.81 in. Time = 33 min.
No. P Deflection, in Inches. P Deflection, in Inches.
Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection. Load, in pounds. Reading. Total deflection. Reading. Total deflection. Mean total deflection.
1 01.84 01.71 0 0 01.69 01.73 0 0
2 2,0001.880.041.740.030.035 2,0001.720.031.770.040.035
3 4,0001.920.081.790.080.080 4,0001.760.071.800.070.070
4 6,0001.960.121.810.100.110 6,0001.800.111.840.110.110
5 8,0002.000.161.850.140.150 8,0001.840.151.870.140.145
610,0002.030.191.890.180.18510,0001.880.191.920.190.190
712,0002.060.221.930.220.22012,0001.910.221.950.220.220
814,0002.110.271.950.240.25514,0001.950.262.000.270.265
916,0002.140.301.990.280.29016,0001.990.302.030.300.300
1018,0002.180.342.030.320.33018,0002.030.342.060.330.335
1120,0002.220.382.050.340.36020,0002.070.382.110.380.380
1222,0002.250.412.100.390.40022,0002.110.422.160.430.425
1324,0002.290.452.130.420.43524,0002.150.462.200.470.465
1426,0002.320.482.170.460.47026,0002.190.502.240.510.505
1528,0002.360.522.210.500.51028,0002.230.542.280.550.545
1630,0002.400.562.250.540.55030,0002.270.582.330.600.590
1732,0002.430.592.290.580.58532,0002.320.632.370.640.635
1834,0002.470.632.320.610.62034,0002.360.672.420.690.680
1936,0002.510.672.370.660.66536,000
2038,0002.560.722.410.700.710
27,000 lb., First Crack; 51,900 lb., Failed.28,000 lb., First Crack; 49,000 lb., Failed.
At Elastic Limit: Load, 34,000 lb.; deflection, 0.62 in.; S, 4,580 lb.At Elastic Limit: Load, 20,000 lb.; deflection, 0.38 in.; S, 2,845 lb.
Maximum: Load, 51,900 lb.; deflection,.....; S, 6,985 lb.Maximum: Load, 49,000 lb.; deflection,.....; S, 6,970 lb.
E = 1,637,000 lb.E = 1,658,000 lb.





End of the Project Gutenberg EBook of Transactions of the American Society
of Civil Engineers, vol. LXX, Dec. 1910, by W. B.  Gregory

*** END OF THIS PROJECT GUTENBERG EBOOK CIVIL ENGINEERS ***

***** This file should be named 17776-h.htm or 17776-h.zip *****
This and all associated files of various formats will be found in:
        http://www.gutenberg.org/1/7/7/7/17776/

Produced by Juliet Sutherland, Sigal Alon and the Online
Distributed Proofreading Team at http://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
http://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH F3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, is critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at http://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
http://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at http://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit http://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including checks, online payments and credit card donations.
To donate, please visit: http://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart is the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     http://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
