HALF-HOURS WITH THE TELESCOPE

Being a popular guide to the use of the telescope as a means of amusement and instruction.

BY

Richard A. Proctor, B.A., F.R.A.S.,

Author of "Saturn and its System," Etc.

With Illustrations on Stone and Wood.


An undevout astronomer is mad:
True, all things speak a God; but, in the small
Men trace out Him: in great He seizes man.
YOUNG.


New York:
G.P. Putnam's Sons.
1873.

ii

London:
Printed by William Clowes and Sons, Stamford Street and Charing Cross.
Plate I.
Fronticepeice
Map I.

The Sky
Jan. 20, 10 P.M.
Feb. 19, 8 P.M.
Mar. 21, 6 P.M.
Map I

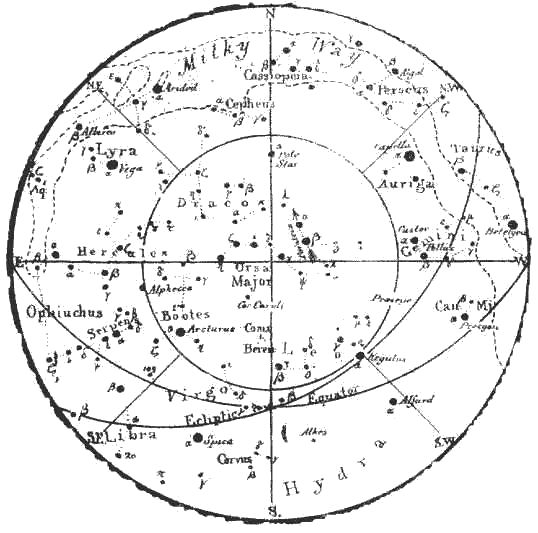

Map II.

The Sky
Apr. 20, 10 P.M.
May 21, 8 P.M.
Jun. 21, 6 P.M.
Map II

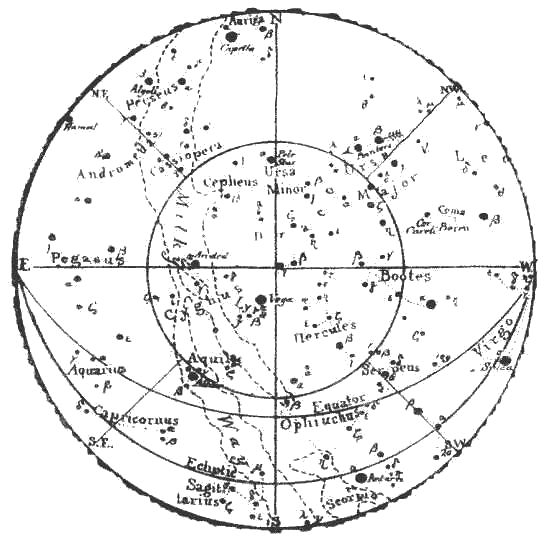

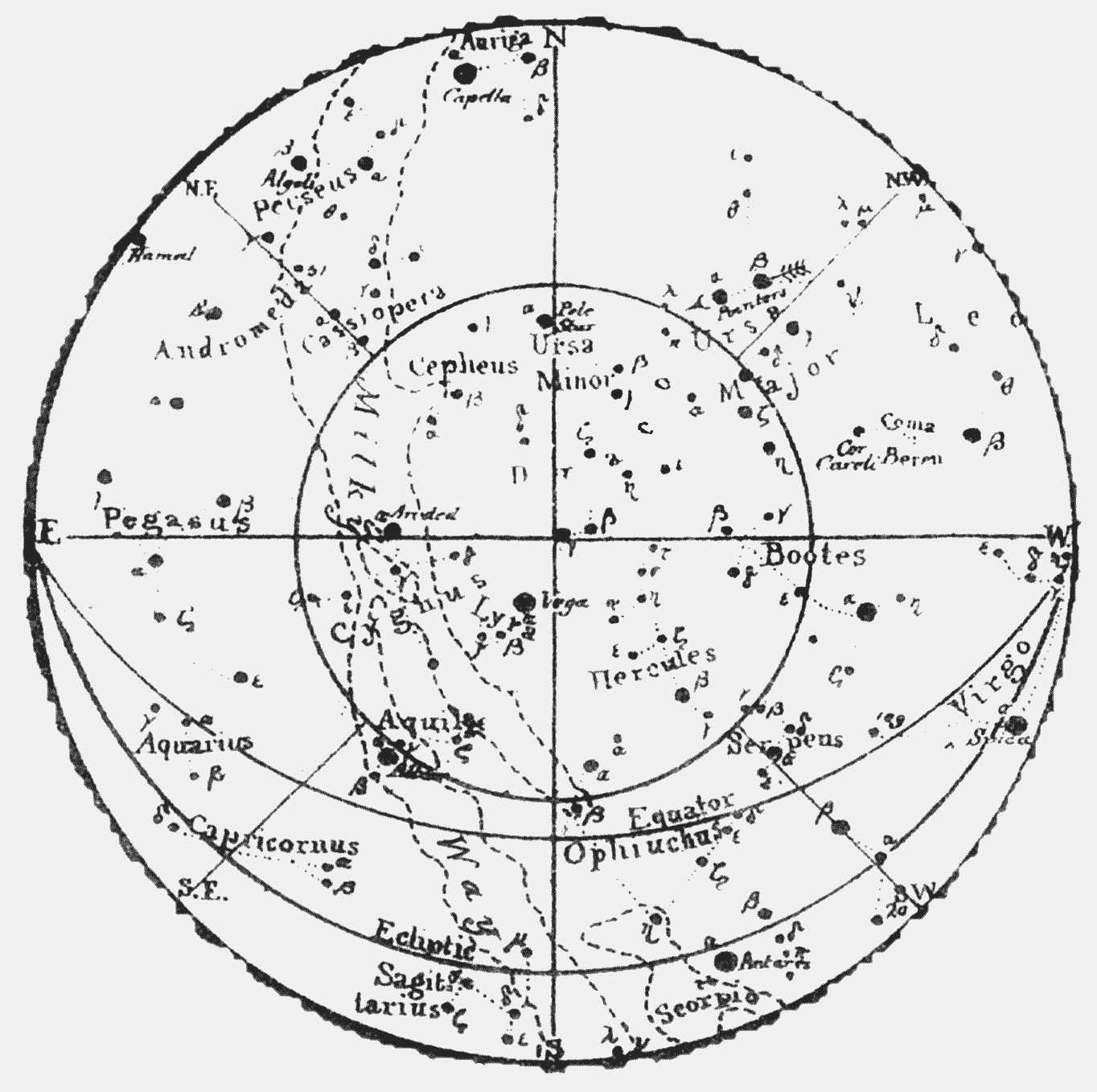

Map III.

The Sky
Jul. 22, 10 P.M.
Aug. 23, 8 P.M.
Sep. 23, 6 P.M.
Map III

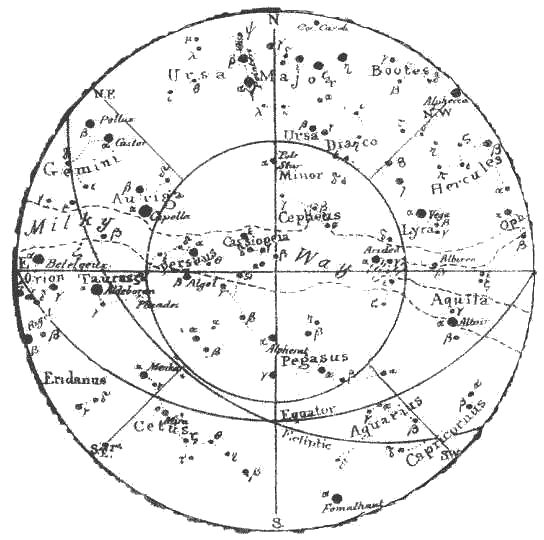

Map IV.

The Sky
Oct. 23, 10 P.M.
Nov. 22, 8 P.M.
Dec. 21, 6 P.M.
Map IV

iii

PREFACE.

Horizontal Rule

The object which the Author and Publisher of this little work have proposed to themselves, has been the production, at a moderate price, of a useful and reliable guide to the amateur telescopist.

Among the celestial phenomena described or figured in this treatise, by far the larger number may be profitably examined with small telescopes, and there are none which are beyond the range of a good 3-inch achromatic.

The work also treats of the construction of telescopes, the nature and use of star-maps, and other subjects connected with the requirements of amateur observers.

R.A.P.

January, 1868.


iv

CONTENTS.

Horizontal Rule
PAGE
CHAPTER I.
A HALF-HOUR ON THE STRUCTURE OF THE TELESCOPE1
CHAPTER II.
A HALF-HOUR WITH ORION, LEPUS, TAURUS, ETC.33
CHAPTER III.
A HALF-HOUR WITH LYRA, HERCULES, CORVUS, CRATER, ETC.47
CHAPTER IV.
A HALF-HOUR WITH BOOTES, SCORPIO, OPHIUCHUS, ETC.56
CHAPTER V.
A HALF-HOUR WITH ANDROMEDA, CYGNUS, ETC.66
CHAPTER VI.
HALF-HOURS WITH THE PLANETS74
CHAPTER VII.
HALF-HOURS WITH THE SUN AND MOON93

v

DESCRIPTION OF PLATES.

Horizontal Rule

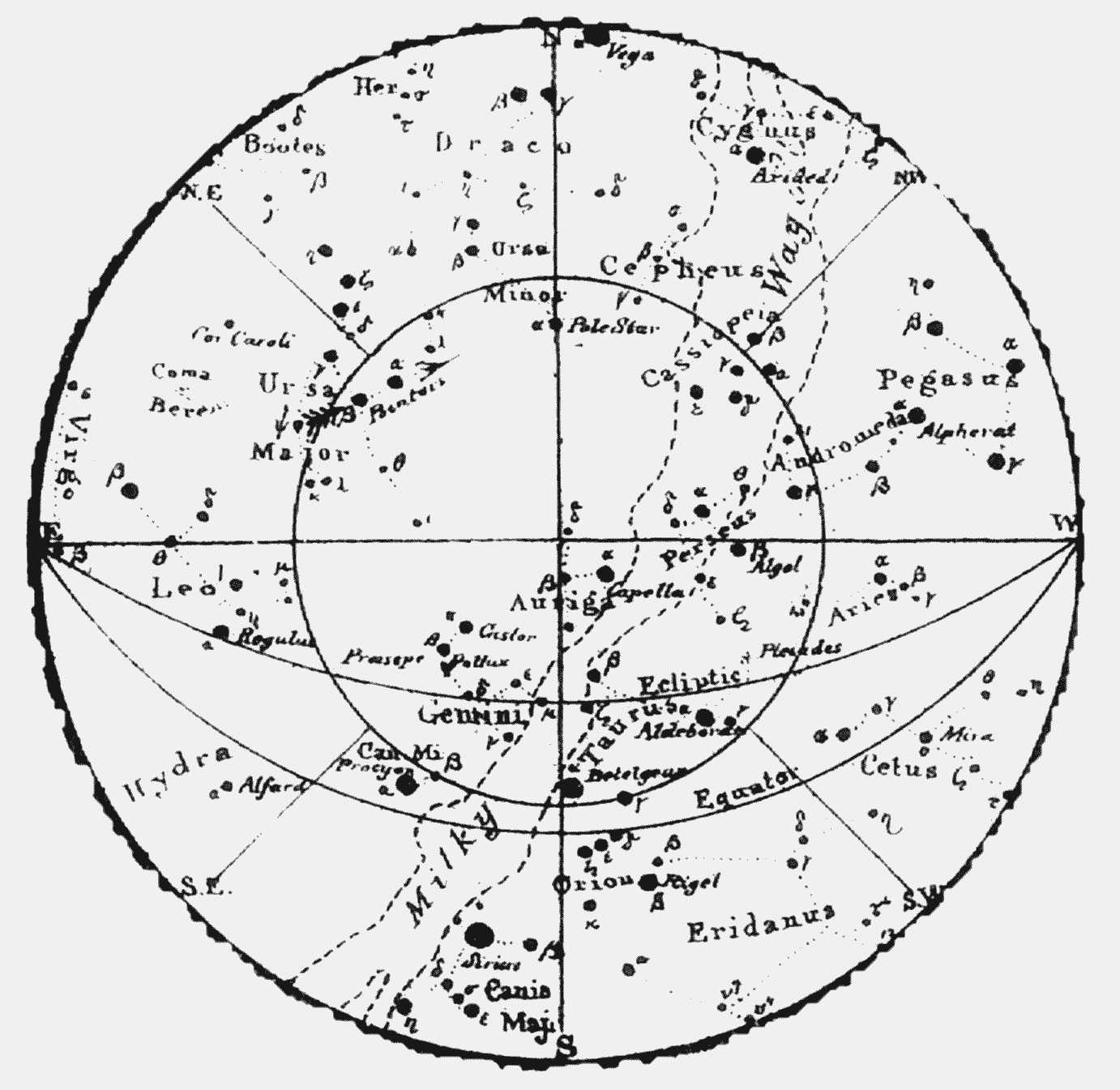

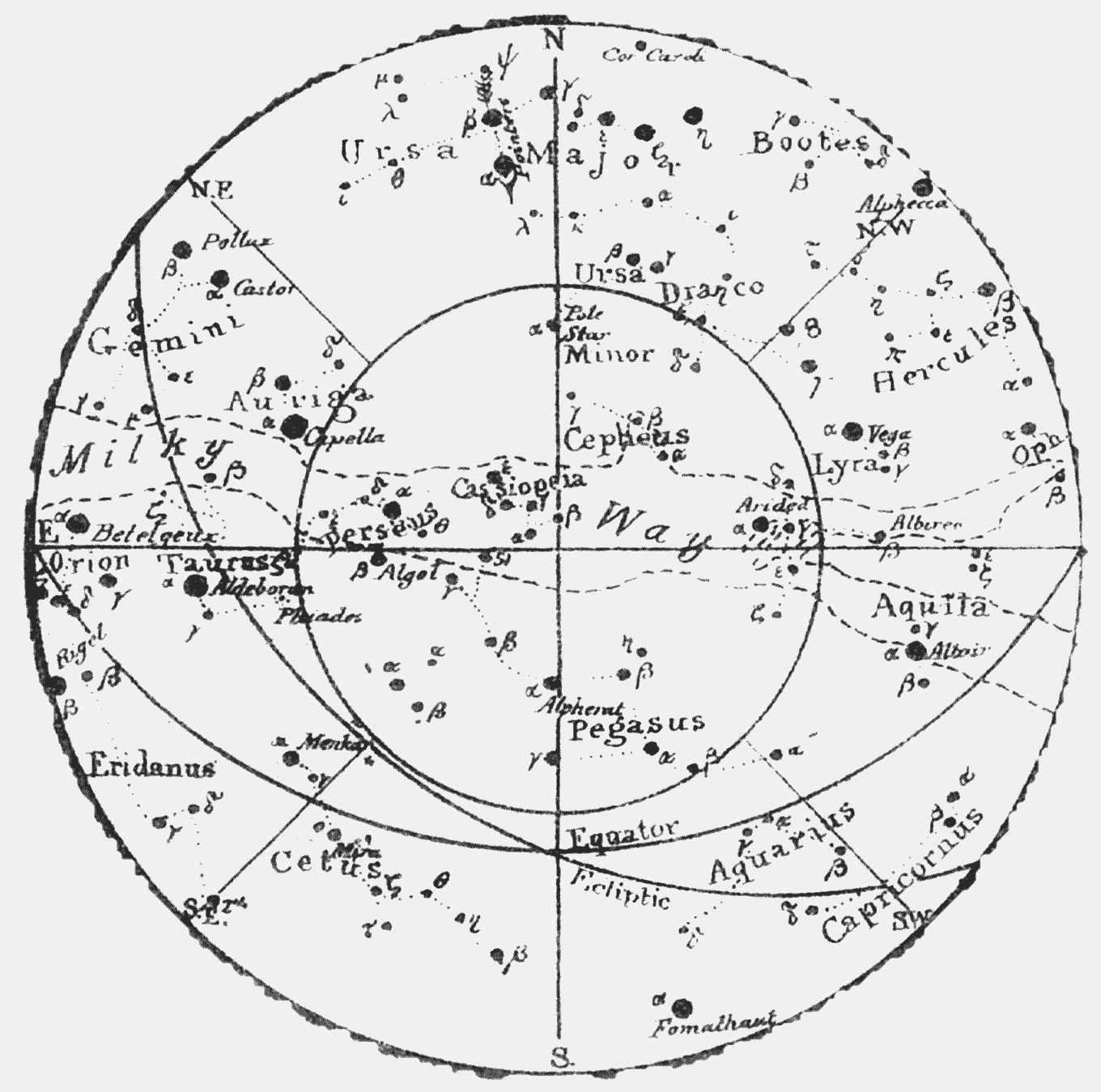

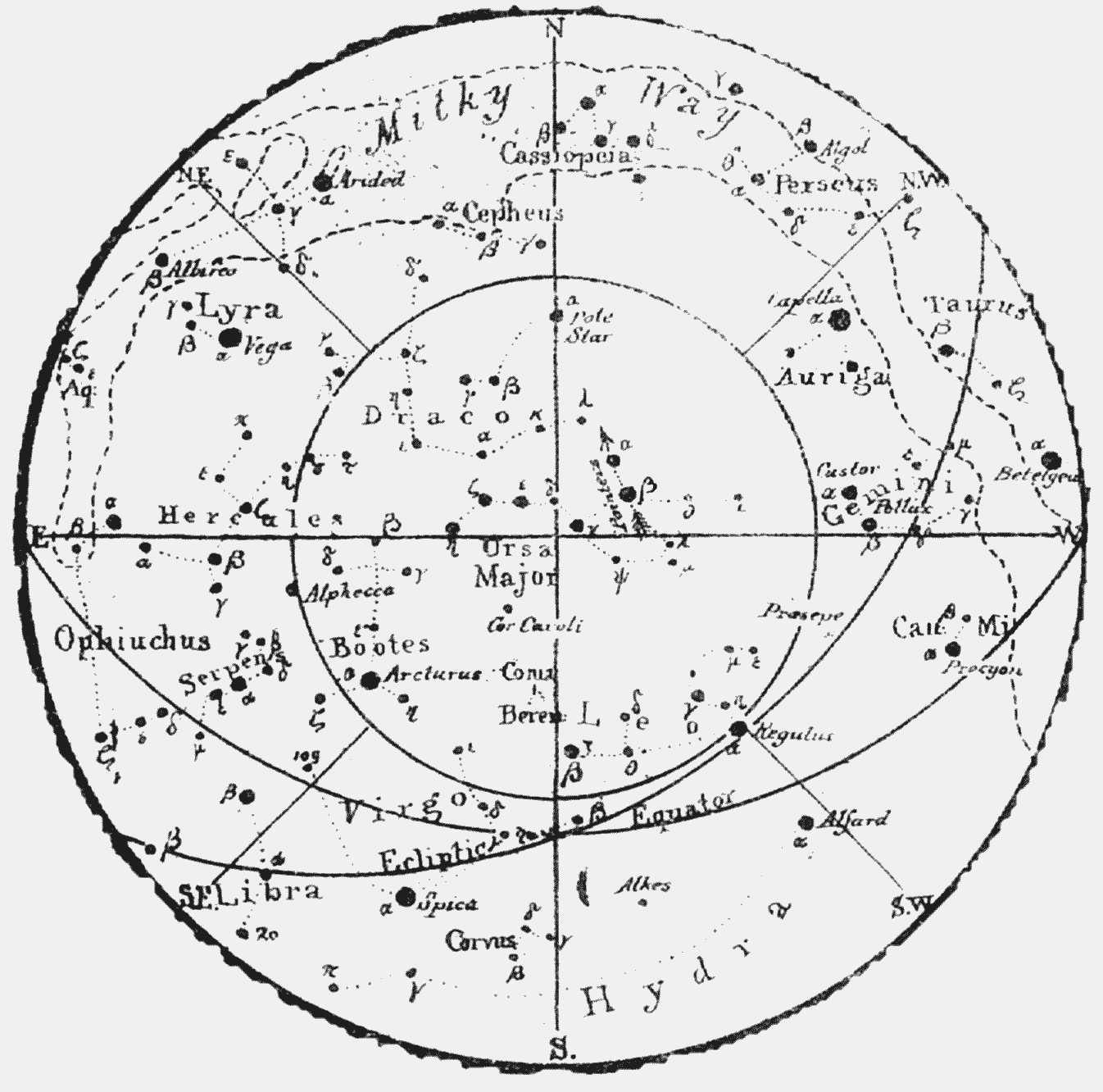

PLATE I.Frontispiece.

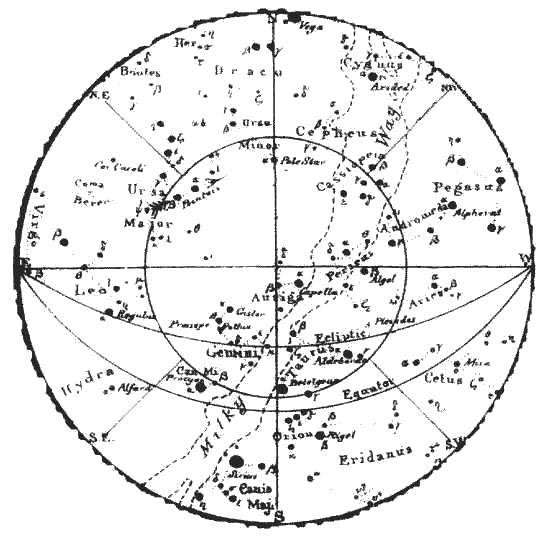

This plate presents the aspect of the heavens at the four seasons, dealt with in Chapters II., III., IV., and V. In each map of this plate the central point represents the point vertically over the observer's head, and the circumference represents his horizon. The plan of each map is such that the direction of a star or constellation, as respects the compass-points, and its elevation, also, above the horizon, at the given season, can be at once determined. Two illustrations of the use of the maps will serve to explain their nature better than any detailed description. Suppose first, that—at one of the hours named under Map I.—the observer wishes to find Castor and Pollux:—Turning to Map I. he sees that these stars lie in the lower left-hand quadrant, and very nearly towards the point marked S.E.; that is, they are to be looked for on the sky towards the south-east. Also, it is seen that the two stars lie about one-fourth of the way from the centre towards the circumference. Hence, on the sky, the stars will be found about one-fourth of the way from the zenith towards the horizon: Castor will be seen immediately above Pollux. Next, suppose that at one of the hours named the observer wishes to learn what stars are visible towards the west and north-west:—Turning the map until the portion of the circumference marked W ... N.W. is lowermost, he sees that in the direction named the square of Pegasus lies not very high above the horizon, one diagonal of the square being vertical, the other nearly horizontal. Above the square is viAndromeda, to the right of which lies Cassiopeia, the stars β and ε of this constellation lying directly towards the north-west, while the star α lies almost exactly midway between the zenith and the horizon. Above Andromeda, a little towards the left, lies Perseus, Algol being almost exactly towards the west and one-third of the way from the zenith towards the horizon (because one-third of the way from the centre towards the circumference of the map). Almost exactly in the zenith is the star δ Aurigæ.

The four maps are miniatures of Maps I., IV., VII., and X. of my 'Constellation Seasons,' fourth-magnitude stars, however, being omitted.

PLATES II., III., IV., and V., illustrating Chapters II., III., IV., and V.

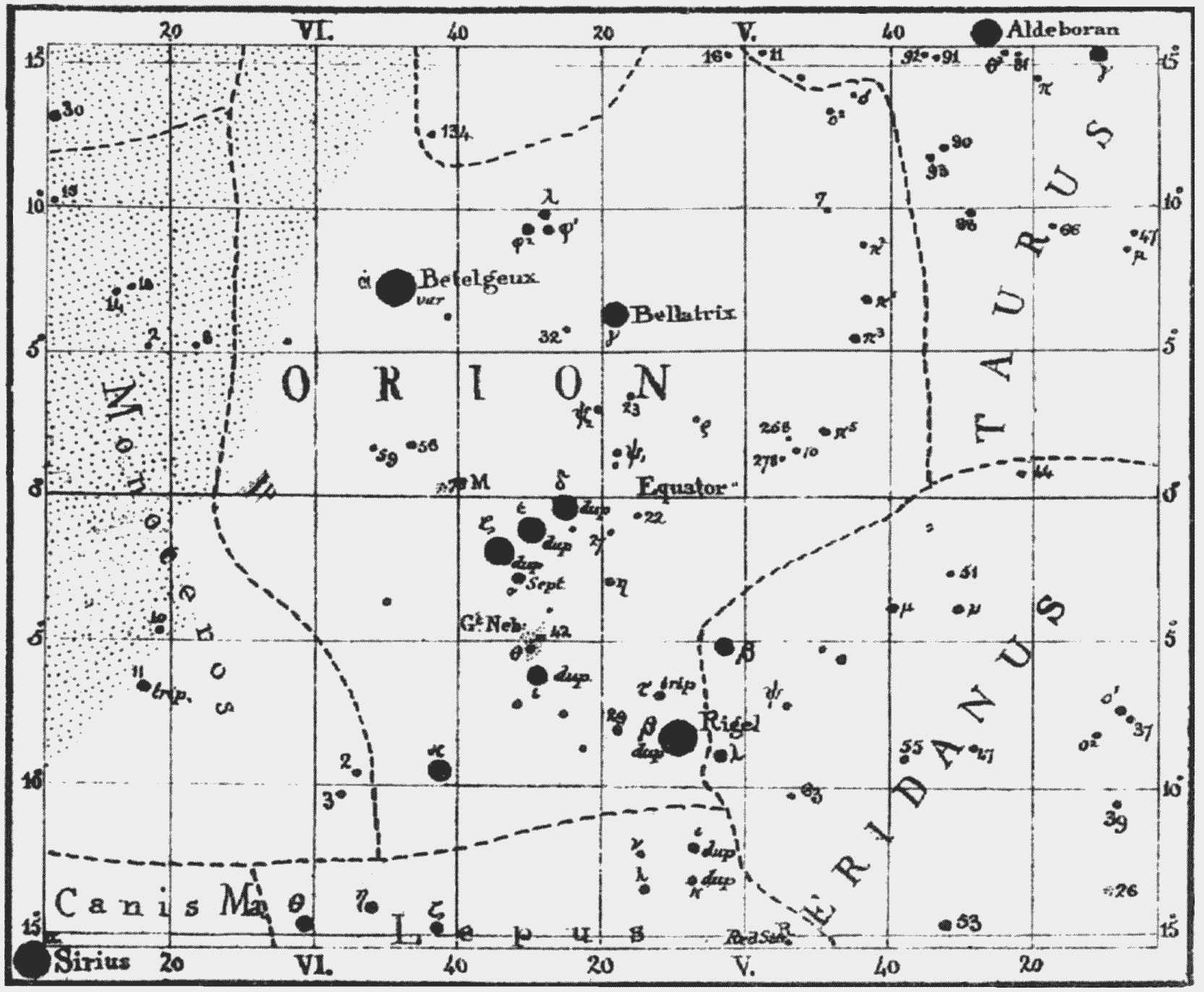

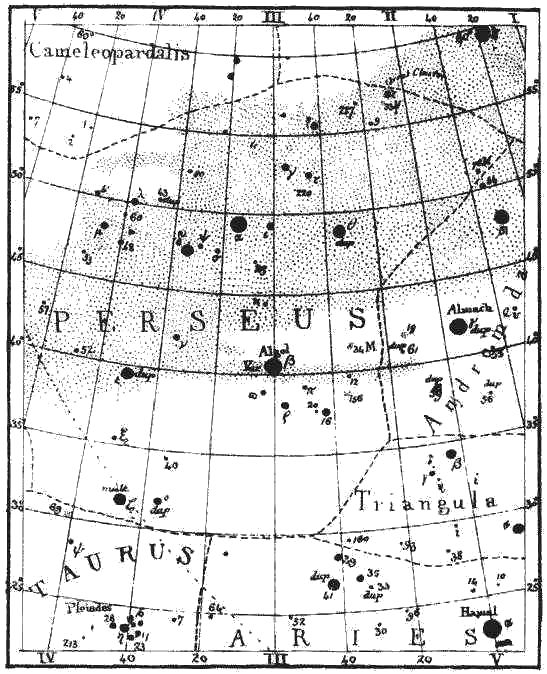

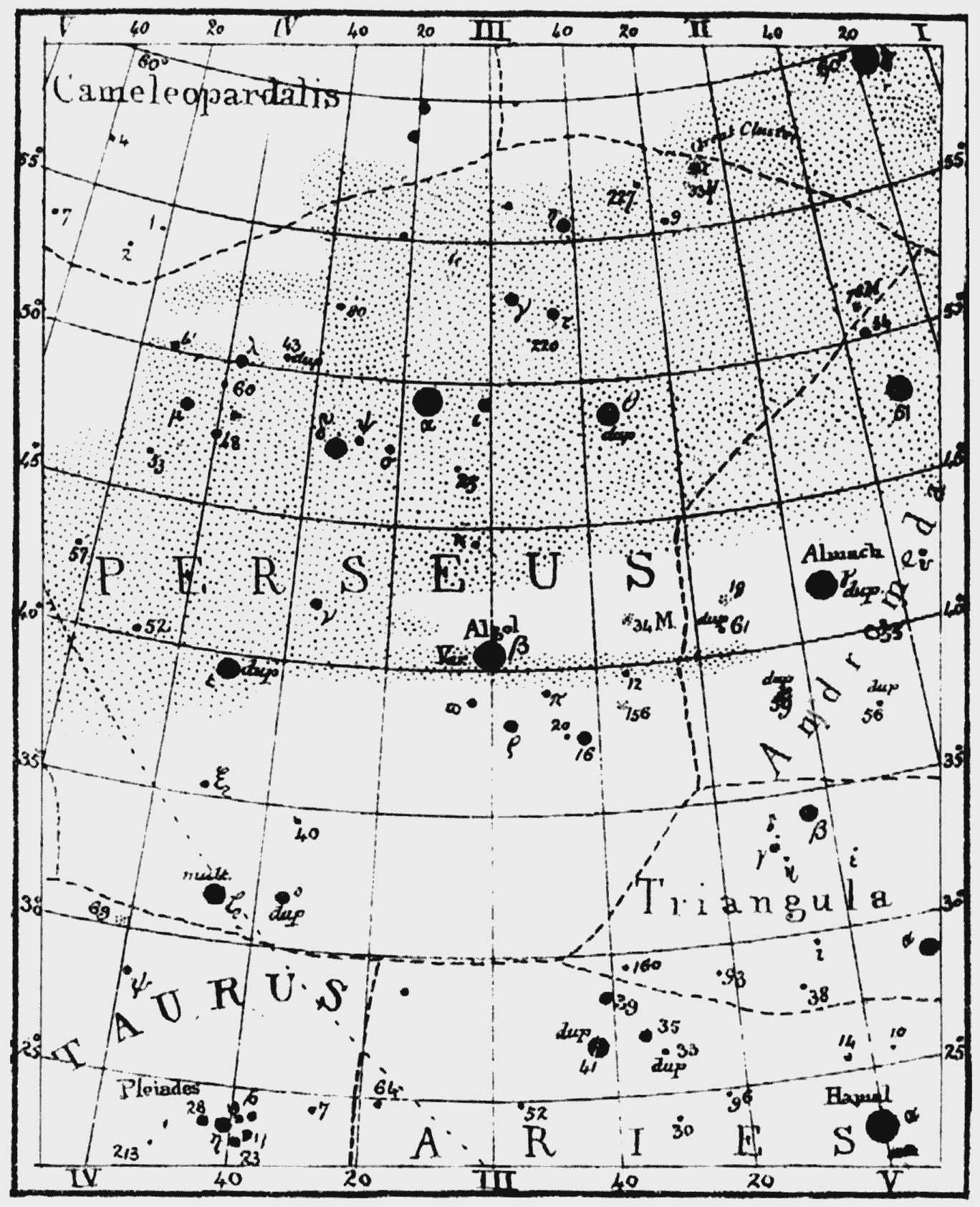

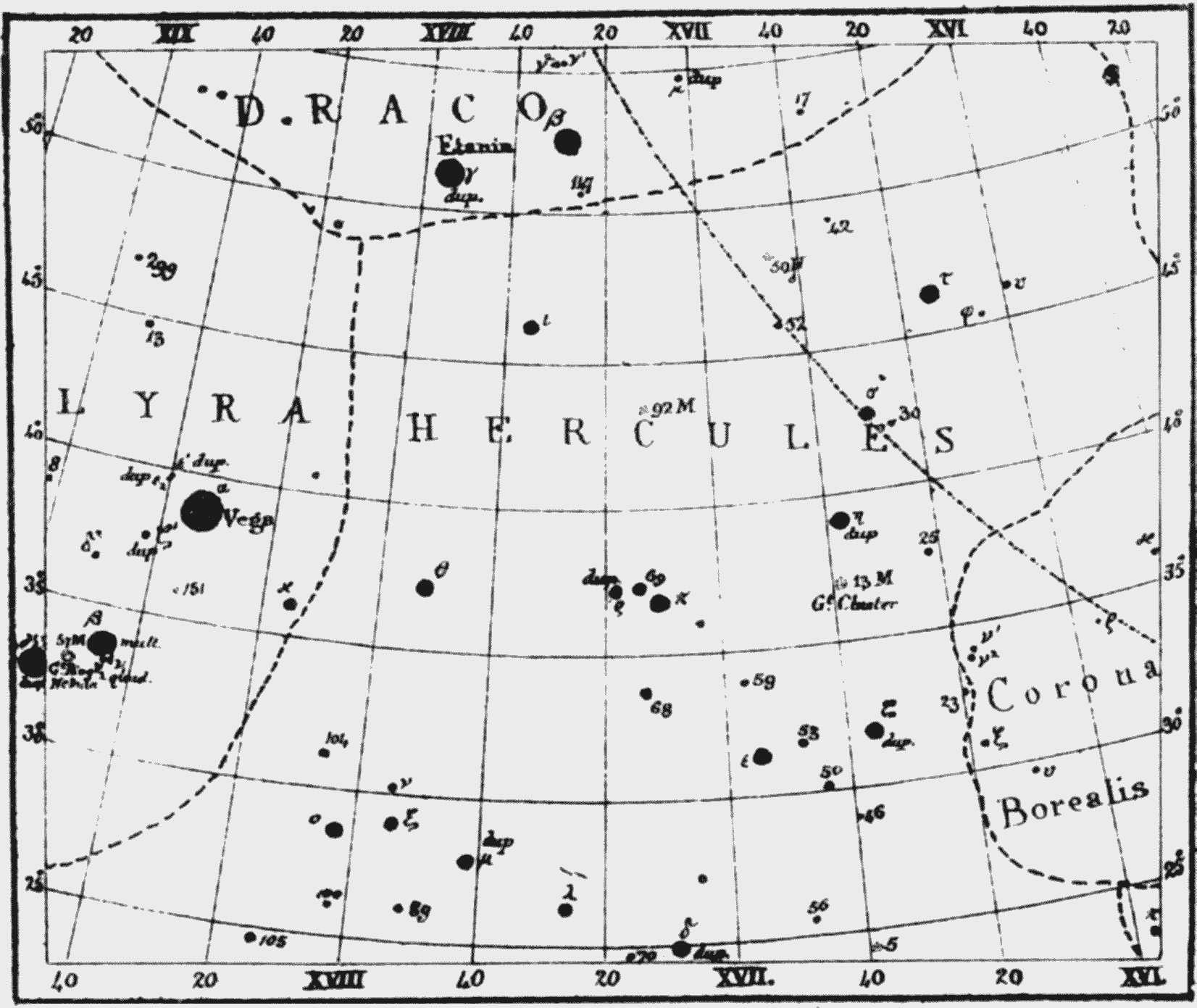

Plates II. and IV. contain four star-maps. They not only serve to indicate the configuration of certain important star-groups, but they illustrate the construction of maps, such as the observer should make for himself when he wishes to obtain an accurate knowledge of particular regions of the sky. They are all made to one scale, and on the conical projection—the simplest and best of all projections for maps of this sort. The way in which the meridians and parallels for this projection are laid down is described in my 'Handbook of the Stars.' With a little practice a few minutes will suffice for sweeping out the equidistant circular arcs which mark the parallels and ruling in the straight meridians.

The dotted line across three of the maps represents a portion of the horizontal circle midway between the zenith and the horizon at the hour at which the map is supposed to be used. At other hours, of course, this line would be differently situated.

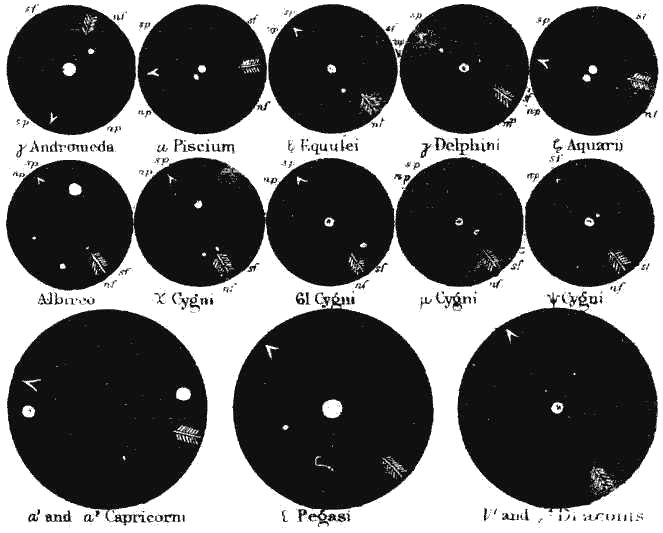

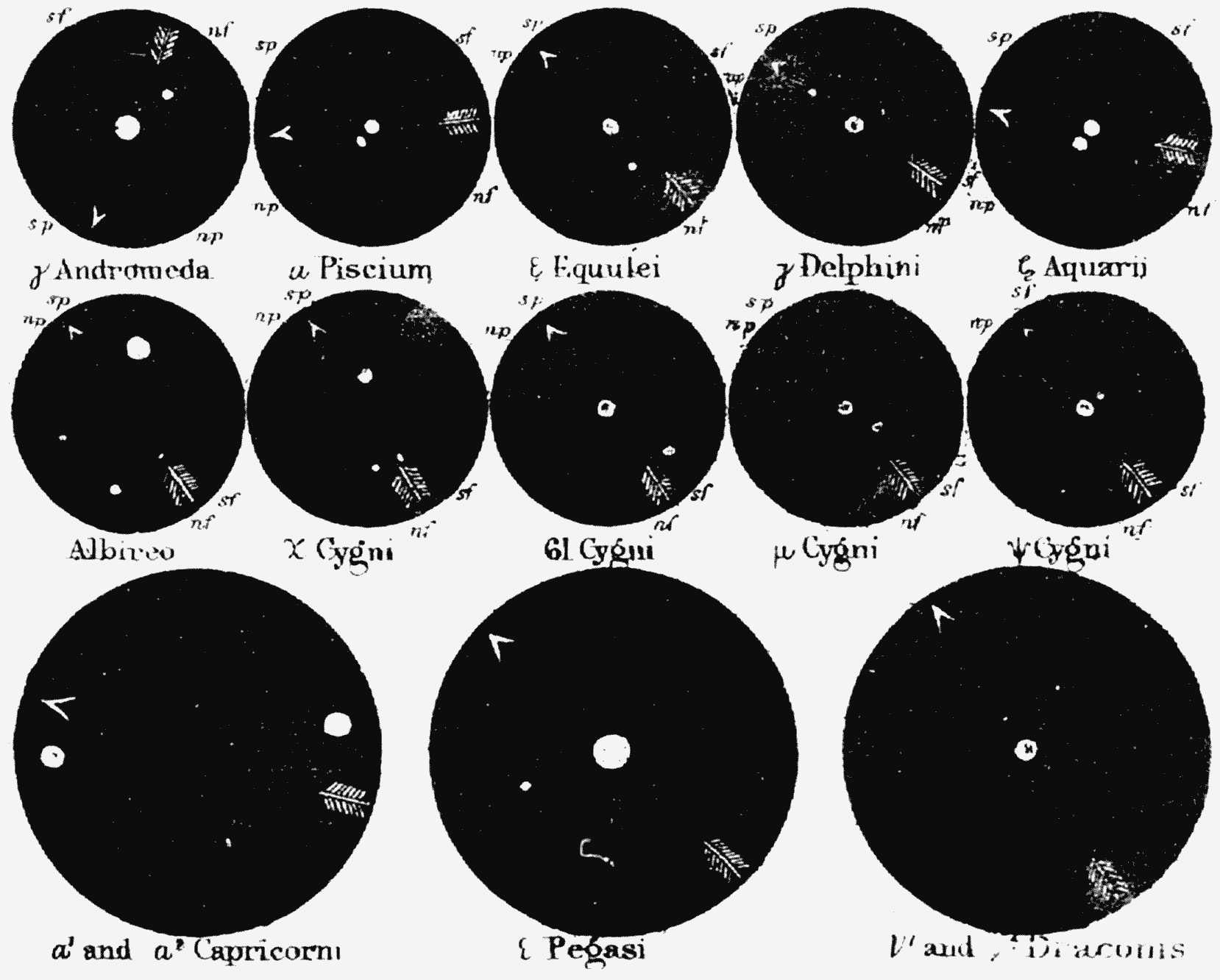

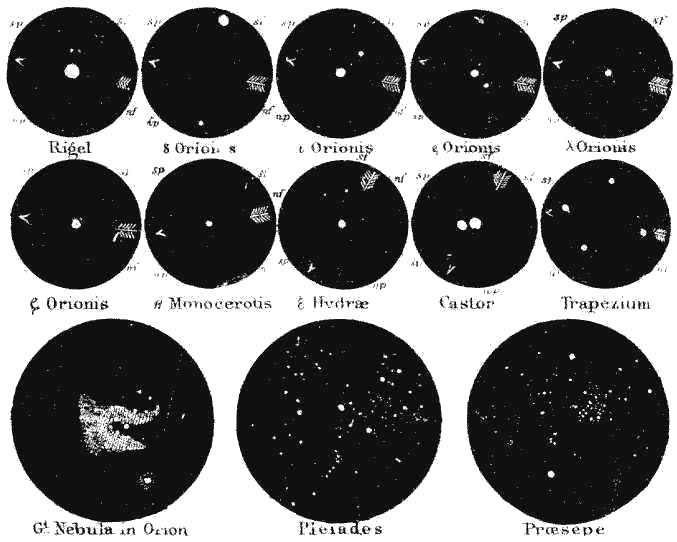

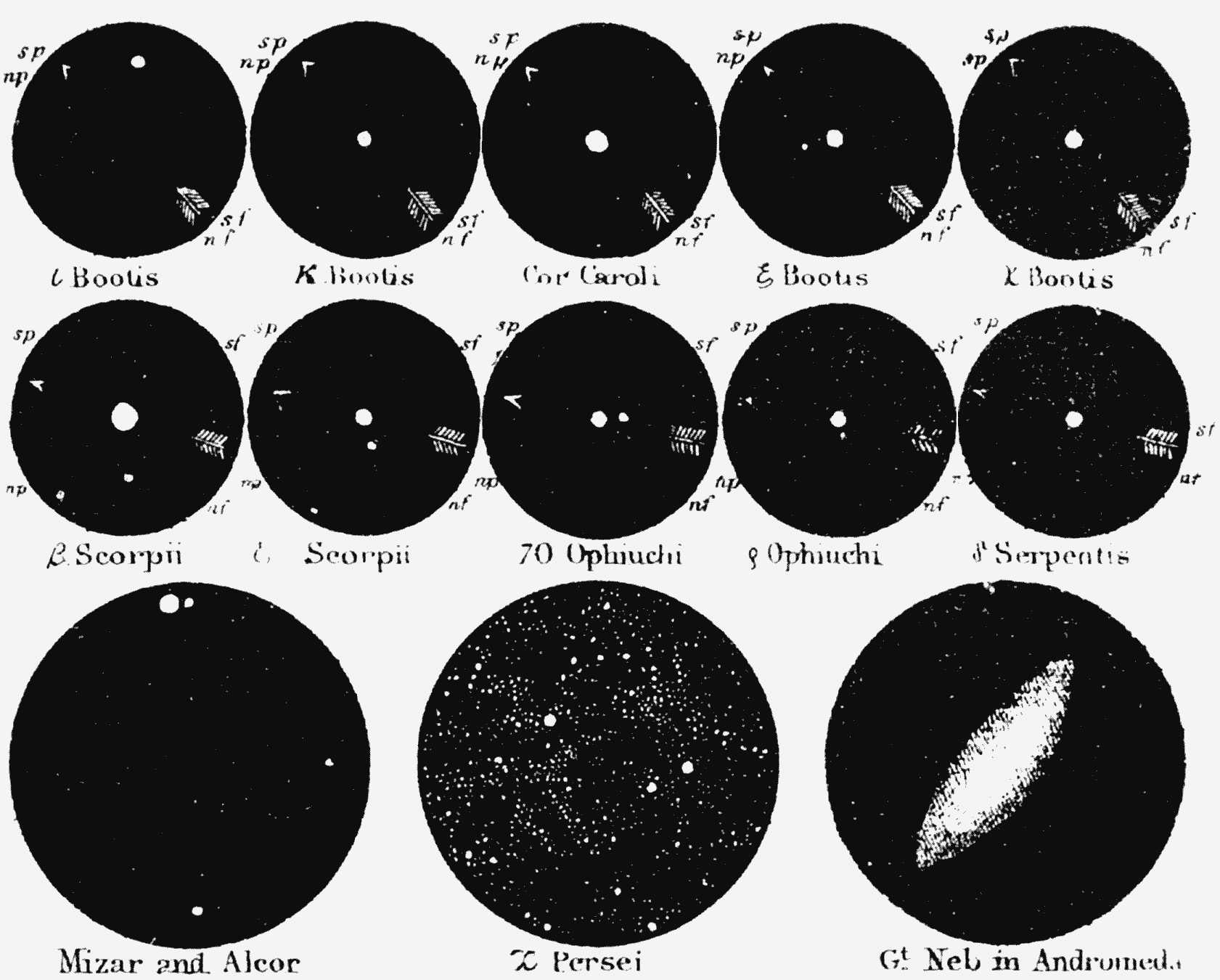

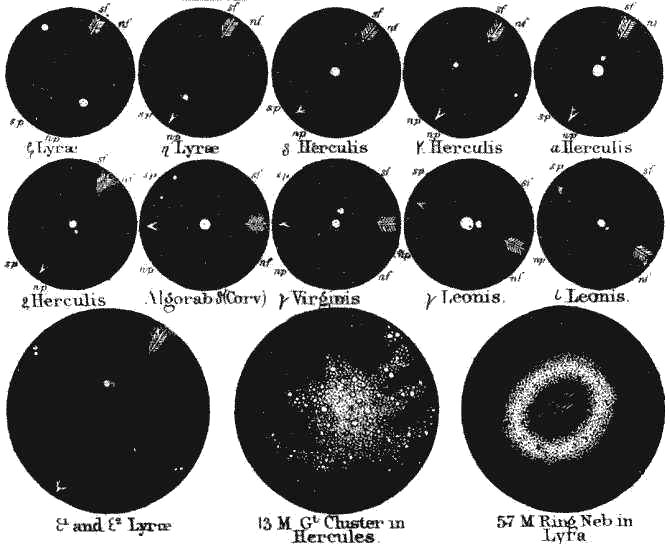

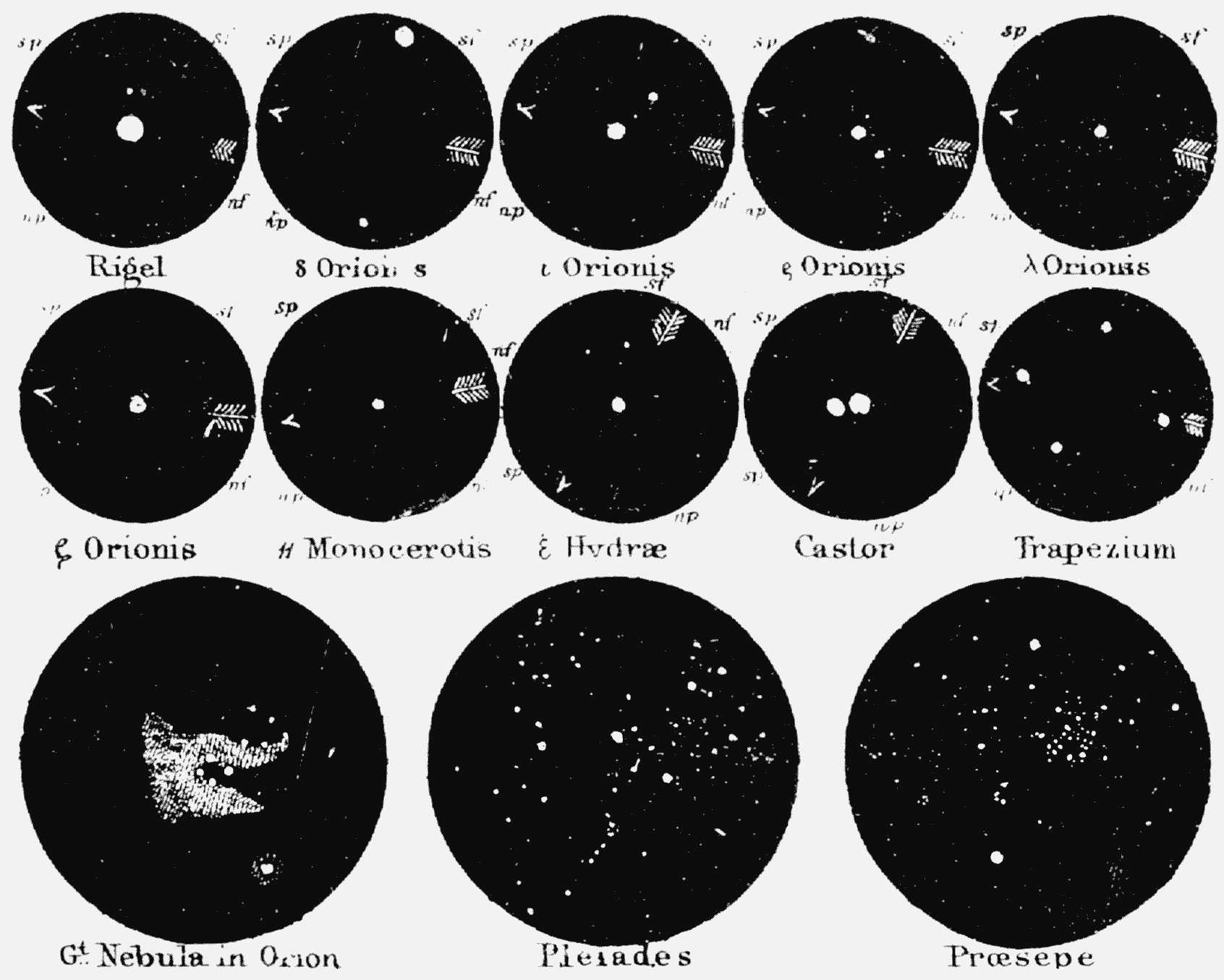

Plates III. and V. represent fifty-two of the objects mentioned in the above-named chapters. As reference is made to these figures in the text, little comment is here required. It is to be remarked, however, that the circles, and especially viithe small circles, do not represent the whole of the telescope's field of view, only a small portion of it. The object of these figures is to enable the observer to know what to expect when he turns his telescope towards a difficult double star. Many of the objects depicted are very easy doubles: these are given as objects of reference. The observer having seen the correspondence between an easy double and its picture, as respects the relation between the line joining the components and the apparent path of the double across the telescope's field of view, will know how to interpret the picture of a difficult double in this respect. And as all the small figures are drawn to one scale, he will also know how far apart he may expect to find the components of a difficult double. Thus he will have an exact conception of the sort of duplicity he is to look for, and this is—crede experto—a great step towards the detection of the star's duplicity.

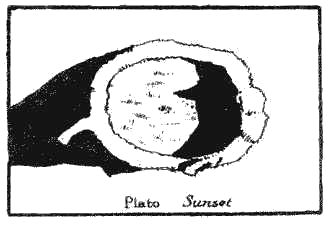

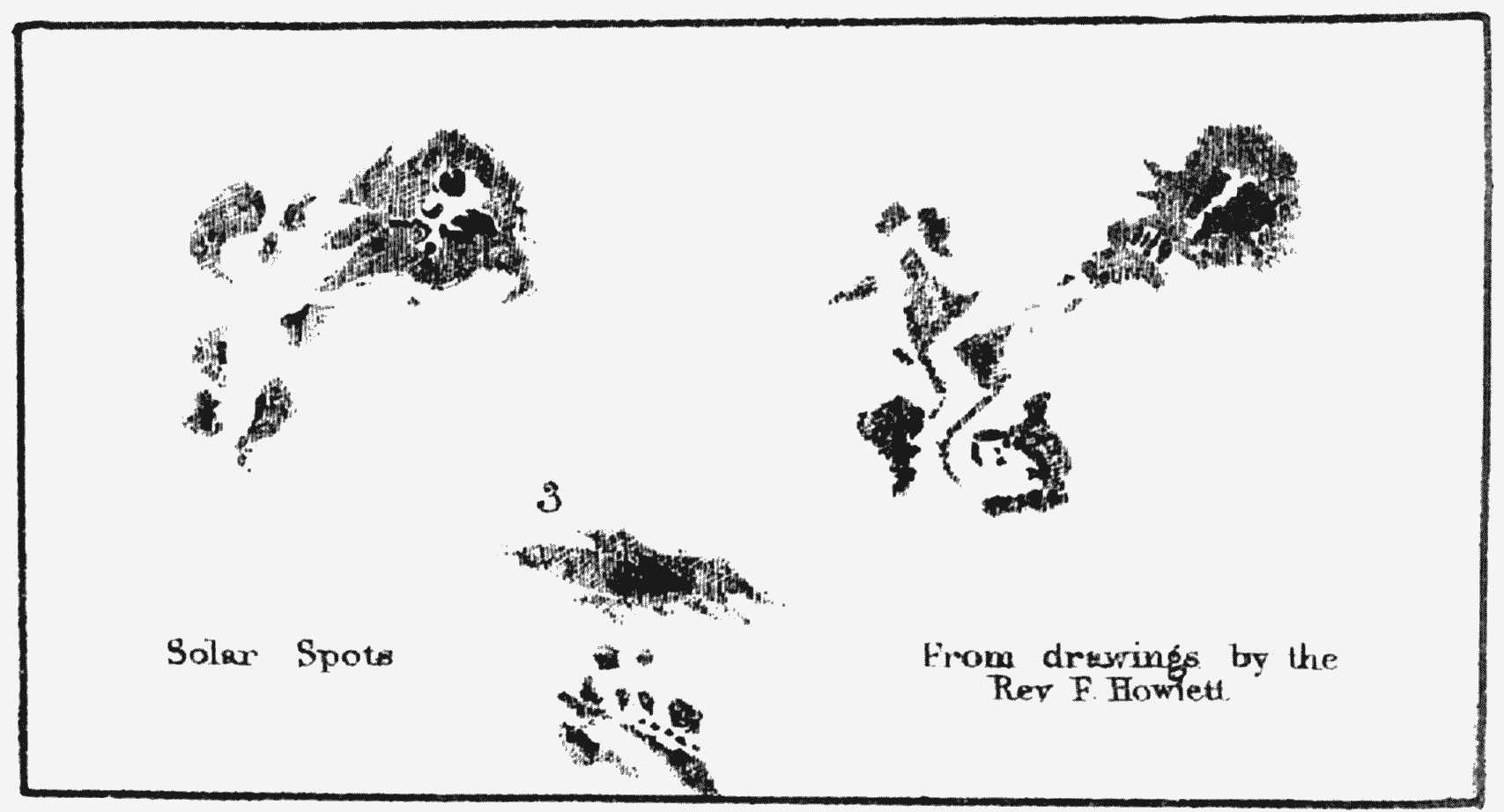

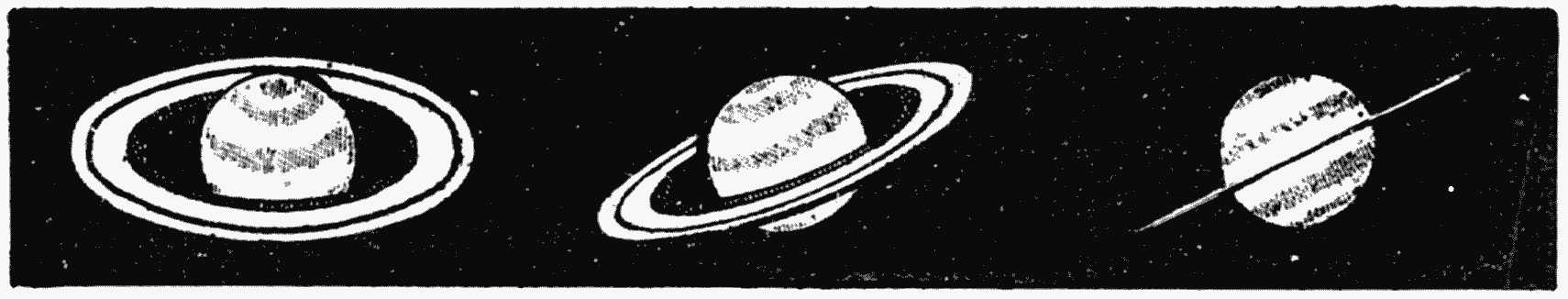

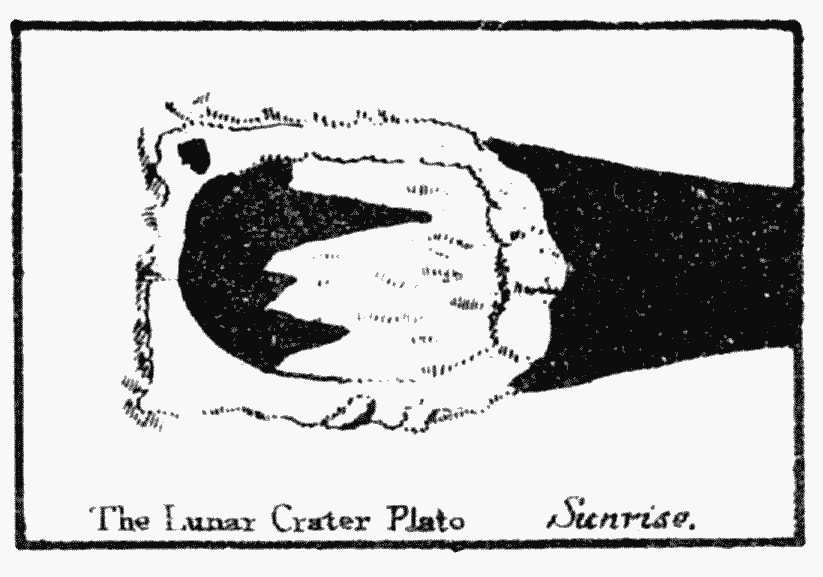

PLATES VI. and VII., illustrating Chapters VI. and VII.

The views of Mercury, Venus, and Mars in these plates (except the smaller view of Jupiter in Plate VII.) are supposed to be seen with the same "power."

The observer must not expect to see the details presented in the views of Mars with anything like the distinctness I have here given to them. If he place the plate at a distance of six or seven yards he will see the views more nearly as Mars is likely to appear in a good three-inch aperture.

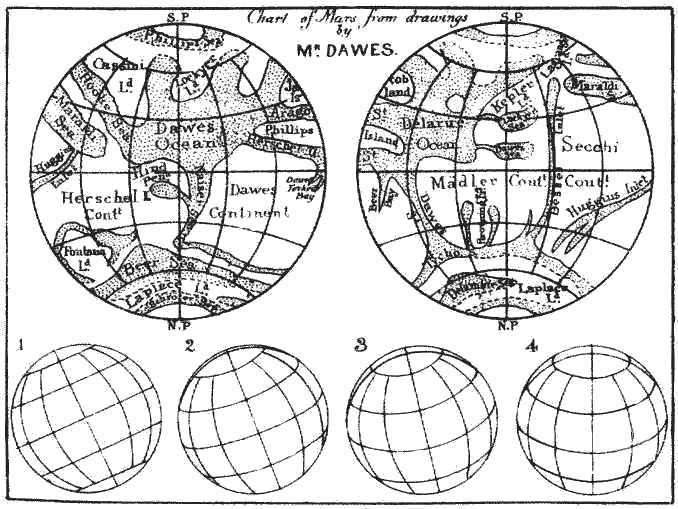

The chart of Mars is a reduction of one I have constructed from views by Mr. Dawes. I believe that nearly all the features included in the chart are permanent, though not always visible. I take this opportunity of noting that the eighteen orthographic pictures of Mars presented with my shilling chart are to be looked on rather as maps than as representing telescopic views. They illustrate usefully the varying presentation of Mars towards the earth. The observer can obtain other such illustrations for himself by filling in outlines, traced from those given at the foot of Plate VI., viiiwith details from the chart. It is to be noted that Mars varies in presentation, not only as respects the greater or less opening out of his equator towards the north or south, but as respects the apparent slope of his polar axis to the right or left. The four projections as shown, or inverted, or seen from the back of the plate (held up to the light) give presentations of Mars towards the sun at twelve periods of the Martial year,—viz., at the autumnal and vernal equinoxes, at the two solstices, and at intermediate periods corresponding to our terrestrial months.

In fact, by means of these projections one might readily form a series of sun-views of Mars resembling my 'Sun-views of the Earth.'

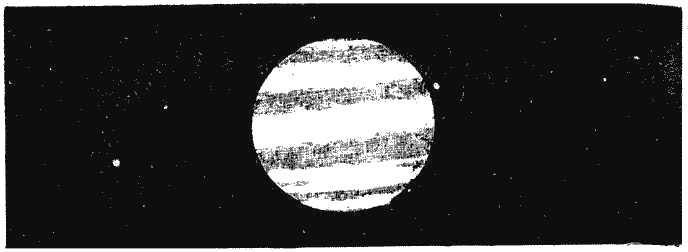

In the first view of Jupiter it is to be remarked that the three satellites outside the disc are supposed to be moving in directions appreciably parallel to the belts on the disc—the upper satellites from right to left, the lower one from left to right. In general the satellites, when so near to the disc, are not seen in a straight line, as the three shown in the figure happen to be. Of the three spots on the disc, the faintest is a satellite, the neighbouring dark spot its shadow, the other dark spot the shadow of the satellite close to the planet's disc.


1

HALF-HOURS WITH THE TELESCOPE.

Horizontal Rule

CHAPTER I.

A HALF-HOUR ON THE STRUCTURE OF THE TELESCOPE.

There are few instruments which yield more pleasure and instruction than the Telescope. Even a small telescope—only an inch and a half or two inches, perhaps, in aperture—will serve to supply profitable amusement to those who know how to apply its powers. I have often seen with pleasure the surprise with which the performance even of an opera-glass, well steadied, and directed towards certain parts of the heavens, has been witnessed by those who have supposed that nothing but an expensive and colossal telescope could afford any views of interest. But a well-constructed achromatic of two or three inches in aperture will not merely supply amusement and instruction,—it may be made to do useful work.

The student of astronomy is often deterred from telescopic observation by the thought that in a field wherein so many have laboured, with abilities and means perhaps far surpassing those he may possess, he is little likely to reap results of any utility. He argues that, since the planets, stars, and nebulæ have been scanned by Herschel and Rosse, with their gigantic mirrors, and at Pulkova and Greenwich with refractors whose construction has taxed 2to the utmost the ingenuity of the optician and mechanic, it must be utterly useless for an unpractised observer to direct a telescope of moderate power to the examination of these objects.

Now, passing over the consideration that a small telescope may afford its possessor much pleasure of an intellectual and elevated character, even if he is never able by its means to effect original discoveries, two arguments may be urged in favour of independent telescopic observation. In the first place, the student who wishes to appreciate the facts and theories of astronomy should familiarize himself with the nature of that instrument to which astronomers have been most largely indebted. In the second place, some of the most important discoveries in astronomy have been effected by means of telescopes of moderate power used skilfully and systematically. One instance may suffice to show what can be done in this way. The well-known telescopist Goldschmidt (who commenced astronomical observation at the age of forty-eight, in 1850) added fourteen asteroids to the solar system, not to speak of important discoveries of nebulæ and variable stars, by means of a telescope only five feet in focal length, mounted on a movable tripod stand.

The feeling experienced by those who look through a telescope for the first time,—especially if it is directed upon a planet or nebula—is commonly one of disappointment. They have been told that such and such powers will exhibit Jupiter's belts, Saturn's rings, and the continent-outlines on Mars; yet, though perhaps a higher power is applied, they fail to detect these appearances, and can hardly believe that they are perfectly distinct to the practised eye.

The expectations of the beginner are especially 3liable to disappointment in one particular. He forms an estimate of the view he is to obtain of a planet by multiplying the apparent diameter of the planet by the magnifying power of his telescope, and comparing the result with the apparent diameter of the sun or moon. Let us suppose, for instance, that on the day of observation Jupiter's apparent diameter is 45", and that the telescopic power applied is 40, then in the telescope Jupiter should appear to have a diameter of 1800", or half a degree, which is about the same as the moon's apparent diameter. But when the observer looks through the telescope he obtains a view—interesting, indeed, and instructive—but very different from what the above calculation would lead him to expect. He sees a disc apparently much smaller than the moon's, and not nearly so well-defined in outline; in a line with the disc's centre there appear three or four minute dots of light, the satellites of the planet; and, perhaps, if the weather is favourable and the observer watchful, he will be able to detect faint traces of belts across the planet's disc.

Yet in such a case the telescope is not in fault. The planet really appears of the estimated size. In fact, it is often possible to prove this in a very simple manner. If the observer wait until the planet and the moon are pretty near together, he will find that it is possible to view the planet with one eye through the telescope and the moon with the unaided eye, in such a manner that the two discs may coincide, and thus their relative apparent dimensions be at once recognised. Nor should the indistinctness and incompleteness of the view be attributed to imperfection of the telescope; they are partly due to the nature of the observation and the low power employed, and partly to the inexperience of the beginner.

4It is to such a beginner that the following pages are specially addressed, with the hope of affording him aid and encouragement in the use of one of the most enchanting of scientific instruments,—an instrument that has created for astronomers a new sense, so to speak, by which, in the words of the ancient poet:

Subjecere oculis distantia sidera nostris,
Ætheraque ingenio supposuere suo.

In the first place, it is necessary that the beginner should rightly know what is the nature of the instrument he is to use. And this is the more necessary because, while it is perfectly easy to obtain such knowledge without any profound acquaintance with the science of optics, yet in many popular works on this subject the really important points are omitted, and even in scientific works such points are too often left to be gathered from a formula. When the observer has learnt what it is that his instrument is actually to do for him, he will know how to estimate its performance, and how to vary the application of its powers—whether illuminating or magnifying—according to the nature of the object to be observed.

Let us consider what it is that limits the range of natural vision applied to distant objects. What causes an object to become invisible as its distance increases? Two things are necessary that an object should be visible. It must be large enough to be appreciated by the eye, and it must send light enough. Thus increase of distance may render an object invisible, either through diminution of its apparent size, or through diminution in the quantity of light it sends to the eye, or through both these causes combined. A telescope, therefore, or (as its name implies) an instrument to render 5distant objects visible, must be both a magnifying and an illuminating instrument.

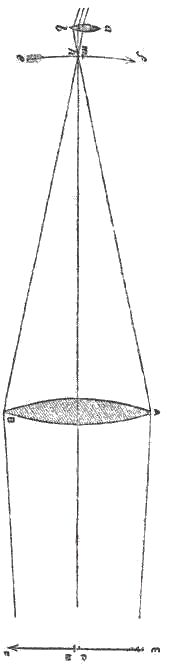

Fig. 1.
Fig. 1.

Let EF, fig. 1, be an object, not near to AB as in the figure, but so far off that the bounding lines from A and B would meet at the point corresponding to the point P. Then if a large convex glass AB (called an object-glass) be interposed between the object and the eye, all those rays which, proceeding from P, fall on AB, will be caused to converge nearly to a point p. The same is true for every point of the object EMF, and thus a small image, emf, will be formed. This image will not lie exactly on a flat surface, but will be curved about the point midway between A and B as a centre. Now if the lens AB is removed, and an eye is placed at m to view the distant object EMF, those rays only from each point of the object which fall on the pupil of the eye (whose diameter is about equal to mp suppose) will serve to render the object visible. On the other hand, every point of the image emf has received the whole of the light gathered up by the large glass AB. If then we can only make this light available, it is clear that we shall have acquired a large increase of light from the distant object. Now it will be noticed that the light which has converged to p, diverges from p so that an eye, placed that this diverging pencil of rays may fall upon it, 6would be too small to receive the whole of the pencil. Or, if it did receive the whole of this pencil, it clearly could not receive the whole of the pencils proceeding from other parts of the image emf. Something would be gained, though, even in this case, since it is clear that an eye thus placed at a distance of ten inches from emf (which is about the average distance of distinct vision) would not only receive much more light from the image emf, than it would from the object EMF, but see the image much larger than the object. It is in this way that a simple object-glass forms a telescope, a circumstance we shall presently have to notice more at length. But we want to gain the full benefit of the light which has been gathered up for us by our object-glass. We therefore interpose a small convex glass ab (called an eye-glass) between the image and the eye, at such a distance from the image that the divergent pencil of rays is converted into a pencil of parallel or nearly parallel rays. Call this an emergent pencil. Then all the emergent pencils now converge to a point on the axial line m M (produced beyond m), and an eye suitably placed can take in all of them at once. Thus the whole, or a large part, of the image is seen at once. But the image is seen inverted as shown. This is the Telescope, as it was first discovered, and such an arrangement would now be called a simple astronomical Telescope.

Let us clearly understand what each part of the astronomical telescope does for us:—

The object-glass AB gives us an illuminated image, the amount of illumination depending on the size of the object-glass. The eye-glass enables us to examine the image microscopically.

We may apply eye-glasses of different focal length. It is clear that the shorter the focal length 7of ab, the nearer must ab be placed to the image, and the smaller will the emergent pencils be, but the greater the magnifying power of the eye-glass. If the emergent pencils are severally larger than the pupil of the eye, light is wasted at the expense of magnifying power. Therefore the eye-glass should never be of greater focal length than that which makes the emergent pencils about equal in diameter to the pupil of the eye. On the other hand, the eye-glass must not be of such small focal length that the image appears indistinct and contorted, or dull for want of light.

Figure 2
Fig. 2.

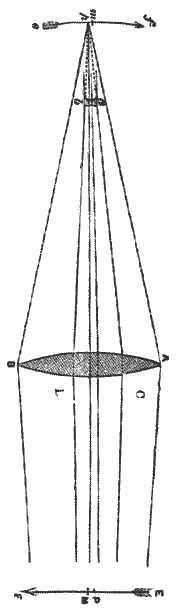

Let us compare with the arrangement exhibited in fig. 1 that adopted by Galileo. Surprise is sometimes expressed that this instrument, which in the hands of the great Florentine astronomer effected so much, should now be known as the non-astronomical Telescope. I think this will be readily understood when we compare the two arrangements.

In the Galilean Telescope a small concave eye-glass, ab (fig. 2), is placed between the object-glass and the image. In fact, no image is allowed to be formed in this arrangement, but the convergent pencils are intercepted by the concave eye-glass, and converted into parallel emergent pencils. Now in fig. 2 the concave eye-glass is so placed as to receive 8only a part of the convergent pencil A p B, and this is the arrangement usually adopted. By using a concave glass of shorter focus, which would therefore be placed nearer to m p, the whole of the convergent pencil might be received in this as in the former case. But then the axis of the emergent pencil, instead of returning (as we see it in fig. 1) towards the axis of the telescope, would depart as much from that axis. Thus there would be no point on the axis at which the eye could be so placed as to receive emergent pencils showing any considerable part of the object. The difference may be compared to that between looking through the small end of a cone-shaped roll of paper and looking through the large end; in the former case the eye sees at once all that is to be seen through the roll (supposed fixed in position), in the latter the eye may be moved about so as to command the same range of view, but at any instant sees over a much smaller range.

To return to the arrangement actually employed, which is illustrated by the common opera-glass. We see that the full illuminating power of the telescope is not brought into play. But this is not the only objection to the Galilean Telescope. It is obvious that if the part C D of the object-glass were covered, the point P would not be visible, whereas, in the astronomical arrangement no other effect is produced on the visibility of an object, by covering part of the object-glass, than a small loss of illumination. In other words, the dimensions of the field of view of a Galilean Telescope depend on the size of the object-glass, whereas in the astronomical Telescope the field of view is independent of the size of the object-glass. The difference may be readily tested. If we direct an opera-glass upon any object, we shall find that any covering placed over a part of the object-glass becomes visible when we look through 9the instrument, interfering therefore pro tanto with the range of view. A covering similarly placed on any part of the object-glass of an astronomical telescope does not become visible when we look through the instrument. The distinction has a very important bearing on the theory of telescopic vision.

In considering the application of the telescope to practical observation, the circumstance that in the Galilean Telescope no real image is formed, is yet more important. A real image admits of measurement, linear or angular, while to a virtual image (such an image, for instance, as is formed by a common looking-glass) no such process can be applied. In simple observation the only noticeable effect of this difference is that, whereas in the astronomical Telescope a stop or diaphragm can be inserted in the tube so as to cut off what is called the ragged edge of the field of view (which includes all the part not reached by full pencils of light from the object-glass), there is no means of remedying the corresponding defect in the Galilean Telescope. It would be a very annoying defect in a telescope intended for astronomical observation, since in general the edge of the field of view is not perceptible at night. The unpleasant nature of the defect may be seen by looking through an opera-glass, and noticing the gradual fading away of light round the circumference of the field of view.

The properties of reflection as well as of refraction have been enlisted into the service of the astronomical observer. The formation of an image by means of a concave mirror is exhibited in fig. 3. As the observer's head would be placed between the object and the mirror, if the image, formed as in fig. 3, were to be microscopically examined, various devices are employed in the construction of reflecting telescopes to avoid the loss of light which would 10result—a loss which would be important even with the largest mirrors yet constructed. Thus, in Gregory's Telescope, a small mirror, having its concavity towards the great one, is placed in the axis of the tube and forms an image which is viewed through an aperture in the middle of the great mirror. A similar plan is adopted in Cassegrain's Telescope, a small convex mirror replacing the concave one. In Newton's Telescope a small inclined-plane reflector is used, which sends the pencil of light off at right-angles to the axis of the tube. In Herschel's Telescope the great mirror is inclined so that the image is formed at a slight distance from the axis of the telescope. In the two first cases the object is viewed in the usual or direct way, the image being erect in Gregory's and inverted in Cassegrain's. In the third the observer looks through the side of the telescope, seeing an inverted image of the object. In the last the observer sees the object inverted, but not altered as respects right and left. The last-mentioned method of viewing objects is the only one in which the observer's back is turned towards the object, yet this method is called the front view—apparently quasi lucus a non lucendo.

Figure 3

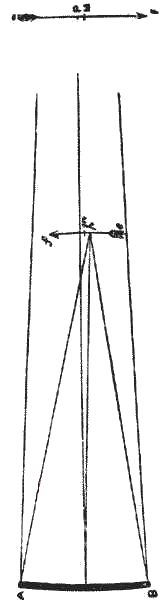

Fig. 3.

It appears, then, that in all astronomical Telescopes, reflecting or refracting, a real image of an object is submitted to microscopical examination.

11Of this fact the possessor of a telescope may easily assure himself; for if the eye-glass be removed, and a small screen be placed at the focus of the object-glass, there will appear upon the screen a small picture of any object towards which the tube is turned. But the image may be viewed in another way which requires to be noticed. If the eye, placed at a distance of five or six inches from the image, be directed down the tube, the image will be seen as before; in fact, just as a single convex lens of short focus is the simplest microscope, so a simple convex lens of long focus is the simplest telescope.[1] But a singular circumstance will immediately attract the observer's notice. A real picture, or the image formed on the screen as in the former case, can be viewed at varying distances; but when we view the image directly, it will be found that for distinct vision the eye must be placed almost exactly at a fixed distance from the image. This peculiarity is more important than it might be thought at first sight. In fact, it is essential that the observer who would rightly apply the powers of his telescope, or fairly test its performance, should understand in what respect an image formed by an object-glass or object-mirror differs from a real object.

The peculiarities to be noted are the curvature, indistinctness, and false colouring of the image.

The curvature of the image is the least important of the three defects named—a fortunate circum12stance, since this defect admits neither of remedy nor modification. The image of a distant object, instead of lying in a plane, that is, forming what is technically called a flat field, forms part of a spherical surface whose centre is at the centre of the object-glass. Hence the centre of the field of view is somewhat nearer to the eye than are the outer parts of the field. The amount of curvature clearly depends on the extent of the field of view, and therefore is not great in powerful telescopes. Thus, if we suppose that the angular extent of the field is about half a degree (a large or low-power field), the centre is nearer than the boundary of the field by about 1-320th part only of the field's diameter.

The indistinctness of the image is partly due to the obliquity of the pencils which form parts of the image, and partly to what is termed spherical aberration. The first cause cannot be modified by the optician's skill, and is not important when the field of view is small. Spherical aberration causes those parts of a pencil which fall near the boundary of a convex lens to converge to a nearer (i.e. shorter) focus than those which fall near the centre. This may be corrected by a proper selection of the forms of the two lenses which replace, in all modern telescopes, the single lens hitherto considered.

The false colouring of the image is due to chromatic aberration. The pencil of light proceeding from a point, converges, not to one point, but to a short line of varying colour. Thus a series of coloured images is formed, at different distances from the object-glass. So that, if a screen were placed to receive the mean image in focus, a coloured fringe due to the other images (out of focus, and therefore too large) would surround the mean image.

Newton supposed that it was impossible to get rid of this defect, and therefore turned his attention to the construction of reflectors. But the discovery 13that the dispersive powers of different glasses are not proportional to their reflective powers, supplied opticians with the means of remedying the defect. Let us clearly understand what is the discovery referred to. If with a glass prism of a certain form we produce a spectrum of the sun, this spectrum will be thrown a certain distance away from the point on which the sun's rays would fall if not interfered with. This distance depends on the refractive power of the glass. The spectrum will have a certain length, depending on the dispersive power of the glass. Now, if we change our prism for another of exactly the same shape, but made of a different kind of glass, we shall find the spectrum thrown to a different spot. If it appeared that the length of the new spectrum was increased or diminished in exactly the same proportion as its distance from the line of the sun's direct light, it would have been hopeless to attempt to remedy chromatic aberration. Newton took it for granted that this was so. But the experiments of Hall and the Dollonds showed that there is no such strict proportionality between the dispersive and refractive powers of different kinds of glass. It accordingly becomes possible to correct the chromatic aberration of one glass by superadding that of another.

Figure 4
Fig. 4.

This is effected by combining, as shown in fig. 4, a convex lens of crown glass with a concave lens of flint glass, the convex lens being placed nearest to the object. A little colour still remains, but not enough to interfere seriously with the distinctness of the image.

But even if the image formed by the object-glass were perfect, yet this image, viewed 14through a single convex lens of short focus placed as in fig. 1, would appear curved, indistinct, coloured, and also distorted, because viewed by pencils of light which do not pass through the centre of the eye-glass. These effects can be diminished (but not entirely removed together) by using an eye-piece consisting of two lenses instead of a single eye-glass. The two forms of eye-piece most commonly employed are exhibited in figs. 5 and 6. Fig. 5 is Huyghens' eye-piece, called also the negative eye-piece, because a real image is formed behind the field-glass (the lens which lies nearest to the object-glass). Fig. 6 represents Ramsden's eye-piece, called also the positive eye-piece, because the real image formed by the object-glass lies in front of the field-glass.

Figure 5
Fig. 5.
Figure 6
Fig. 6.

The course of a slightly oblique pencil through either eye-piece is exhibited in the figures. The lenses are usually plano-convex, the convexities being turned towards the object-glass in the negative eye-piece, and towards each other in the positive eye-piece. Coddington has shown, however, that the best forms for the lenses of the negative eye-piece are those shown in fig. 5.

The negative eye-piece, being achromatic, is commonly employed in all observations requiring distinct vision only. But as it is clearly unfit for observations requiring micrometrical measurement, or reference to fixed lines at the focus of the object-glass, the positive eye-piece is used for these purposes.

15For observing objects at great elevations the diagonal eye-tube is often convenient. Its construction is shown in fig. 7. ABC is a totally reflecting prism of glass. The rays from the object-glass fall on the face AB, are totally reflected on the face BC, and emerge through the face AC. In using this eye-piece, it must be remembered that it lengthens the sliding eye-tube, which must therefore be thrust further in, or the object will not be seen in focus. There is an arrangement by which the change of direction is made to take place between the two glasses of the eye-piece. With this arrangement (known as the diagonal eye-piece) no adjustment of the eye-tube is required. However, for amateurs' telescopes the more convenient arrangement is the diagonal eye-tube, since it enables the observer to apply any eye-piece he chooses, just as with the simple sliding eye-tube.

Figure 7
Fig. 7.

We come next to the important question of the mounting of our telescope.

The best known, and, in some respects, the simplest method of mounting a telescope for general observation is that known as the altitude-and-azimuth mounting. In this method the telescope is pointed towards an object by two motions,—one giving the tube the required altitude (or elevation), the other giving it the required azimuth (or direction as respects the compass points).

For small alt-azimuths the ordinary pillar-and-claw stand is sufficiently steady. For larger instru16ments other arrangements are needed, both to give the telescope steadiness, and to supply slow movements in altitude and azimuth. The student will find no difficulty in understanding the arrangement of sliding-tubes and rack-work commonly adopted. This arrangement seems to me to be in many respects defective, however. The slow movement in altitude is not uniform, but varies in effect according to the elevation of the object observed. It is also limited in range; and quite a little series of operations has to be gone through when it is required to direct the telescope towards a new quarter of the heavens. However expert the observer may become by practice in effecting these operations, they necessarily take up some time (performed as they must be in the dark, or by the light of a small lantern), and during this time it often happens that a favourable opportunity for observation is lost.

These disadvantages are obviated when the telescope is mounted in such a manner as is exhibited in fig. 8, which represents a telescope of my own construction. The slow movement in altitude is given by rotating the rod he, the endless screw in which turns the small wheel at b, whose axle in turn bears a pinion-wheel working in the teeth of the quadrant a. The slow movement in azimuth is given in like manner by rotating the rod h'e', the lantern-wheel at the end of which turns a crown-wheel on whose axle is a pinion-wheel working in the teeth of the circle c. The casings at e and e', in which the rods he and h'e' respectively work, are so fastened by elastic cords that an upward pressure on the handle h, or a downward pressure on the handle h', at once releases the endless screw or the crown-wheel respectively, so that the telescope can be swept at once through any desired 17angle in altitude or azimuth. This method of mounting has other advantages; the handles are conveniently situated and constant in position; also, as they do not work directly on the telescope, 18they can be turned without setting the tube in vibration.

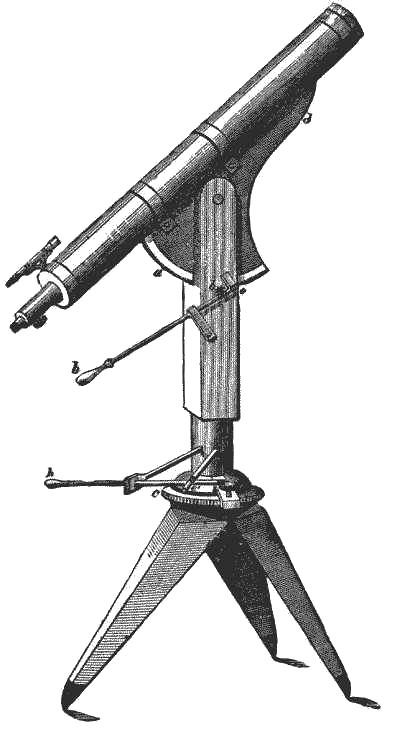

Figure 8
Fig. 8.

I do not recommend the mounting to be exactly as shown in fig. 8. That method is much too expensive for an alt-azimuth. But a simple arrangement of belted wheels in place of the toothed wheels a and c might very readily be prepared by the ingenious amateur telescopist; and I feel certain that the comfort and convenience of the arrangement would amply repay him for the labour it would cost him. My own telescope—though the large toothed-wheel and the quadrant were made inconveniently heavy (through a mistake of the workman who constructed the instrument)—worked as easily and almost as conveniently as an equatorial.

Still, it is well for the observer who wishes systematically to survey the heavens—and who can afford the expense—to obtain a well-mounted equatorial. In this method of mounting, the main axis is directed to the pole of the heavens; the other axis, at right angles to the first, carries the telescope-tube. One of the many methods adopted for mounting equatorials is that exhibited—with the omission of some minor details—in fig. 9. a is the polar axis, b is the axis (called the declination axis) which bears the telescope. The circles c and d serve to indicate, by means of verniers revolving with the axes, the motion of the telescope in right ascension and declination, respectively. The weight w serves to counterpoise the telescope, and the screws s, s, s, s, serve to adjust the instrument so that the polar axis shall be in its proper position. The advantage gained by the equatorial method of mounting is that only one motion is required to follow a star. Owing to the diurnal rotation of the earth, the stars appear to move uniformly in circles parallel to the celestial equator; and it is clear that 19a star so moving will be kept in the field of view, if the telescope, once directed to the star, be made to revolve uniformly and at a proper rate round the polar axis.

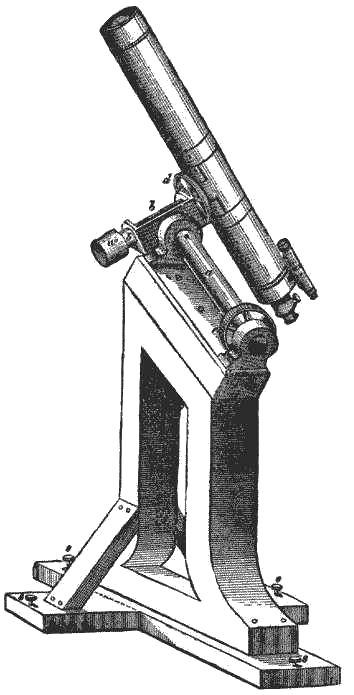

Figure 9
Fig. 9.

The equatorial can be directed by means of the 20circles c and d to any celestial object whose right ascension and declination are known. On the other hand, to bring an object into the field of view of an alt-azimuth, it is necessary, either that the object itself should be visible to the naked eye, or else that the position of the object should be pretty accurately learned from star-maps, so that it may be picked up by the alt-azimuth after a little searching. A small telescope called a finder is usually attached to all powerful telescopes intended for general observation. The finder has a large field of view, and is adjusted so as to have its axis parallel to that of the large telescope. Thus a star brought to the centre of the large field of the finder (indicated by the intersection of two lines placed at the focus of the eye-glass) is at, or very near, the centre of the small field of the large telescope.

If a telescope has no finder, it will be easy for the student to construct one for himself, and will be a useful exercise in optics. Two convex lenses not very different in size from those shown in fig. 1, and placed as there shown—the distance between them being the sum of the focal lengths of the two glasses—in a small tube of card, wood, or tin, will serve the purpose of a finder for a small telescope. It can be attached by wires to the telescope-tube, and adjusted each night before commencing observation. The adjustment is thus managed:—a low power being applied to the telescope, the tube is turned towards a bright star; this is easily effected with a low power; then the finder is to be fixed, by means of its wires, in such a position that the star shall be in the centre of the field of the finder when also in the centre of the telescope's field. When this has been done, the finder will greatly help the observations of the evening; since with high powers much time would be wasted in bringing an object 21into the field of view of the telescope without the aid of a finder. Yet more time would be wasted in the case of an object not visible to the naked eye, but whose position with reference to several visible stars is known; since, while it is easy to bring the point required to the centre of the finder's field, in which the guiding stars are visible, it is very difficult to direct the telescope's tube on a point of this sort. A card tube with wire fastenings, such as we have described, may appear a very insignificant contrivance to the regular observer, with his well-mounted equatorial and carefully-adjusted finder. But to the first attempts of the amateur observer it affords no insignificant assistance, as I can aver from my own experience. Without it—a superior finder being wanting—our "half-hours" would soon be wasted away in that most wearisome and annoying of all employments, trying to "pick up" celestial objects.

It behoves me at this point to speak of star-maps. Such maps are of many different kinds. There are the Observatory maps, in which the places of thousands of stars are recorded with an amazing accuracy. Our beginner is not likely to make use of, or to want, such maps as these. Then there are maps merely intended to give a good general idea of the appearance of the heavens at different hours and seasons. Plate I. presents four maps of this sort; but a more complete series of eight maps has been published by Messrs. Walton and Maberly in an octavo work; and my own 'Constellation-Seasons' give, at the same price, twelve quarto maps (of four of which those in Plate I. are miniatures), showing the appearance of the sky at any hour from month to month, or on any night, at successive intervals of two hours. But maps intermediate in character to these and to Observatory maps are required by the 22amateur observer. Such are the Society's six gnomonic maps, the set of six gnomonic maps in Johnstone's 'Atlas of Astronomy,' and my own set of twelve gnomonic maps. The Society's maps are a remarkably good set, containing on the scale of a ten-inch globe all the stars in the Catalogue of the Astronomical Society (down to the fifth magnitude). The distortion, however, is necessarily enormous when the celestial sphere is presented in only six gnomonic maps. In my maps all the stars of the British Association Catalogue down to the fifth magnitude are included on the scale of a six-inch globe. The distortion is scarcely a fourth of that in the Society's maps. The maps are so arranged that the relative positions of all the stars in each hemisphere can be readily gathered from a single view; and black duplicate-maps serve to show the appearance of the constellations.

It is often convenient to make small maps of a part of the heavens we may wish to study closely. My 'Handbook of the Stars' has been prepared to aid the student in the construction of such maps.

In selecting maps it is well to be able to recognise the amount of distortion and scale-variation. This may be done by examining the spaces included between successive parallels and meridians, near the edges and angles of the maps, and comparing these either with those in the centre of the map, or with the known figures and dimensions of the corresponding spaces on a globe.

We may now proceed to discuss the different tests which the intending purchaser of a telescope should apply to the instrument.

The excellence of an object-glass can be satisfactorily determined only by testing the performance of the telescope in the manner presently to be described. But it is well to examine the quality of 23the glass as respects transparency and uniformity of texture. Bubbles, scratches, and other such defects, are not very important, since they do not affect the distinctness of the field as they would in a Galilean Telescope,—a little light is lost, and that is all. The same remark applies to dust upon the glass. The glass should be kept as free as possible from dirt, damp, or dust, but it is not advisable to remove every speck which, despite such precaution, may accidentally fall upon the object-glass. When it becomes necessary to clean the glass, it is to be noted that the substance used should be soft, perfectly dry, and free from dust. Silk is often recommended, but some silk is exceedingly objectionable in texture,—old silk, perfectly soft to the touch, is perhaps as good as anything. If the dust which has fallen on the glass is at all gritty, the glass will suffer by the method of cleaning commonly adopted, in which the dust is gathered up by pressure. The proper method is to clean a small space near the edge of the glass, and to sweep from that space as centre. In this way the dust is pushed before the silk or wash-leather, and does not cut the glass. It is well always to suspect the presence of gritty dust, and adopt this cautious method of cleaning.

The two glasses should on no account be separated.

In examining an eye-piece, the quality of the glass should be noted, and care taken that both glasses (but especially the field-glass) are free from the least speck, scratch, or blemish of any kind, for these defects will be exhibited in a magnified state in the field of view. Hence the eye-pieces require to be as carefully preserved from damp and dust as the object-glass, and to be more frequently cleaned.

The tube of the telescope should be light, but strong, and free from vibration. Its quality in the last respect can be tested by lightly striking it 24when mounted; the sound given out should be dead or non-resonant. The inside of the tube must absorb extraneous light, and should therefore be coloured a dull black; and stops of varying radius should be placed along its length with the same object. Sliding tubes, rack-work, etc., should work closely, yet easily.

The telescope should be well balanced for vision with the small astronomical eye-pieces. But as there is often occasion to use appliances which disturb the balance, it is well to have the means of at once restoring equilibrium. A cord ring running round the tube (pretty tightly, so as to rest still when the tube is inclined), and bearing a small weight, will be all that is required for this purpose; it must be slipped along the tube until the tube is found to be perfectly balanced. Nothing is more annoying than, after getting a star well in the field, to see the tube shift its position through defective balance, and thus to have to search again for the star. Even with such an arrangement as is shown in fig. 8, though the tube cannot readily shift its position, it is better to have it well balanced.

The quality of the stand has a very important influence on the performance of a telescope. In fact, a moderately good telescope, mounted on a steady stand, working easily and conveniently, will not only enable the observer to pass his time much more pleasantly, but will absolutely exhibit more difficult objects than a finer instrument on a rickety, ill-arranged stand. A good observing-chair is also a matter of some importance, the least constraint or awkwardness of position detracting considerably from the power of distinct vision. Such, at least, is my own experience.

But the mere examination of the glasses, tube, mounting, &c., is only the first step in the series of 25tests which should be applied to a telescope, since the excellence of the instrument depends, not on its size, the beauty of its mounting, or any extraneous circumstances, but on its performance.

The observer should first determine whether the chromatic aberration is corrected. To ascertain this the telescope should be directed to the moon, or (better) to Jupiter, and accurately focussed for distinct vision. If, then, on moving the eye-piece towards the object-glass, a ring of purple appears round the margin of the object, and on moving the eye-glass in the contrary direction a ring of green, the chromatic aberration is corrected, since these are the colours of the secondary spectrum.

To determine whether the spherical aberration is corrected, the telescope should be directed towards a star of the third or fourth magnitude, and focussed for distinct vision. A cap with an aperture of about one-half its diameter should then be placed over the object-glass. If no new adjustment is required for distinct vision, the spherical aberration is corrected, since the mean focal length and the focal length of the central rays are equal. If, when the cap is on, the eye-piece has to be pulled out for distinct vision, the spherical aberration has not been fully corrected; if the eye-piece has to be pushed in, the aberration has been over-corrected. As a further test, we may cut off the central rays, by means of a circular card covering the middle of the object-glass, and compare the focal length for distinct vision with the focal length when the cap is applied. The extent of the spherical aberration may be thus determined; but if the first experiment gives a satisfactory result, no other is required.

A star of the first magnitude should next be brought into the field of view. If an irradiation from one side is perceived, part of the object-glass 26has not the same refractive power as the rest; and the part which is defective can be determined by applying in different positions a cap which hides half the object-glass. If the irradiation is double, it will probably be found that the object-glass has been too tightly screwed, and the defect will disappear when the glass is freed from such undue pressure.

If the object-glass is not quite at right angles to the axis of the tube, or if the eye-tube is at all inclined, a like irradiation will appear when a bright star is in the field. The former defect is not easily detected or remedied; nor is it commonly met with in the work of a careful optician. The latter defect may be detected by cutting out three circular cards of suitable size with a small aperture at the centre of each, and inserting one at each end of the eye-tube, and one over the object-glass. If the tube is rightly placed the apertures will of course lie in a right line, so that it will be possible to look through all three at once. If not, it will be easy to determine towards what part of the object-glass the eye-tube is directed, and to correct the position of the tube accordingly.

The best tests for determining the defining power of a telescope are close double or multiple stars, the components of which are not very unequal. The illuminating power should be tested by directing the telescope towards double or multiple stars having one or more minute components. Many of the nebulæ serve as tests both for illumination and defining power. As we proceed we shall meet with proper objects for testing different telescopes. For the present, let the following list suffice. It is selected from Admiral Smyth's tests, obtained by diminishing the aperture of a 6-in. telescope having a focal length of 8½ feet:

27A two-inch aperture, with powers of from 60 to 100, should exhibit

α Piscium (3"·5). δ Cassiopeiæ (9"·5), mag. (4 and 7½)
γ Leonis (3"·2). Polaris (18"·6), mag. (2½ and 9½)

A four-inch, powers 80 to 120, should exhibit

ξ Ursæ Majoris (2"·4). σ Cassiopeiæ (3"·1), mag. (6 and 8).
γ Ceti (2"·6). δ Geminorum (7"·1), mag. (4 and 9).

The tests in the first column are for definition, those in the second for illumination. It will be noticed that, though in the case of Polaris the smaller aperture may be expected to show the small star of less than the 9th magnitude, a larger aperture is required to show the 8th magnitude component of σ Cassiopeiæ, on account of the greater closeness of this double.

In favourable weather the following is a good general test of the performance of a telescope:—A star of the 3rd or 4th magnitude at a considerable elevation above the horizon should exhibit a small well defined disc, surrounded by two or three fine rings of light.

A telescope should not be mounted within doors, if it can be conveniently erected on solid ground, as every movement in the house will cause the instrument to vibrate unpleasantly. Further, if the telescope is placed in a warm room, currents of cold air from without will render observed objects hazy and indistinct. In fact, Sir W. Herschel considered that a telescope should not even be erected near a house or elevation of any kind round which currents of air are likely to be produced. If a tele28scope is used in a room, the temperature of the room should be made as nearly equal as possible to that of the outer air.

When a telescope is used out of doors a 'dew-cap,' that is, a tube of tin or pasteboard, some ten or twelve inches long, should be placed on the end of the instrument, so as to project beyond the object-glass. For glass is a good radiator of heat, so that dew falls heavily upon it, unless the radiation is in some way checked. The dew-cap does this effectually. It should be blackened within, especially if made of metal. "After use," says old Kitchener, "the telescope should be kept in a warm place long enough for any moisture on the object-glass to evaporate." If damp gets between the glasses it produces a fog (which opticians call a sweat) or even a seaweed-like vegetation, by which a valuable glass may be completely ruined.

The observer should not leave to the precious hours of the night the study of the bearing and position of the objects he proposes to examine. This should be done by day—an arrangement which has a twofold advantage,—the time available for observation is lengthened, and the eyes are spared sudden changes from darkness to light, and vice versâ. Besides, the eye is ill-fitted to examine difficult objects, after searching by candle-light amongst the minute details recorded in maps or globes. Of the effect of rest to the eye we have an instance in Sir J. Herschel's rediscovery of the satellites of Uranus, which he effected after keeping his eyes in darkness for a quarter of an hour. Kitchener, indeed, goes so far as to recommend (with a crede experto) an interval of sleep in the darkness of the observing-room before commencing operations. I have never tried the experiment, but I should expect it to have a bad rather than a good 29effect on the eyesight, as one commonly sees the eyes of a person who has been sleeping in his day-clothes look heavy and bloodshot.

The object or the part of an object to be observed should be brought as nearly as possible to the centre of the field of view. When there is no apparatus for keeping the telescope pointed upon an object, the best plan is so to direct the telescope by means of the finder, that the object shall be just out of the field of view, and be brought (by the earth's motion) across the centre of the field. Thus the vibrations which always follow the adjustment of the tube will have subsided before the object appears. The object should then be intently watched during the whole interval of its passage across the field of view.

It is important that the student should recognise the fact that the highest powers do not necessarily give the best views of celestial objects. High powers in all cases increase the difficulty of observation, since they diminish the field of view and the illumination of the object, increase the motion with which (owing to the earth's motion) the image moves across the field, and magnify all defects due to instability of the stand, imperfection of the object-glass, or undulation of the atmosphere. A good object-glass of three inches aperture will in very favourable weather bear a power of about 300, when applied to the observation of close double or multiple stars, but for all other observations much lower powers should be used. Nothing but failure and annoyance can follow the attempt to employ the highest powers on unsuitable objects or in unfavourable weather.

The greatest care should be taken in focussing the telescope. When high powers are used this is a matter of some delicacy. It would be well if the 30eye-pieces intended for a telescope were so constructed that when the telescope is focussed for one, this might be replaced by any other without necessitating any use of the focussing rack-work. This could be readily effected by suitably placing the shoulder which limits the insertion of the eye-piece.

It will be found that, even in the worst weather for observation, there are instants of distinct vision (with moderate powers) during which the careful observer may catch sight of important details; and, similarly, in the best observing weather, there are moments of unusually distinct vision well worth patient waiting for, since in such weather alone the full powers of the telescope can be employed.

The telescopist should not be deterred from observation by the presence of fog or haze, since with a hazy sky definition is often singularly good.

The observer must not expect distinct vision of objects near the horizon. Objects near the eastern horizon during the time of morning twilight are especially confused by atmospheric undulations; in fact, early morning is a very unfavourable time for the observation of all objects.

The same rules which we have been applying to refractors, serve for reflectors. The performance of a reflector will be found to differ in some respects, however, from that of a refractor. Mr. Dawes is, we believe, now engaged in testing reflectors, and his unequalled experience of refractors will enable him to pronounce decisively on the relative merits of the two classes of telescopes.

We have little to say respecting the construction of telescopes. Whether it is advisable or not for an amateur observer to attempt the construction of his own telescope is a question depending entirely on his mechanical ability and ingenuity. My 31own experience of telescope construction is confined to the conversion of a 3-feet into a 5½-feet telescope. This operation involved some difficulties, since the aperture had to be increased by about an inch. I found a tubing made of alternate layers of card and calico well pasted together, to be both light and strong. But for the full length of tube I think a core of metal is wanted. A learned and ingenious friend, Mr. Sharp, Fellow of St. John's College, informs me that a tube of tin, covered with layers of brown paper, well pasted and thicker near the middle of the tube, forms a light and strong telescope-tube, almost wholly free from vibration.

Suffer no inexperienced person to deal with your object-glass. I knew a valuable glass ruined by the proceedings of a workman who had been told to attach three pieces of brass round the cell of the double lens. What he had done remained unknown, but ever after a wretched glare of light surrounded all objects of any brilliancy.

One word about the inversion of objects by the astronomical telescope. It is singular that any difficulty should be felt about so simple a matter, yet I have seen in the writings of more than one distinguished astronomer, wholly incorrect views as to the nature of the inversion. One tells us that to obtain the correct presentation from a picture taken with a telescope, the view should be inverted, held up to the light, and looked at from the back of the paper. Another tells us to invert the picture and hold it opposite a looking-glass. Neither method is correct. The simple correction wanted is to hold the picture upside down—the same change which brings the top to the bottom brings the right to the left, i.e., fully corrects the inversion.

In the case, however, of a picture taken by an 32Herschelian reflector, the inversion not being complete, a different method must be adopted. In fact, either of the above-named processes, incorrect for the ordinary astronomical, would be correct for the Herschelian Telescope. The latter inverts but does not reverse right and left; therefore after inverting our picture we must interchange right and left because they have been reversed by the inversion. This is effected either by looking at the picture from behind, or by holding it up to a mirror.

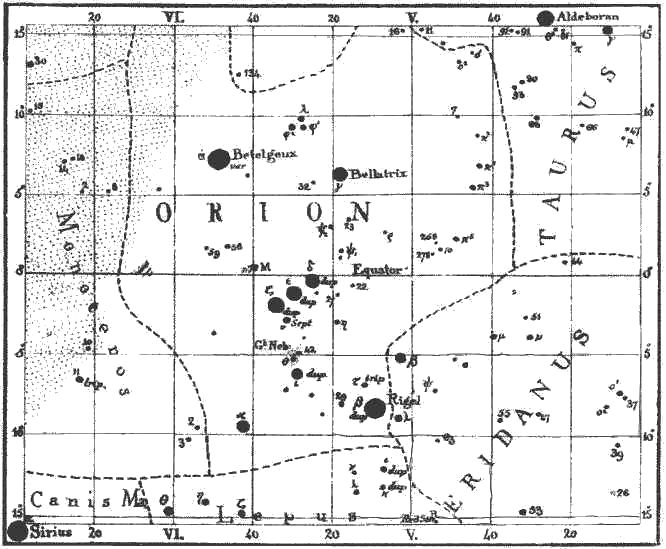

Plate II.
Plate II
Plate II

33

CHAPTER II.

A HALF-HOUR WITH ORION, LEPUS TAURUS, ETC.

Any of the half-hours here assigned to the constellation-seasons may be taken first, and the rest in seasonal or cyclic order. The following introductory remarks are applicable to each:—

If we stand on an open space, on any clear night, we see above us the celestial dome spangled with stars, apparently fixed in position. But after a little time it becomes clear that these orbs are slowly shifting their position. Those near the eastern horizon are rising, those near the western setting. Careful and continuous observation would show that the stars are all moving in the same way, precisely, as they would if they were fixed to the concave surface of a vast hollow sphere, and this sphere rotated about an axis. This axis, in our latitude, is inclined about 51½° to the horizon. Of course only one end of this imaginary axis can be above our horizon. This end lies very near a star which it will be well for us to become acquainted with at the beginning of our operations. It lies almost exactly towards the north, and is raised from 50° to 53° (according to the season and hour) above the horizon. There is an easy method of finding it.

We must first find the Greater Bear. It will be seen from Plate 1, that on a spring evening the seven conspicuous stars of this constellation are to be looked for towards the north-east, about half way between the horizon and the point overhead (or 34zenith), the length of the set of stars being vertical. On a summer's evening the Great Bear is nearly overhead. On an autumn evening he is towards the north-west, the length of the set of seven being somewhat inclined to the horizon. Finally, on a winter's evening, he is low down towards the north, the length of the set of seven stars being nearly in a horizontal direction.

Having found the seven stars, we make use of the pointers α and β (shown in Plate 1) to indicate the place of the Pole-star, whose distance from the pointer α is rather more than three times the distance of α from β.

Now stand facing the Pole-star. Then all the stars are travelling round that star in a direction contrary to that in which the hands of a watch move. Thus the stars below the pole are moving towards the right, those above the pole towards the left, those to the right of the pole upwards, those to the left of the pole downwards.

Next face the south. Then all the stars on our left, that is, towards the east, are rising slantingly towards the south; those due south are moving horizontally to the right, that is, towards the west; and those on our right are passing slantingly downwards towards the west.

It is important to familiarise ourselves with these motions, because it is through them that objects pass out of the field of view of the telescope, and by moving the tube in a proper direction we can easily pick up an object that has thus passed away, whereas if we are not familiar with the varying motions in different parts of the celestial sphere, we may fail in the attempt to immediately recover an object, and waste time in the search for it.

The consideration of the celestial motions shows how advantageous it is, when using an alt-azimuth, 35to observe objects as nearly as possible due south. Of course in many cases this is impracticable, because a phenomenon we wish to watch may occur when an object is not situated near the meridian. But in examining double stars there is in general no reason for selecting objects inconveniently situated. We can wait till they come round to the meridian, and then observe them more comfortably. Besides, most objects are higher, and therefore better seen, when due south.

Northern objects, and especially those within the circle of perpetual apparition, often culminate (that is, cross the meridian, or north and south line) at too great a height for comfortable vision. In this case we should observe them towards the east or west, and remember that in the first case they are rising, and in the latter they are setting, and that in both cases they have also a motion from left to right.

If we allow an object to pass right across the field of view (the telescope being fixed), the apparent direction of its motion is the exact reverse of the true direction of the star's motion. This will serve as a guide in shifting the alt-azimuth after a star has passed out of the field of view.

The following technical terms must be explained. That part of the field of view towards which the star appears to move is called the preceding part of the field, the opposite being termed the following part. The motion for all stars, except those lying in an oval space extending from the zenith to the pole of the heavens, is more or less from right to left (in the inverted field). Now, if we suppose a star to move along a diameter of the field so as to divide the field into two semicircles, then in all cases in which this motion takes places from right to left, that semicircle which contains the lowest point (apparently) 36of the field is the northern half, the other is the southern half. Over the oval space just mentioned the reverse holds.

Thus the field is divided into four quadrants, and these are termed north following (n.f.) and south following (s.f.); north preceding (n.p.), and south preceding (s.p.). The student can have no difficulty in interpreting these terms, since he knows which is the following and which the preceding semicircle, which the northern and which the southern. In the figures of plates 3 and 5, the letters n.f., n.p., &c., are affixed to the proper quadrants. It is to be remembered that the quadrants thus indicated are measured either way from the point and feather of the diametral arrows.

Next, of the apparent annual motion of the stars. This takes place in exactly the same manner as the daily motion. If we view the sky at eight o'clock on any day, and again at the same hour one month later, we shall find that at the latter observation (as compared with the former) the heavens appear to have rotated by the twelfth part of a complete circumference, and the appearance presented is precisely the same as we should have observed had we waited for two hours (the twelfth part of a day) on the day of the first observation.


Our survey of the heavens is supposed to be commenced during the first quarter of the year, at ten o'clock on the 20th of January, or at nine on the 5th of February, or at eight on the 19th of February, or at seven on the 6th of March, or at hours intermediate to these on intermediate days.

We look first for the Great Bear towards the north-east, as already described, and thence find the Pole-star; turning towards which we see, towards 37the right and downwards, the two guardians of the pole (β and γ Ursæ Minoris). Immediately under the Pole-star is the Dragon's Head, a conspicuous diamond of stars. Just on the horizon is Vega, scintillating brilliantly. Overhead is the brilliant Capella, near which the Milky Way is seen passing down to the horizon on either side towards the quarters S.S.E. and N.N.W.

For the present our business is with the southern heavens, however.

Facing the south, we see a brilliant array of stars, Sirius unmistakeably overshining the rest. Orion is shining in full glory, his leading brilliant, Betelgeuse[2] being almost exactly on the meridian, and also almost exactly half way between the horizon and the zenith. In Plate 2 is given a map of this constellation and its neighbourhood.

Let us first turn the tube on Sirius. It is easy to get him in the field without the aid of a finder. The search will serve to illustrate a method often useful when a telescope has no finder. Having taking out the eye-piece—a low-power one, suppose—direct the tube nearly towards Sirius. On looking through it, a glare of light will be seen within the tube. Now, if the tube be slightly moved about, the light will be seen to wax and wane, according as the tube is more or less accurately directed. Following these indications, it will be found easy to direct the tube, so that the object-glass shall appear full of light. When this is done, insert the eye-piece, and the star will be seen in the field.

But the telescope is out of focus, therefore we must turn the small focussing screw. Observe the 38charming chromatic changes—green, and red, and blue light, purer than the hues of the rainbow, scintillating and coruscating with wonderful brilliancy. As we get the focus, the excursions of these light flashes diminish until—if the weather is favourable—the star is seen, still scintillating, and much brighter than to the naked eye, but reduced to a small disc of light, surrounded (in the case of so bright a star as Sirius) with a slight glare. If after obtaining the focus the focussing rack work be still turned, we see a coruscating image as before. In the case of a very brilliant star these coruscations are so charming that we may be excused for calling the observer's attention to them. The subject is not without interest and difficulty as an optical one. But the astronomer's object is to get rid of all these flames and sprays of coloured light, so that he has very little sympathy with the admiration which Wordsworth is said to have expressed for out-of-focus views of the stars.

We pass to more legitimate observations, noticing in passing that Sirius is a double star, the companion being of the tenth magnitude, and distant about ten seconds from the primary. But our beginner is not likely to see the companion, which is a very difficult object, vowing to the overpowering brilliancy of the primary.

Orion affords the observer a splendid field of research. It is a constellation rich in double and multiple stars, clusters, and nebulæ. We will begin with an easy object.

The star δ (Plate 3), or Mintaka, the uppermost of the three stars forming the belt, is a wide double. The primary is of the second magnitude, the secondary of the seventh, both being white.

The star α (Betelgeuse) is an interesting object, on account of its colour and brilliance, and as one of 39the most remarkable variables in the heavens. It was first observed to be variable by Sir John Herschel in 1836. At this period its variations were "most marked and striking." This continued until 1840, when the changes became "much less conspicuous. In January, 1849, they had recommenced, and on December 5th, 1852, Mr. Fletcher observed α Orionis brighter than Capella, and actually the largest star in the northern hemisphere." That a star so conspicuous, and presumably so large, should present such remarkable variations, is a circumstance which adds an additional interest to the results which have rewarded the spectrum-analysis of this star by Mr. Huggins and Professor Miller. It appears that there is decisive evidence of the presence in this luminary of many elements known to exist in our own sun; amongst others are found sodium, magnesium, calcium, iron, and bismuth. Hydrogen appears to be absent, or, more correctly, there are no lines in the star's spectrum corresponding to those of hydrogen in the solar spectrum. Secchi considers that there is evidence of an actual change in the spectrum of the star, an opinion in which Mr. Huggins does not coincide. In the telescope Betelgeuse appears as "a rich and brilliant gem," says Lassell, "a rich topaz, in hue and brilliancy differing from any that I have seen."

Turn next to β (Rigel), the brightest star below the belt. This is a very noted double, and will severely test our observer's telescope, if small. The components are well separated (see Plate 3), compared with many easier doubles; the secondary is also of the seventh magnitude, so that neither as respects closeness nor smallness of the secondary, is Rigel a difficult object. It is the combination of the two features which makes it a test-object. Kitchener says a 1¾-inch object-glass should show 40Rigel double; in earlier editions of his work he gave 2¾-inches as the necessary aperture. Smyth mentions Rigel as a test for a 4-inch aperture, with powers of from 80 to 120. A 3-inch aperture, however, will certainly show the companion. Rigel is an orange star, the companion blue.

Turn next to λ the northernmost of the set of three stars in the head of Orion. This is a triple star, though an aperture of 3 inches will show it only as a double. The components are 5" apart, the colours pale white and violet. With the full powers of a 3½-inch glass a faint companion may be seen above λ.

The star ζ, the lowest in the belt, may be tried with a 3½-inch glass. It is a close double, the components being nearly equal, and about 2½" apart (see Plate 3).

For a change we will now try our telescope on a nebula, selecting the great nebula in the Sword. The place of this object is indicated in Plate 2. There can be no difficulty in finding it since it is clearly visible to the naked eye on a moonless night—the only sort of night on which an observer would care to look at nebulæ. A low power should be employed.

The nebula is shown in Plate 3 as I have seen it with a 3-inch aperture. We see nothing of those complex streams of light which are portrayed in the drawings of Herschel, Bond, and Lassell, but enough to excite our interest and wonder. What is this marvellous light-cloud? One could almost imagine that there was a strange prophetic meaning in the words which have been translated "Canst thou loose the bands of Orion?" Telescope after telescope had been turned on this wonderful object with the hope of resolving its light into stars. But it proved intractable to Herschel's great reflector, to 41Lassell's 2-feet reflector, to Lord Rosse's 3-feet reflector, and even partially to the great 6-feet reflector. Then we hear of its supposed resolution into stars, Lord Rosse himself writing to Professor Nichol, in 1846, "I may safely say there can be little, if any, doubt as to the resolvability of the nebula;—all about the trapezium is a mass of stars, the rest of the nebula also abounding with stars, and exhibiting the characteristics of resolvability strongly marked."

It was decided, therefore, that assuredly the great nebula is a congeries of stars, and not a mass of nebulous matter as had been surmised by Sir W. Herschel. And therefore astronomers were not a little surprised when it was proved by Mr. Huggins' spectrum-analysis that the nebula consists of gaseous matter. How widely extended this gaseous universe may be we cannot say. The general opinion is that the nebulæ are removed far beyond the fixed stars. If this were so, the dimensions of the Orion nebula would be indeed enormous, far larger probably than those of the whole system whereof our sun is a member. I believe this view is founded on insufficient evidence, but this would not be the place to discuss the subject. I shall merely point out that the nebula occurs in a region rich in stars, and if it is not, like the great nebula in Argo, clustered around a remarkable star, it is found associated in a manner which I cannot look upon as accidental with a set of small-magnitude stars, and notably with the trapezium which surrounds that very remarkable black gap within the nebula. The fact that the nebula shares the proper motion of the trapezium appears inexplicable if the nebula is really far out in space beyond the trapezium. A very small proper motion of the trapezium (alone) would long since have destroyed the remarkable 42agreement in the position of the dark gap and the trapezium which has been noticed for so many years.

But whether belonging to our system or far beyond it, the great nebula must have enormous dimensions. A vast gaseous system it is, sustained by what arrangements or forces we cannot tell, nor can we know what purposes it subserves. Mr. Huggins' discovery that comets have gaseous nuclei, (so far as the two he has yet examined show) may suggest the speculation that in the Orion nebula we see a vast system of comets travelling in extensive orbits around nuclear stars, and so slowly as to exhibit for long intervals of time an unchanged figure. "But of such speculations" we may say with Sir J. Herschel "there is no end."

To return to our telescopic observations:—The trapezium affords a useful test for the light-gathering power of the telescope. Large instruments exhibit nine stars. But our observer may be well satisfied with his instrument and his eye-sight if he can see five with a 3½-inch aperture.[3] A good 3-inch glass shows four distinctly. But with smaller apertures only three are visible.

The whole neighbourhood of the great nebula will well repay research. The observer may sweep over it carefully on any dark night with profit. Above the nebula is the star-cluster 362 H. The star ι (double as shown in Plate 3) below the nebula is involved in a strong nebulosity. And in searching over this region we meet with delicate double, triple, and multiple stars, which make the survey interesting with almost any power that may be applied.

Above the nebula is the star σ, a multiple star. 43To an observer with a good 3½-inch glass σ appears as an octuple star. It is well seen, however, as a fine multiple star with a smaller aperture. Some of the stars of this group appear to be variable.

The star ρ Orionis is an unequal, easy double, the components being separated by nearly seven seconds. The primary is orange, the smaller star smalt-blue (see Plate 3).

The middle star of the belt (ε) has a distant blue companion. This star, like ι, is nebulous. In fact, the whole region within the triangle formed by stars γ, κ and β is full of nebulous double and multiple stars, whose aggregation in this region I do not consider wholly accidental.

We have not explored half the wealth of Orion, but leave much for future observation. We must turn, however, to other constellations.

Below Orion is Lepus, the Hare, a small constellation containing some remarkable doubles. Among these we may note ξ, a white star with a scarlet companion; γ, a yellow and garnet double; and ι, a double star, white and pale violet, with a distant red companion. The star κ Leporis is a rather close double, white with a small green companion. The intensely red star R Leporis (a variable) will be found in the position indicated in the map.

Still keeping within the boundary of our map, we may next turn to the fine cluster 2 H (vii.) in Monoceros. This cluster is visible to the naked eye, and will be easily found. The nebula 2 H (iv.) is a remarkable one with a powerful telescope.

The star 11 Monocerotis is a fine triple star described by the elder Herschel as one of the finest sights in the heavens. Our observer, however, will see it as a double (see Plate 3). δ Monocerotis is an easy double, yellow and lavender.

We may now leave the region covered by the 44map and take a survey of the heavens for some objects well seen at this season.

Towards the south-east, high up above the horizon, we see the twin-stars Castor and Pollux. The upper is Castor, the finest double star visible in the northern heavens. The components are nearly equal and rather more than 5" apart (see Plate 3). Both are white according to the best observers, but the smaller is thought by some to be slightly greenish.

Pollux is a coarse but fine triple star (in large instruments multiple). The components orange, grey, and lilac.

There are many other fine objects in Gemini, but we pass to Cancer.

The fine cluster Præsepe in Cancer may easily be found as it is distinctly visible to the naked eye in the position shown in Plate 1, Map I. In the telescope it is seen as shown in Plate 3.

The star ι Cancri is a wide double, the colours orange and blue.

Procyon, the first-magnitude star between Præsepe and Sirius, is finely coloured—yellow with a distant orange companion, which appears to be variable.

Below the Twins, almost in a line with them, is the star α Hydræ, called Al Fard, or "the Solitary One." It is a 2nd magnitude variable. I mention it, however, not on its own account, but as a guide to the fine double ε Hydræ. This star is the middle one of a group of three, lying between Pollux and Al Fard rather nearer the latter. The components of ε Hydræ are separated by about 3½" (see Plate 3). The primary is of the fourth, the companion of the eighth magnitude; the former is yellow, the latter a ruddy purple. The period of ε Hydræ is about 450 years.

45The constellation Leo Minor, now due east and about midway between the horizon and the zenith, is well worth sweeping over. It contains several fine fields.

Let us next turn to the western heavens. Here there are some noteworthy objects.

To begin with, there are the Pleiades, showing to the naked eye only six or seven stars. In the telescope the Pleiades appear as shown in Plate 3.

The Hyades also show some fine fields with low powers.

Aldebaran, the principal star of the Hyades, as also of the constellation Taurus, is a noted red star. It is chiefly remarkable for the close spectroscopic analysis to which it has been subjected by Messrs. Huggins and Miller. Unlike Betelgeuse, the spectrum of Aldebaran exhibits the lines corresponding to hydrogen, and no less than eight metals—sodium, magnesium, calcium, iron, bismuth, tellurium, antimony, and mercury, are proved to exist in the constitution of this brilliant red star.

On the right of Aldebaran, in the position indicated in Plate 1, Map I., are the stars ζ and β Tauri. If with a low power the observer sweep from ζ towards β, he will soon find—not far from ζ (at a distance of about one-sixth of the distance separating β from ζ), the celebrated Crab nebula, known as 1 M. This was the first nebula discovered by Messier, and its discovery led to the formation of his catalogue of 103 nebulæ. In a small telescope this object appears as a nebulous light of oval form, no traces being seen of the wisps and sprays of light presented in Lord Rosse's well known picture of the nebula.

Here I shall conclude the labours of our first half-hour among the stars, noticing that the examination of Plate 1 will show what other constella46tions besides those here considered are well situated for observation at this season. It will be remarked that many constellations well seen in the third half-hour (Chapter IV.) are favourably seen in the first also, and vice versâ. For instance, the constellation Ursa Major well-placed towards the north-east in the first quarter of the year, is equally well-placed towards the north-west in the third, and similarly of the constellation Cassiopeia. The same relation connects the second and fourth quarters of the year.

Plate III
Plate III
Plate III

47

CHAPTER III.

A HALF-HOUR WITH LYRA, HERCULES, CORVUS, CRATER, ETC.

The observations now to be commenced are supposed to take place during the second quarter of the year,—at ten o'clock on the 20th of April, or at nine on the 5th of May, or at eight on the 21st of May, or at seven on the 5th of June, or at hours intermediate to these on intermediate days.

We again look first for the Great Bear, now near the zenith, and thence find the Pole-star. Turning towards the north, we see Cassiopeia between the Pole-star and the horizon. Towards the north-west is the brilliant Capella, and towards the north-east the equally brilliant Vega, beneath which, and somewhat northerly, is the cross in Cygnus. The Milky Way passes from the eastern horizon towards the north (low down), and so round to the western horizon.

In selecting a region for special observation, we shall adopt a different plan from that used in the preceding "half-hour." The region on the equator and towards the south is indeed particularly interesting, since it includes the nebular region in Virgo. Within this space nebulæ are clustered more closely than over any corresponding space in the heavens, save only the greater Magellanic cloud. But to the observer with telescopes of moderate power these nebulæ present few features of special interest; and there are regions of the sky now well situated for observation, which, at most other epochs are either 48low down towards the horizon or inconveniently near to the zenith. We shall therefore select one of these, the region included in the second map of Plate 2, and the neighbouring part of the celestial sphere.

At any of the hours above named, the constellation Hercules lies towards the east. A quadrant taken from the zenith to the eastern horizon passes close to the last star (η) of the Great Bear's tail, through β, a star in Bootes' head, near β Herculis, between the two "Alphas" which mark the heads of Hercules and Ophiuchus, and so past β Ophiuchi, a third-magnitude star near the horizon. And here we may turn aside for a moment to notice the remarkable vertical row of six conspicuous stars towards the east-south-east; these are, counting them in order from the horizon, ζ, ε, and δ Ophiuchi, ε, α, and δ Serpentis.

Let the telescope first be directed towards Vega. This orb presents a brilliant appearance in the telescope. Its colour is a bluish-white. In an ordinary telescope Vega appears as a single star, but with a large object-glass two distant small companions are seen. A nine-inch glass shows also two small companions within a few seconds of Vega. In the great Harvard refractor Vega is seen with no less than thirty-five companions. I imagine that all these stars, and others which can be seen in neighbouring fields, indicate the association of Vega with the neighbouring stream of the Milky Way.

Let our observer now direct his telescope to the star ε Lyræ. Or rather, let him first closely examine this star with the naked eye. The star is easily identified, since it lies to the left of Vega, forming with ζ a small equilateral triangle. A careful scrutiny suffices to indicate a peculiarity in this 49star. If our observer possesses very good eye-sight, he will distinctly recognise it as a "naked-eye double"; but more probably he will only notice that it appears lengthened in a north and south direction.[4] In the finder the star is easily divided. Applying a low power to the telescope itself, we see ε Lyræ as a wide double, the line joining the components lying nearly north and south. The southernmost component (the upper in the figure) is called ε1, the other ε2. Seen as a double, both components appear white.

Now, if the observer's telescope is sufficiently powerful, each of the components may be seen to be itself double. First try ε1, the northern pair. The line joining the components is directed as shown in Plate 3. The distance between them is 3"·2, their magnitudes 5 and 6½, and their colours yellow and ruddy. If the observer succeeds in seeing ε1 fairly divided, he will probably not fail in detecting the duplicity of ε2, though this is a rather closer pair, the distance between the components being only 2"·6. The magnitudes are 5 and 5½, both being white. Between ε1 and ε2 are three faint stars, possibly forming with the quadruple a single system.

Let us next turn to the third star of the equilateral triangle mentioned above—viz. to the star ζ Lyræ. This is a splendid but easy double. It is figured in Plate 3, but it must be noticed that 50the figure of ζ and the other nine small figures are not drawn on the same scale as ε Lyræ. The actual distance between the components of ζ Lyra is 44", or about one-fourth of the distance separating ε1 from ε2. The components of ζ are very nearly equal in magnitude, in colour topaz and green, the topaz component being estimated as of the fifth magnitude, the green component intermediate between the fifth and sixth magnitudes.

We may now turn to a star not figured in the map, but readily found. It will be noticed that the stars ε, α, β, and γ form, with two small stars towards the left, a somewhat regular hexagonal figure—a hexagon, in fact, having three equal long sides and three nearly equal short sides alternating with the others. The star η Lyræ forms the angle next to ε. It is a wide and unequal double, as figured in Plate 3. The larger component is azure blue; the smaller is violet, and, being only of the ninth magnitude, is somewhat difficult to catch with apertures under 3 inches.

The star δ2 Lyræ is orange, δ1 blue. In the same field with these are seen many other stars.

The stars γ1 and γ2 may also be seen in a single field, the distance between them being about half the moon's mean diameter. The former is quadruple, the components being yellow, bluish, pale blue, and blue.

Turn next to the stars β and γ Lyræ, the former a multiple, the latter an unequal double star. It is not, however, in these respects that these stars are chiefly interesting, but for their variability. The variability of γ has not indeed been fully established, though it is certain that, having once been less bright, γ is now considerably brighter than β. The change, however, may be due to the variation of β alone. This star is one of the most remarkable 51variables known. Its period is 12d. 21h. 53m. 10s. In this time it passes from a maximum brilliancy—that of a star of the 3·4 magnitude—to a minimum lustre equal to that of a star of the 4·3 magnitude, thence to the same maximum brilliancy as before, thence to another minimum of lustre—that of a star of the 4·5 magnitude—and so to its maximum lustre again, when the cycle of changes recommences. These remarkable changes seem to point to the existence of two unequal dark satellites, whose dimensions bear a much greater proportion to those of the bright components of β Lyræ than the dimensions of the members of the Solar System bear to those of the sun. In this case, at any rate, the conjecture hazarded about Algol, that the star revolves around a dark central orb, would be insufficient to account for the observed variation.

Nearly midway between β and γ lies the wonderful ring-nebula 57 M, of which an imperfect idea will be conveyed by the last figure of Plate 3. This nebula was discovered in 1772, by Darquier, at Toulouse. It is seen as a ring of light with very moderate telescopic power. In a good 3½-inch telescope the nebula exhibits a mottled appearance and a sparkling light. Larger instruments exhibit a faint light within the ring; and in Lord Rosse's great Telescope "wisps of stars" are seen within, and faint streaks of light stream from the outer border of the ring. This nebula has been subjected to spectrum-analysis by Mr. Huggins. It turns out to be a gaseous nebula! In fact, ring-nebulæ—of which only seven have been detected—seem to belong to the same class as the planetary nebulæ, all of which exhibit the line-spectrum indicative of gaseity. The brightest of the three lines seen in the spectrum of the ring-nebula in Lyra presents a rather peculiar appearance, "since it consists," 52says Mr. Huggins, "of two bright dots, corresponding to sections of the ring, and between these there is not darkness, but an excessively faint line joining them. This observation makes it probable that the faint nebulous matter occupying the central portion is similar in constitution to that of the ring."

The constellation Hercules also contains many very interesting objects. Let us first inspect a nebula presenting a remarkable contrast with that just described. I refer to the nebula 13 M, known as Halley's nebula (Plate 3). This nebula is visible to the naked eye, and in a good telescope it is a most wonderful object: "perhaps no one ever saw it for the first time without uttering a shout of wonder." It requires a very powerful telescope completely to resolve this fine nebula, but the outlying streamers may be resolved with a good 3-inch telescope. Sir W. Herschel considered that the number of the stars composing this wonderful object was at least 14,000. The accepted views respecting nebulæ would place this and other clusters far beyond the limits of our sidereal system, and would make the component stars not very unequal (on the average) to our own sun. It seems to me far more probable, on the contrary, that the cluster belongs to our own system, and that its components are very much smaller than the average of separate stars. Perhaps the whole mass of the cluster does not exceed that of an average first-magnitude star.

The nebulæ 92 M and 50 H may be found, after a little searching, from the positions indicated in the map. They are both well worthy of study, the former being a very bright globular cluster, the latter a bright and large round nebula. The spectra of these, as of the great cluster, resemble the solar spectrum, being continuous, though, of course, very much fainter.

53The star δ Herculis (seen at the bottom of the map) is a wide and easy double—a beautiful object. The components, situated as shown in Plate 3, are of the fourth and eighth magnitude, and coloured respectively greenish-white and grape-red.

The star κ Herculis is not shown in the map, but may be very readily found, lying between the two gammas, γ Herculis and γ Serpentis (see Frontispiece, Map 2), rather nearer the latter. It is a wide double, the components of fifth and seventh magnitude, the larger yellowish-white, the smaller ruddy yellow.[5]

Ras Algethi, or α Herculis, is also beyond the limits of the map, but may be easily found by means of Map 2, Frontispiece. It is, properly speaking, a multiple star. Considered as a double, the arrangement of the components is that shown in Plate 3. The larger is of magnitude 3½, the smaller of magnitude 5½; the former orange, the latter emerald. The companion stars are small, and require a good telescope to be well seen. Ras Algethi is a variable, changing from magnitude 3 to magnitude 3½ in a period of 66⅓ days.

The star ρ Herculis is a closer double. The components are 3"·7 apart, and situated as shown in Plate 3. The larger is of magnitude 4, the smaller 5½; the former bluish-white, the latter pale emerald.

There are other objects within the range of our map which are well worthy of study. Such are μ Draconis, a beautiful miniature of Castor; γ1 and γ2 Draconis, a wide double, the distance between the components being nearly 62" (both grey); and γ1 and γ2 Coronæ, a naked-eye double, the components54 being 6' apart, and each double with a good 3-inch telescope.

We turn, however, to another region of the sky. Low down, towards the south is seen the small constellation Corvus, recognised by its irregular quadrilateral of stars. Of the two upper stars, the left-hand one is Algorab, a wide double, the components placed as in Plate 3, 23"·5 apart, the larger of magnitude 3, the smaller 8½, the colours pale yellow and purple.

There is a red star in this neighbourhood which is well worth looking for. To the right of Corvus is the constellation Crater, easily recognised as forming a tolerably well-marked small group. The star Alkes, or α Crateris, must first be found. It is far from being the brightest star in the constellation, and may be assumed to have diminished considerably in brilliancy since it was entitled α by Bayer. It will easily be found, however, by means of the observer's star maps. If now the telescope be directed to Alkes, there will be found, following him at a distance of 42·5 s, and about one minute southerly, a small red star, R. Crateris. Like most red stars, this one is a variable. A somewhat smaller blue star may be seen in the same field.

There is another red star which may be found pretty easily at this season. First find the stars η and ο Leonis, the former forming with Regulus (now lying towards the south-west, and almost exactly midway between the zenith and the horizon) the handle of the Sickle in Leo, the other farther off from Regulus towards the right, but lower down. Now sweep from ο towards η with a low power.[6] There will be found a sixth-magnitude star about 55one-fourth of the way from ο to η. South, following this, will be found a group of four stars, of which one is crimson. This is the star R Leonis. Like R Crateris and R Leporis it is variable.

Next, let the observer turn towards the south again. Above Corvus, in the position shown in the Frontispiece, there are to be seen five stars, forming a sort of wide V with somewhat bowed legs. At the angle is the star γ Virginis, a noted double. In 1756 the components were 6½ seconds apart. They gradually approached till, in 1836, they could not be separated by the largest telescopes. Since then they have been separating, and they are now 4½ seconds apart, situated as shown in Plate 3. They are nearly equal in magnitude (4), and both pale yellow.

The star γ Leonis is a closer and more beautiful double. It will be found above Regulus, and is the brightest star on the blade of the Sickle. The components are separated by about 3⅕ seconds, the larger of the second, the smaller of the fourth magnitude; the former yellow-orange, the latter greenish-yellow.

Lastly, the star ι Leonis may be tried. It will be a pretty severe test for our observer's telescope, the components being only 2"·4 apart, and the smaller scarcely exceeding the eighth magnitude. The brighter (fourth magnitude) is pale yellow, the other light blue.


56

CHAPTER IV.

A HALF-HOUR WITH BOOTES, SCORPIO, OPHIUCHUS, ETC.

We now commence a series of observations suited to the third quarter of the year, and to the following hours:—Ten o'clock on the 22nd of July; nine on the 8th of August; eight on the 23rd of August; seven on the 8th of October; and intermediate hours on days intermediate to these.

We look first for the Great Bear towards the north-west, and thence find the Pole-star. Turning towards the north we see Capella and β Aurigæ low down and slightly towards the left of the exact north point. The Milky Way crosses the horizon towards the north-north-east and passes to the opposite point of the compass, attaining its highest point above the horizon towards east-south-east. This part of the Milky Way is well worth observing, being marked by singular variations of brilliancy. Near Arided (the principal star of Cygnus, and now lying due east—some twenty-five degrees from the zenith) there is seen a straight dark rift, and near this space is another larger cavity, which has been termed the northern Coal-sack. The space between γ, δ, and β Cygni is covered by a large oval mass, exceedingly rich and brilliant. The neighbouring branch, extending from ε Cygni, is far less conspicuous here, but near Sagitta becomes brighter than the other, which in this neighbourhood suddenly loses its brilliancy and fading gradually beyond this point becomes invisible near 57 β Ophiuchi. The continuous stream becomes patchy—in parts very brilliant—where it crosses Aquila and Clypeus. In this neighbourhood the other stream reappears, passing over a region very rich in stars. We see now the greatest extent of the Milky Way, towards this part of its length, ever visible in our latitudes—just as in spring we see its greatest extent towards Monoceros and Argo.

Plate IV
Plate IV
Plate IV

I may note here in passing that Sir John Herschel's delineation of the northern portion of the Milky Way, though a great improvement on the views given in former works, seems to require revision, and especially as respects the very remarkable patches and streaks which characterise the portion extending over Cepheus and Cygnus. It seems to me, also, that the evidence on which it has been urged that the stars composing the Milky Way are (on an average) comparable in magnitude to our own sun, or to stars of the leading magnitudes, is imperfect. I believe, for instance, that the brilliant oval of milky light in Cygnus comes from stars intimately associated with the leading stars in that constellation, and not far removed in space (proportionately) beyond them. Of course, if this be the case, the stars, whose combined light forms the patch of milky light, must be far smaller than the leading brilliants of Cygnus. However, this is not the place to enter on speculations of this sort; I return therefore to the business we have more immediately in hand.

Towards the east is the square of Pegasus low down towards the horizon. Towards the south is Scorpio, distinguished by the red and brilliant Antares, and by a train of conspicuous stars. Towards the west is Bootes, his leading brilliant—the ruddy Arcturus—lying somewhat nearer the horizon than the zenith, and slightly south of west. Bootes as 58a constellation is easily found if we remember that he is delineated as chasing away the Greater Bear. Thus at present he is seen in a slightly inclined position, his head (marked by the third-magnitude star β) lying due west, some thirty degrees from the zenith. It has always appeared to me, by the way, that Bootes originally had nobler proportions than astronomers now assign to him. It is known that Canes Venatici now occupy the place of an upraised arm of Bootes, and I imagine that Corona Borealis, though undoubtedly a very ancient constellation, occupies the place of his other arm. Giving to the constellation the extent thus implied, it exhibits (better than most constellations) the character assigned to it. One can readily picture to oneself the figure of a Herdsman with upraised arms driving Ursa Major before him. This view is confirmed, I think, by the fact that the Arabs called this constellation the Vociferator.

Bootes contains many beautiful objects. Partly on this account, and partly because this is a constellation with which the observer should be specially familiar, a map of it is given in Plate 4.

Arcturus has a distant pale lilac companion, and is in other respects a remarkable and interesting object. It is of a ruddy yellow colour. Schmidt, indeed, considers that the star has changed colour of late years, and that whereas it was once very red it is now a yellow star. This opinion does not seem well grounded, however. The star may have been more ruddy once than now, though no other observer has noticed such a peculiarity; but it is certainly not a pure yellow star at present (at any rate as seen in our latitude). Owing probably to the difference of colour between Vega, Capella and Arcturus, photometricians have not been perfectly agreed as to the relative brilliancy of these objects. 59Some consider Vega the most brilliant star in the northern heavens, while others assign the superiority to Capella. The majority, however, consider Arcturus the leading northern brilliant, and in the whole heavens place three only before him, viz., Sirius, Canopus, and α Centauri. Arcturus is remarkable in other respects. His proper motion is very considerable, so great in fact that since the time of Ptolemy the southerly motion (alone) of Arcturus has carried him over a space nearly half as great again as the moon's apparent diameter. One might expect that so brilliant a star, apparently travelling at a rate so great compared with the average proper motions of the stars, must be comparatively near to us. This, however, has not been found to be the case. Arcturus is, indeed, one of the stars whose distance it has been found possible to estimate roughly. But he is found to be some three times as far from us as the small star 61 Cygni, and more than seven times as far from us as α Centauri.

The star δ Bootis is a wide and unequal double, the smaller component being only of the ninth magnitude.

Above Alkaid the last star in the tail of the Greater Bear, there will be noticed three small stars. These are θ, ι, and κ Bootis, and are usually placed in star-maps near the upraised hand of the Herdsman. The two which lie next to Alkaid, ι and κ, are interesting doubles. The former is a wide double (see Plate 5), the magnitudes of components 4 and 8, their colours yellow and white. The larger star of this pair is itself double. The star κ Bootis is not so wide a double (see Plate 5), the magnitudes of the components 5 and 8, their colours white and faint blue—a beautiful object.

The star ξ Bootis is an exceedingly interesting 60object. It is double, the colours of the components being orange-yellow and ruddy purple, their magnitudes 3½ and 6½. When this star was first observed by Herschel in 1780 the position of the components was quite different from that presented in Plate 5. They were also much closer, being separated by a distance of less than 3½ seconds. Since that time the smaller component has traversed nearly a full quadrant, its distance from its primary first increasing, till in 1831 the stars were nearly 7½ seconds apart, and thence slowly diminishing, so that at present the stars are less than 5 seconds apart. The period usually assigned to the revolution of this binary system is 117 years, and the period of peri-astral passage is said to be 1779. It appears to me, however, that the period should be about 108 years, the epoch of last peri-astral passage 1777 and of next peri-astral passage, therefore, 1885. The angular motion of the secondary round the primary is now rapidly increasing, and the distance between the components is rapidly diminishing, so that in a few years a powerful telescope will be required to separate the pair.

Not far from ξ is π Bootis, represented in Plate 5 as a somewhat closer double, but in reality—now at any rate—a slightly wider pair, since the distance between the components of ξ has greatly diminished of late. Both the components of π are white, and their magnitudes are 3½ and 6.

We shall next turn to an exceedingly beautiful and delicate object, the double star ε Bootis, known also as Mirac and, on account of its extreme beauty, called Pulcherrima by Admiral Smyth. The components of this beautiful double are of the third and seventh magnitude, the primary orange, the secondary sea-green. The distance separating the components is about 3 seconds, perhaps more; it 61appears to have been slowly increasing during the past ten or twelve years. Smyth assigns to this system a period of revolution of 980 years, but there can be little doubt that the true period is largely in excess of this estimate. Observers in southern latitudes consider that the colours of the components are yellow and blue, not orange and green as most of our northern observers have estimated them.

A little beyond the lower left-hand corner of the map is the star δ Serpentis, in the position shown in the Frontispiece, Map 3. This is the star which at the hour and season depicted in Map 2 formed the uppermost of a vertical row of stars, which has now assumed an almost horizontal position. The components of δ Serpentis are about 3½ seconds apart, their magnitudes 3 and 5, both white.

The stars θ1 and θ2 Serpentis form a wide double, the distance between the components being 21½ seconds. They are nearly equal in magnitude, the primary being 4½, the secondary 5. Both are yellow, the primary being of a paler yellow colour than the smaller star. But the observer may not know where to look for θ Serpentis, since it falls in a part of the constellation quite separated from that part in which δ Serpentis lies. In fact θ lies on the extreme easterly verge of the eastern half of the constellation. It is to be looked for at about the same elevation as the brilliant Altair, and (as to azimuth) about midway between Altair and the south.

The stars α1 and α2 Libræ form a wide double, perhaps just separable by the naked eye in very favourable weather. The larger component is of the third, the smaller of the sixth magnitude, the former yellow the latter light grey.

The star β Libræ is a beautiful light-green star to the naked eye; in the telescope a wide double, pale emerald and light blue.

62In Scorpio there are several very beautiful objects:—

The star Antares or Cor Scorpionis is one of the most beautiful of the red stars. It has been termed the Sirius of red stars, a term better merited perhaps by Aldebaran, save for this that, in our latitude, Antares is, like Sirius, always seen as a brilliant "scintillator" (because always low down), whereas Aldebaran rises high above the horizon. Antares is a double star, its companion being a minute green star. In southern latitudes the companion of Antares may be seen with a good 4-inch, but in our latitudes a larger opening is wanted. Mr. Dawes once saw the companion of Antares shining alone for seven seconds, the primary being hidden by the moon. He found that the colour of the secondary is not merely the effect of contrast, but that this small star is really a green sun.

The star β Scorpionis is a fine double, the components 13"·1 apart, their magnitudes 2 and 5½, colours white and lilac. It has been supposed that this pair is only an optical double, but a long time must elapse before a decisive opinion can be pronounced on such a point.

The star σ Scorpionis is a wider but much more difficult double, the smaller component being below the 9th magnitude. The colour of the primary (4) is white, that of the secondary maroon.

The star ξ Scorpionis is a neat double, the components 7"·2 apart, their magnitudes 4½ and 7½, their colours white and grey. This star is really triple, a fifth-magnitude star lying close to the primary.

In Ophiuchus, a constellation covering a wide space immediately above Scorpio, there are several fine doubles. Among others—

39 Ophiuchi, distance between components 12"·1, 63their magnitudes 5½ and 7½, their colours orange and blue.

The star 70 Ophiuchi, a fourth-magnitude star on the right shoulder of Ophiuchus, is a noted double. The distance between the components about 5½", their magnitudes 4½ and 7, the colours yellow and red. The pair form a system whose period of revolution is about 95 years.

36 Ophiuchi (variable), distance 5"·2, magnitudes 4½ and 6½, colours red and yellow.

ρ Opiuchi, distance 4", colours yellow and blue, magnitudes 5 and 7.

Between α and β Scorpionis the fine nebula 80 M may be looked for. (Or more closely thus:—below β is the wide Double ω1 and ω2 Scorpionis; about as far to the right of Antares is the star σ Scorpionis, and immediately above this is the fifth-magnitude star 19.) The nebula we seek lies between 19 and ω, nearer to 19 (about two-fifths of the way towards ω). This nebula is described by Sir W. Herschel as "the richest and most condensed mass of stars which the firmament offers to the contemplation of astronomers."

There are two other objects conveniently situated for observation, which the observer may now turn to. The first is the great cluster in the sword-hand of Perseus (see Plate 4), now lying about 28° above the horizon between N.E. and N.N.E. The stars γ and δ Cassiopeiæ (see Map 3 of Frontispiece) point towards this cluster, which is rather farther from δ than δ from γ, and a little south of the produced line from these stars. The cluster is well seen with the naked eye, even in nearly full moonlight. In a telescope of moderate power this cluster is a magnificent object, and no telescope has yet revealed its full glory. The view in Plate 5 gives but the faintest conception 64of the glories of χ Persei. Sir W. Herschel tried in vain to gauge the depths of this cluster with his most powerful telescope. He spoke of the most distant parts as sending light to us which must have started 4000 or 5000 years ago. But it appears improbable that the cluster has in reality so enormous a longitudinal extension compared with its transverse section as this view would imply. On the contrary, I think we may gather from the appearance of this cluster, that stars are far less uniform in size than has been commonly supposed, and that the mere irresolvability of a cluster is no proof of excessive distance. It is unlikely that the faintest component of the cluster is farther off than the brightest (a seventh-magnitude star) in the proportion of more than about 20 to 19, while the ordinary estimate of star magnitudes, applied by Herschel, gave a proportion of 20 or 30 to 1 at least. I can no more believe that the components of this cluster are stars greatly varying in distance, but accidentally seen in nearly the same direction, (or that they form an enormously long system turned by accident directly towards the earth), than I could look on the association of several thousand persons in the form of a procession as a fortuitous arrangement.

Next there is the great nebula in Andromeda—known as "the transcendantly beautiful queen of the nebulæ." It will not be difficult to find this object. The stars ε and δ Cassiopeiæ (Map 3, Frontispiece) point to the star β Andromedæ. Almost in a vertical line above this star are two fourth-magnitude stars μ and γ, and close above ν, a little to the right, is the object we seek—visible to the naked eye as a faint misty spot. To tell the truth, the transcendantly beautiful queen of the nebulæ is rather a disappointing object in an ordi65nary telescope. There is seen a long oval or lenticular spot of light, very bright near the centre, especially with low powers. But there is a want of the interest attaching to the strange figure of the Great Orion nebula. The Andromeda nebula has been partially resolved by Lord Rosse's great reflector, and (it is said) more satisfactorily by the great refractor of Harvard College. In the spectroscope, Mr. Huggins informs us, the spectrum is peculiar. Continuous from the blue to the orange, the light there "appears to cease very abruptly;" there is no indication of gaseity.

Lastly, the observer may turn to the pair Mizar and Alcor, the former the middle star in the Great Bear's tail, the latter 15' off. It seems quite clear, by the way, that Alcor has increased in brilliancy of late, since among the Arabians it was considered an evidence of very good eyesight to detect Alcor, whereas this star may now be easily seen even in nearly full moonlight. Mizar is a double star, and a fourth star is seen in the same field of view with the others (see Plate 5). The distance between Mizar and its companion is 14"·4; the magnitude of Mizar 3, of the companion 5; their colours white and pale green, respectively.


66

CHAPTER V.

A HALF-HOUR WITH ANDROMEDA, CYGNUS, ETC.

Our last half-hour with the double stars, &c., must be a short one, as we have already nearly filled the space allotted to these objects. The observations now to be made are supposed to take place during the fourth quarter of the year,—at ten o'clock on October 23rd; or at nine on November 7th; or at eight on November 22nd; or at seven on December 6th; or at hours intermediate to these on intermediate days.

We look first, as in former cases, for the Great Bear, now lying low down towards the north. Towards the north-east, a few degrees easterly, are the twin-stars Castor and Pollux, in a vertical position, Castor uppermost. Above these, a little towards the right, we see the brilliant Capella; and between Capella and the zenith is seen the festoon of Perseus. Cassiopeia lies near the zenith, towards the north, and the Milky Way extends from the eastern horizon across the zenith to the western horizon. Low down in the east is Orion, half risen above horizon. Turning to the south, we see high up above the horizon the square of Pegasus. Low down towards the south-south-west is Fomalhaut, pointed to by β and α Pegasi. Towards the west, about half-way between the zenith and the horizon, is the noble cross in Cygnus; below which, towards the left, we see Altair, and his companions β and γ Aquilæ: while towards the right we see the brilliant Vega.

During this half-hour we shall not confine ourselves to any particular region of the heavens, but sweep the most conveniently situated constellations.

Plate V.
Plate V
Plate V

67First, however, we should recommend the observer to try and get a good view of the great nebula in Andromeda, which is not conveniently situated for observation, but is so high that after a little trouble the observer may expect a more distinct view than in the previous quarter. He will see β Andromedæ towards the south-east, about 18° from the zenith, μ and ν nearly in a line towards the zenith, and the nebula about half-way between β and the zenith.

With a similar object it will be well to take another view of the great cluster in Perseus, about 18° from the zenith towards the east-north-east (see the pointers γ and δ Cassiopeiæ in Map 4, Frontispiece), the cluster being between δ Cassiopeiæ and α Persei.

Not very far off is the wonderful variable Algol, now due east, and about 58° above the horizon. The variability of this celebrated object was doubtless discovered in very ancient times, since the name Al-gol, or "the Demon" seems to point to a knowledge of the peculiarity of this "slowly winking eye." To Goodricke, however, is due the rediscovery of Algol's variability. The period of variation is 2d. 20h. 48m.; during 2h. 14m. Algol appears of the second magnitude; the remaining 6¾ hours are occupied by the gradual decline of the star to the fourth magnitude, and its equally gradual return to the second. It will be found easy to watch the variations of this singular object, though, of course, many of the minima are attained in the daytime. The following may help the observer:—

On October 8th, 1867, at about half-past eleven in the evening, I noticed that Algol had reached its minimum of brilliancy. Hence the next minimum was attained at about a quarter-past eight on the evening of October 11th; the next at about five on 68the evening of October 14th, and so on. Now, if this process be carried on, it will be found that the next evening minimum occurred at about 10h. (circiter) on the evening of October 31st, the next at about 11h. 30m. on the evening of November 20th. Thus at whatever hour any minimum occurs, another occurs six weeks and a day later, at about the same hour. This would be exact enough if the period of variation were exactly 2d. 20m. 48s., but the period is nearly a minute greater, and as there are fifteen periods in six weeks and a day, it results that there is a difference of about 13m. in the time at which the successive recurrences at nearly the same hour take place. Hence we are able to draw up the two following Tables, which will suffice to give all the minima conveniently observable during the next two years. Starting from a minimum at about 11h. 45m. on November 20th, 1867, and noticing that the next 43-day period (with the 13m. added) gives us an observation at midnight on January 2nd, 1868, and that successive periods would make the hour later yet, we take the minimum next after that of January 2nd, viz. that of January 5th, 1868, 8h. 48m., and taking 43-day periods (with 13m. added to each), we get the series—

h.m. h.m.
Jan. 5, 1868,845 P.M. Mar. 10, ——,1025 ——
Feb. 17, ——,858 —— Mar. 13, ——,743 ——[7]
Mar. 31, ——,911 —— Apr. 25, ——,756 ——
May 13, ——,924 —— June 7, ——,89 ——
June 25, ——,937 —— July 20, ——,822 ——
Aug. 7, ——,950 —— Sept. 1, ——,835 ——
Sept. 19, ——,103 —— Oct. 14, ——,848 ——
Nov. 1, ——,1016 —— Nov. 26, ——,91 ——
Dec. 14, ——,1029 —— Jan. 8, 1870,914 ——
Jan. 26, 1869,1042 —— Feb. 20, ——,927 ——

69From the minimum at about 10 P.M. on October 31st, 1867, we get in like manner the series—

h.m. h.m.
Dec. 13, 1867,1013 P.M. Jan. 6, 1869,858 ——
Jan. 25, 1868,1026 —— Feb. 18, ——,911 ——
Mar. 8, ——,1039 —— Apr. 2, ——,924 ——
Apr. 20, ——,1052 —— May 15, ——,937 ——
June 2, ——,115 —— June 27, ——,950 ——
June 5, ——,753 ——[8] Aug. 9, ——,103 ——
July 18, ——,86 —— Sept. 21, ——,1016 ——
Aug. 30, ——,819 —— Nov. 3, ——,1029 ——
Oct. 12, ——,832 —— Dec. 16, ——,1042 ——
Nov. 24, ——,845 —— Jan. 28, 1870,1055 ——

From one or other of these tables every observable minimum can be obtained. Thus, suppose the observer wants to look for a minimum during the last fortnight in August, 1868. The first table gives him no information, the latter gives him a minimum at 8h. 19m. P.M. on August 30; hence of course there is a minimum at 11h. 31m. P.M. on August 27; and there are no other conveniently observable minima during the fortnight in question.

The cause of the remarkable variation in this star's brilliancy has been assigned by some astronomers to the presence of an opaque secondary, which transits Algol at regular intervals; others have adopted the view that Algol is a luminous secondary, revolving around an opaque primary. Of these views the former seems the most natural and satisfactory. It points to a secondary whose mass bears a far greater proportion to that of the primary, than the mass even of Jupiter bears to the sun; the shortness of the period is also remarkable. It may be noticed that observation points to a gradual diminution in the period of Algol's varia70tion, and the diminution seems to be proceeding more and more rapidly. Hence (assuming the existence of a dark secondary) we must suppose that either it travels in a resisting medium which is gradually destroying its motion, or that there are other dependent orbs whose attractions affect the period of this secondary. In the latter case the decrease in the period will attain a limit and be followed by an increase.

However, interesting as the subject may be, it is a digression from telescopic work, to which we now return.

Within the confines of the second map in Plate 4 is seen the fine star γ Andromedæ. At the hour of our observations it lies high up towards E.S.E. It is seen as a double star with very moderate telescopic power, the distance between the components being upwards of 10"; their magnitudes 3 and 5½, their colours orange and green. Perhaps there is no more interesting double visible with low powers. The smaller star is again double in first-class telescopes, the components being yellow and blue according to some observers, but according to others, both green.

Below γ Andromedæ lie the stars β and γ Triangulorum, γ a fine naked-eye triple (the companions being δ and η Triangulorum), a fine object with a very low power. To the right is α Triangulorum, certainly less brilliant than β. Below α are the three stars α, β, and γ Arietis, the first an unequal and difficult double, the companion being purple, and only just visible (under favourable circumstances) with a good 3-inch telescope; the last an easy double, interesting as being the first ever discovered (by Hook, in 1664), the colours of components white and grey.

Immediately below α Arietis is the star α Ceti, 71towards the right of which (a little lower) is Mira, a wonderful variable. This star has a period of 331⅓ days; during a fortnight it appears as a star of the 2nd magnitude,—on each side of this fortnight there is a period of three months during one of which the star is increasing, while during the other it is diminishing in brightness: during the remaining five months of the period the star is invisible to the naked eye. There are many peculiarities and changes in the variation of this star, into which space will not permit me to enter.

Immediately above Mira is the star α Piscium at the knot of the Fishes' connecting band. This is a fine double, the distance between the components being about 3½", their magnitudes 5 and 6, their colours pale green and blue (see Plate 5).

Close to γ Aquarii (see Frontispiece, Map 4), above and to the left of it, is the interesting double ζ Aquarii; the distance between the components is about 3½", their magnitudes 4 and 4½, both whitish yellow. The period of this binary seems to be about 750 years.

Turning next towards the south-west we see the second-magnitude star ε Pegasi, some 40° above the horizon. This star is a wide but not easy double, the secondary being only of the ninth magnitude; its colour is lilac, that of the primary being yellow.

Towards the right of ε Pegasi and lower down are seen the three fourth-magnitude stars which mark the constellation Equuleus. Of these the lowest is α, to the right of which lies ε Equulei, a fifth-magnitude star, really triple, but seen as a double star with ordinary telescopes (Plate 5). The distance between the components is nearly 11", their colours white and blue, their magnitudes 5½ and 7½. The primary is a very close double, which appears, however, to be opening out rather rapidly.

Immediately below Equuleus are the stars α1 and α^272 Capricorni, seen as a naked-eye double to the right of and above β. Both α^1 and α^2 are yellow; α^2 is of the 3rd, α^1 of the 4th magnitude; in a good telescope five stars are seen, the other three being blue, ash-coloured, and lilac. The star β Capricorni is also a wide double, the components yellow and blue, with many telescopic companions.

To the right of Equuleus, towards the west-south-west is the constellation Delphinus. The upper left-hand star of the rhombus of stars forming the head of the Delphinus is the star γ Delphini, a rather easy double (see Plate 5), the components being nearly 12" apart, their magnitudes 4 and 7, their colours golden yellow and flushed grey.

Turn we next to the charming double Albireo, on the beak of Cygnus, about 36° above the horizon towards the west. The components are 34½" apart, their magnitudes 3 and 6, their colours orange-yellow, and blue. It has been supposed (perhaps on insufficient evidence) that this star is merely an optical double. It must always be remembered that a certain proportion of stars (amongst those separated by so considerable a distance) must be optically combined only.

The star χ Cygni is a wide double (variable) star. The components are separated by nearly 26", their magnitudes 5 and 9, their colours yellow and light blue. χ may be found by noticing that there is a cluster of small stars in the middle of the triangle formed by the stars γ, δ, and β Cygni (see Map 4, Frontispiece), and that χ is the nearest star of the cluster to β. The star φ Cygni, which is just above and very close to β (Albireo), does not belong to the cluster. χ is about half as far again from φ as φ from Albireo. But as χ descends to the 11th magnitude at its minimum the observer must not always expect to find it very easily. It has been known to be invisible at the epoch when it should 73have been most conspicuous. The period of this variable is 406 days.

The star 61 Cygni is an interesting one. So far as observation has yet extended, it would seem to be the nearest to us of all stars visible in the northern hemisphere. It is a fine double, the components nearly equal (5½ and 6), both yellow, and nearly 19" apart. The period of this binary appears to be about 540 years. To find 61 Cygni note that ε and δ Cygni form the diameter of a semicircle divided into two quadrants by α Cygni (Arided). On this semicircle, on either side of α, lie the stars ν and α Cygni, ν towards ε. Now a line from α to ν produced passes very near to 61 Cygni at a distance from ν somewhat greater than half the distance of ν from α.

The star μ Cygni lies in a corner of the constellation, rather farther from ζ than ζ from ε Cygni. A line from ε to ζ produced meets κ Pegasi, a fourth-magnitude star; and μ Cygni, a fifth-magnitude star, lies close above κ Pegasi. The distance between the components is about 5½", their magnitudes 5 and 6, their colours white and pale blue.

The star ψ Cygni may next be looked for, but for this a good map of Cygnus will be wanted, as ψ is not pointed to by any well-marked stars. A line from α, parallel to the line joining γ and δ, and about one-third longer than that line, would about mark the position of ψ Cygni. The distance between the components of this double is about 3½", their magnitudes 5½ and 8, their colours white and lilac.

Lastly, the observer may turn to the stars γ1 and γ2 Draconis towards the north-west about 40° above the horizon (they are included in the second map of Plate 2). They form a wide double, having equal (fifth-magnitude) components, both grey. (See Plate 5.)


74

CHAPTER VI.

HALF-HOURS WITH THE PLANETS.

In observing the stars, we can select a part of the heavens which may be conveniently observed; and in this way in the course of a year we can observe every part of the heavens visible in our northern hemisphere. But with the planets the case is not quite so simple. They come into view at no fixed season of the year: some of them can never be seen by night on the meridian; and they all shift their place among the stars, so that we require some method of determining where to look for them on any particular night, and of recognising them from neighbouring fixed stars.

The regular observer will of course make use of the 'Nautical Almanac'; but 'Dietrichsen and Hannay's Almanac' will serve every purpose of the amateur telescopist. I will briefly describe those parts of the almanac which are useful to the observer.

It will be found that three pages are assigned to each month, each page giving different information. If we call these pages I. II. III., then in order that page I. for each month may fall to the left of the open double page, and also that I. and II. may be open together, the pages are arranged in the following order: I. II. III.; III. I. II.; I. II. III.; and so on.

Now page III. for any month does not concern the amateur observer. It gives information concerning the moon's motions, which is valuable to the sailor, and interesting to the student of astronomy, but not applicable to amateur observation.


Plate VI
Mercury Venus
Mercury and Venus

Mars, Summer of the Southern Hemisphere
Mars, Summer of the Southern Hemisphere

Mars, Summer of the Northern Hemisphere
Mars, Summer of the Northern Hemisphere

Chart of Mars from Drawings of Mr. Dawes
Chart of Mars from Drawings of Mr. Dawes

75 We have then only pages I. and II. to consider:—

Across the top of both pages the right ascension and declination of the planets Venus, Jupiter, Mars, Saturn, Mercury, and Uranus are given, accompanied by those of two conspicuous stars. This information is very valuable to the telescopist. In the first place, as we shall presently see, it shows him what planets are well situated for observation, and secondly it enables him to map down the path of any planet from day to day among the fixed stars. This is a very useful exercise, by the way, and also a very instructive one. The student may either make use of the regular maps and mark down the planet's path in pencil, taking a light curve through the points given by the data in his almanac, or he may lay down a set of meridians suited to the part of the heavens traversed by the planet, and then proceed to mark in the planet's path and the stars, taking the latter either from his maps or from a convenient list of stars.[9] My 'Handbook of the Stars' has been constructed to aid the student in these processes. It must be noticed that old maps are not suited for the work, because, through precession, the stars are all out of place as respects R.A. and Dec. Even the Society's maps, constructed so as to be right for 1830, are beginning to be out of date. But a matter of 20 or 30 years either way is not important.[10] My Maps, Handbook and Zodiac-chart have been constructed for the year 1880, so as to be serviceable for the next fifty years or so.

76Next, below the table of the planets, we have a set of vertical columns. These are, in order, the days of the month, the calendar—in which are included some astronomical notices, amongst others the diameter of Saturn on different dates, the hours at which the sun rises and sets, the sun's right ascension, declination, diameter, and longitude; then eight columns which do not concern the observer; after which come the hours at which the moon rises and sets, the moon's age; and lastly (so far as the observer is concerned) an important column about Jupiter's system of satellites.

Next, we have, at the foot of the first page, the hours at which the planets rise, south, and set; and at the foot of the second page we have the dates of conjunctions, oppositions, and of other phenomena, the diameters of Venus, Jupiter, Mars, and Mercury, and finally a few words respecting the visibility of these four planets.

After the thirty-six pages assigned to the months follow four (pp. 42-46) in which much important astronomical information is contained; but the points which most concern our observer are (i.) a small table showing the appearance of Saturn's rings, and (ii.) a table giving the hours at which Jupiter's satellites are occulted or eclipsed, re-appear, &c.

We will now take the planets in the order of their distance from the sun: we shall see that the information given by the almanac is very important to the observer.

Mercury is so close to the sun as to be rarely seen with the naked eye, since he never sets much more than two hours and a few minutes after the sun, or rises by more than that interval before the sun. It must not be supposed that at each successive epoch of most favourable appearance Mercury sets so long after the sun or rises so long before him. It would 77occupy too much of our space to enter into the circumstances which affect the length of these intervals. The question, in fact, is not a very simple one. All the necessary information is given in the almanac. We merely notice that the planet is most favourably seen as an evening star in spring, and as a morning star in autumn.[11]

The observer with an equatorial has of course no difficulty in finding Mercury, since he can at once direct his telescope to the proper point of the heavens. But the observer with an alt-azimuth might fail for years together in obtaining a sight of this interesting planet, if he trusted to unaided naked-eye observations in looking for him. Copernicus never saw Mercury, though he often looked for him; and Mr. Hind tells me he has seen the planet but once with the naked eye—though this perhaps is not a very remarkable circumstance, since the systematic worker in an observatory seldom has occasion to observe objects with the unaided eye.

By the following method the observer can easily pick up the planet.

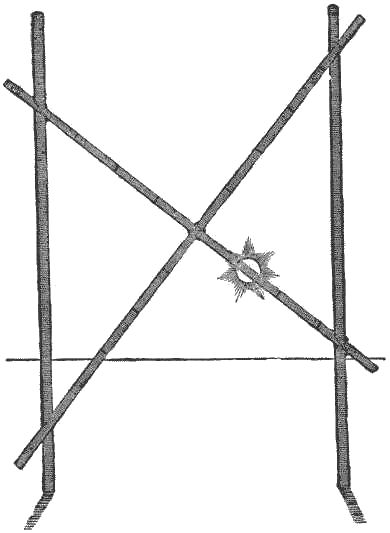

Across two uprights (Fig. 10) nail a straight rod, so that when looked at from some fixed point of view the rod may correspond to the sun's path near the time of observation. The rod should be at right-angles to the line of sight to its centre. Fasten another rod at right angles to the first. From the point at which the rods cross measure off and mark 78on both rods spaces each subtending a degree as seen from the point of view. Thus, if the point of view is 9½ feet off, these spaces must each be 2 inches long, and they must be proportionately less or greater as the eye is nearer or farther.

Figure 10
Fig. 10.

Now suppose the observer wishes to view Mercury on some day, whereon Mercury is an evening star. Take, for instance, June 9th, 1868. We find from 'Dietrichsen' that on this day (at noon) Mercury's R.A. is 6h. 53m. 23s.: and the sun's 5h. 11m. 31s. We need not trouble ourselves about the odd hours after noon, and thus we have Mercury's 79R.A. greater than the sun's by 1h. 41m. 52s. Now we will suppose that the observer has so fixed his uprights and the two rods, that the sun, seen from the fixed point of view, appears to pass the point of crossing of the rods at half-past seven, then Mercury will pass the cross-rod at 11m. 52s. past nine. But where? To learn this we must take out Mercury's declination, which is 24° 43' 18" N., and the sun's, which is 22° 59' 10" N. The difference, 1° 44' 8" N. gives us Mercury's place, which it appears is rather less than 1¾ degree north of the sun. Thus, about 1h. 42m. after the sun has passed the cross-rod, Mercury will pass it between the first and second divisions above the point of fastening. The sun will have set about an hour, and Mercury will be easily found when the telescope is directed towards the place indicated.

It will be noticed that this method does not require the time to be exactly known. All we have to do is to note the moment at which the sun passes the point of fastening of the two rods, and to take our 1h. 42m. from that moment.

This method, it may be noticed in passing, may be applied to give naked-eye observations of Mercury at proper seasons (given in the almanac). By a little ingenuity it may be applied as well to morning as to evening observations, the sun's passage of the cross-rod being taken on one morning and Mercury's on the next, so many minutes before the hour of the first observation. In this way several views of Mercury may be obtained during the year.

Such methods may appear very insignificant to the systematic observer with the equatorial, but that they are effective I can assert from my own experience. Similar methods may be applied to determine from the position of a known object, that of any neighbouring unknown object even at night. The cross-80rod must be shifted (or else two cross-rods used) when the unknown precedes the known object. If two cross-rods are used, account must be taken of the gradual diminution in the length of a degree of right ascension as we leave the equator.

Even simpler methods carefully applied may serve to give a view of Mercury. To show this, I may describe how I obtained my first view of this planet. On June 1st, 1863, I noticed, that at five minutes past seven the sun, as seen from my study window, appeared from behind the gable-end of Mr. St. Aubyn's house at Stoke, Devon. I estimated the effect of Mercury's northerly declination (different of course for a vertical wall, than for the cross-rod in fig. 8, which, in fact, agrees with a declination-circle), and found that he would pass out opposite a particular point of the wall a certain time after the sun. I then turned the telescope towards that point, and focussed for distinct vision of distant objects, so that the outline of the house was seen out of focus. As the calculated time of apparition approached, I moved the telescope up and down so that the field swept the neighbourhood of the estimated point of apparition. I need hardly say that Mercury did not appear exactly at the assigned point, nor did I see him make his first appearance; but I picked him up so soon after emergence that the outline of the house was in the field of view with him. He appeared as a half-disc. I followed him with the telescope until the sun had set, and soon after I was able to see him very distinctly with the naked eye. He shone with a peculiar brilliance on the still bright sky; but although perfectly distinct to the view when his place was indicated, he escaped detection by the undirected eye.[12]

81Mercury does not present any features of great interest in ordinary telescopes; though he usually appears better defined than Venus, at least as the latter is seen on a dark sky. The phases are pleasingly seen (as shown in Plate 6) with a telescope of moderate power. For their proper observation, however, the planet must be looked for with the telescope in the manner above indicated, as he always shows a nearly semi-circular disc when he is visible to the naked eye.

We come next to Venus, the most splendid of all the planets to the eye. In the telescope Venus disappoints the observer, however. Her intense lustre brings out every defect of the instrument, and especially the chromatic aberration. A dark glass often improves the view, but not always. Besides, an interposed glass has an unpleasant effect on the field of view.

Perhaps the best method of observing Venus is to search for her when she is still high above the horizon, and when therefore the background of the sky is bright enough to take off the planet's glare. The method I have described for the observation of Mercury will prove very useful in the search for Venus when the sun is above the horizon or but just set. Of course, when an object is to be looked for high above the horizon, the two rods which support the cross-rods must not be upright, but square to the line of view to that part of the sky.

But the observer must not expect to see much during his observation of Venus. In fact, he can scarcely do more than note her varying phases (see 82Plate 6) and the somewhat uneven boundary of the terminator. Our leading observers have done so little with this fascinating but disappointing planet, that amateurs must not be surprised at their own failure.

I suppose the question whether Venus has a satellite, or at any rate whether the object supposed to have been seen by Cassini and other old observers were a satellite, must be considered as decided in the negative. That Cassini should have seen an object which Dawes and Webb have failed to see must be considered utterly improbable.

Leaving the inferior planets, we come to a series of important and interesting objects.

First we have the planet Mars, nearly the last in the scale of planetary magnitude, but far from being the least interesting of the planets. It is in fact quite certain that we obtain a better view of Mars than of any object in the heavens, save the Moon alone. He may present a less distinguished appearance than Jupiter or Saturn, but we see his surface on a larger scale than that of either of those giant orbs, even if we assume that we ever obtain a fair view of their real surface.

Nor need the moderately armed observer despair of obtaining interesting views of Mars. The telescope with which Beer and Mädler made their celebrated series of views was only a 4-inch one, so that with a 3-inch or even a 2-inch aperture the attentive observer may expect interesting views. In fact, more depends on the observer than on the instrument. A patient and attentive scrutiny will reveal features which at the first view wholly escape notice.

In Plate 6 I have given a series of views of Mars much more distinct than an observer may expect to obtain with moderate powers. I add a chart of Mars, a 83miniature of one I have prepared from a charming series of tracings supplied me by Mr. Dawes. The views taken by this celebrated observer in 1852, 1856, 1860, 1862, and 1864, are far better than any others I have seen. The views by Beer and Mädler are good, as are some of Secchi's (though they appear badly drawn), Nasmyth's and Phillips'; Delarue's two views are also admirable; and Lockyer has given a better set of views than any of the others. But there is an amount of detail in Mr. Dawes' views which renders them superior to any yet taken. I must confess I failed at a first view to see the full value of Mr. Dawes' tracings. Faint marks appeared, which I supposed to be merely intended to represent shadings scarcely seen. A more careful study shewed me that every mark is to be taken as the representative of what Mr. Dawes actually saw. The consistency of the views is perfectly wonderful, when compared with the vagueness and inconsistency observable in nearly all other views. And this consistency is not shown by mere resemblance, which might have been an effect rather of memory (unconsciously exerted) than observation. The same feature changes so much in figure, as it appears on different parts of the disc, that it was sometimes only on a careful projection of different views that I could determine what certain features near the limb represented. But when this had been done, and the distortion through the effect of foreshortening corrected, the feature was found to be as true in shape as if it had been seen in the centre of the planet's disc.

In examining Mr. Dawes' drawings it was necessary that the position of Mars' axis should be known. The data for determining this were taken from Dr. Oudemann's determinations given in a valuable paper on Mars issued from Mr. Bishop's observatory. 84But instead of calculating Mars' presentation by the formulæ there given, I found it convenient rather to make use of geometrical constructions applied to my 'Charts of the Terrestrial Planets.' Taking Mädler's start-point for Martial longitudes, that is the longitude-line passing near Dawes' forked bay, I found that my results agreed pretty fairly with those in Prof. Phillips' map, so far as the latter went; but there are many details in my charts not found in Prof. Phillips' nor in Mädler's earlier charts.

I have applied to the different features the names of those observers who have studied the physical peculiarities presented by Mars. Mr. Dawes' name naturally occurs more frequently than others. Indeed, if I had followed the rule of giving to each feature the name of its discoverer, Mr. Dawes' name would have occurred much more frequently than it actually does.

On account of the eccentricity of his orbit, Mars is seen much better in some oppositions than in others. When best seen the southern hemisphere is brought more into view than the northern because the summer of his northern hemisphere occurs when he is nearly in aphelion (as is the case with the Earth by the way).

The relative dimensions and presentation of Mars, as seen in opposition in perihelion, and in opposition in aphelion, are shown in the two rows of figures.

In and near quadrature Mars is perceptibly gibbous. He is seen thus about two months before or after opposition. In the former case, he rises late and comes to the meridian six hours or so after midnight. In the latter case, he is well seen in the evening, coming to the meridian at six. His appearance and relative dimensions as he passes from opposition to quadrature are shown in the last three figures of the upper row.

85Mars' polar caps may be seen with very moderate powers.

I add four sets of meridians (Plate 6), by filling in which from the charts the observer may obtain any number of views of the planet as it appears at different times.

Passing over the asteroids, which are not very interesting objects to the amateur telescopist, we come to Jupiter, the giant of the solar system, surpassing our Earth more than 1400 times in volume, and overweighing all the planets taken together twice over.

Jupiter is one of the easiest of all objects of telescopic observation. No one can mistake this orb when it shines on a dark sky, and only Venus can be mistaken for it when seen as a morning or evening star. Sometimes both are seen together on the twilight sky, and then Venus is generally the brighter. Seen, however, at her brightest and at her greatest elongation from the sun, her splendour scarcely exceeds that with which Jupiter shines when high above the southern horizon at midnight.

Jupiter's satellites may be seen with very low powers; indeed the outer ones have been seen with the naked eye, and all are visible in a good opera-glass. Their dimensions relatively to the disc are shown in Plate 7. Their greatest elongations are compared with the disc in the low-power view.

Jupiter's belts may also be well seen with moderate telescopic power. The outer parts of his disc are perceptibly less bright than the centre.

More difficult of observation are the transits of the satellites and of their shadows. Still the attentive observer can see the shadows with an aperture of two inches, and the satellites themselves with an aperture of three inches.

The minute at which the satellites enter on the disc, or pass off, is given in 'Dietrichsen's Al86manac.' The 'Nautical Almanac' also gives the corresponding data for the shadows.

The eclipses of the satellites in Jupiter's shadow, and their occultations by his disc, are also given in 'Dietrichsen's Almanac.'

In the inverting telescope the satellites move from right to left in the nearer parts of their orbit, and therefore transit Jupiter's disc in that direction, and from left to right in the farther parts. Also note that before opposition, (i.) the shadows travel in front of the satellites in transiting the disc; (ii.) the satellites are eclipsed in Jupiter's shadow; (iii.) they reappear from behind his disc. On the other hand, after opposition, (i.) the shadows travel behind the satellites in transiting the disc; (ii.) the satellites are occulted by the disc; (iii.) they reappear from eclipse in Jupiter's shadow.

Conjunctions of the satellites are common phenomena, and may be waited for by the observer who sees the chance. An eclipse of one satellite by the shadow of another is not a common phenomenon; in fact, I have never heard of such an eclipse being seen. That a satellite should be quite extinguished by another's shadow is a phenomenon not absolutely impossible, but which cannot happen save at long intervals.

The shadows are not black spots as is erroneously stated in nearly all popular works on astronomy. The shadow of the fourth, for instance, is nearly all penumbra, the really black part being quite minute by comparison. The shadow of the third has a considerable penumbra, and even that of the first is not wholly black. These penumbras may not be perceptible, but they affect the appearance of the shadows. For instance, the shadow of the fourth is perceptibly larger but less black than that of the third, though the third is the larger satellite.

87 In transit the first satellite moves fastest, the fourth slowest, the others in their order. The shadow moves just as fast (appreciably) as the satellite it belongs to. Sometimes the shadow of the satellite may be seen to overtake (apparently) the disc of another. In such a case the shadow does not pass over the disc, but the disc conceals the shadow. This is explained by the fact that the shadow, if visible throughout its length, would be a line reaching slantwise from the satellite it belongs to, and the end of the shadow (that is, the point where it meets the disc) is not the point where the shadow crosses the orbit of any inner satellite. Thus the latter may be interposed between the end of the shadow—the only part of the shadow really visible—and the eye; but the end of the shadow cannot be interposed between the satellite and the eye. If a satellite on the disc were eclipsed by another satellite, the black spot thus formed would be in another place from the black spot on the planet's body. I mention all this because, simple as the question may seem, I have known careful observers to make mistakes on this subject. A shadow is seen crossing the disc and overtaking, apparently, a satellite in transit. It seems therefore, on a first view, that the shadow will hide the satellite, and observers have even said that they have seen this happen. But they are deceived. It is obvious that if one satellite eclipse another, the shadows of both must occupy the same point on Jupiter's body. Thus it is the overtaking of one shadow by another on the disc, and not the overtaking of a satellite by a shadow, which determines the occurrence of that as yet unrecorded phenomenon, the eclipse of one satellite by another.[13]

88The satellites when far from Jupiter seem to lie in a straight line through his centre. But as a matter of fact they do not in general lie in an exact straight line. If their orbits could be seen as lines of light, they would appear, in general, as very long ellipses. The orbit of the fourth would frequently be seen to be quite clear of Jupiter's disc, and the orbit of the third might in some very exceptional instances pass just clear of the disc. The satellites move most nearly in a straight line (apparently) when Jupiter comes to opposition in the beginning of February or August, and they appear to depart most from rectilinear motion when opposition occurs in the beginning of May and November. At these epochs the fourth satellite may be seen to pass above and below Jupiter's disc at a distance equal to about one-sixth of the disc's radius.

The shadows do not travel in the same apparent paths as the satellites themselves across the disc, but (in an inverting telescope) below from August to January, and above from February to July.

We come now to the most charming telescopic object in the heavens—the planet Saturn. Inferior only to Jupiter in mass and volume, this planet surpasses him in the magnificence of his system. Seen in a telescope of adequate power, Saturn is an object of surpassing loveliness. He must be an unimaginative man who can see Saturn for the first time in such a telescope, without a feeling of awe and amazement. If there is any object in the heavens—I except not even the Sun—calculated to impress one with a sense of the wisdom 89and omnipotence of the Creator it is this. "His fashioning hand" is indeed visible throughout space, but in Saturn's system it is most impressively manifest.

Saturn, to be satisfactorily seen, requires a much more powerful telescope than Jupiter. A good 2-inch telescope will do much, however, in exhibiting his rings and belts. I have never seen him satisfactorily myself with such an aperture, but Mr. Grover has not only seen the above-named features, but even a penumbra to the shadow on the rings with a 2-inch telescope.

Saturn revolving round the sun in a long period—nearly thirty years—presents slowly varying changes of appearance (see Plate 7). At one time the edge of his ring is turned nearly towards the earth; seven or eight years later his rings are as much open as they can ever be; then they gradually close up during a corresponding interval; open out again, exhibiting a different face; and finally close up as first seen. The last epoch of greatest opening occurred in 1856, the next occurs in 1870: the last epoch of disappearance occurred in 1862-63, the next occurs in 1879. The successive views obtained are as in Plate 7 in order from right to left, then back to the right-hand figure (but sloped the other way); inverting the page we have this figure thus sloped, and the following changes are now indicated by the other figures in order back to the first (but sloped the other way and still inverted), thus returning to the right-hand figure as seen without inversion.

The division in the ring can be seen in a good 2-inch aperture in favourable weather. The dark ring requires a good 4-inch and good weather.

Saturn's satellites do not, like Jupiter's, form a system of nearly equal bodies. Titan, the sixth, 90is probably larger than any of Jupiter's satellites. The eighth also (Japetus) is a large body, probably at least equal to Jupiter's third satellite. But Rhea, Dione, and Tethys are much less conspicuous, and the other three cannot be seen without more powerful telescopes than those we are here dealing with.

So far as my own experience goes, I consider that the five larger satellites may be seen distinctly in good weather with a good 3½-inch aperture. I have never seen them with such an aperture, but I judge from the distinctness with which these satellites may be seen with a 4-inch aperture. Titan is generally to be looked for at a considerable distance from Saturn—always when the ring is widely open. Japetus is to be looked for yet farther from the disc. In fact, when Saturn comes to opposition in perihelion (in winter only this can happen) Japetus may be as far from Saturn as one-third of the apparent diameter of the moon. I believe that under these circumstances, or even under less favourable circumstances, Japetus could be seen with a good opera-glass. So also might Titan.

Transits, eclipses, and occulations of Saturn's satellites can only be seen when the ring is turned nearly edgewise towards the earth. For the orbits of the seven inner satellites lying nearly in the plane of the rings would (if visible throughout their extent) then only appear as straight lines, or as long ellipses cutting the planet's disc.

The belts on Saturn are not very conspicuous. A good 3½-inch is required (so far as my experience extends) to show them satisfactorily.

The rings when turned edgewise either towards the earth or sun, are not visible in ordinary telescopes, neither can they be seen when the earth and sun are on opposite sides of the rings. In powerful 91telescopes the rings seem never entirely to disappear.

The shadow of the planet on the rings may be well seen with a good 2-inch telescope, which will also show Ball's division in the rings. The shadow of the rings on the planet is a somewhat more difficult feature. The shadow of the planet on the rings is best seen when the rings are well open and the planet is in or near quadrature. It is to be looked for to the left of the ball (in an inverting telescope) at quadrature preceding opposition, and to the right at quadrature following opposition. Saturn is more likely to be studied at the latter than at the former quadrature, as in quadrature preceding opposition he is a morning star. The shadow of the rings on the planet is best seen when the rings are but moderately open, and Saturn is in or near quadrature. When the shadow lies outside the rings it is best seen, as the dark ring takes off from the sharpness of the contrast when the shadow lies within the ring. It would take more space than I can spare here to show how it is to be determined (independently) whether the shadow lies within or without the ring. But the 'Nautical Almanac' gives the means of determining this point. When, in the table for assigning the appearance of the rings, l is less than l' the shadow lies outside the ring, when l is greater than l' the shadow lies within the ring.

Uranus is just visible to the naked eye when he is in opposition, and his place accurately known. But he presents no phenomena of interest. I have seen him under powers which made his disc nearly equal to that of the moon, yet could see nothing but a faint bluish disc.

Neptune also is easily found if his place be accu92rately noted on a map, and a good finder used. We have only to turn the telescope to a few stars seen in the finder nearly in the place marked in our map, and presently we shall recognise the one we want by the peculiarity of its light. What is the lowest power which will exhibit Neptune as a disc I do not know, but I am certain no observer can mistake him for a fixed star with a 2-inch aperture and a few minutes' patient scrutiny in favourable weather.

Plate VII
Jupiter
Jupiter

Low Power View
Low Power View

Saturn
Saturn

The Lunar Crater Plate - Sunrise Plato Sunset
The Lunar Crater Plato at Sunrise and Sunset

Solar Spots
Solar Spots

93

CHAPTER VII.

HALF-HOURS WITH THE SUN AND MOON.

The moon perhaps is the easiest of all objects of telescopic observation. A very moderate telescope will show her most striking features, while each increase of power is repaid by a view of new details. Yet in one sense the moon is a disappointing object even to the possessor of a first-class instrument. For the most careful and persistent scrutiny, carried on for a long series of years, too often fails to reward the observer by any new discoveries of interest. Our observer must therefore rather be prepared to enjoy the observation of recognised features than expect to add by his labours to our knowledge of the earth's nearest neighbour.

Although the moon is a pleasing and surprising telescopic object when full, the most interesting views of her features are obtained at other seasons. If we follow the moon as she waxes or wanes, we see the true nature of that rough and bleak mountain scenery, which when the moon is full is partially softened through the want of sharp contrasts of light and shadow. If we watch, even for half an hour only, the changing form of the ragged line separating light from darkness on the moon's disc, we cannot fail to be interested. "The outlying and isolated peak of some great mountain-chain becomes gradually larger, and is finally merged in the general luminous surface; great circular spaces, enclosed with rough and rocky walls many miles in diameter, become apparent; some with flat and perfectly 94smooth floors, variegated with streaks; others in which the flat floor is dotted with numerous pits or covered with broken fragments of rock. Occasionally a regularly-formed and unusually symmetrical circular formation makes its appearance; the exterior surface of the wall bristling with terraces rising gradually from the plain, the interior one much more steep, and instead of a flat floor, the inner space is concave or cup-shaped, with a solitary peak rising in the centre. Solitary peaks rise from the level plains and cast their long narrow shadows athwart the smooth surface. Vast plains of a dusky tint become visible, not perfectly level, but covered with ripples, pits, and projections. Circular wells, which have no surrounding wall dip below the plain, and are met with even in the interior of the circular mountains and on the tops of their walls. From some of the mountains great streams of a brilliant white radiate in all directions and can be traced for hundreds of miles. We see, again, great fissures, almost perfectly straight and of great length, although very narrow, which appear like the cracks in moist clayey soil when dried by the sun."[14]

But interesting as these views may be, it was not for such discoveries as these that astronomers examined the surface of the moon. The examination of mere peculiarities of physical condition is, after all, but barren labour, if it lead to no discovery of physical variation. The principal charm of astronomy, as indeed of all observational science, lies in the study of change—of progress, development, and decay, and specially of systematic variations taking place in regularly-recurring cycles. And it is in this relation that the moon has been so disappointing an object of astronomical observation. For two 95centuries and a half her face has been scanned with the closest possible scrutiny; her features have been portrayed in elaborate maps; many an astronomer has given a large portion of his life to the work of examining craters, plains, mountains, and valleys, for the signs of change; but until lately no certain evidence—or rather, no evidence save of the most doubtful character—has been afforded that the moon is other than "a dead and useless waste of extinct volcanoes." Whether the examination of the remarkable spot called Linné—where lately signs were supposed to have been seen of a process of volcanic eruption—will prove an exception to this rule, remains to be seen. The evidence seems to me strongly to favour the supposition of a change of some sort having taken place in this neighbourhood.

The sort of scrutiny required for the discovery of changes, or for the determination of their extent, is far too close and laborious to be attractive to the general observer. Yet the kind of observation which avails best for the purpose is perhaps also the most interesting which he can apply to the lunar details. The peculiarities presented by a spot upon the moon are to be observed from hour to hour (or from day to day, according to the size of the spot) as the sun's light gradually sweeps across it, until the spot is fully lighted; then as the moon wanes and the sun's light gradually passes from the spot, the series of observations is to be renewed. A comparison of them is likely—especially if the observer is a good artist and has executed several faithful delineations of the region under observation, to throw much light upon the real contour of the moon's surface at this point.

In the two lunar views in Plate 7 some of the peculiarities I have described are illustrated. But 96the patient observer will easily be able to construct for himself a set of interesting views of different regions.

It may be noticed that for observation of the waning moon there is no occasion to wait for those hours in which only the waning moon is visible during the night. Of course for the observation of a particular region under a particular illumination, the observer has no choice as to hour. But for generally interesting observations of the waning moon he can wait till morning and observe by daylight. The moon is, of course, very easily found by the unaided eye (in the day time) when not very near to the sun; and the methods described in Chapter V. will enable the observer to find the moon when she is so near to the sun as to present the narrowest possible sickle of light.

One of the most interesting features of the moon, when she is observed with a good telescope, is the variety of colour presented by different parts of her surface. We see regions of the purest white—regions which one would be apt to speak of as snow-covered, if one could conceive the possibility that snow should have fallen where (now, at least) there is neither air nor water. Then there are the so-called seas, large grey or neutral-tinted regions, differing from the former not merely in colour and in tone, but in the photographic quality of the light they reflect towards the earth. Some of the seas exhibit a greenish tint, as the Sea of Serenity and the Sea of Humours. Where there is a central mountain within a circular depression, the surrounding plain is generally of a bluish steel-grey colour. There is a region called the Marsh of Sleep, which exhibits a pale red tint, a colour seen also near the Hyrcinian mountains, within a circumvallation called Lichtenburg. The brightest portion of the whole 97lunar disc is Aristarchus, the peaks of which shine often like stars, when the mountain is within the unillumined portion of the moon. The darkest regions are Grimaldi and Endymion and the great plain called Plato by modern astronomers—but, by Hevelius, the Greater Black Lake.

The Sun.—Observation of the sun is perhaps on the whole the most interesting work to which the possessor of a moderately good telescope can apply his instrument. Those wonderful varieties in the appearance of the solar surface which have so long perplexed astronomers, not only supply in themselves interesting subjects of observation and examination, but gain an enhanced meaning from the consideration that they speak meaningly to us of the structure of an orb which is the source of light and heat enjoyed by a series of dependent worlds whereof our earth is—in size at least—a comparatively insignificant member. Swayed by the attraction of this giant globe, Jupiter and Saturn, Uranus and Neptune, as well as the four minor planets, and the host of asteroids, sweep continuously in their appointed orbits, in ever new but ever safe and orderly relations amongst each other. If the sun's light and heat were lost, all life and work among the denizens of these orbs would at once cease; if his attractive energy were destroyed, these orbs would cease to form a system.

The sun may be observed conveniently in many ways, some more suited to the general observer who has not time or opportunity for systematic observation; others more instructive, though involving more of preparation and arrangement.

The simplest method of observing the sun is to use the telescope in the ordinary manner, protecting the eye by means of dark-green or neutral-tinted glasses. Some of the most interesting views 98I have ever obtained of the sun, have resulted from the use of the ordinary terrestrial or erecting eye-piece, capped with a dark glass. The magnifying power of such an eye-piece is, in general, much lower than that available with astronomical eye-pieces. But vision is very pleasant and distinct when the sun is thus observed, and a patient scrutiny reveals almost every feature which the highest astronomical power applicable could exhibit. Then, owing to the greater number of intervening lenses, there is not the same necessity for great darkness or thickness in the coloured glass, so that the colours of the solar features are seen much more satisfactorily than when astronomical eye-pieces are employed.

In using astronomical eye-pieces it is convenient to have a rotating wheel attached, by which darkening glasses of different power may be brought into use as the varying illumination may require.

Those who wish to observe carefully and closely a minute portion of the solar disc, should employ Dawes' eye-piece: in this a metallic screen placed in the focus keeps away all light but such as passes through a minute hole in the diaphragm.

Another convenient method of diminishing the light is to use a glass prism, light being partially reflected from one of the exterior surfaces, while the refracted portion is thrown out at another.

Very beautiful and interesting views may be obtained by using such a pyramidal box as is depicted in fig. 11.

Figure 11
Fig. 11.

This box should be made of black cloth or calico fastened over a light framework of wire or cane. The base of the pyramid should be covered on the inside with a sheet of white glazed paper, or with some other uniform white surface. Captain Noble, I believe, makes use of a surface of plaster of Paris, 99smoothed while wet with plate-glass. The door b c enables the observer to "change power" without removing the box, while larger doors, d e and g f, enable him to examine the image; a dark cloth, such as photographers use, being employed, if necessary, to keep out extraneous light. The image may also be examined from without, if the bottom of the pyramid be formed of a sheet of cut-glass or oiled tissue-paper.

When making use of the method just described, it is very necessary that the telescope-tube should be well balanced. A method by which this may be conveniently accomplished has been already described in Chapter I.

But, undoubtedly, for the possessor of a moderately good telescope there is no way of viewing the sun's features comparable to that now to be described, which has been systematically and successfully applied for a long series of years by the Rev. F. Howlett. To use his own words: "Any one possessing a good achromatic of not more than three inches' aperture, who has a little dexterity with his pencil, and a little time at his disposal (all the better if it be at a somewhat early hour of the morning)" may by this method "deliberately and satisfactorily view, measure, and (if skill suffice) 100delineate most of those interesting and grand solar phenomena of which he may have read, or which he may have seen depicted, in various works on physical astronomy."[15]

The method in question depends on the same property which is involved in the use of the pyramidal box just described, supplemented (where exact and systematic observation is required) by the fact that objects lying on or between the lenses of the eye-piece are to be seen faithfully projected on the white surface on which the sun's image is received. In place, however, of a box carried upon the telescope-tube, a darkened room (or true camera obscura) contains the receiving sheet.

A chamber is to be selected, having a window looking towards the south—a little easterly, if possible, so as to admit of morning observation. All windows are to be completely darkened save one, through which the telescope is directed towards the sun. An arrangement is to be adopted for preventing all light from entering by this window except such light as passes down the tube of the telescope. This can readily be managed with a little ingenuity. Mr. Howlett describes an excellent method. The following, perhaps, will sufficiently serve the purposes of the general observer:—A plain frame (portable) is to be constructed to fit into the window: to the four sides of this frame triangular pieces of cloth (impervious to light) are to be attached, their shape being such that when their adjacent edges are sewn together and the flaps stretched out, they form a rectangular pyramid of which the frame is the base. Through the vertex of this pyramid (near 101which, of course, the cloth flaps are not sewn together) the telescope tube is to be passed, and an elastic cord so placed round the ends of the flaps as to prevent any light from penetrating between them and the telescope. It will now be possible, without disturbing the screen (fixed in the window), to move the telescope so as to follow the sun during the time of observation. And the same arrangement will serve for all seasons, if so managed that the elastic cord is not far from the middle of the telescope-tube; for in this case the range of motion is small compared to the range of the tube's extremity.

A large screen of good drawing-paper should next be prepared. This should be stretched on a light frame of wood, and placed on an easel, the legs of which should be furnished with holes and pegs that the screen may be set at any required height, and be brought square to the tube's axis. A large T-square of light wood will be useful to enable the observer to judge whether the screen is properly situated in the last respect.

We wish now to direct the tube towards the sun, and this "without dazzling the eyes as by the ordinary method." This may be done in two ways. We may either, before commencing work—that is, before fastening our elastic cord so as to exclude all light—direct the tube so that its shadow shall be a perfect circle (when of course it is truly directed), then fasten the cord and afterwards we can easily keep the sun in the field by slightly shifting the tube as occasion requires. Or (if the elastic cord has already been fastened) we may remove the eye-tube and shift the telescope-tube about—the direction in which the sun lies being roughly known—until we see the spot of light received down the telescope's axis grow brighter and brighter and finally become 102a spot of sun-light. If a card be held near the focus of the telescope there will be seen in fact an image of the sun. The telescope being now properly directed, the eye-tube may be slipped in again, and the sun may be kept in the field as before.

There will now be seen upon the screen a picture of the sun very brilliant and pleasing, but perhaps a little out of focus. The focusing should therefore next be attended to, the increase of clearness in the image being the test of approach to the true focus. And again, it will be well to try the effect of slight changes of distance between the screen and the telescope's eye-piece. Mr. Howlett considers one yard as a convenient distance for producing an excellent effect with almost any eye-piece that the state of the atmosphere will admit of. Of course, the image becomes more sharply defined if we bring the screen nearer to the telescope, while all the details are enlarged when we move the screen away. The enlargement has no limits save those depending on the amount of light in the image. But, of course, the observer must not expect enlargement to bring with it a view of new details, after a certain magnitude of image has been attained. Still there is something instructive, I think, in occasionally getting a very magnified view of some remarkable spot. I have often looked with enhanced feelings of awe and wonder on the gigantic image of a solar spot thrown by means of the diagonal eye-piece upon the ceiling of the observing-room. Blurred and indistinct through over-magnifying, yet with a new meaning to me, there the vast abysm lies pictured; vague imaginings of the vast and incomprehensible agencies at work in the great centre of our system crowd unbidden into my mind; and I seem to feel—not merely think about—the stupendous grandeur of that life-emitting orb.

103To return, however, to observation:—By slightly shifting the tube, different parts of the solar disc can be brought successively upon the screen and scrutinized as readily as if they were drawn upon a chart. "With a power of—say about 60 or 80 linear—the most minute solar spot, properly so called, that is capable of formation" (Mr. Howlett believes "they are never less than three seconds in length or breadth) will be more readily detected than by any other method," see Plate 7; "as also will any faculæ, mottling, or in short, any other phenomena that may then be existing on the disc." "Drifting clouds frequently sweep by, to vary the scene, and occasionally an aërial hail- or snow-storm." Mr. Howlett has more than once seen a distant flight of rooks pass slowly across the disc with wonderful distinctness, when the sun has been at a low altitude, and likewise, much more frequently, the rapid dash of starlings, which, very much closer at hand, frequent his church-tower."

An eclipse of the sun, or a transit of an inferior planet, is also much better seen in this way than by any other method of observing the solar disc. In Plate 7 are presented several solar spots as they have appeared to Mr. Howlett, with an instrument of moderate power. The grotesque forms of some of these are remarkable; and the variations the spots undergo from day to day are particularly interesting to the thoughtful observer.

A method of measuring the spots may now be described. It is not likely indeed that the ordinary observer will care to enter upon any systematic series of measurements. But even in his case, the means of forming a general comparison between the spots he sees at different times cannot fail to be valuable. Also the knowledge—which a simple method of measurement supplies—of the actual di104mensions of a spot in miles (roughly) is calculated to enhance our estimate of the importance of these features of the solar disc. I give Mr. Howlett's method in his own words:—

"Cause your optician to rule for you on a circular piece of glass a number of fine graduations, the 200th part of an inch apart, each fifth and tenth line being of a different length in order to assist the eye in their enumeration. Insert this between the anterior and posterior lenses of a Huygenian eye-piece of moderate power, say 80 linear. Direct your telescope upon the sun, and having so arranged it that the whole disc of the sun may be projected on the screen, count carefully the number of graduations that are seen to exactly occupy the solar diameter.... It matters not in which direction you measure your diameter, provided only the sun has risen some 18° or 20° above the horizon, and so escaped the distortion occasioned by refraction.[16]

"Next let us suppose that our observer has been observing the sun on any day of the year, say, if you choose, at the time of its mean apparent diameter, namely about the first of April or first of October, and has ascertained that" (as is the case with Mr. Howlett's instrument) "sixty-four graduations occupy the diameter of the projected image. Now the semi-diameter of the sun, at the epochs above mentioned, according to the tables given for every day of the year in the 'Nautical Almanac' 105(the same as in Dietrichsen and Hannay's very useful compilation) is 16' 2", and consequently his mean total diameter is 32' 4" or 1924". If now we divide 1924" by 64" this will, of course, award as nearly as possible 30" as the value in celestial arc of each graduation, either as seen on the screen, or as applied directly to the sun or any heavenly body large enough to be measured by it."

Since the sun's diameter is about 850,000 miles, each graduation (in the case above specified) corresponds to one-64th part of 850,000 miles—that is, to a length of 13,256 miles on the sun's surface. Any other case can be treated in precisely the same manner.

It will be found easy so to place the screen that the distance between successive graduations (as seen projected upon the screen) may correspond to any desired unit of linear measurement—say an inch. Then if the observer use transparent tracing-paper ruled with faint lines forming squares half-an-inch in size, he can comfortably copy directly from the screen any solar phenomena he may be struck with. A variety of methods of drawing will suggest themselves. Mr. Howlett, in the paper I have quoted from above, describes a very satisfactory method, which those who are anxious to devote themselves seriously to solar observation will do well to study.

It is necessary that the observer should be able to determine approximately where the sun's equator is situated at the time of any observation, in order that he may assign to any spot or set of spots its true position in relation to solar longitude and latitude. Mr. Howlett shows how this may be done by three observations of the sun made at any fixed hour on successive days. Perhaps the following method will serve the purpose of the general observer sufficiently well:—

106The hour at which the sun crosses the meridian must be taken for the special observation now to be described. This hour can always be learnt from 'Dietrichsen's Almanac'; but noon, civil time, is near enough for practical purposes. Now it is necessary first to know the position of the ecliptic with reference to the celestial equator. Of course, at noon a horizontal line across the sun's disc is parallel to the equator, but the position of that diameter of the sun which coincides with the ecliptic is not constant: at the summer and winter solstices this diameter coincides with the other, or is horizontal at noon; at the spring equinox the sun (which travels on the ecliptic) is passing towards the north of the equator, crossing that curve at an angle of 23½°, so that the ecliptic coincides with that diameter of the sun which cuts the horizontal one at an angle of 23½° and has its left end above the horizontal diameter; and at the autumn equinox the sun is descending and the same description applies, only that the diameter (inclined 23½° to the horizon) which has its right end uppermost, now represents the ecliptic. For intermediate dates, use the following little table:—

Date. (Circiter.)Dec. 22Jan. 5Jan. 20Feb. 4Feb. 19Mar. 5
 June 6May 21May 5Apr. 20Apr. 5Mar. 21
Inclination of Ecliptical Diameter of Sun to the Horizon.[17] LeftLeftLeftLeftLeftLeftLeft
0° 0'6° 24'12° 14'17° 3'20° 36'22° 44'23° 27'
RightRightRightRightRightRightRight
Date. (Circiter.)Jan. 21Dec. 7Nov. 22Nov. 7Oct. 23Oct. 8
 July 7July 23Aug. 6Aug. 23Sept. 7Sept. 23

107Now if our observer describe a circle, and draw a diameter inclined according to above table, this diameter would represent the sun's equator if the axis of the sun were square to the ecliptic-plane. But this axis is slightly inclined, the effect of which is, that on or about June 10 the sun is situated as shown in fig. 14 with respect to the ecliptic ab; on or about September 11 he is situated as shown in fig. 13; on or about December 11 as shown in fig. 12; and on or about March 10 as shown in fig. 15. The inclination of his equator to the ecliptic being so small, the student can find little difficulty in determining with sufficient approximation the relation of the sun's 108polar axis to the ecliptic on intermediate days, since the equator is never more inclined than in figs. 12 and 14, never more opened out than in figs. 13 and 15. Having then drawn a line to represent the sun's ecliptical diameter inclined to the horizontal diameter as above described, and having (with this line to correspond to ab in figs. 12-15) drawn in the sun's equator suitably inclined and opened out, he has the sun's actual presentation (at noon) as seen with an erecting eye-piece. Holding his picture upside down, he has the sun's presentation as seen with an astronomical eye-piece—and, finally, looking at his picture from behind (without inverting it), he has the presentation seen when the sun is projected on the screen. Hence, if he make a copy of this last view of his diagram upon the centre of his screen, and using a low power, bring the whole of the sun's image to coincide with the circle thus drawn (to a suitable scale) on the screen, he will at once see what is the true position of the different sun-spots. After a little practice the construction of a suitably sized and marked circle on the screen will not occupy more than a minute or two.

Fig. 12. Fig. 13.
Figure 12 Figure 13
Figure 14 Figure 15
Fig. 14. Fig. 15.

It must be noticed that the sun's apparent diameter is not always the same. He is nearer to us in winter than in summer, and, of course, his apparent diameter is greater at the former than at the latter season. The variation of the apparent diameter corresponds (inversely) to the variation of distance. As the sun's greatest distance from the earth is 93,000,000 miles (pretty nearly) and his least 90,000,000, his greatest, mean, and least apparent diameters are as 93, 91½, and 90 respectively; that is, as 62, 61, and 60 respectively.

Mr. Howlett considers that with a good 3-inch telescope, applied in the manner we have described, all the solar features may be seen, except the sepa109rate granules disclosed by first-class instruments in the hands of such observers as Dawes, Huggins, or Secchi. Faculæ may, of course, be well seen. They are to be looked for near spots which lie close to the sun's limb.

When the sun's general surface is carefully scrutinised, it is found to present a mottled appearance. This is a somewhat delicate feature. It results, undoubtedly, from the combined effect of the granules separately seen in powerful instruments. Sir John Herschel has stated that he cannot recognise the marbled appearance of the sun with an achromatic. Mr. Webb, however, has seen this appearance with such a telescope, of moderate power, used with direct vision; and certainly I can corroborate Mr. Howlett in the statement that this appearance may be most distinctly seen when the image of the sun is received within a well-darkened room.

My space will not permit me to enter here upon the discussion of any of those interesting speculations which have been broached concerning solar phenomena. We may hope that the great eclipse of August, 1868, which promises to be the most favourable (for effective observation) that has ever taken place, will afford astronomers the opportunity of resolving some important questions. It seems as if we were on the verge of great discoveries,—and certainly, if persevering and well-directed labour would seem in any case to render such discoveries due as man's just reward, we may well say that he deserves shortly to reap a harvest of exact knowledge respecting solar phenomena.


THE END.

110

FOOTNOTES:

[1] Such a telescope is most powerful with the shortest sight. It may be remarked that the use of a telescope often reveals a difference in the sight of the two eyes. In my own case, for instance, I have found that the left eye is very short-sighted, the sight of the right eye being of about the average range. Accordingly with my left eye a 5½-foot object-glass, alone, forms an effective telescope, with which I can see Jupiter's moons quite distinctly, and under favourable circumstances even Saturn's rings. I find that the full moon is too bright to be observed in this way without pain, except at low altitudes.
[2] Betelgeuse—commonly interpreted the Giant's Shoulder—ibt-al-jauza. The words, however, really signify, "the armpit of the central one," Orion being so named because he is divided centrally by the equator.
[3] I have never been able to see more than four with a 3¾-inch aperture. I give a view of the trapezium as seen with an 8-inch equatorial.
[4] Sir W. Herschel several times saw ε Lyræ as a double. Bessel also relates that when he was a lad of thirteen he could see this star double. I think persons having average eye-sight could see it double if they selected a suitable hour for observation. My own eye-sight is not good enough for this, but I can distinctly see this star wedged whenever the line joining the components is inclined about 45° to the horizon, and also when Lyra is near the zenith.
[5] They were so described by Admiral Smyth in 1839. Mr. Main, in 1862, describes them as straw-coloured and reddish, while Mr. Webb, in 1865, saw them pale-yellow and lilac!
[6] Or the observer may sweep from ο towards ν, looking for R about two-fifths of the way from ο to ν.
[7] Here a single period only is taken, to get back to a convenient hour of the evening.
[8] Here a single period only is taken, to get back to a convenient hour of the evening.
[9] I have constructed a zodiac-chart, which will enable the student to mark in the path of a planet, at any season of the year, from the recorded places in the almanacs.
[10] It is convenient to remember that through precession a star near the ecliptic shifts as respects the R.A. and Dec. lines, through an arc of one degree—or nearly twice the moon's diameter—in about 72 years, all other stars through a less arc.
[11] Mercury is best seen when in quadrature to the sun, but not (as I have seen stated) at those quadratures in which he attains his maximum elongation from the sun. This will appear singular, because the maximum elongation is about 27°, the minimum only about 18°. But it happens that in our northern latitudes Mercury is always south of the sun when he attains his maximum elongation, and this fact exercises a more important effect than the mere amount of elongation.
[12] It does not seem to me that the difficulty of detecting Mercury is due to the difficulty "of identifying it amongst the surrounding stars, during the short time that it can be seen" (Hind's 'Introduction to Astronomy'). There are few stars which are comparable with Mercury in brilliancy, when seen under the same light.
[13] I may notice another error sometimes made. It is said that the shadow of a satellite appears elliptical when near the edge of the disc. The shadow is in reality elliptical when thus situated, but appears circular. A moment's consideration will show that this should be so. The part of the disc concealed by a satellite near the limb is also elliptical, but of course appears round.
[14] From a paper by Mr. Breen, in the 'Popular Science Review,' October, 1864.
[15] 'Intellectual Observer' for July, 1867, to which magazine the reader is referred for full details of Mr. Howlett's method of observation, and for illustrations of the appliances he made use of, and of some of his results.
[16] As the sun does not attain such an altitude as 18° during two months in the year, it is well to notice that the true length of the sun's apparent solar diameter is determinable even immediately after sun-rise, if the line of graduation is made to coincide with the horizontal diameter of the picture on the screen—for refraction does not affect the length of this diameter.
[17] The words "Left" and "Right" indicate which end of the sun's ecliptical diameter is uppermost at the dates in upper or lower row respectively.

LONDON:

PRINTED BY W. CLOWES AND SONS, DUKE STREET, STAMFORD STREET, AND CHARING CROSS.

Back Cover





End of the Project Gutenberg EBook of Half-hours with the Telescope
by Richard A. Proctor

*** END OF THIS PROJECT GUTENBERG EBOOK HALF-HOURS WITH THE TELESCOPE ***

***** This file should be named 16767-h.htm or 16767-h.zip *****
This and all associated files of various formats will be found in:
        https://www.gutenberg.org/1/6/7/6/16767/

Produced by Jason Isbell and the Online Distributed
Proofreading Team at https://www.pgdp.net


Updated editions will replace the previous one--the old editions
will be renamed.

Creating the works from public domain print editions means that no
one owns a United States copyright in these works, so the Foundation
(and you!) can copy and distribute it in the United States without
permission and without paying copyright royalties.  Special rules,
set forth in the General Terms of Use part of this license, apply to
copying and distributing Project Gutenberg-tm electronic works to
protect the PROJECT GUTENBERG-tm concept and trademark.  Project
Gutenberg is a registered trademark, and may not be used if you
charge for the eBooks, unless you receive specific permission.  If you
do not charge anything for copies of this eBook, complying with the
rules is very easy.  You may use this eBook for nearly any purpose
such as creation of derivative works, reports, performances and
research.  They may be modified and printed and given away--you may do
practically ANYTHING with public domain eBooks.  Redistribution is
subject to the trademark license, especially commercial
redistribution.



*** START: FULL LICENSE ***

THE FULL PROJECT GUTENBERG LICENSE
PLEASE READ THIS BEFORE YOU DISTRIBUTE OR USE THIS WORK

To protect the Project Gutenberg-tm mission of promoting the free
distribution of electronic works, by using or distributing this work
(or any other work associated in any way with the phrase "Project
Gutenberg"), you agree to comply with all the terms of the Full Project
Gutenberg-tm License (available with this file or online at
https://gutenberg.org/license).


Section 1.  General Terms of Use and Redistributing Project Gutenberg-tm
electronic works

1.A.  By reading or using any part of this Project Gutenberg-tm
electronic work, you indicate that you have read, understand, agree to
and accept all the terms of this license and intellectual property
(trademark/copyright) agreement.  If you do not agree to abide by all
the terms of this agreement, you must cease using and return or destroy
all copies of Project Gutenberg-tm electronic works in your possession.
If you paid a fee for obtaining a copy of or access to a Project
Gutenberg-tm electronic work and you do not agree to be bound by the
terms of this agreement, you may obtain a refund from the person or
entity to whom you paid the fee as set forth in paragraph 1.E.8.

1.B.  "Project Gutenberg" is a registered trademark.  It may only be
used on or associated in any way with an electronic work by people who
agree to be bound by the terms of this agreement.  There are a few
things that you can do with most Project Gutenberg-tm electronic works
even without complying with the full terms of this agreement.  See
paragraph 1.C below.  There are a lot of things you can do with Project
Gutenberg-tm electronic works if you follow the terms of this agreement
and help preserve free future access to Project Gutenberg-tm electronic
works.  See paragraph 1.E below.

1.C.  The Project Gutenberg Literary Archive Foundation ("the Foundation"
or PGLAF), owns a compilation copyright in the collection of Project
Gutenberg-tm electronic works.  Nearly all the individual works in the
collection are in the public domain in the United States.  If an
individual work is in the public domain in the United States and you are
located in the United States, we do not claim a right to prevent you from
copying, distributing, performing, displaying or creating derivative
works based on the work as long as all references to Project Gutenberg
are removed.  Of course, we hope that you will support the Project
Gutenberg-tm mission of promoting free access to electronic works by
freely sharing Project Gutenberg-tm works in compliance with the terms of
this agreement for keeping the Project Gutenberg-tm name associated with
the work.  You can easily comply with the terms of this agreement by
keeping this work in the same format with its attached full Project
Gutenberg-tm License when you share it without charge with others.

1.D.  The copyright laws of the place where you are located also govern
what you can do with this work.  Copyright laws in most countries are in
a constant state of change.  If you are outside the United States, check
the laws of your country in addition to the terms of this agreement
before downloading, copying, displaying, performing, distributing or
creating derivative works based on this work or any other Project
Gutenberg-tm work.  The Foundation makes no representations concerning
the copyright status of any work in any country outside the United
States.

1.E.  Unless you have removed all references to Project Gutenberg:

1.E.1.  The following sentence, with active links to, or other immediate
access to, the full Project Gutenberg-tm License must appear prominently
whenever any copy of a Project Gutenberg-tm work (any work on which the
phrase "Project Gutenberg" appears, or with which the phrase "Project
Gutenberg" is associated) is accessed, displayed, performed, viewed,
copied or distributed:

This eBook is for the use of anyone anywhere at no cost and with
almost no restrictions whatsoever.  You may copy it, give it away or
re-use it under the terms of the Project Gutenberg License included
with this eBook or online at www.gutenberg.org

1.E.2.  If an individual Project Gutenberg-tm electronic work is derived
from the public domain (does not contain a notice indicating that it is
posted with permission of the copyright holder), the work can be copied
and distributed to anyone in the United States without paying any fees
or charges.  If you are redistributing or providing access to a work
with the phrase "Project Gutenberg" associated with or appearing on the
work, you must comply either with the requirements of paragraphs 1.E.1
through 1.E.7 or obtain permission for the use of the work and the
Project Gutenberg-tm trademark as set forth in paragraphs 1.E.8 or
1.E.9.

1.E.3.  If an individual Project Gutenberg-tm electronic work is posted
with the permission of the copyright holder, your use and distribution
must comply with both paragraphs 1.E.1 through 1.E.7 and any additional
terms imposed by the copyright holder.  Additional terms will be linked
to the Project Gutenberg-tm License for all works posted with the
permission of the copyright holder found at the beginning of this work.

1.E.4.  Do not unlink or detach or remove the full Project Gutenberg-tm
License terms from this work, or any files containing a part of this
work or any other work associated with Project Gutenberg-tm.

1.E.5.  Do not copy, display, perform, distribute or redistribute this
electronic work, or any part of this electronic work, without
prominently displaying the sentence set forth in paragraph 1.E.1 with
active links or immediate access to the full terms of the Project
Gutenberg-tm License.

1.E.6.  You may convert to and distribute this work in any binary,
compressed, marked up, nonproprietary or proprietary form, including any
word processing or hypertext form.  However, if you provide access to or
distribute copies of a Project Gutenberg-tm work in a format other than
"Plain Vanilla ASCII" or other format used in the official version
posted on the official Project Gutenberg-tm web site (www.gutenberg.org),
you must, at no additional cost, fee or expense to the user, provide a
copy, a means of exporting a copy, or a means of obtaining a copy upon
request, of the work in its original "Plain Vanilla ASCII" or other
form.  Any alternate format must include the full Project Gutenberg-tm
License as specified in paragraph 1.E.1.

1.E.7.  Do not charge a fee for access to, viewing, displaying,
performing, copying or distributing any Project Gutenberg-tm works
unless you comply with paragraph 1.E.8 or 1.E.9.

1.E.8.  You may charge a reasonable fee for copies of or providing
access to or distributing Project Gutenberg-tm electronic works provided
that

- You pay a royalty fee of 20% of the gross profits you derive from
     the use of Project Gutenberg-tm works calculated using the method
     you already use to calculate your applicable taxes.  The fee is
     owed to the owner of the Project Gutenberg-tm trademark, but he
     has agreed to donate royalties under this paragraph to the
     Project Gutenberg Literary Archive Foundation.  Royalty payments
     must be paid within 60 days following each date on which you
     prepare (or are legally required to prepare) your periodic tax
     returns.  Royalty payments should be clearly marked as such and
     sent to the Project Gutenberg Literary Archive Foundation at the
     address specified in Section 4, "Information about donations to
     the Project Gutenberg Literary Archive Foundation."

- You provide a full refund of any money paid by a user who notifies
     you in writing (or by e-mail) within 30 days of receipt that s/he
     does not agree to the terms of the full Project Gutenberg-tm
     License.  You must require such a user to return or
     destroy all copies of the works possessed in a physical medium
     and discontinue all use of and all access to other copies of
     Project Gutenberg-tm works.

- You provide, in accordance with paragraph 1.F.3, a full refund of any
     money paid for a work or a replacement copy, if a defect in the
     electronic work is discovered and reported to you within 90 days
     of receipt of the work.

- You comply with all other terms of this agreement for free
     distribution of Project Gutenberg-tm works.

1.E.9.  If you wish to charge a fee or distribute a Project Gutenberg-tm
electronic work or group of works on different terms than are set
forth in this agreement, you must obtain permission in writing from
both the Project Gutenberg Literary Archive Foundation and Michael
Hart, the owner of the Project Gutenberg-tm trademark.  Contact the
Foundation as set forth in Section 3 below.

1.F.

1.F.1.  Project Gutenberg volunteers and employees expend considerable
effort to identify, do copyright research on, transcribe and proofread
public domain works in creating the Project Gutenberg-tm
collection.  Despite these efforts, Project Gutenberg-tm electronic
works, and the medium on which they may be stored, may contain
"Defects," such as, but not limited to, incomplete, inaccurate or
corrupt data, transcription errors, a copyright or other intellectual
property infringement, a defective or damaged disk or other medium, a
computer virus, or computer codes that damage or cannot be read by
your equipment.

1.F.2.  LIMITED WARRANTY, DISCLAIMER OF DAMAGES - Except for the "Right
of Replacement or Refund" described in paragraph 1.F.3, the Project
Gutenberg Literary Archive Foundation, the owner of the Project
Gutenberg-tm trademark, and any other party distributing a Project
Gutenberg-tm electronic work under this agreement, disclaim all
liability to you for damages, costs and expenses, including legal
fees.  YOU AGREE THAT YOU HAVE NO REMEDIES FOR NEGLIGENCE, STRICT
LIABILITY, BREACH OF WARRANTY OR BREACH OF CONTRACT EXCEPT THOSE
PROVIDED IN PARAGRAPH F3.  YOU AGREE THAT THE FOUNDATION, THE
TRADEMARK OWNER, AND ANY DISTRIBUTOR UNDER THIS AGREEMENT WILL NOT BE
LIABLE TO YOU FOR ACTUAL, DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE OR
INCIDENTAL DAMAGES EVEN IF YOU GIVE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGE.

1.F.3.  LIMITED RIGHT OF REPLACEMENT OR REFUND - If you discover a
defect in this electronic work within 90 days of receiving it, you can
receive a refund of the money (if any) you paid for it by sending a
written explanation to the person you received the work from.  If you
received the work on a physical medium, you must return the medium with
your written explanation.  The person or entity that provided you with
the defective work may elect to provide a replacement copy in lieu of a
refund.  If you received the work electronically, the person or entity
providing it to you may choose to give you a second opportunity to
receive the work electronically in lieu of a refund.  If the second copy
is also defective, you may demand a refund in writing without further
opportunities to fix the problem.

1.F.4.  Except for the limited right of replacement or refund set forth
in paragraph 1.F.3, this work is provided to you 'AS-IS' WITH NO OTHER
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
WARRANTIES OF MERCHANTIBILITY OR FITNESS FOR ANY PURPOSE.

1.F.5.  Some states do not allow disclaimers of certain implied
warranties or the exclusion or limitation of certain types of damages.
If any disclaimer or limitation set forth in this agreement violates the
law of the state applicable to this agreement, the agreement shall be
interpreted to make the maximum disclaimer or limitation permitted by
the applicable state law.  The invalidity or unenforceability of any
provision of this agreement shall not void the remaining provisions.

1.F.6.  INDEMNITY - You agree to indemnify and hold the Foundation, the
trademark owner, any agent or employee of the Foundation, anyone
providing copies of Project Gutenberg-tm electronic works in accordance
with this agreement, and any volunteers associated with the production,
promotion and distribution of Project Gutenberg-tm electronic works,
harmless from all liability, costs and expenses, including legal fees,
that arise directly or indirectly from any of the following which you do
or cause to occur: (a) distribution of this or any Project Gutenberg-tm
work, (b) alteration, modification, or additions or deletions to any
Project Gutenberg-tm work, and (c) any Defect you cause.


Section  2.  Information about the Mission of Project Gutenberg-tm

Project Gutenberg-tm is synonymous with the free distribution of
electronic works in formats readable by the widest variety of computers
including obsolete, old, middle-aged and new computers.  It exists
because of the efforts of hundreds of volunteers and donations from
people in all walks of life.

Volunteers and financial support to provide volunteers with the
assistance they need, is critical to reaching Project Gutenberg-tm's
goals and ensuring that the Project Gutenberg-tm collection will
remain freely available for generations to come.  In 2001, the Project
Gutenberg Literary Archive Foundation was created to provide a secure
and permanent future for Project Gutenberg-tm and future generations.
To learn more about the Project Gutenberg Literary Archive Foundation
and how your efforts and donations can help, see Sections 3 and 4
and the Foundation web page at https://www.pglaf.org.


Section 3.  Information about the Project Gutenberg Literary Archive
Foundation

The Project Gutenberg Literary Archive Foundation is a non profit
501(c)(3) educational corporation organized under the laws of the
state of Mississippi and granted tax exempt status by the Internal
Revenue Service.  The Foundation's EIN or federal tax identification
number is 64-6221541.  Its 501(c)(3) letter is posted at
https://pglaf.org/fundraising.  Contributions to the Project Gutenberg
Literary Archive Foundation are tax deductible to the full extent
permitted by U.S. federal laws and your state's laws.

The Foundation's principal office is located at 4557 Melan Dr. S.
Fairbanks, AK, 99712., but its volunteers and employees are scattered
throughout numerous locations.  Its business office is located at
809 North 1500 West, Salt Lake City, UT 84116, (801) 596-1887, email
business@pglaf.org.  Email contact links and up to date contact
information can be found at the Foundation's web site and official
page at https://pglaf.org

For additional contact information:
     Dr. Gregory B. Newby
     Chief Executive and Director
     gbnewby@pglaf.org


Section 4.  Information about Donations to the Project Gutenberg
Literary Archive Foundation

Project Gutenberg-tm depends upon and cannot survive without wide
spread public support and donations to carry out its mission of
increasing the number of public domain and licensed works that can be
freely distributed in machine readable form accessible by the widest
array of equipment including outdated equipment.  Many small donations
($1 to $5,000) are particularly important to maintaining tax exempt
status with the IRS.

The Foundation is committed to complying with the laws regulating
charities and charitable donations in all 50 states of the United
States.  Compliance requirements are not uniform and it takes a
considerable effort, much paperwork and many fees to meet and keep up
with these requirements.  We do not solicit donations in locations
where we have not received written confirmation of compliance.  To
SEND DONATIONS or determine the status of compliance for any
particular state visit https://pglaf.org

While we cannot and do not solicit contributions from states where we
have not met the solicitation requirements, we know of no prohibition
against accepting unsolicited donations from donors in such states who
approach us with offers to donate.

International donations are gratefully accepted, but we cannot make
any statements concerning tax treatment of donations received from
outside the United States.  U.S. laws alone swamp our small staff.

Please check the Project Gutenberg Web pages for current donation
methods and addresses.  Donations are accepted in a number of other
ways including including checks, online payments and credit card
donations.  To donate, please visit: https://pglaf.org/donate


Section 5.  General Information About Project Gutenberg-tm electronic
works.

Professor Michael S. Hart was the originator of the Project Gutenberg-tm
concept of a library of electronic works that could be freely shared
with anyone.  For thirty years, he produced and distributed Project
Gutenberg-tm eBooks with only a loose network of volunteer support.


Project Gutenberg-tm eBooks are often created from several printed
editions, all of which are confirmed as Public Domain in the U.S.
unless a copyright notice is included.  Thus, we do not necessarily
keep eBooks in compliance with any particular paper edition.


Most people start at our Web site which has the main PG search facility:

     https://www.gutenberg.org

This Web site includes information about Project Gutenberg-tm,
including how to make donations to the Project Gutenberg Literary
Archive Foundation, how to help produce our new eBooks, and how to
subscribe to our email newsletter to hear about new eBooks.
